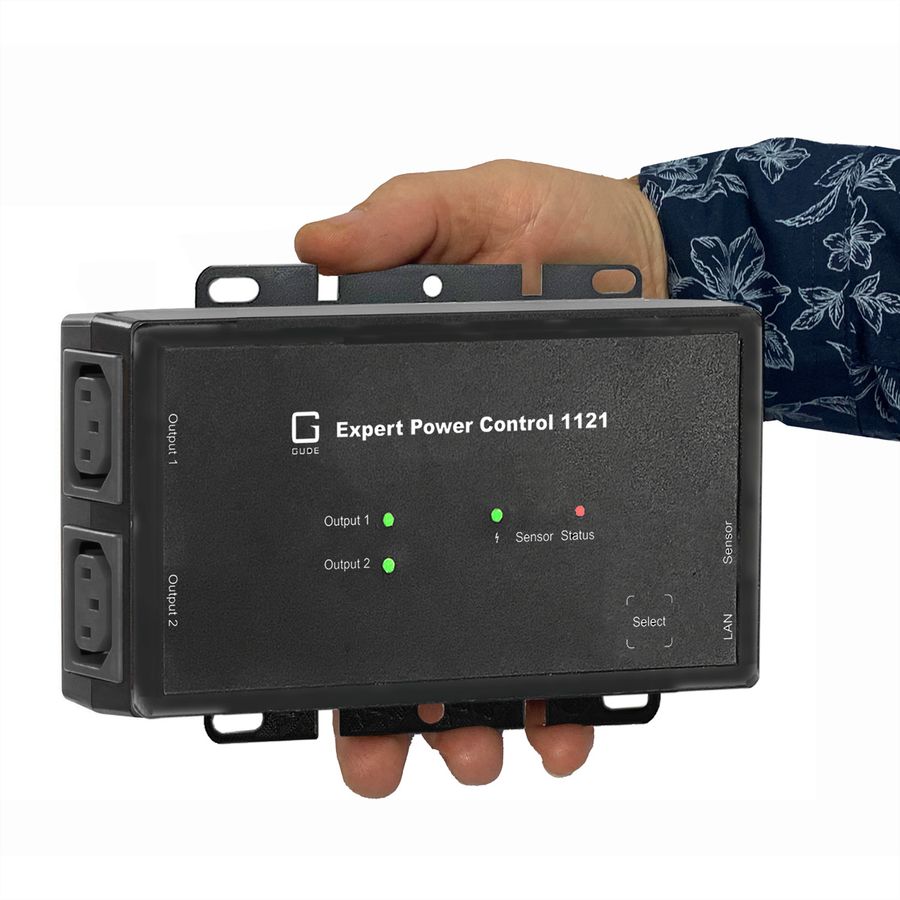

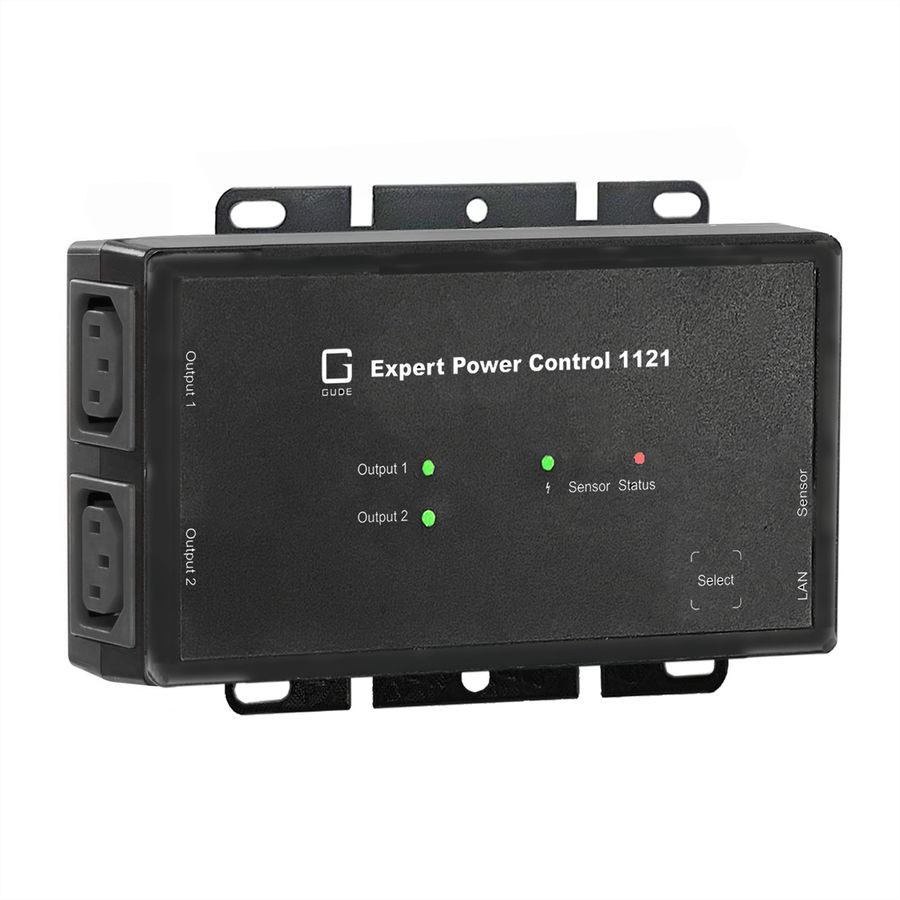

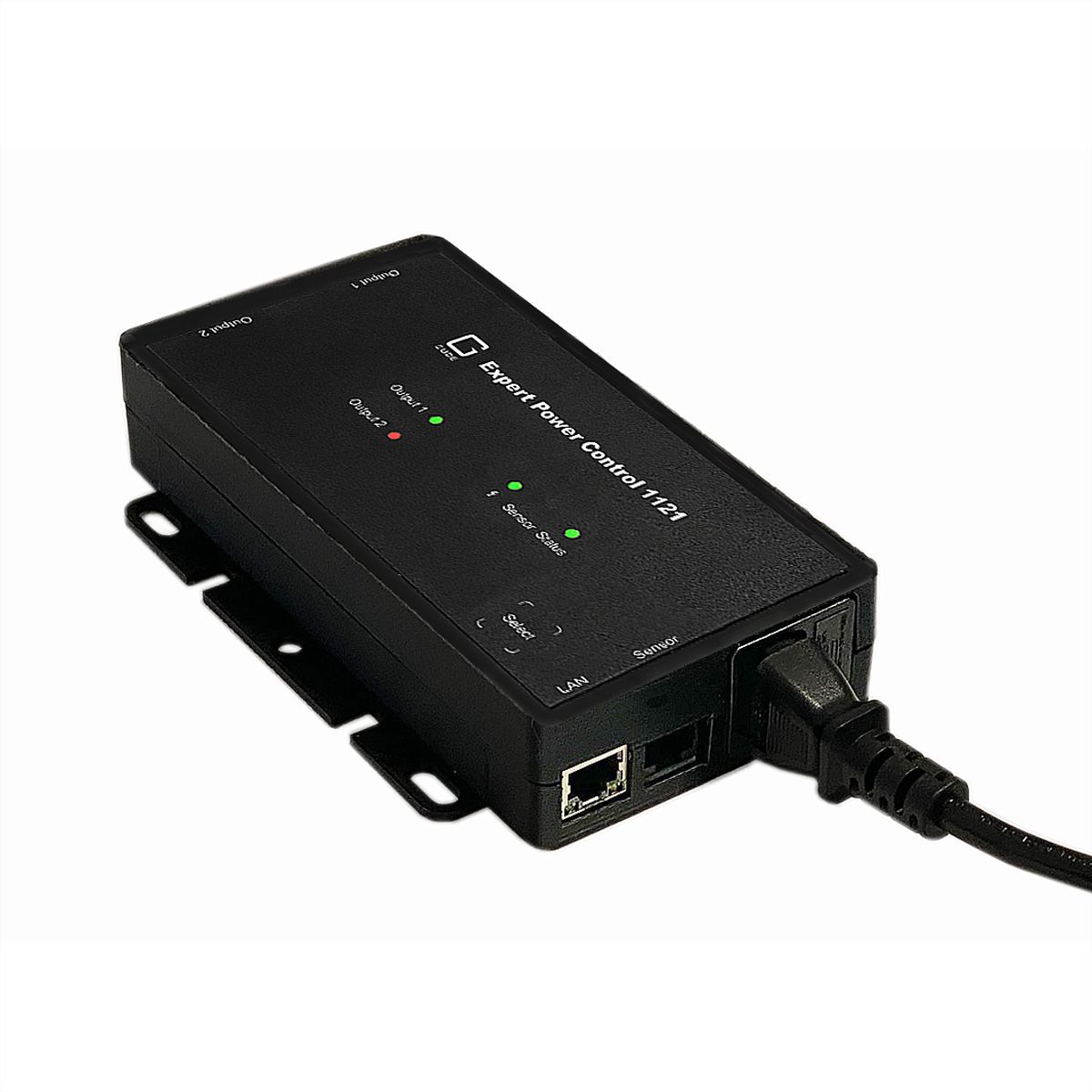

GUDE 1121-1 Small 2-fold switched and metered PDU

GUDE 1121-1 Small 2-fold switched and metered PDU

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 06/17/2024
Item no. 19072425
Brand / Manufacturer Gude
Manuf. item no. 1121-1
EAN 4250493101678
Item weight 0.7 kg
Gude

Description

Expert Power Control 1121-1 for more operational security and energy efficiency in small installations

  • Demonstrably fewer and shorter outages of your critical IT and AV infrastructure
  • Very compact housing design allows space-saving integration even in confined AV environments such as media furniture
  • Detect AV and IT problems at an early stage: Proactive power and environment monitoring
  • Measurably increased energy efficiency (Green IT and AV): Electricity cost and CO2 savings through controlled switching off of devices
  • Integrate anywhere: Quickly and easily integrate anywhere with API interface: REST API, HTTPS, SNMP, Telnet and MQTT
  • Fix AV and IT problems quickly and effectively: Remote reboot or with the self-healing function (automatic restart) thanks to integrated watchdogs
  • Simple and quick mounting even in the smallest AV installation
  • Event and schedule controlled switching
  • Self-healing function
  • Precise current metering of up to 9 electrical units and residual current
  • Connector for plug-and-play sensors
  • Lightweight and robust plastic housing
  • Hybrid surge protection (SPD type 3)

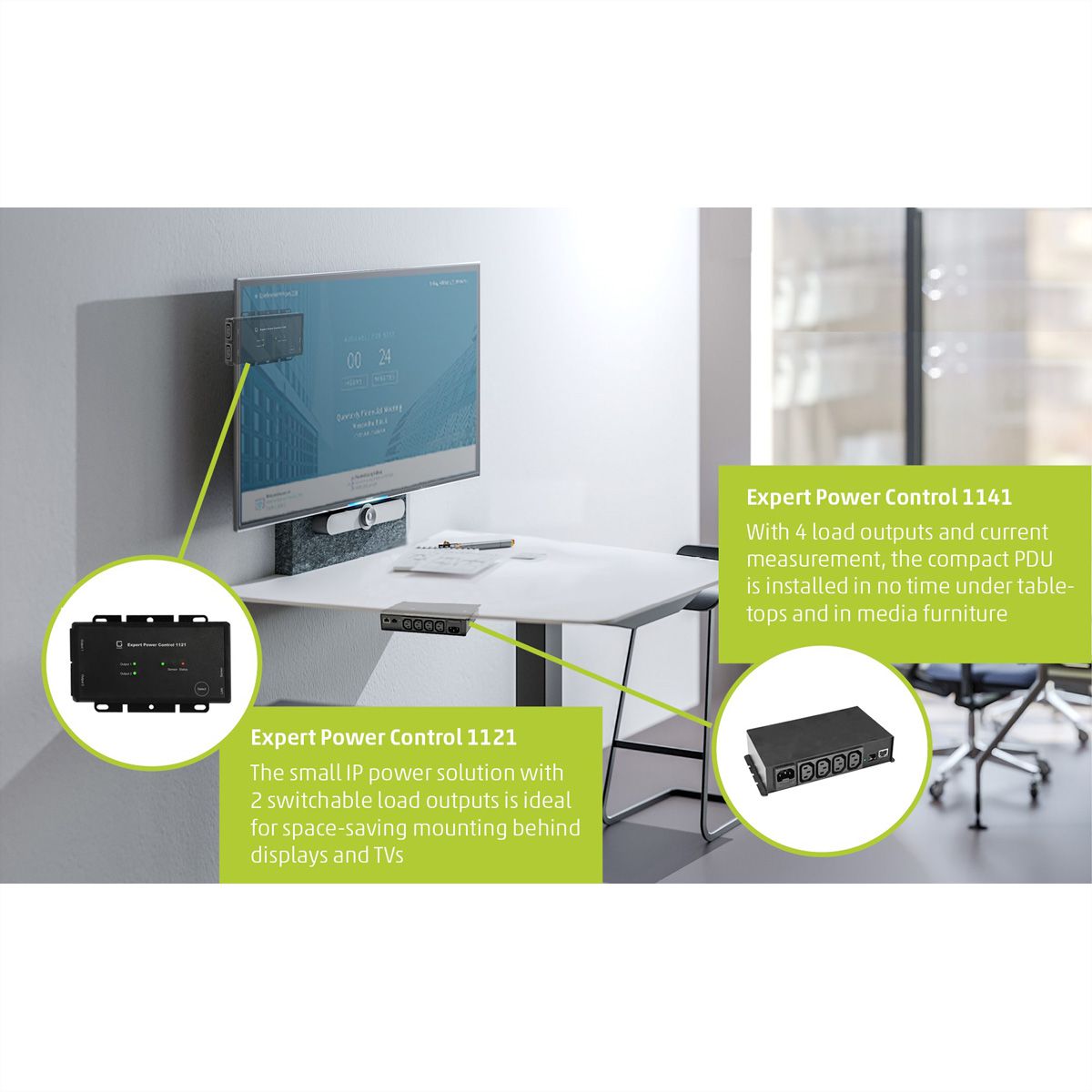

The Expert Power Control 1121-1 is a network-compatible and small power distribution unit with 2 power ports on the back. The connected loads can be switched on or off as required and the total power consumption can be monitored, making the PDU a must-have in any AV or IT installation.

The Expert Power Control 1121-1 has two integrated energy counters per bank, whereas one counter is resettable. The metering of a wide range of electrical variables enables the user to identify and exploit power-saving potential in the IT environment for every connected individual load. The power ports can be switched separately via a web interface, via SNMP or via the button on the device. SNMPv3, SSL and IPv6 as well as Telnet, Radius and Modbus TCP are supported. Due to the compact housing, the smart power solution can be easily integrated even in the smallest environments: Behind displays, TV screens, under table tops or in narrow media furniture, the Expert Power Control 1121 becomes the hidden champion of every AV installation.

Specifications

Manufacturer Gude
Product group Power Bars
Product type IP Power Switch
Colour black
Scope of delivery Adapter, handleiding
Function Schakelen op afstand via IP
Mounting form Desktop
Max. capacitance 2000W
Max. voltage 230V
ON/OFF Switch no
Switch type IP
Number of socket pots 2
Quantity of outputs/angles 2x IEC320 C13
Material (casing) Metal
Colour (Design profile) black
Connection cable --
Colour (Cable) black
Connector plug IEC320 C13 /C14
Technical particularity Web Frontend
Mains connection Cold appliance connection
Operating temperature min. 0 °C
Operating temperature max. 50 °C
Height 34 mm
Width 86 mm
Depth 168 mm
Weight 0.45 kg
Height of packaging (single piece) 50 mm
Width of packaging (single piece) 310 mm
Depth of packaging (single piece) 240 mm
Package weight (single piece) 0.7 kg

Downloads

Manufacturer data sheet - Deutsch (455.2 KB)

Download

Manufacturer data sheet - English (455.1 KB)

Download

User manual - Deutsch (3.1 MB)

Download

User manual - English (3.2 MB)

Download

Quick Installation Guide - Deutsch (802.0 KB)

Download

Quick Installation Guide - English (802.0 KB)

Download

Accesories

GUDE has been a manufacturer of innovative devices for the IT sector for over 25 years.

The products of the GUDE brand enable the optimization and expansion of IT infrastructures such as those typically found in technical or server rooms. The areas of application range from the home office and company networks to data centers and industrial environments.

The product portfolio includes power distribution units (PDU), remote monitoring systems, radio clock systems and interface isolators.
