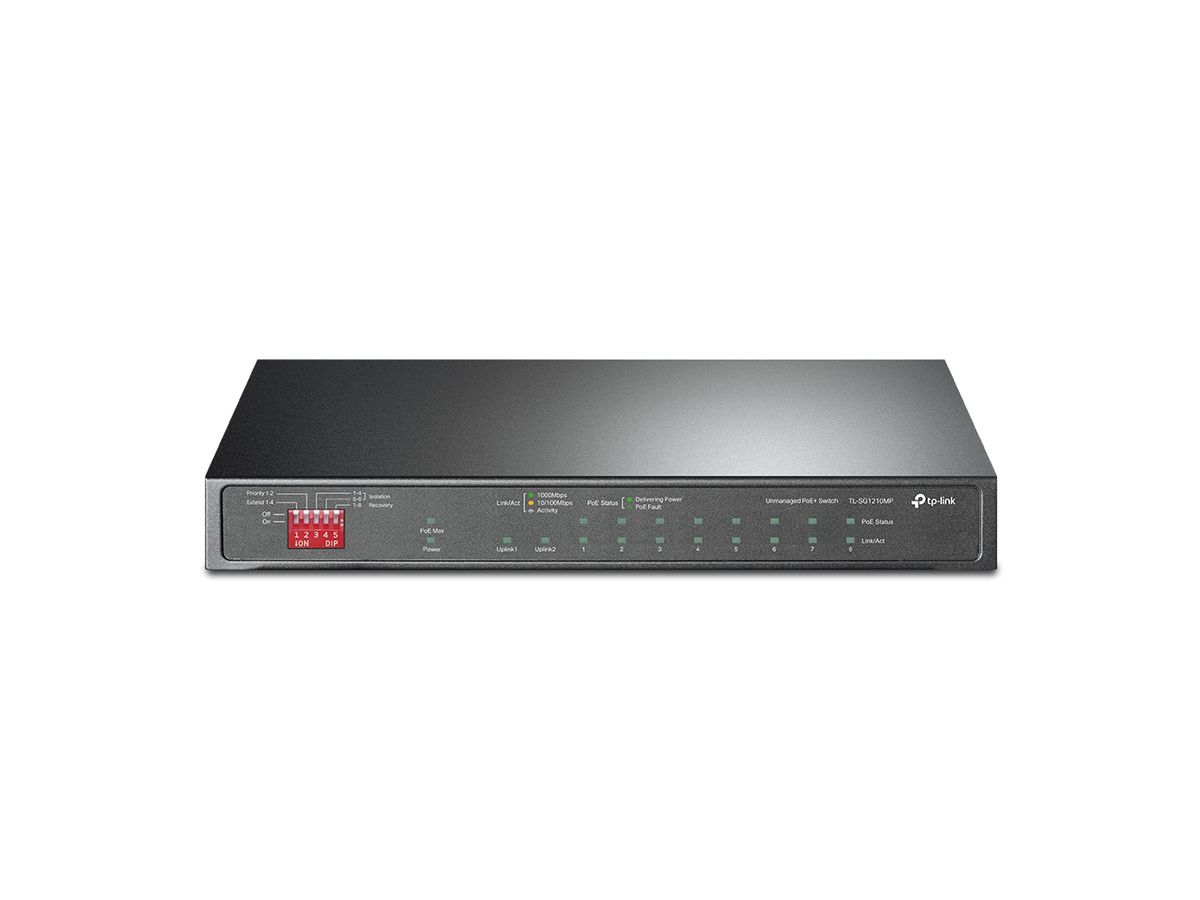

TP-Link TL-SG1210MP network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 525147731 |
|---|---|
| Brand / Manufacturer | TP-LINK TECHNOLOGIES |
| Manuf. item no. | TL-SG1210MP |
| EAN | 6935364052683 |
:strip_icc():strip_exif()/logos/tp-link-technologies.png "TP-LINK TECHNOLOGIES")
Description
TP-Link TL-SG1210MP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Power over Ethernet (PoE)
Specifications
| Manufacturer | TP-LINK TECHNOLOGIES |
|---|---|
| Product type | Network Switches |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 9 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 1 |
Weight & dimensions
| Width | 209 mm |
|---|---|
| Depth | 126 mm |
| Height | 26 mm |
Power
| Power source | DC |
|---|---|
| Input current | 2.43 A |
| Input voltage | 53.5 V |
| Power consumption (max) | 141.4 W |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 482.17 BTU/h |
Network
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
Data transmission
| MAC address table | 4000 entries |
|---|---|
| Switching capacity | 20 Gbit/s |
| Store-and-forward | Yes |
| Packet buffer memory | 14.88 MB |
Packaging data
| Quick start guide | Yes |
|---|---|
| Package width | 240 mm |
| Package depth | 315 mm |
| Package height | 70 mm |
| Package weight | 1.41 kg |
Management features
| Switch type | Unmanaged |
|---|
Design
| Rack mounting | No |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Certification | CE, FCC |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 123 W |
Performance
| Fanless | Yes |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
