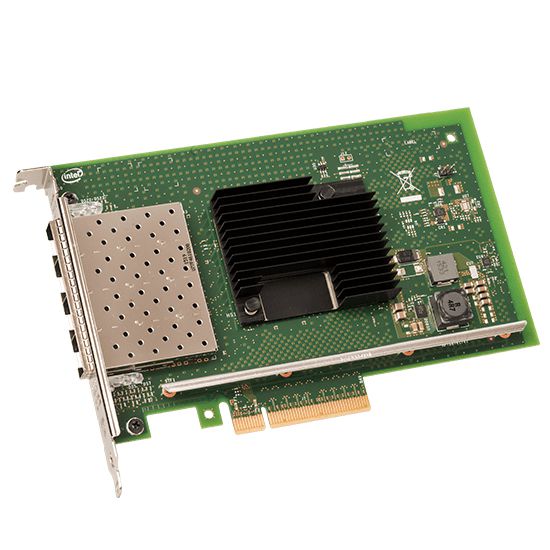

Intel X710DA4FHBLK netwerkkaart & -adapter Fiber 10000 Mbit/s Intern

Art. nr. 514400682 Merk / Fabrikant INTEL Fabrikant artikel nr. X710DA4FHBLK EAN 5032037063425
INTEL

Meld u aan om onze prijzen te bekijken en bestellingen te kunnen plaatsen. Levering uitsluitend aan industriële, commerciële, ambachtelijke, openbare instellingen, autoriteiten en vergelijkbare organisaties. Geen verkoop aan particulieren!

Inloggen
Op voorraad - leverbaar binnen enkele dagen

Beschrijving

Intel X710DA4FHBLK. Intern. Connectiviteitstechnologie: Bedraad, Hostinterface: PCI Express, Interface: Fiber. Maximale overdrachtssnelheid van gegevens: 10000 Mbit/s. Kleur van het product: Zwart, Groen, Roestvrijstaal

Flexible Port Partitioning Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth. Virtual Machine Device Queues (VMDq) Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance PCI-SIG* SR-IOV Capable Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices. Intel® Ethernet Power Management Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.

Specificaties

Producent
INTEL
Product type
Netwerkkaarten
Minimale systeemeisen
Compatibele besturingssystemen
https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html
Poorten & interfaces
Connectiviteitstechnologie
Bedraad
Hostinterface
PCI Express
Interface
Fiber
Aantal Ethernet LAN (RJ-45)-poorten
4
Fibre channel-poorten
4
Vezel-optische connector
SFP+
PCI versie
3.0
Gewicht en omvang
Breedte
167 mm
Diepte
111 mm
Eisen aan de omgeving
Temperatuur, in bedrijf
0 - 55 °C
Temperatuur bij opslag
-40 - 70 °C
Relatieve luchtvochtigheid, in bedrijf
0 - 90 procent
Netwerk
Maximale overdrachtssnelheid van gegevens
10000 Mbit/s
Ethernet LAN, data-overdrachtsnelheden
10,1000 Mbit/s
Fiber ethernet cabling technologie
10GBASE-LR,10GBASE-SR
Quality of Service (QoS)
Ja
Maximale afstand
10 m
LAN controller
Intel® X710
Verpakking
Aantal
1
Overige specificaties
Gegevensoverdrachtsnelheid
8 GT/s
Soort kabel
SFP+ Direct Attached Twin Axial Cabling up to 10m
Intel® Virtual Machine Device Queues (VMDq)
Ja
PCI-SIG* SR-IOV Capable
Ja
On-chip QoS and Traffic Management
Ja
Intel® Flexible Port Partitioning
Ja
Storage-over-ethernet
Ja
Snelheid en sleuf breedte
8.0 GT/s, x8 Lane
Lage halogeen opties beschikbaar
Nee
Intelligent Offloads
Ja
iWARP/RDMA
Nee
Fiber Channel over Ethernet
Nee
Intel® Ethernet Power Management
Ja
Intel® Data Direct I/O Technology
Ja
Intel® Virtualization Technology for Connectivity (VT-c)
Ja
Soort aansluiting
PCIe v3.0 (8.0 GT/s)
Conflict Free
Ja
Halogeen vrij
Nee
Marktsegment
SRV
Producttype
Network Interface Card
Ethernet-adapter ARK ID
83965
Code geharmoniseerd systeem (HS)
8517620090
Export Control Classification Number (ECCN)
5A991
Commodity Classification Automated Tracking System (CCATS)
NA
Optische drivecontroller
Intel® Ethernet Controller X710
Bekabelingstype
SFP+ Direct Attached Twin Axial Cabling up to 10m
Brackethoogte
Full-Height (FH)
Opslag via ethernet
iSCSI NFS
Lanceringsdatum
Q4'14
Kaartkabeldrager netwerkinterface
Copper
Kaarttype netwerkinterface
Server
URL productsamenvatting
https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x710-brief.html
Status
Launched
Laatste wijziging
64826826
Productfamilie
Intel 10 Gigabit server adapter
Productserie
Intel Converged X710
Productcodenaam
Fortville
Design
Intern
Ja
Kleur van het product
Zwart, Groen, Roestvrijstaal
LED-indicatoren
Ja
Certificering
FCC A, UL, CE, VCCI, BSMI, CTICK, KCC
