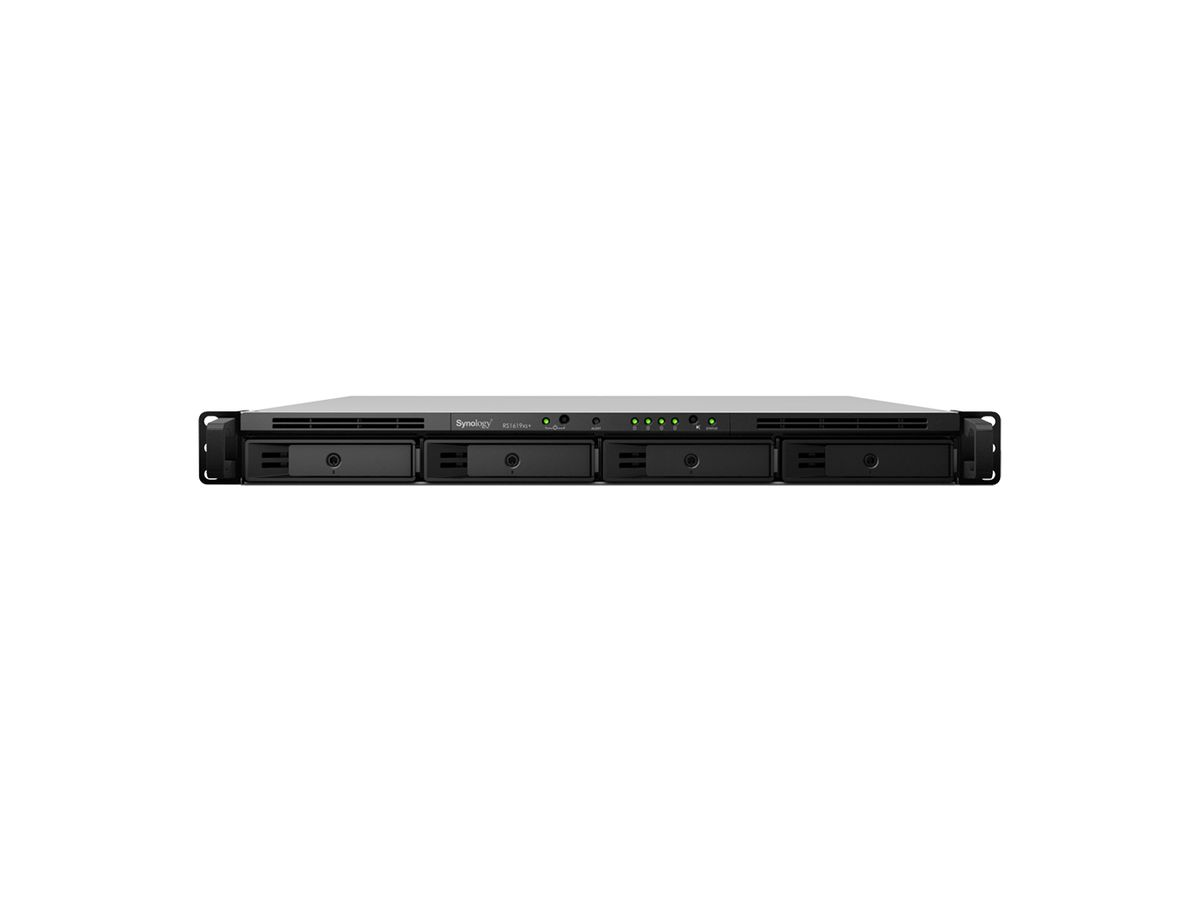

Synology RackStation RS1619XS+ data-opslag-server Ethernet LAN Rack (1U) Zwart NAS
Meld u aan om onze prijzen te bekijken en bestellingen te kunnen plaatsen. Levering uitsluitend aan industriële, commerciële, ambachtelijke, openbare instellingen, autoriteiten en vergelijkbare organisaties. Geen verkoop aan particulieren!
Inloggen| Art. nr. | 521202247 |
|---|---|
| Merk / Fabrikant | SYNOLOGY |
| Fabrikant artikel nr. | RS1619xs+ |
:strip_icc():strip_exif()/logos/synology.png "SYNOLOGY")
Beschrijving
Synology RS1619XS+, RackStation. Ondersteunde types opslag-drives: HDD,SSD, Opslag schijf-interface: SATA, SATA II, SATA III, Opslagschijf afmetingen ondersteund: 2.5,3.5". Frequentie van processor: 2,20 GHz, Processorfamilie: Intel® Xeon® D, Processormodel: D-1527. Intern geheugen: 8 GB, Intern geheugentype: DDR4, Ondersteund maximum RAM: 64 GB. Ethernet LAN, data-overdrachtsnelheden: 10,100,1000 Mbit/s, Ondersteunde netwerkprotocollen: CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP). Type behuizing: Rack (1U), Type koeling: Actief, Kleur van het product: Zwart
Synology RackStation RS1619xs+ is a high-performance 1U rackmount NAS with comprehensive storage, data backup, and collaboration applications, suitable for small- to medium-sized businesses. RS1619xs+ simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS1619xs+ is backed by Synology’s 5-year limited warranty. Synology RS1619xs+ is a 1U 4-bay rackmount network attached storage solution equipped with a quad-core processor, 8 GB DDR4 memory (expandable up to 64 GB), and four Gigabit LAN ports. With an optional 10GbE network adapter card installed, RS1619xs+ delivers sequential reading throughput over 1,523 MB/s and 162,097 iSCSI random read IOPS under a RAID 5 configuration. RS1619xs+ comes with two onboard M.2 SSD slots, allowing fast system cache creation with M.2 2280 NVMe/SATA SSDs without occupying internal 3.5" drive bays. RS1619xs+ also provides great flexibility to easily scale up to 16 drives when connected to one Synology RX1217/RX1217RP expansion unit. Storage capacity can be expanded according to your business needs with minimal effort. - Powerful 1U NAS for growing businesses, featuring a quad-core CPU with AES-NI and 8 GB (up to 64 GB) DDR4 ECC UDIMM - Built-in M.2 NVMe/SATA SSD slots for system cache support - Excellent performance of over 1,523 MB/s sequential reading and 162,097 iSCSI random read IOPS1 - Optional 10GbE NIC support - Scalable up to 16 drives with Synology RX1217/RX1217RP - Complete virtualization solution with Synology Virtual Machine Manager - Backed by Synology’s 5-year limited warranty & Synology Replacement Service (SRS)3
Specificaties
| Producent | SYNOLOGY |
|---|---|
| Product type | Data-opslag-servers |
Processor
| Frequentie van processor | 2,20 GHz |
|---|---|
| Processorfamilie | Intel® Xeon® D |
| Processormodel | D-1527 |
| Aantal processorkernen | 4 |
| CPU configuratie (max) | 1 |
| ECC ondersteund door processor | Ja |
| PCI Express configuraties | 1x16,1x4,1x8 |
| PCI Express slots versie | 2.0,3.0 |
| Maximale turbofrequentie van processor | 2,70 GHz |
| Processor cache | 6 MB |
| Processor cache type | L3 |
| Processorcode | SR2DK |
| Codenaam processor | Broadwell |
| Processor lithografie | 14 nm |
| Processor operating modes | 64-bit |
| Verpakkingsgrootte processor | 37.5 x 37.5 mm |
| Processorserie | Intel Xeon D-1500 |
| Processor socket | BGA 1667 |
| Processor aantal threads | 8 |
| Schaalbaarheid | 1S |
| Stepping | V2 |
| Thermal Design Power (TDP) | 35 W |
| Maximaal intern geheugen ondersteund door processor | 128 GB |
| Conflictvrije processor | Ja |
| ARK ID processor | 91195 |
Geheugen
| Intern geheugen | 8 GB |
|---|---|
| Intern geheugentype | DDR4 |
| Ondersteund maximum RAM | 64 GB |
| Geheugenslots | 4 |
Poorten & interfaces
| USB-poort | Ja |
|---|---|
| Aantal poorten USB 3.0 (3.1 Gen 1) Type A | 2 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| Aantal uitbreidingspoorten | 1 |
Gewicht en omvang
| Breedte | 480 mm |
|---|---|
| Diepte | 518,6 mm |
| Hoogte | 44 mm |
| Gewicht | 8,16 kg |
Energie
| Vermogenstoevoer locatie | Ingebouwd |
|---|---|
| Capaciteit voedingsunit (PSU) | 150 W |
| Aantal voedingen | 2 |
| Typisch stroomverbruik | 68,68 W |
| Elektriciteitsverbruik (HDD-stand-by) | 34,78 W |
| AC invoer voltage | 100 - 240 V |
| AC invoer frequentie | 50 - 60 Hz |
Eisen aan de omgeving
| Temperatuur, in bedrijf | 5 - 35 °C |
|---|---|
| Relatieve luchtvochtigheid, in bedrijf | 5 - 95 procent |
| Temperatuur bij opslag | -20 - 60 °C |
| Hoogte, in bedrijf | 0 - 5000 m |
Netwerk
| Ethernet LAN | Ja |
|---|---|
| Wi-Fi | Nee |
| Ethernet LAN, data-overdrachtsnelheden | 10,100,1000 Mbit/s |
| iSCSI support | Ja |
| Wake-on-LAN | Ja |
| Ondersteunde netwerkprotocollen | CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP) |
| Verbindingsaggregatie | Ja |
Opslagmedia
| Opslagdrives geïnstalleerd | Nee |
|---|---|
| Geïnstalleerde opslag-drive | Nee |
| Ondersteunde types opslag-drives | HDD,SSD |
| Aantal storage drives ondersteund | 4 |
| Opslag schijf-interface | SATA, SATA II, SATA III |
| RAID support | Ja |
| Hot-swap drive bays | Ja |
| Opslagschijf afmetingen ondersteund | 2.5,3.5" |
| Aantal M.2 (M & B)-sleuven | 2 |
| Soorten RAID | 0,1,5,6,10,JBOD |
| Ondersteunde bestandsystemen | BTRFS,FAT,HFS+,NTFS,ext3,ext4 |
Certificaten
| RoHS compliance | Ja |
|---|---|
| Certificering | EAC\nVCCI\nRCM\nFCC\nCE\nBSMI |
Software
| Inclusief besturingssysteem | DiskStation Manager |
|---|---|
| Ondersteunt Windows | Windows 10,Windows 7 |
| Ondersteunt Mac-besturingssysteem | Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave |
| Ondersteunde server operating systems | Windows Server 2016 |
Inhoud van de verpakking
| Meegeleverde kabels | AC |
|---|---|
| Snelle installatiehandleiding | Ja |
Design
| Type behuizing | Rack (1U) |
|---|---|
| Type koeling | Actief |
| Kleur van het product | Zwart |
| Aantal ventilatoren | 2 ventilator(en) |
| Ventilator diameter | 4 cm |
| LED-indicatoren | Alarm, HDD, Stroom, Status |
Processor speciale functies
| Ingebouwde opties beschikbaar | Ja |
|---|---|
| Enhanced Intel SpeedStep Technology | Ja |
| Execute Disable Bit | Ja |
| Idle States | Ja |
| Intel® 64 | Ja |
| Intel® Enhanced Halt State | Ja |
| Intel® Trusted Execution Technology | Ja |
| Intel® TSX-NI | Ja |
| Intel® Virtualization Technology (VT-x) | Ja |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
| Intel® VT-x with Extended Page Tables (EPT) | Ja |
| Intel® AES New Instructions (Intel® AES-NI) | Ja |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Ja |
| Intel® OS Guard | Ja |
| Intel® Secure Key | Ja |
| Intel® Turbo Boost Technology | 2.0 |
| Maximaal aantal PCI Express-lijnen | 32 |
| Thermal Monitoring Technologies | Ja |
| UART | Ja |
| Geheugenkanalen ondersteund door processor | Dual |
| Geheugentypen ondersteund door processor | DDR3-SDRAM,DDR4-SDRAM |
Prestatie
| Soort | NAS |
|---|---|
| Apparaatklasse | Kleine & middelgrote bedrijven |
| Backup-functie | Ja |
| Back-up-eigenschappen | Cloud,iSCSI LUN |
| Ondersteund meerdere talen | Ja |
| Geluidsniveau | 39,3 dB |
| Ondersteunde beveiligingsalgoritmen | HTTPS,SSH,SSL/TLS |
| Access Control List (ACL) | Ja |
| Web-gebaseerd management | Ja |
| Reset button | Ja |
| Aan/uitschakelaar | Ja |
| Ondersteunde browser | Chrome, Firefox, Internet Explorer 10+, Safari 10+ |
