Description

The docking station is supplied for Macbooks, Ultrabooks or Notebooks/Laptops and provides a quick and easy connection to the workplace peripherals that you use every day, including one HDMI connector, that allows you a maximum resolution of up to 3840x2160 @30Hz!

• Golden aluminium case
• Narrow, flat design
• Black golden nylon braid around the cable
• Golden shield plates and contacts for reliable signal transmission

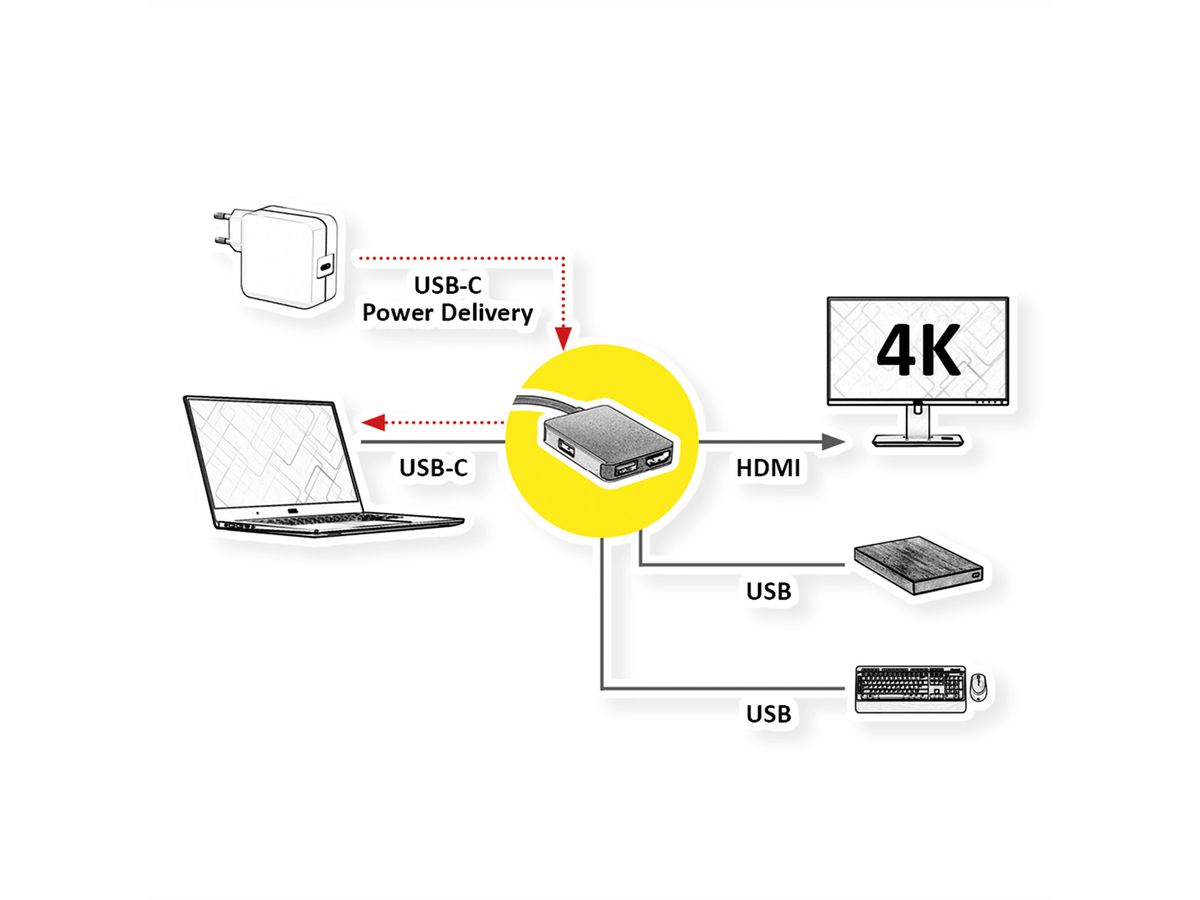

Connection to the mobile device:

• 1x USB 3.1 / USB 3.2 Gen 2 Type C

Connections for peripheral devices:

• 1x HDMI video output: mirror or expand your screen to a TV, monitor or projector
• 2x USB 3.0 / USB 3.2 Gen 1 Type A ports (data transfer rate up to 5Gbit/s), to connect e.g. keyboard / mouse, USB HDD / SSD, etc.
• 1x USB Type C PD (Power Delivery)

Remark: Support of "Alternate Mode (DP Alt Mode)" required

Note: According to the current specifications of USB.org we have adapted the technical data of our USB 3 products. The new designation for the already known USB specifications has been changed to USB 3.2 Gen 1 (formerly USB 3.0 / USB 3.1 Gen 1) and USB 3.2 Gen 2 (formerly USB 3.1 / USB 3.1 Gen 2).

Specifications

Manufacturer	ROLINE
Product group	Adapters, Terminators, Converters
Product type	Notebook-Docking-Station
Colour	black / gold
Scope of delivery	Docking Station
Max. resolution	3840 x 2160 @30Hz (4K, Full HD)
Side 1 connection (PC)	USB Type C
Side 2 connection (Peripherals)	1x HDMI, 3x USB 3.0 / USB 3.2 Gen 1 Type A, 1x SD/TF Card Reader, 1x USB Type C PD
Side 1 Connector Type	USB Type C (USB-C)
Side 1 Connector Gender	Male
Side 2 Connector Type	HDMI Type A USB 3 Type A USB Type C PD (Power Delivery)
Side 2 Connector Gender	Female
Area of application	External
Weight	33.7 g
Height of packaging (single piece)	10 mm
Width of packaging (single piece)	50 mm
Depth of packaging (single piece)	50 mm
Package weight (single piece)	0.025 kg

Downloads

Product data sheet - English (46.6 KB)

Download
