Description

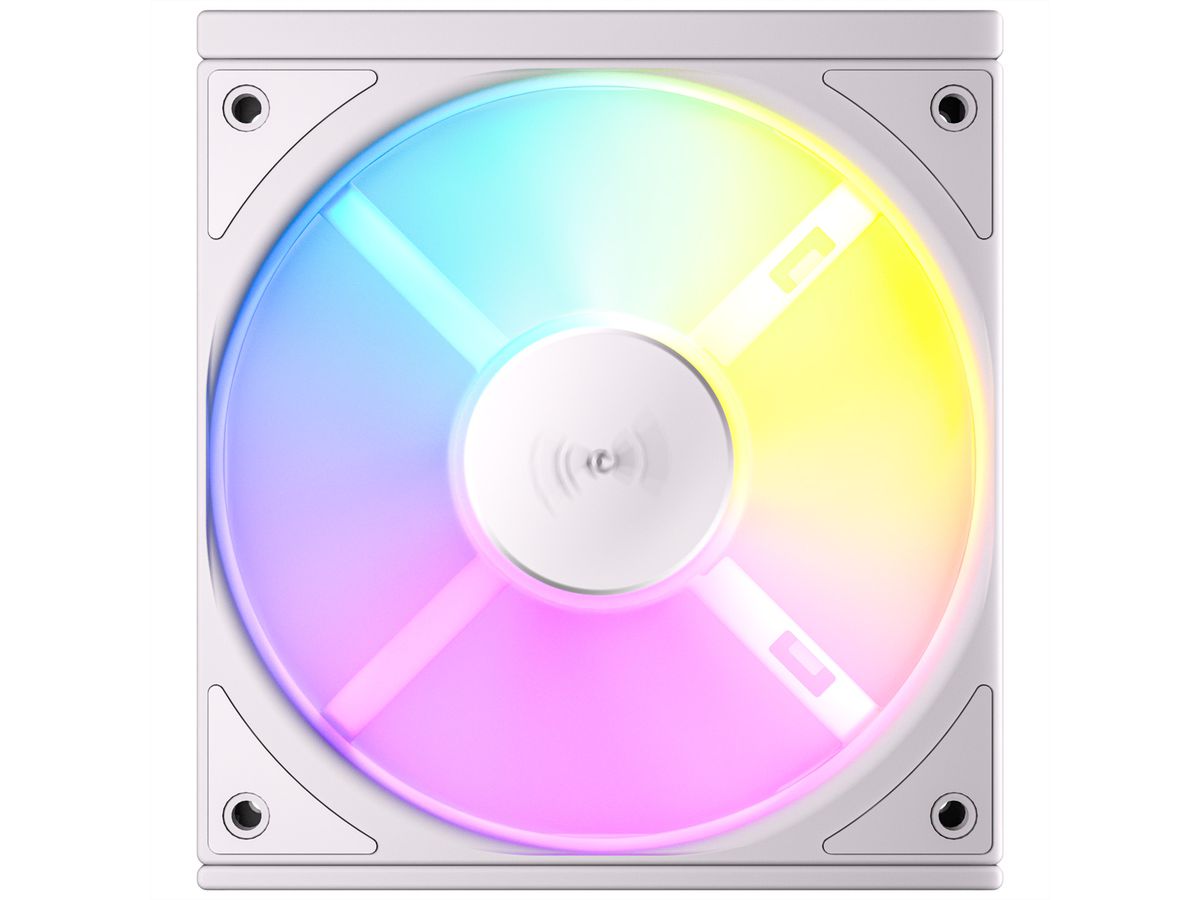

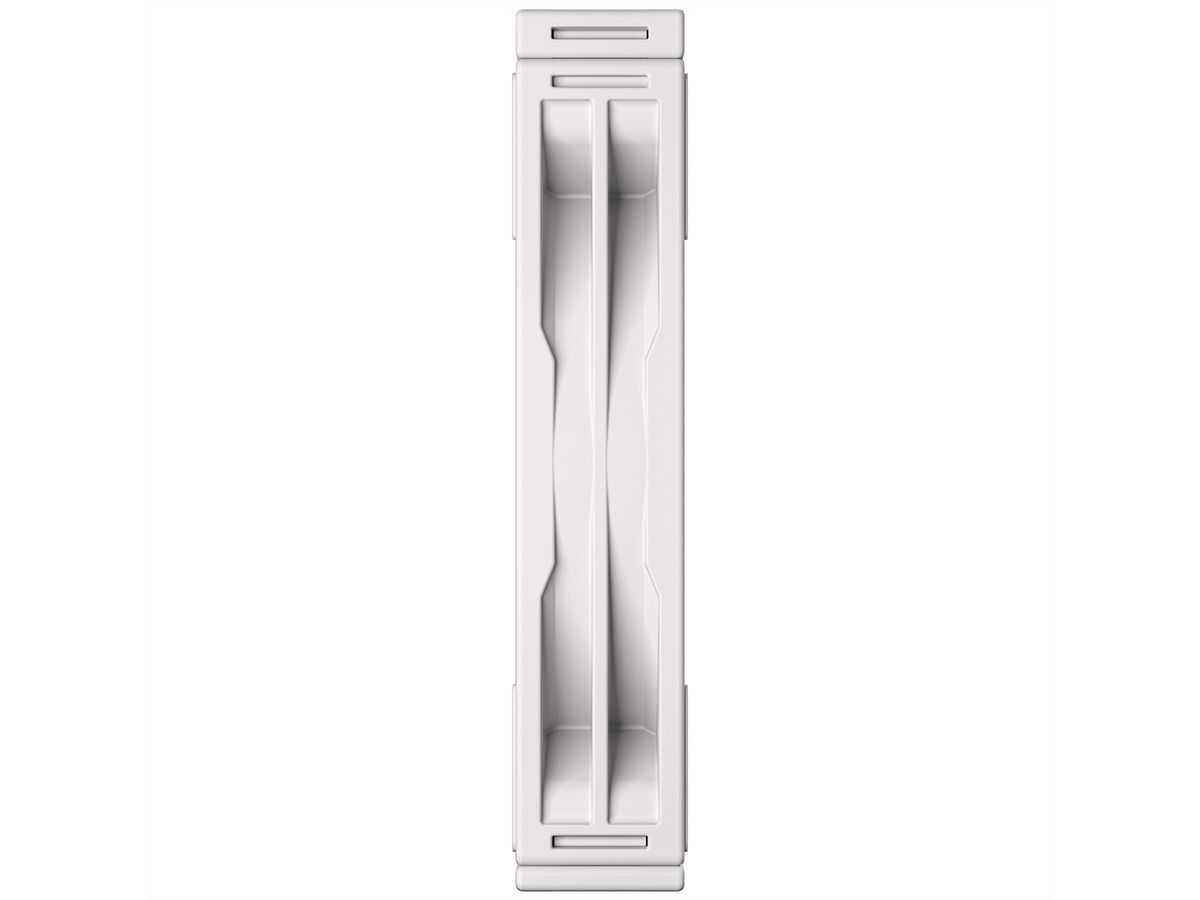

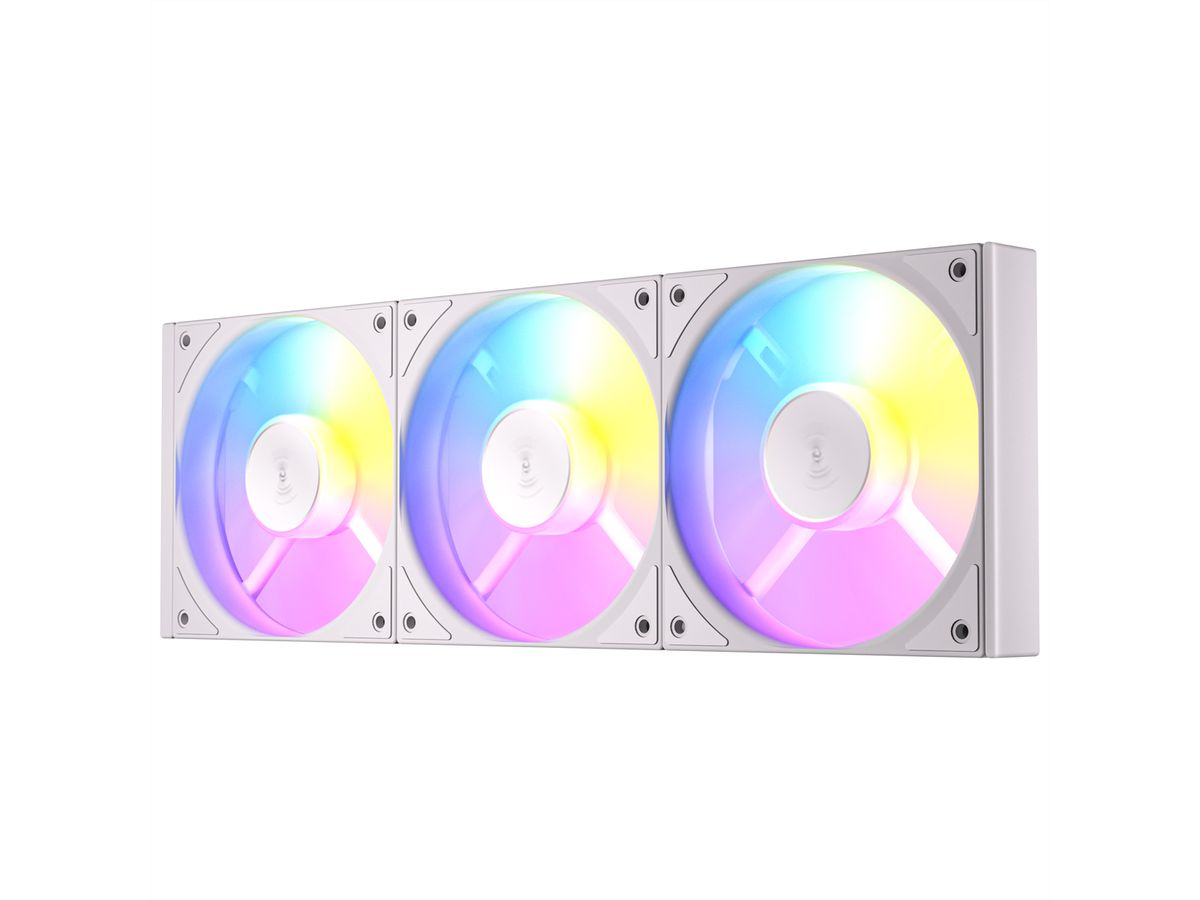

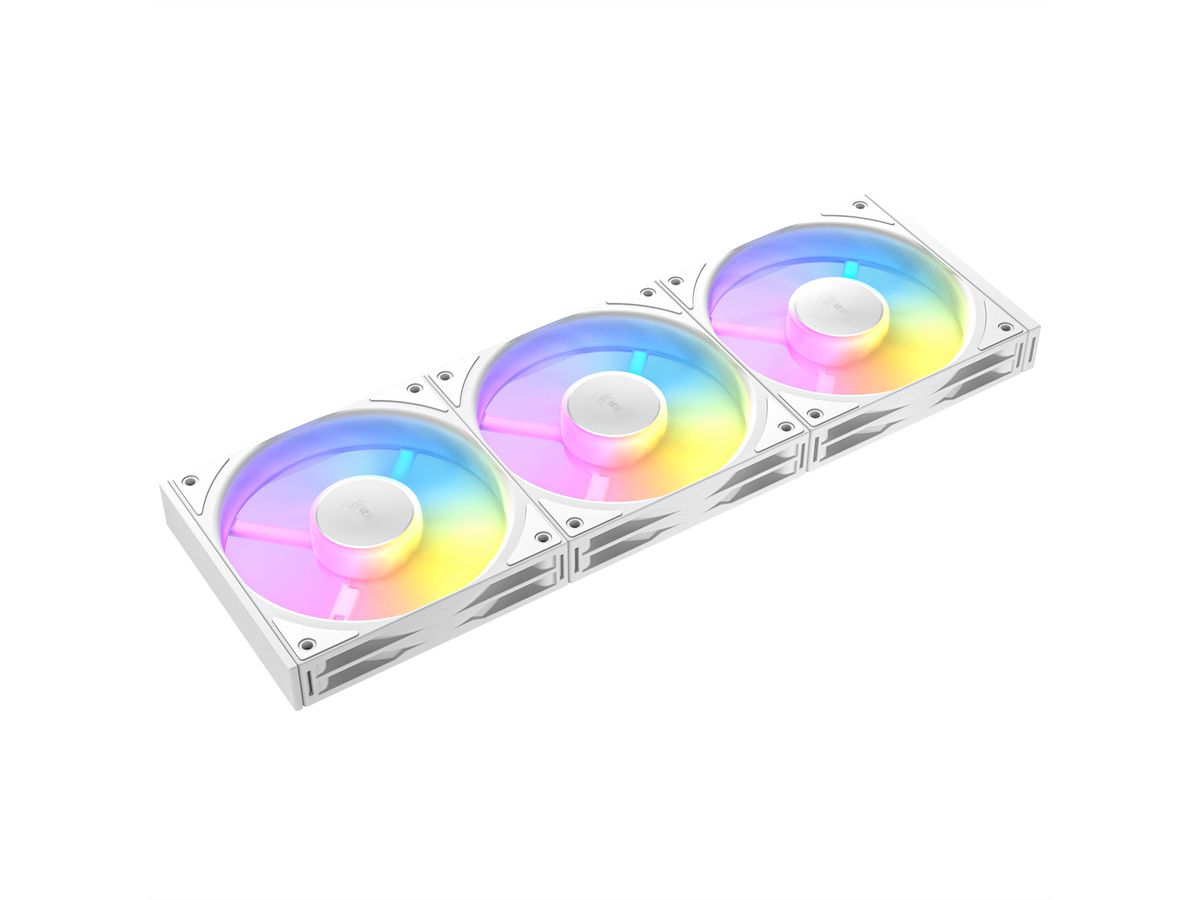

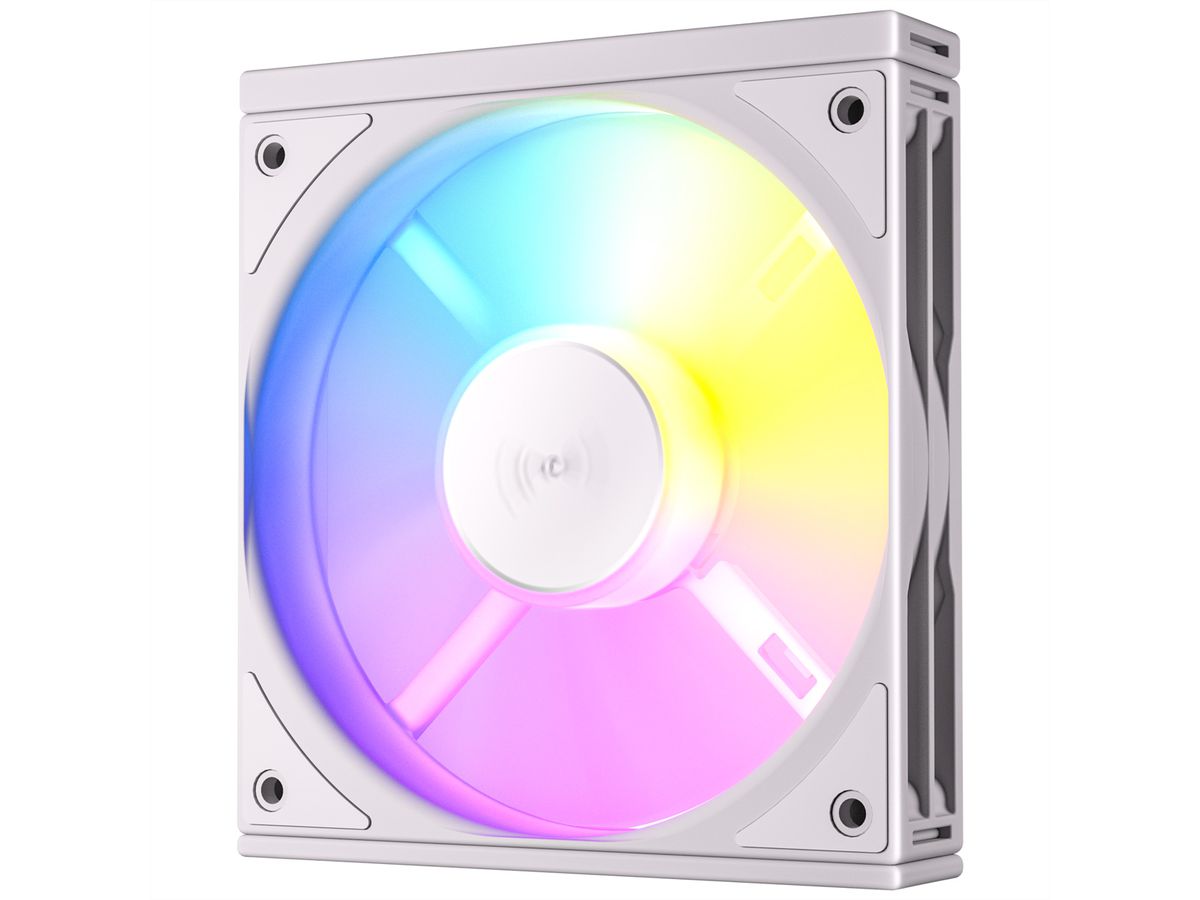

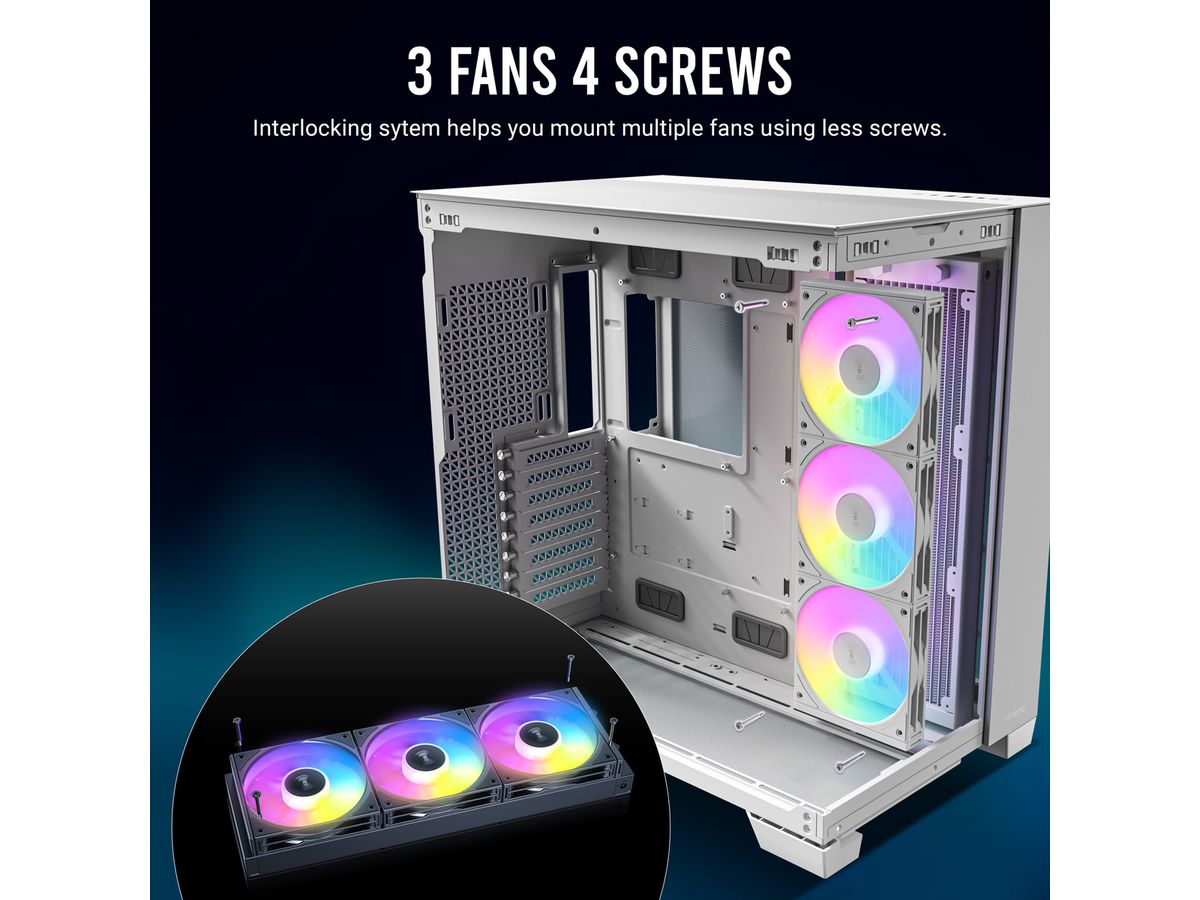

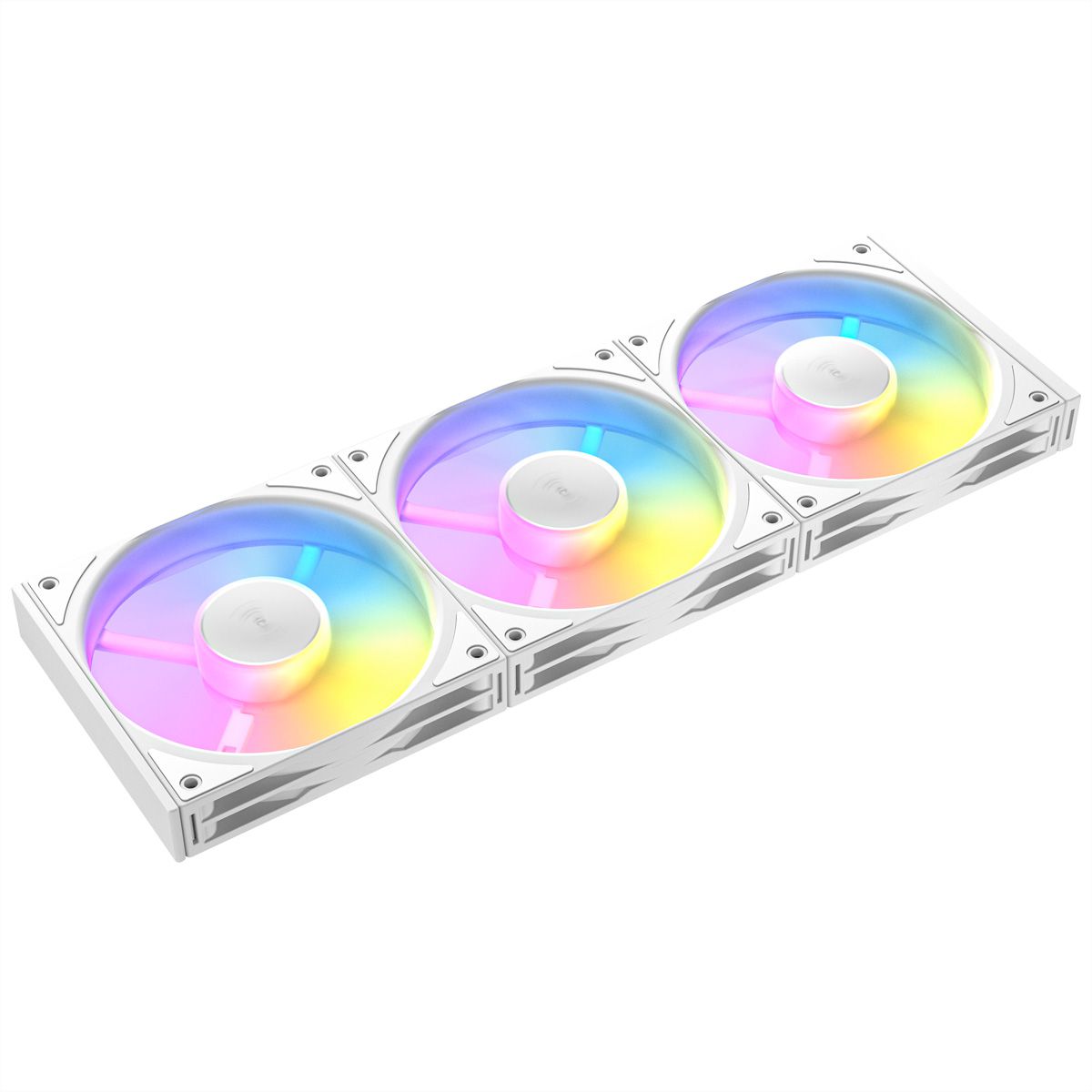

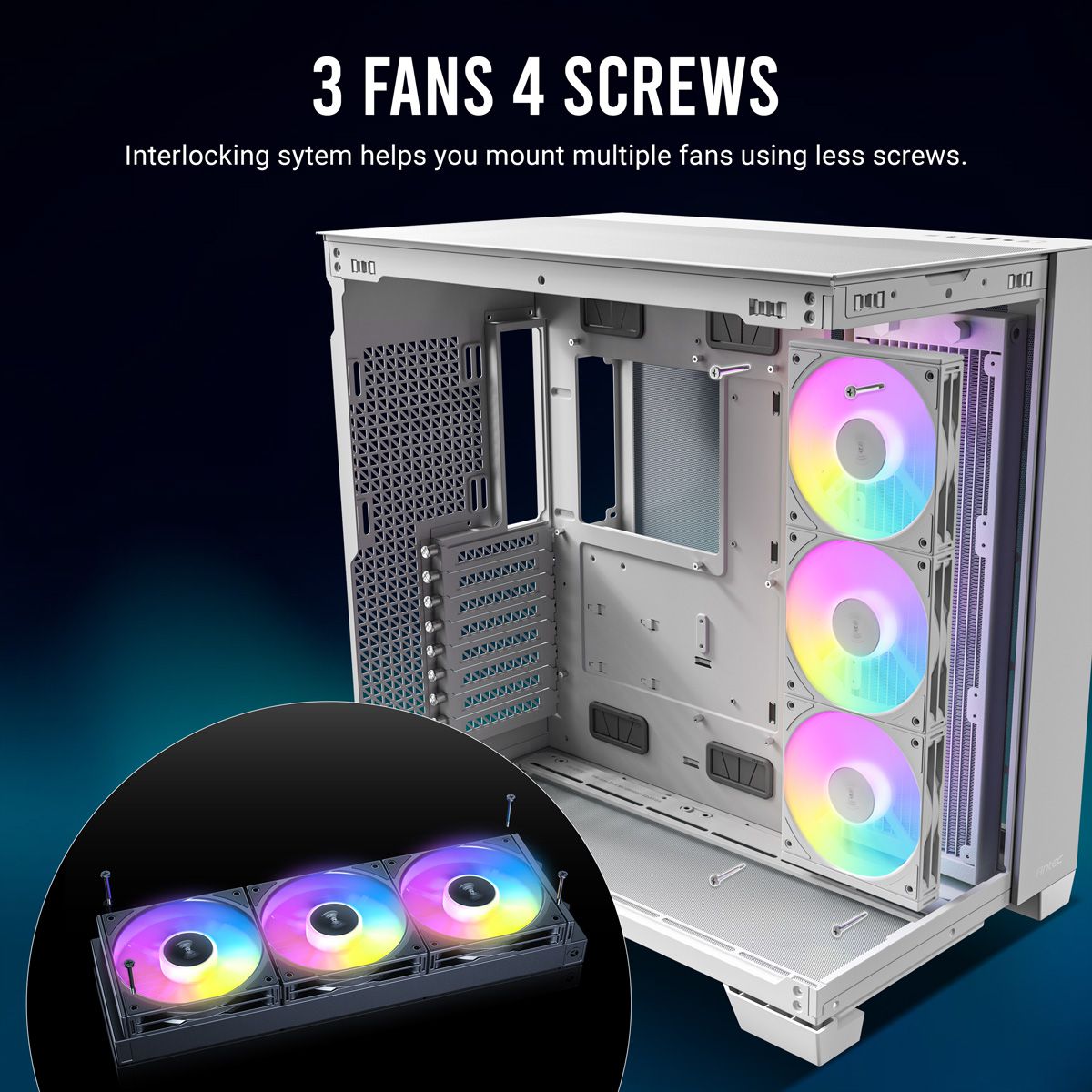

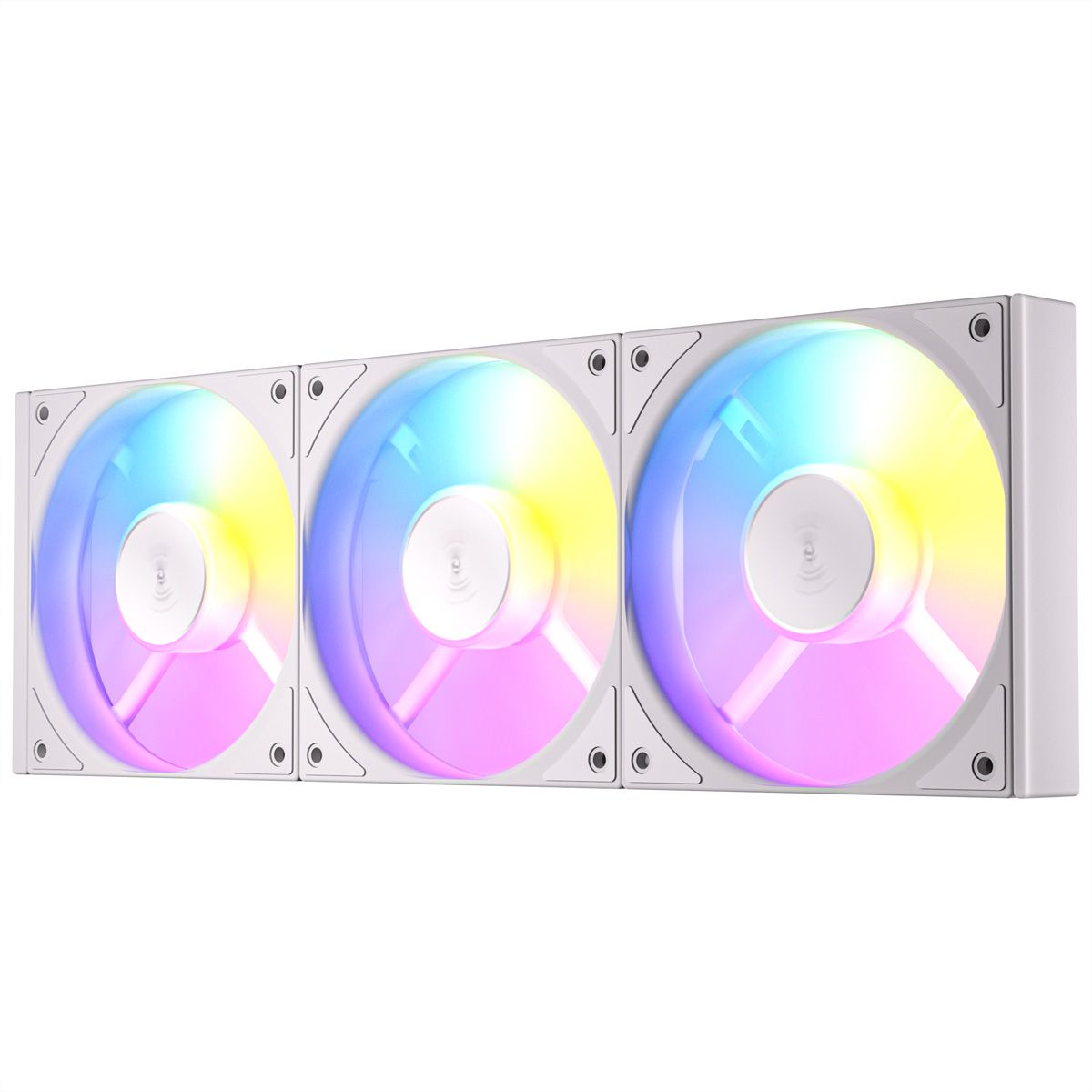

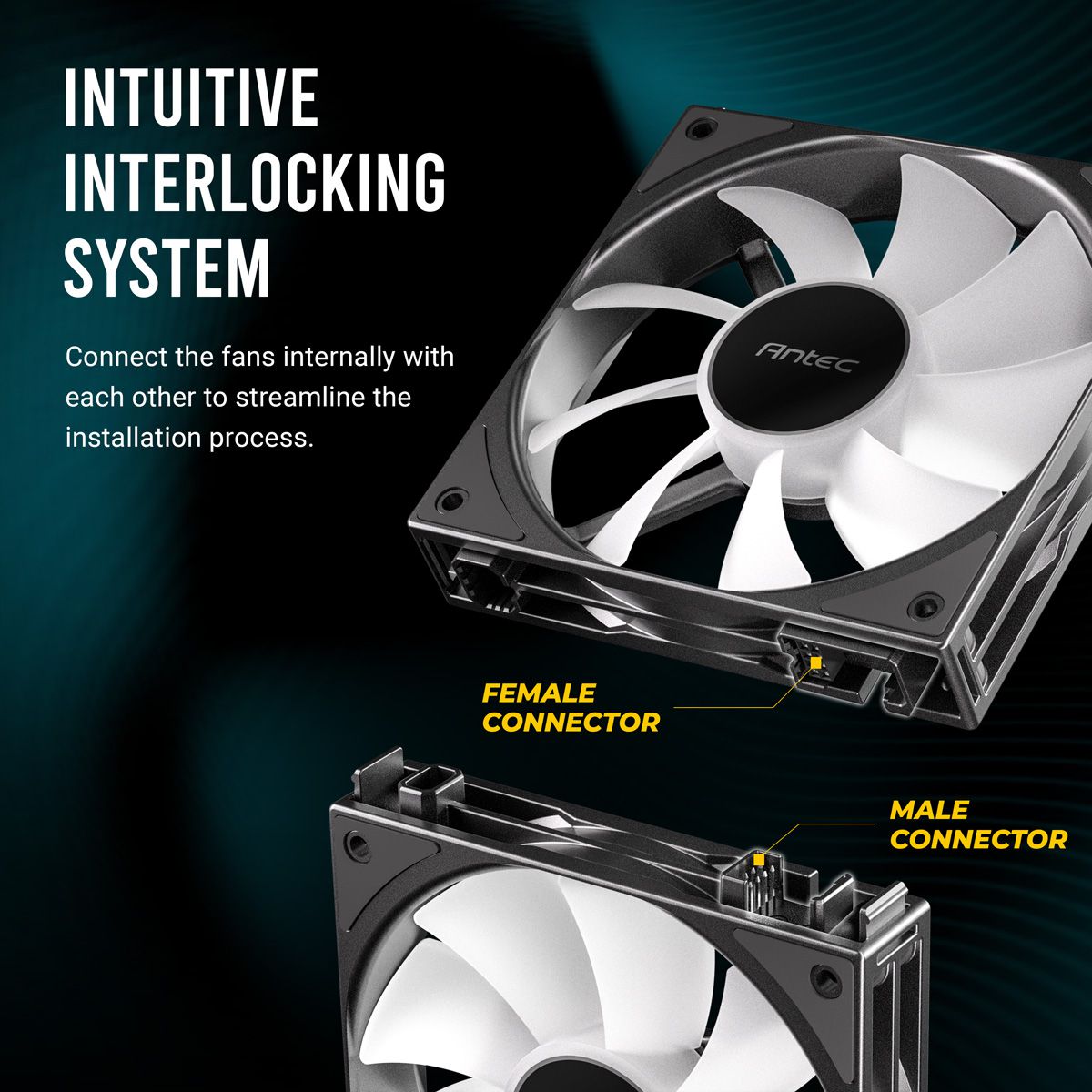

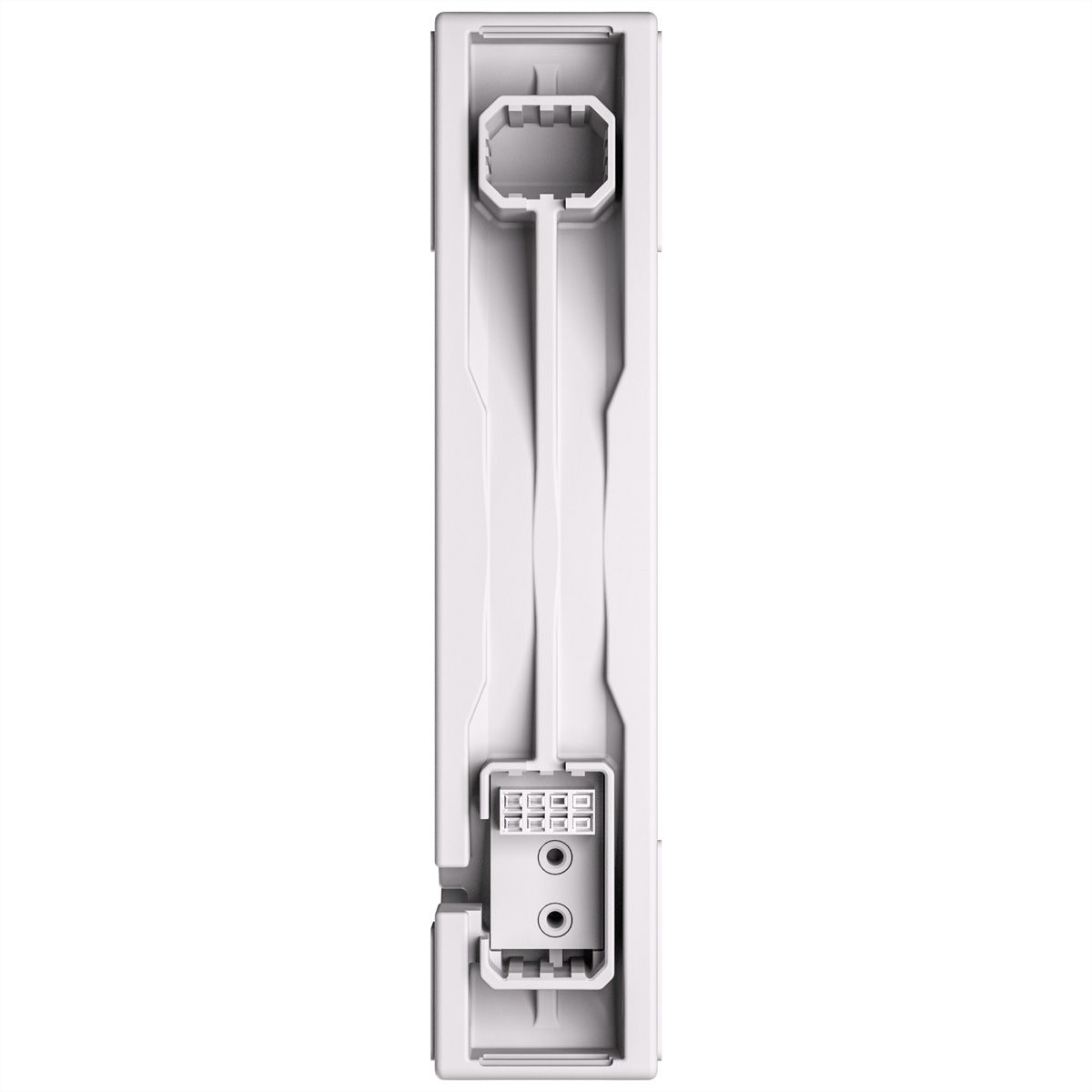

• Minimalist square frame design: With seamless wireless connection between the fans via pin connectors and decorative covers.

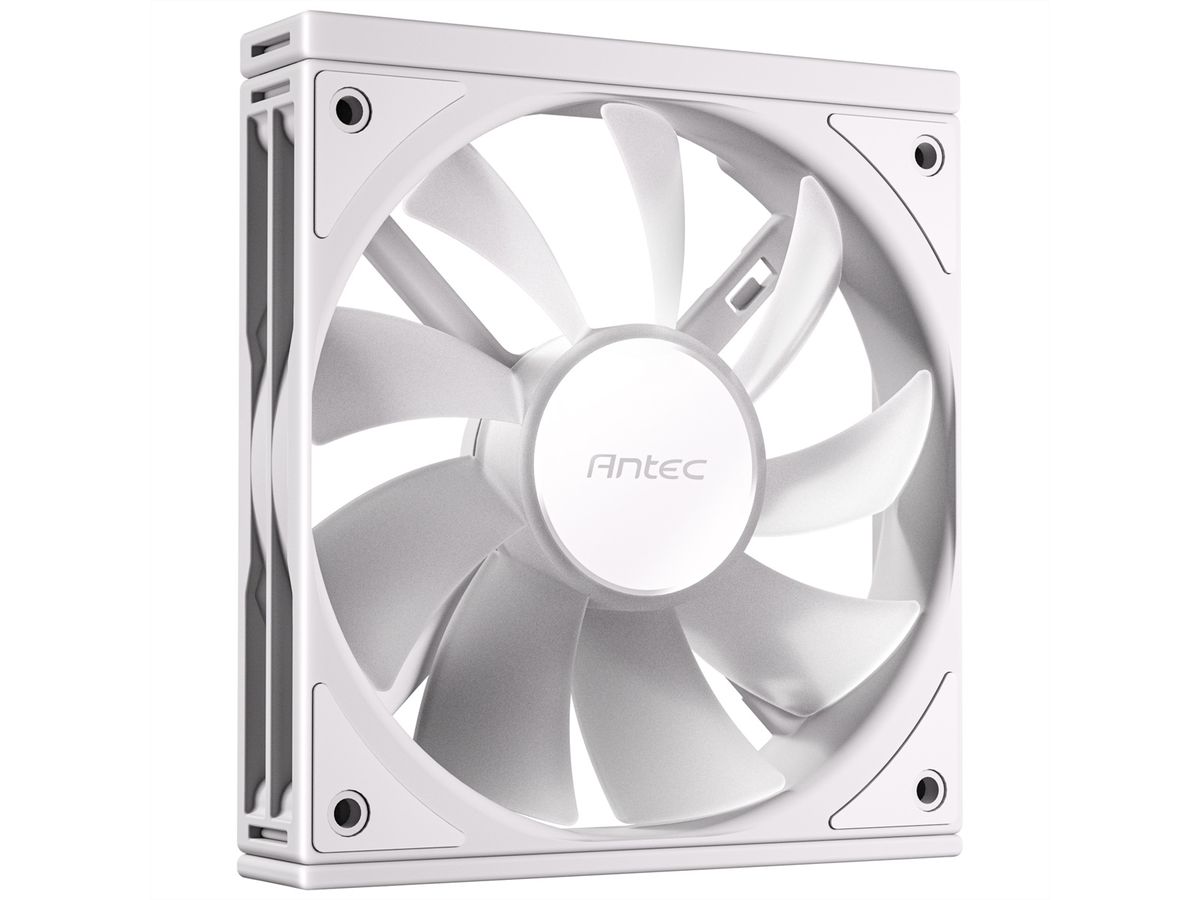

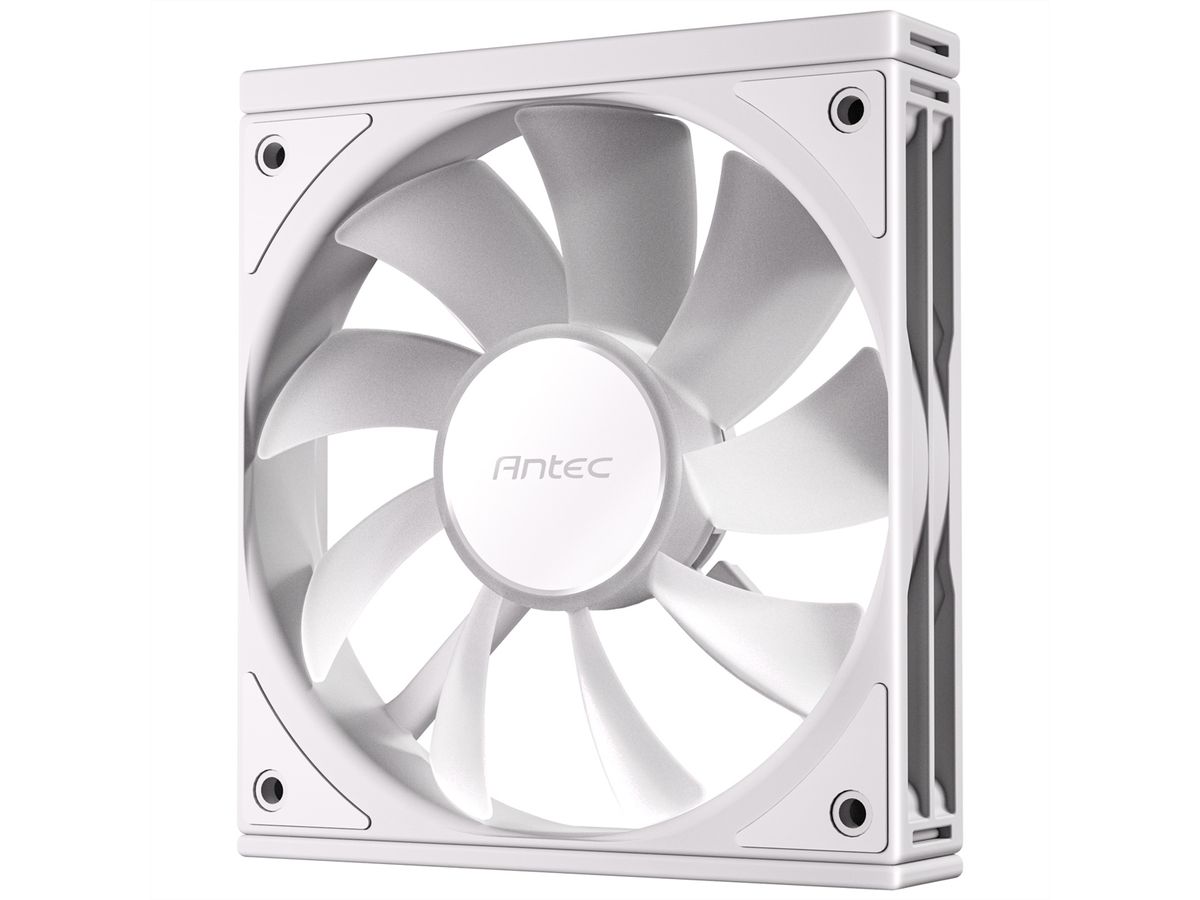

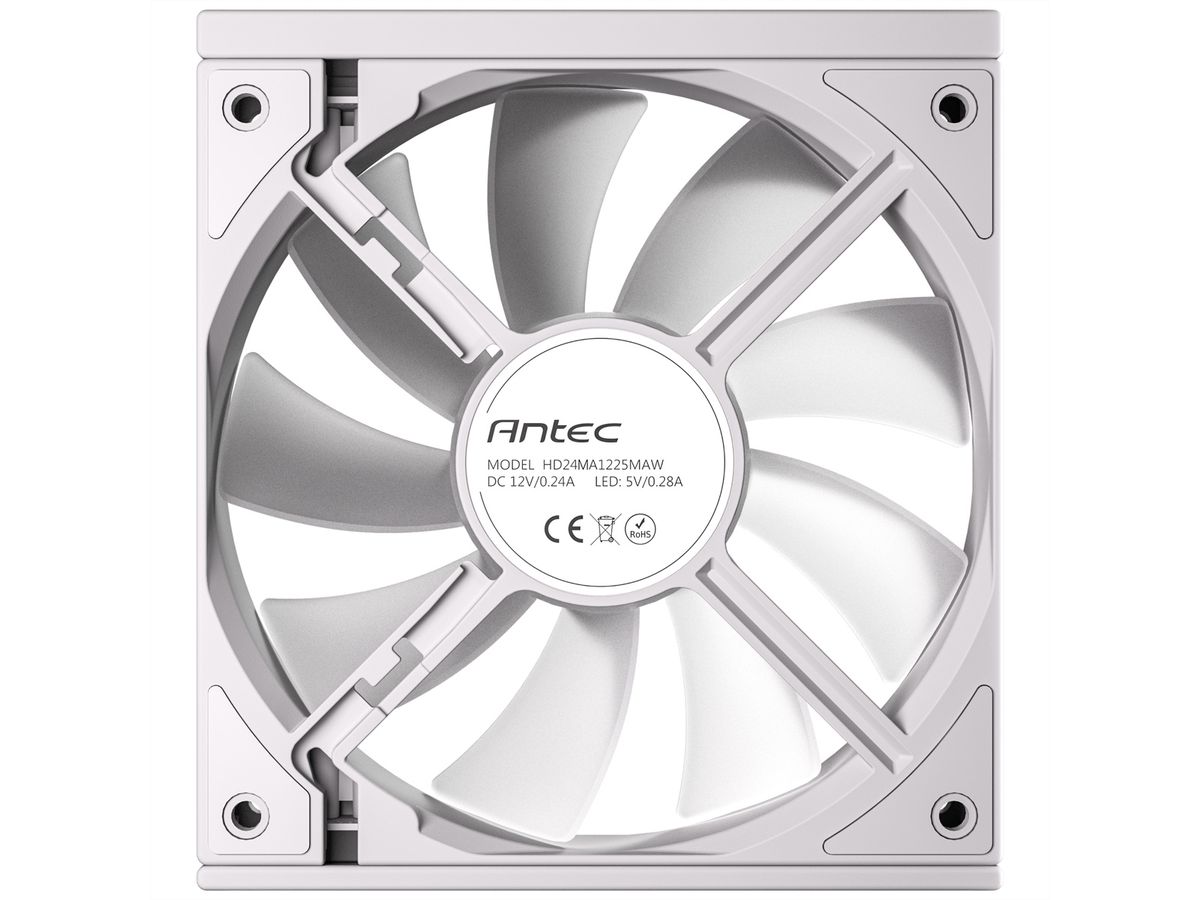

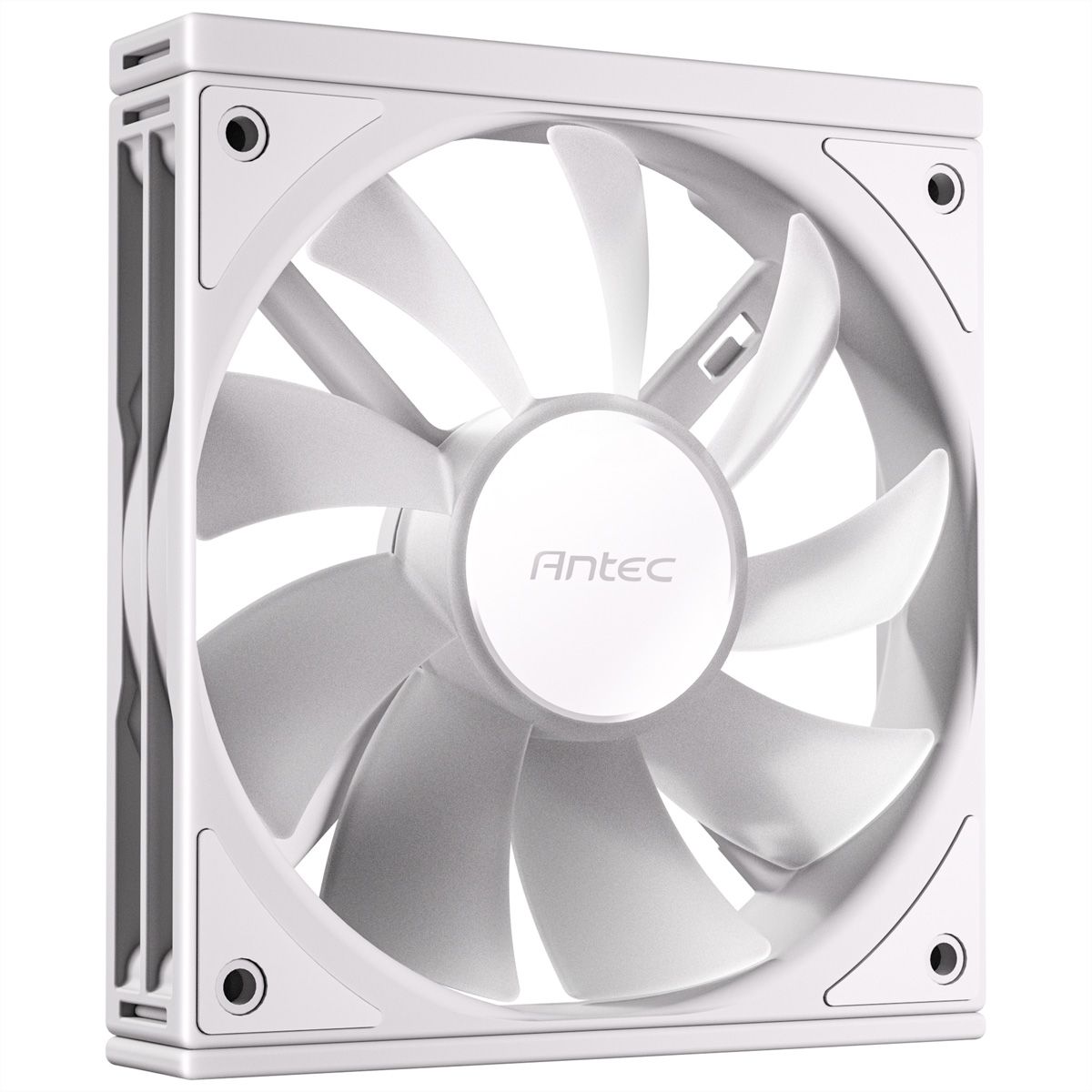

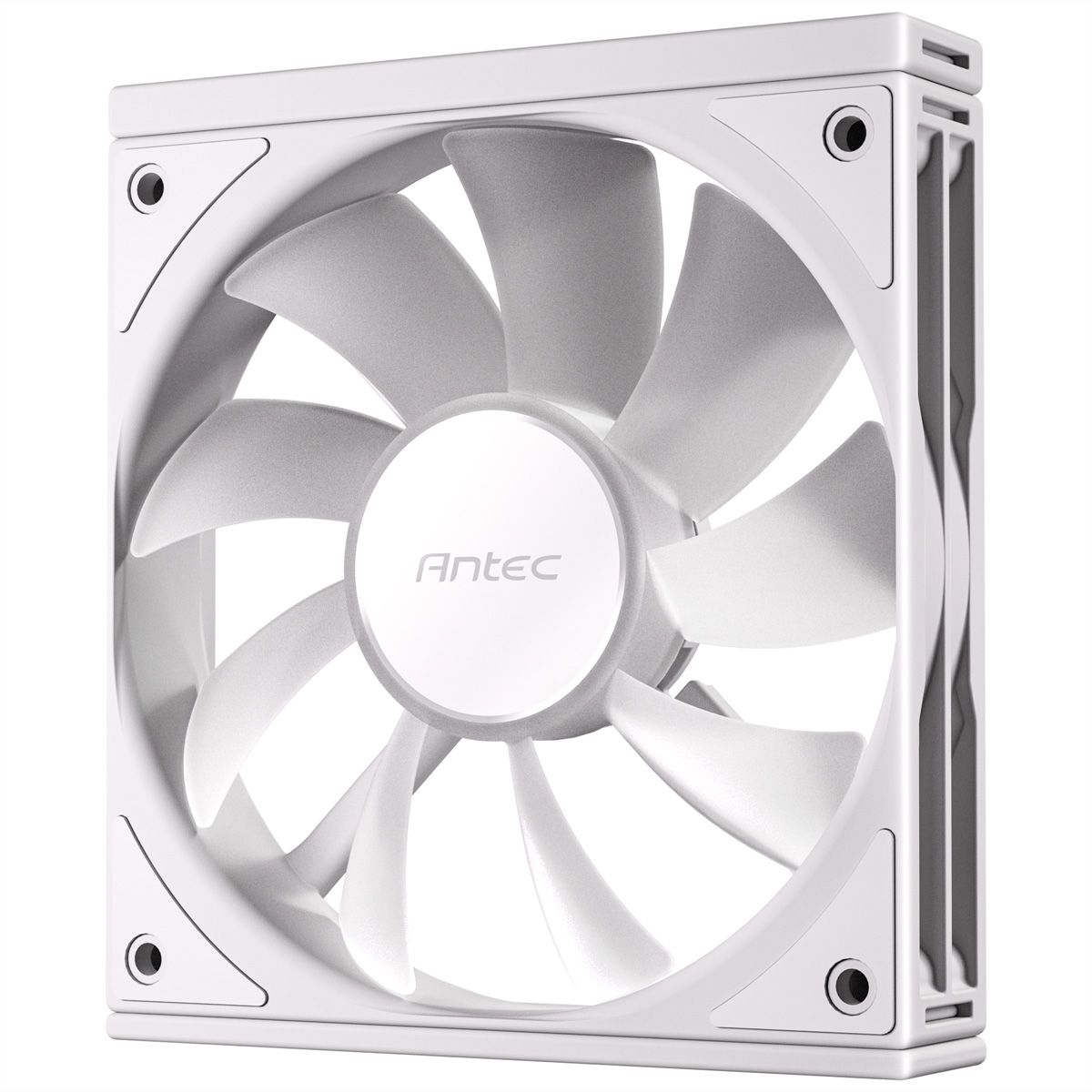

• 9-blade design: Ensures efficient ventilation and strong airflow, so that the fan maintains high cooling performance even with increased air resistance.

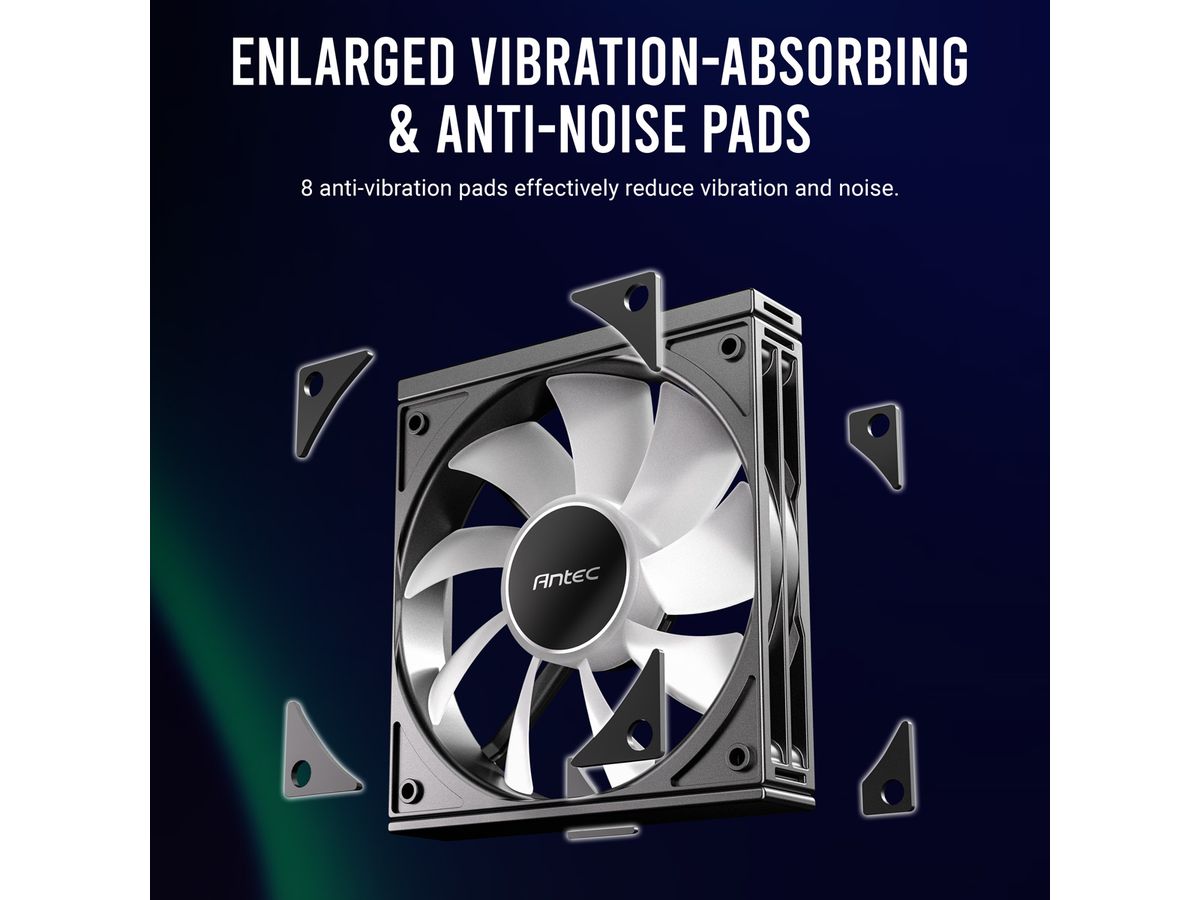

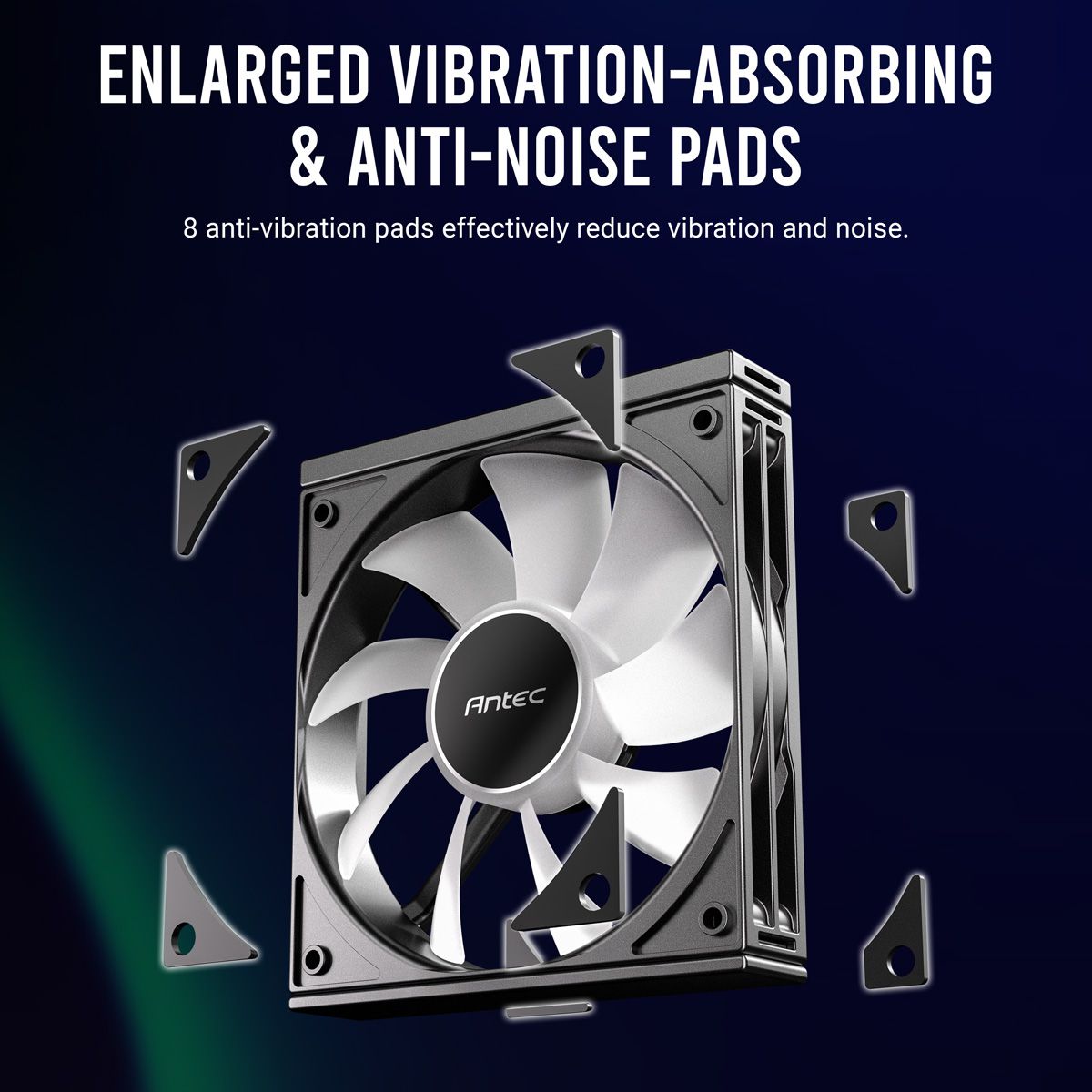

• 8 silicone anti-vibration pads:

Reduce noise and resonance while increasing friction with the housing, stabilising the fan body.

• Hydraulic bearing: The hydraulic bearing has a larger oil supply than conventional oil bearings and features a unique oil return circuit. This significantly extends the service life compared to standard oil-sealed bearings and ensures quieter operation.

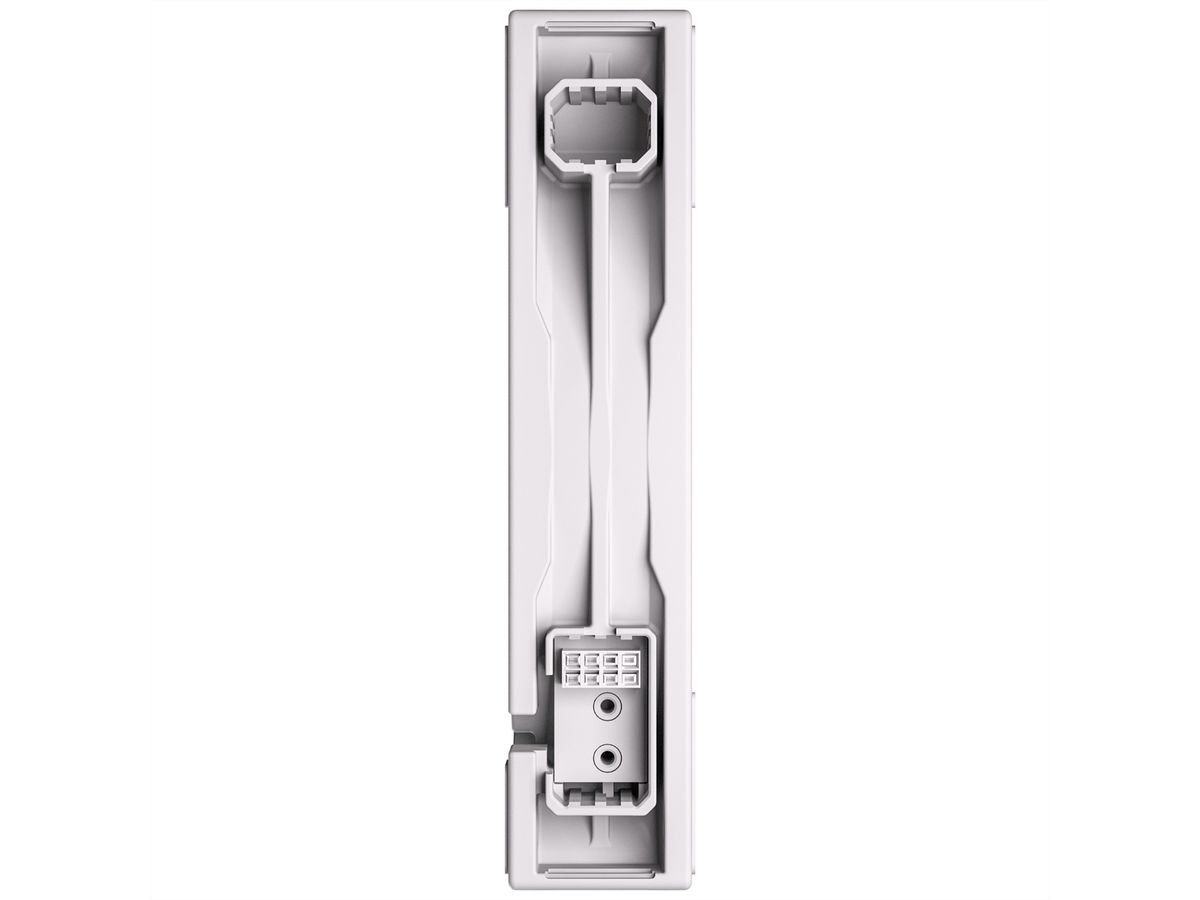

• Speed/lighting synchronisation with the motherboard: Includes a 3-pin ARGB connector and a 4-pin PWM connector. The dual connectors ensure optimised cable management.

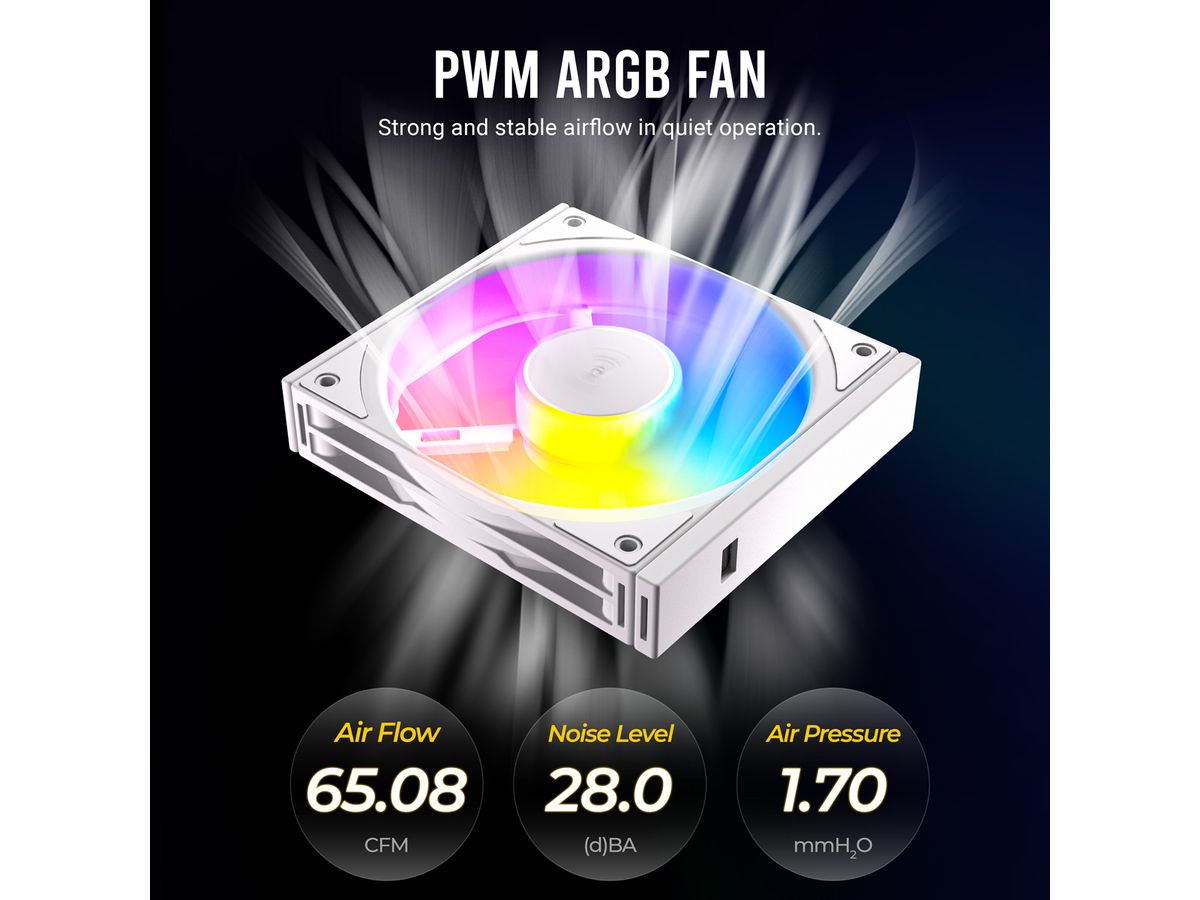

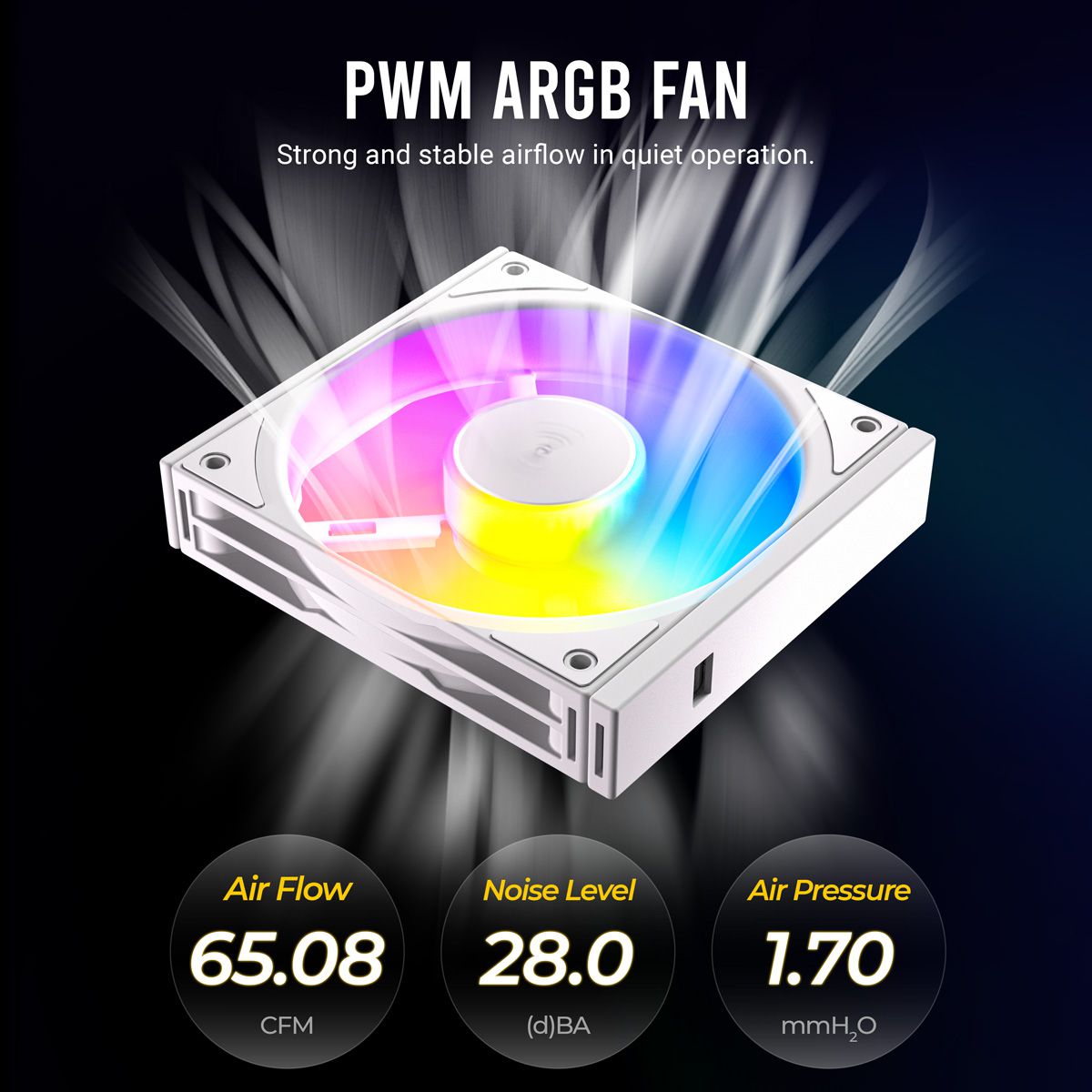

• High-performance PWM: When connected to the motherboard, the fan speed can be controlled between 800 and 1500 RPM, adjusting to temperature changes to reduce noise or increase airflow as needed.

Specifications

Manufacturer	ANTEC
Product group	Cooler/Fan
Product type	Housing fan
Colour	white

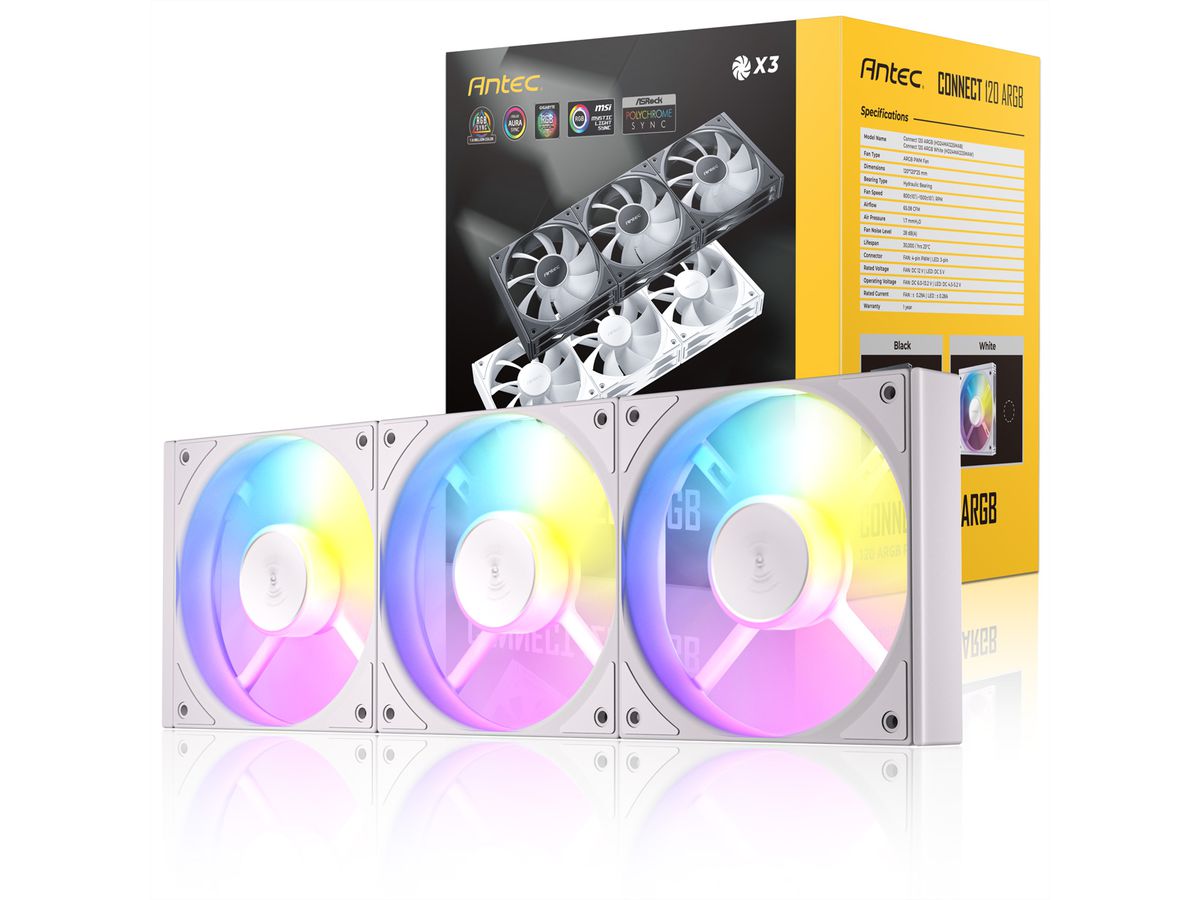

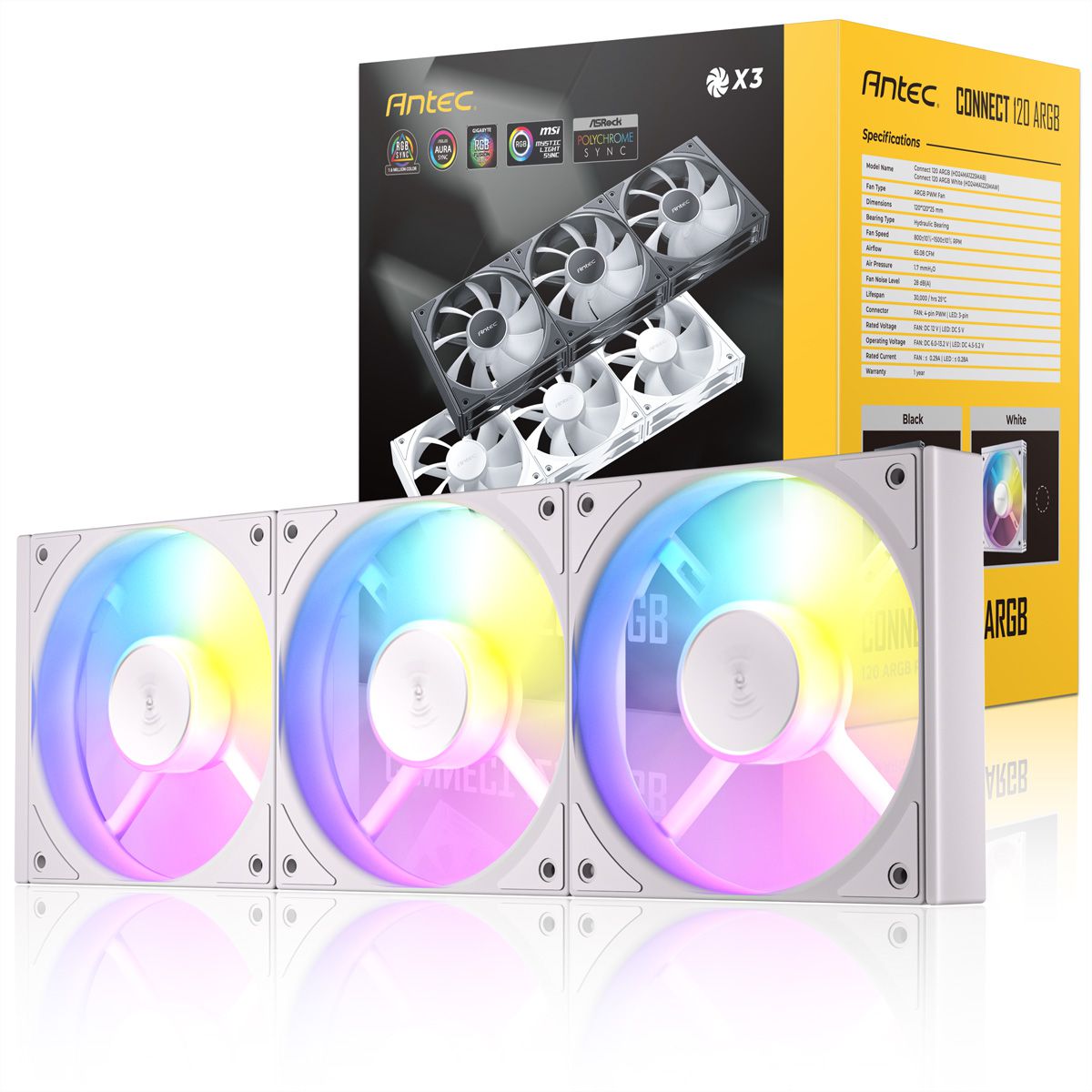

Scope of delivery	3x fan
Connector Type	ARGB 3-pin
Quantity of fans	1
Fan bearing type	liquid-damped
Dimensions (HxWxD)	25 x 120 x 120 mm
Dimensions (HxWxD) fan	25 x 120 x 120 mm
Fan rotational speed	800RPM± 10％ - 1500RPM± 10％
Air pressure	1.7 mm H²O
Rated fan current	0.29 A
Noise level spinning (max.)	28 dB (A)
Height	25 mm
Width	120 mm
Depth	120 mm
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg

Downloads

Manufacturer data sheet - English (7.7 MB)

Download

User manual - English (10.0 MB)

Download
