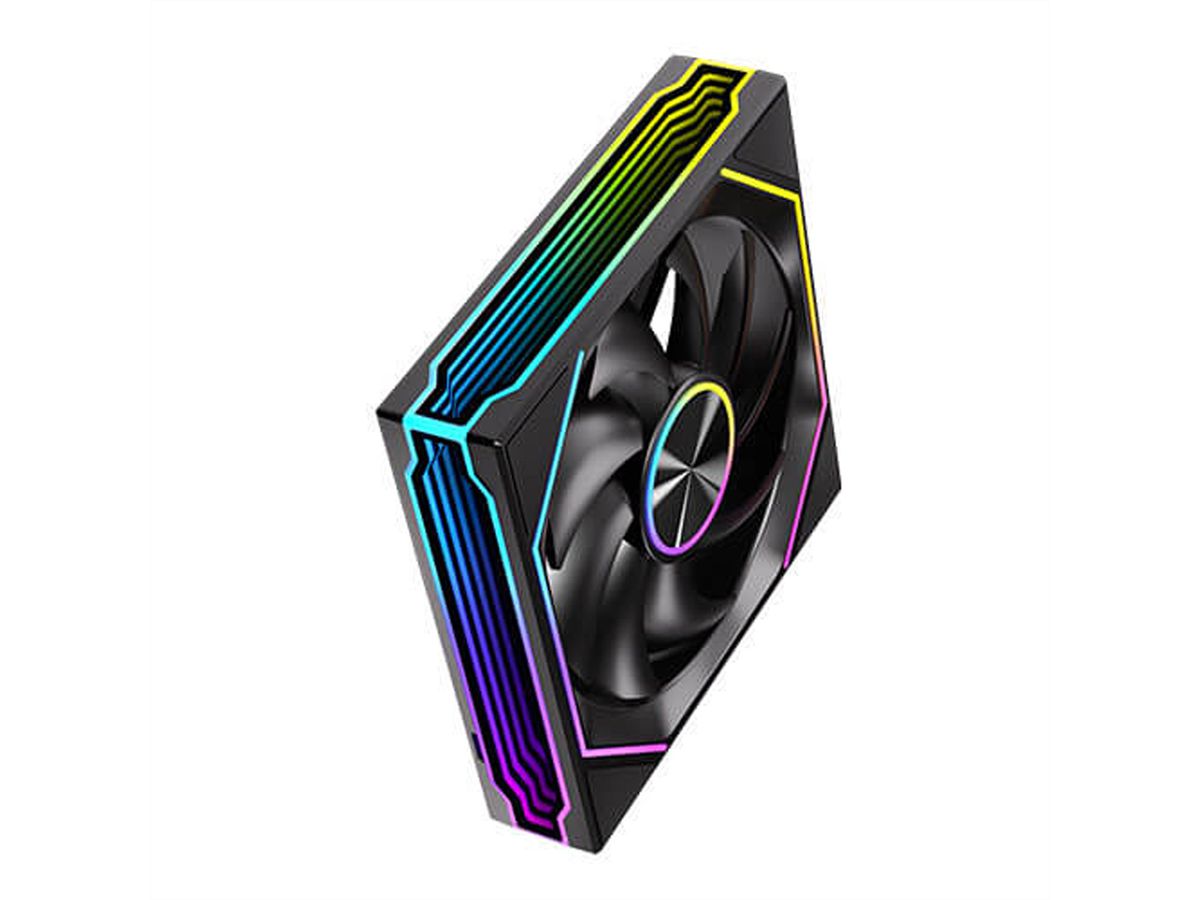

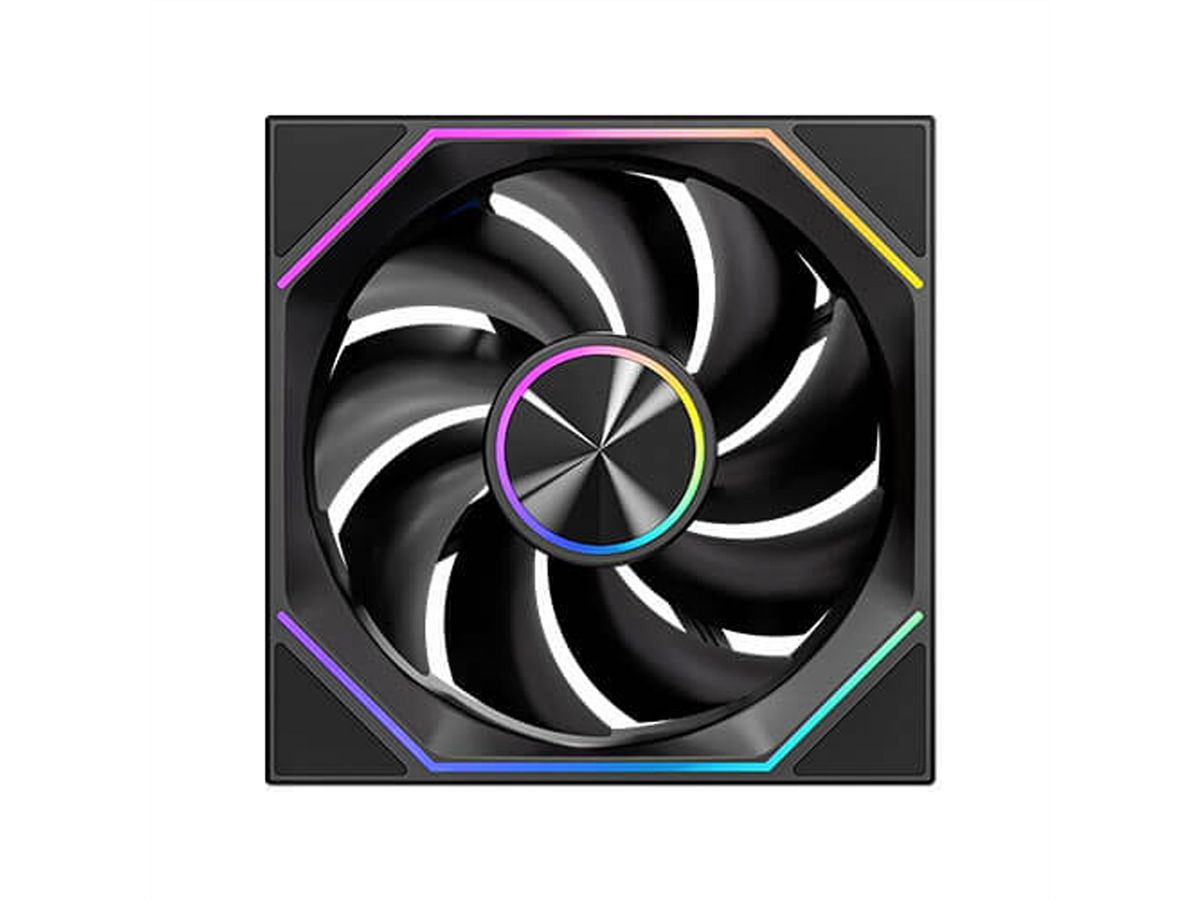

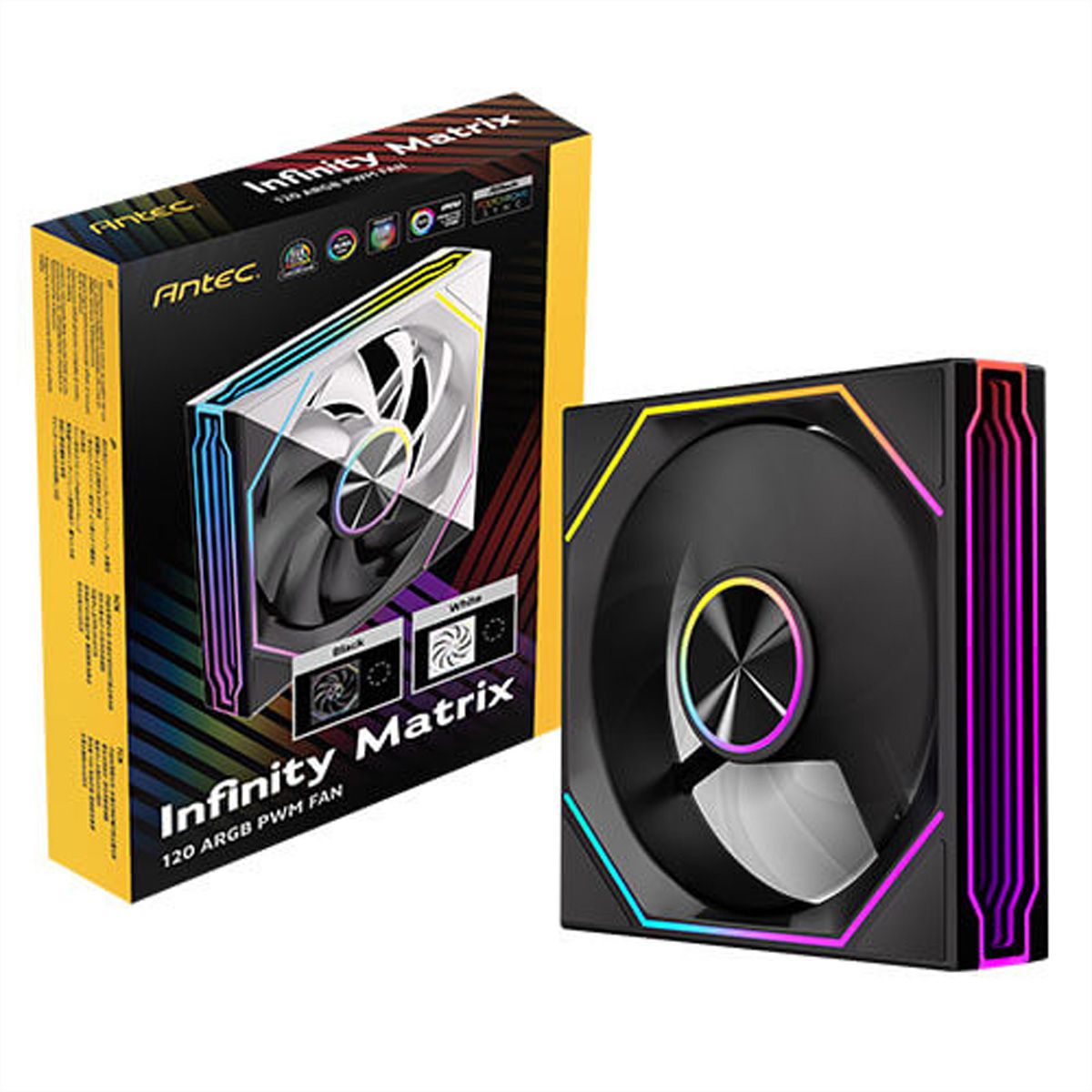

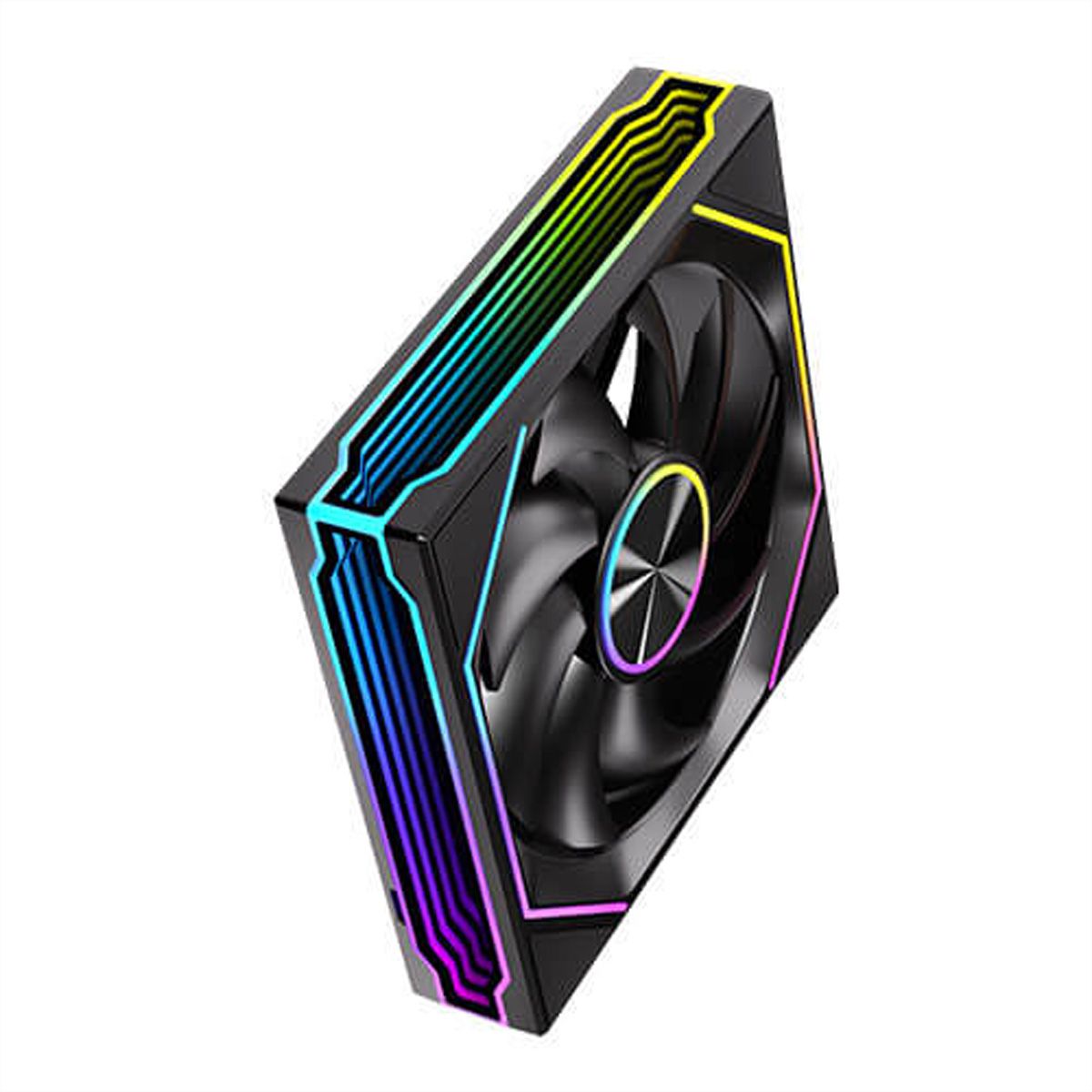

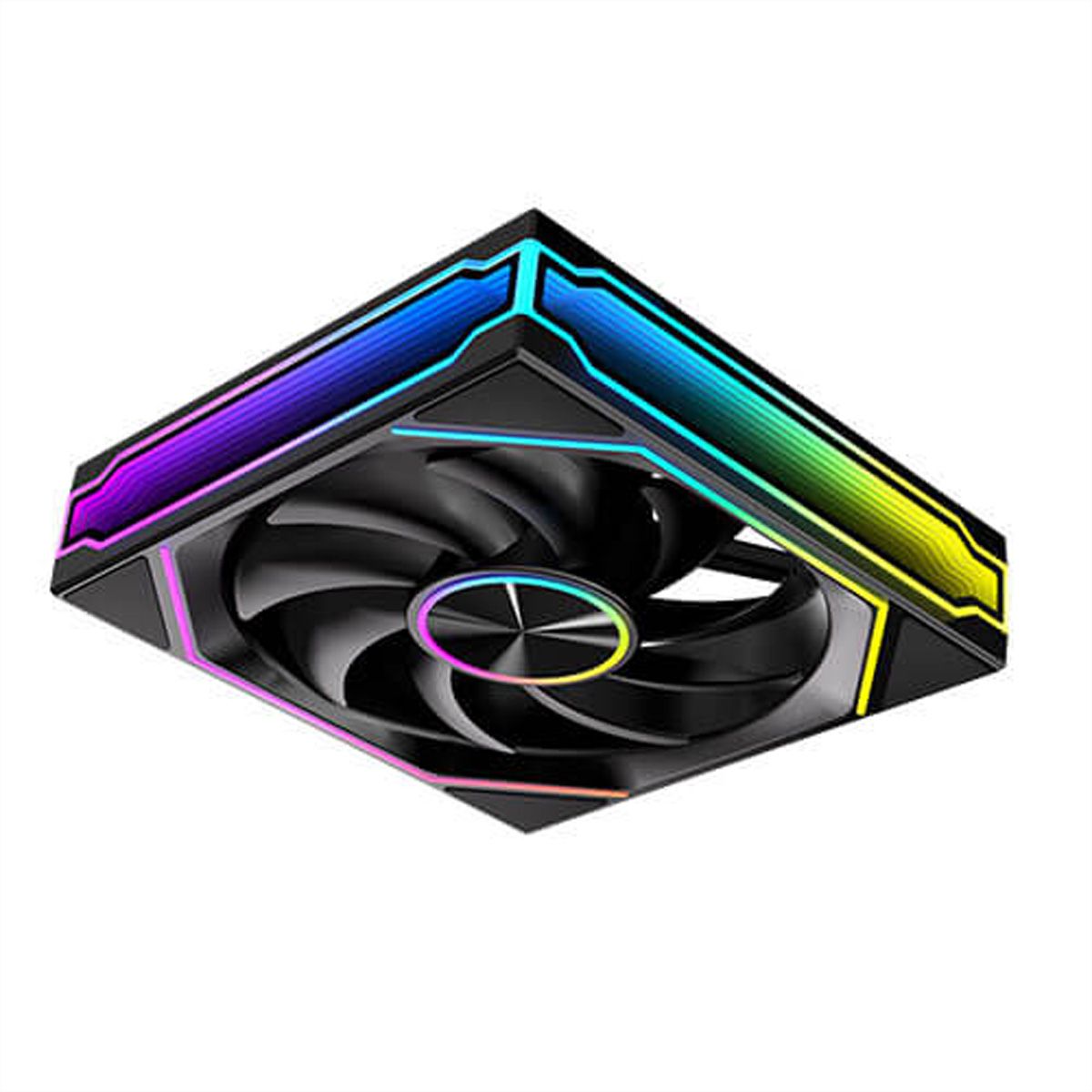

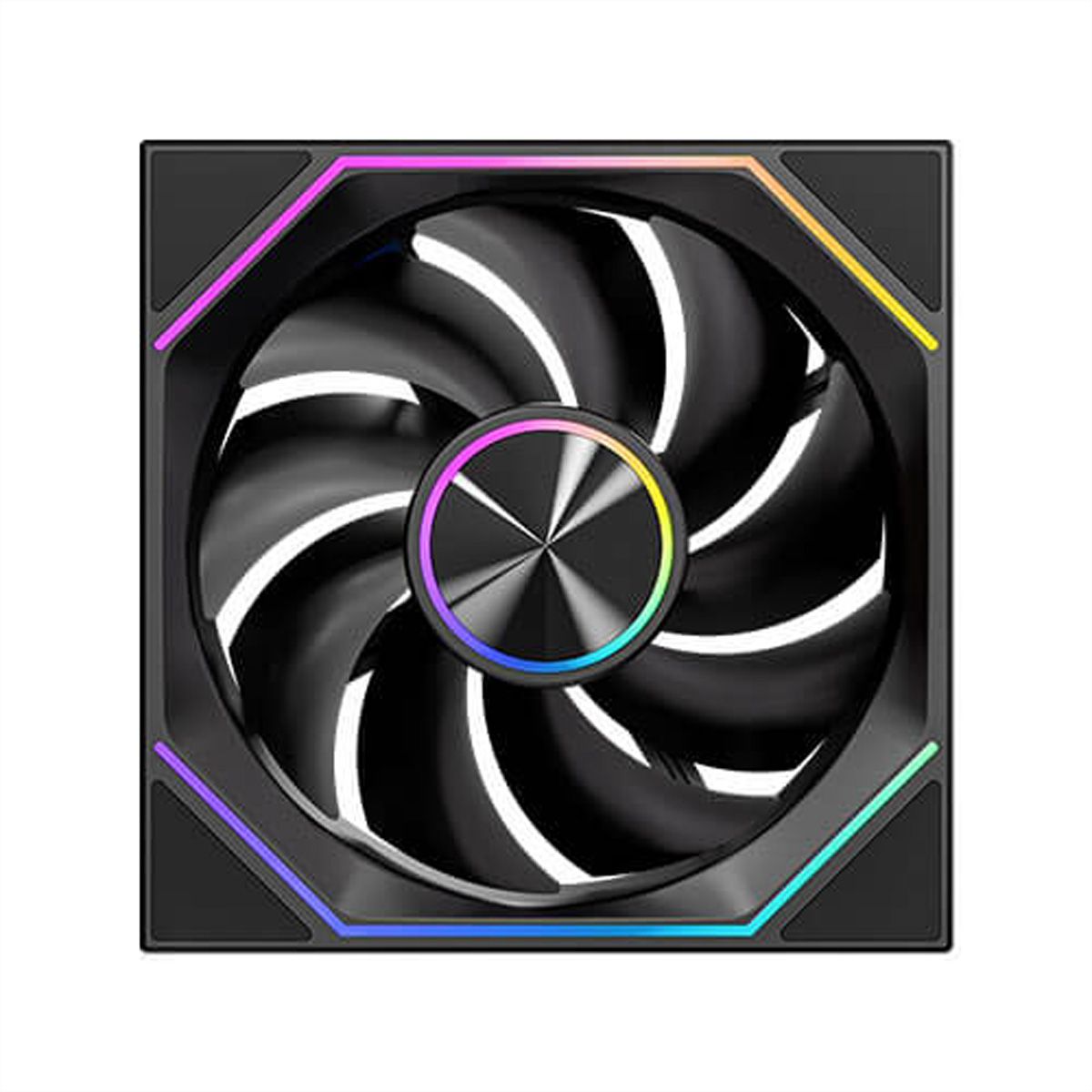

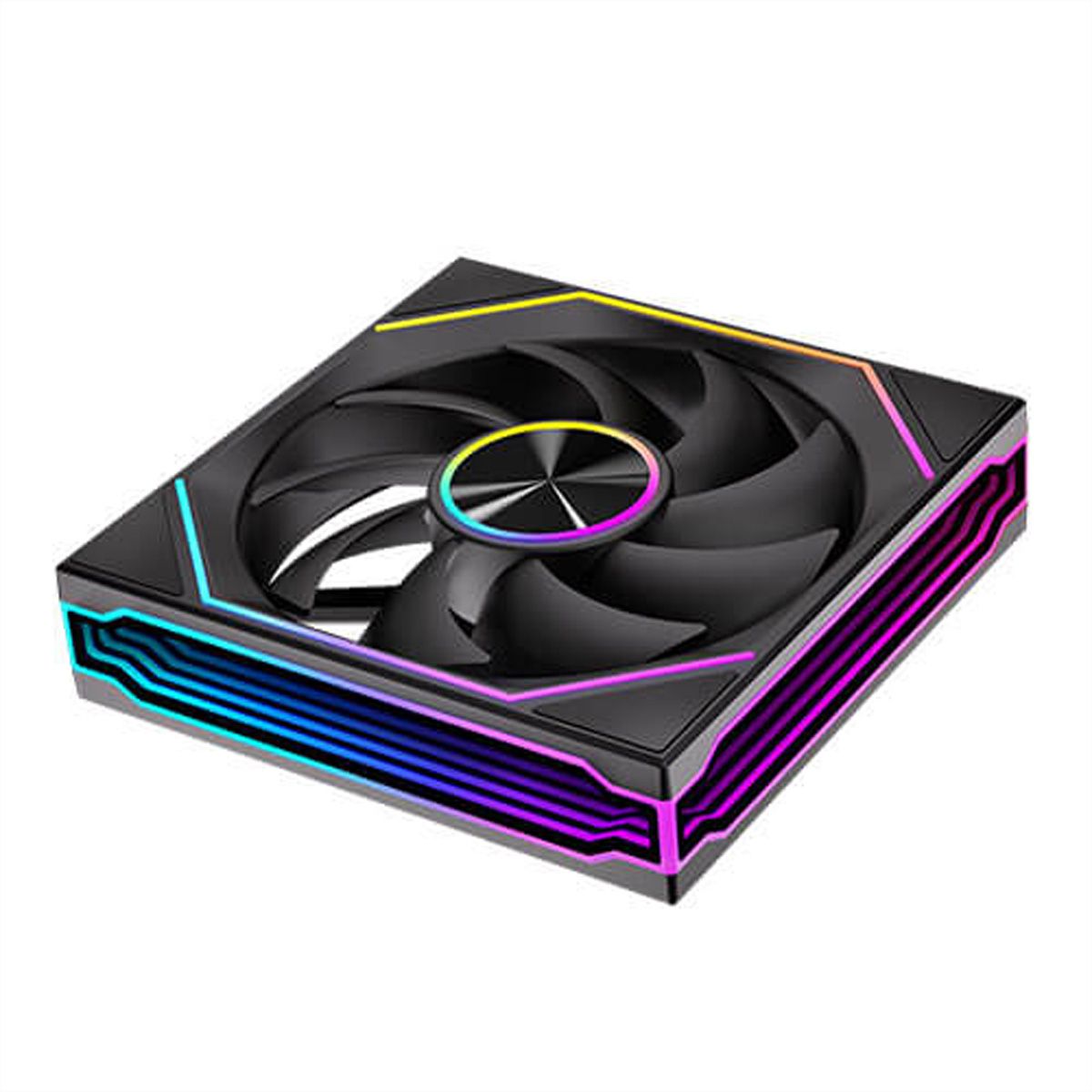

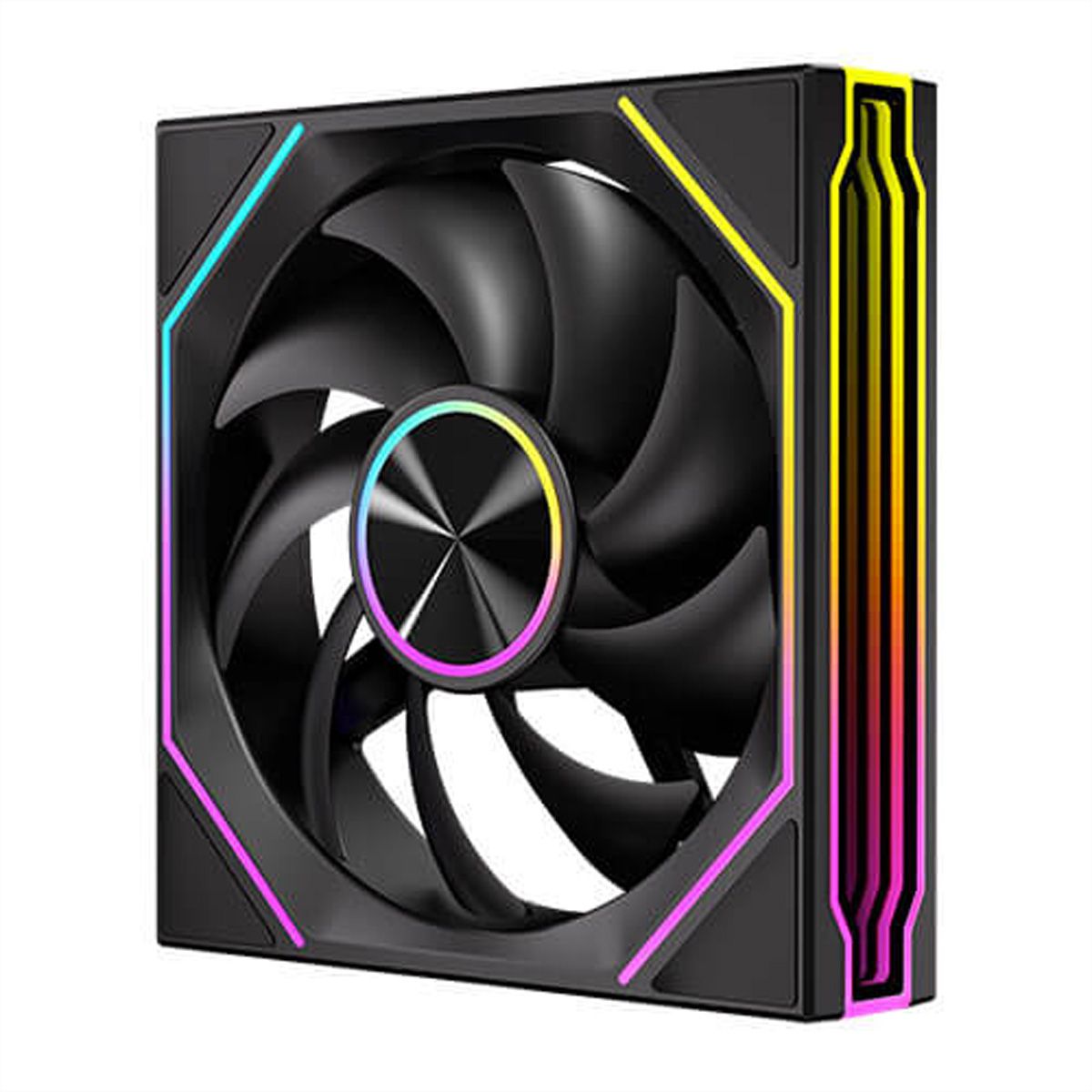

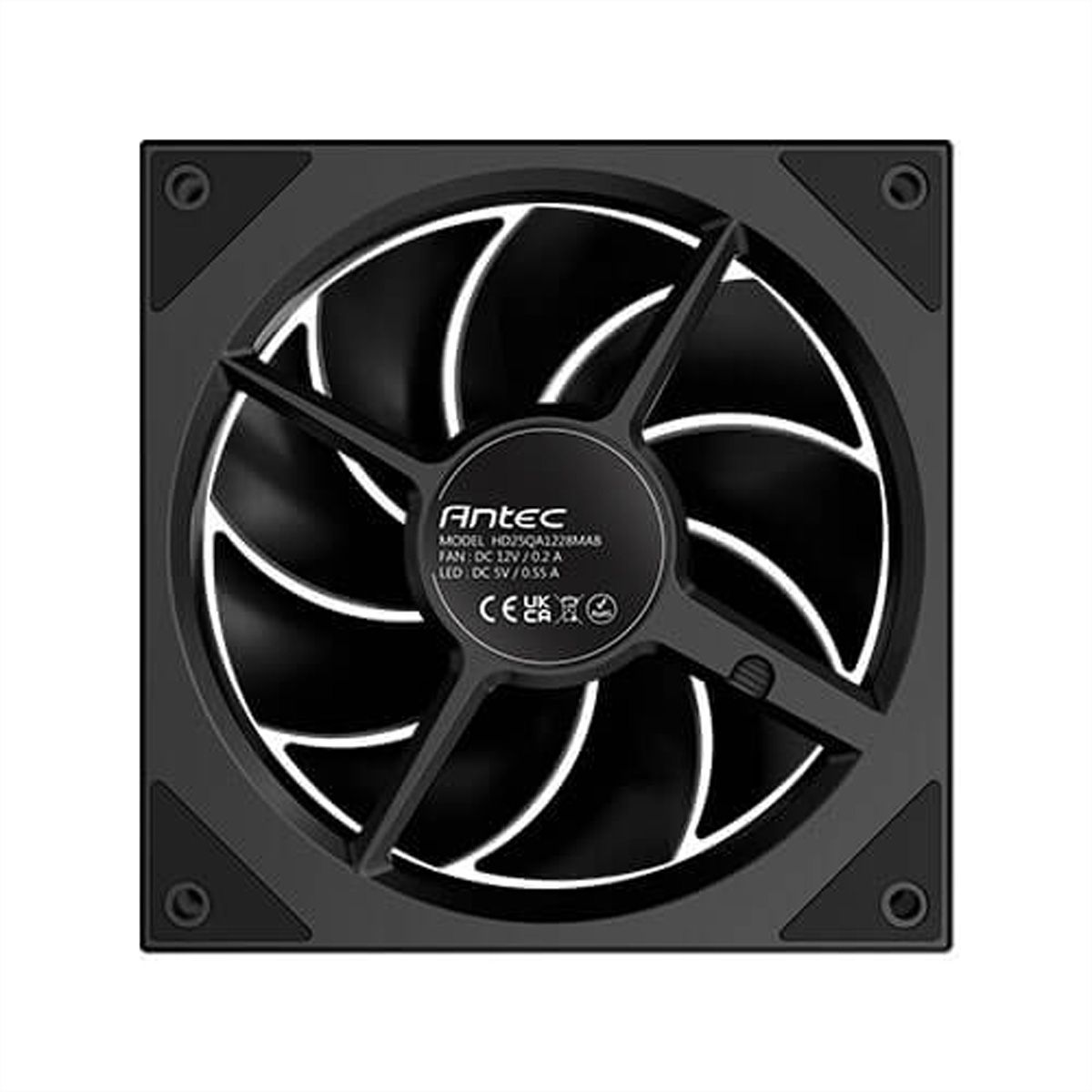

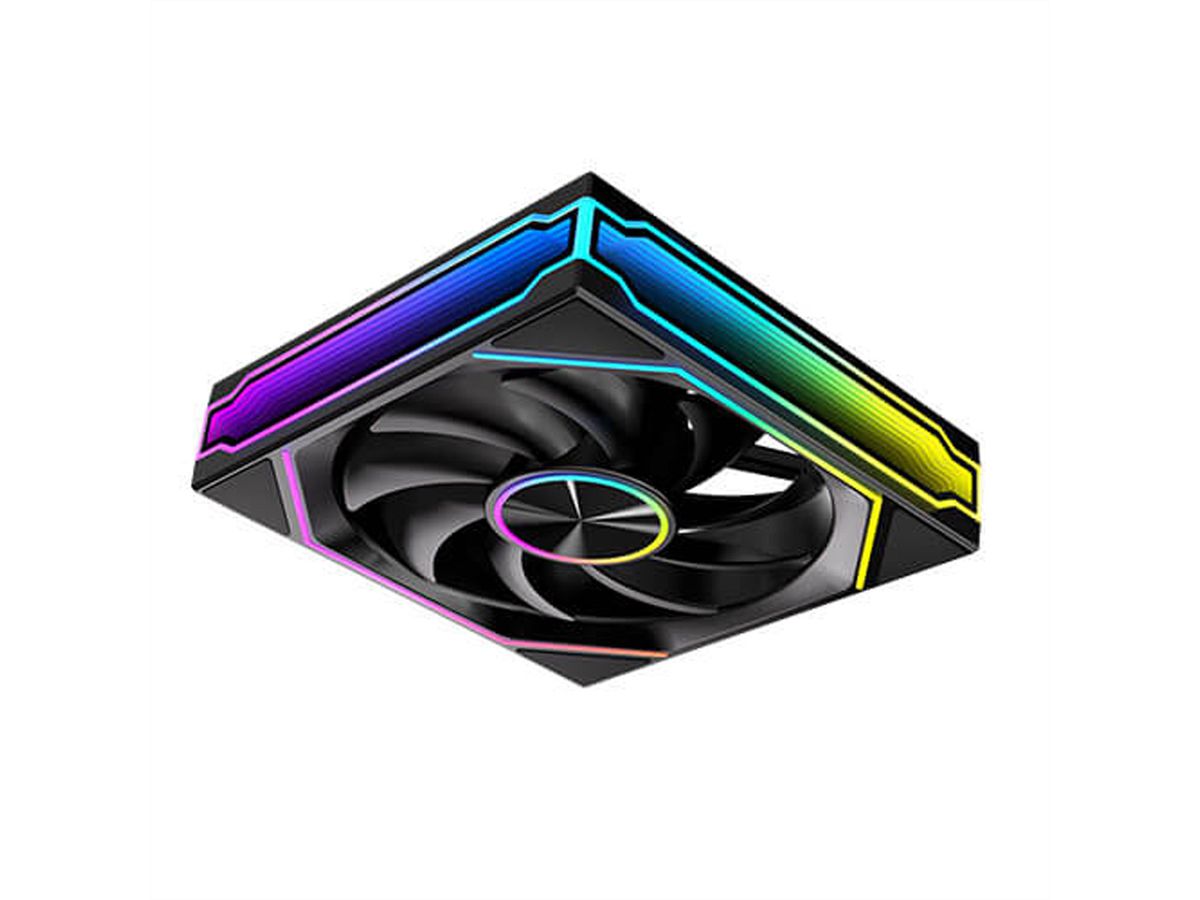

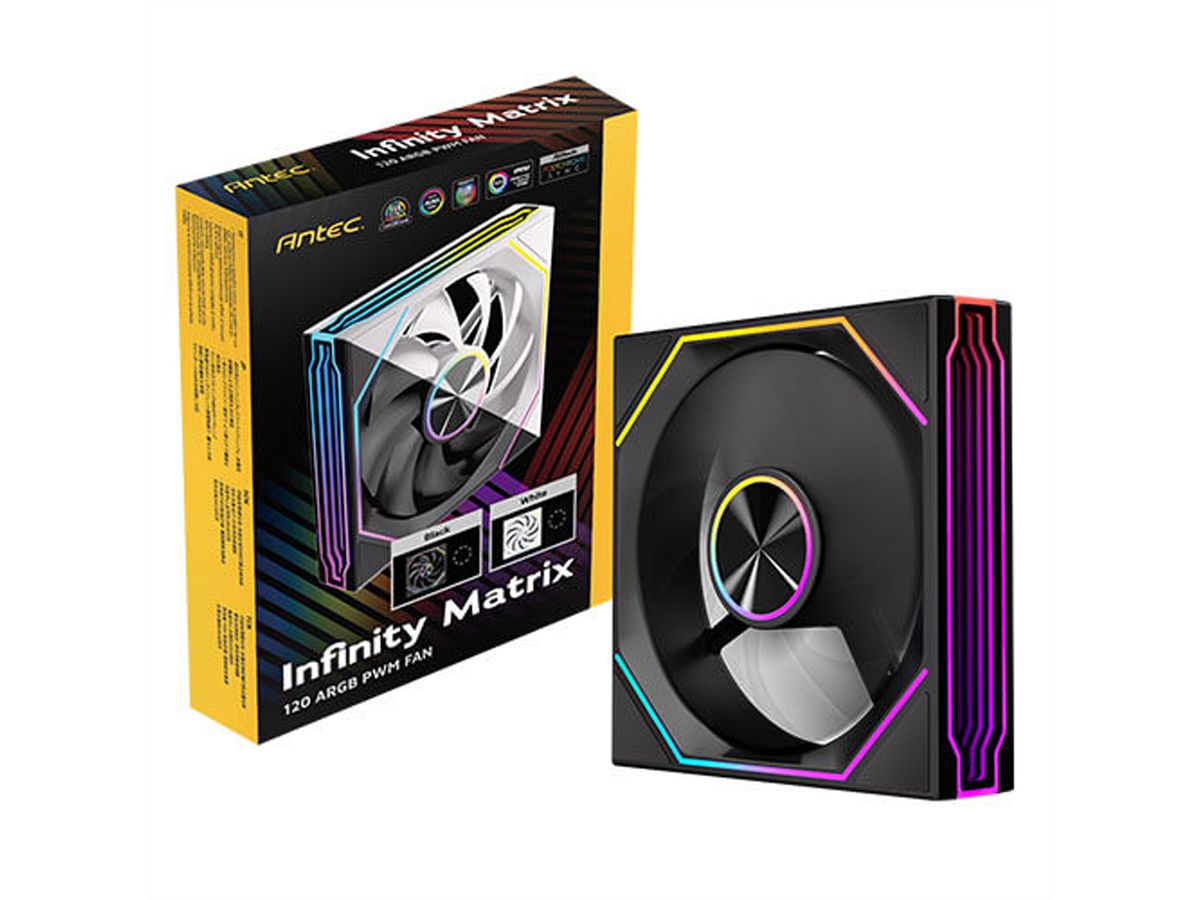

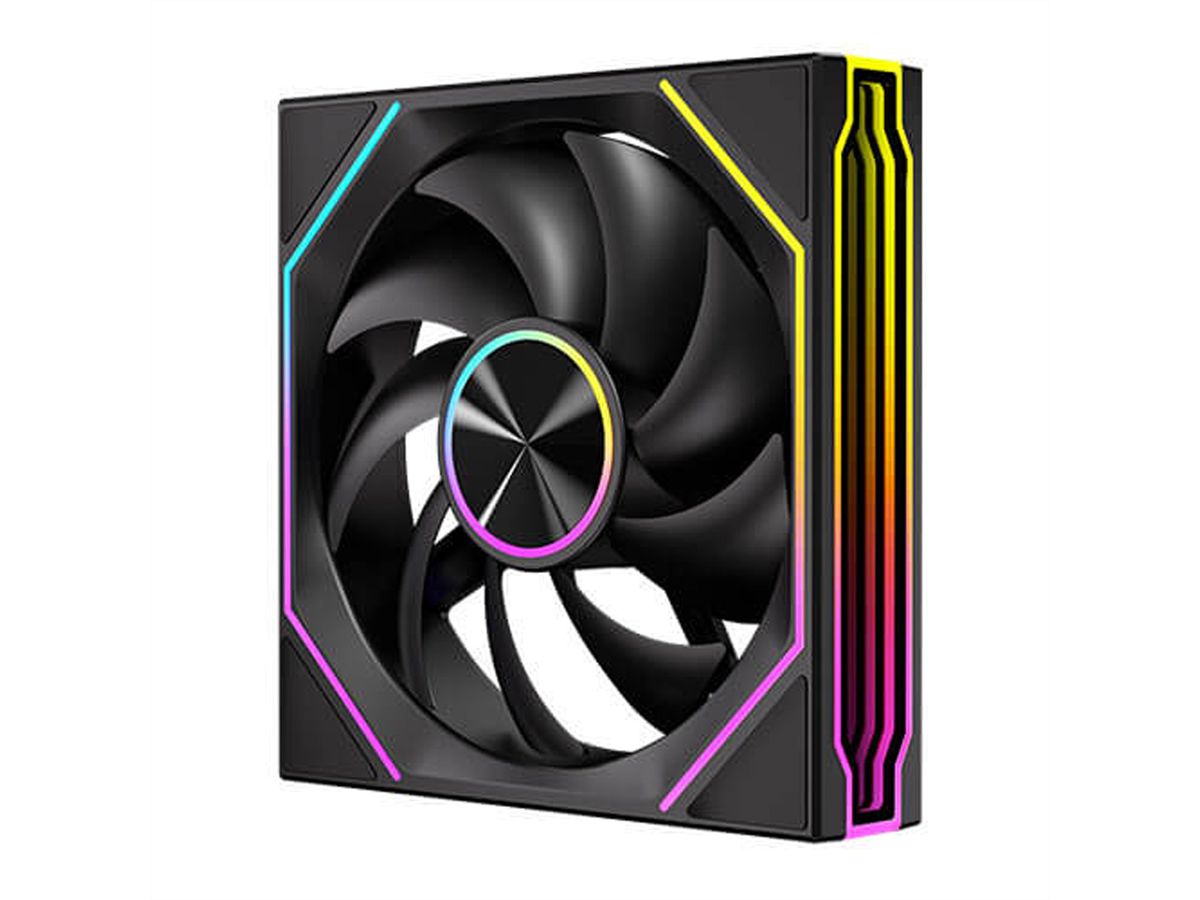

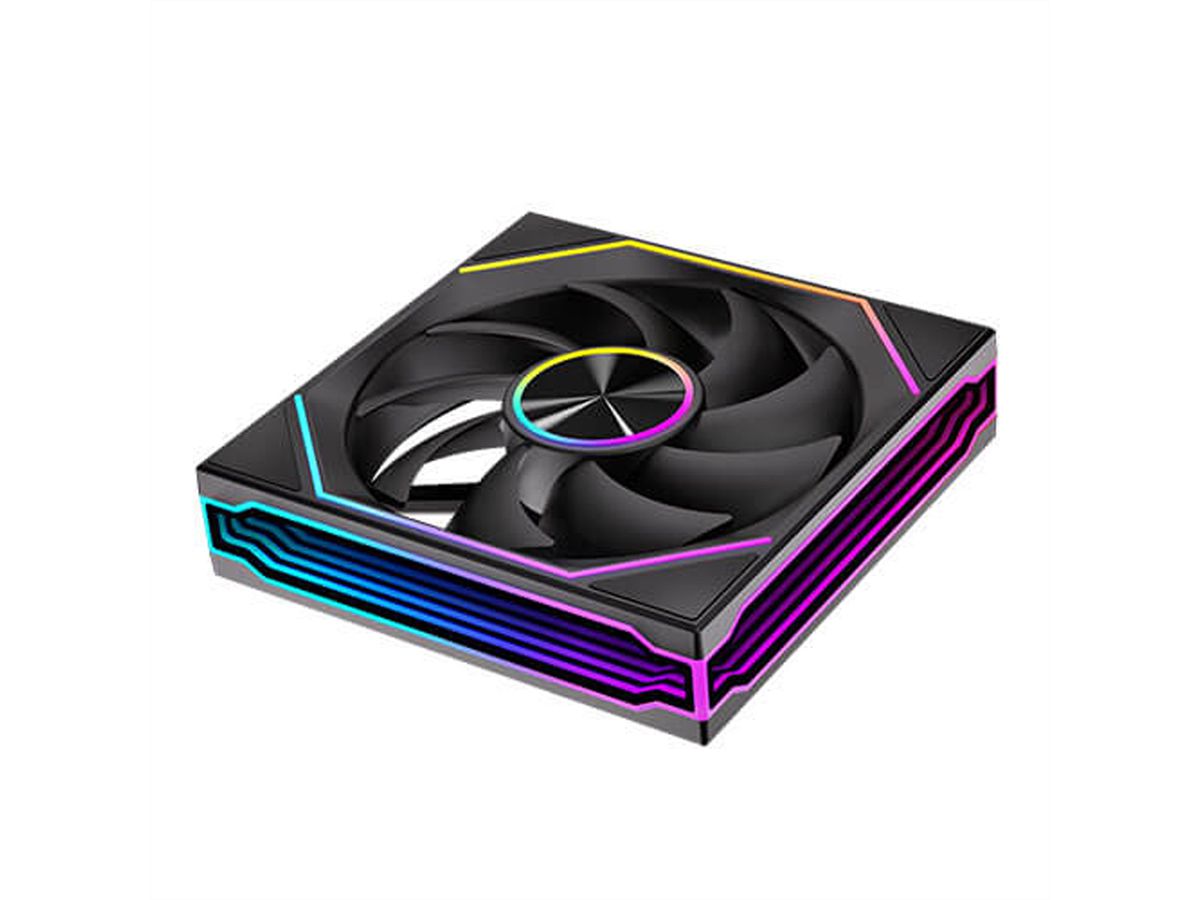

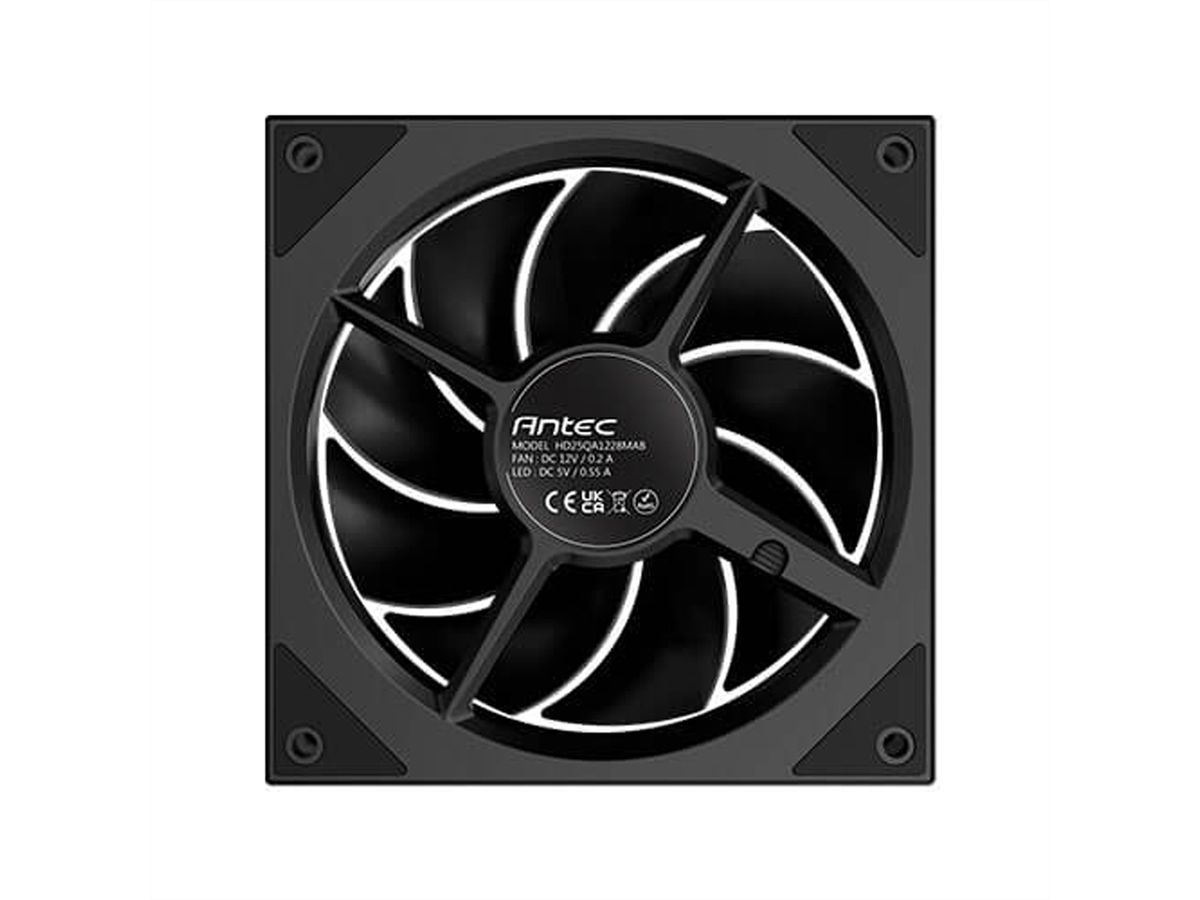

ANTEC IM 120R ARGB, Housing fan, black
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 19101783 |
|---|---|
| Brand / Manufacturer | ANTEC |
| Manuf. item no. | 0-761345-40079-4 |
| EAN | 0761345400794 |
:strip_icc():strip_exif()/logos/antec.png "ANTEC")
Description
Infinity Matrix 120 ARGB PWM FAN
- Extreme Lighting Effects: Four-sided infinity-mirror design combined with dual light strips and center ring lighting.
- Four-Sided Infinity Mirror Lighting: A multi-layer reflective structure that creates a three-dimensional light effect.
- Dual Extended Light Strips: Smoother more refined lighting effects.
- Full-ring ARGB Lighting at the Fan Center
- Metallic Radial Pattern: Center sparkles with light, showcasing a premium feel.
- With a 4-pin PWM connector, the fan speed can be adjusted from 800 to 1800 RPM, providing airflow up to 46.43 CFM while maintaining low noise levels.
- Intelligent PWM Control: High-performance PWM intelligent speed control for optimal cooling and quiet operation.
- Anti-vibration pads for quiet, stable, and reliable performance.
- Independent dual-cable design for cleaner and more flexible cable management.
SPECIFICATIONS
Fan Type: PWM Fan
Dimensions: 120 x 120 x 28mm
Bearing Type: Hydraulic bearing
LED Type: Addressable RGB
Fan Speed: 800±200~1800±10% RPM
Airflow: 18.87~46.43 CFM
Air Pressure: 0.32~1.69 mmAq
Fan Noise Level: 10.8~32 db
Lifespan: 40,000 hours
Connector: FAN: 4-pin(PWM) | LED: 3-pin
Rated Voltage: FAN: DC 12 V | LED: DC 5 V
Operation Voltage: FAN: DC 10.5-13 V | LED: DC 4.5-5.5 V
Rated Current: FAN : 0.2 A | LED : 0.55 A
Specifications
| Manufacturer | ANTEC |
|---|---|
| Product group | Cooler/Fan |
| Product type | Housing fan |
| Colour | black |
| Fan bearing type | Hydraulic bearing |
| Dimensions (HxWxD) fan | 120 x 120 x 28 mm |
| Fan rotational speed | 800±200~1800±10% RPM |
| Air pressure | 1.69 mm H²O |
| Rated fan current | 0.2 A |
| Acoustic level | 10.8~32 db |
| Noise level spinning (max.) | 32 dB |
| Height | 120 mm |
| Width | 120 mm |
| Depth | 28 mm |
| Weight | 200 g |
| Height of packaging (single piece) | 0 mm |
| Width of packaging (single piece) | 0 mm |
| Depth of packaging (single piece) | 0 mm |
| Package weight (single piece) | 0 kg |
