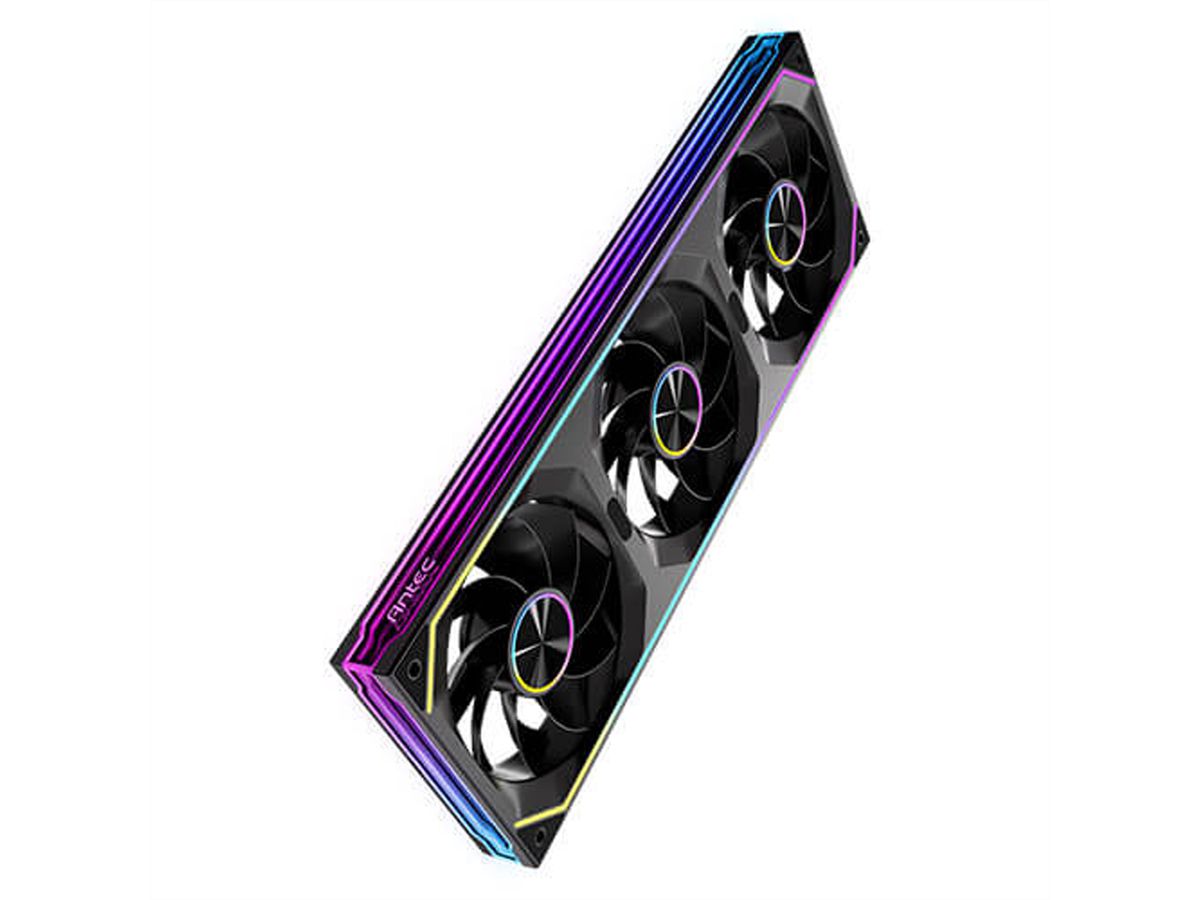

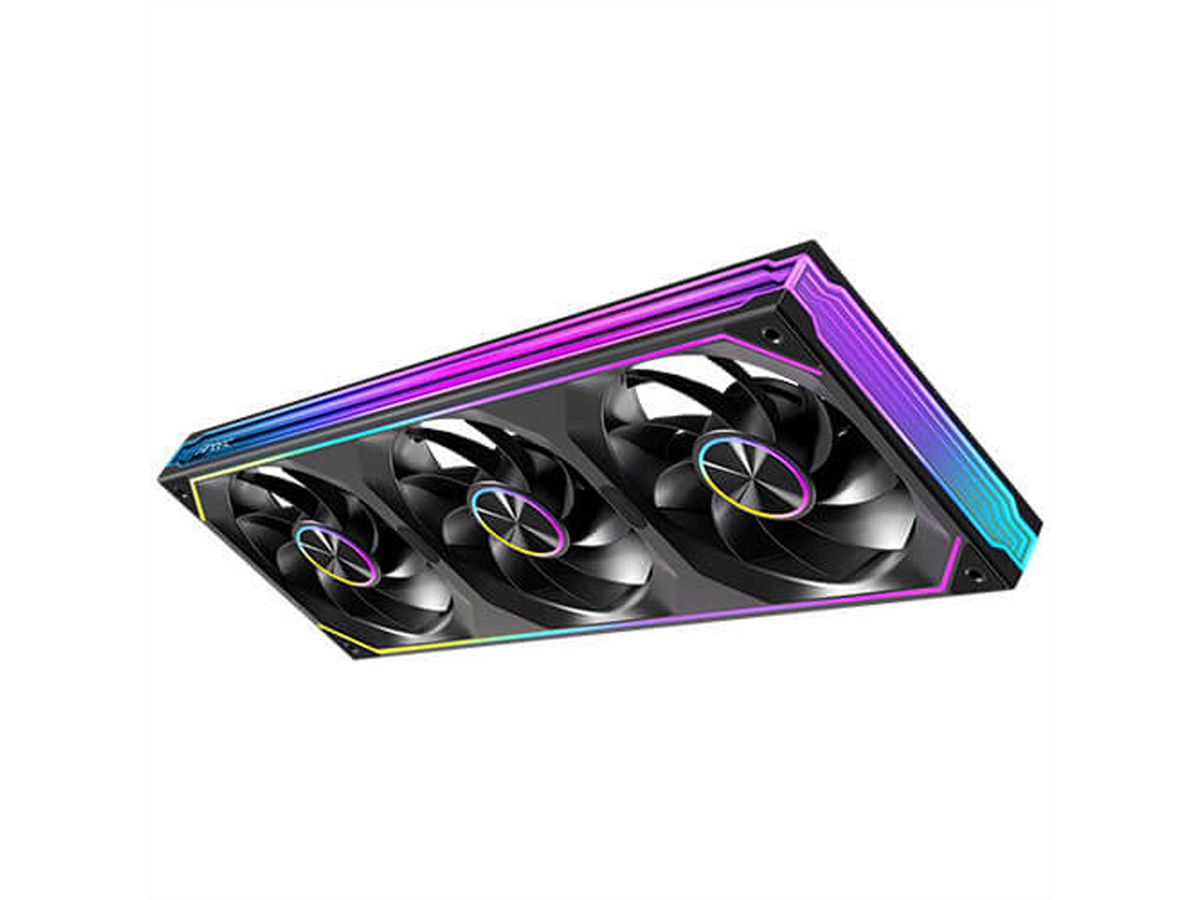

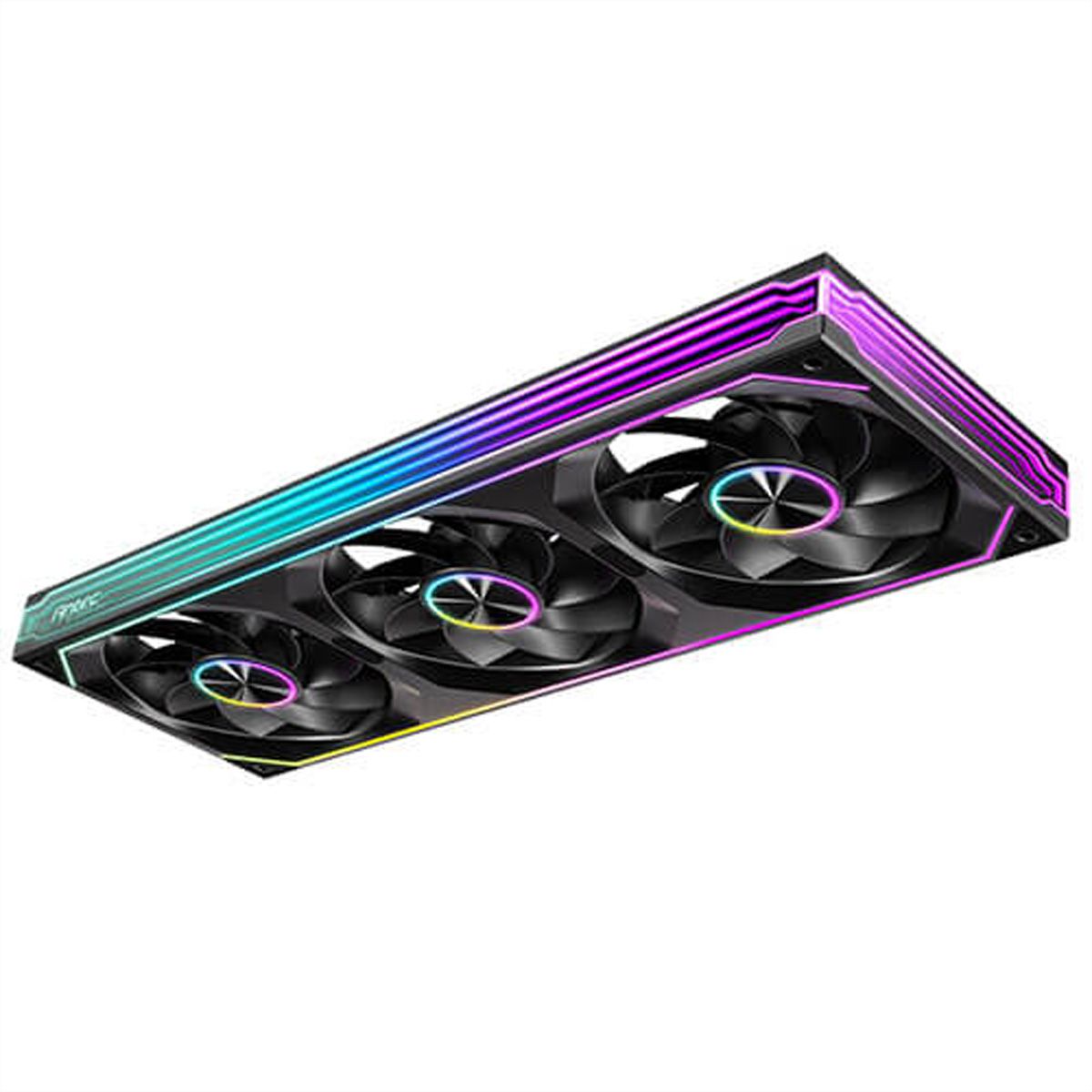

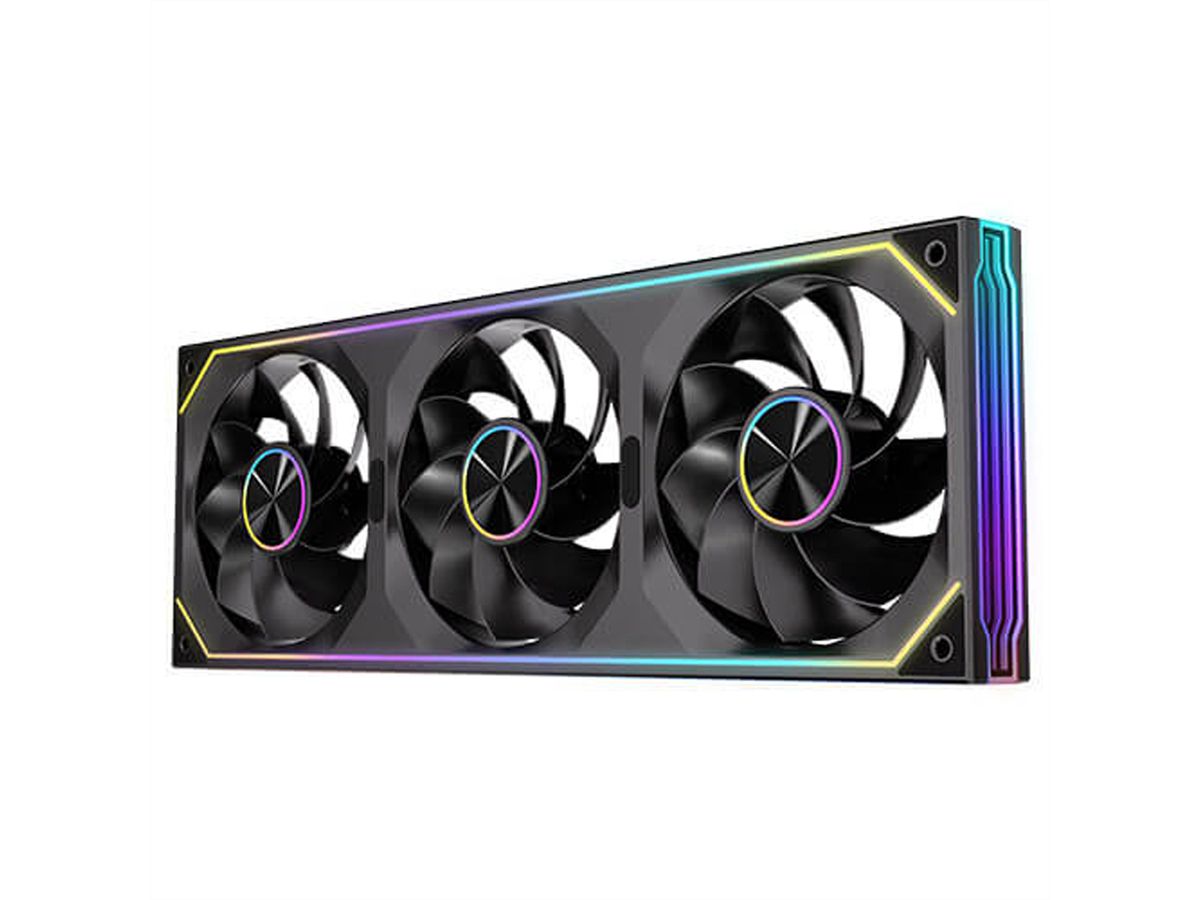

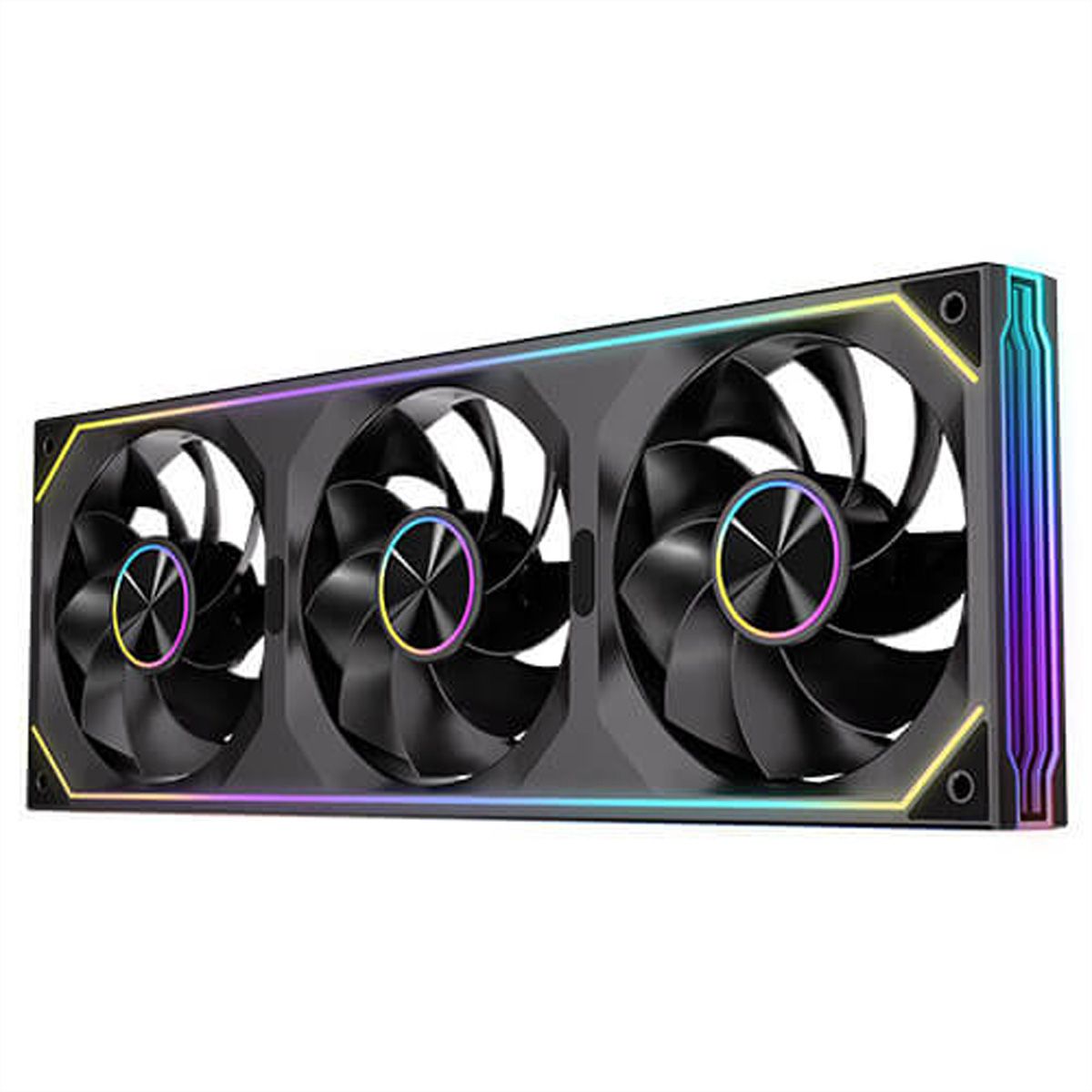

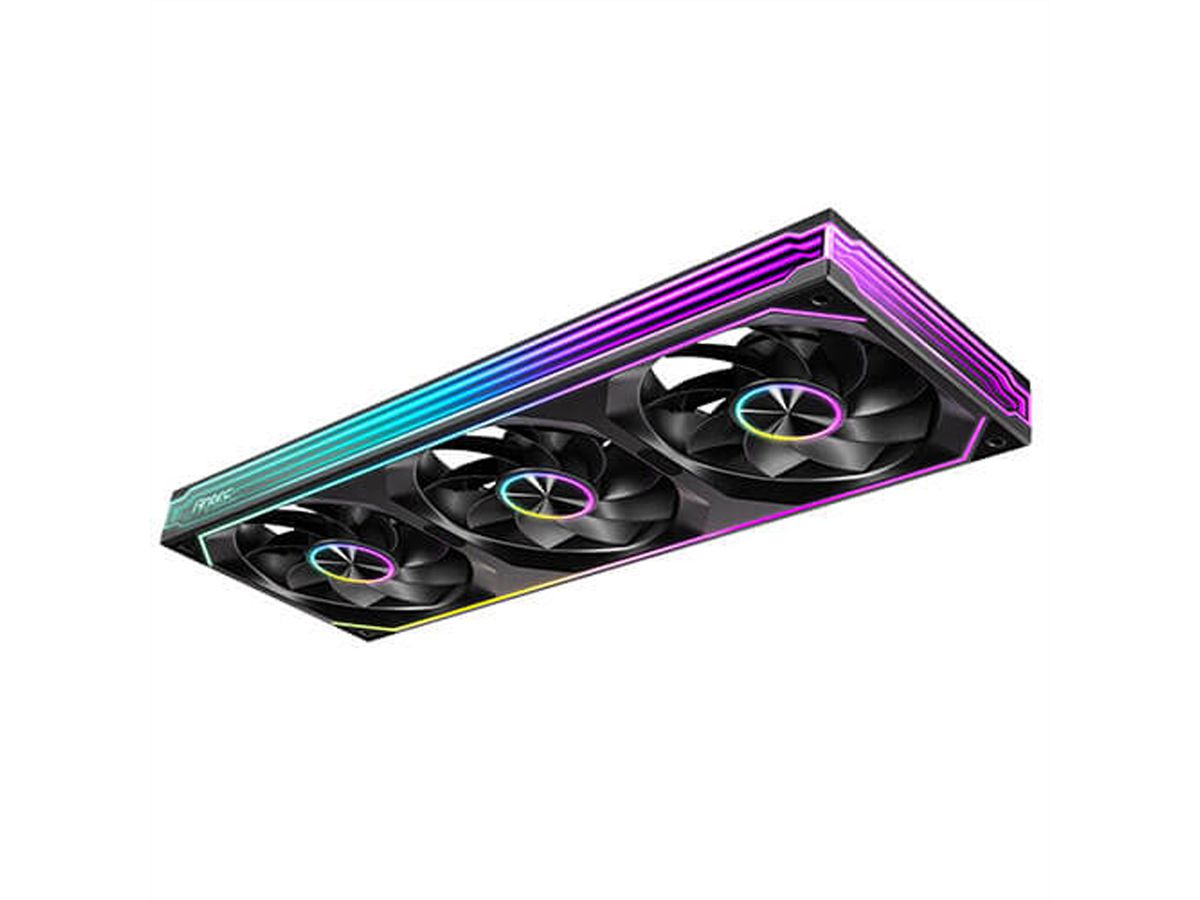

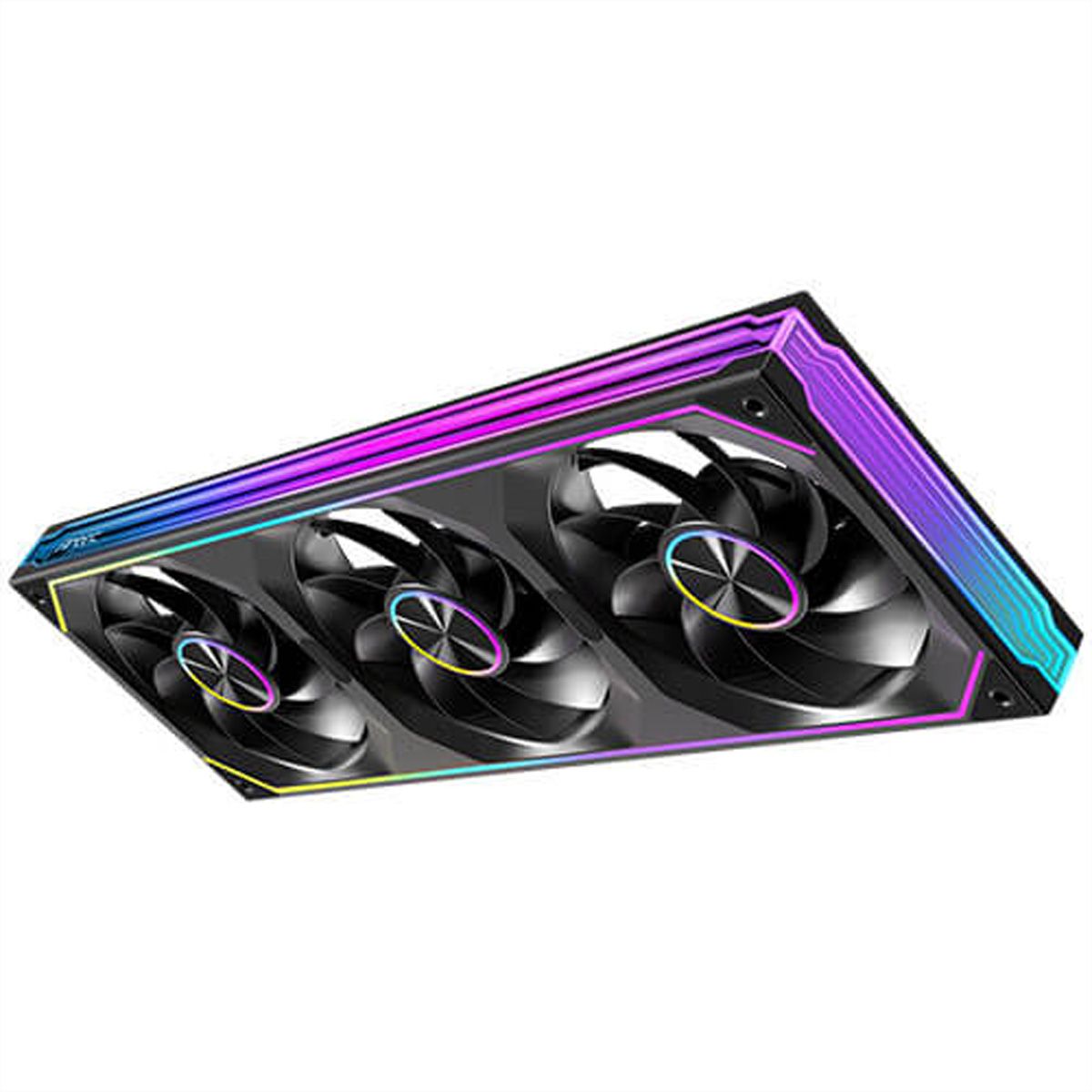

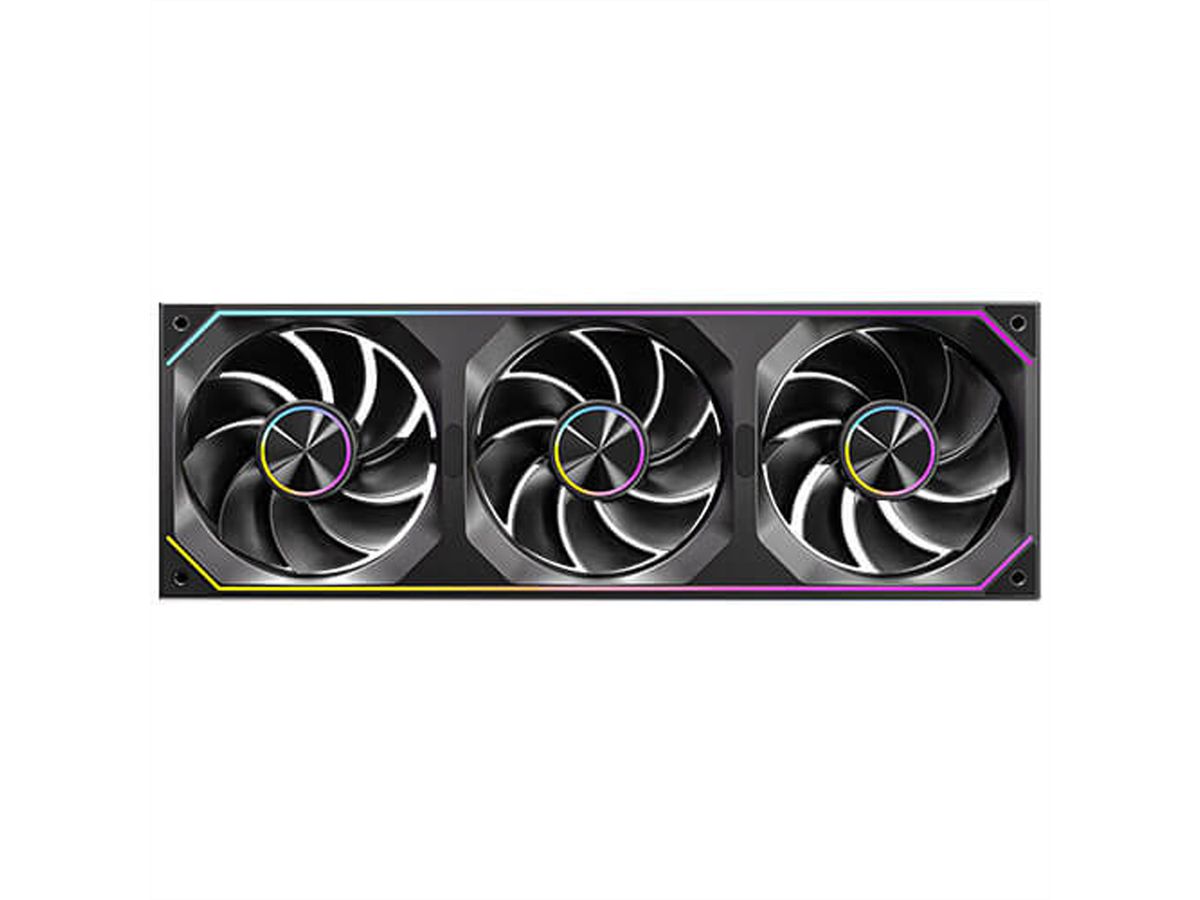

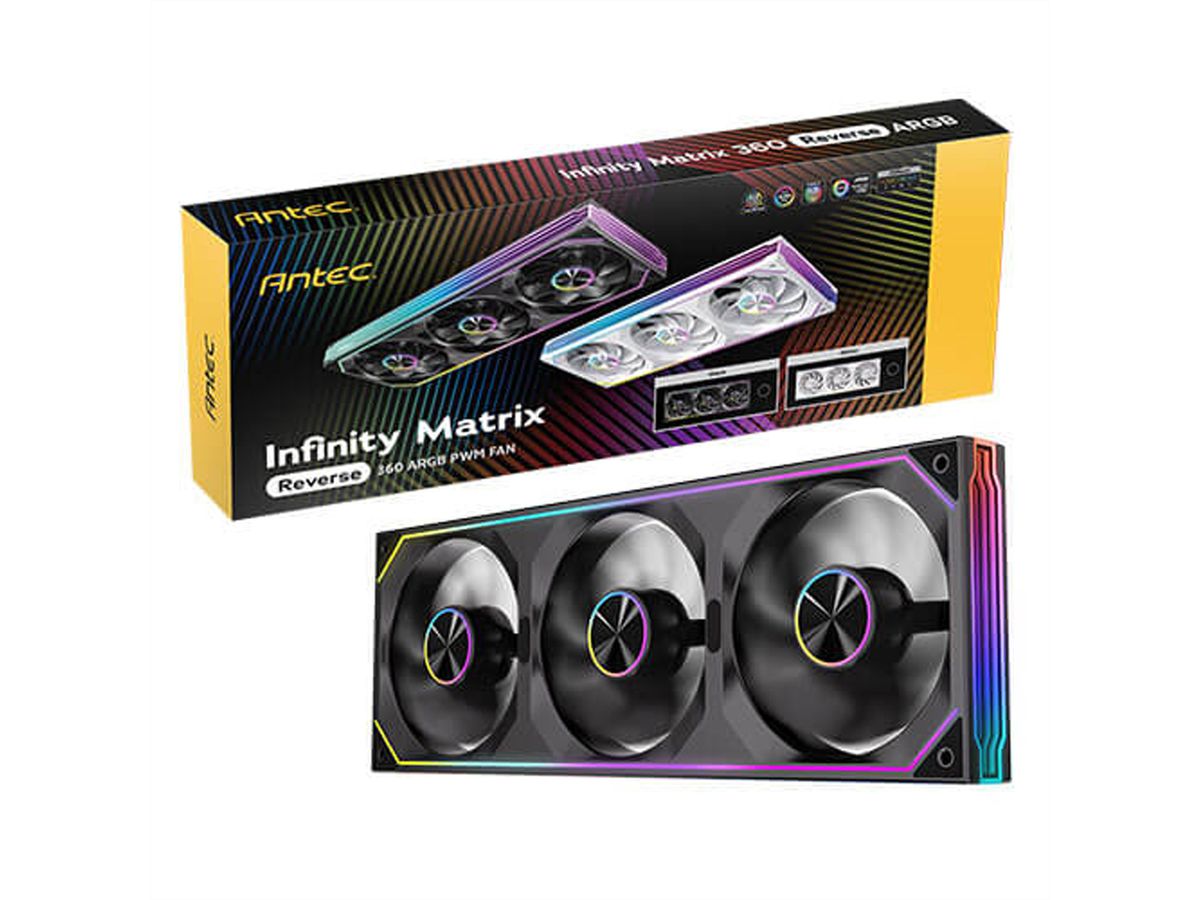

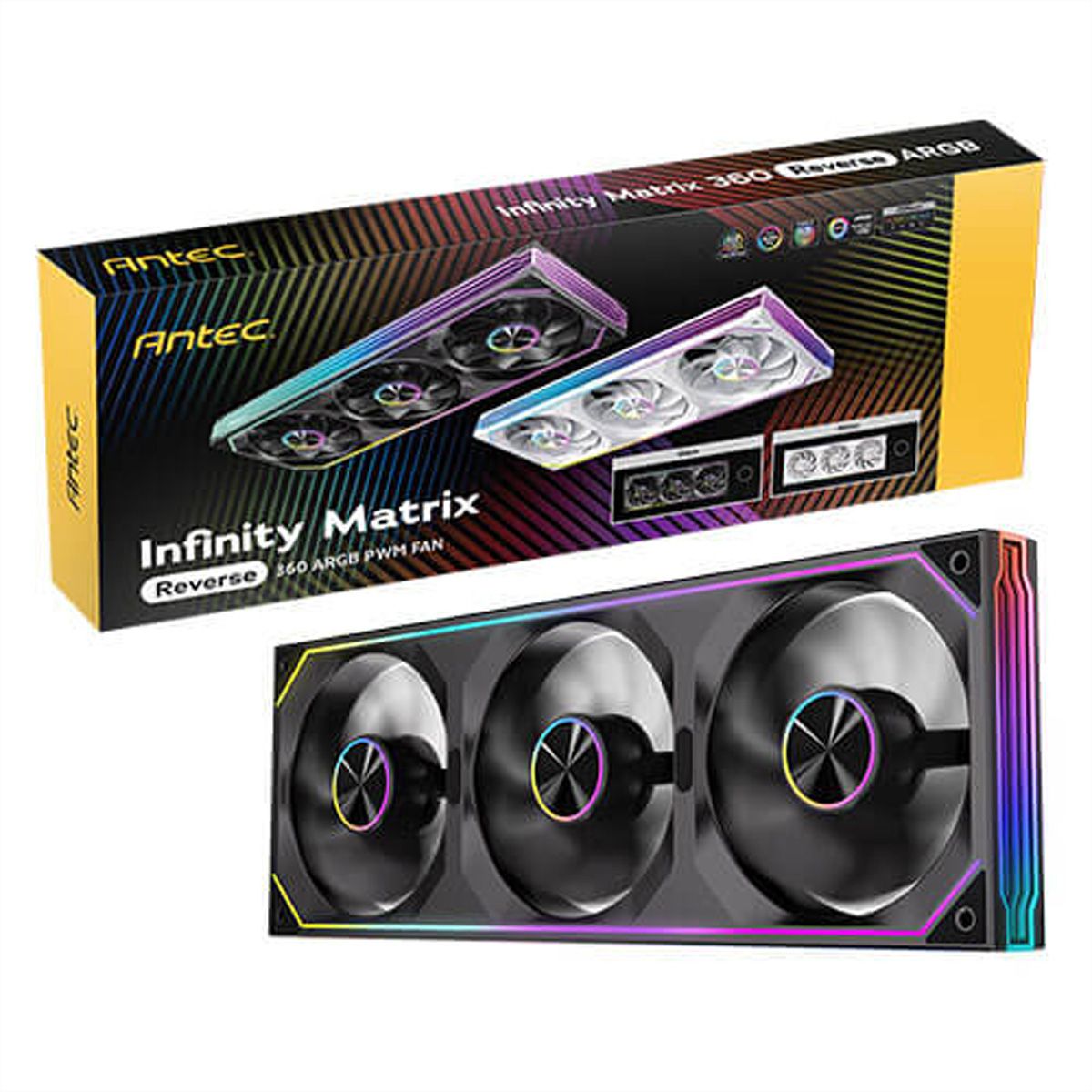

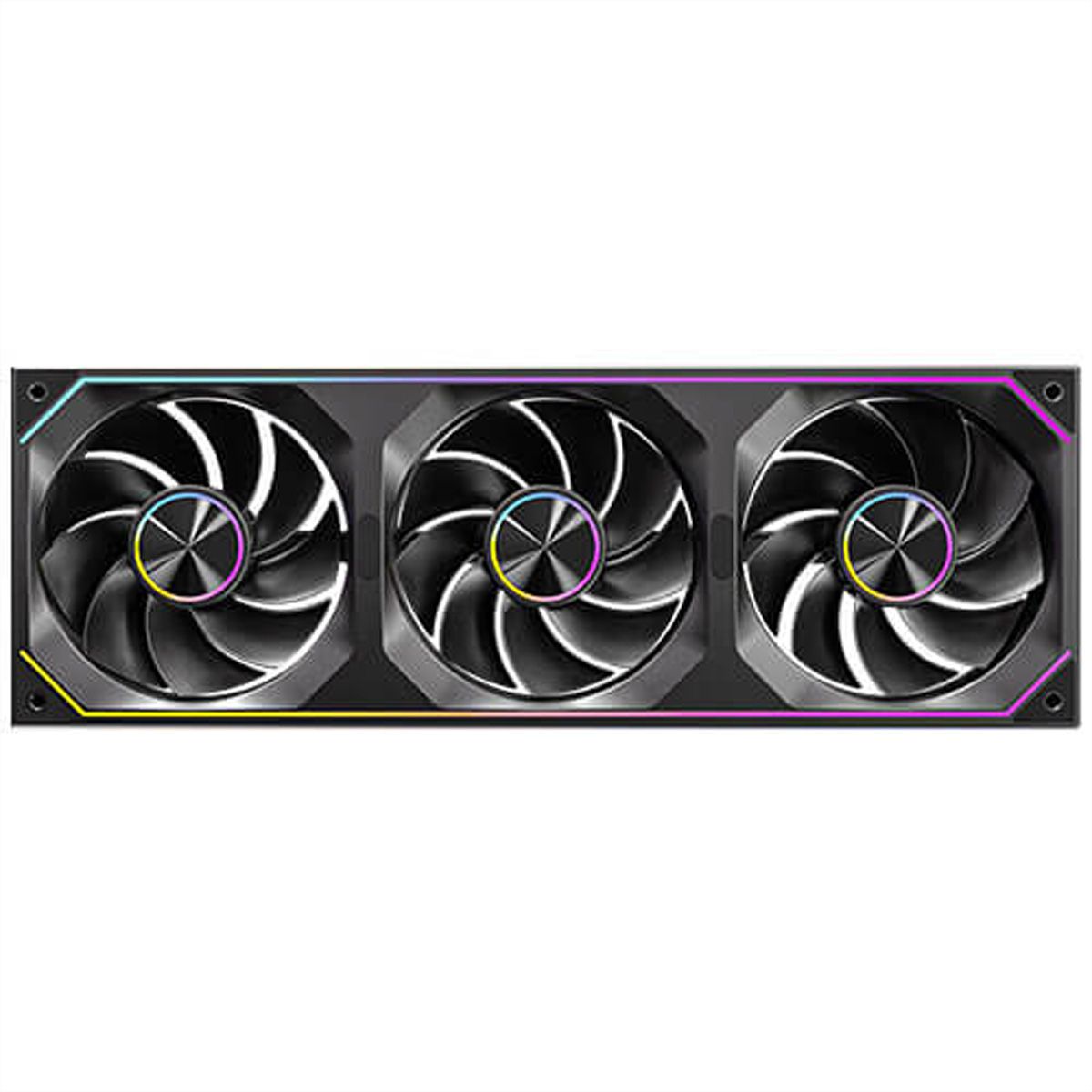

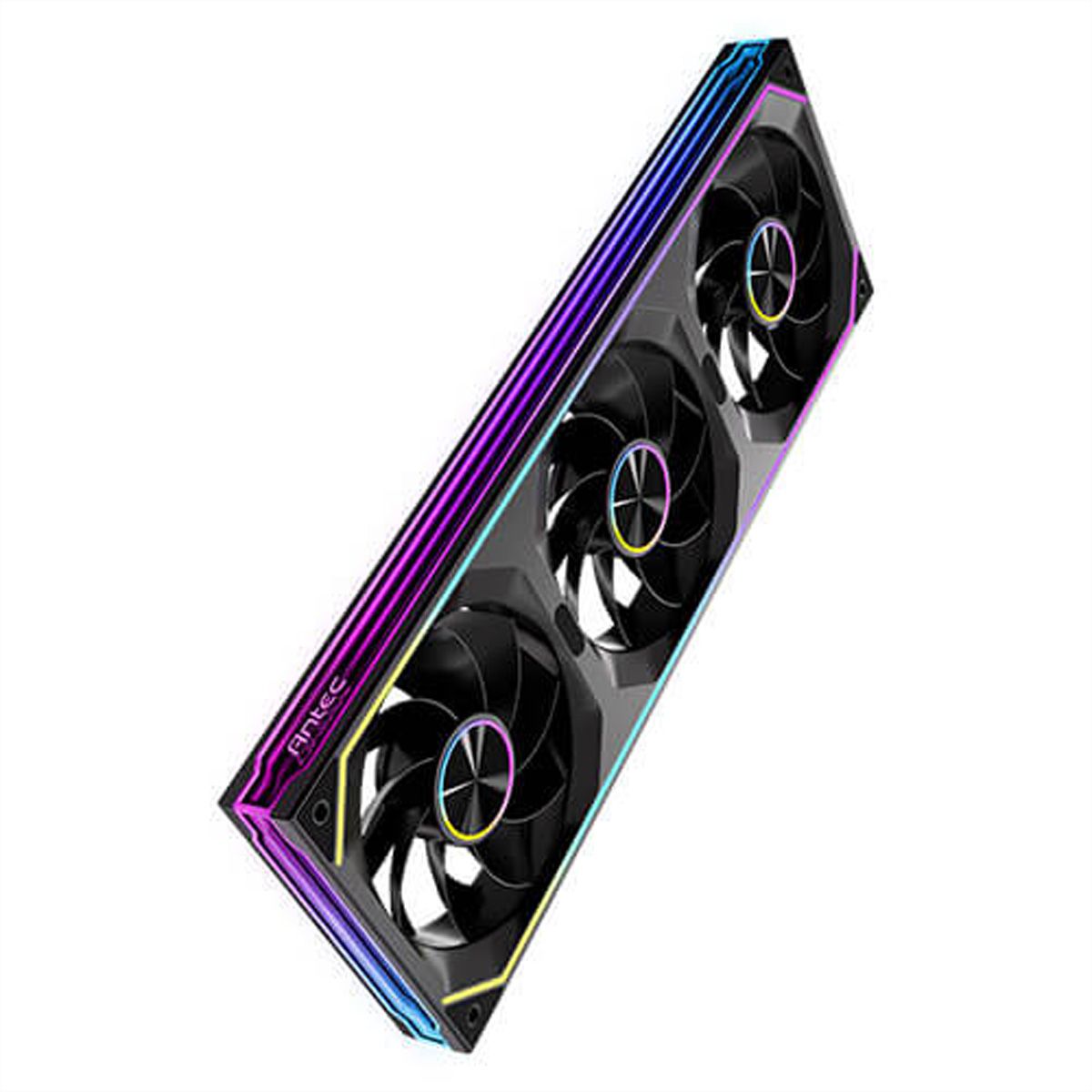

ANTEC IM 360R ARGB, Housing fan, black
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 19101782 |
|---|---|
| Brand / Manufacturer | ANTEC |
| Manuf. item no. | 0-761345-40077-0 |
| EAN | 0761345400770 |
:strip_icc():strip_exif()/logos/antec.png "ANTEC")
Description
Infinity Matrix Reverse360 ARGB PWM FAN
- Pioneer of the Single-Frame Fan Design: Infinity Matrix builds on Antec’s IF 2019 award-winning Prizm Cooling Matrix, which first introduced a single-frame design integrating multiple fans. This pioneering approach seamlessly combines striking aesthetics with high-performance cooling
- Extreme Lighting Effects: Four-sided infinity-mirror design combined with dual light strips and center ring lighting
- Four-Sided Infinity Mirror Lighting: A multi-layer reflective structure that creates a three-dimensional light effect
- Dual Extended Light Strips: Smoother more refined lighting effects
- Full-ring ARGB Lighting at the Fan Center
- Metallic Radial Pattern: Center sparkles with light, showcasing a premium feel
- With a 4-pin PWM connector, the fan speed can be adjusted from 800 to 1800 RPM, providing airflow up to 134.9 CFM while maintaining low noise levels
- High-performance PWM intelligent speed control for optimal cooling and quiet operation
- Single-frame fan design for one-step, effortless installation
- Double-Sided Silicone Anti-Vibration Pads: All-around silent and stable performance
- Independent dual-cable design for cleaner and more flexible cable management
SPECIFICATIONS
Fan Type: PWM Fan
Dimensions: 364 x 124 x 28mm
Bearing Type: Hydraulic bearing
LED Type: Addressable RGB
Fan Speed: 800±200~1800±10% RPM
Airflow: 64.58~134.9CFM
Air Pressure: 0.34~1.34mmAq
Fan Noise Level: 19.7~33.2db
Lifespan: 40,000 hours
Connector: FAN: 4-pin(PWM) | LED: 3-pin
Rated Voltage: FAN: DC 12 V | LED: DC 5 V
Operation Voltage: FAN: DC 10.5-13 V | LED: DC 4.5-5.5 V
Rated Current: FAN : 0.5 A | LED : 1.4 A
Specifications
| Manufacturer | ANTEC |
|---|---|
| Product group | Cooler/Fan |
| Product type | Housing fan |
| Colour | black |
| Fan bearing type | Hydraulic bearing |
| Dimensions (HxWxD) | 364 x 124 x 28 mm |
| Fan rotational speed | 800±200~1800±10% RPM |
| Air pressure | 1.34 mm H²O |
| Rated fan current | 0.5 A |
| Acoustic level | 19.7~33.2db |
| Noise level spinning (max.) | 33.2 dB |
| Height | 124 mm |
| Width | 364 mm |
| Depth | 28 mm |
| Height of packaging (single piece) | 0 mm |
| Width of packaging (single piece) | 0 mm |
| Depth of packaging (single piece) | 0 mm |
| Package weight (single piece) | 0 kg |
