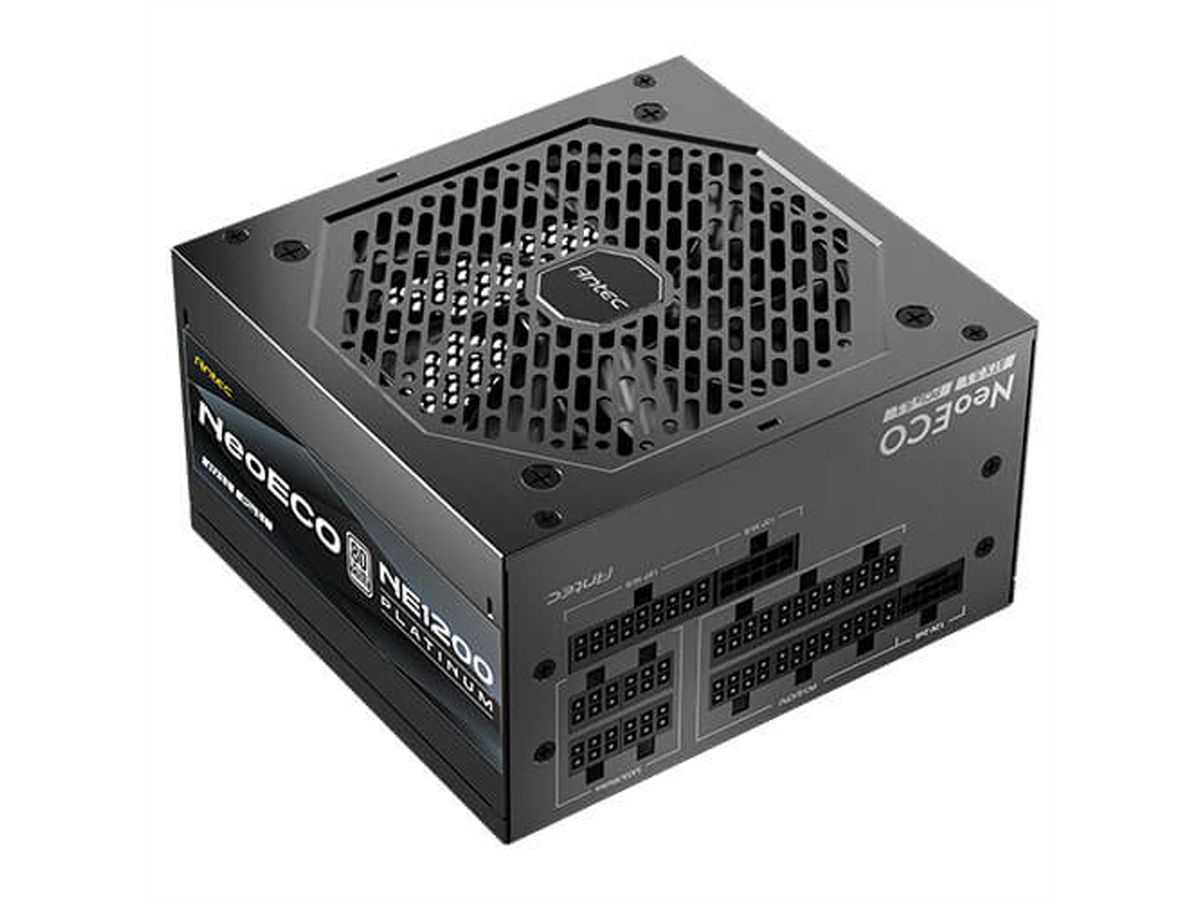

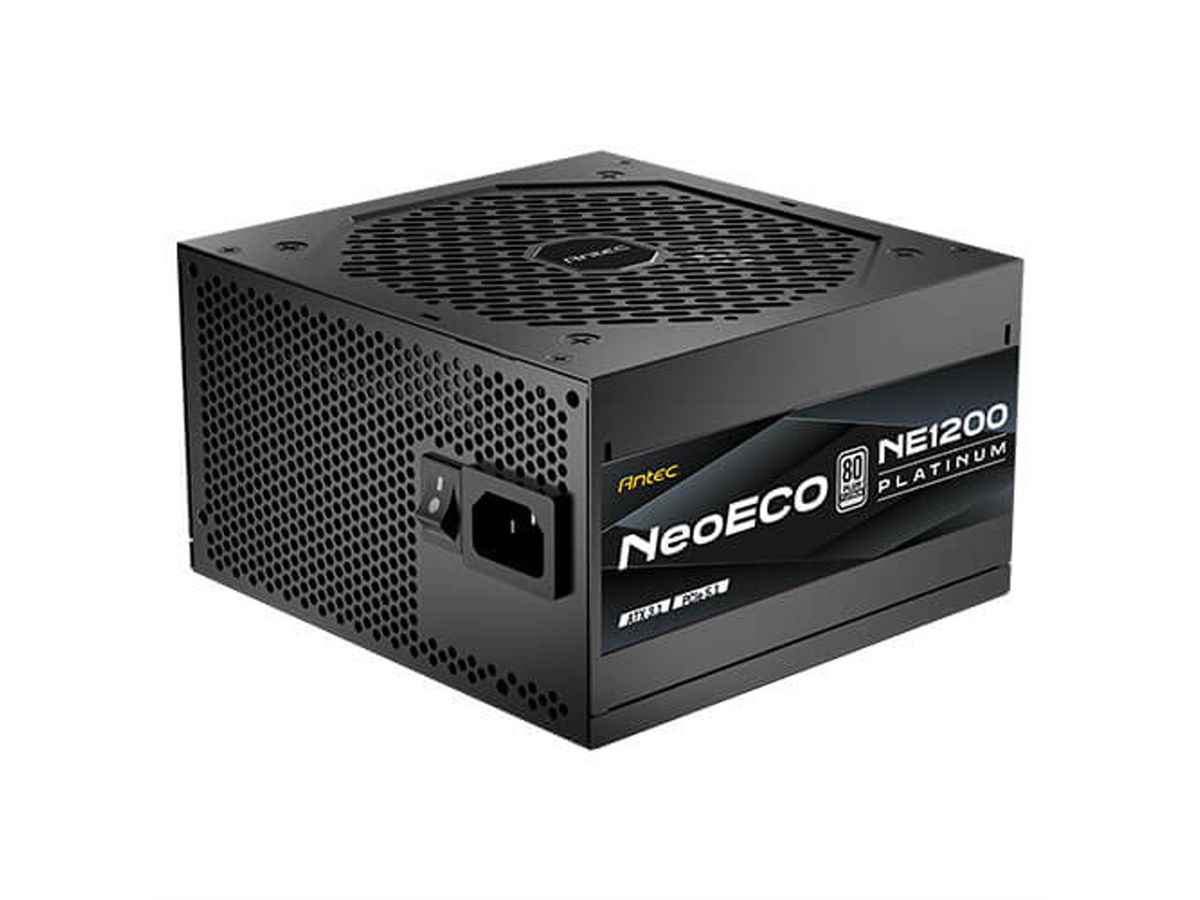

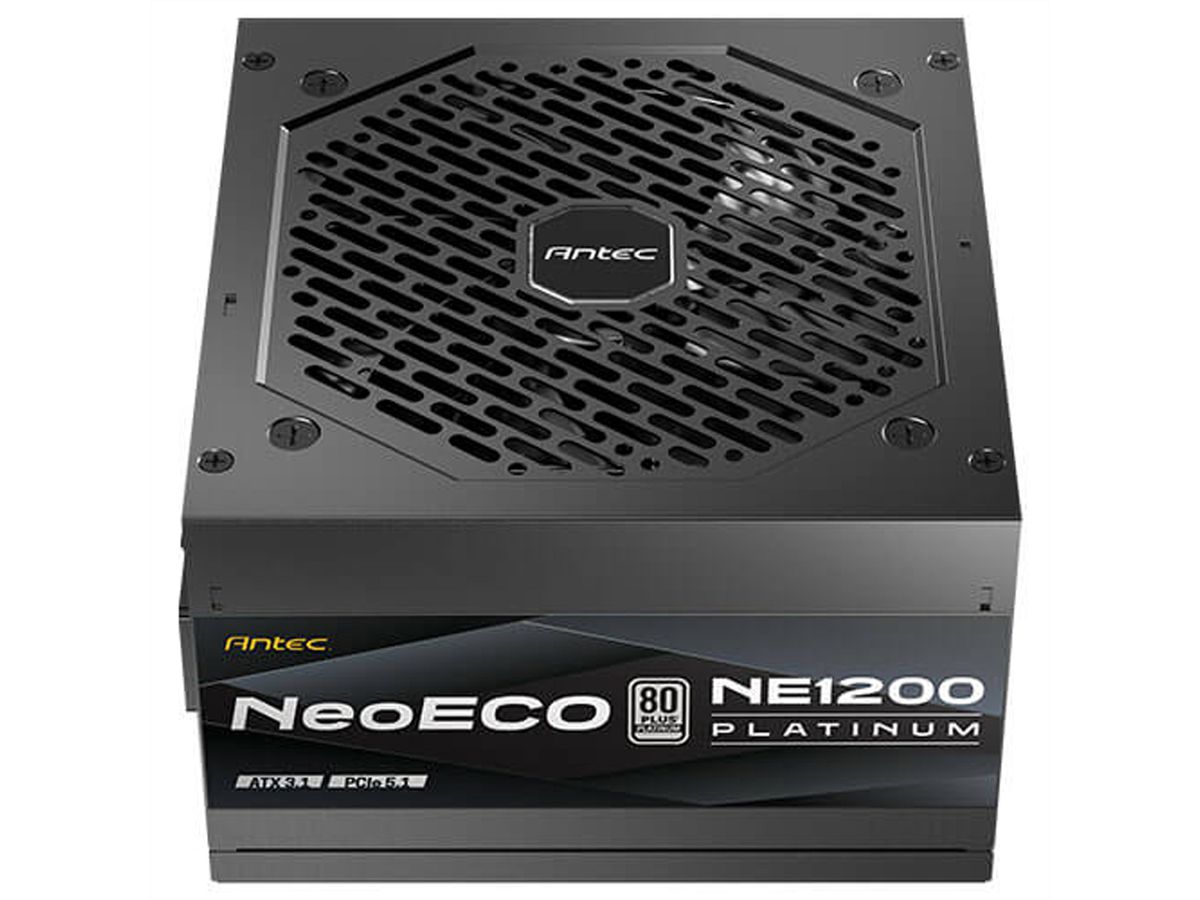

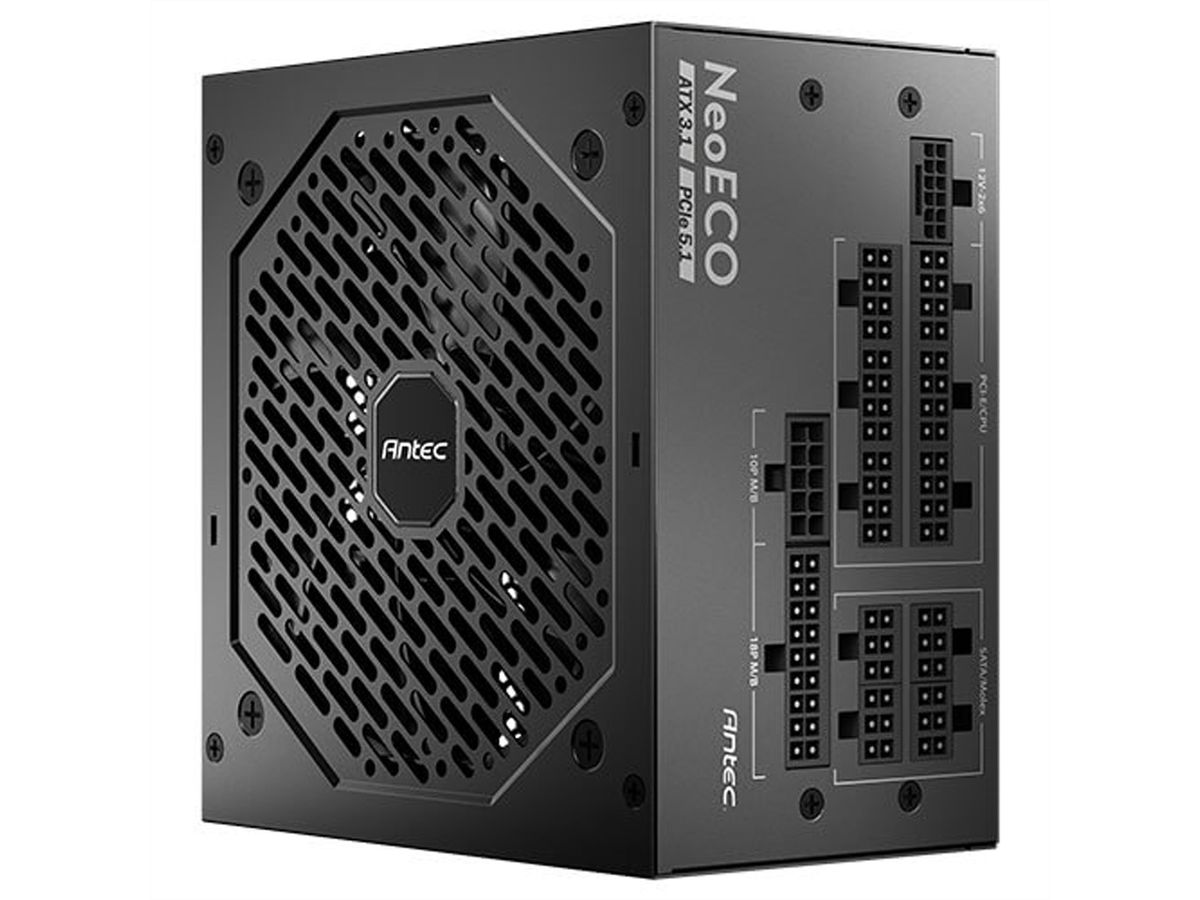

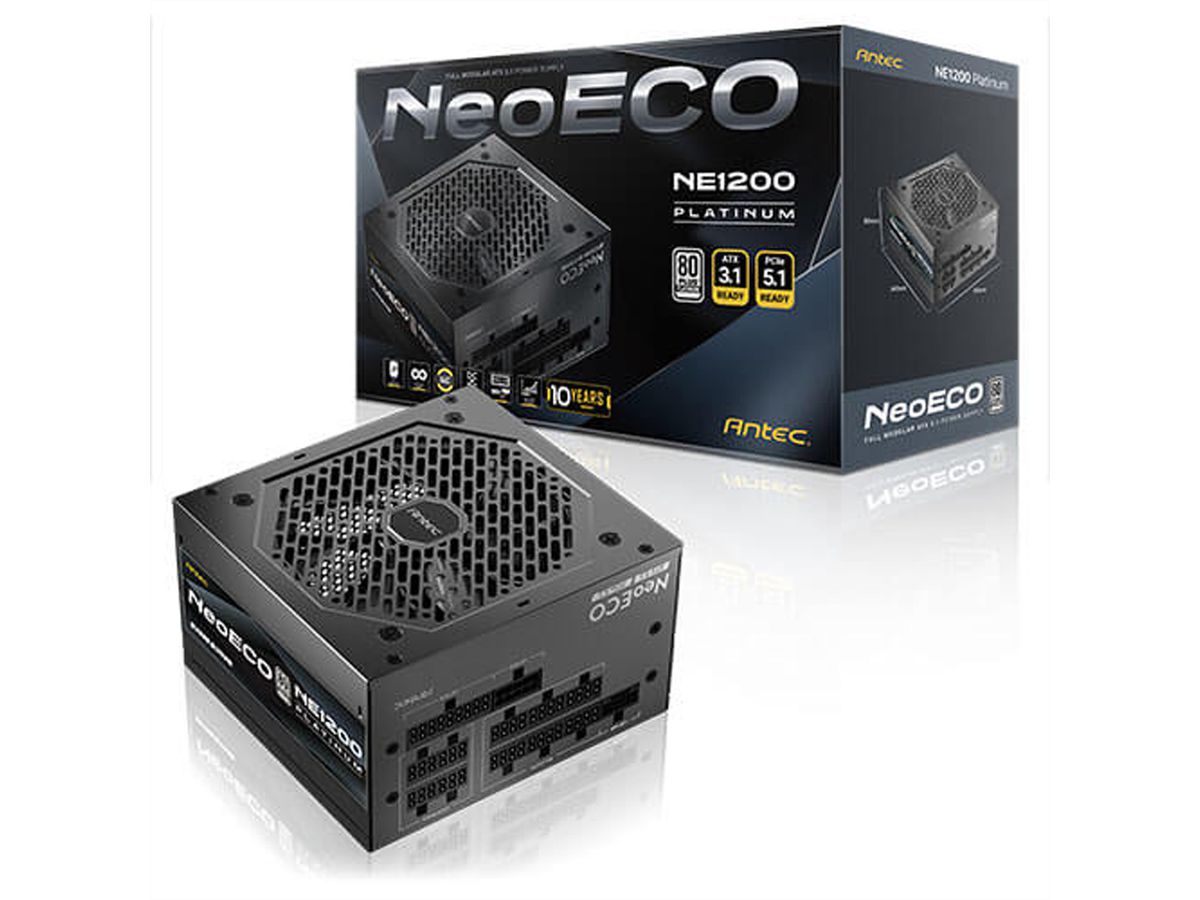

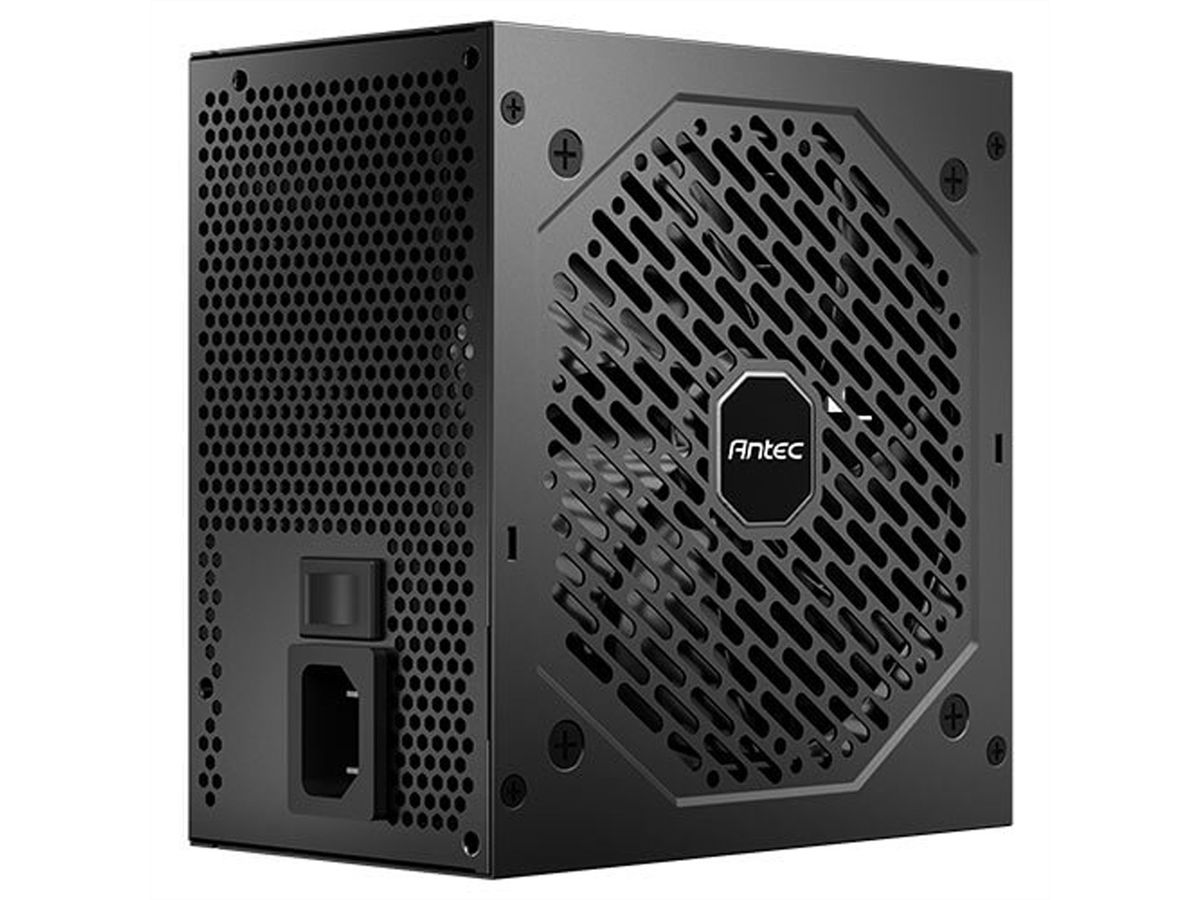

ANTEC NE1200P EC power supply 1200W, black

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Item no.	19101779
Brand / Manufacturer	ANTEC
Manuf. item no.	0-761345-20217-6
EAN	0761345202176

Description

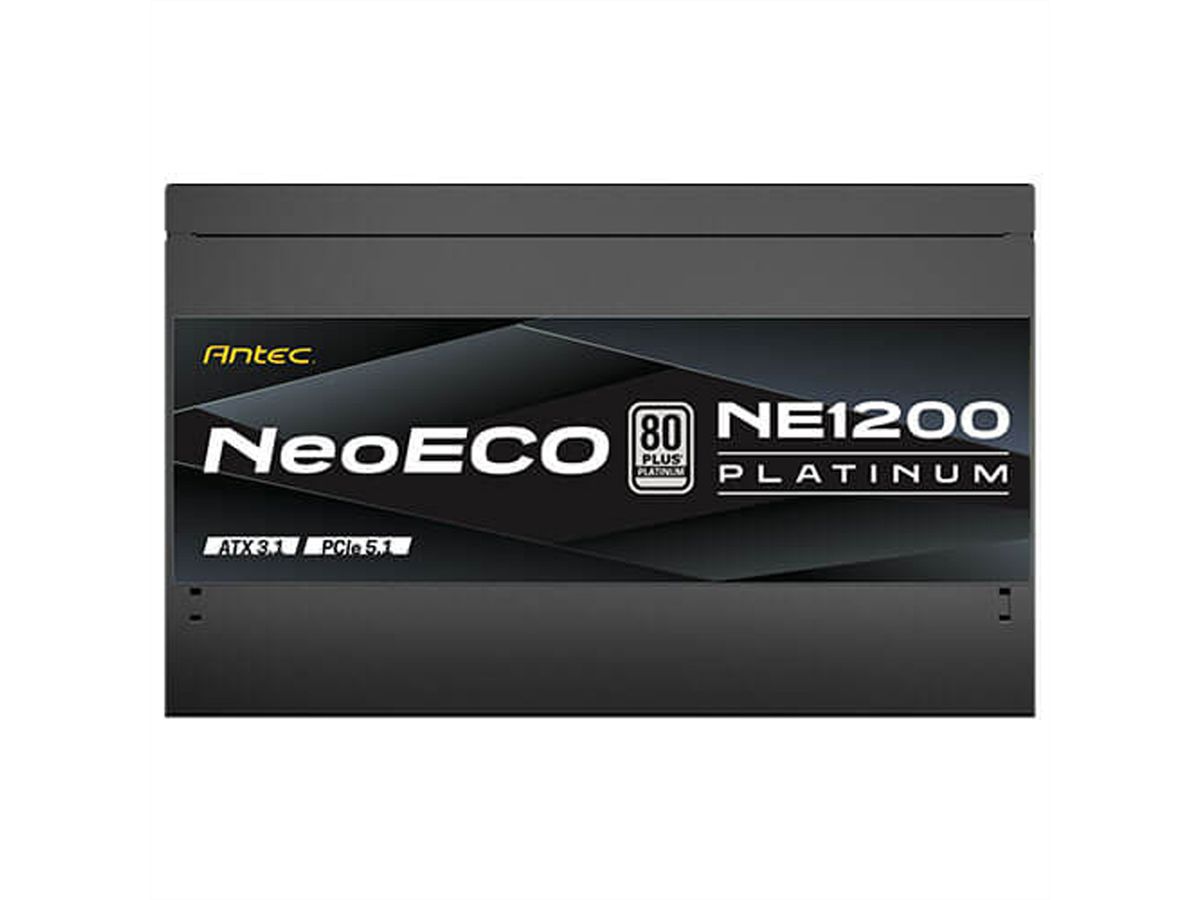

neoECO Full Modular ATX3.1 POWER SUPPLY NE1200 PLATINUM

Introducing the NeoECO Platinum ATX3.1 power supply, crafted to deliver exceptional performance and rock-solid stability for gamers and enthusiasts. Featuring next-generation ATX 3.1 and PCIe 5.1 support, high-quality Japanese capacitors, and 80 PLUS® Platinum efficiency, it ensures outstanding and consistent power delivery. The PhaseWave™ design provides smooth, reliable output, while the 120 mm FDB silent fan delivers efficient, quiet cooling. Its fully modular design allows for easy cable management, and the Zero RPM Manager intelligently controls fan operation, activating it only when needed to balance silent performance with optimal cooling. Backed by the CircuitShield™ suite of industrial-grade protections, the NeoECO Platinum ATX3.1 is a powerful, efficient, and dependable choice for modern PC builds.

Model: NE1200 PLATINUM ATX3.1
Safe Model: X8000A589EU-25
Type: ATX 12V 3.1
Dimension: 140(L) * 150(W) * 86(H)
Modular: Full-Modular
Input Voltage: 100V-240V
Input Current: 15A-7.5A
Input Frequency Range: 50Hz-60Hz
PFC: Active PFC
Power Good Signal: 100-150ms
Protection: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
Output Capacity: 1200W
Operation Temperature: 0~40°C
Regulatory: cTUVus / TUV / CB / RCM / CE / FCC /
BSMI / 3C / UKCA / ICES

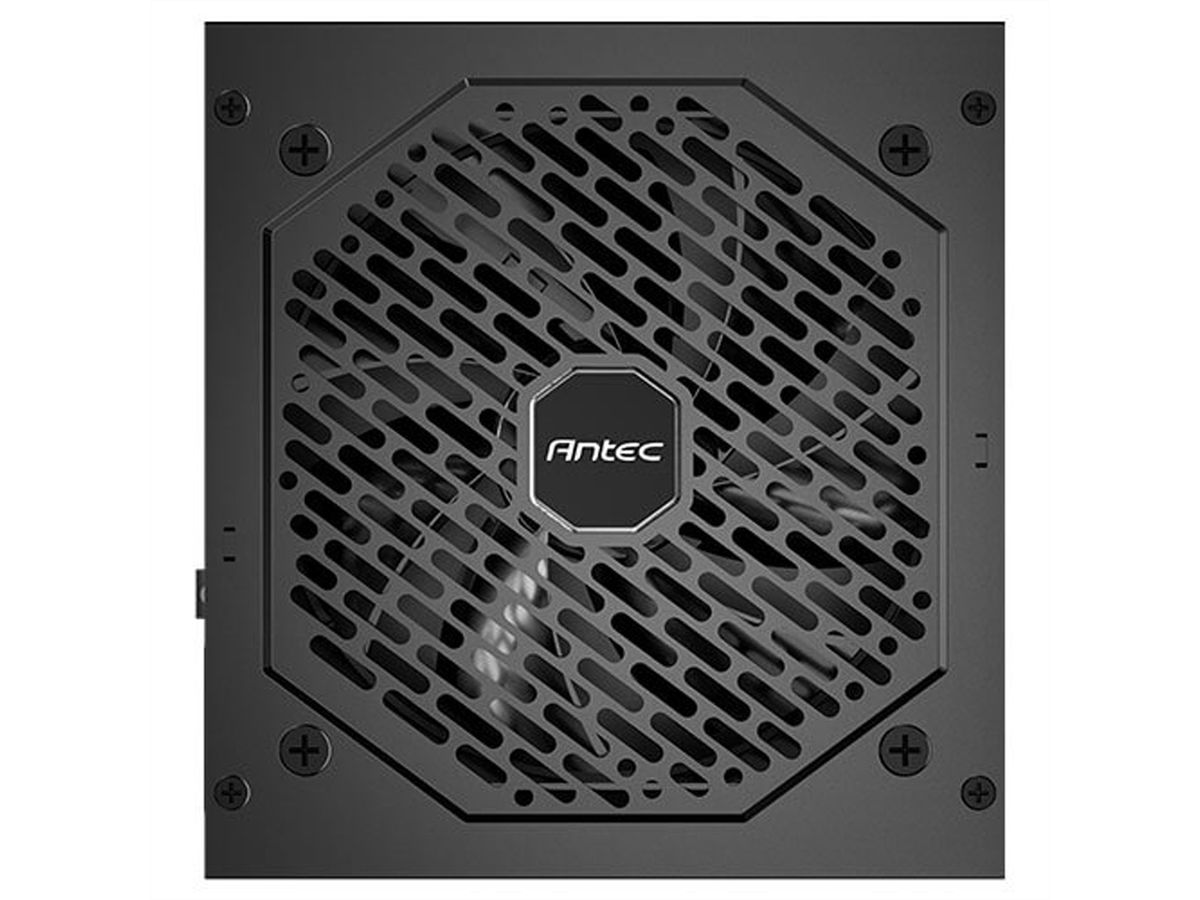

Fan: 120mm FDB Silent Fan
Certifications: 80 Plus Platinum

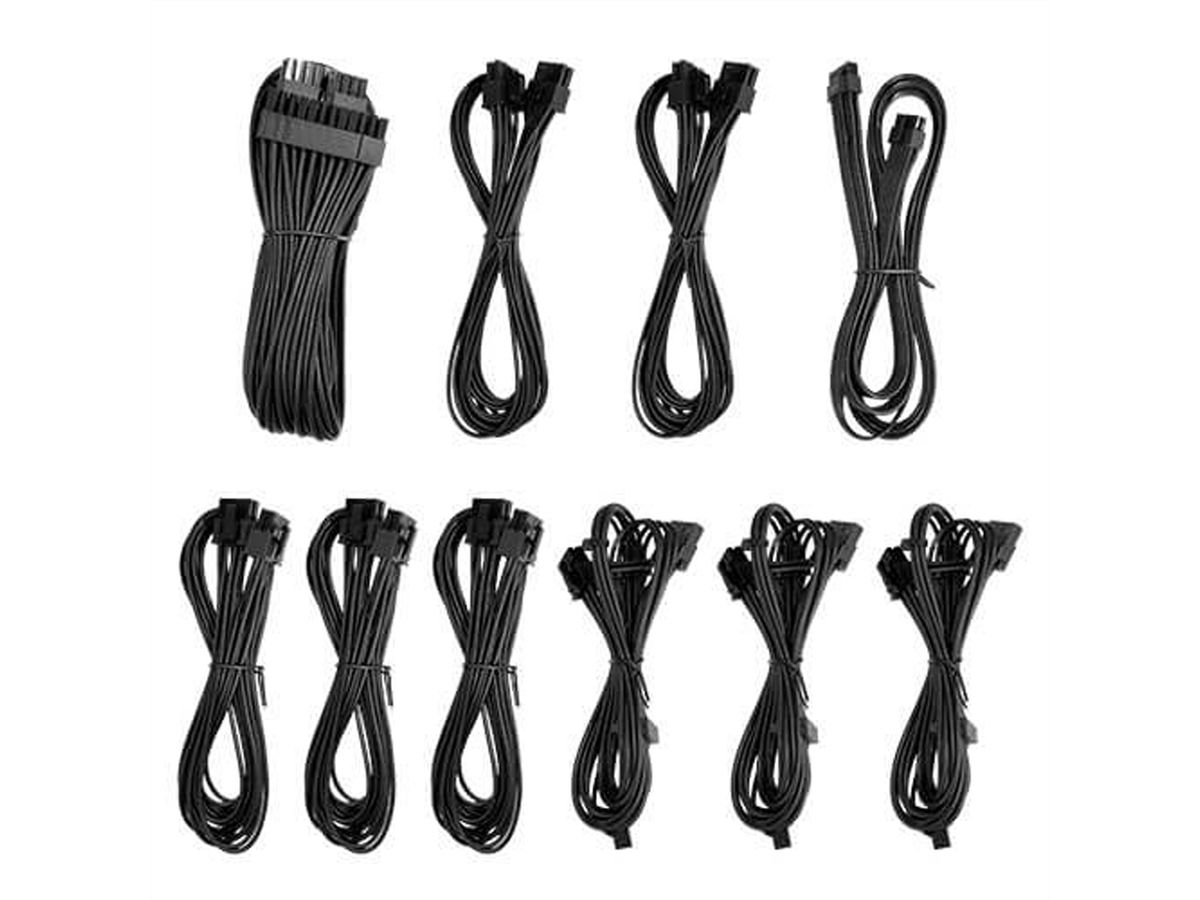

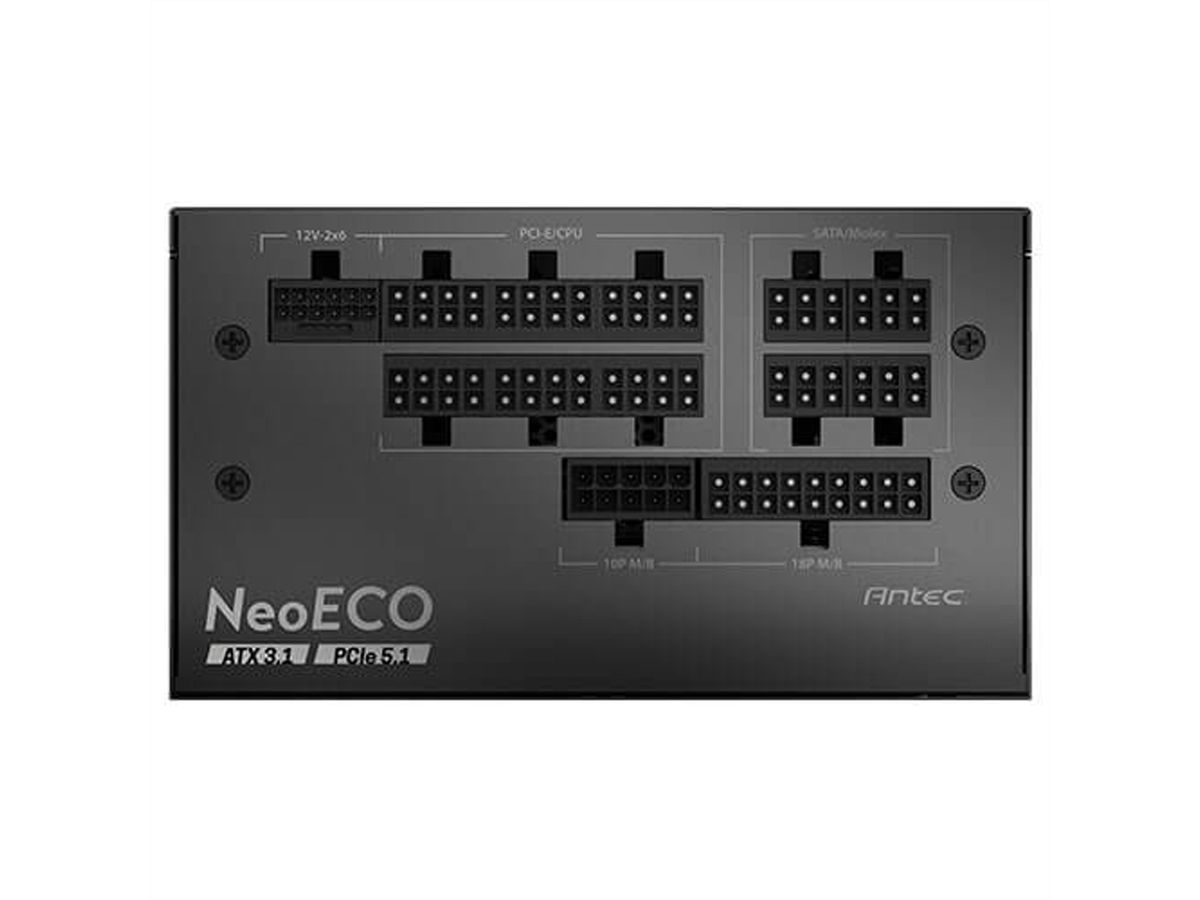

Connector: 1x 24(20+4)pin MB, 1x 16(12+4)pin PCIE 5.1 12V-2x6, 2x 8(4+4)pin CPU, 3x 8(6+2) Pin PCI-E, 9x SATA, 3x Molex

Specifications

Manufacturer	ANTEC
Product group	Power Supply Units
Product type	ATX 3.1 Power Supply
Colour	black
Mounting form	ATX
ON/OFF Switch	yes
Peak Power	1200 W
Fan type	120 mm

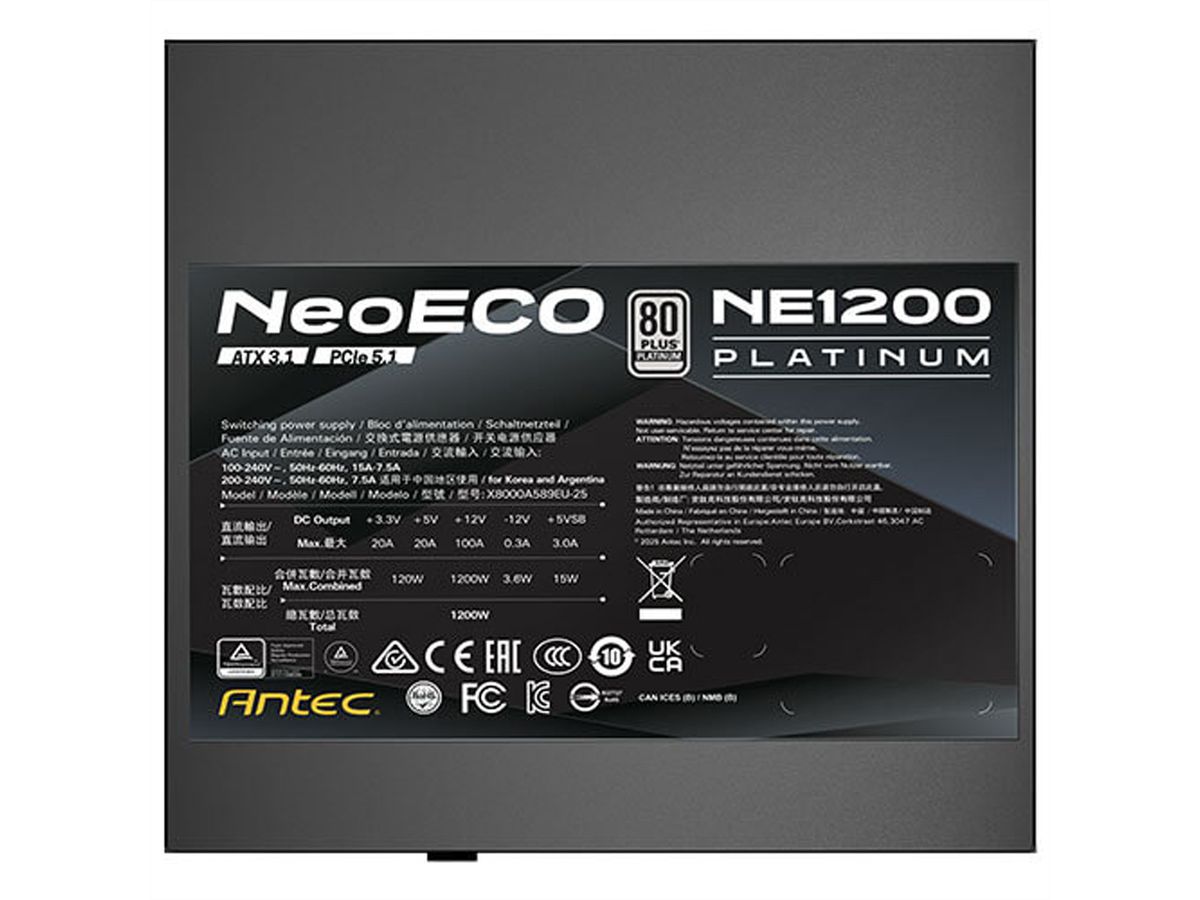

Output 3,3V	20A, 120W
Output 5V	20A, 120W
Output 12V	100A, 1200W
Output -12V	0.3A, 3.6W
Output +5V (Standby)	3.0A, 15W
Plug	1x 24(20+4)pin MB, 1x 16(12+4)pin PCIE 5.1 12V-2x6, 2x 8(4+4)pin CPU, 3x 8(6+2) Pin PCI-E, 9x SATA, 3x Molex
PFC	Active
Safety circuits	OCP (Over Current Protection) OVP (Over Voltage Protection) UVP (Under Voltage Protection) SCP (Short Circuit Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) SIP (Surge & Inrush Protection) NLO (No Load Operation)
Cable management	Full-Modular

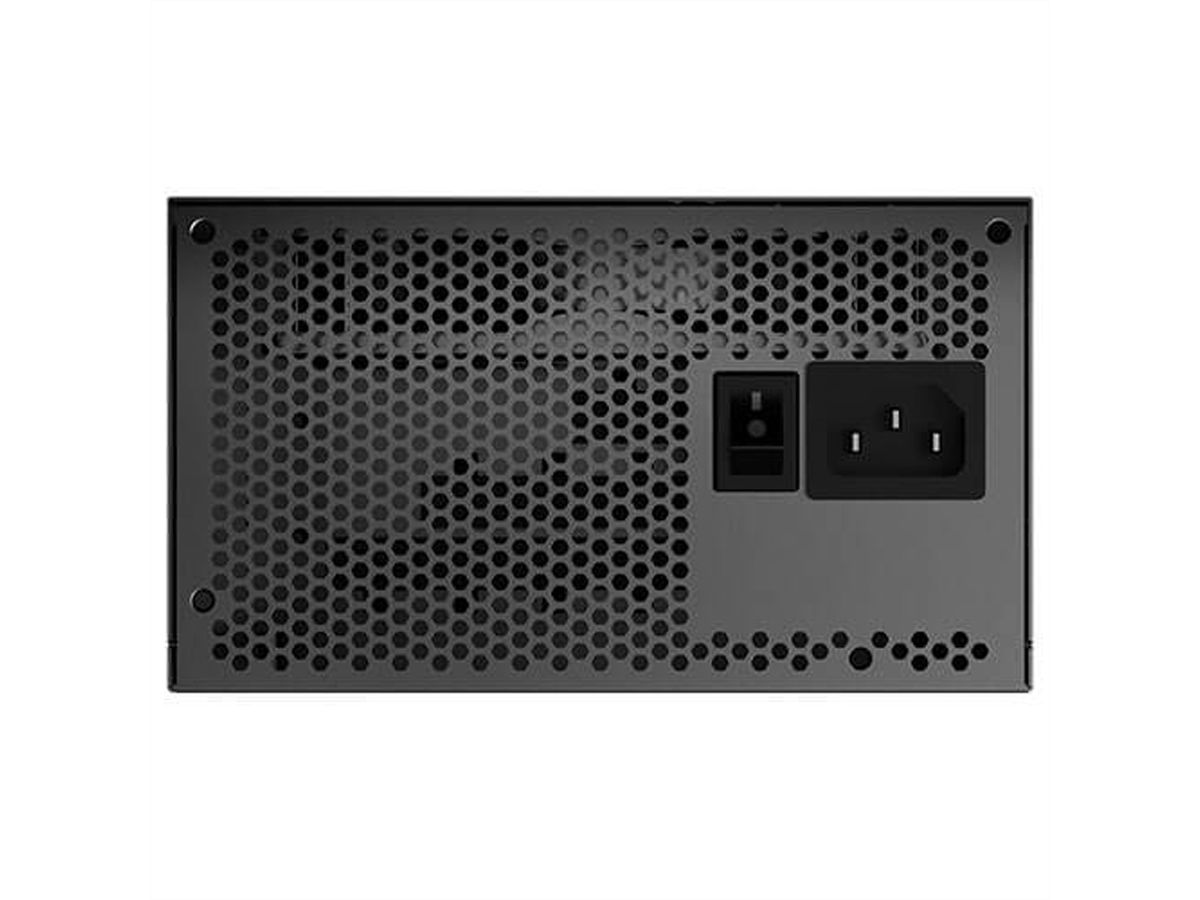

Mains connection	Cold appliance connection
Operating temperature min.	0 °C
Operating temperature max.	40 °C
Height	86 mm
Width	150 mm
Depth	140 mm
Weight	1.7 kg
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg
