Description

The ultimate thermal performance for quiet enclosures

• Brushed aluminium front panel with sound-absorbing mat
• Air-conducting design of the front panel
• Reversible front door
• The maximum rotation angle of the door is up to 145 degrees (max.)
• The front filter opening is positioned at different heights to divert the air through the front panel
• Sound-absorbing mat on both steel side walls

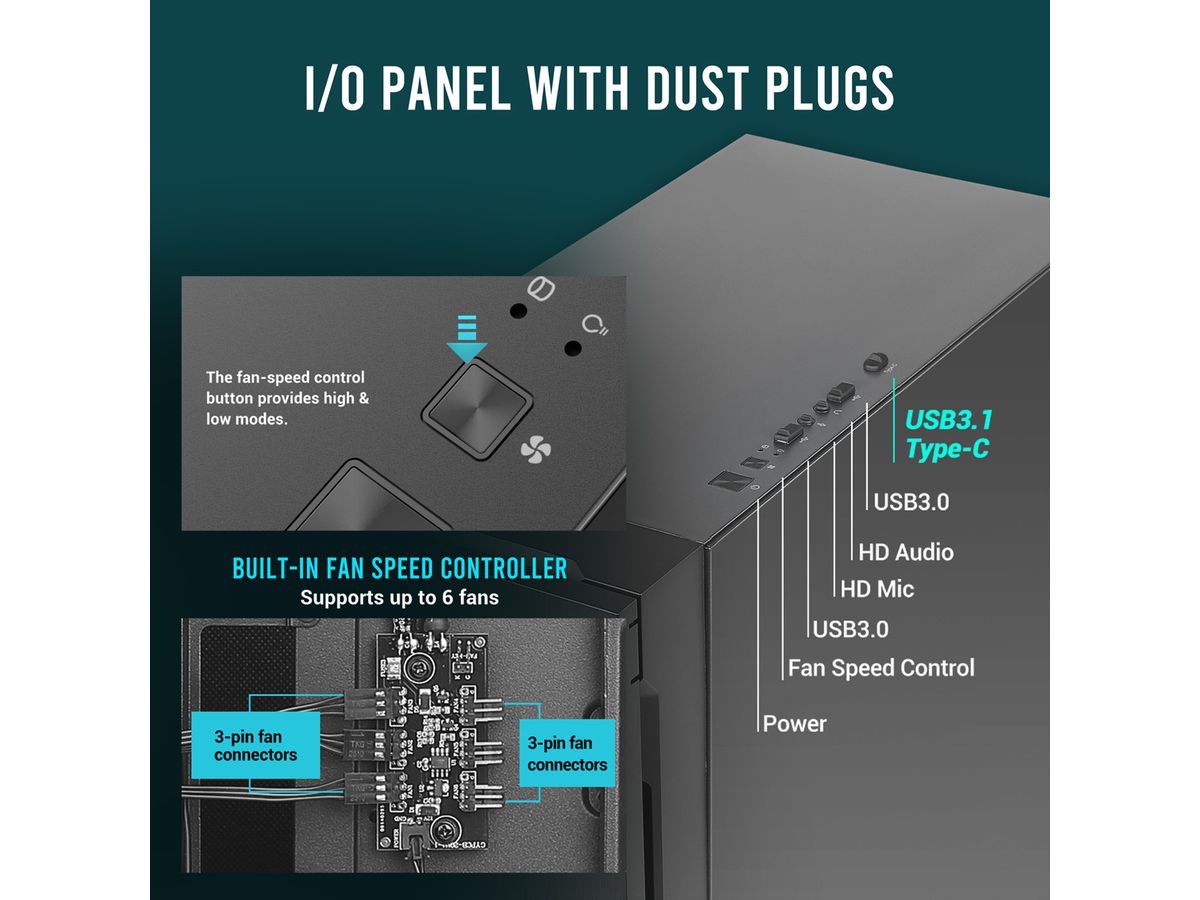

• Integrated fan speed controller (1000–1400 rpm), supports up to 6 x 3-pin fan connections
• Audio/microphone connections and 2x USB 3.0 with dust protection plug
• 1 x USB 3.1 Gen 2 Type C with dust protection plug
• 7 PCIe expansion slots

Specifications

Manufacturer	ANTEC
Product group	PC casing
Product type	ATX/mATX Miditower
Colour	black
Scope of delivery	1x PC case
5.25 slots	1
3.5 slots	3
2.5 slots	3
Dimensions (HxWxD)	486 x 220 x 477 mm
Mainboard compatibility	ATX
Number of integrated fans	4
Fan front	3
Fan back side	1
Height	486 mm
Width	220 mm
Depth	477 mm
Weight	7.7 kg
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg

Downloads

Manufacturer data sheet - English (11.2 MB)

Download

User manual - English (30.6 MB)

Download
