Description

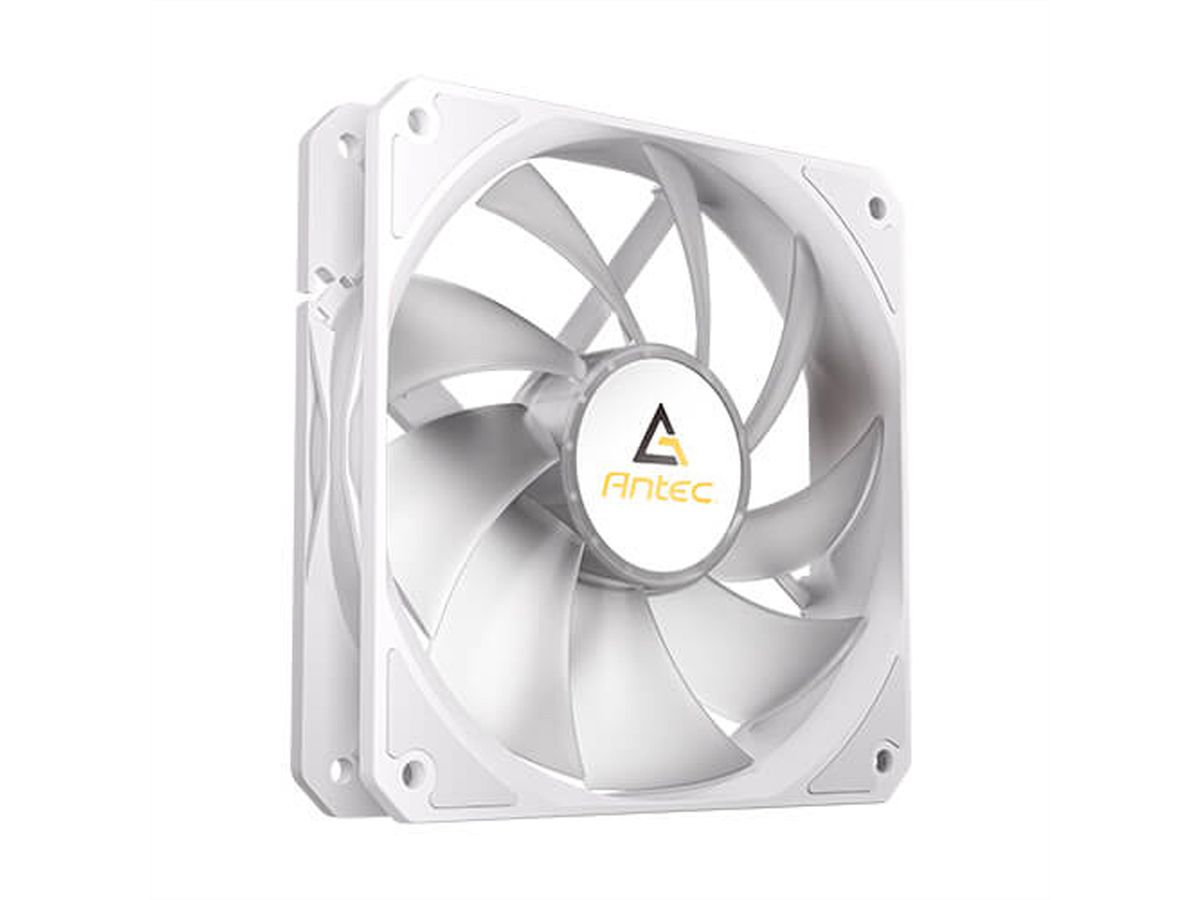

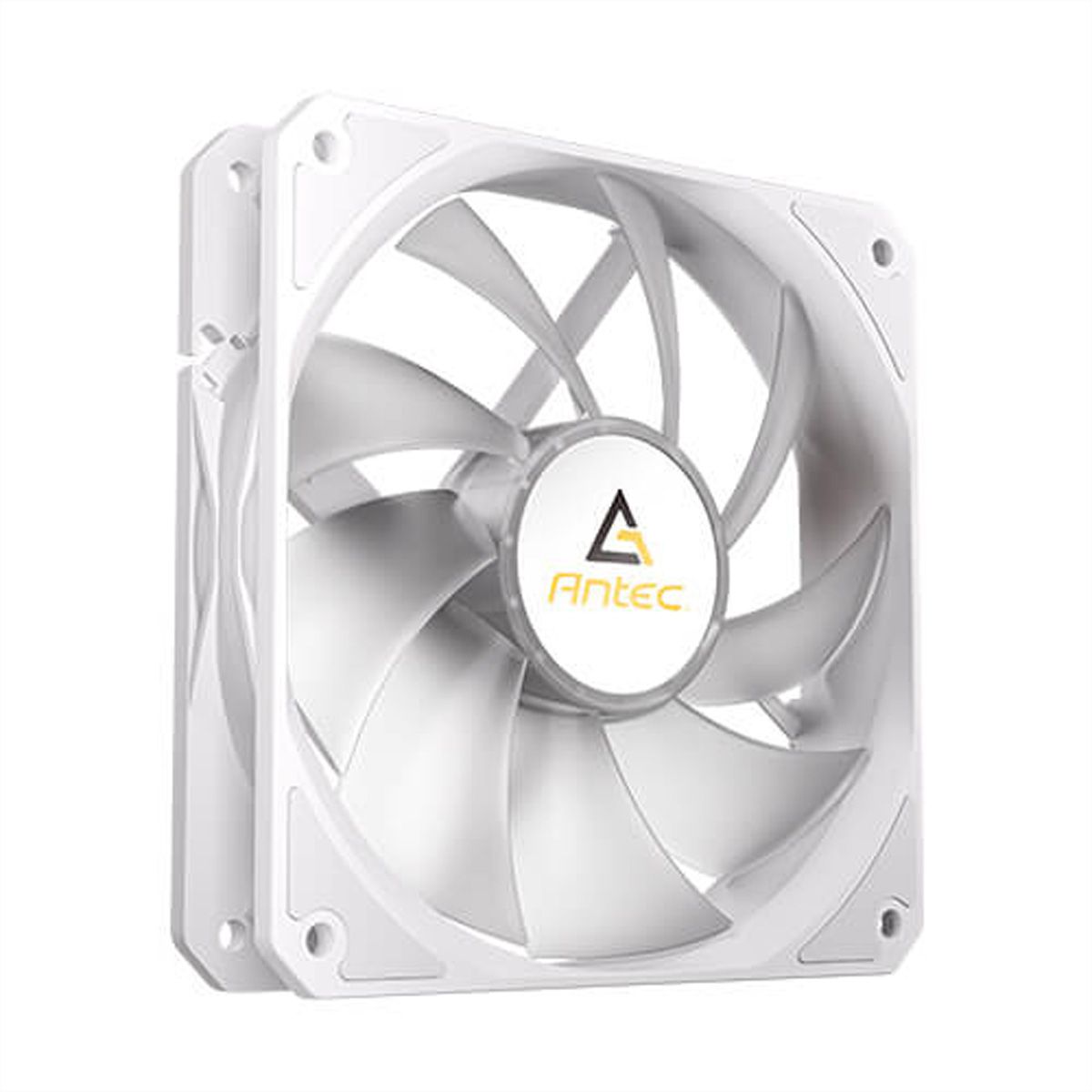

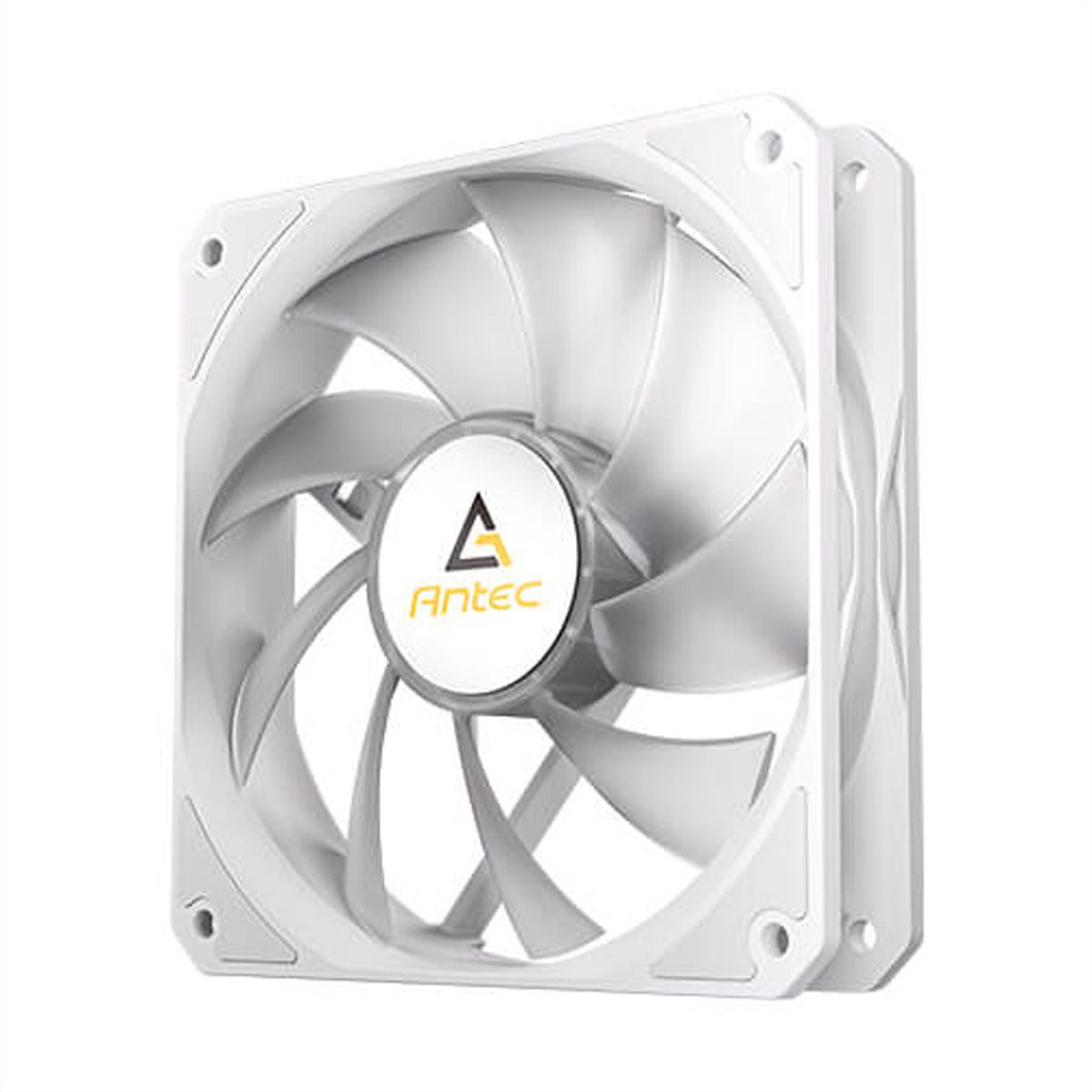

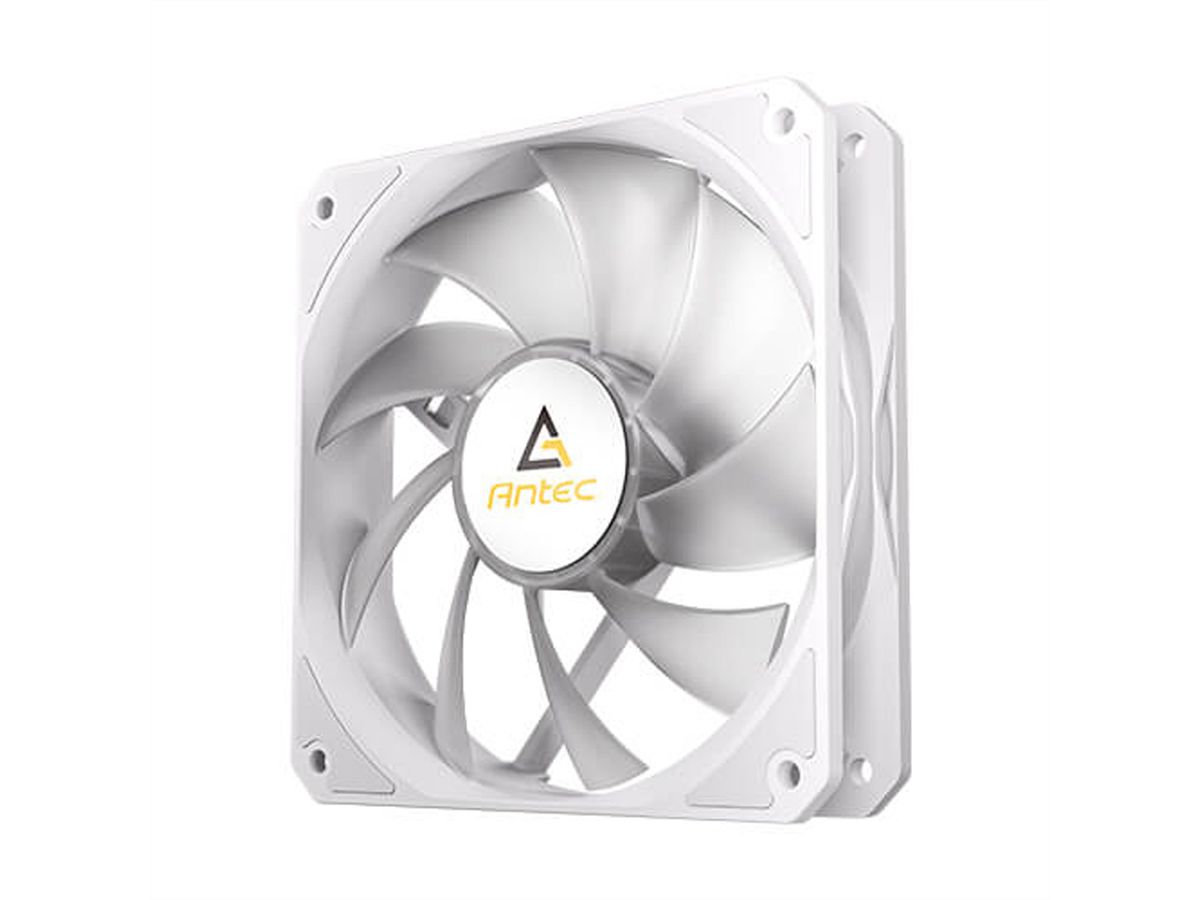

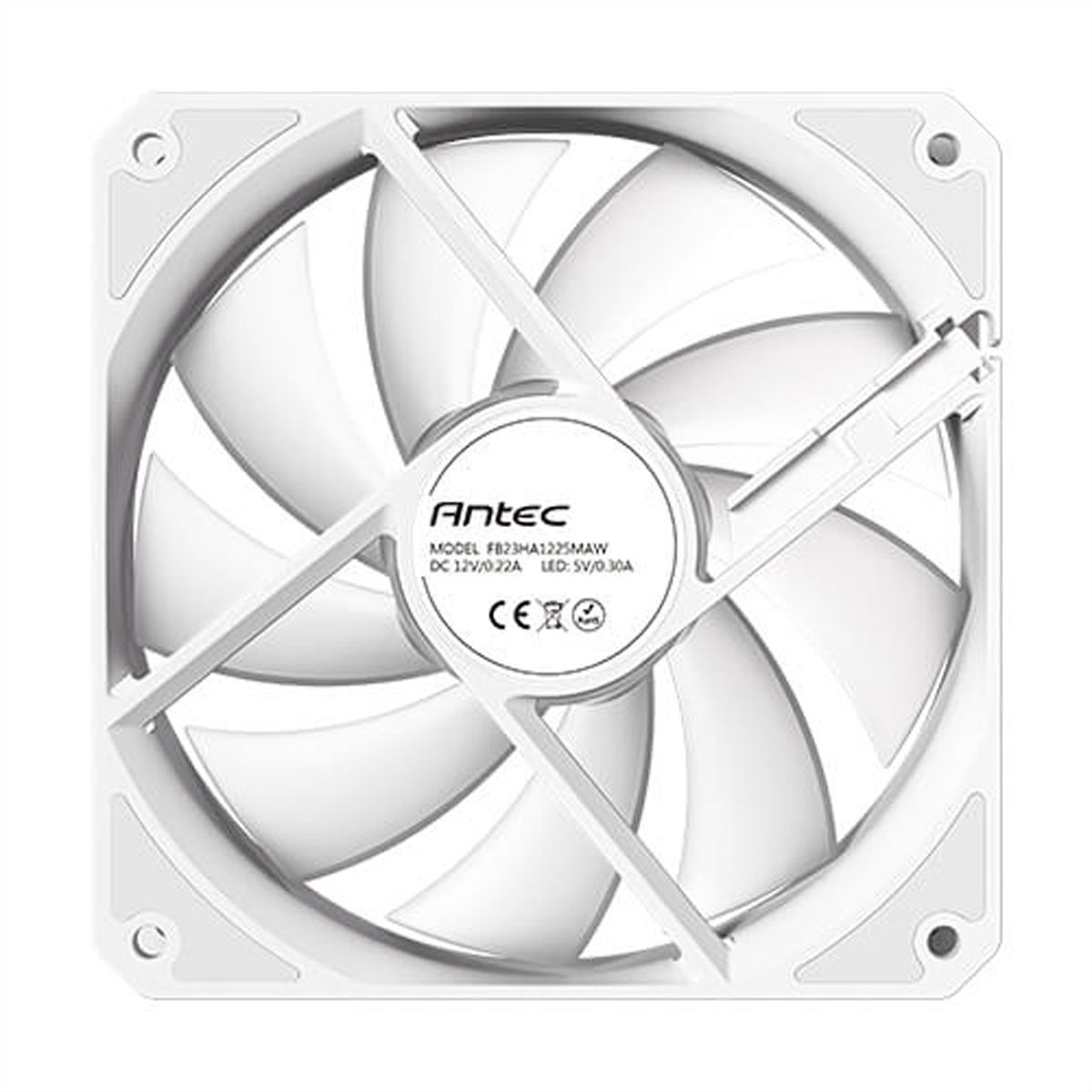

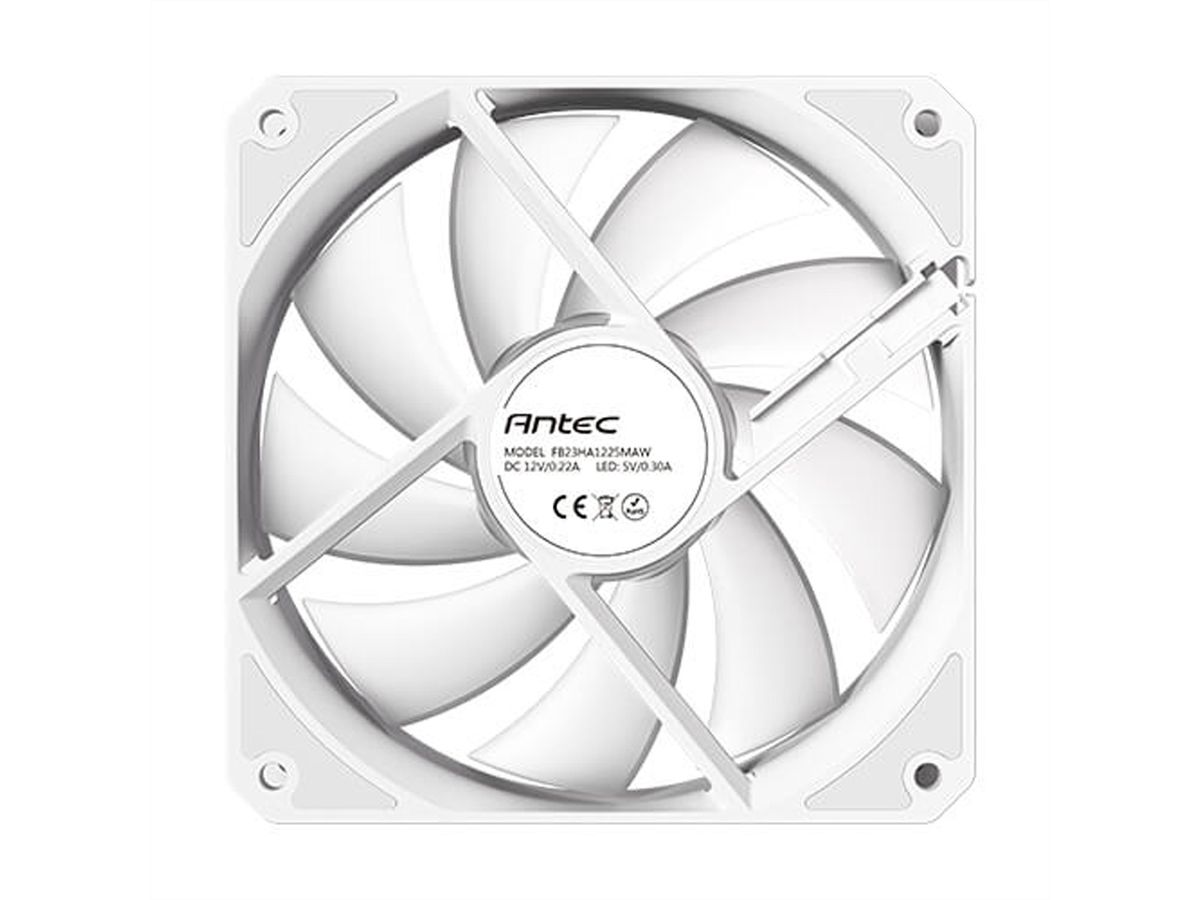

P12 ARGB 120 PWM ARGB FAN

Superior Heat Dissipation: 9-blade design provides efficient ventilation and powerful airflow, ensuring the fan maintains extremely efficient cooling level even as air resistance increases.

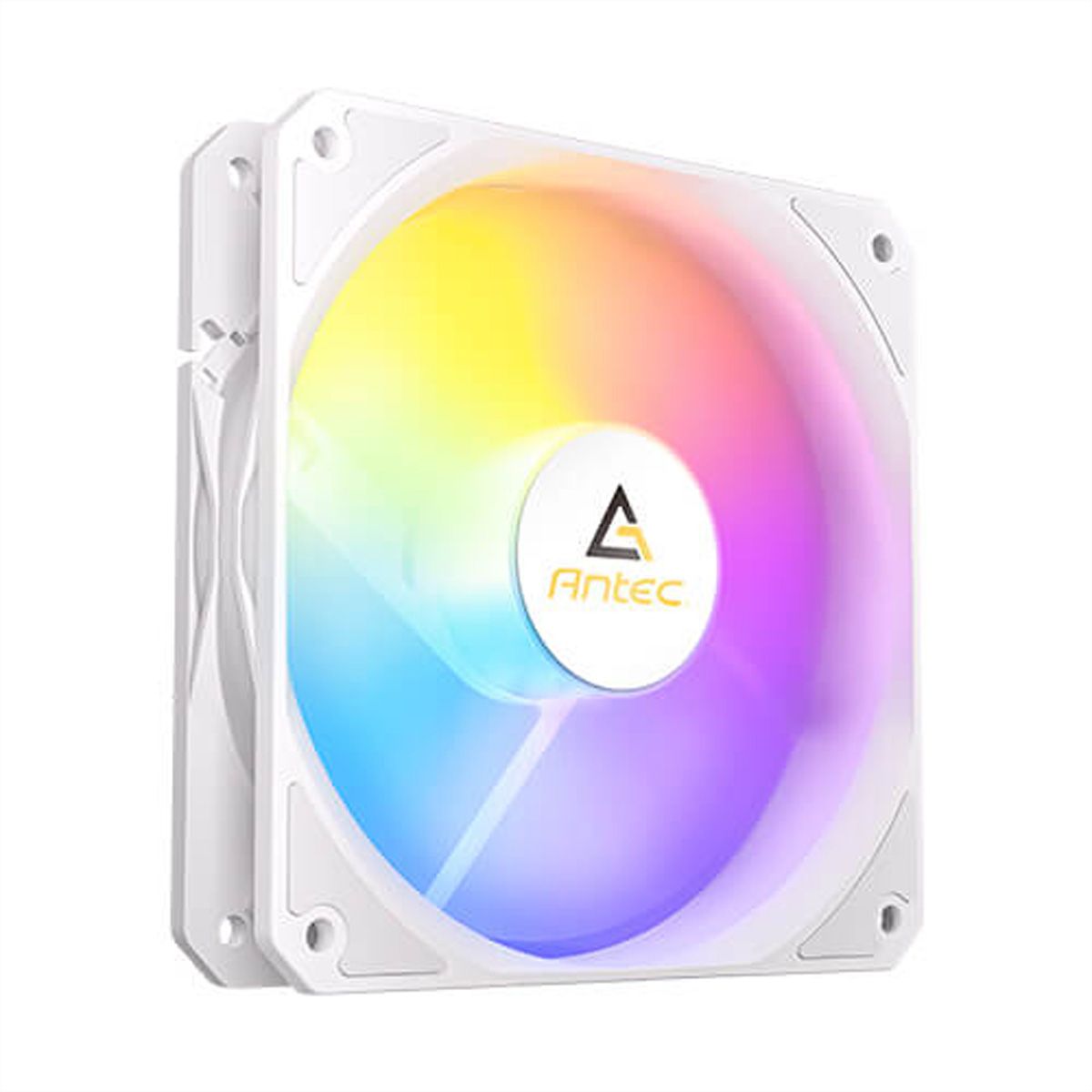

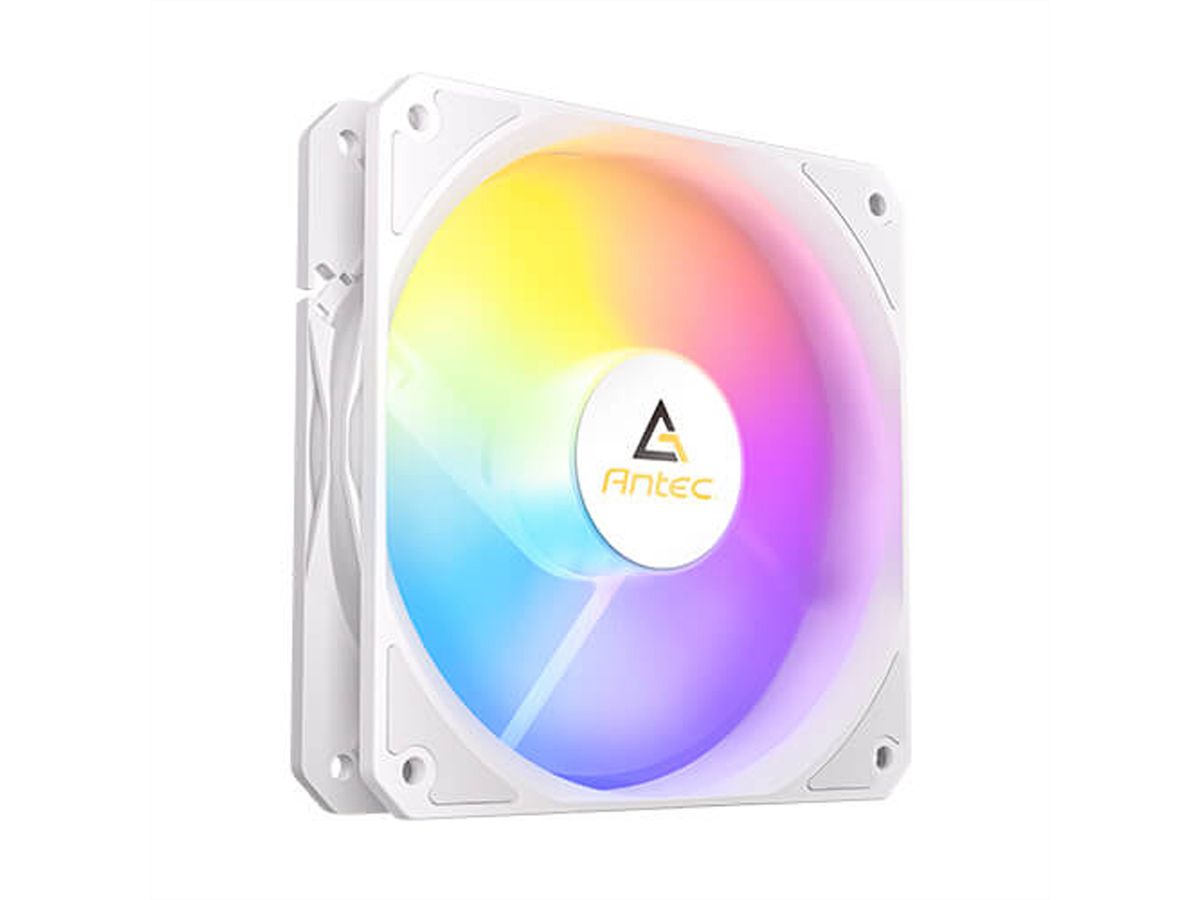

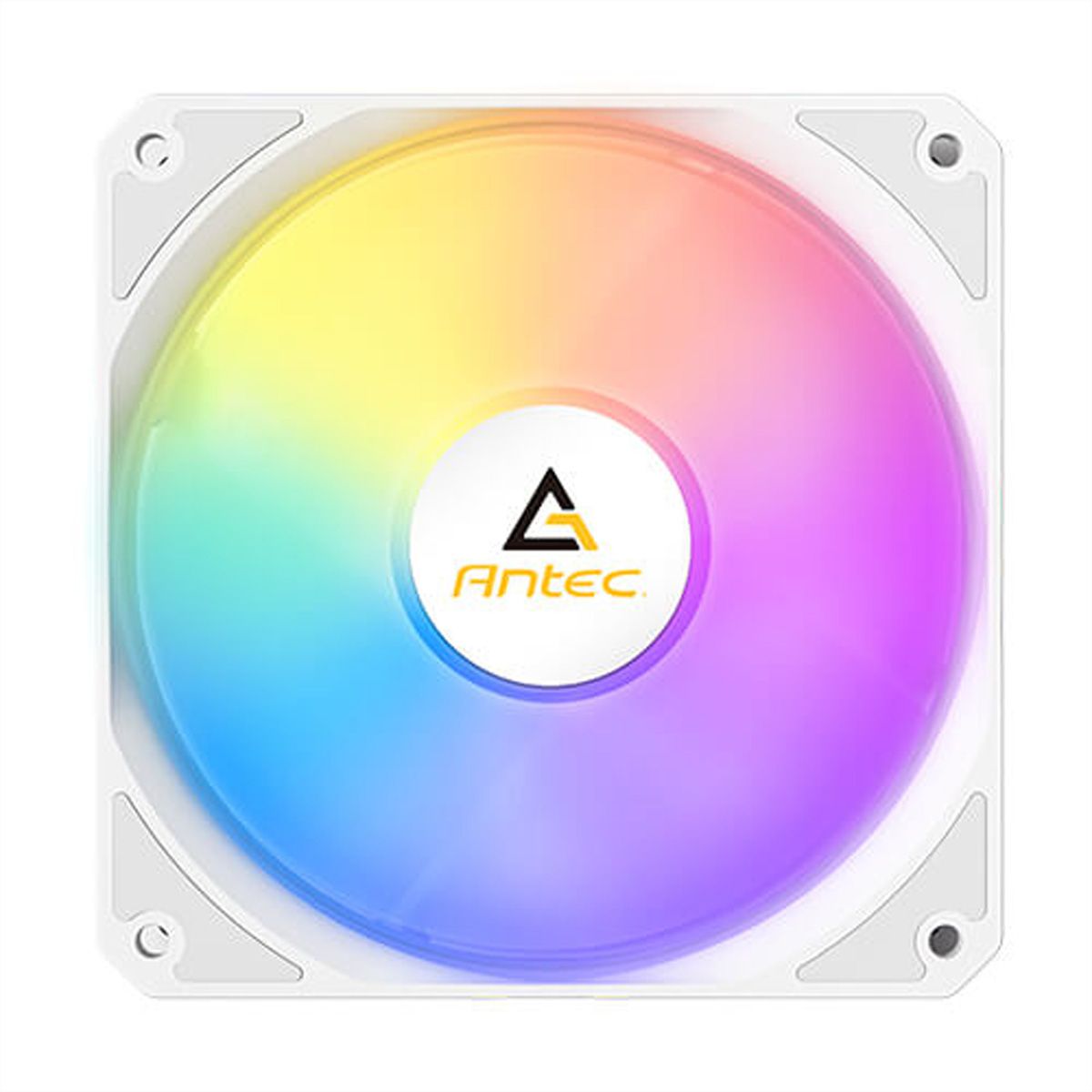

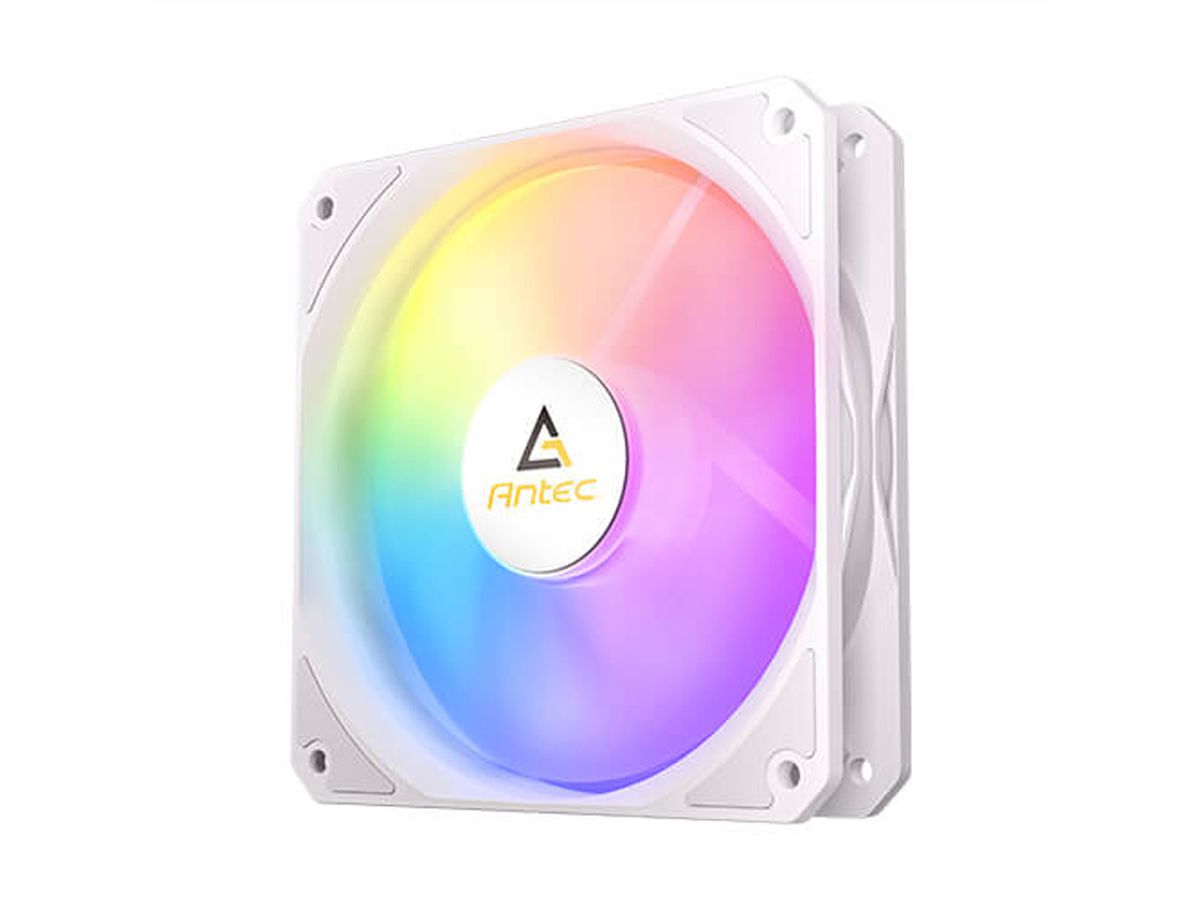

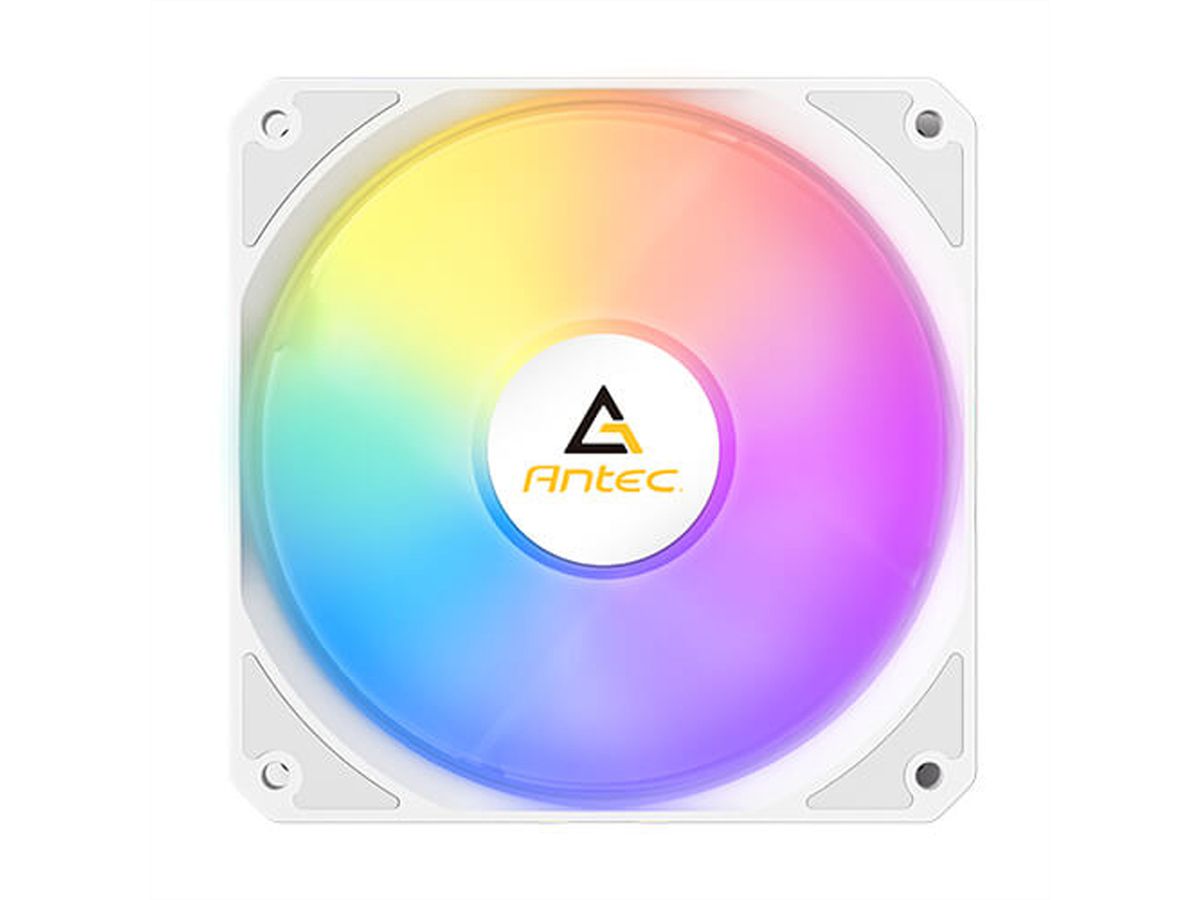

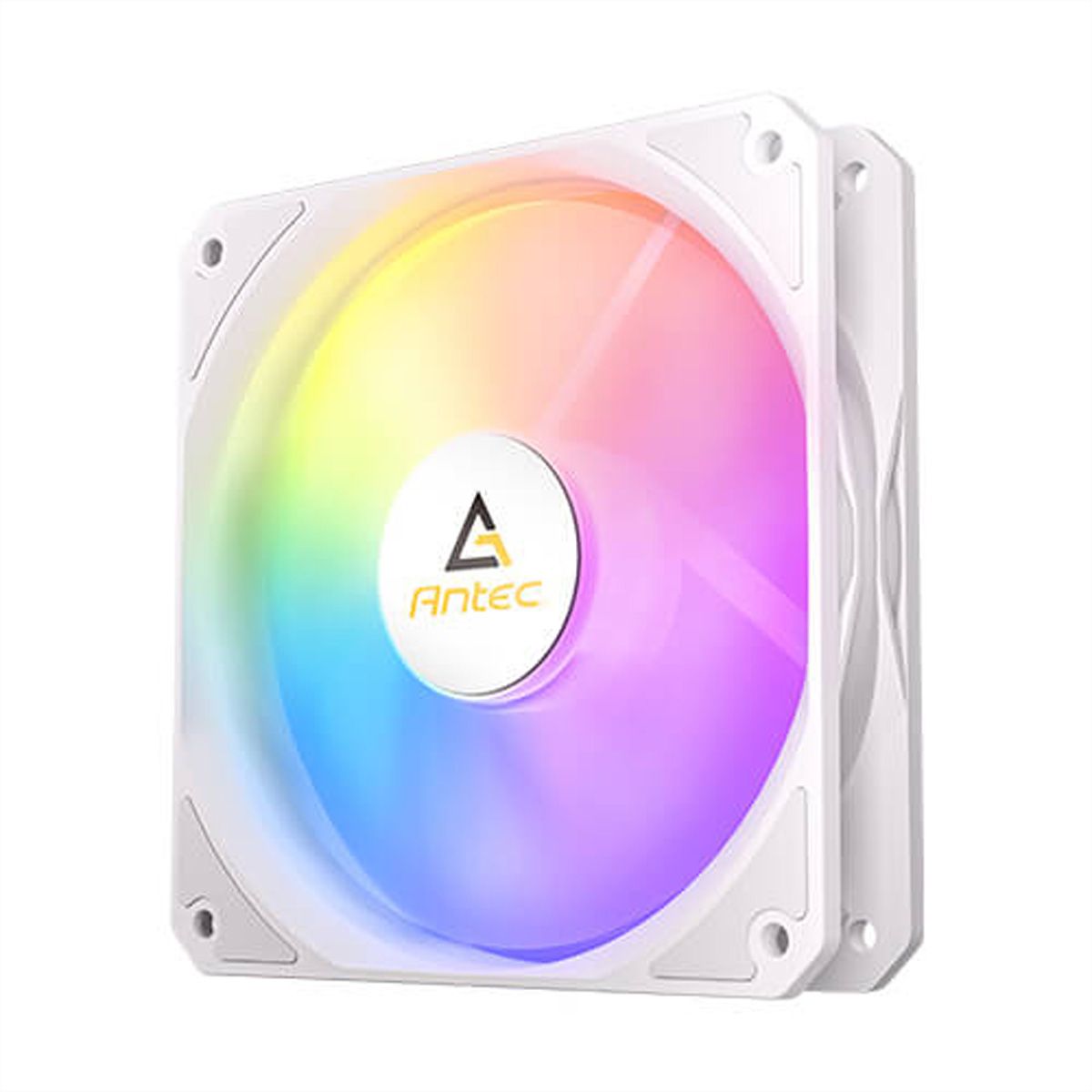

Bright ARGB: Full-spectrum ARGB lighting delivers distinctive visions to meet every need of gamers.
PWM Fan: From low noise to high performance, tune your perfect fan curve between 600 - 1500 RPM.
Quiet operation: 8 anti-vibration rubber pads and hydro bearing help the fan run quietly.

• Fan Type: ARGB PWM Fan

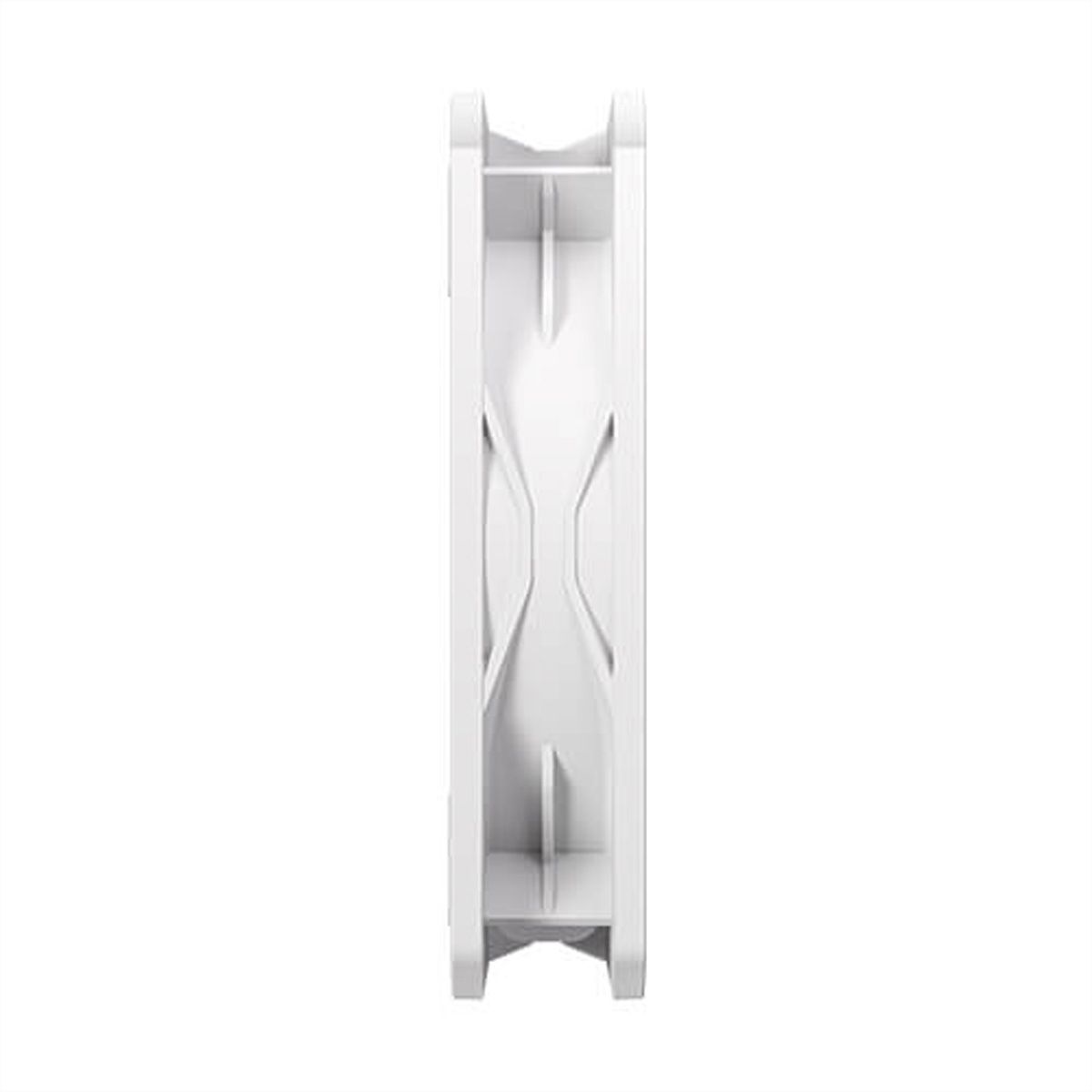

• Dimensions: 120*120*25 mm
• Bearing Type: Hydraulic Bearing
• Fan Speed: 600±100~1500±150 RPM
• Airflow: 9.33~60.63 CFM (max.)
• Air Pressure: 0.09~1.33 mmH₂O (max.)
• Fan Noise Level: 18.8~26.5 dB(A)
• Lifespan: 30,000 hours / 40℃ | 40,000 hours / 25℃
• Connector: FAN: 4-pin | LED: 3-pin
• Rated Voltage: FAN: DC 12 V | LED: DC 5 V
• Operation Voltage: FAN: DC 7.0-13.8 V
• Rated Current: FAN: 0.15 A (0.22A(max.)) / LED: 0.3 A

Specifications

Manufacturer	ANTEC
Product group	Cooler/Fan
Product type	Housing fan
Colour	white
Fan bearing type	Hydraulic bearing
Dimensions (HxWxD) fan	120 × 120 × 25 mm
Fan rotational speed	600±100~1500±150 RPM
Air pressure	1.33 mm H²O
Rated fan current	0.15 A
Acoustic level	18.8~26.5 dB(A)
Noise level spinning (max.)	26.5 dB (A)
Height	120 mm
Width	120 mm
Depth	25 mm
Height of packaging (single piece)	0 mm
Width of packaging (single piece)	0 mm
Depth of packaging (single piece)	0 mm
Package weight (single piece)	0 kg

Downloads

Manufacturer data sheet - English (712.8 KB)

Download

User manual - English (4.3 MB)

Download
