ATEN CL5800N KVM-Console, 48cm LCD, VGA, PS/2-USB, Peripheral Port, DE-Layout

Item no. 14016351 Brand / Manufacturer ATEN Manuf. item no. CL5800N D EAN 4710469344015 Item weight 17.27 kg
ATEN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

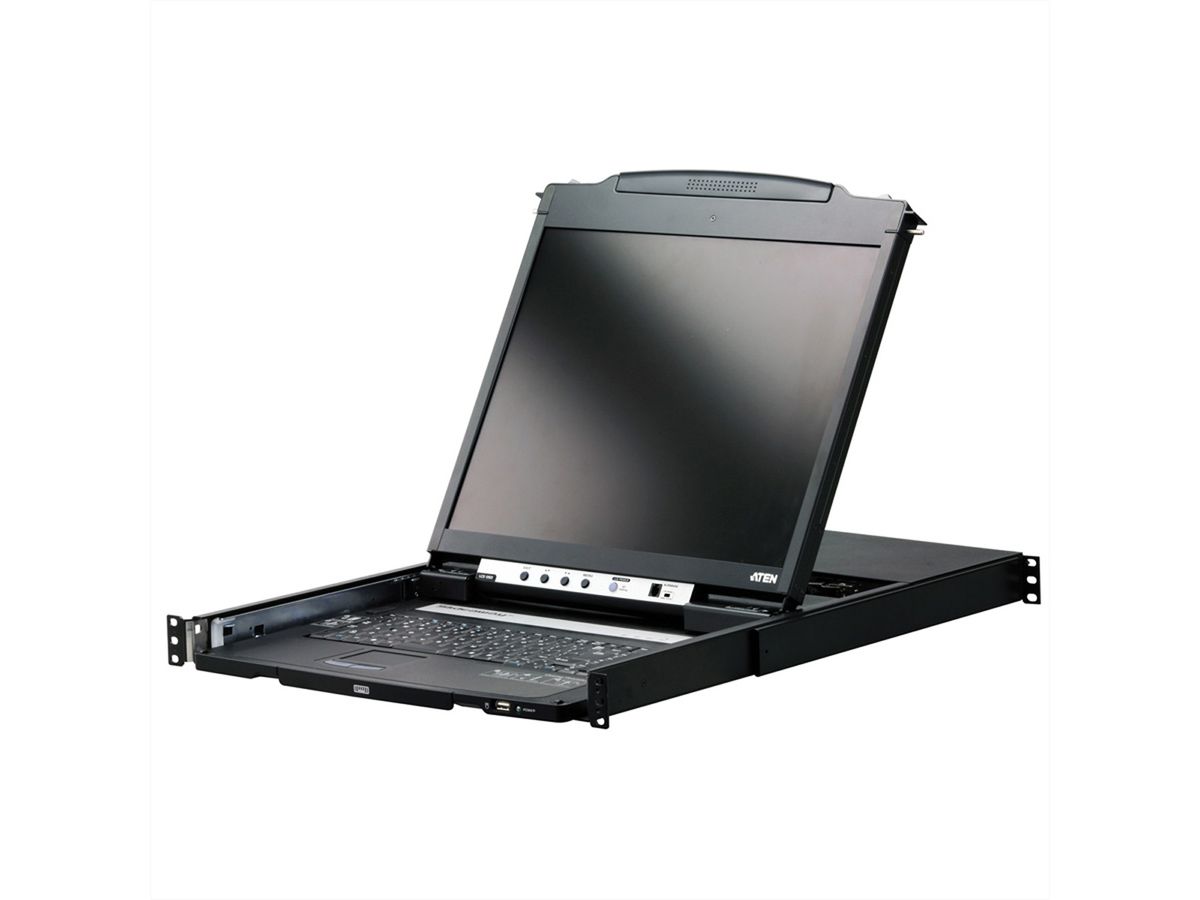

The CL5800 is a LCD KVM console featuring an integrated 19" LED-backlit LCD panel, a full keyboard, and a touch pad in a 1U rack-mountable sliding housing.

  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with a 19" LED-backlit LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
  • Standard rack mount kit included

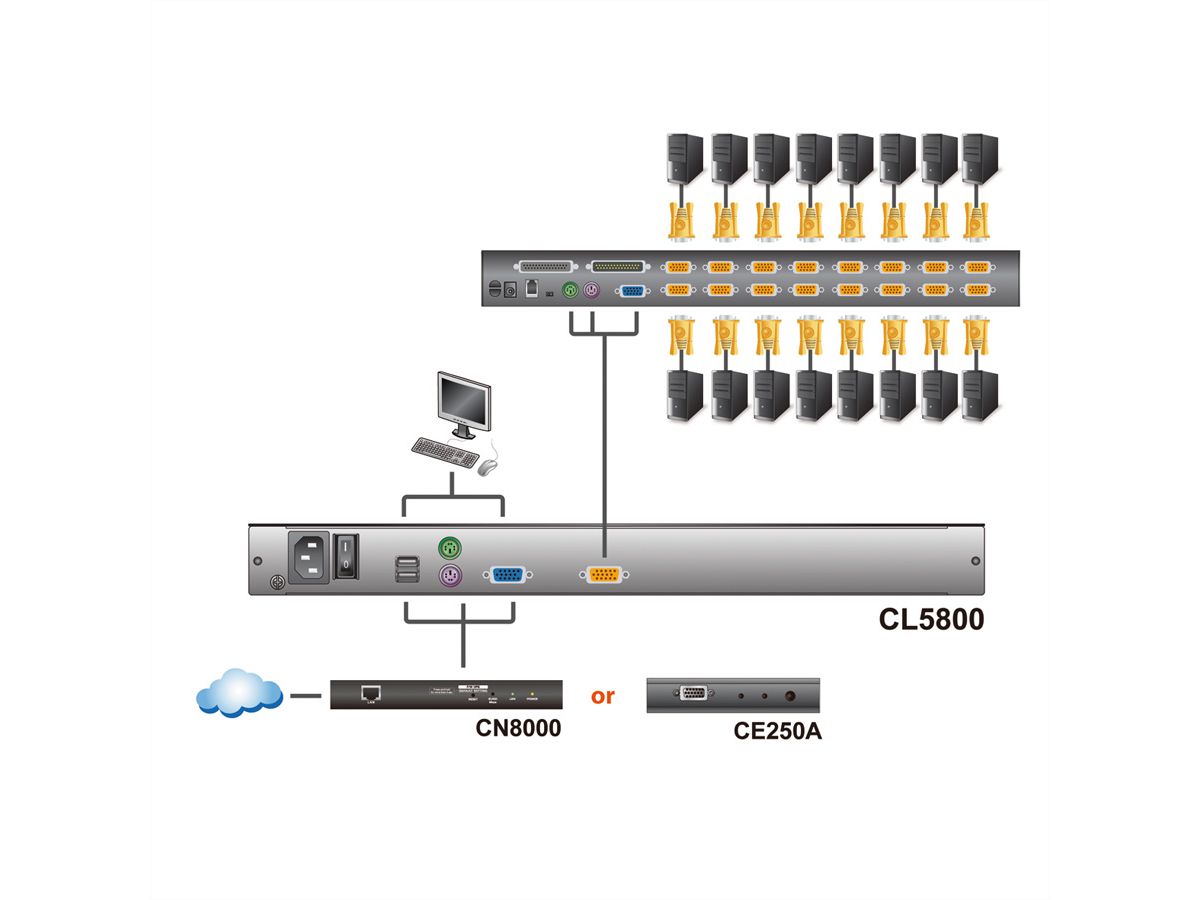

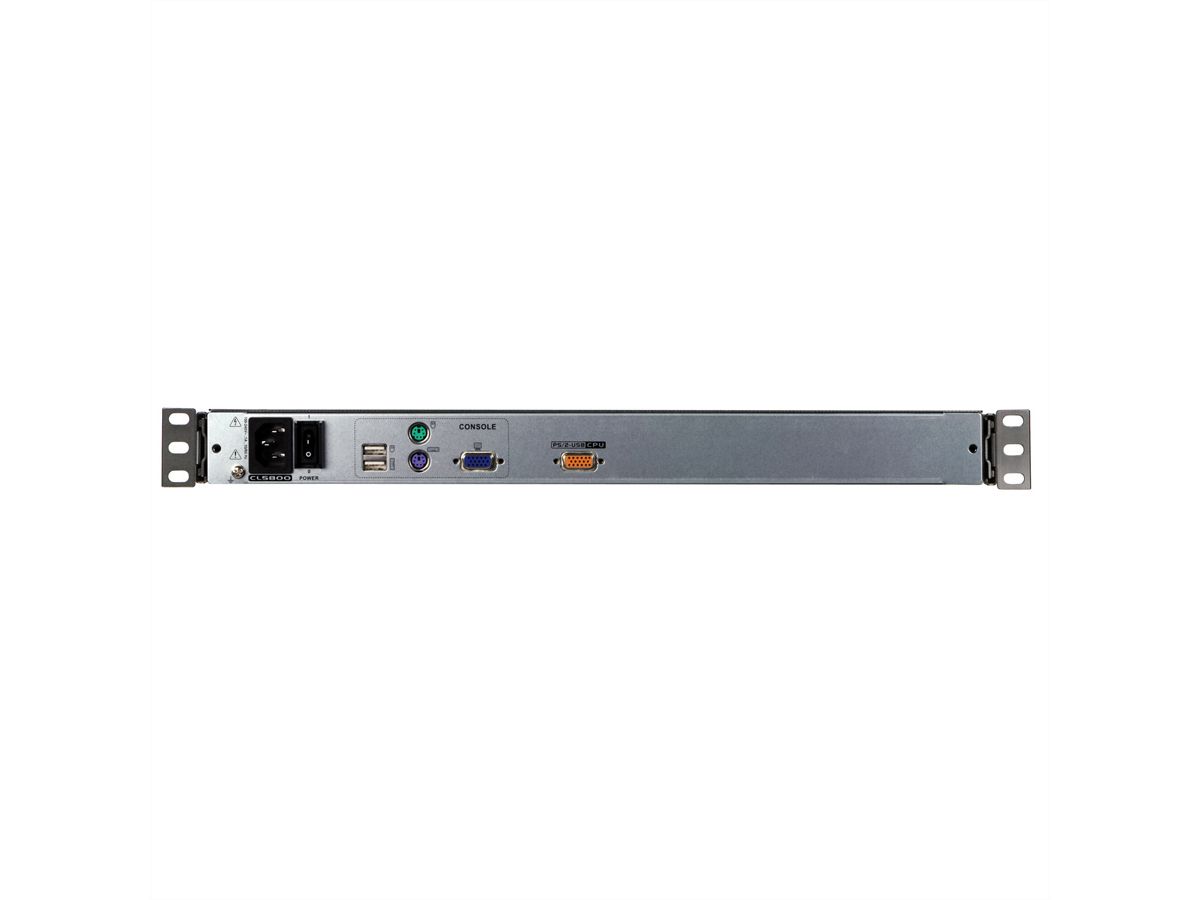

  • Supports an external console with either PS/2 or USB connectors
  • Dual interface - Supports computers and KVM switches with PS/2 or USB keyboards and mice
  • Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
  • Embedded power supply
  • High video resolution: Up to 1280 x 1024 @75Hz

Specifications

Manufacturer
ATEN
Product group
19"-/10"-Equipment rack
Product type
KVM console
Colour
black
Scope of delivery
1x CL5800 Dual Rail LCD PS/2-USB Console with Standard Rack Mount Kit 1x Custom KVM Cable (VGA, USB, PS/2; 1.8m) 1x Power Cord 1x Firmware Upgrade Cable 1x Extension Kit 1x User Instructions
19" shelves required for mounting
2
Footprint (WxD)
480 x 680 mm
Required mounting height
1 U
Monitor size of integrated console
19" (48 cm)
Keyboard layout
DE
Mains connection
Protective contact plug, Type-E/F
Height
4.4 cm
Width
68.04 cm
Depth
48 cm
Weight
14.27 kg
Height of packaging (single piece)
140 mm
Width of packaging (single piece)
680 mm
Depth of packaging (single piece)
840 mm
Package weight (single piece)
17.27 kg

Downloads

Manufacturer data sheet - English (869.5 KB) User manual - English (4.3 MB) Quick Installation Guide - English (2.7 MB) Technical drawing - English (125.2 KB)
