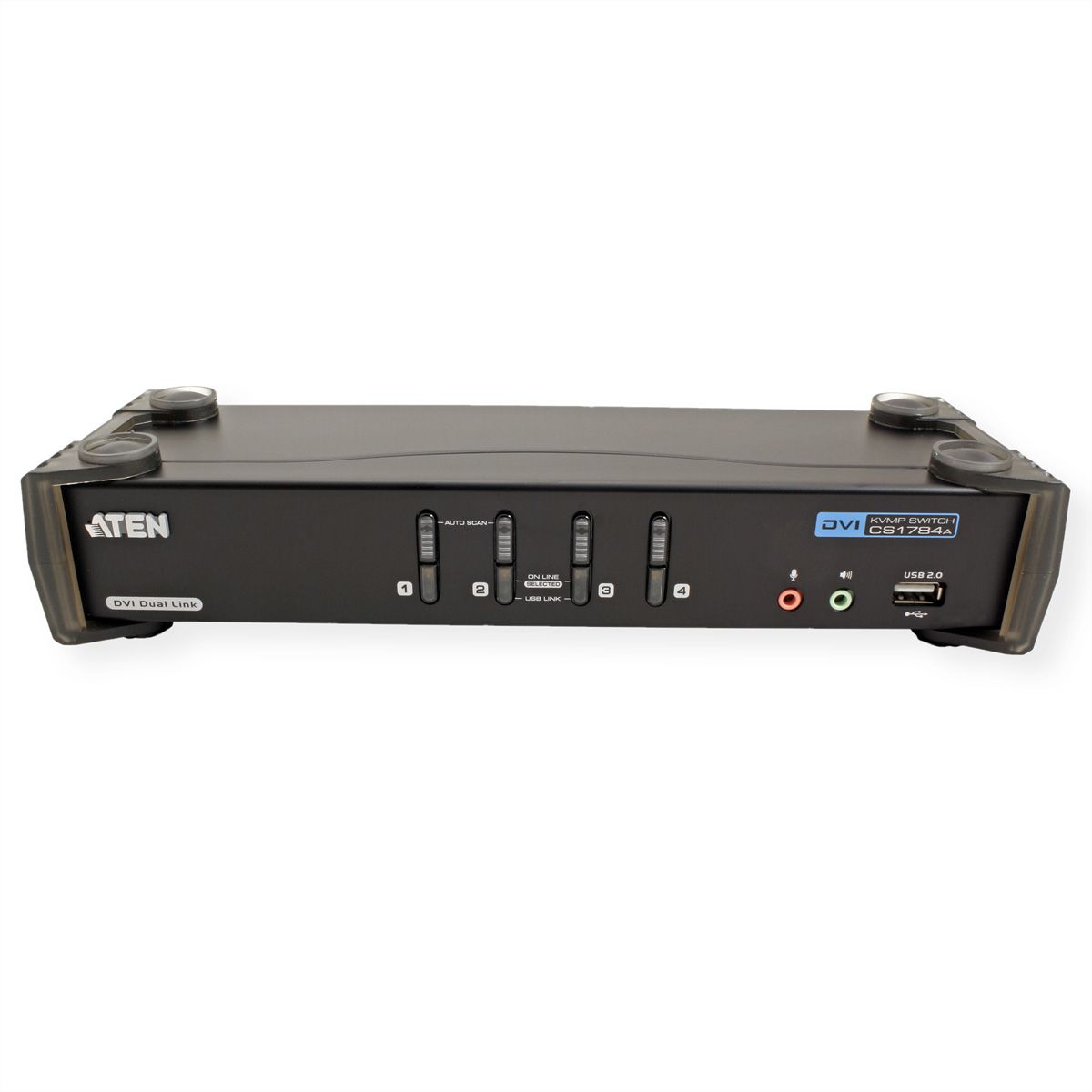

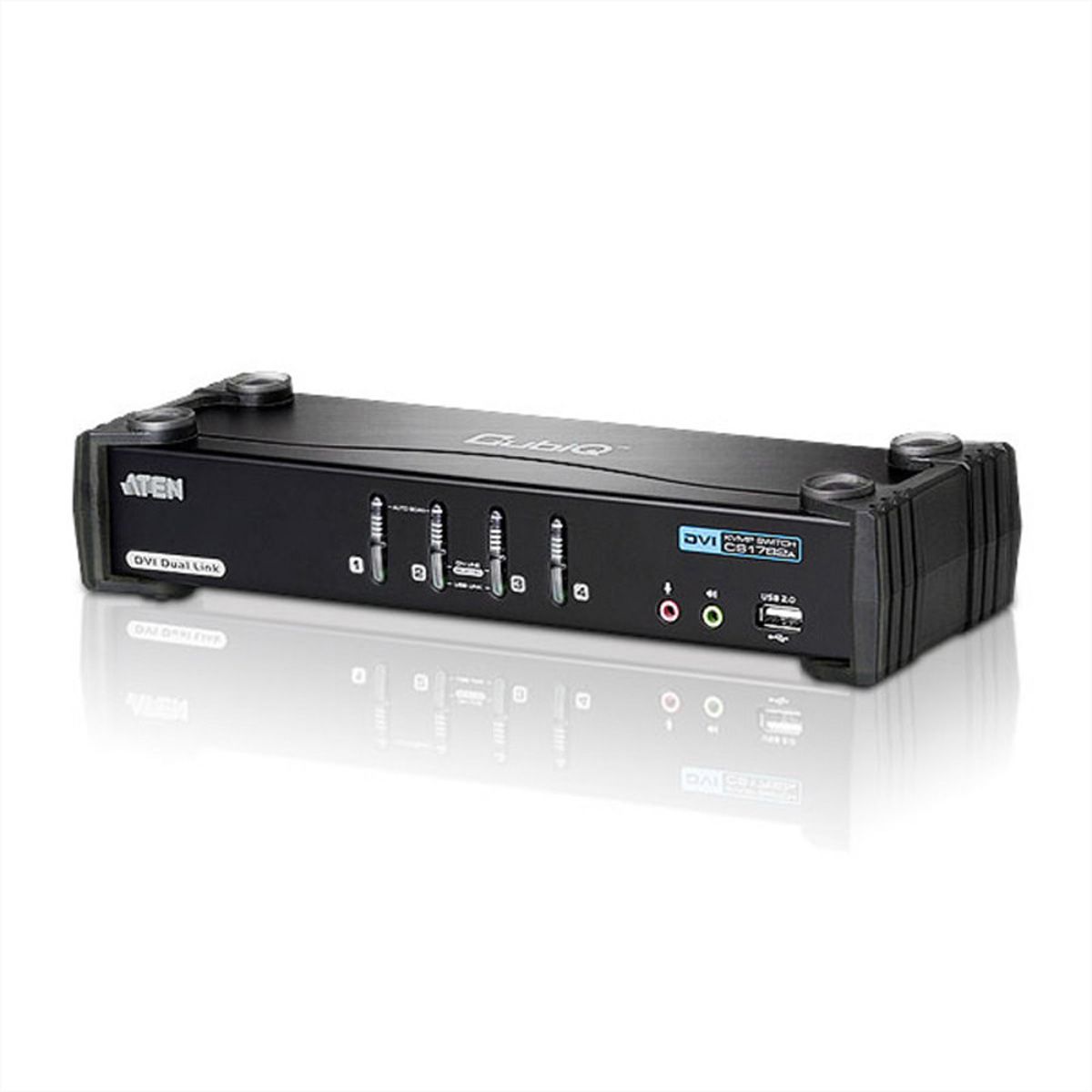

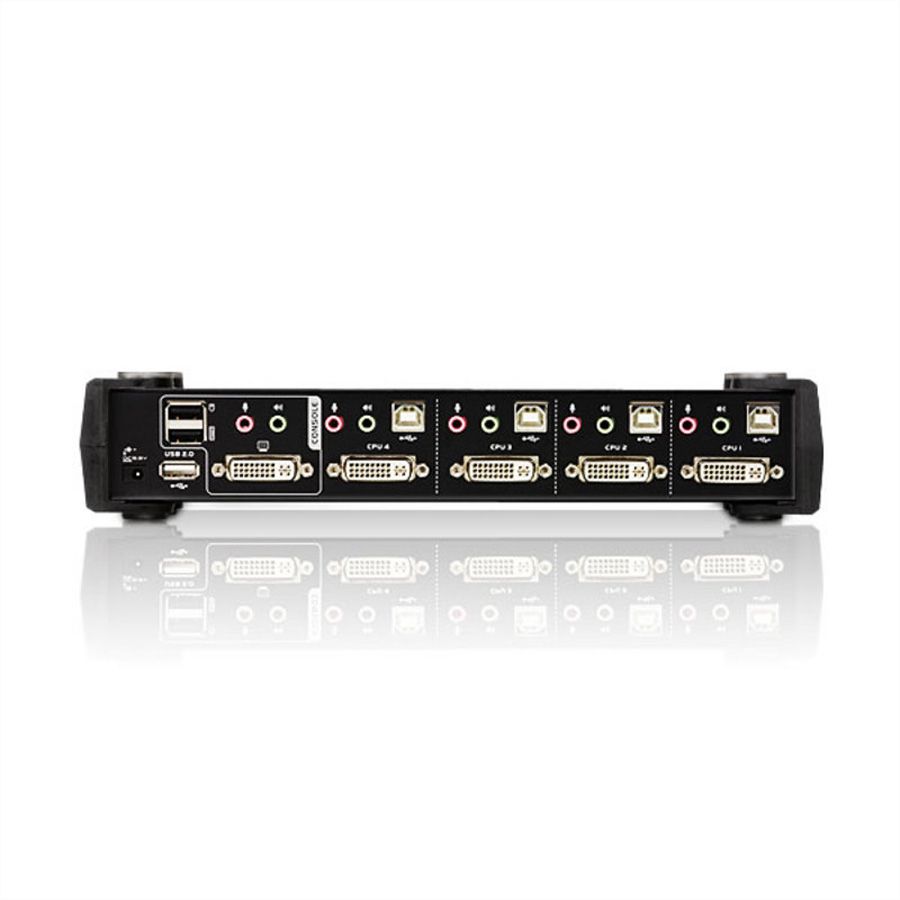

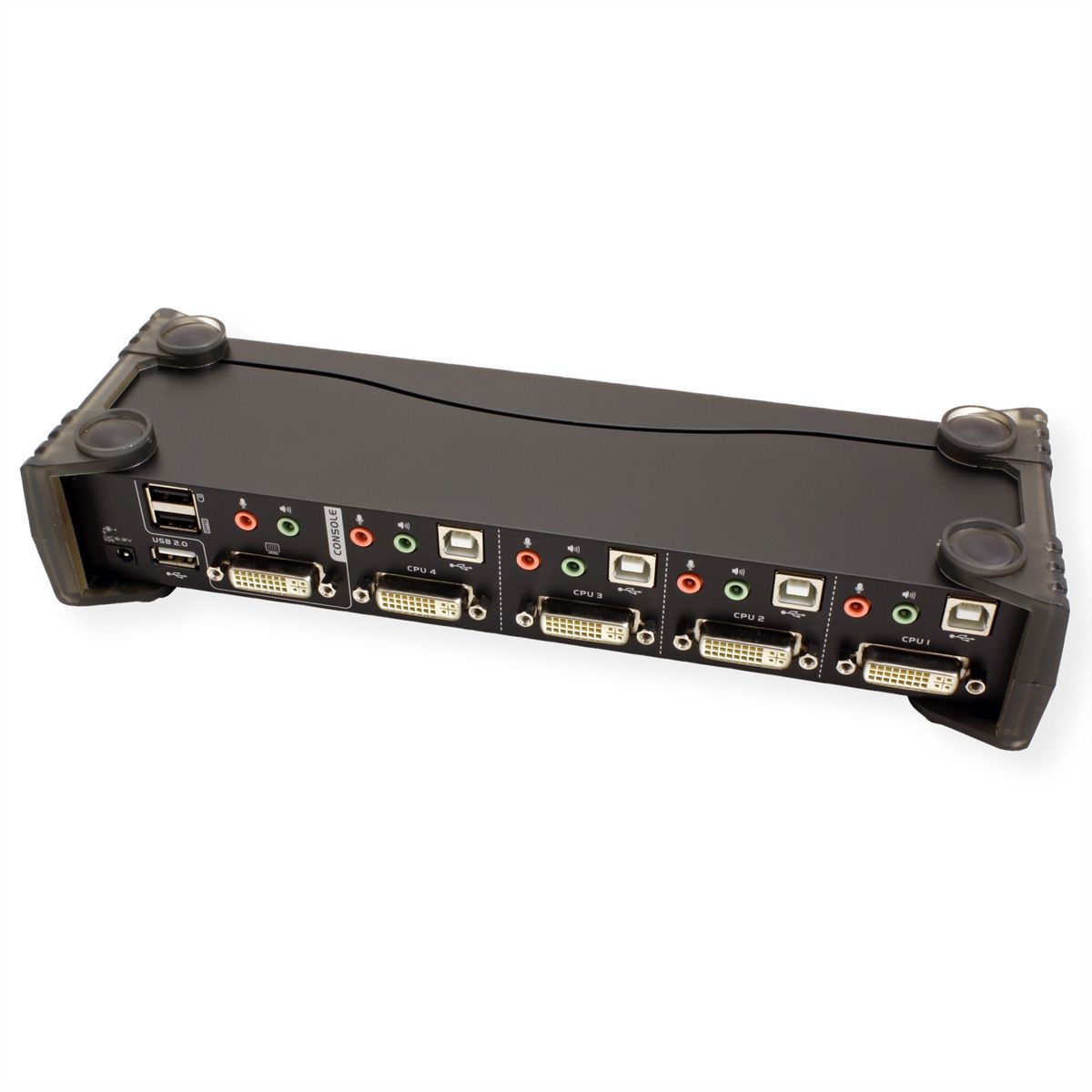

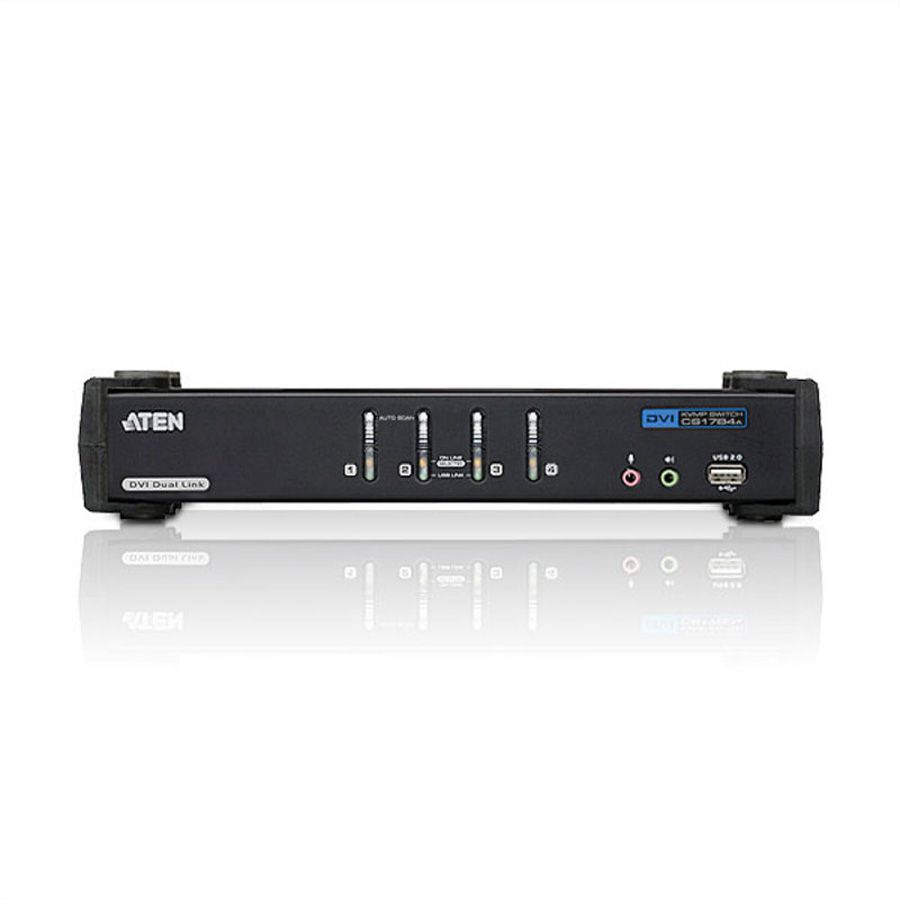

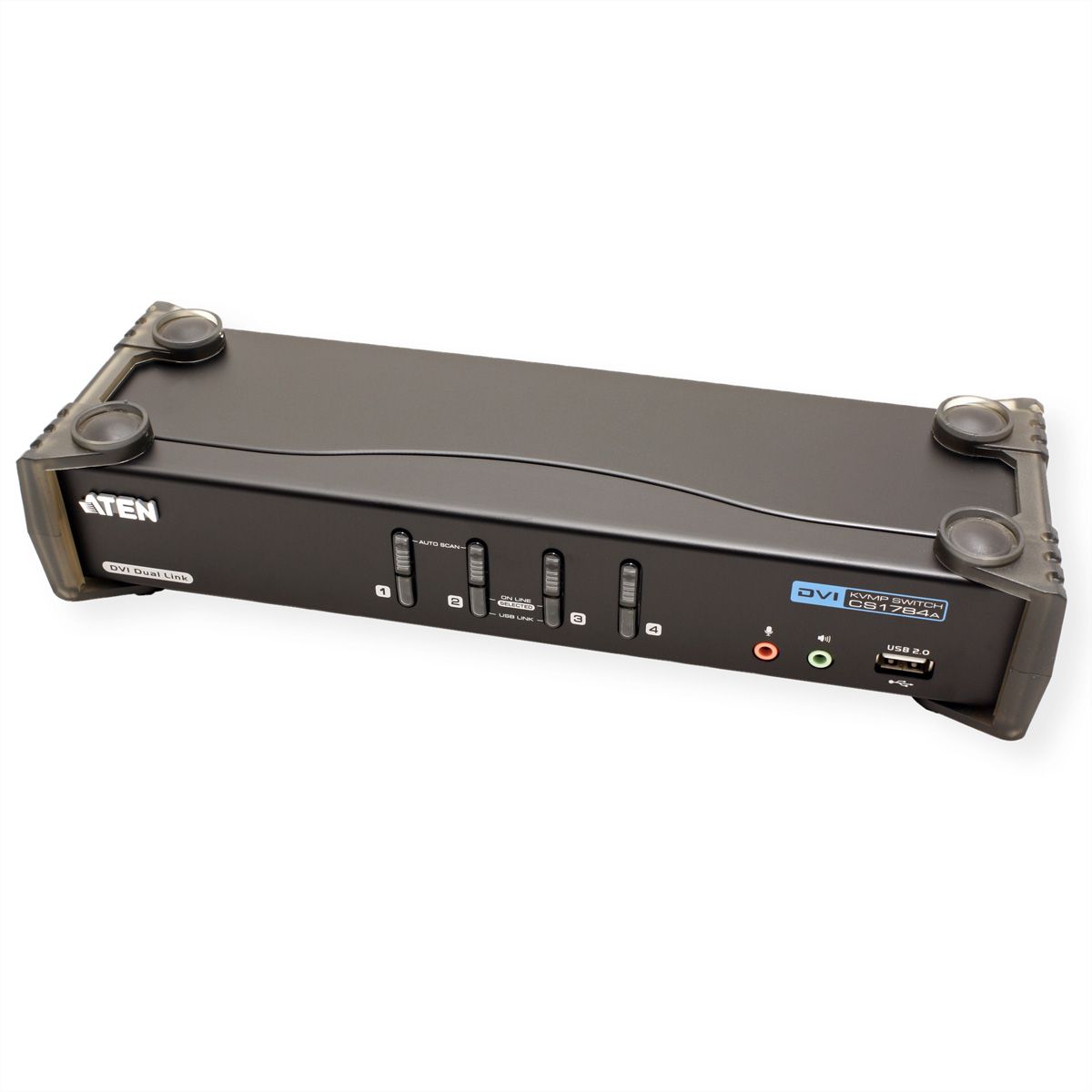

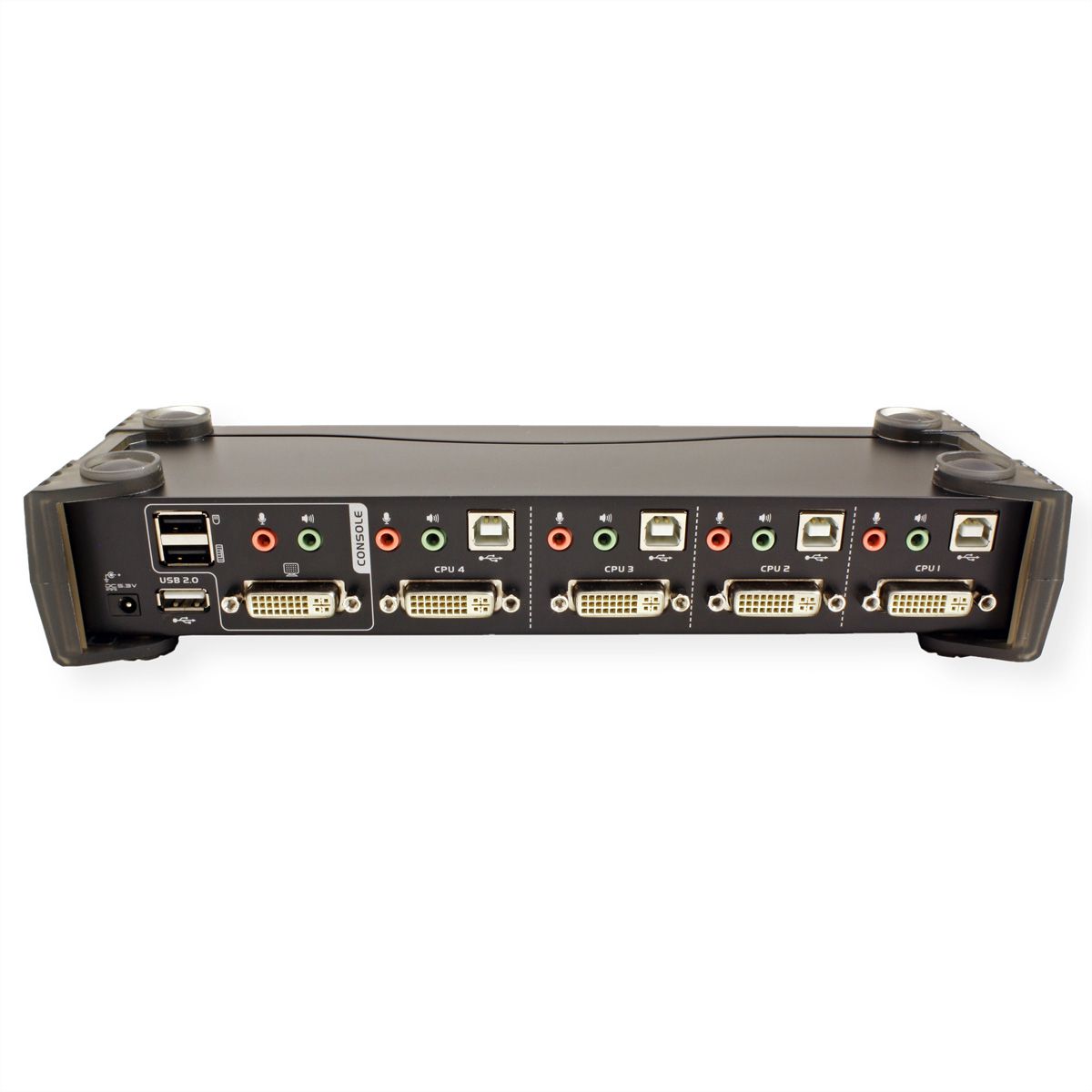

ATEN CS1784A KVM Switch Dual-Link DVI, USB, Audio, 4 Ports

Item no. 14016325 Brand / Manufacturer ATEN Manuf. item no. CS1784A EAN 4710423777095 Item weight 2.58 kg
ATEN
Product recommendations

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/24/2026
Download PDF

Description

4-Port USB DVI Dual Link/Audio KVMP™ Switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support.

The CS1784A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 4-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as nVidia 3D Vision ready 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.

  • 4-port DVI KVMP Switch with USB 2.0 and 2.1 Surround Sound Audio
  • One USB console controls four computers and two additional USB devices
  • 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification
  • Full bass response for high quality 2.1 channel surround sound systems
  • Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!
  • Multiplatform support – Windows, Linux, Mac, and Sun*
Independent switching of KVM, USB, and Audio focus
  • DVI digital and analog monitor support – fully compliant with the DVI specifications

  • Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link)
  • nVidia 3D Vision Ready: Works with 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080
  • HDCP compatible
  • Support widescreen resolutions
  • Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports
  • Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!
  • Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice
  • Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!
  • Complete keyboard emulation for error-free booting
  • Mac/Sun keyboard support and emulation*
  • Multilingual keyboard mapping – supports English, Japanese, and French keyboards
  • Auto Scan Mode for monitoring all computers
  • Firmware upgradable

* PC keyboard combinations emulate Mac/Sun keyboards
Mac/Sun keyboard work only with their own

Specifications

Manufacturer
ATEN
Product group
KVM switches / PC shares
Product type
KVM-Switch, DVI
Colour
black
Scope of delivery
KVM Switch, Power Supply Unit, 2x KVM-Cables (1.8 m), Manual
Interface
DVI
Quantity of PCs
4
Supported PC-Systems
USB
PC: monitor connection
4x DVI F
PC: mouse/keyboard connection
USB
PC: connection on moulded cables
no
Quantity of digital consoles
1
Analogue Console: Monitor connection
1x DVI F
Analogue Console: Mouse/Keyboard connection
USB
Integrated console
no
Switching over Scan Run
yes
Print button on device
yes
Switching over Hot Keys
Keyboard
Switching over OSD
no
Integrated Hub
yes
Quantity of USB-Hub ports
2
Keyboard/mouse emulation
yes
19" compatible
no
Cascadable
no
Max. resolution (nominal)
DVI Dual Link: 2560 x 1600; DVI Single Link: 1920 x 1200
Material (casing)
Metal
Dimensions (HxWxD)
55 x 270 x 87 mm
Power supply unit required
yes
Power supply output
DC 5.3V, 10 W
Technical particularity
Dual Link DVI
Mains connection
Appliance Europlug, Type-C
Height
55 mm
Width
270 mm
Depth
87 mm
Weight
0.93 kg
Height of packaging (single piece)
110 mm
Width of packaging (single piece)
220 mm
Depth of packaging (single piece)
330 mm
Package weight (single piece)
2.58 kg
Quantity of analogue consoles
1

Downloads

Manufacturer data sheet - English (392.0 KB) User manual - English (2.4 MB) Quick Installation Guide - English (3.9 MB) Technical drawing - English (57.2 KB)
