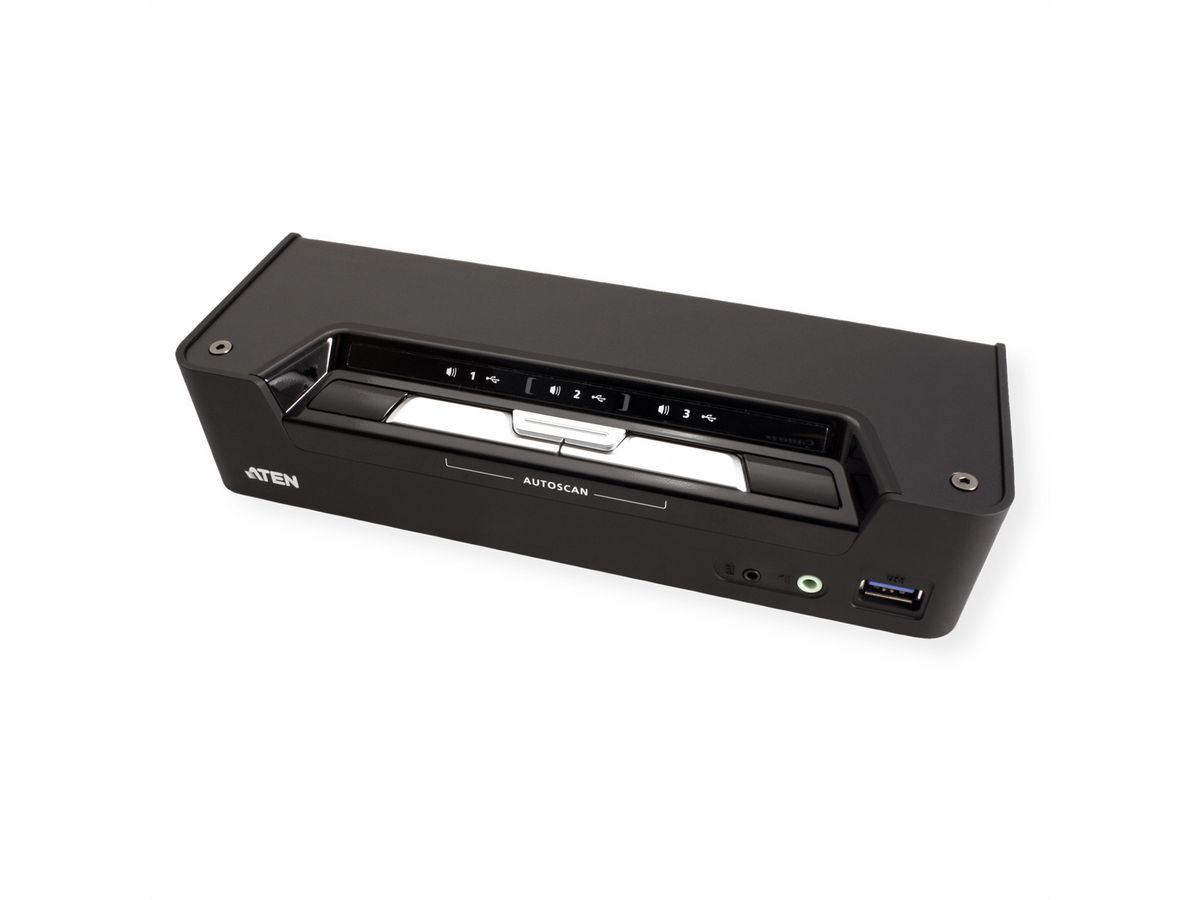

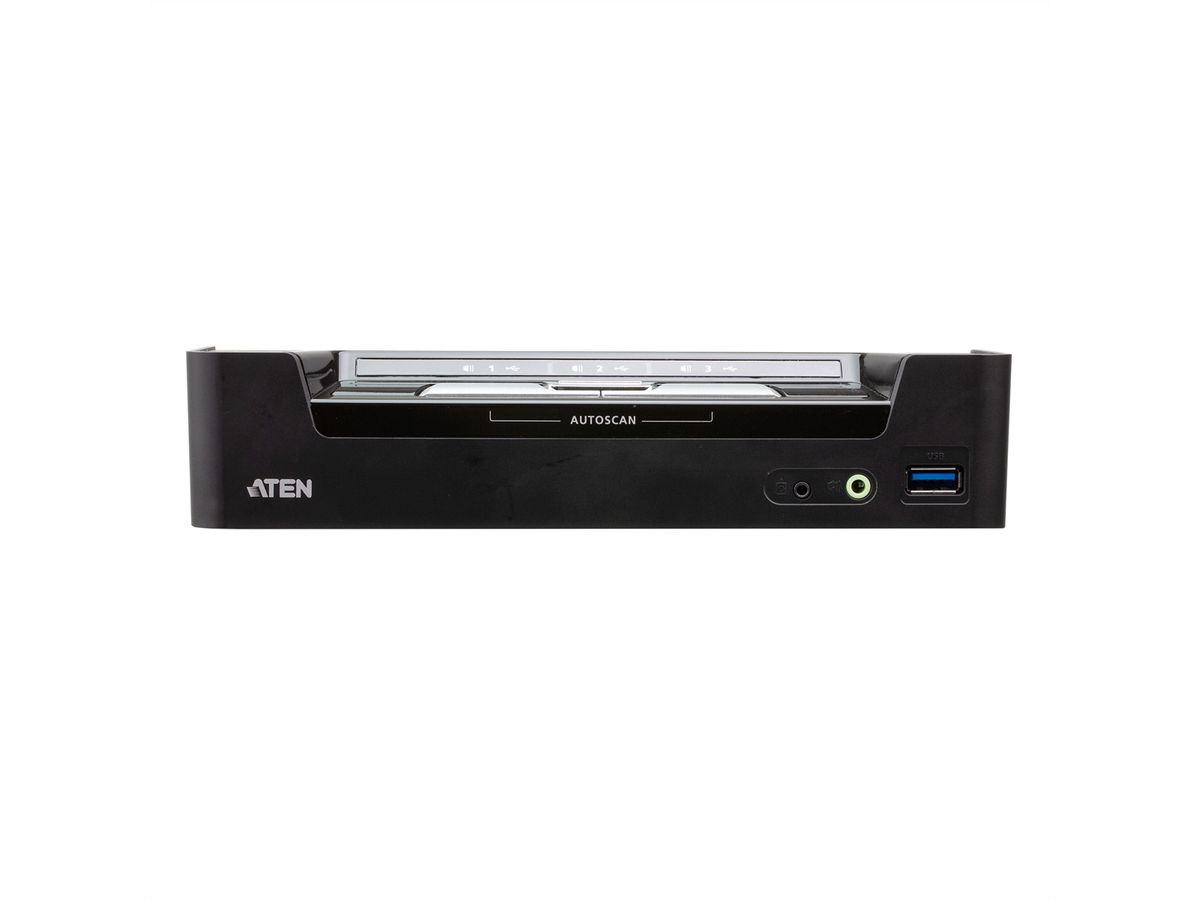

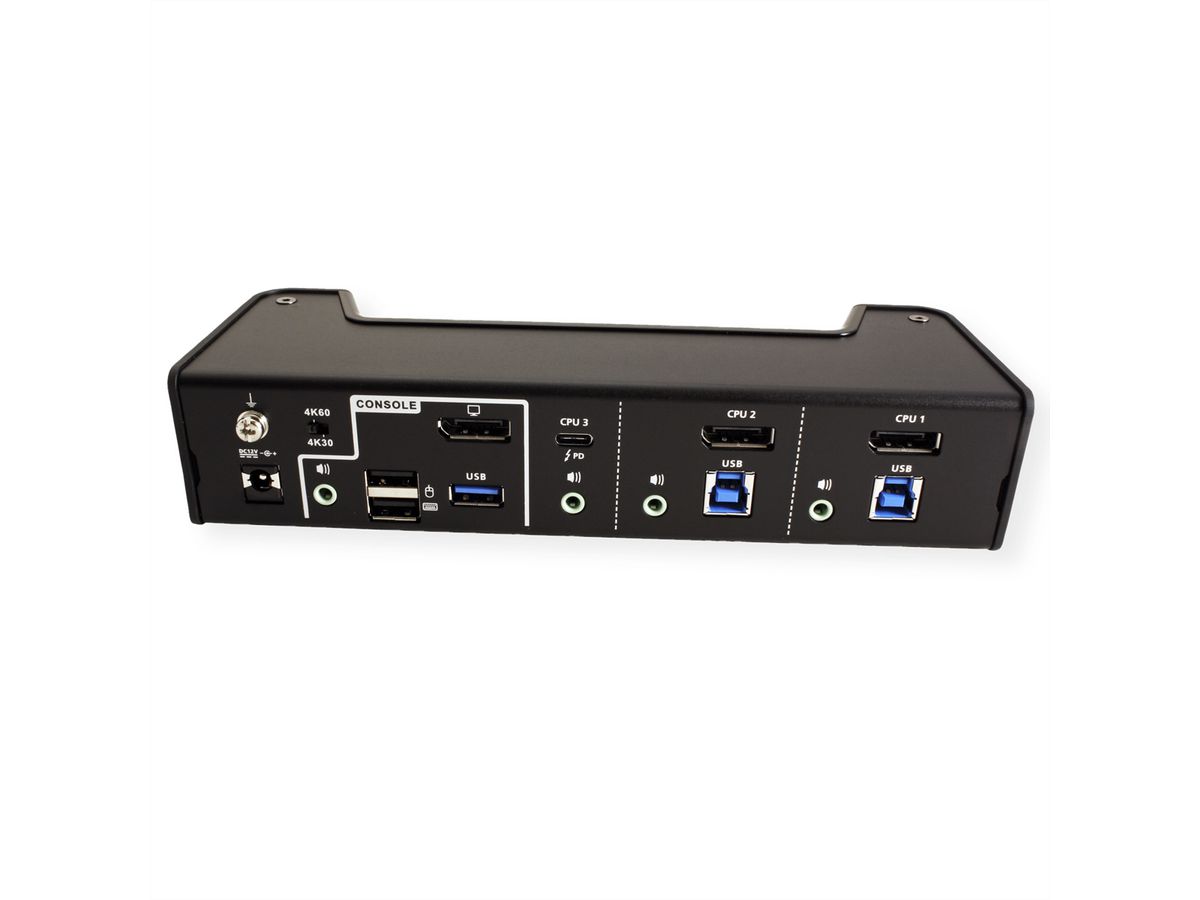

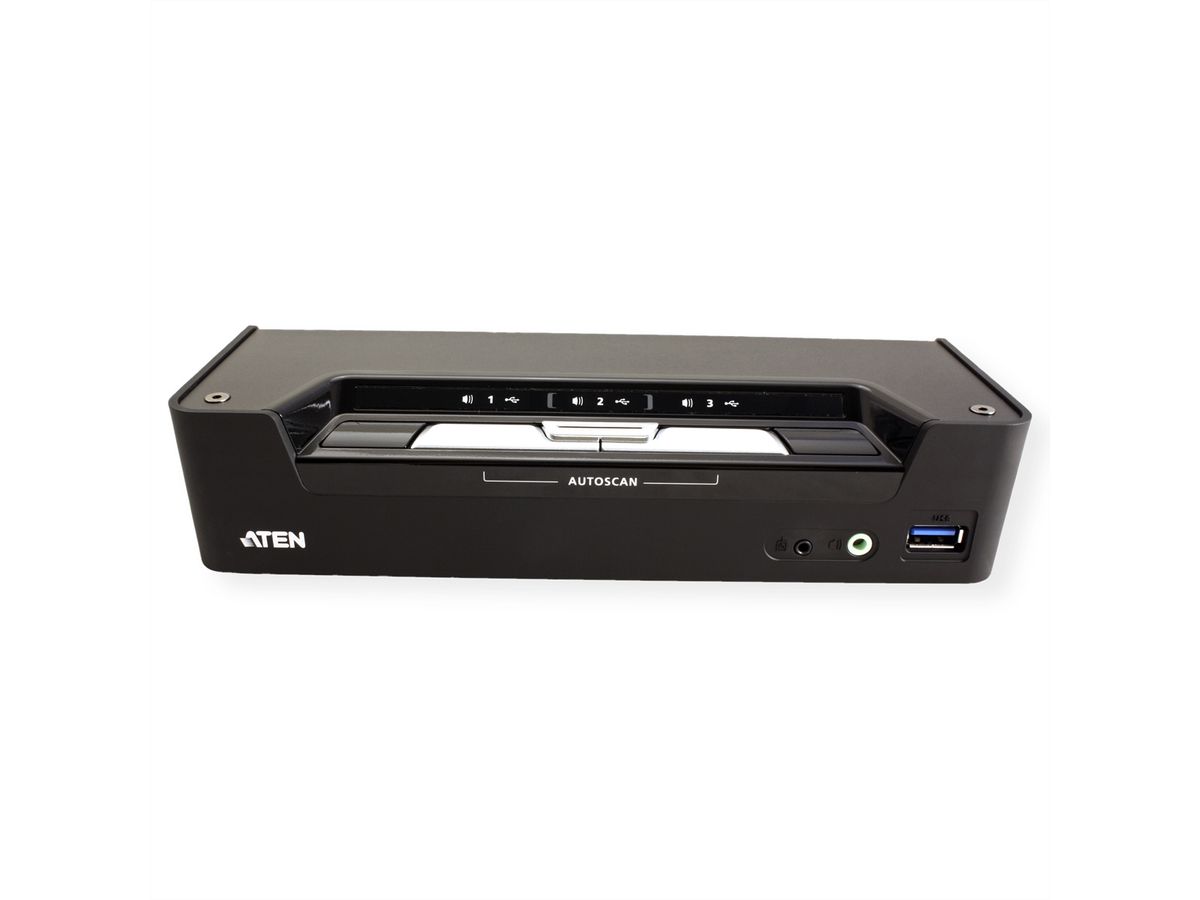

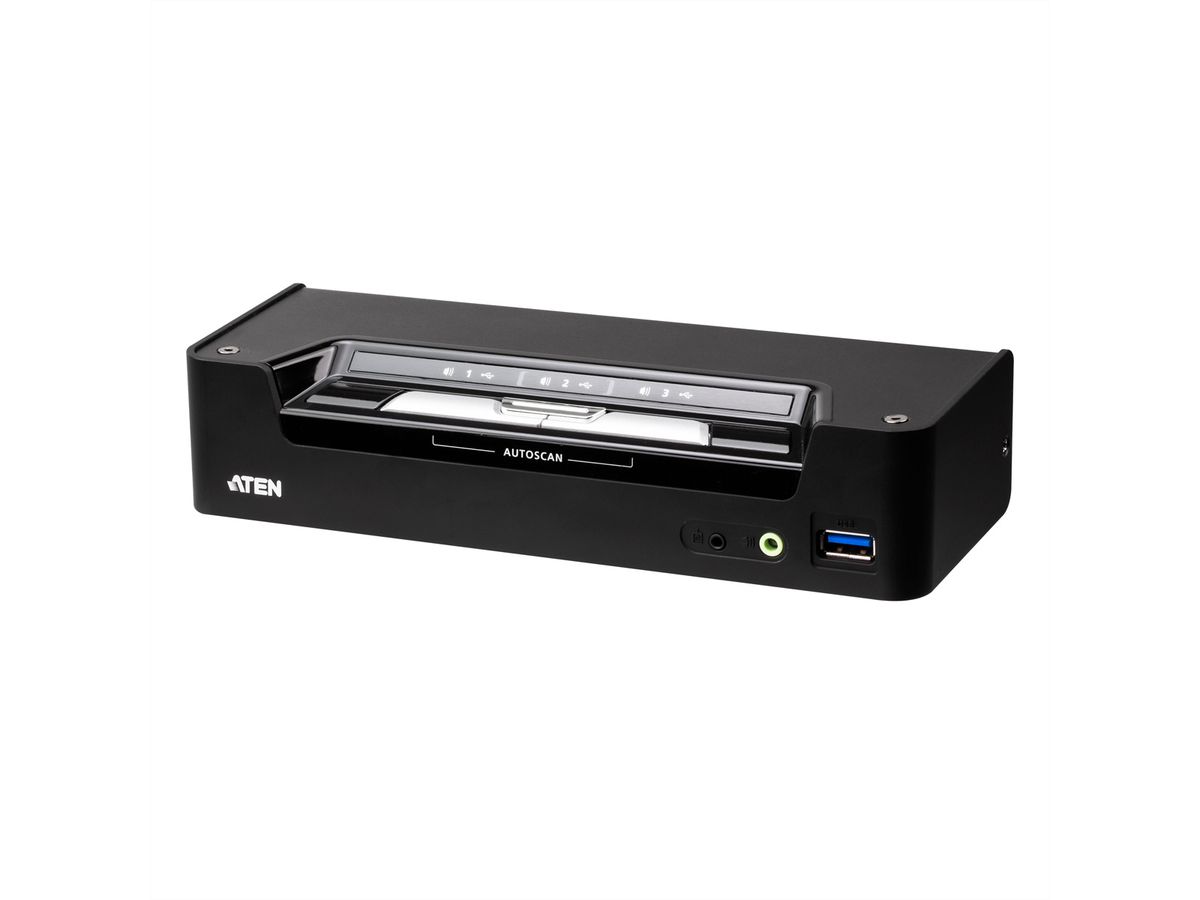

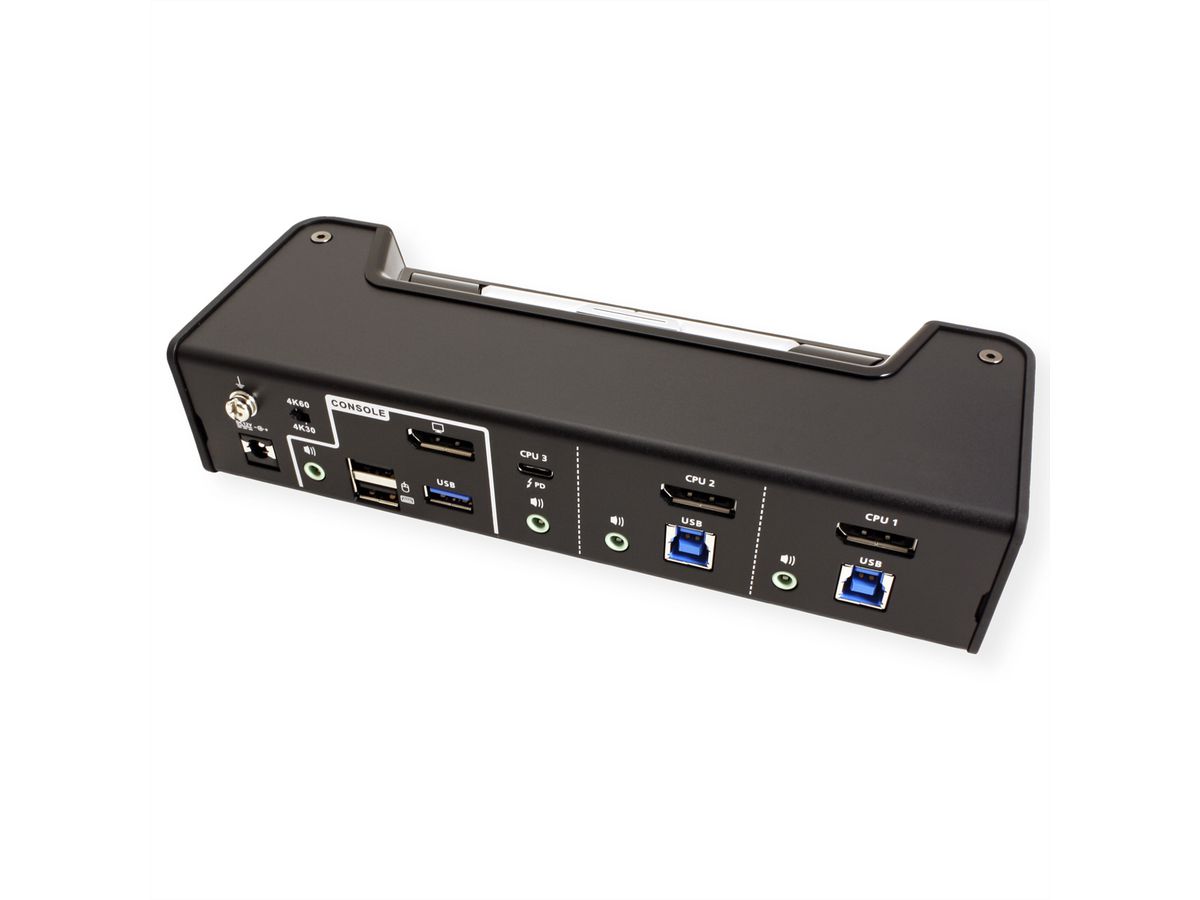

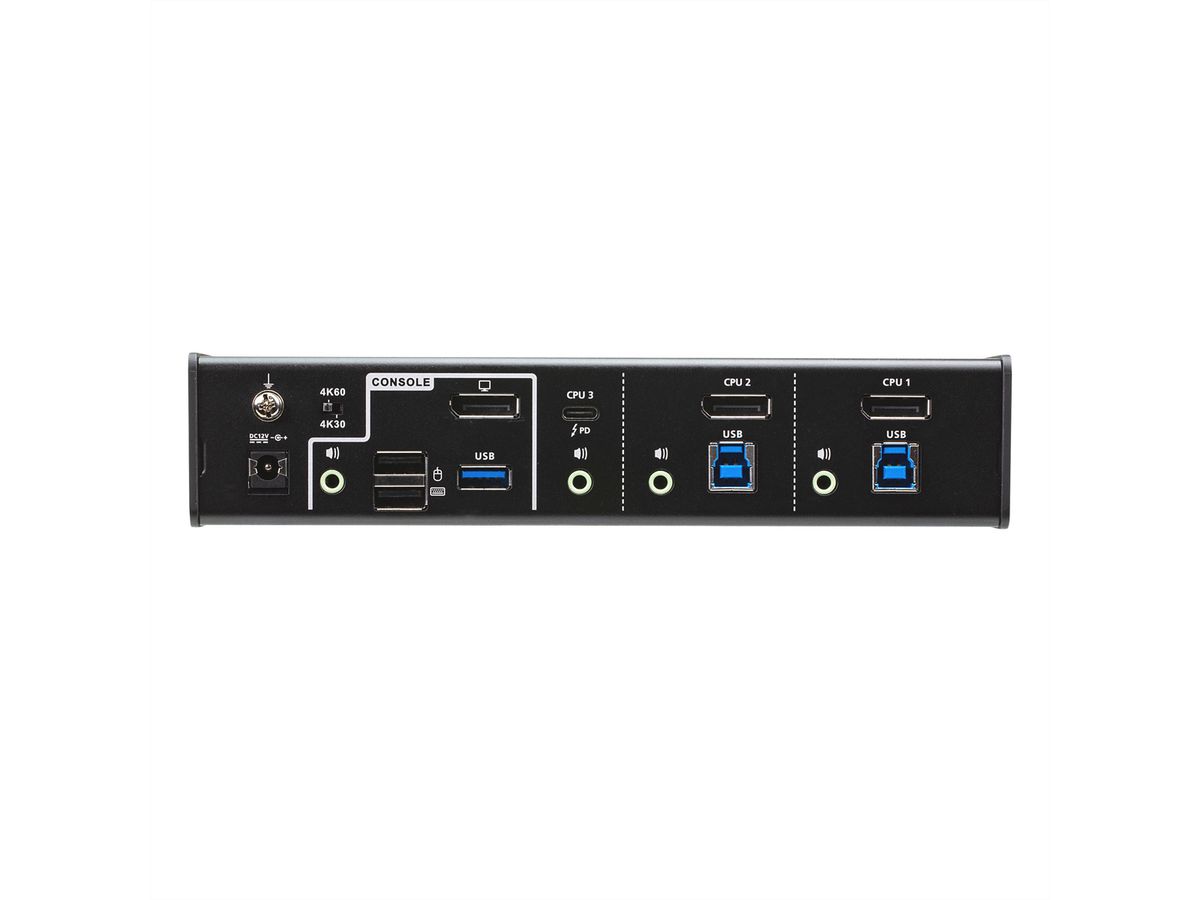

ATEN CS1953 3-Port USB-C DisplayPort Hybrid KVMP™ Switch

Item no. 14017211 Brand / Manufacturer ATEN Manuf. item no. CS1953 EAN 4719264647529 Item weight 1.328 kg
ATEN
Product recommendations

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

The industry’s first 3-port USB-C DisplayPort Hybrid KVMP™ Switch, carries out ergonomic desktop style with the power of a KVM and the popularity of USB-C connectivity to facilitate professional and commercial workstation applications with better mobility, so as to enhance total desktop productivity.

The CS1942 2-port USB 2.0 Dual View Mini DisplayPort KVMPT Switch allows access to 2 computers from a single USB keyboard and USB mouse with dual displays. The KVM switches amazing functionality combines a Dual view 2-port Mini DisplayPort switch, with a 2-port USB 2.0 hub, and front panel USB quick charge port for mobile devices.

  • One dual-view USB console independently and simultaneously controls two Mini DisplayPort computers and two USB devices
  • USB quick charge mode (front panel USB port)
  • Mini DisplayPort 1.1a & HDCP compatible
  • Full bass response provides a rich experience for digital surround sound systems via Mini-TOSLINK
  • Superior video quality - enables up to 2560 x 1600 resolution and 3D displays up to 1920x1080 resolution at 120Hz
  • Nvidia 3D Vision Ready
  • 2-port USB 2.0 hub built in, fully compliant with USB 2.0 specifications
  • Computer selection via front touch panel /hotkeys/ mouse*
  • Independent switching for USB peripherals, audio, and KVM focus
  • Keyboard and Mouse

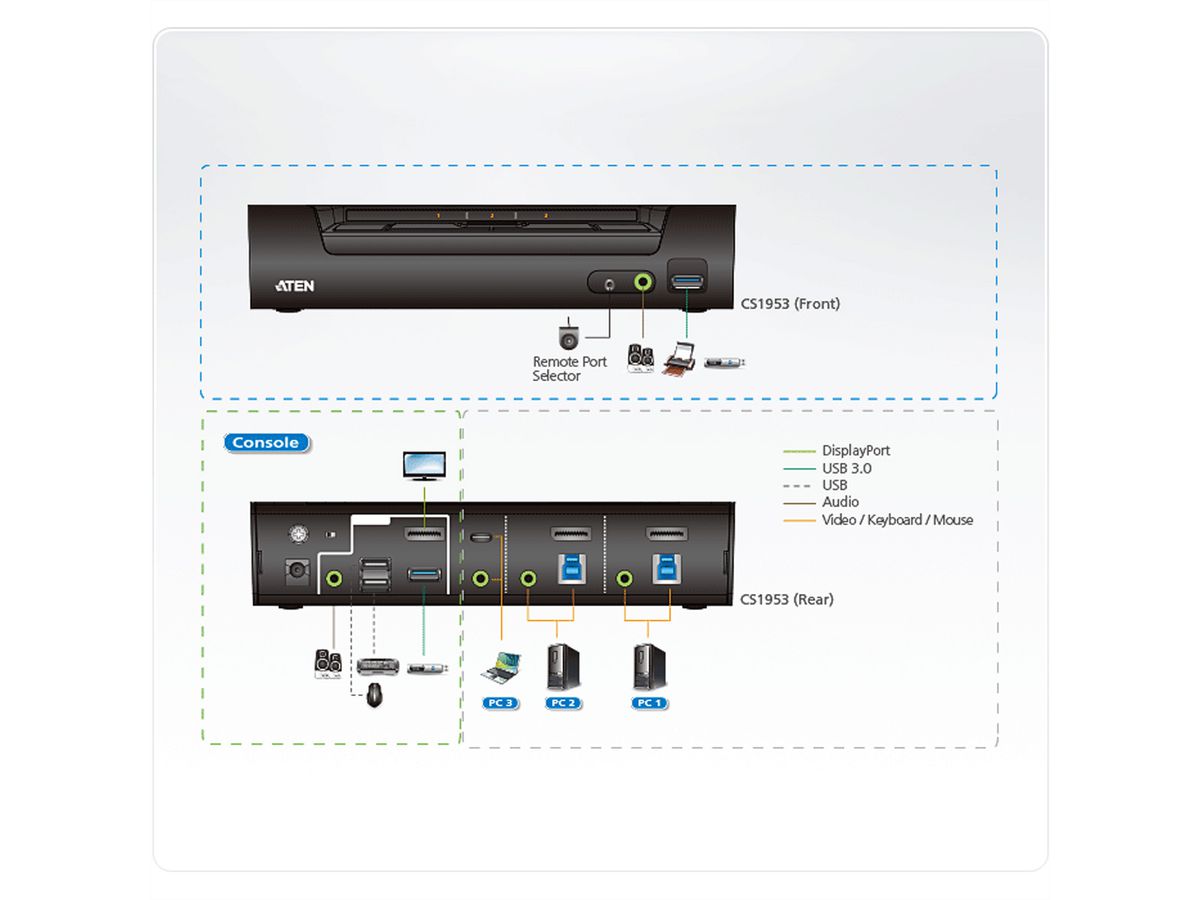

  • One USB keyboard, mouse and one DisplayPort monitor control two DisplayPort computers, one USB-C device and share two USB peripherals
  • Supports superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
  • Provides USB Power Delivery 3.0 for USB-C device charging up to 45W
  • Computer selection via pushbuttons, hotkeys, mouse, and remote port selector
  • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
  • Supports DisplayPort Alternate Mode (DP Alt Mode) which enables the USB connection to carry DisplayPort signals
  • DisplayPort 1.2 compliant; HDCP 1.4 compliant
  • Independent switching of KVM, USB peripheral, and audio focus4
  • Supports HD Audio
  • Supports DisplayPort Dual-Mode technology (DP++)
  • Firmware upgradeable
  • Bus-powered

Specifications

Manufacturer
ATEN
Product group
KVM switches / PC shares
Product type
KVM-Switch, DP
Colour
black
Scope of delivery
1 x CS1953 3-Port USB-C DisplayPort Hybrid KVMP™ Switch, 2 x DisplayPort 1.2 cables, 2 x USB 3.0 Type-A to Type-B cables, 1 x USB-C cable, 3 x audio cables, 1 x remote port selector, 1 x power adapter (only applicable for the with-power-adapter option), 1 x user instructions
Interface
DP
Quantity of PCs
3
Supported PC-Systems
USB 3.1
PC: monitor connection
2 x DP F; 1 x USB-C
PC: mouse/keyboard connection
USB
PC: connection on moulded cables
no
Print button on device
yes
Keyboard/mouse emulation
yes
19" compatible
no
Cascadable
no
Hot plug compatible
no
Max. resolution (nominal)
4096 x 2160 @60 Hz
Colour (Design profile)
black
Dimensions (HxWxD)
44x76x207 mm
Power supply unit required
yes
Technical particularity
LEDs for easy status monitoring
Mains connection
Appliance Europlug, Type-C
Height
44 mm
Width
76 mm
Depth
207 mm
Weight
0.5 kg
Height of packaging (single piece)
100 mm
Width of packaging (single piece)
220 mm
Depth of packaging (single piece)
280 mm
Package weight (single piece)
1.328 kg

Downloads

Manufacturer data sheet - English (1.1 MB) User manual - English (1.8 MB) Quick Installation Guide - English (985.0 KB) Technical drawing - English (80.7 KB)
