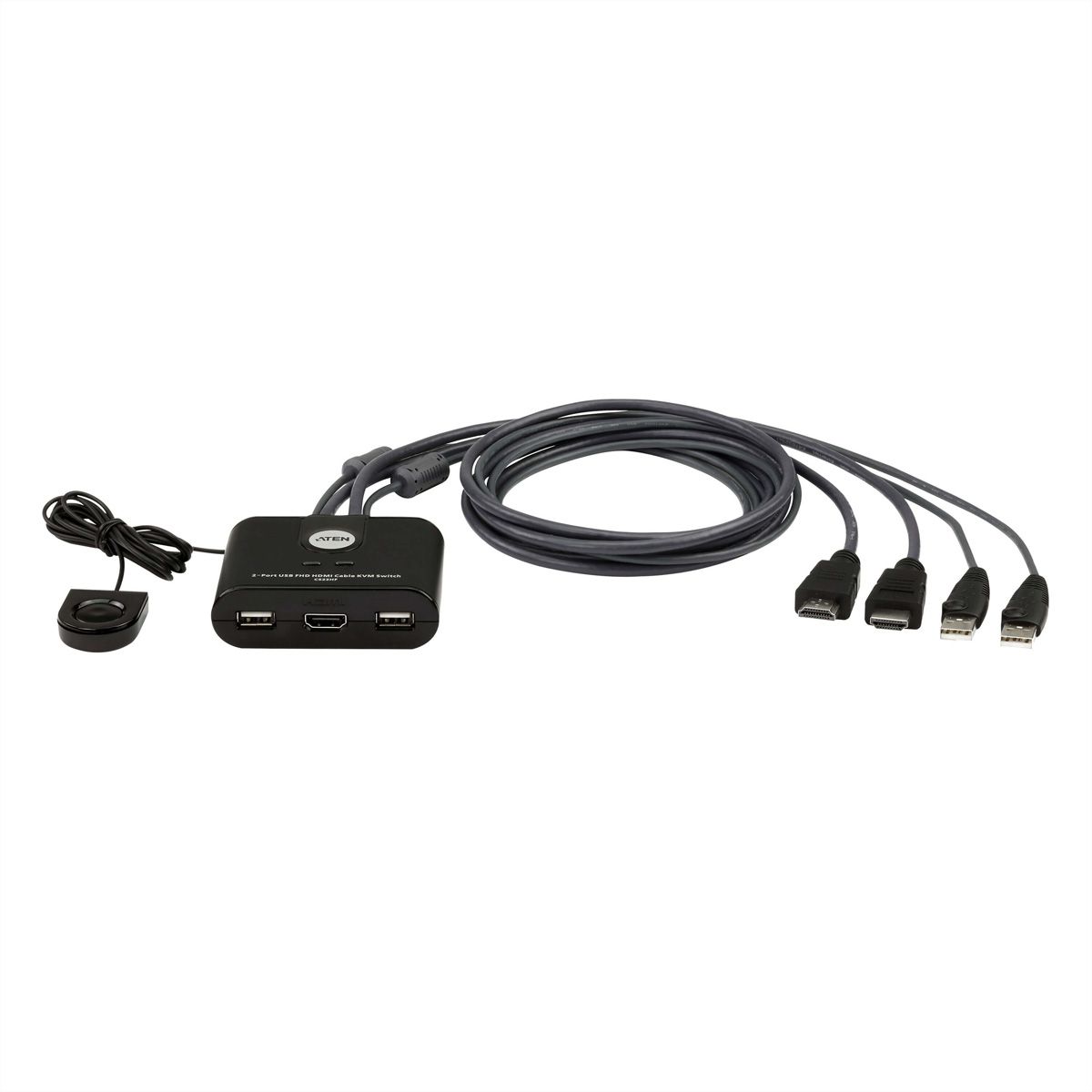

ATEN CS22HF 2-Port USB FHD HDMI Cable KVM Switch

Item no. 14017262 Brand / Manufacturer ATEN Manuf. item no. CS22HF EAN 4710469341304 Item weight 0.334 kg
ATEN
Product recommendations

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

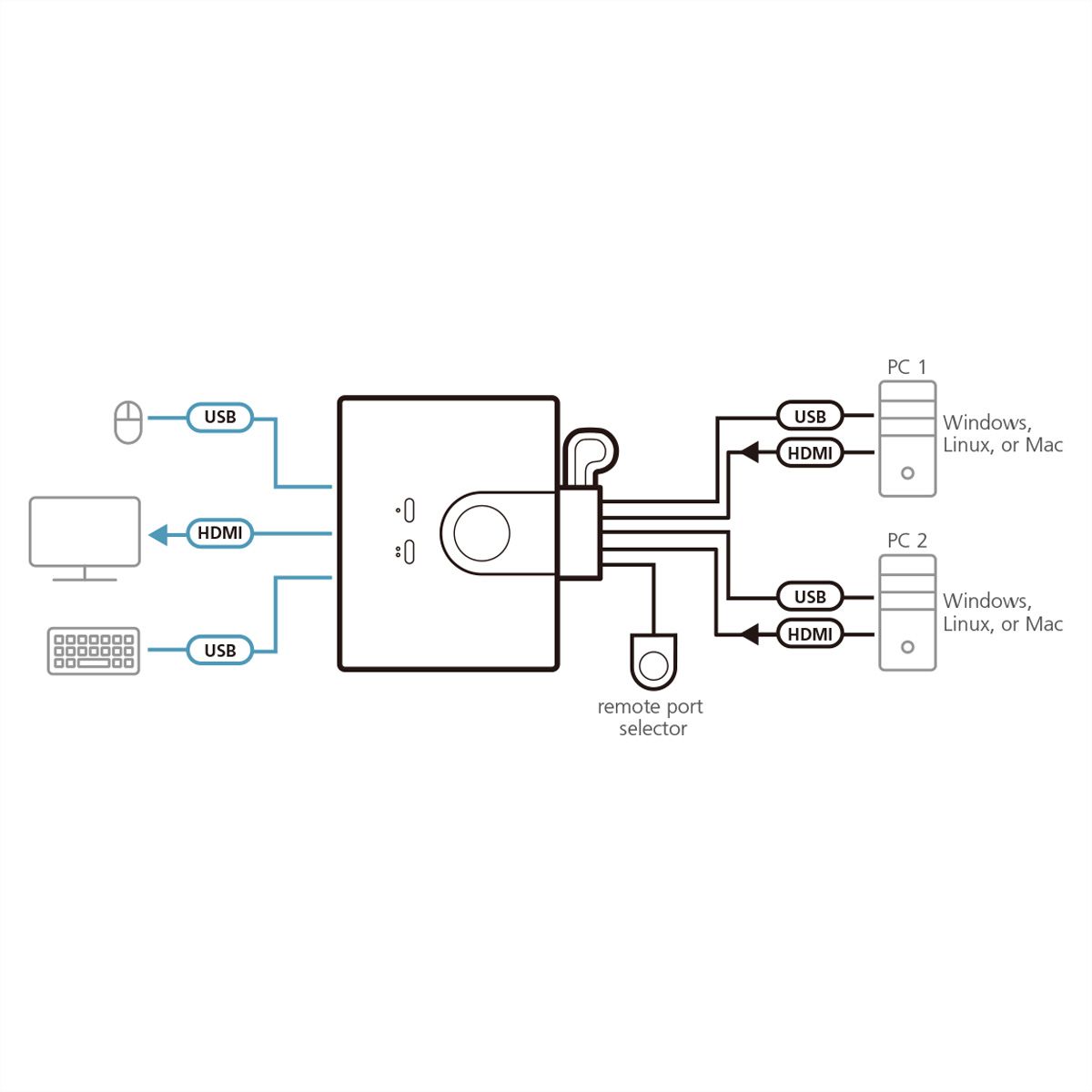

One KVM console controls two computers with USB and HDMI interface

The CS22HF 2-Port USB FHD HDMI Cable KVM Switch is a control unit that allows access to two computers from a single USB and HDMI console while offering video quality up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz. With the CS22HF, you can quickly and effortlessly switch between two USB HDMI computers via the pushbutton on the remote port selector. The CS22HF supports multiplatform operations which allow you to switch between two different operating system PCs.

Moreover, the compact and bus-powered design allows for an efficient and tidy installation, providing an ideal spacesaving solution to keep your desk well-organized. This plug and play switch is ideal for people who need quick control to multitask between two computers on a desktop in any environment.

  • One KVM console controls two computers with USB and HDMI interface
  • Superior video quality – up to 1920 x 1080 @ 60 Hz / 1920 x 1200 @ 60 Hz
  • Computer selection via Remote Port Selector
  • HDMI compliant; HDCP 1.4 compliant
  • Multiplatform support – Windows, Mac, and Linux

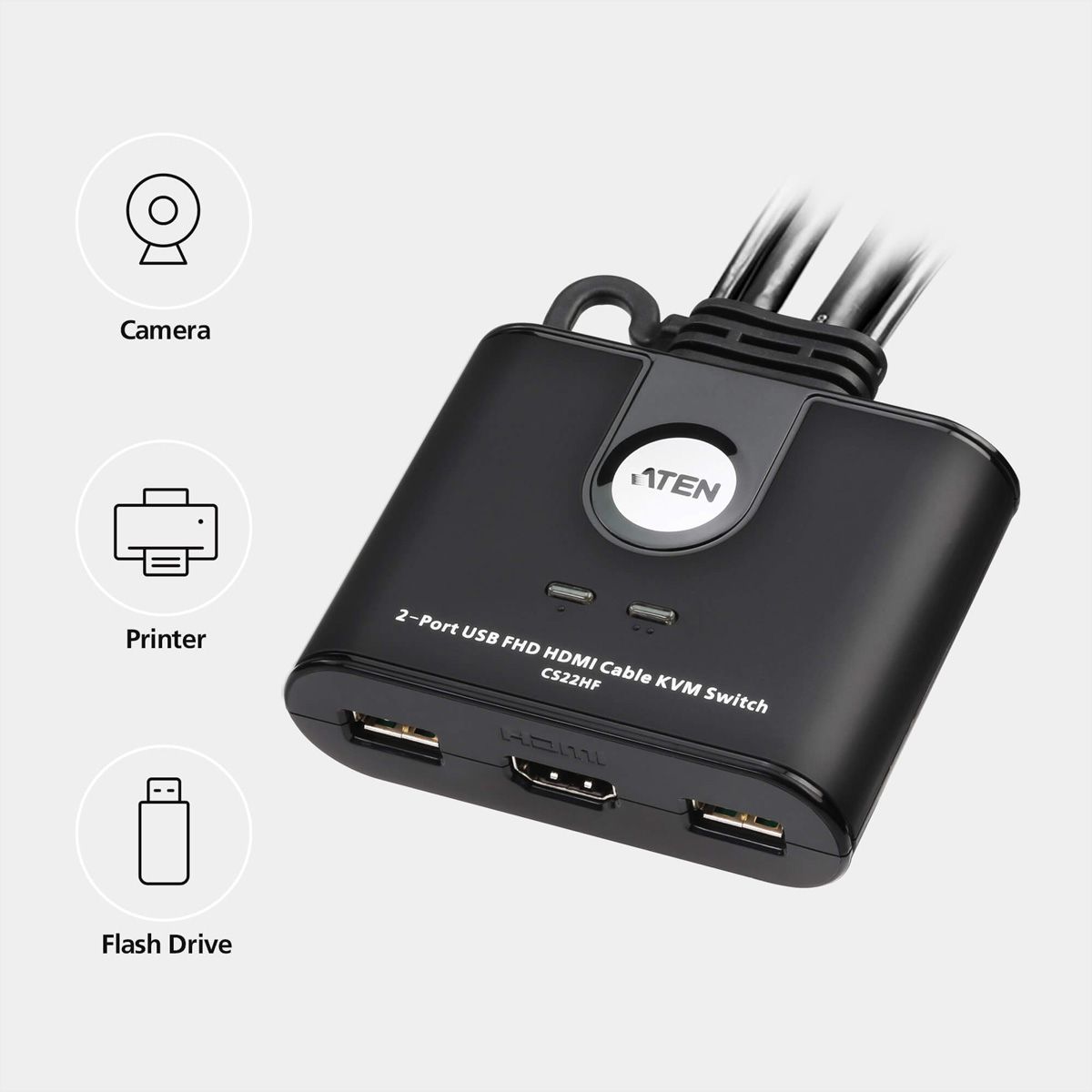

  • The console USB ports can be used for USB peripheral sharing
  • Supports USB hot-plugging
  • Bus-powered

Specifications

Manufacturer
ATEN
Product group
KVM switches / PC shares
Product type
KVM-Switch, HDMI
Colour
black
Scope of delivery
1x CS22HF 2-Port USB FHD HDMI Cable KVM Switch, 1x user instructions
Interface
HDMI
Quantity of PCs
2
Supported PC-Systems
USB
PC: monitor connection
2 x HDMI
PC: mouse/keyboard connection
2x USB Typ A
Integrated console
no
Switching over Scan Run
yes
Print button on device
yes
Switching over Hot Keys
Keyboard
Switching over OSD
no
Integrated Hub
no
Keyboard/mouse emulation
no
19" compatible
no
Cascadable
no
Hot plug compatible
no
Max. resolution (nominal)
1920 X 1200
Material (casing)
Plastic
Power supply unit required
no
Technical particularity
Remote Port Selector
Height
2.52 cm
Width
6.65 mm
Depth
8.24 mm
Weight
0.26 kg
Height of packaging (single piece)
80 mm
Width of packaging (single piece)
160 mm
Depth of packaging (single piece)
240 mm
Package weight (single piece)
0.334 kg

Downloads

Manufacturer data sheet - English (636.3 KB) Quick Installation Guide - English (946.5 KB) Technical drawing - English (66.8 KB)

ATEN brand products have a high security standard and are therefore often used in the fields of broadcasting and media, education, transport as well as in government bodies or other comparable companies and institutions.

ATEN company specializes in connectivity and management solutions. These include KVM switches, remote maintenance solutions, image transmission products, USB peripherals and data communication products.
