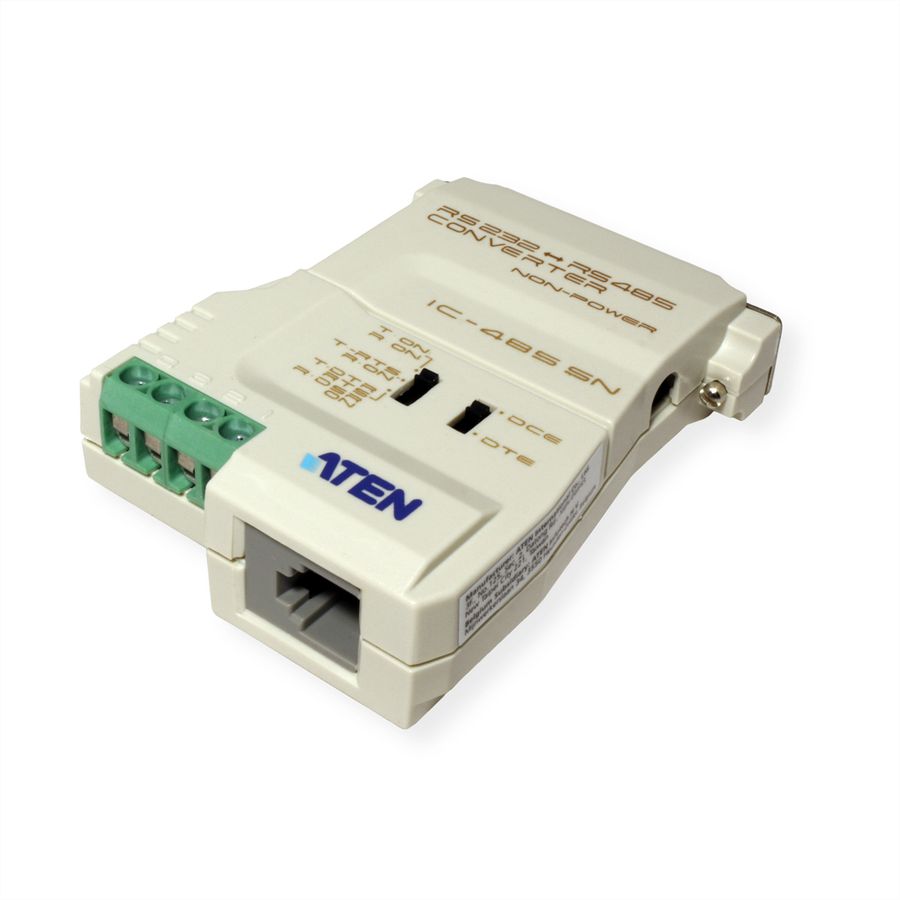

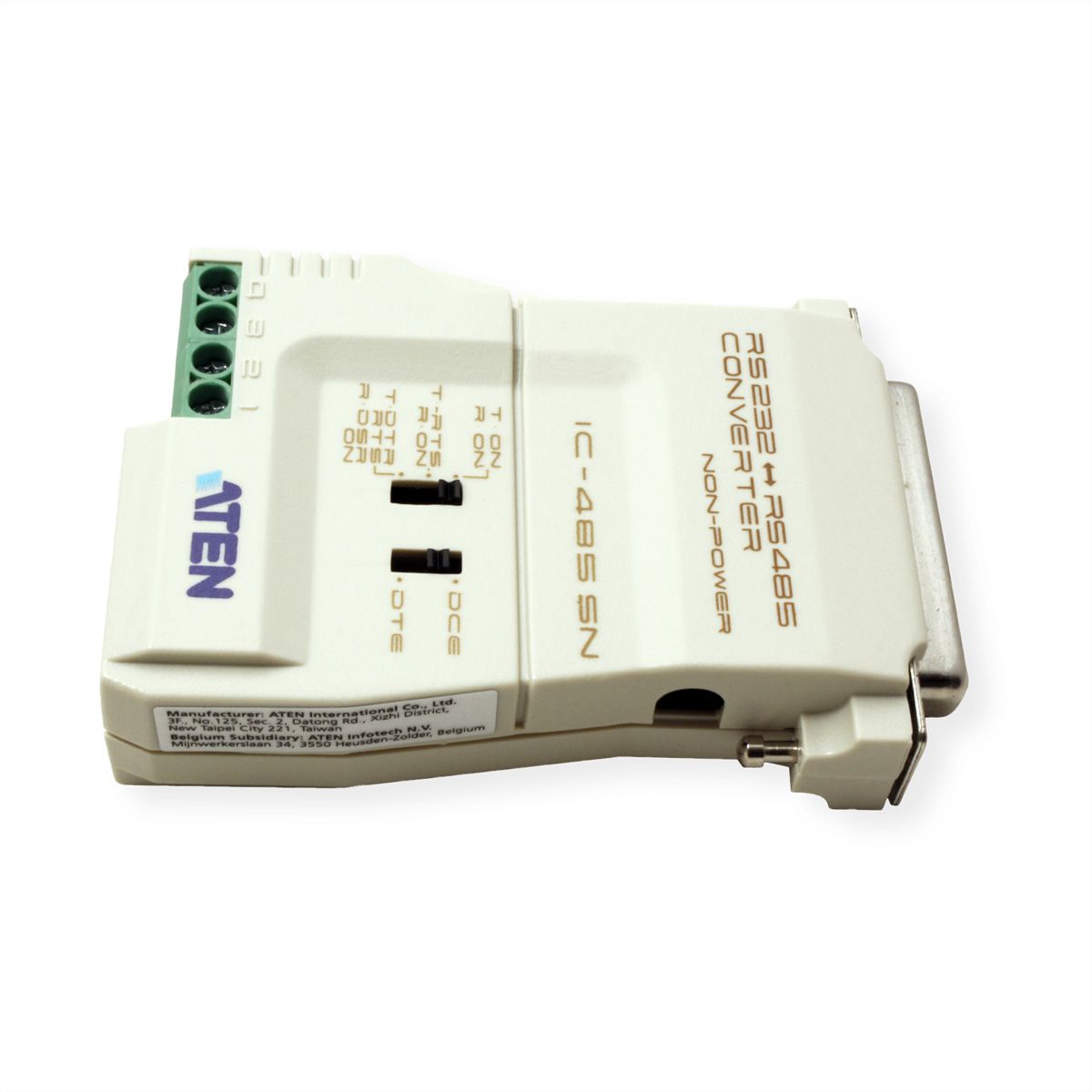

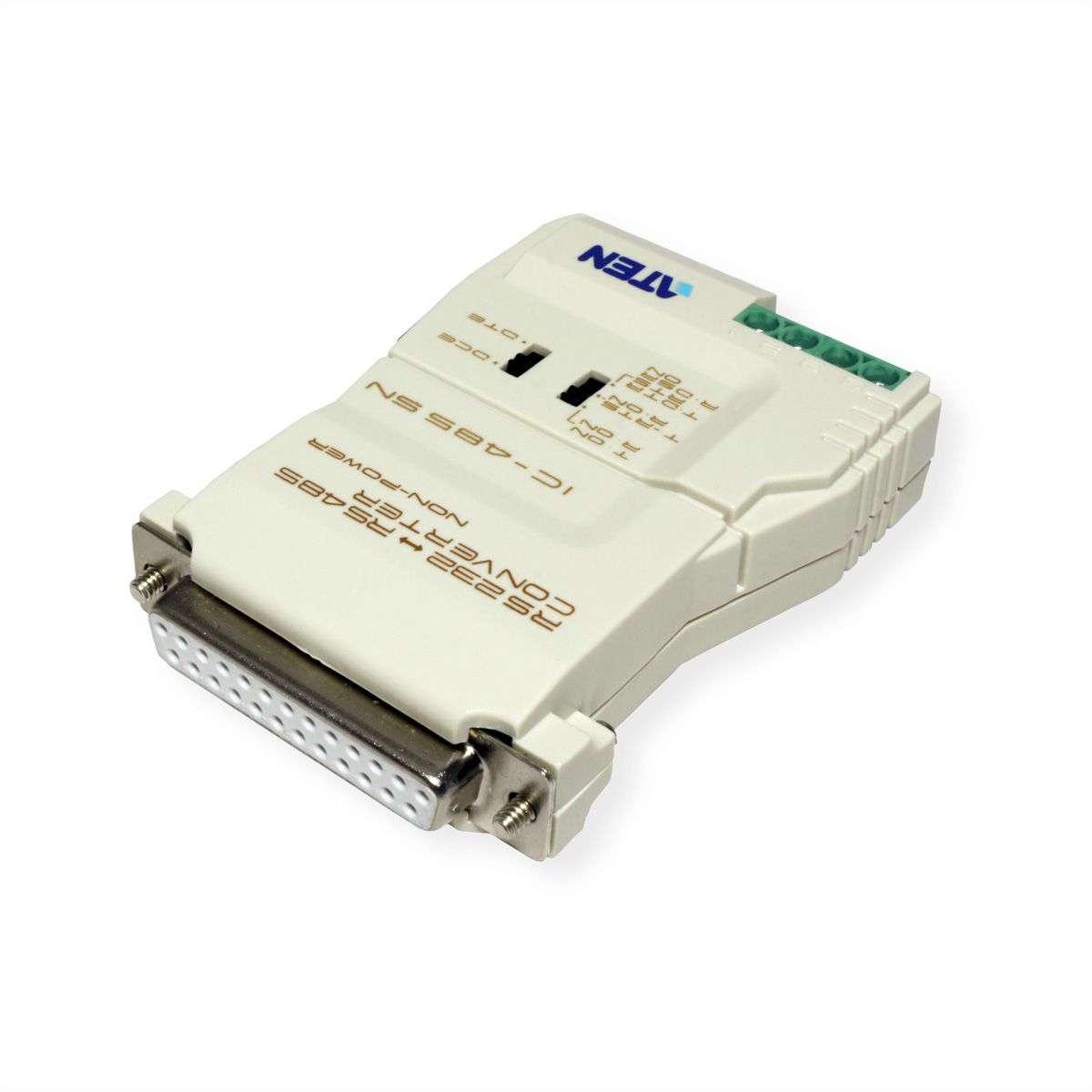

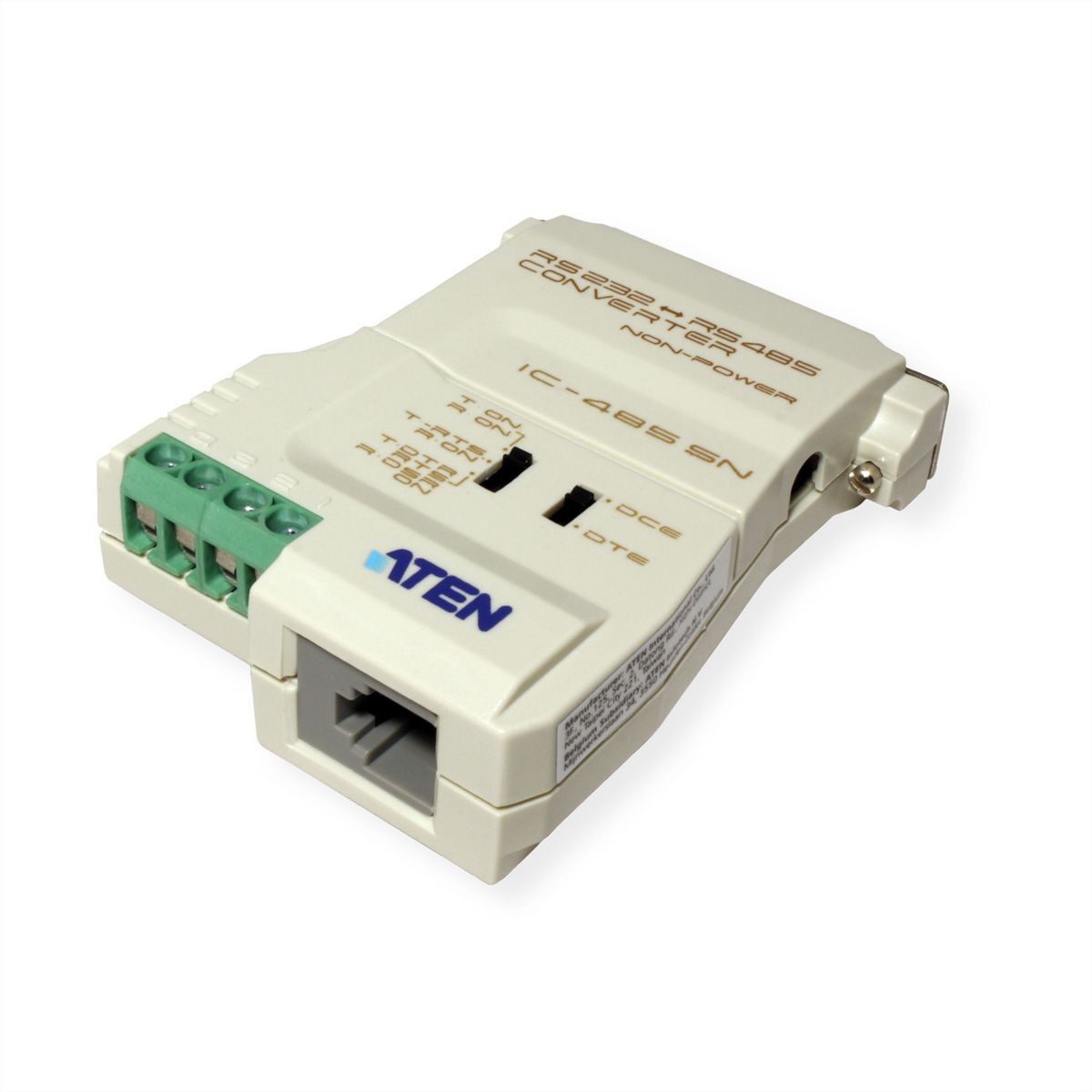

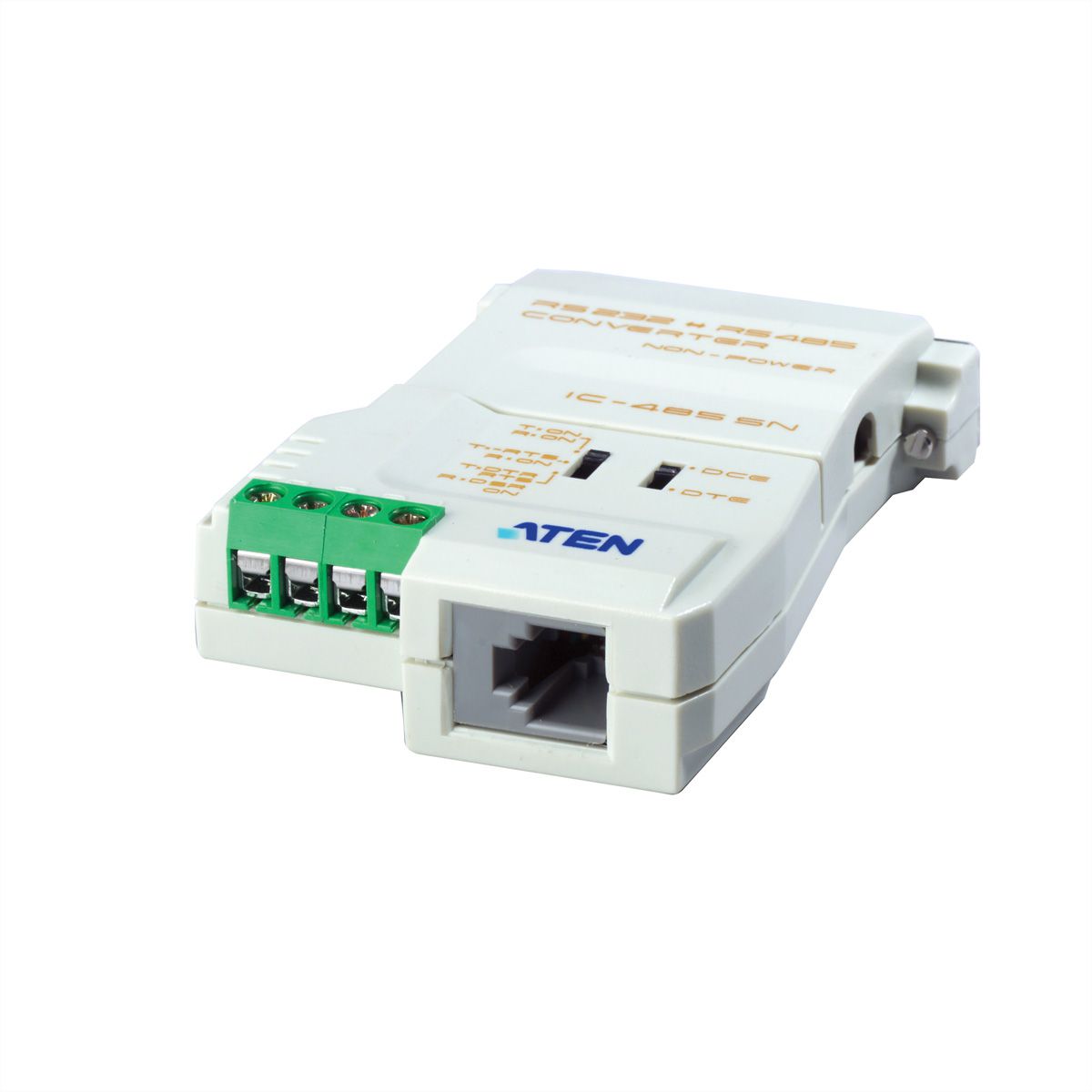

ATEN IC485SN RS-232 to RS-485 Interface Konverter

Item no. 14016809 Brand / Manufacturer ATEN Manuf. item no. IC485SN-AT EAN 4710423772007 Item weight 0.132 kg
ATEN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

Der IC485SN ist ein 2-Weg-Wandler zur Umwandlung von RS-232 Signalen in und von RS-422/RS-485 Signalen in Langstreckenanwendungen bis zu 1200 m (4000 ft.) – ohne eine externe Stromversorgung zu benötigen.

  • Konverter zwischen den seriellen Techniken RS232 und RS485
  • Die Datenübertragung wird über das RTS-Signal gesteuert
  • DCE/DTE umschaltbar
  • Verbindungsauswahl zwischen Point-to-Point, Multidrop und Einfach/Duplex
  • Vier-Draht-Vollduplex; Vier-Draht-Halbduplex
  • Kompakte Baugröße
  • Übertragungswege bis 1200m
  • Keine externe Stromversorgung erforderlich
  • Unterstützt Baudraten bis 115,2 Kbps

Specifications

Manufacturer
ATEN
Product group
Adapter, Terminatoren, Konverter
Product type
Serieller Schnittstellenkonverter
Colour
grey
Scope of delivery
1x bidirektionaler Konverter, 1x Benutzerhandbuch
Side 1 connection (PC)
Terminal Block 4 fach
Side 2 connection (Peripherals)
DB25 Buchse
Side 1 Connector Type
Terminalblock
Side 1 Connector Gender
Weiblich (Buchse)
Side 2 Connector Type
D-Sub 25-polig (DB-25)
Side 2 Connector Gender
Weiblich (Buchse)
Conversion direction
RS232 RS485
Area of application
extern
Dimensions (HxWxD)
21 x 55 x 79 mm
Height
21 mm
Width
55 mm
Depth
79 mm
Height of packaging (single piece)
60 mm
Width of packaging (single piece)
120 mm
Depth of packaging (single piece)
160 mm
Package weight (single piece)
0.132 kg

Downloads

Manufacturer data sheet - Français (418.6 KB) Manufacturer data sheet - English (1.5 MB) User manual - English (950.5 KB)
