ATEN KL1108VN 48cm LCD IP-KVM 8-Port, DE-Layout

Product recommendations

ATEN KL1108VN 48cm LCD IP-KVM 8-Port, DE-Layout

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 09/01/2025
Item no. 14016873
Brand / Manufacturer ATEN
Manuf. item no. KL1108VN D
EAN 4710469344244
Item weight 19.2 kg
ATEN

Description

The KL1108VN switches allows local console and remote over IP access for operators to monitor and manage their entire data center locally at the switch, and over a network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.

  • Exclusive LED illumination light designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions

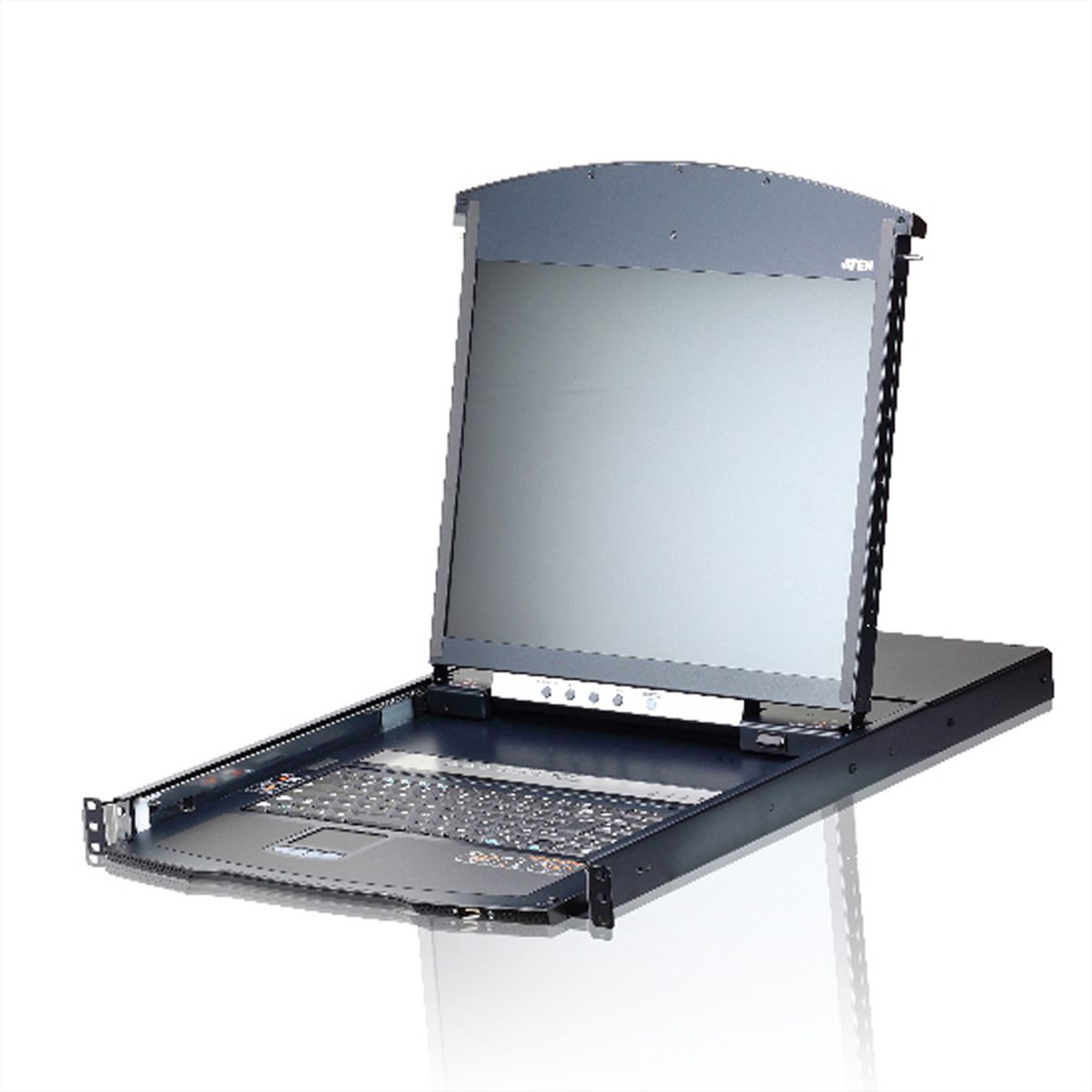

  • Integrated KVM console with 19” LED-backlit LCD monitor in a dual rail housing
  • One bus for local and one bus for remote KVM over IP access

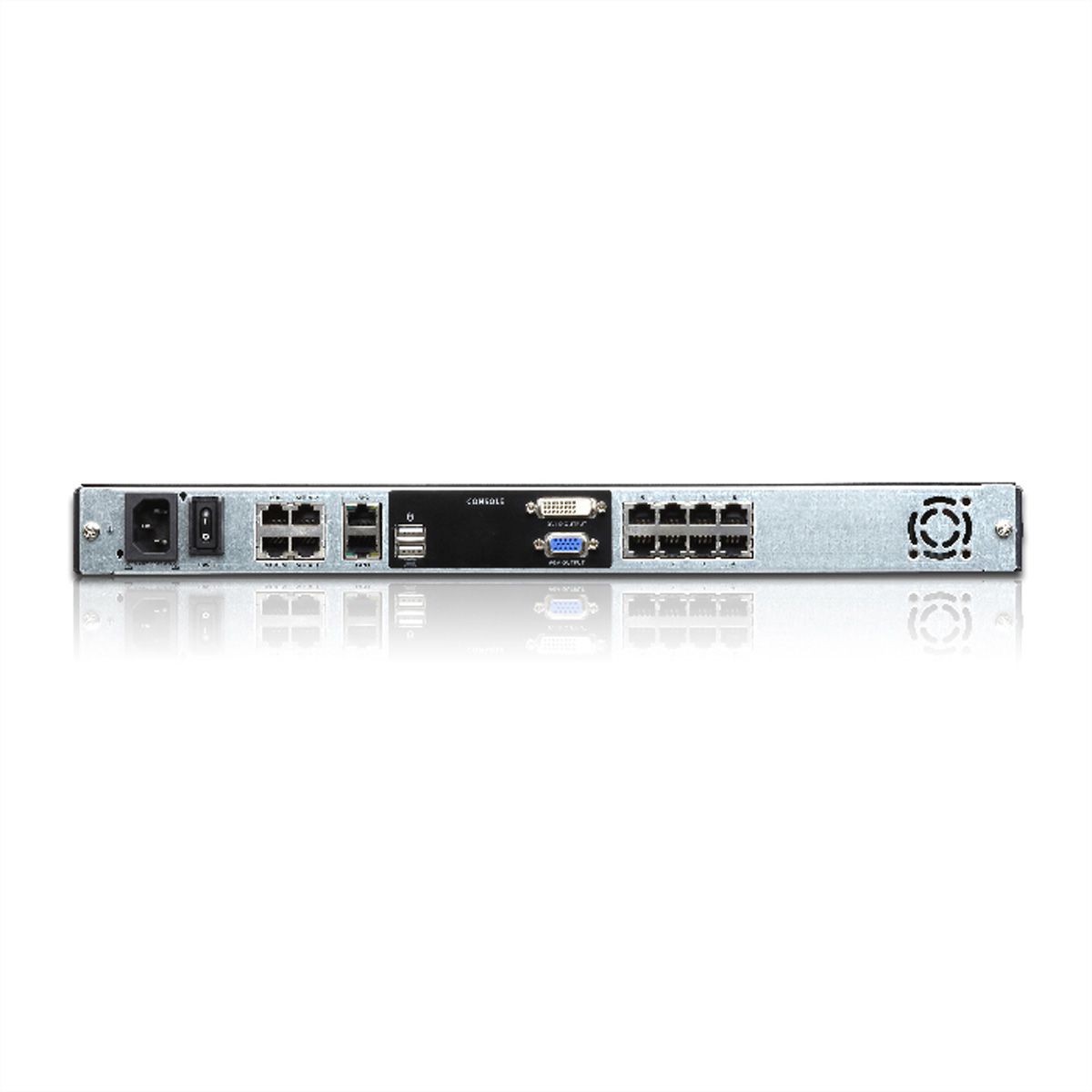

  • Space-saving RJ-45 ports for Cat 5e/6 cable connections
  • KVM adapter cables with automatic conversion allow flexible interface combinations (PS/2, USB, Sun and serial) to control all computer types
  • Extra Console Ports – manage computers from the built-in LCD screen or an external console setup (monitor, USB keyboard and mouse)
  • Supports PS/2, USB, Sun Legacy (13W3) and serial (RS-232) connectivity
  • Supports external USB mouse
  • Dual rail housing is slightly less than 1U with top and bottom clearance for smooth operation in 1U of rack space
  • Dual Rail Housing – allows the LCD monitor to slide independently of the keyboard and touchpad
  • LCD module rotates up to 120 degrees for a more comfortable viewing angle

Specifications

Manufacturer ATEN
Product group 19"-/10"-Equipment rack
Product type KVM-Switch, VGA
Colour black
Scope of delivery 1x KL1108VN Cat 5 Dual Rail LCD KVM over IP Switch with a Rack Mount Kit
1x Power Cord
2x L Brackets
1x User Instructions
19" shelves required for mounting 2
Footprint (WxD) 712 x 480 mm
Required mounting height 1 U
Monitor size of integrated console 19" (48 cm)
Keyboard layout DE
Mains connection Cold appliance connection
Height 4.4 cm
Width 48 cm
Depth 70.12 cm
Weight 15.22 kg
Height of packaging (single piece) 140 mm
Width of packaging (single piece) 680 mm
Depth of packaging (single piece) 840 mm
Package weight (single piece) 19.2 kg

Downloads

Manufacturer data sheet - English (2.6 MB)

Download

User manual - English (16.1 MB)

Download

Quick Installation Guide - English (2.2 MB)

Download

Technical drawing - English (111.4 KB)

Download

Accesories

Show all

ATEN brand products have a high security standard and are therefore often used in the fields of broadcasting and media, education, transport as well as in government bodies or other comparable companies and institutions.

ATEN company specializes in connectivity and management solutions. These include KVM switches, remote maintenance solutions, image transmission products, USB peripherals and data communication products.
