ATEN US224 2-Port USB 2.0 Peripheral Switch

Item no. 14016482 Brand / Manufacturer ATEN Manuf. item no. US224 EAN 4710423778764 Item weight 0.21 kg
ATEN
Product recommendations

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

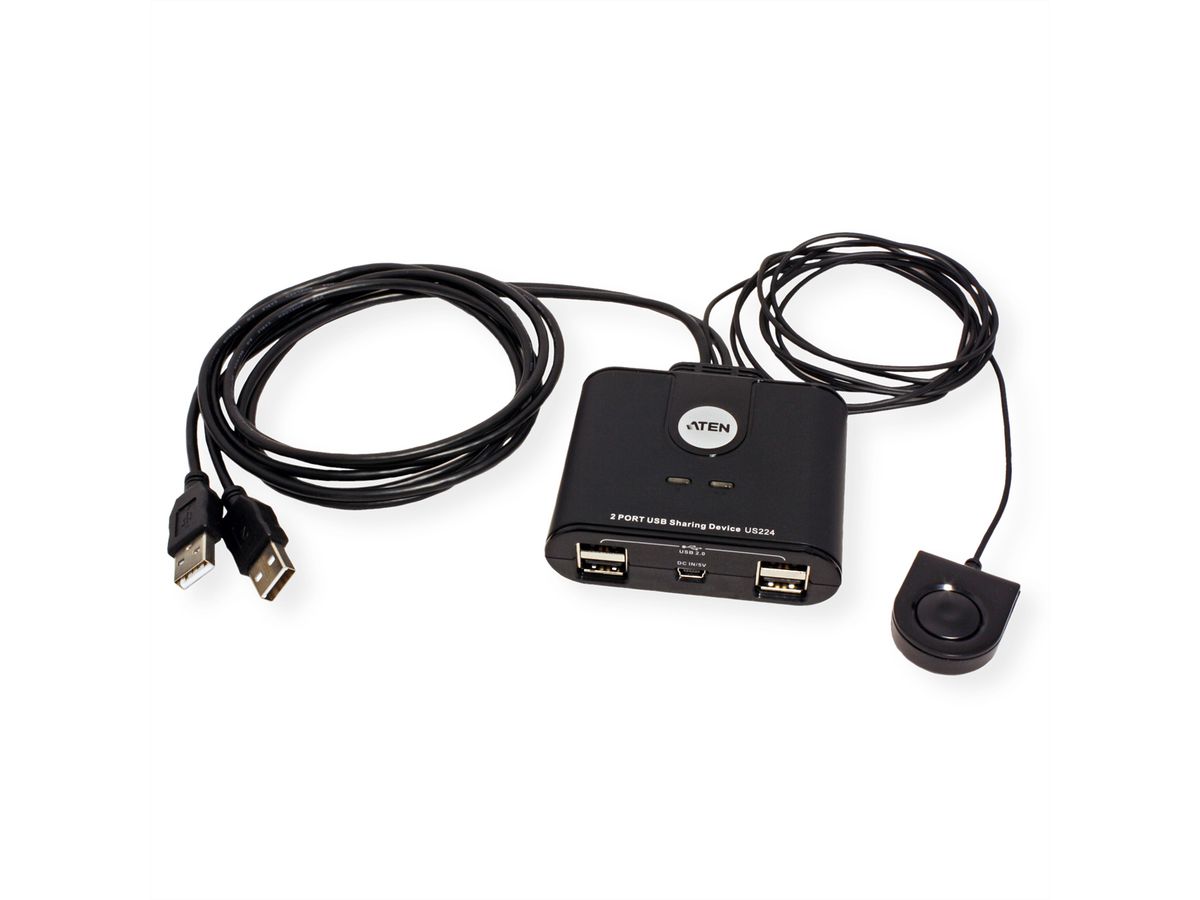

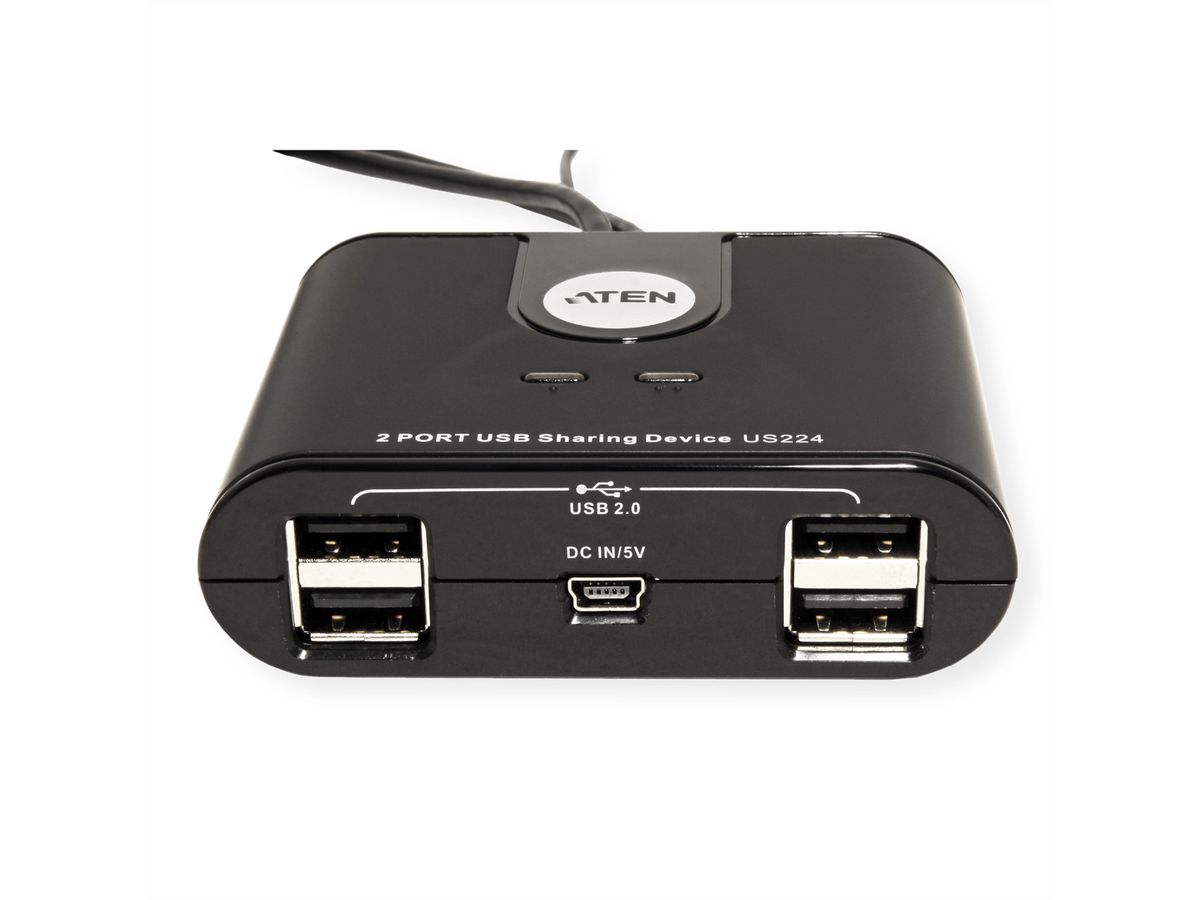

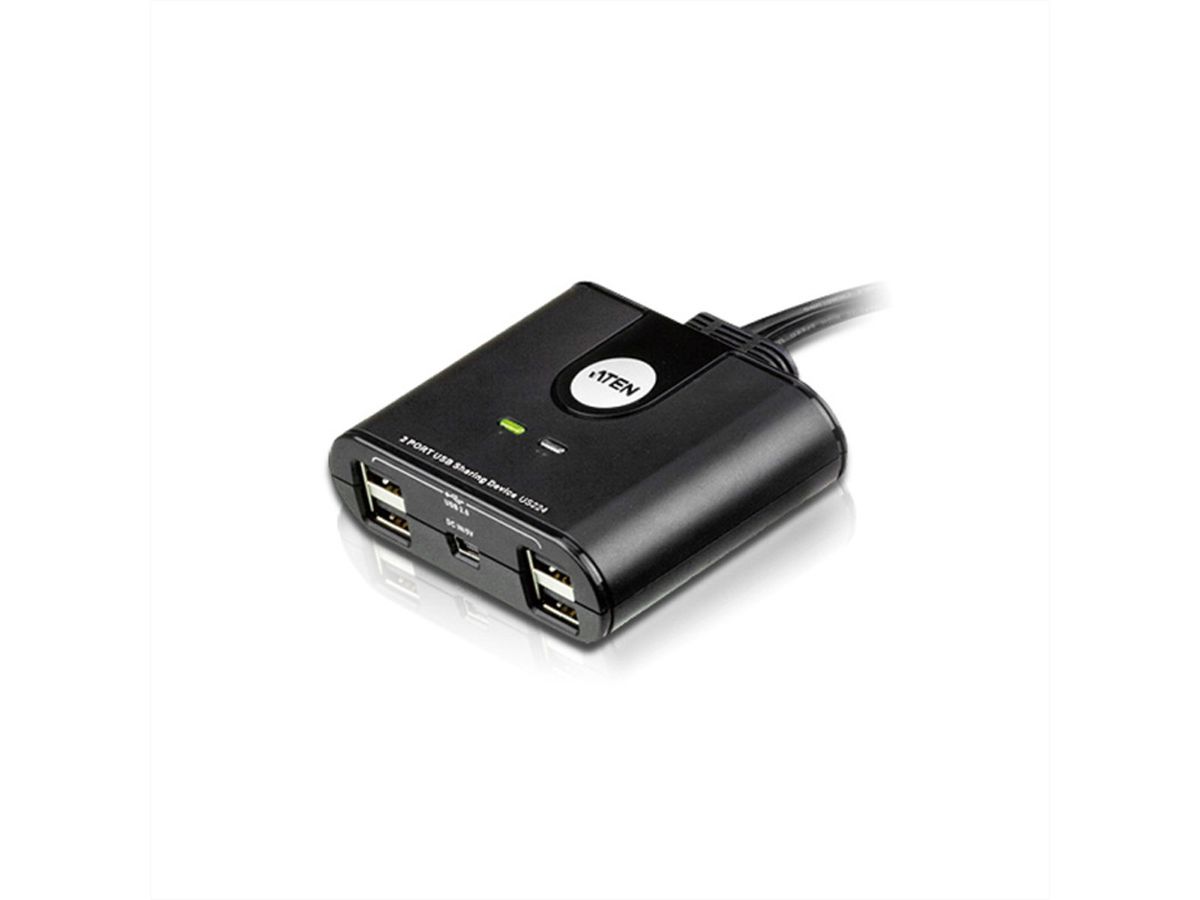

The US224 is a 2-port USB peripheral sharing device that enables 2 computers to share the use of 4 USB devices - a keyboard, mouse and up to two peripheral devices. It eliminates the added expense of having a separate USB keyboard, mouse and peripheral device(s) for each computer. The US224 all-in-one design allows for a neat and tidy installation - no need to connect 2 separate USB cables to the computer, thus eliminating cable clutter.
For extra convenience, it features an external remote port selector that can simplify desktop layout, and select which computer needs to use the USB devices. US224 is the ideal way to share USB peripherals in a multimedia office environment.

  • 4 built in USB ports - all-in-one design allows for a neat and tidy installation that reduces cable clutter

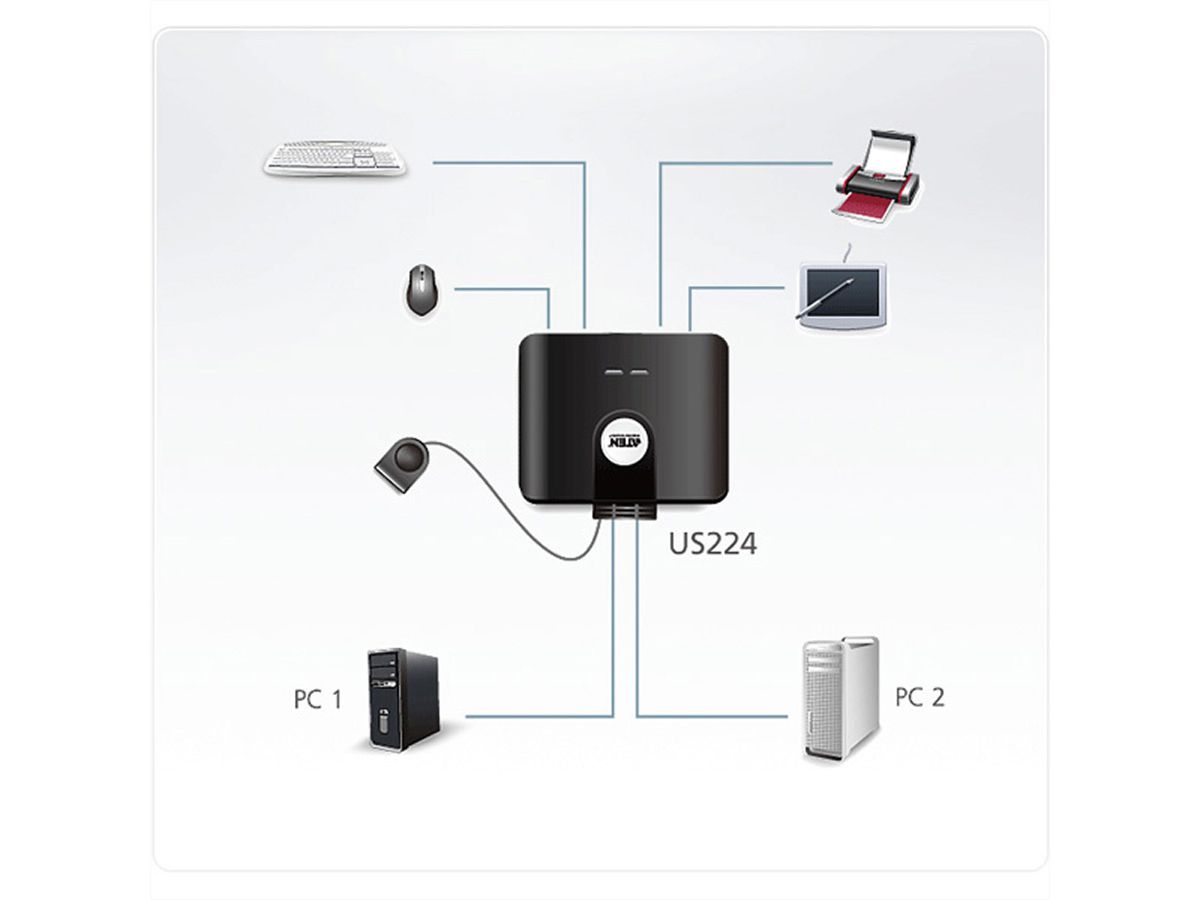

  • Enables 2 computers to share 4 USB devices - a USB keyboard, mouse and up to two peripheral devices
  • Simple port selection via remote port selector for convenient switch placement
  • USB 2.0 compliant
  • Multiplatform support - Windows, Linux ,Mac and Sun
  • LED indicators

port focus

  • Overcurrent protection
  • Non-powered (supports optional USB power adapter)
  • Hot pluggable

Package Contents

1x US224 2-Port USB Peripheral Sharing Device

Specifications

Manufacturer
ATEN
Product group
Switchboxes
Product type
Switchbox, automatically
Colour
black
Scope of delivery
Auto USB switch, manual
Switching mechanism
2 PCs - 4 USB-device
Input connections
4x USB Type B
Output connections
2x USB Type A
Switching over software
yes
Operating System
Windows 98 / ME / 2000 / XP / 7
USB Standard
USB 2.0 Hi-Speed 480 Mbit/s
Quantity of ports
6
Material (casing)
plastic
Dimensions (HxWxD)
11,1 x 78 x 20 mm
Power supply unit required
no
Height
11.1 mm
Width
78 mm
Depth
20 mm
Weight
0.14 kg
Height of packaging (single piece)
50 mm
Width of packaging (single piece)
160 mm
Depth of packaging (single piece)
230 mm
Package weight (single piece)
0.21 kg

Downloads

Manufacturer data sheet - English (630.9 KB)

ATEN brand products have a high security standard and are therefore often used in the fields of broadcasting and media, education, transport as well as in government bodies or other comparable companies and institutions.

ATEN company specializes in connectivity and management solutions. These include KVM switches, remote maintenance solutions, image transmission products, USB peripherals and data communication products.
