Description

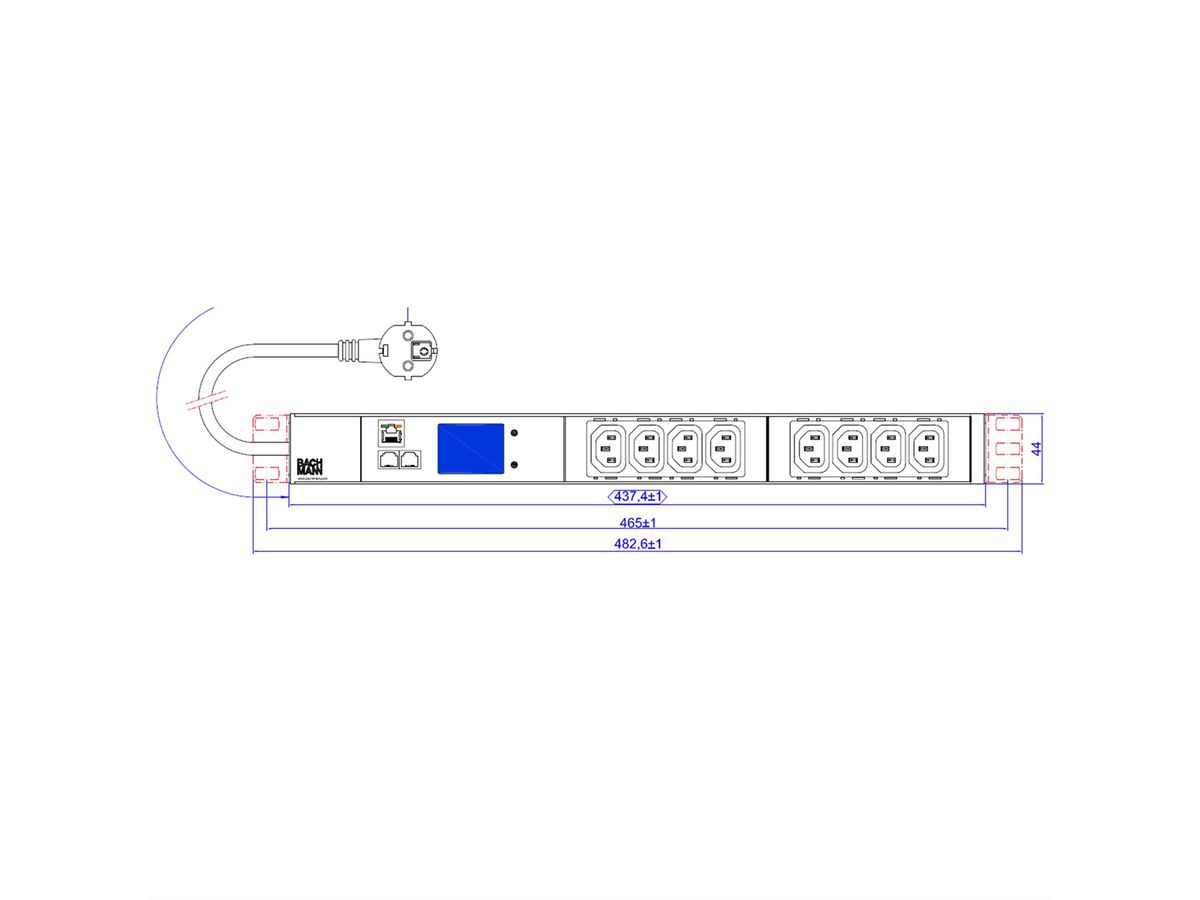

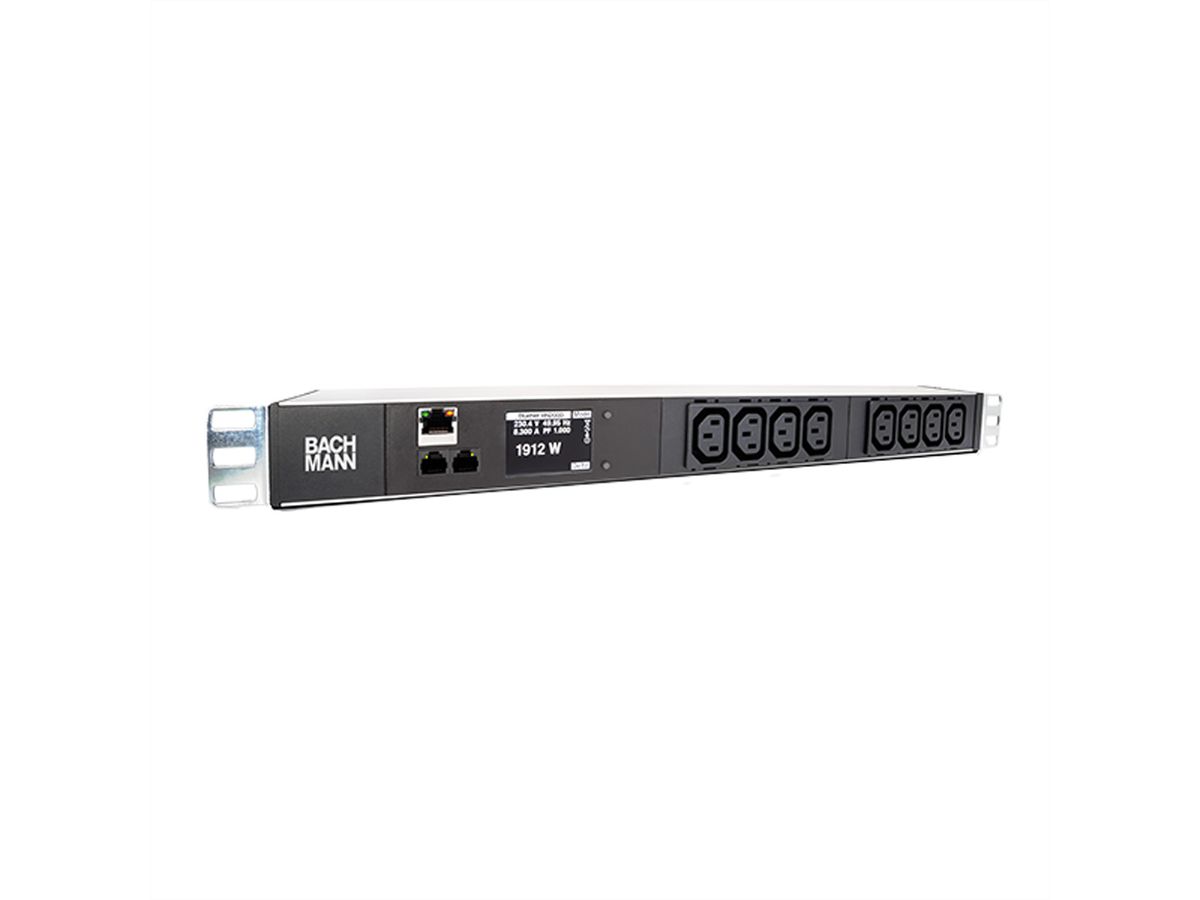

19-inch 1U BN2000 8xC13 TCP/IP power 2.0m CEE7/7 - Integrated measurement of current, active power, voltage, frequency, power factor, apparent and reactive power

BN2000 19" PDU in 1U profile 8 x IEC320 C13 lockable 2m H05VV-F 3G1.5mm² with earthing contact plug Integrated function for measuring current, voltage, reactive, apparent and active power, energy, frequency and power factor Integrated temperature sensor + two interfaces for external sensors with integrated display Integrated web server with 10/100Mbit Ethernet connection incl. mounting bracket and screws packed in BlueNet box

- Integrated measurement of current, active power, voltage, frequency, power factor, apparent and reactive power - Integrated Ethernet connection - Operation via web browser - Integrated temperature sensor - Connection option for up to two sensors - High-resolution TFT display - Display can be rotated via software for better readability - Supported network protocols: IPv4, DHCP, http (can be switched off), SNMPv2, NTP

Specifications

Manufacturer	BACHMANN
Product group	Power Bars
Product type	Power Distribution Units (PDUs)
Colour	black / silver
Length	2 m
Scope of delivery	BN2000 packed in BlueNet box incl. mounting bracket and screws
Mounting form	19" Rackmount
Number of socket pots	8
Socket type	IEC320 C13, 10A
Connection cable	2,0m H05VV-F 3G1,5mm³ zwart met haakse stekker
Colour (Cable)	black
Plug type	3P. German, CEE 7/7, Type-E/F
Regional use	Germany, Austria, Netherlands France, Czech Republic, Slovakia
Mains connection	Protective contact plug, Type-E/F
Operating temperature min.	-5 °C
Operating temperature max.	50 °C
Height	0.09 m
Width	0.04 m
Depth	0.44 m
Weight	1.03 kg
Height of packaging (single piece)	110 mm
Width of packaging (single piece)	90 mm
Depth of packaging (single piece)	50 mm
Package weight (single piece)	1.039 kg
