BACHMANN 19" socket strip, 8-way with ÜS without switch

Item no. 19071192 Brand / Manufacturer BACHMANN Manuf. item no. 333.404 EAN 4016514014477 Item weight 0.884 kg
BACHMANN
Product recommendations

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

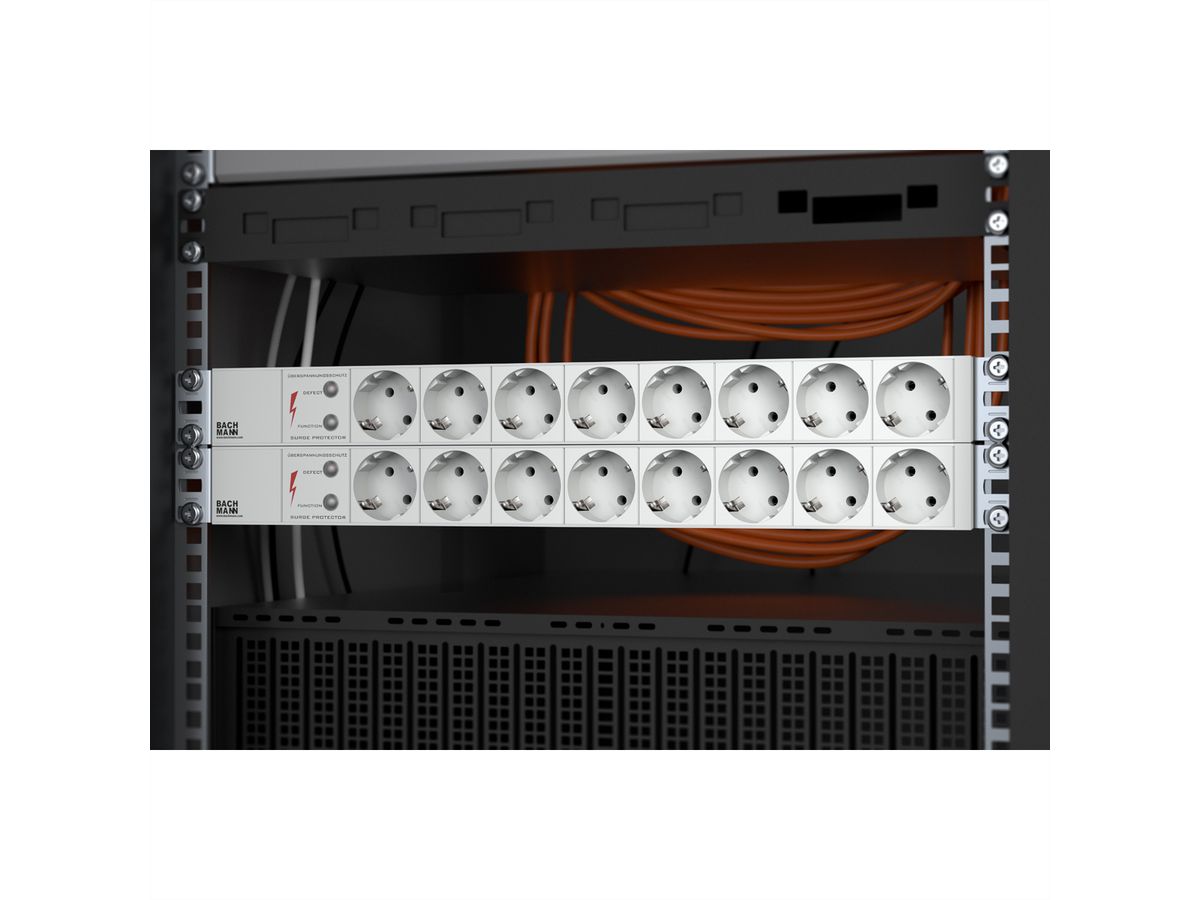

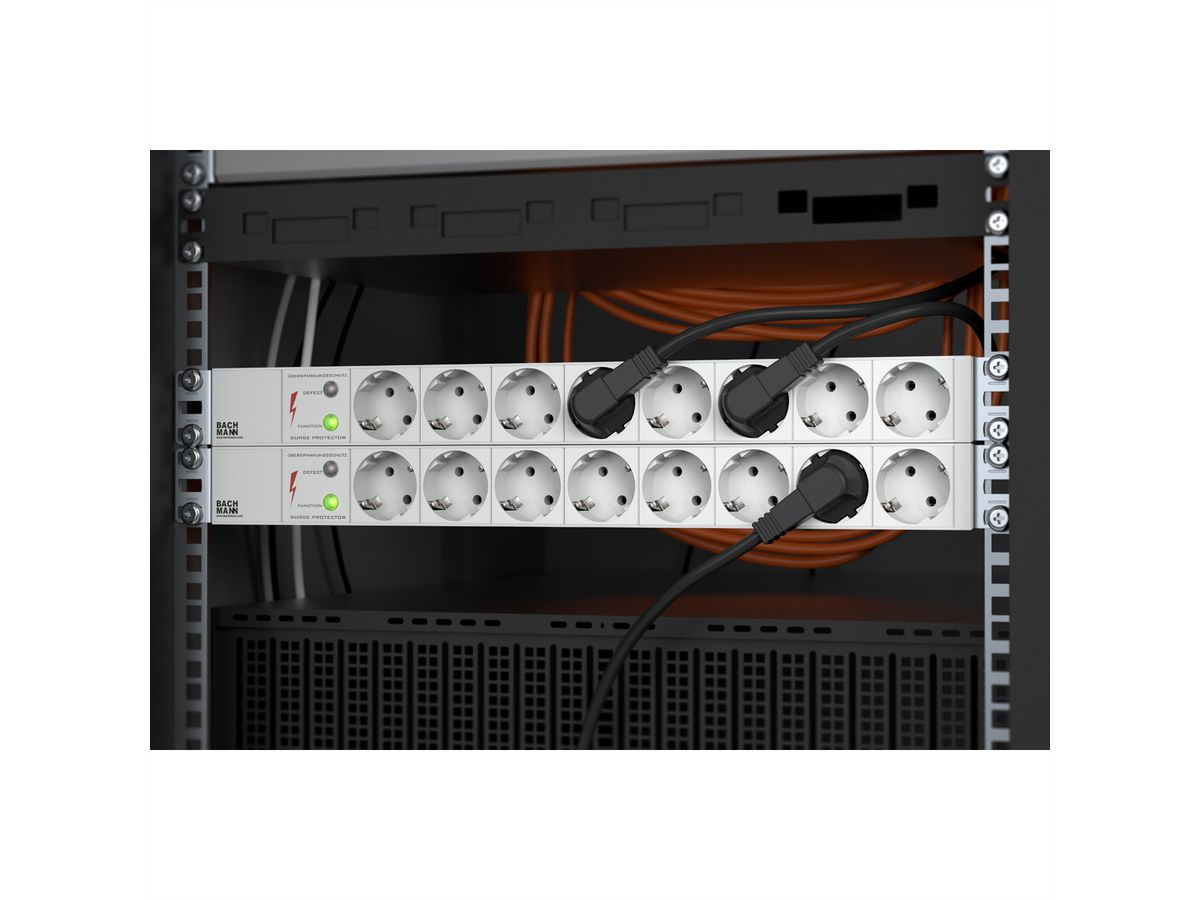

19" socket strip with overvoltage protection for installation in 19" cabinets

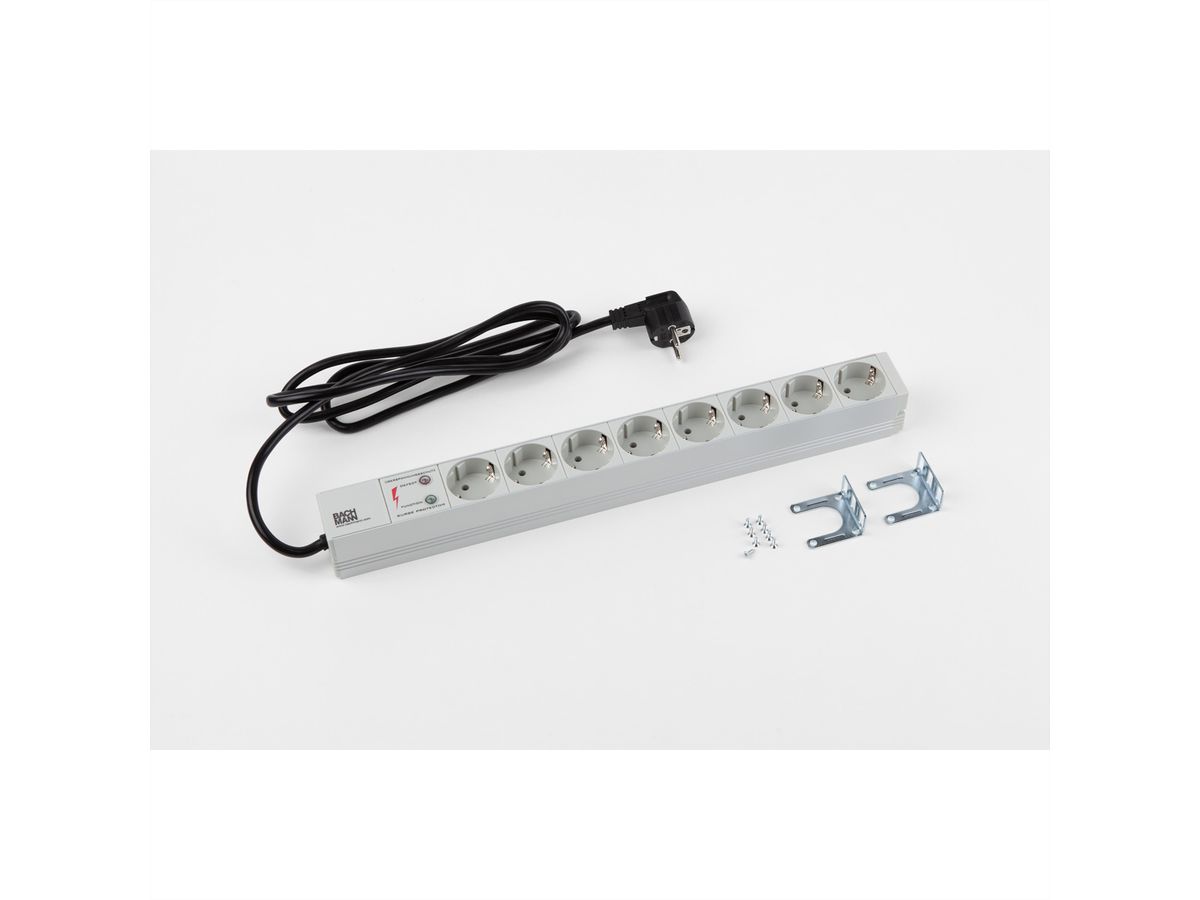

- 19" socket strip 1 U for installation in 19" cabinets, incl. installation bracket - Socket outlet arrangement 35° - Suitable for 16 A, with varistors, thermal fuse, gas discharge tube, visual function and failure indicator - Profile made of anodised aluminium

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
19" power strip with surge protection
Colour
grey
Length
2 m
Function
19" socket strip
Mounting form
19" Rackmount
Max. capacitance
3600W
Max. voltage
250V AC
ON/OFF Switch
no
Number of socket pots
8
Quantity of outputs/angles
8 / 45°
Output alignment
Reihe
Socket type
3P. German, CEE 7/3, Type-F
Material (casing)
Aluminum
Colour (Design profile)
Aluminium
Connection cable
H05VV-F 3G 1,5mm²
Colour (Cable)
black
Connector plug
Schuko
Plug type
3P. German, CEE 7/7, Type-E/F
Protection class (IP Code)
IP20
Over voltage-/surge protection
yes
Regional use
Germany, Austria, Netherlands
Technical particularity
met varistoren, temperatuurzekering, gasontladingsbuis, optische functie en storingsindicator
RAL colour
RAL 7035 Light grey
Mains connection
Protective contact plug, Type-E/F
Height
44 mm
Width
440 mm
Depth
44 mm
Weight
0.88 kg
Height of packaging (single piece)
50 mm
Width of packaging (single piece)
450 mm
Depth of packaging (single piece)
100 mm
Package weight (single piece)
0.884 kg

Downloads

Manufacturer data sheet - English (39.0 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
