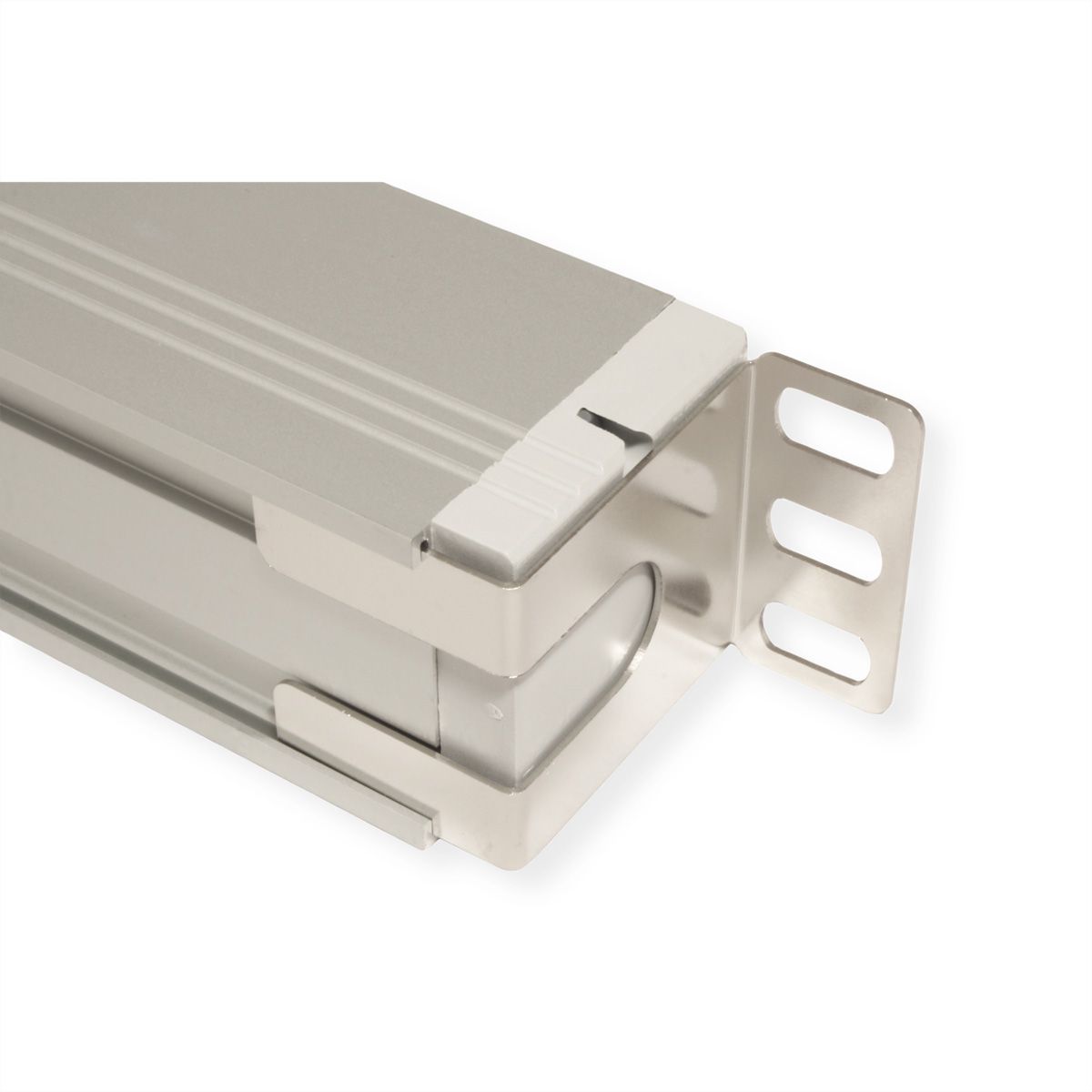

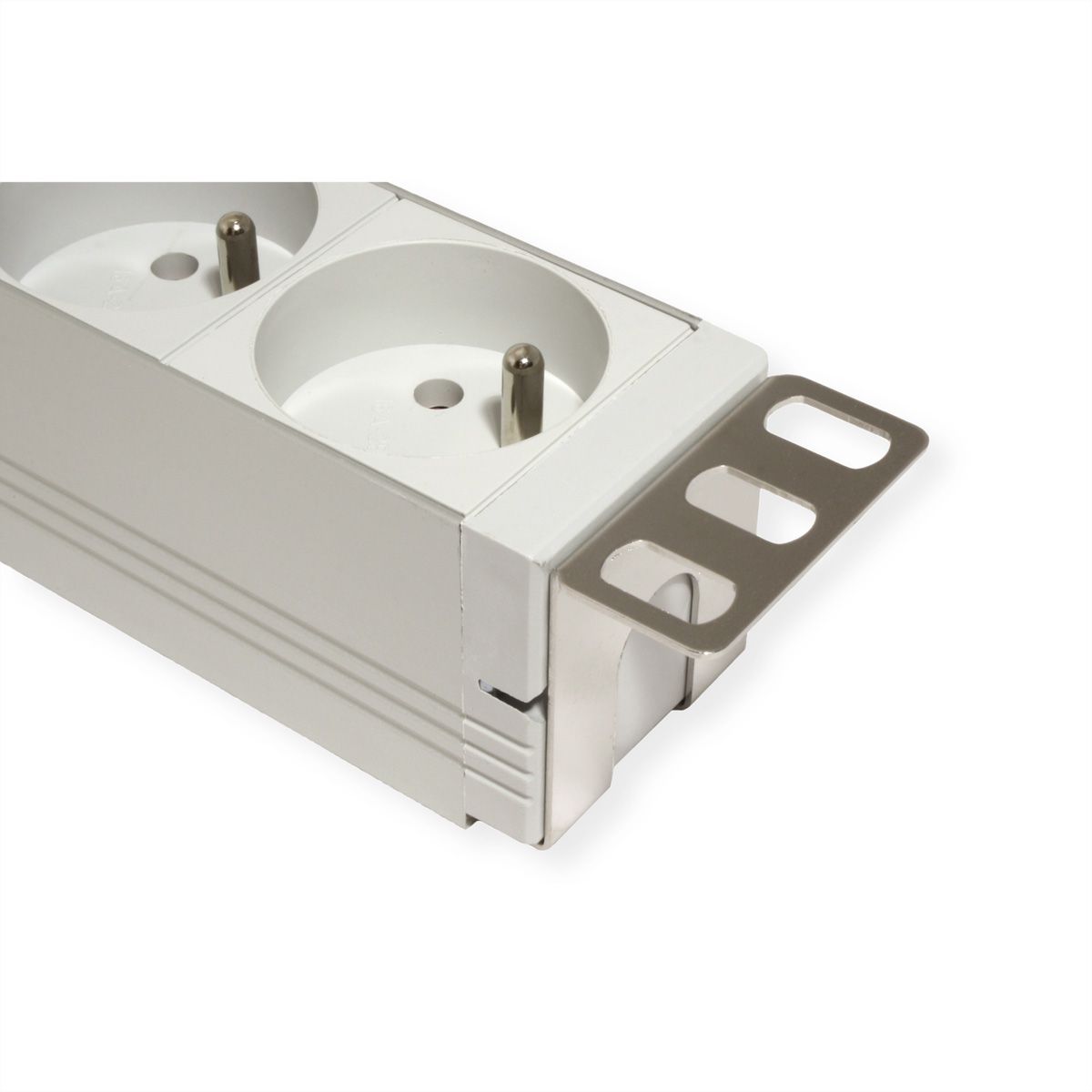

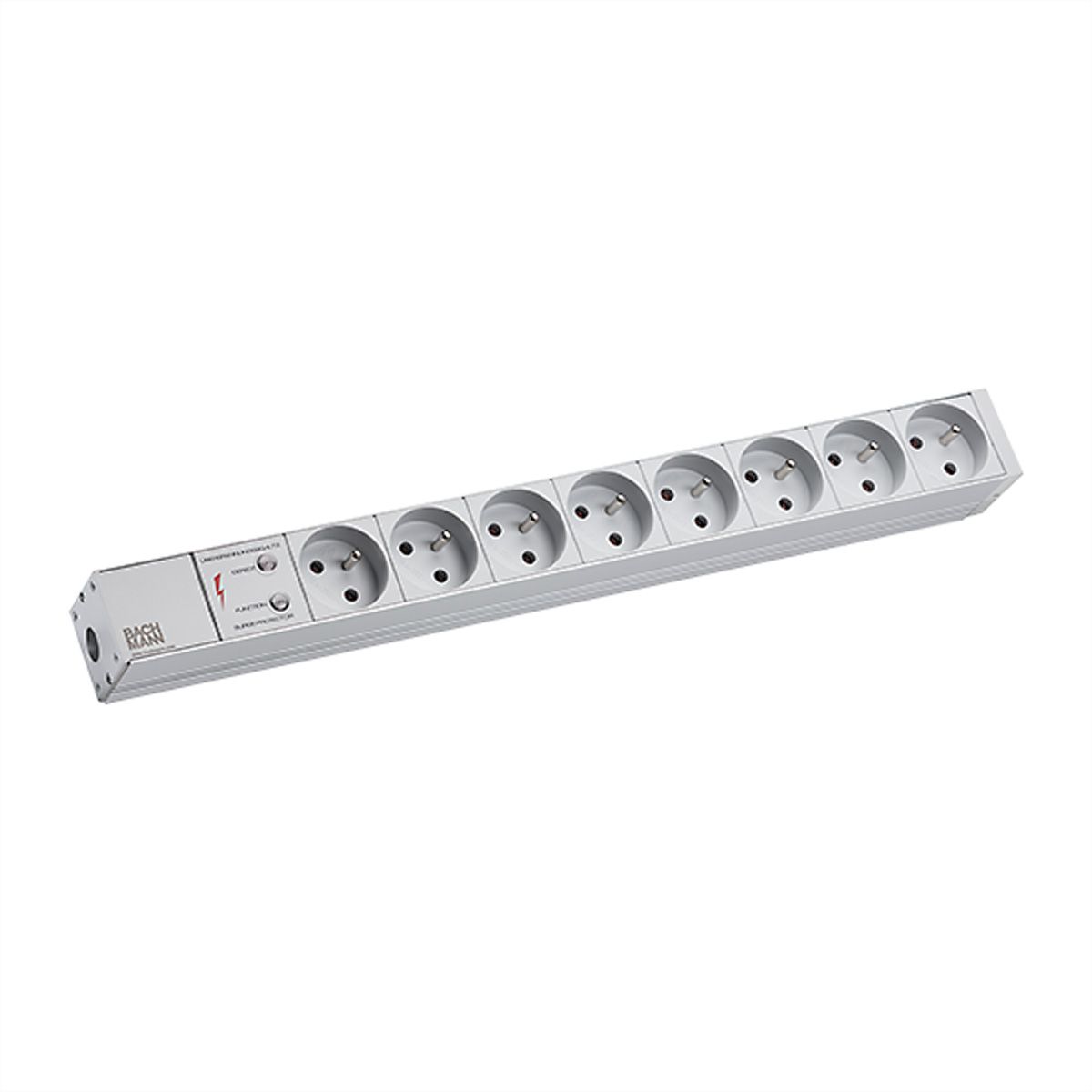

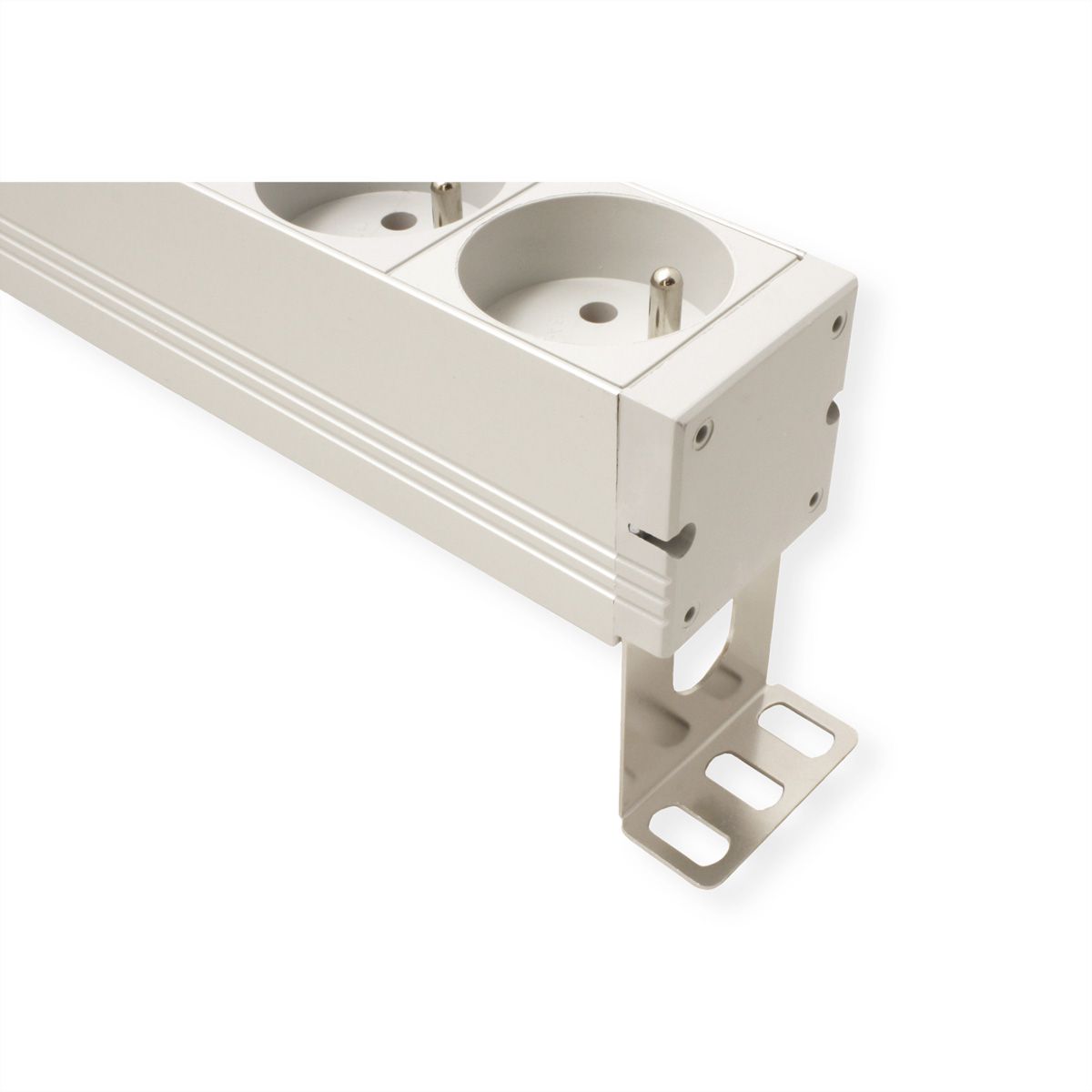

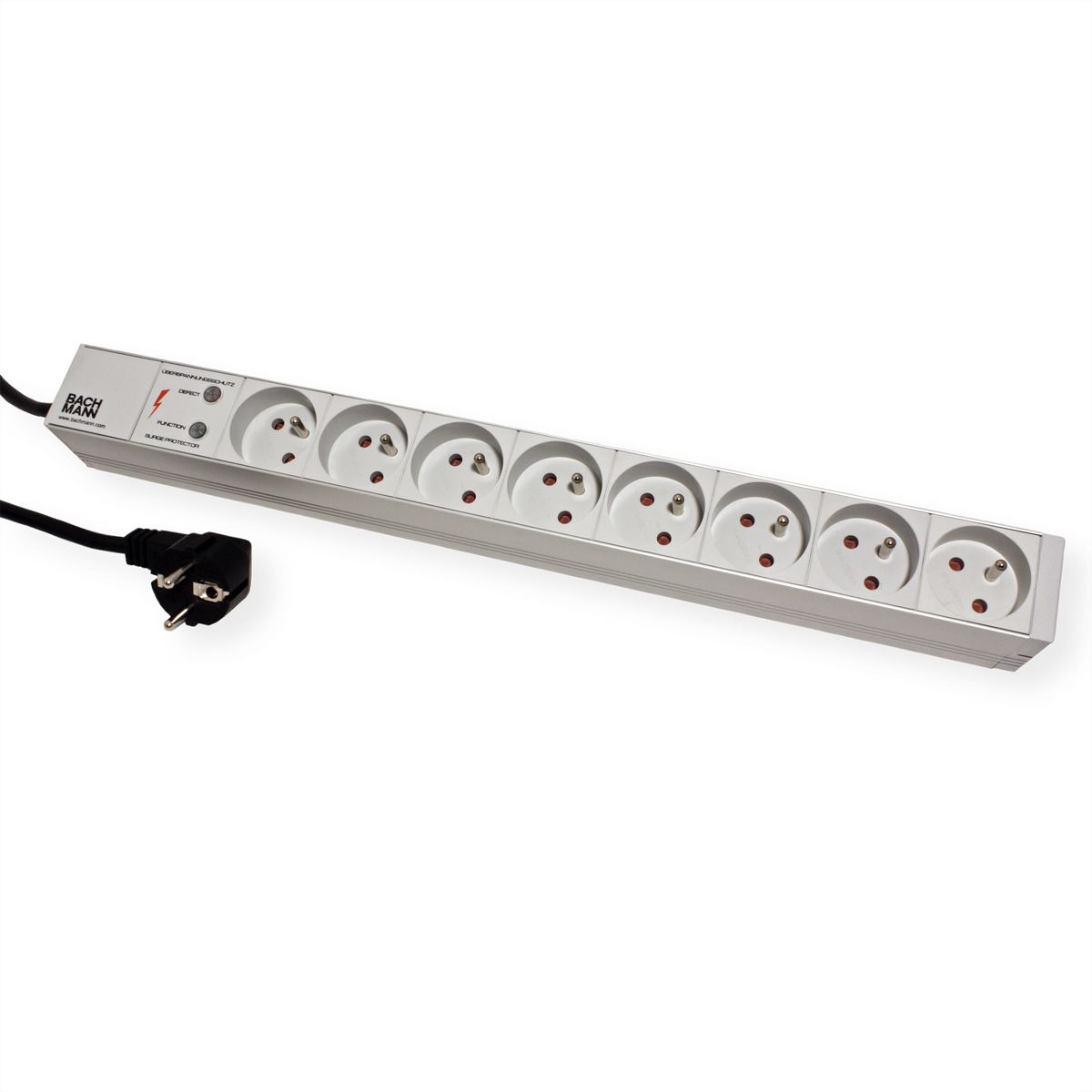

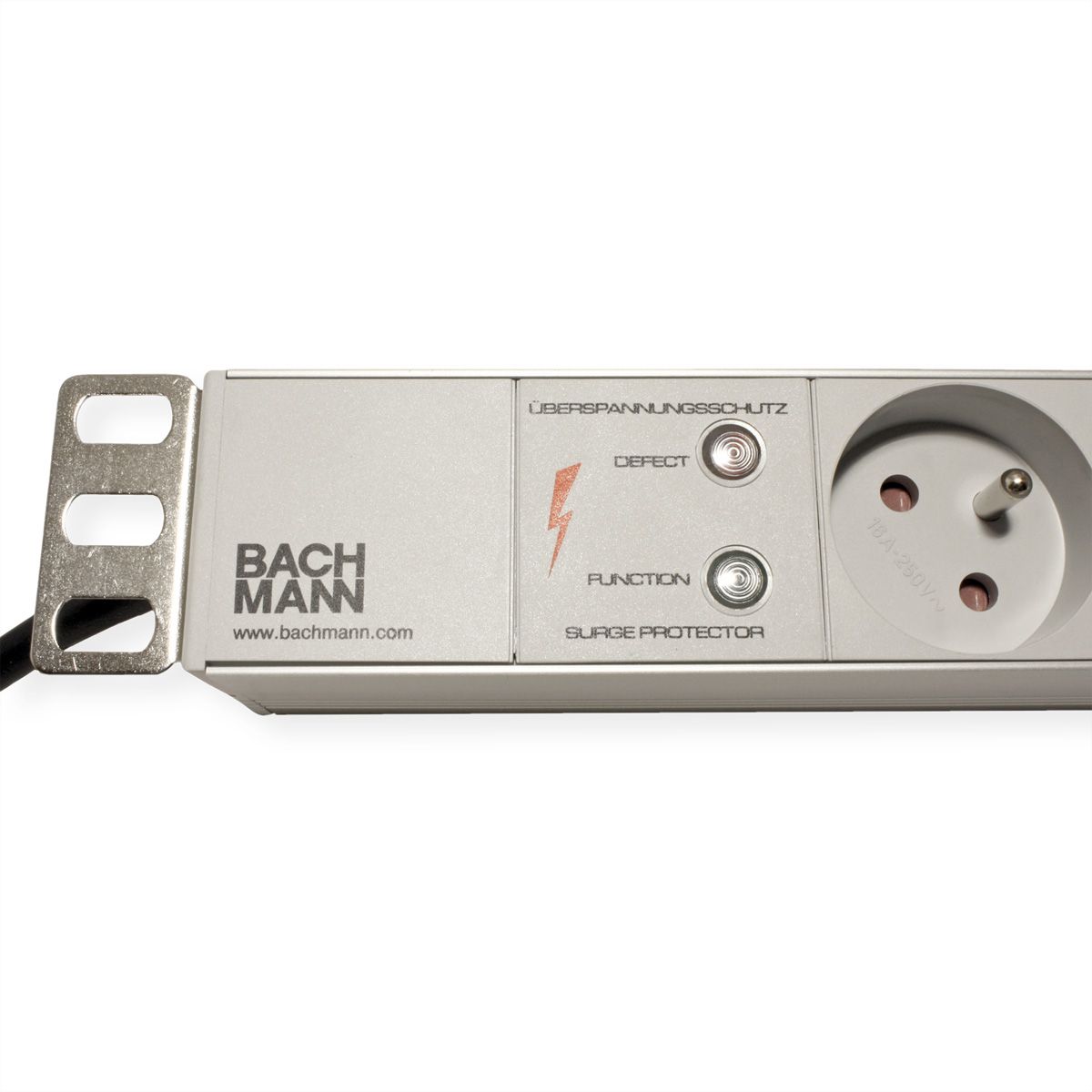

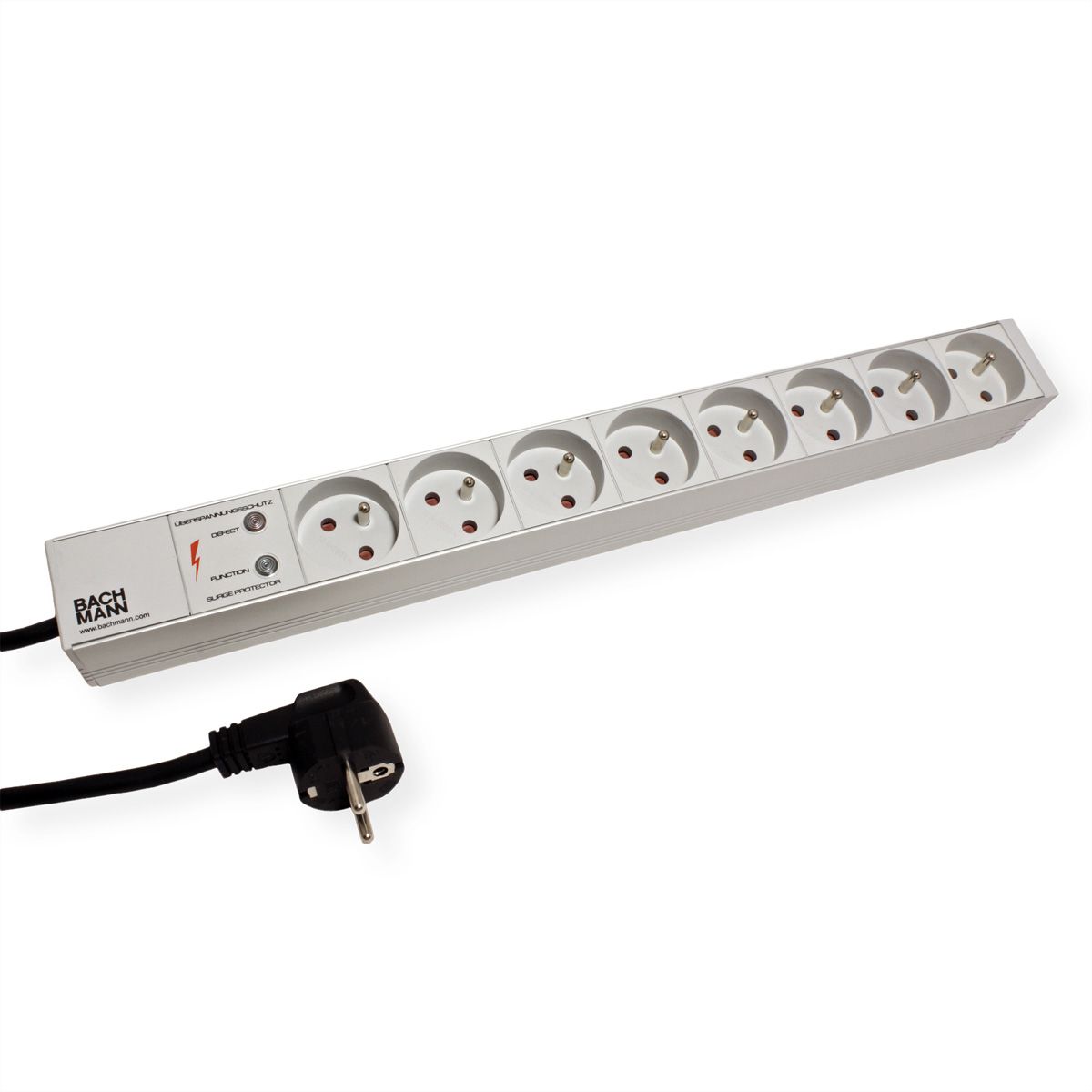

BACHMANN 19"-Steckdosenleiste 1HE 8xUTE 1xSPD

Item no. 19071270 Brand / Manufacturer BACHMANN Manuf. item no. 333.4061 EAN 4016514031955 Item weight 0.936 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 09/07/2026
Download PDF

Description

19" 1HE 8xUTE 1xSPD Strom 2,0m CEE7/7, 19" 1HE 8xUTE/Frankreich Steckdosen; 1xÜberspannungsschutz

19" 1HE Steckdosenleiste 8-fach UTE-Steckdose RAL 7035 mit Überspannungsschutz 6,5kA ( ÜSS ), Profil: ALU 1HE VM Länge:438,5mm, Endstücke genietet, nicht öffenbar, 2,0m H05VV-F 3G1,50mm² schwarz mit Schutzkontaktwinkelstecker, inkl. Haltewinkel verpackt im Polybeutel,

UTE-Steckdosen:
  • Nach NF-C61314
  • 2-polig mit Schutzkontakt
  • 16A/3600W, AC250V, IP20
  • RAL7035, um 35° gedreht
  • Mit Berührungsschutz

Anschluss:
  • Nicht wiederanschließbar; Endstücke genietet, Innenverdrahtung ohne Euroklemme
  • 2,0m H05VV-F 3G1,5mm² schwarz mit Schutzkontaktwinkelstecker

UTE Version - Suitable for France, Czech Republic, Slovakia

Specifications

Manufacturer
BACHMANN
Product group
Steckdosenleisten
Product type
IT-Steckdosenleiste
Colour
grey
Length
2 m
Scope of delivery
UTE stekkerdoos, 19" montagebeugel, bevestigingsschroeven
ON/OFF Switch
nein
Number of socket pots
8
Socket type
UTE Schutzkontakt, CEE 7/5, Typ-E
Connector plug
Haakse randaarde stekker
Plug type
Schutzkontakt, CEE 7/7, Typ-E/F
Protection class (IP Code)
IP20
Over voltage-/surge protection
ja
Regional use
Frankreich, Tschechien, Slowakei
RAL colour
RAL 7035 Lichtgrau
Mains connection
Schutzkontaktstecker, Typ-E/F
Height
0.05 m
Width
0.04 m
Depth
0.44 m
Weight
0.9 kg
Height of packaging (single piece)
60 mm
Width of packaging (single piece)
90 mm
Depth of packaging (single piece)
500 mm
Package weight (single piece)
0.936 kg
