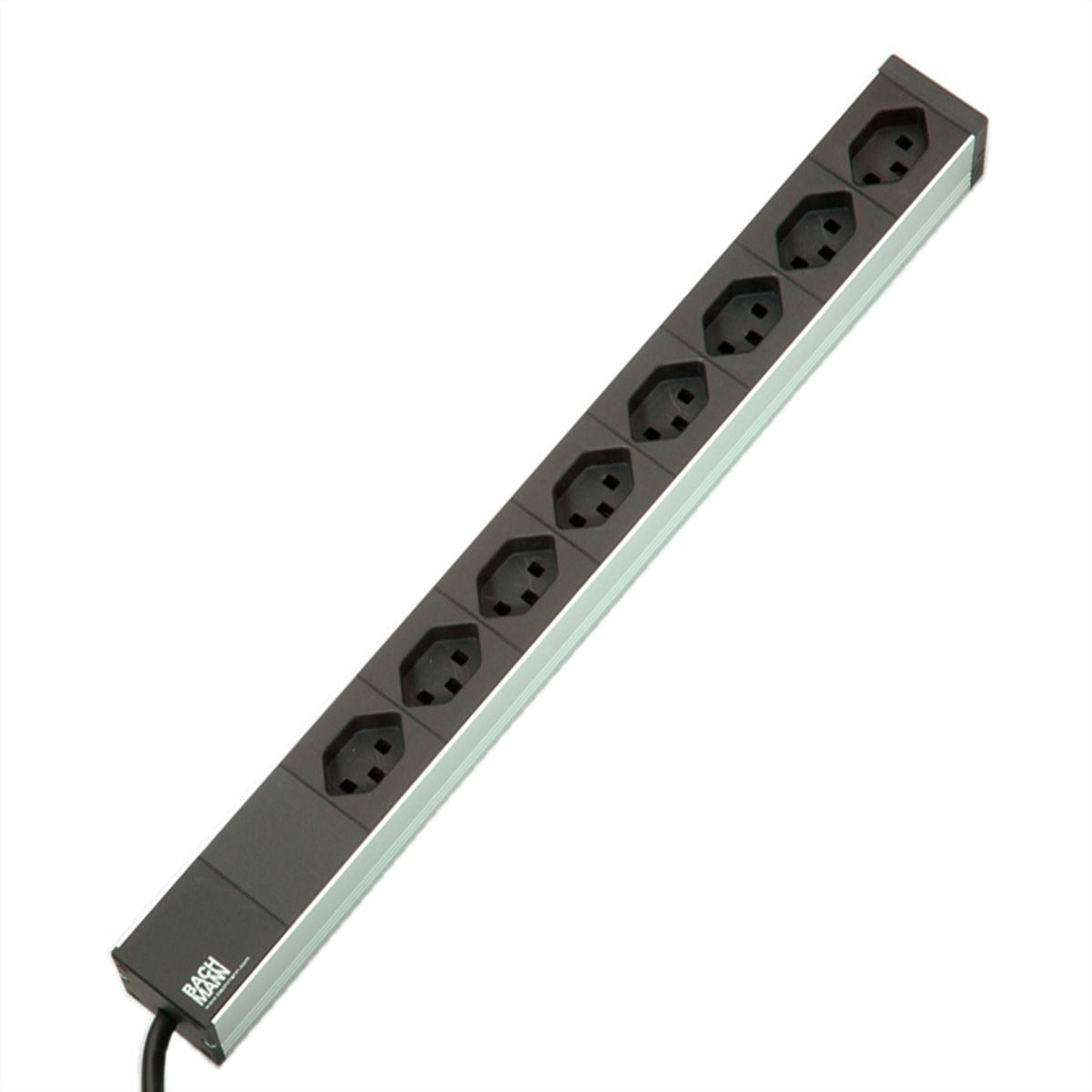

BACHMANN 19" Steckdosenleiste, 8xT23 Buchsen, Schweiz (CH)

Item no. 19072502 Brand / Manufacturer BACHMANN Manuf. item no. 800.1262 EAN 4016514060757 Item weight 0.971 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

19"-Steckdosenleiste zum Einbau in 19"-Schränke

19" Steckdosenleiste 1HE zum Einbau in 19" Schränke, incl. Einbauwinkel
Anordnung der Steckdosen: 90°
Profil aus eloxiertem Aluminium

  • 8fach, Schweizer Stecker Typ T23
  • Leitung: 2,0m H05VV-F 3G 1,50mm², schwarz
  • Max. Belastung: 16A 3600W
  • Farbe: schwarz RAL 7021
  • Breite: 440mm

Specifications

Manufacturer
BACHMANN
Product group
Steckdosenleisten
Product type
19" Steckdosenleiste
Colour
various
Length
2 m
Function
19''Steckdosenleiste
Mounting form
19" Rackmount
Max. capacitance
3600W
Max. voltage
250V AC
ON/OFF Switch
nein
Number of socket pots
8
Quantity of outputs/angles
8 / 90°
Output alignment
Reihe
Socket type
T23, 16A, Typ-J
Material (casing)
Aluminum
Colour (Design profile)
schwarz
Connection cable
H05VV-F 3G 1,5mm²
Plug type
T23, 16A, Typ-J
Test symbol
VDE GS
Conformity
CE
Regional use
Schweiz, Liechtenstein
Height
44 mm
Width
440 mm
Depth
44 mm
Weight
0.88 kg
Height of packaging (single piece)
50 mm
Width of packaging (single piece)
80 mm
Depth of packaging (single piece)
450 mm
Package weight (single piece)
0.971 kg

Downloads

Manufacturer data sheet - English (141.3 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
