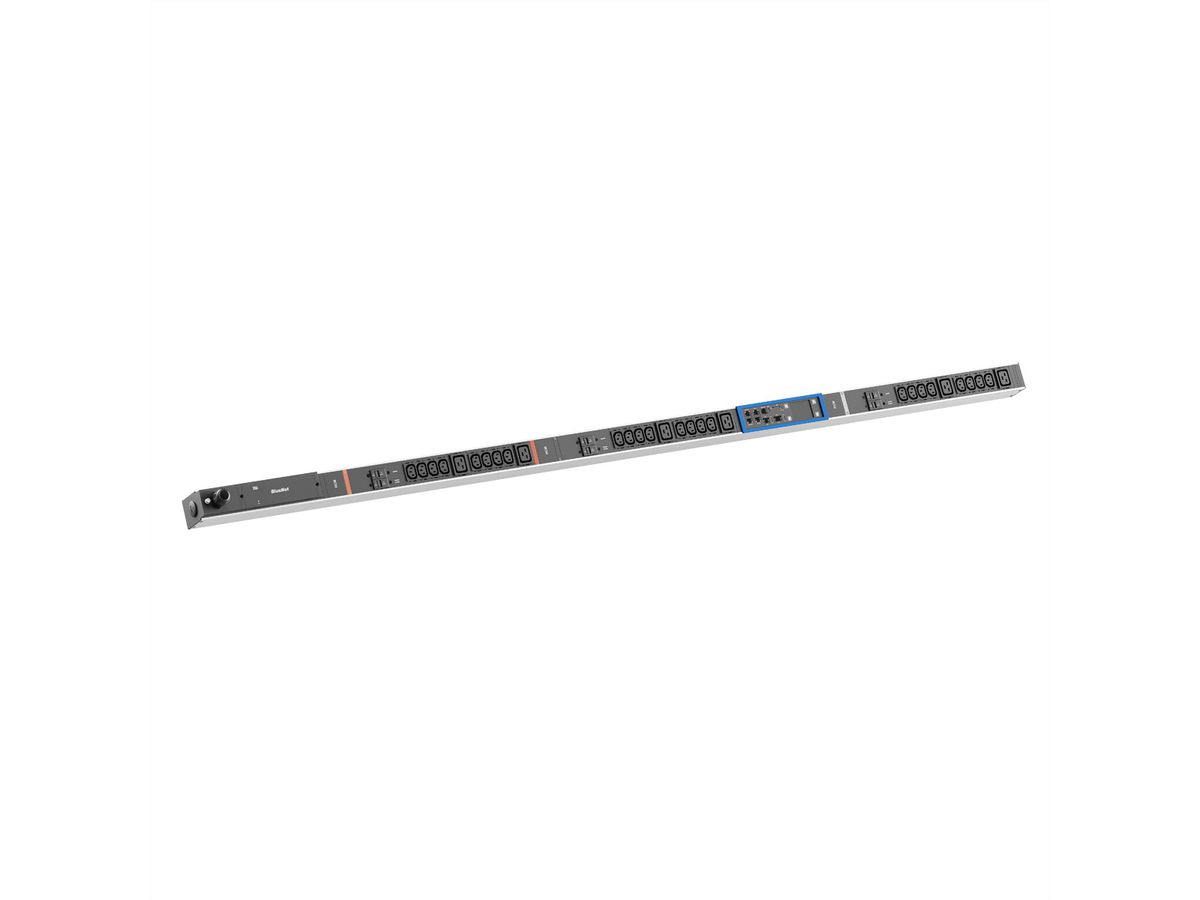

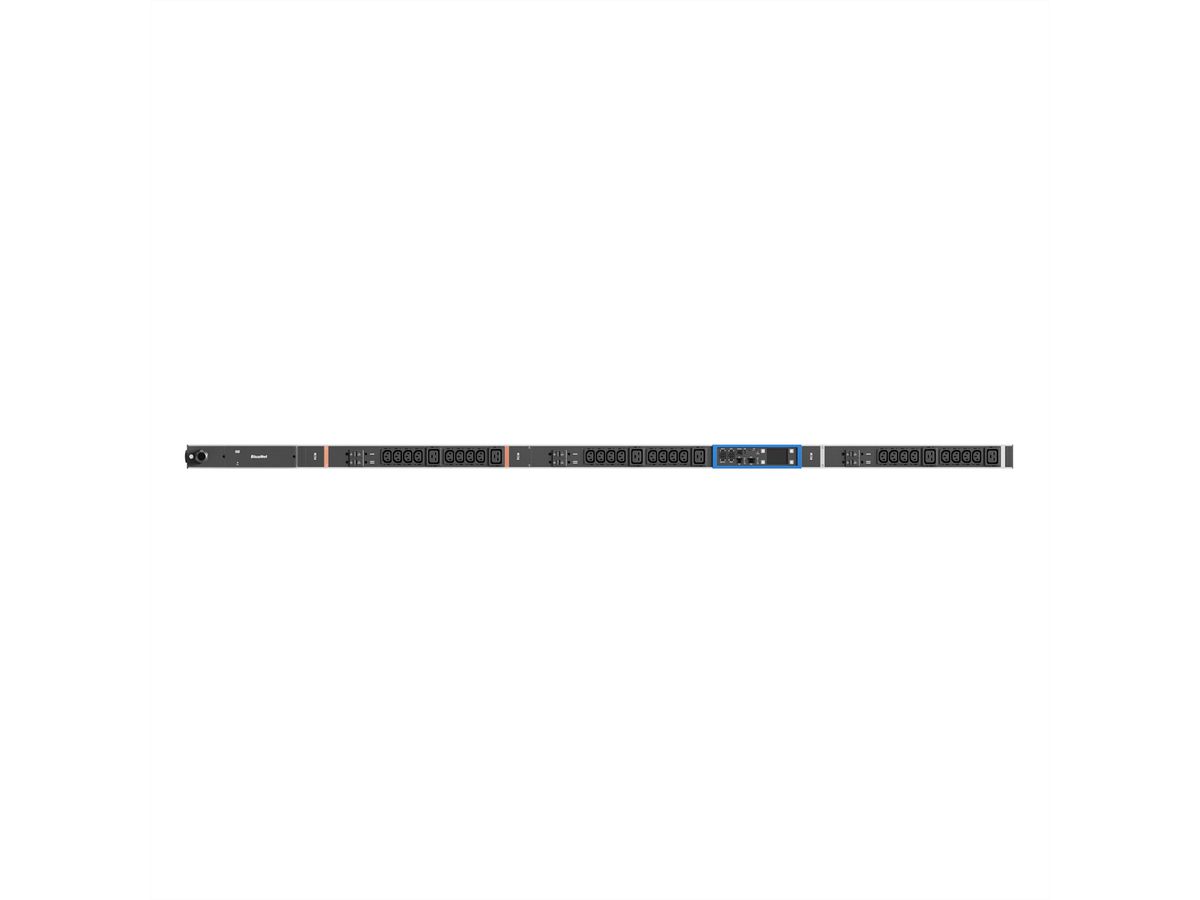

BACHMANN BN PRO M RCM 24xC13 6xC19 6xLS, 3,0m CEE 32A/5p

Item no. 19071758 Brand / Manufacturer BACHMANN Manuf. item no. BM0015597 EAN 4057298207952 Item weight 6 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day

Description

Intelligente 3-phasige Rack-PDU (Power Distribution Unit) aus der BlueNet BN PRO Metered Serie. Sie wird in Serverschränken und Rechenzentren eingesetzt, um Strom an viele IT-Geräte zu verteilen und gleichzeitig den Energieverbrauch zu überwachen.

  • Stromausgang: 24x IEC60320 C13, 6x IEC60320 C19
  • Messwerte: Strom (A), Spannung (V), Frequenz (Hz), Leistungsfaktor, Wirk-, Blind- und Scheinleistung, Wirk-, Blind- und Scheinenergie, Neutralleiterstrom (A)

Specifications

Manufacturer
BACHMANN
Product group
Stromversorgung
Product type
Stromverteiler (PDUs)
Length
3 m
Number of socket pots
30
Socket type
  • IEC320 C13, Kaltgeräte, 10A
  • IEC320 C19, Kaltgeräte, 16A
USB Charger
ja
Number of USB connections
1
Plug type
CEE rot 32A 3P+N+PE 400V "Drehstromstecker"
Protection class (IP Code)
IP20
Regional use
Ohne Einschränkung
Mains connection
CEE Stecker 3Ph. IEC 309
Operating temperature min.
0 °C
Operating temperature max.
50 °C
Height
56 mm
Width
70 mm
Depth
1928 mm
Weight
1123 g
Height of packaging (single piece)
100 mm
Width of packaging (single piece)
270 mm
Depth of packaging (single piece)
2340 mm
Package weight (single piece)
6 kg

Downloads

Manufacturer data sheet - English (310.8 KB) User manual - Deutsch / English (1.9 MB) Technical drawing - English (458.1 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
