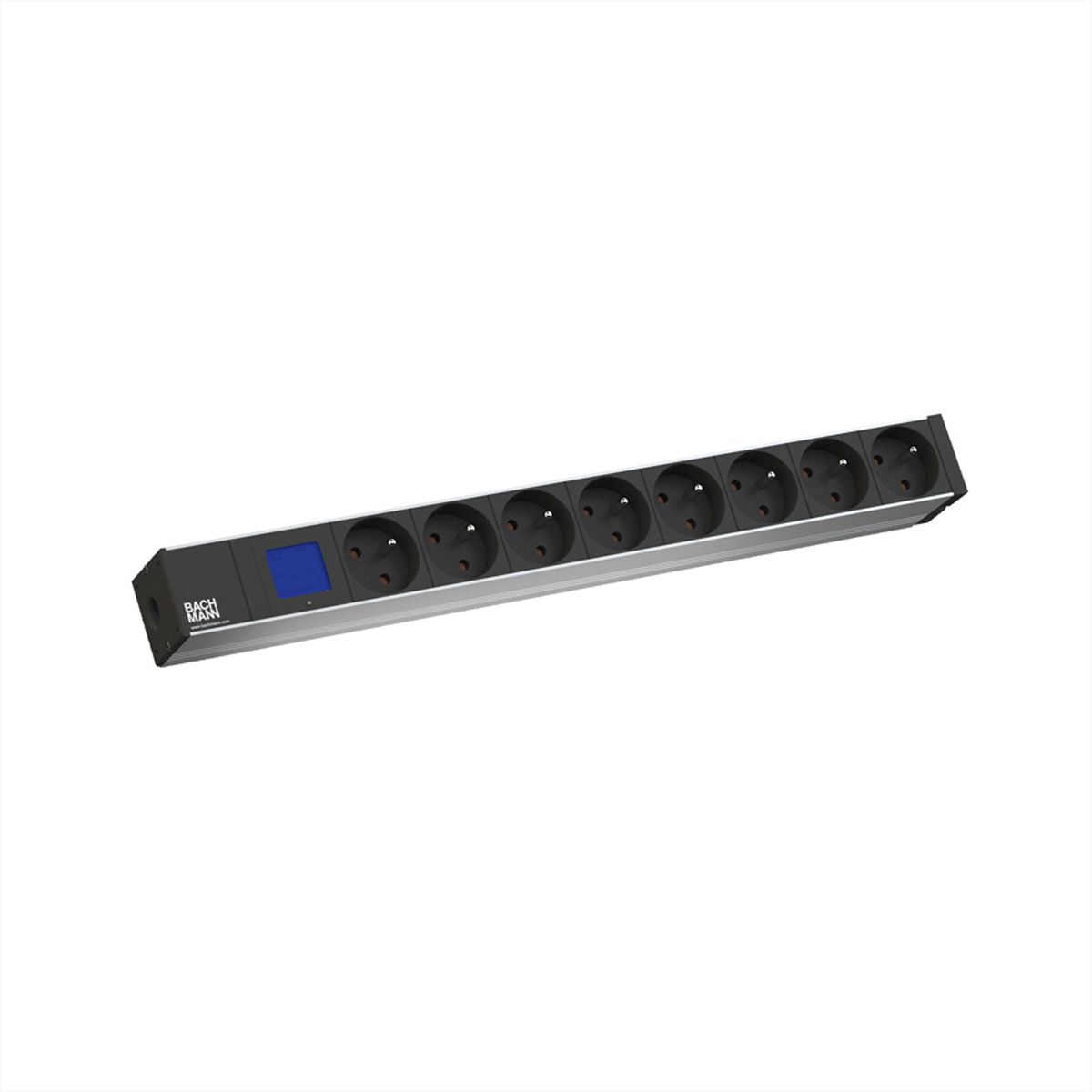

BACHMANN BN0500 19" 1U 8x UTE, power measurement

Item no. 19072162 Brand / Manufacturer BACHMANN Manuf. item no. 800.2067 EAN 4016514088515 Item weight 1.01 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

Integrated measurement of current, voltage, active power, frequency, phase angle and energy

- Power measurement (kW), phase shift in the mains - Display on illuminated LC display - Resettable energy meter (value remains stored even without power supply) - Measurement accuracy +/- 2% - End pieces riveted, cannot be opened - Includes mounting bracket and screws - Black plastic, silver aluminium profile - Technical data: - Cable: 2.0m H05VV-F 3G1.50mm², black - Connection plug: earthing contact angled plug - 8x UTE sockets - Dimensions: 482.6 x 44 x 44mm

UTE Version - Suitable for France, Czech Republic, Slovakia

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
19" power strip
Colour
black
Length
2 m
Function
19" socket strip
Mounting form
19" Rackmount
Max. capacitance
3600W
Max. voltage
230V
ON/OFF Switch
no
Number of socket pots
8
Quantity of outputs/angles
8 x Schutzkontaktsteckdose 16A 230V 50Hz
Output alignment
Reihe
Socket type
3P. UTE, CEE 7/5, Type-E
Material (casing)
Kunststoff/Alu Profil
Colour (Design profile)
black / silver
Connection cable
H05VV-F 3G 1,5mm²
Connector plug
Schuko
Regional use
France, Czech Republic, Slovakia
Height
44 mm
Width
482.6 mm
Depth
44 mm
Weight
1050 g
Height of packaging (single piece)
110 mm
Width of packaging (single piece)
100 mm
Depth of packaging (single piece)
530 mm
Package weight (single piece)
1.01 kg

Downloads

Manufacturer data sheet - English (261.5 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
