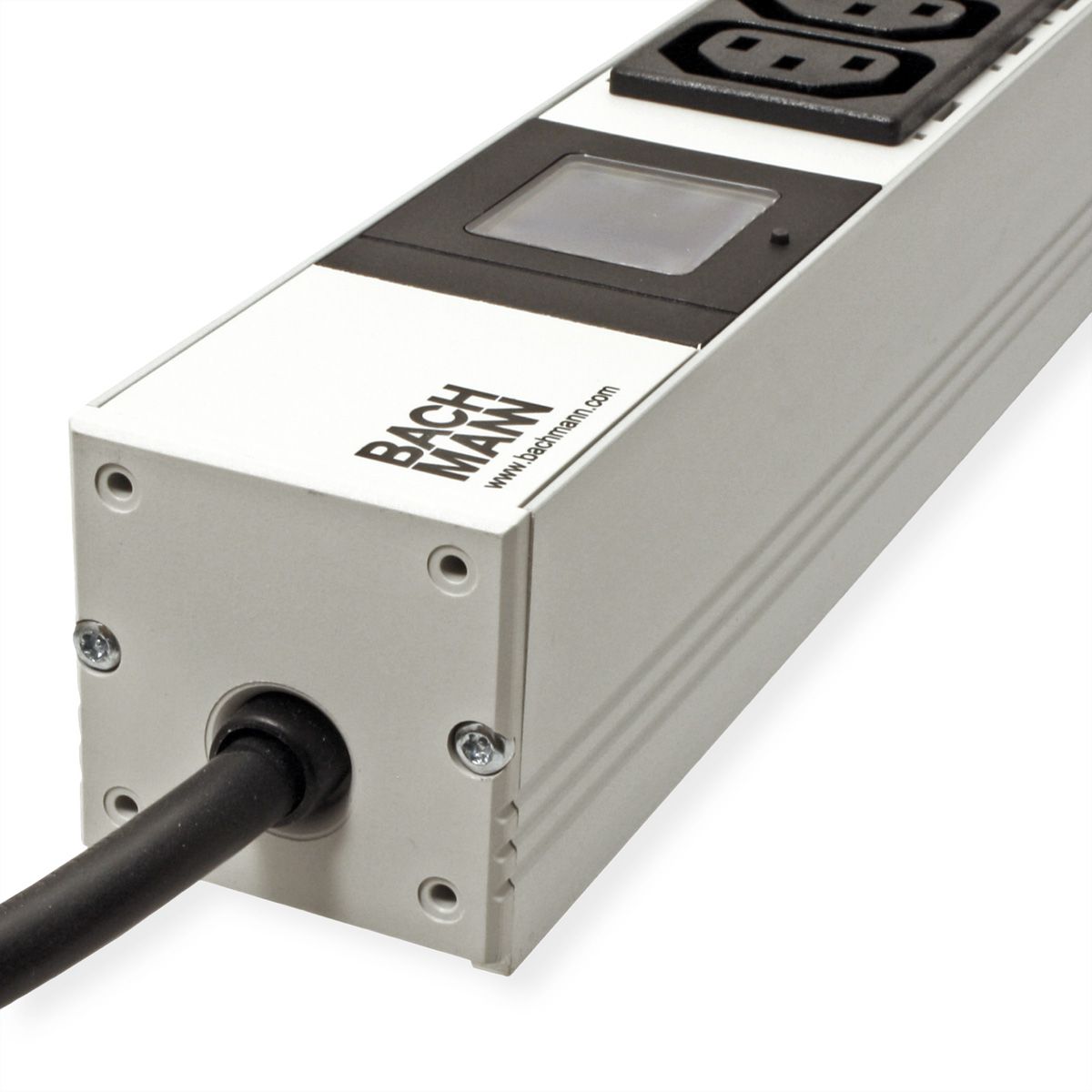

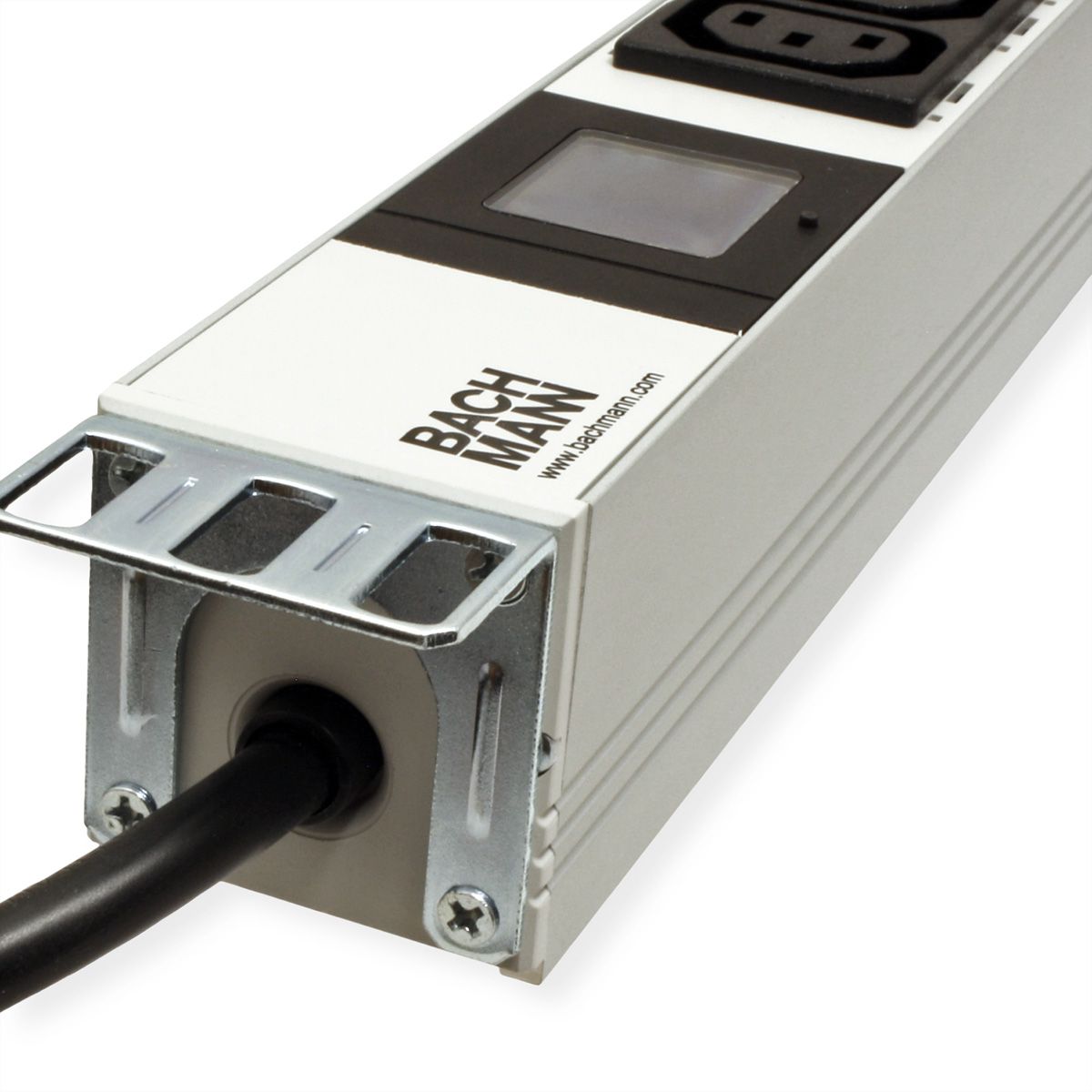

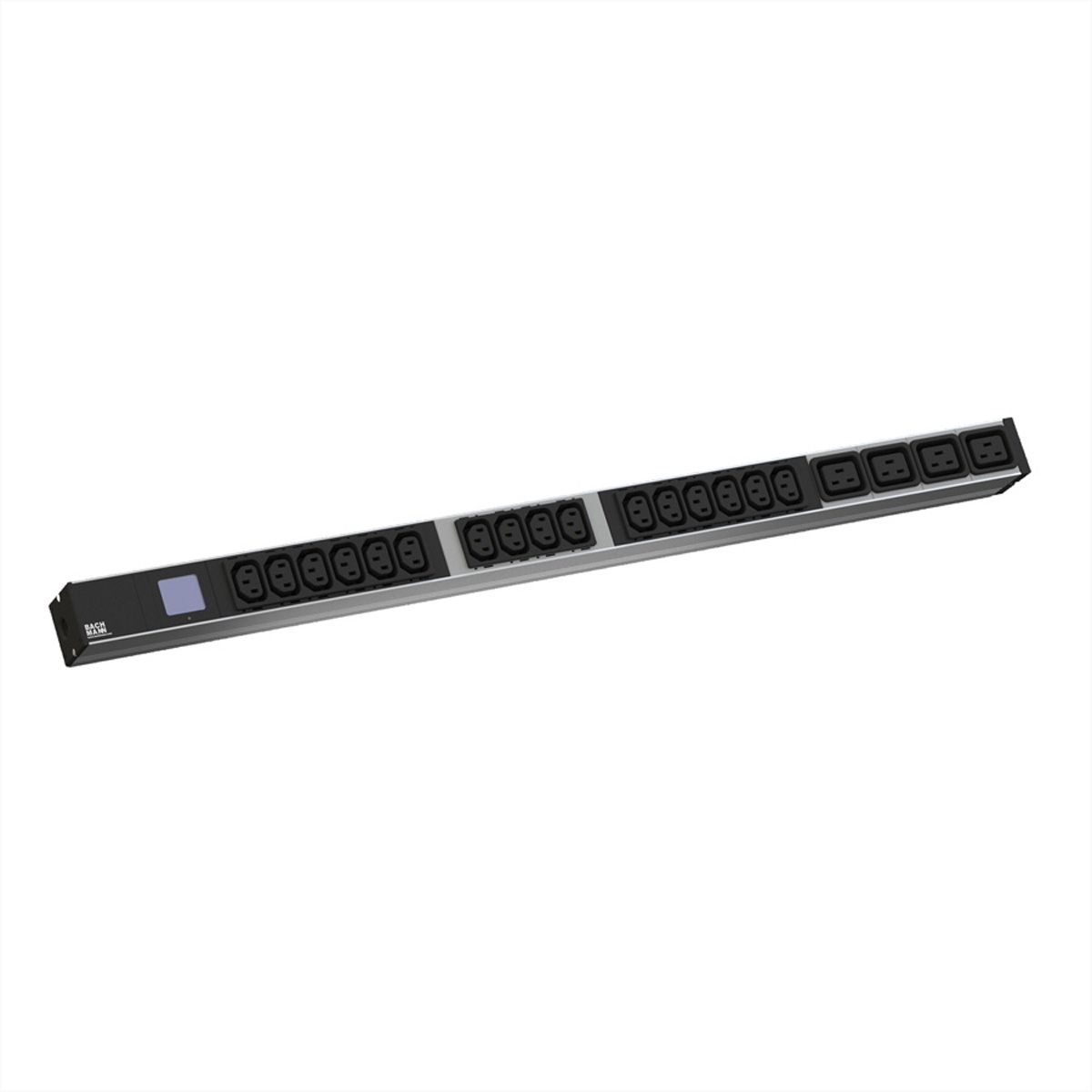

BACHMANN BN0500 Local Metered 19"ALU 1HE 6xC13 2xC19, L:3m SPD 3G2,5mm² CEE16A

Item no. 19070993 Brand / Manufacturer BACHMANN Manuf. item no. BM0031187 EAN 4057298248016 Item weight 1.381 kg

BACHMANN BN0500 Local Metered 19"ALU 1HE 6xC13 2xC19, L:3m SPD 3G2,5mm² CEE16A

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

BlueNet zur Strukturierung, Steuerung und Überwachung von IT-Stromnetzen

Integrierte Messung von Strom, Spannung, Wirkleistung, Frequenz, Phasenwinkel und Energie
Leistungsmessung (kW), Phasenverschiebung im Netz
Anzeige auf beleuchtetem LC- Display
Rücksetzbarer Energiezähler (Wert bleibt auch ohne Stromversorgung gespeichert)
Messgenauigkeit +/- 2 %
Endstücke genietet, nicht zu öffnen
Inklusive Befestigungswinkel und Schrauben
Kunststoff schwarz, Aluminium-Profil silber

Technische Daten:

L:3m SPD 3G2,5mm²
Anschlussstecker: CEE 1L+N+PE, 16A , blau
6x C13
2x C19

Remark: Picture similar

Specifications

Manufacturer: BACHMANN
Product group: Steckdosenleisten
Product type: 19" Steckdosenleiste
Colour: black / silver
Length: 3 m
Function: 19'' Steckdosenleiste
Mounting form: 19" Rackmount
ON/OFF Switch: nein
Number of socket pots: 8
Quantity of outputs/angles: 6x IEC320 Kaltgerätedose C13, 2x C19
Output alignment: Reihe
Socket type: IEC320 C13, Kaltgeräte, 10A

IEC320 C19, Kaltgeräte, 16A
Material (casing): Kunststoff/Alu Profil
Colour (Design profile): schwarz / silber
Connection cable: H05VV-F 3G 1,5mm²
Connector plug: CEE 1L+N+PE, 16A, blau
Plug type: CEE blau 16A 1P+N+PE 230V "Campingstecker"
Regional use: Ohne Einschränkung
Mains connection: CEE Stecker 1Ph. IEC 309
Height of packaging (single piece): 100 mm
Width of packaging (single piece): 90 mm
Depth of packaging (single piece): 540 mm
Package weight (single piece): 1.381 kg
