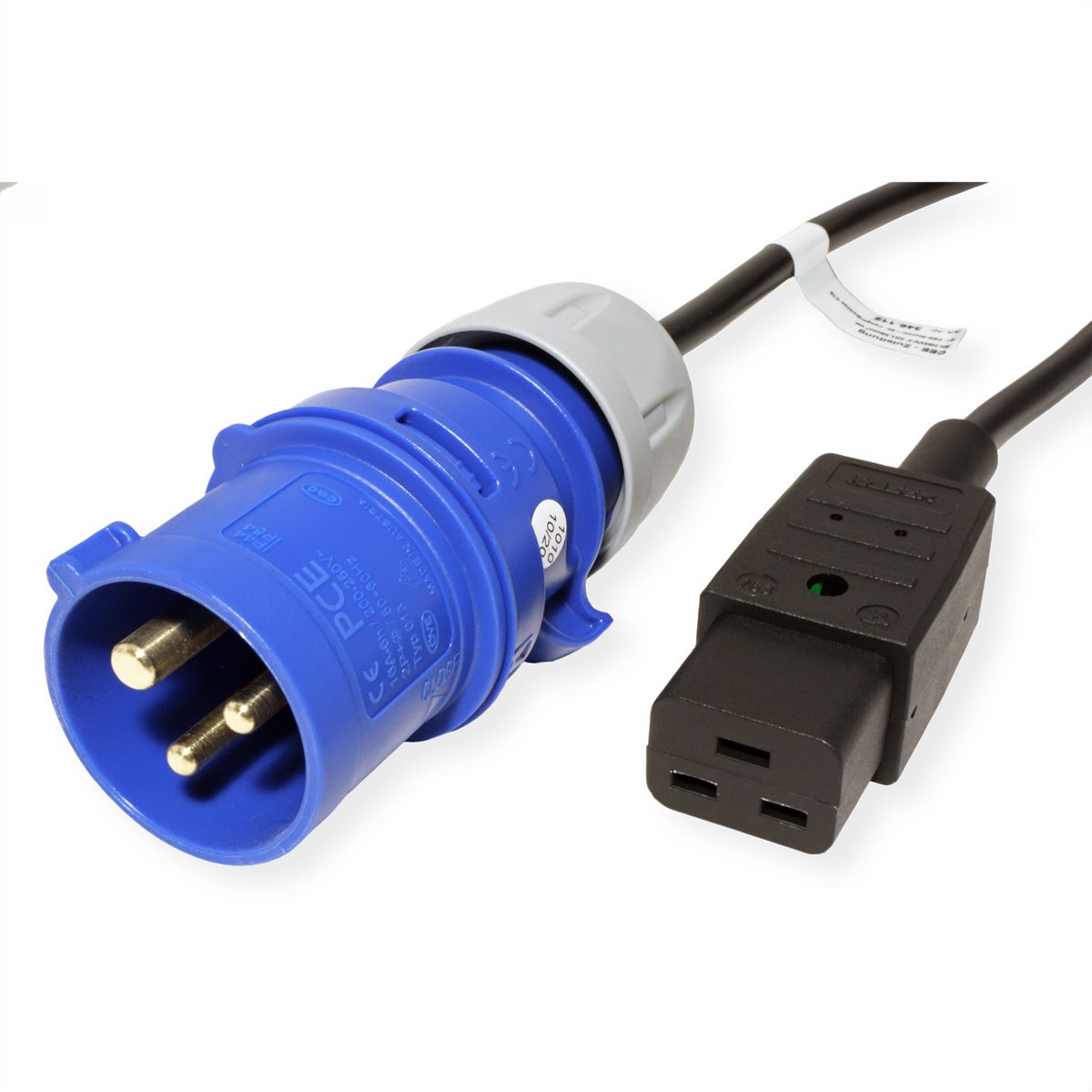

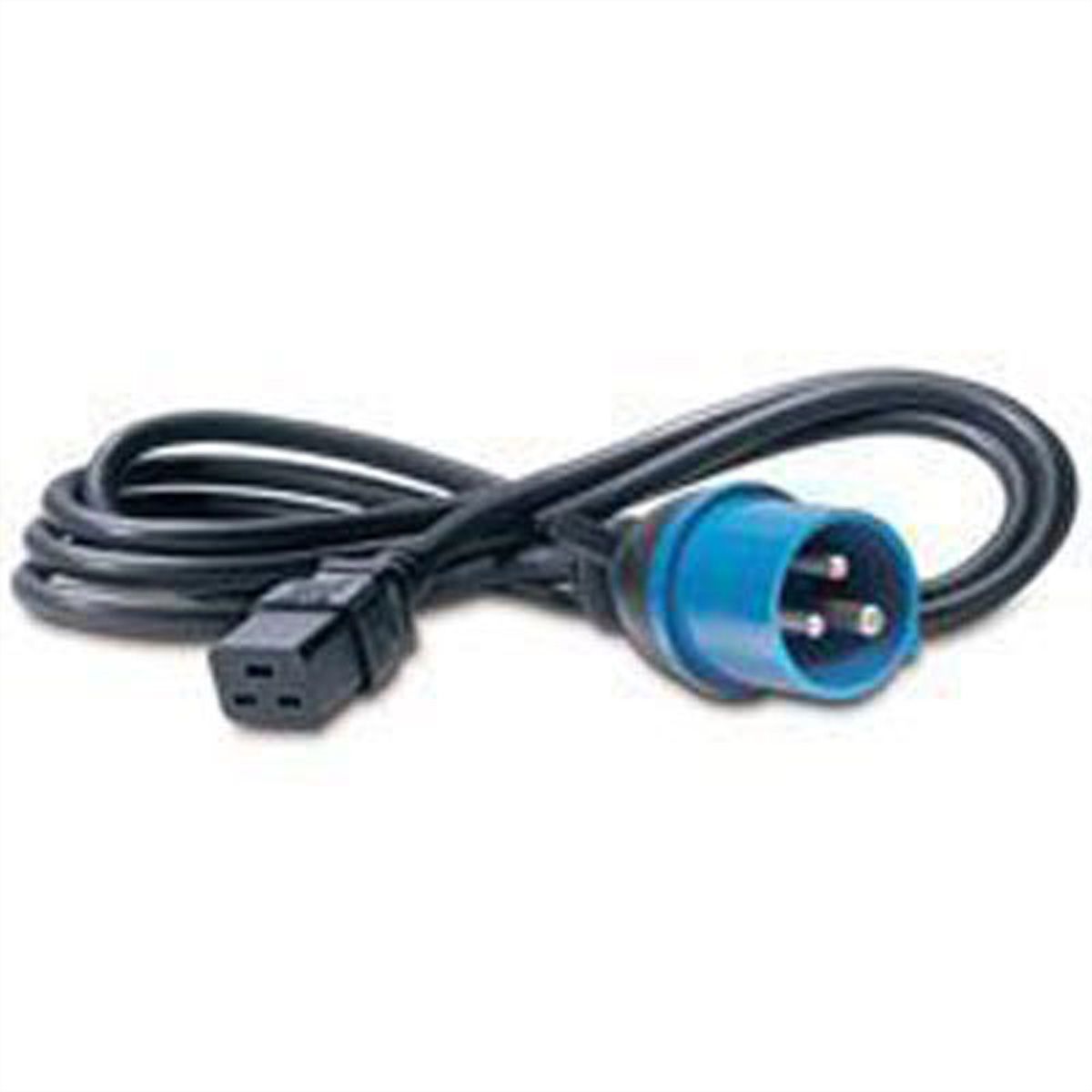

BACHMANN cable plug IEC60309-blue - coupling C19, 3m 16A, black, 3 m

Item no. 19071204 Brand / Manufacturer BACHMANN Manuf. item no. 346.112 EAN 4057298020032 Item weight 0.458 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

16A connection cable with IEC320 C19 socket and C60309 plug, 3-pin, PE-N-L

- IEC320 C309 plug (camping plug), - connecting cable with C19 coupling - black - 250VAC, 16A

Specifications

Manufacturer
BACHMANN
Product group
Power Cables
Product type
Connection cable
Colour
black
Length
3 m
Connection ports
CEE blue 16A 1P+N+PE 230V "Caravan Mains Socket" Male / IEC320 C19, 16A Female
Max. current
16 A
Max. voltage
250V
Max. power
3600W
Cable material
H05VV-F
Conductor cross section (mm²)
1,5mm²
Quantity of wires
3
Side 1 description
IEC60309 PE-N-L, 250VAC
Side 1 Connection type
IEC60309 PE-N-L, 250VAC
Side 2 description
Kaltgeräte
Side 2 Connection type
IEC320 C19
Side 1 Connector Type
CEE blue 16A 1P+N+PE 230V "Caravan Mains Socket"
Side 1 Connector Gender
Male
Side 2 Connector Type
IEC320 C19, 16A
Side 2 Connector Gender
Female
Regional use
Without restriction
Height
40 mm
Width
330 mm
Depth
300 mm
Weight
463 g
Height of packaging (single piece)
50 mm
Width of packaging (single piece)
270 mm
Depth of packaging (single piece)
260 mm
Package weight (single piece)
0.458 kg

Downloads

Manufacturer data sheet - English (125.9 KB)
