BACHMANN CONEO SET 3x earthing contact 1x ABD, silver

Item no. 19072580 Brand / Manufacturer BACHMANN Manuf. item no. 900.400 EAN 4016514094066 Item weight 1.964 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

CONEO - the quick and easy solution for elegantly integrating power and data connections into furniture.

- Quick and easy installation thanks to special double-sided adhesive tape - Set item, consisting of frame and socket strip - Great flexibility thanks to the use of custom modules - Minimal installation depth for absolute legroom even when installed close to the edge - Cables can be run in a closed state -

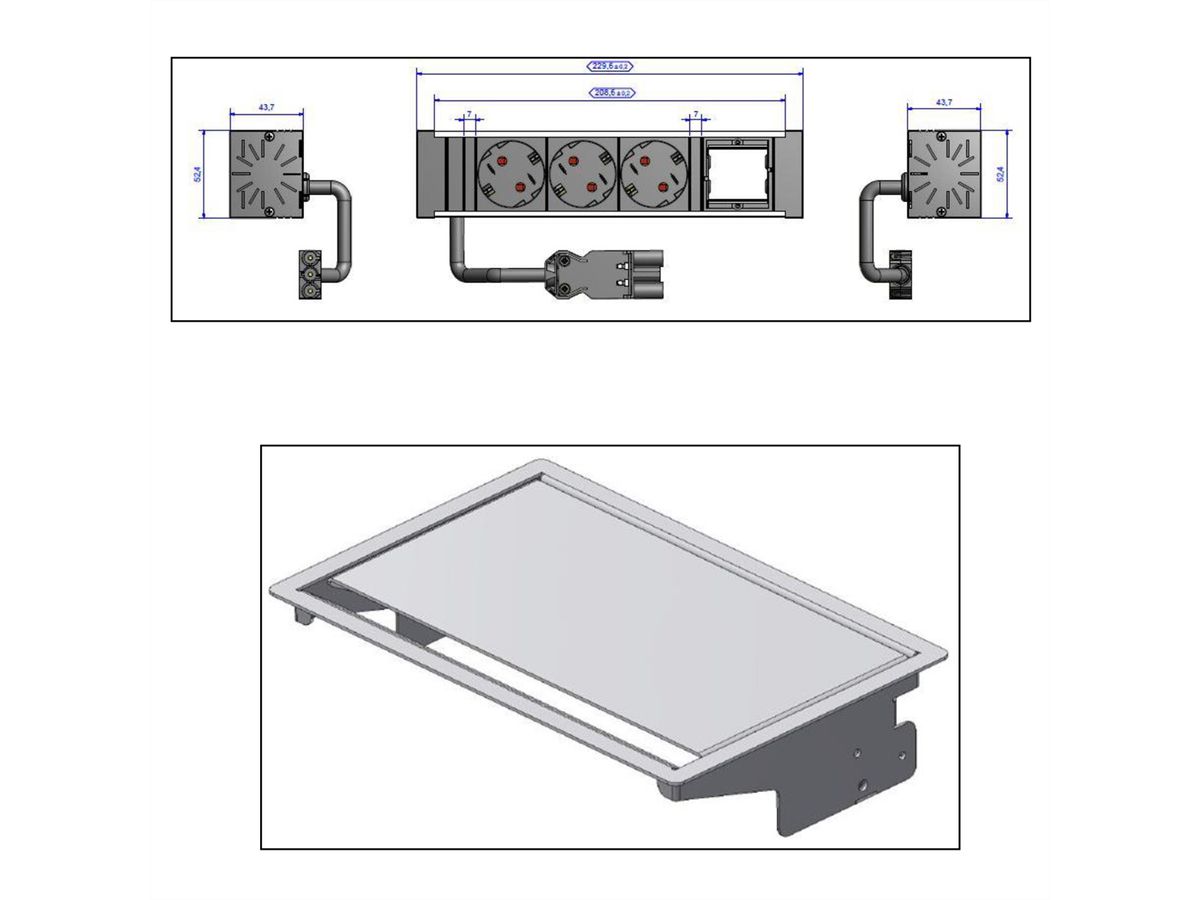

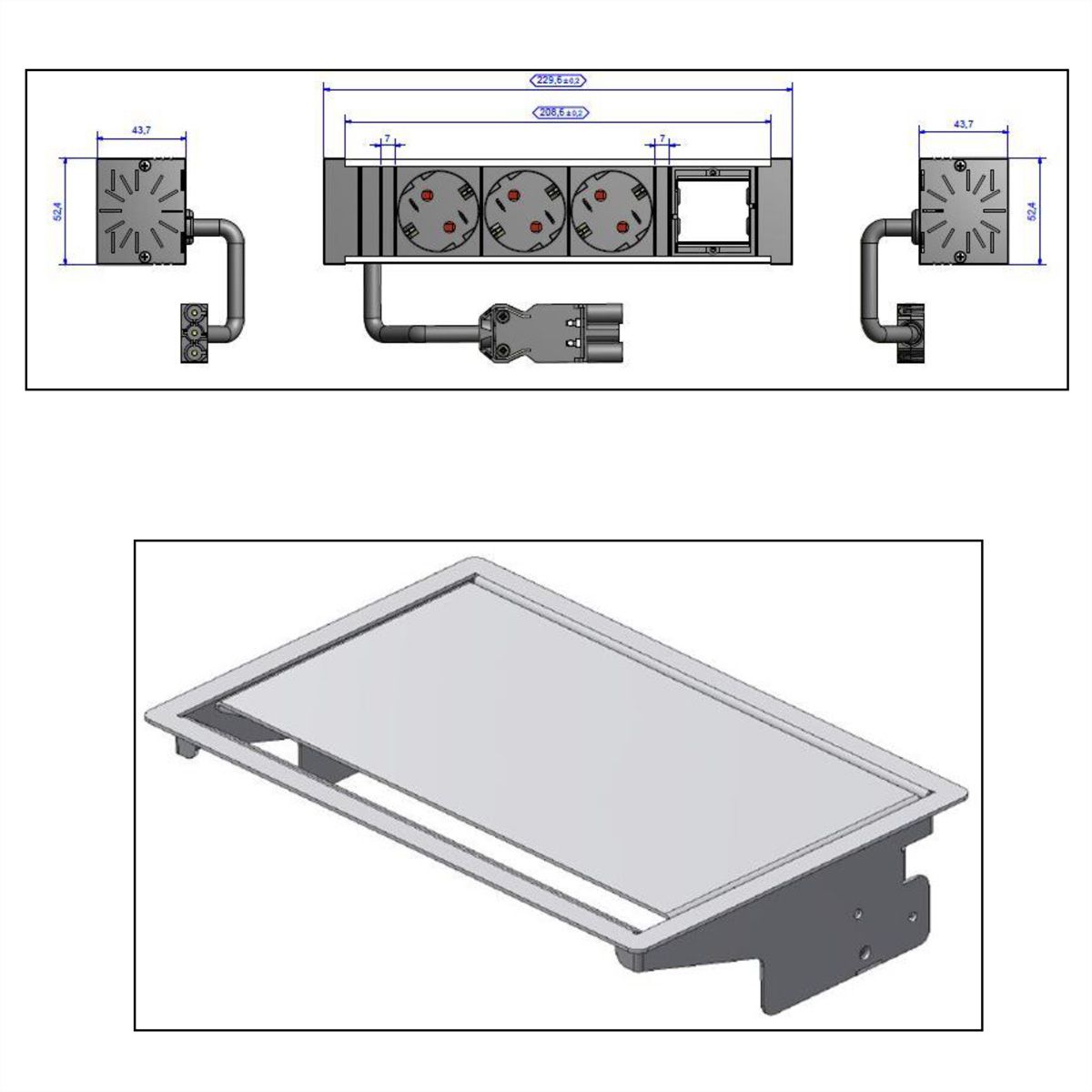

Dimensions (W x H x D): 255 x 169 x 58 mm - Material: Installation frame: Sheet steel - Socket: plastic, aluminium - Frame installation depth: 56 mm - Panel thickness: all thicknesses (product is glued) - Socket colour: black

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Integrated unit CONEO
Colour
silver
Length
0.2 m
Function
Steckdosenleiste mit Schalter, Surgeprotect
Mounting form
Integrated unit
Max. capacitance
3600W
Max. voltage
250V
ON/OFF Switch
no
Number of socket pots
3
Quantity of outputs/angles
9 / 45°
Socket type
3P. German, CEE 7/3, Type-F
Material (casing)
Aluminium / Kunststoff
Colour (Design profile)
silver
Connection cable
0,2m H05VV-F3G1,5mm²
Colour (Cable)
black
Connector plug
Wieland GST18 connector
Plug type
Wieland GST18
Regional use
Germany, Austria, Netherlands
Height
255 mm
Width
169 mm
Depth
58 mm
Weight
1434 g
Height of packaging (single piece)
210 mm
Width of packaging (single piece)
300 mm
Depth of packaging (single piece)
400 mm
Package weight (single piece)
1.964 kg
Switch type
2 polig , beleuchtet
Output alignment
3 Reihen

Downloads

Manufacturer data sheet - English (71.8 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
