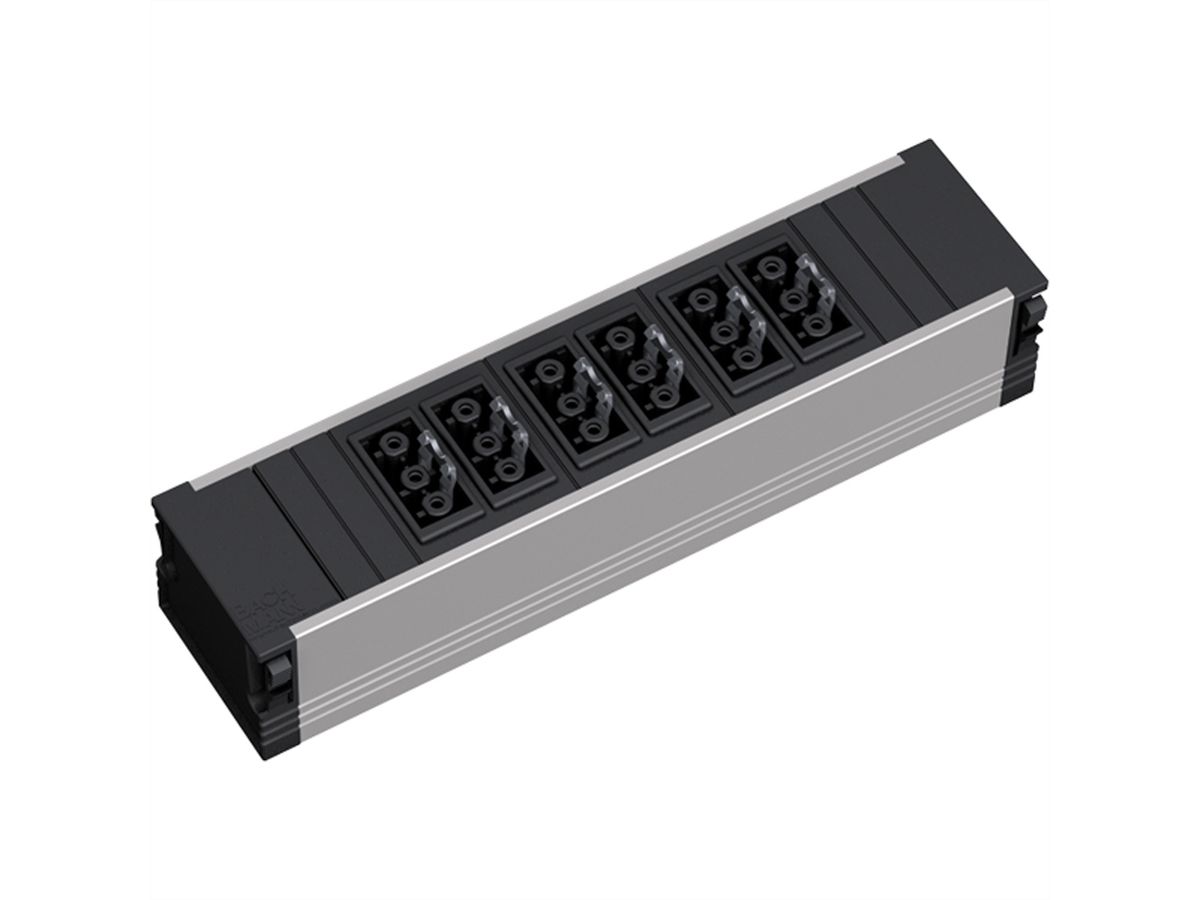

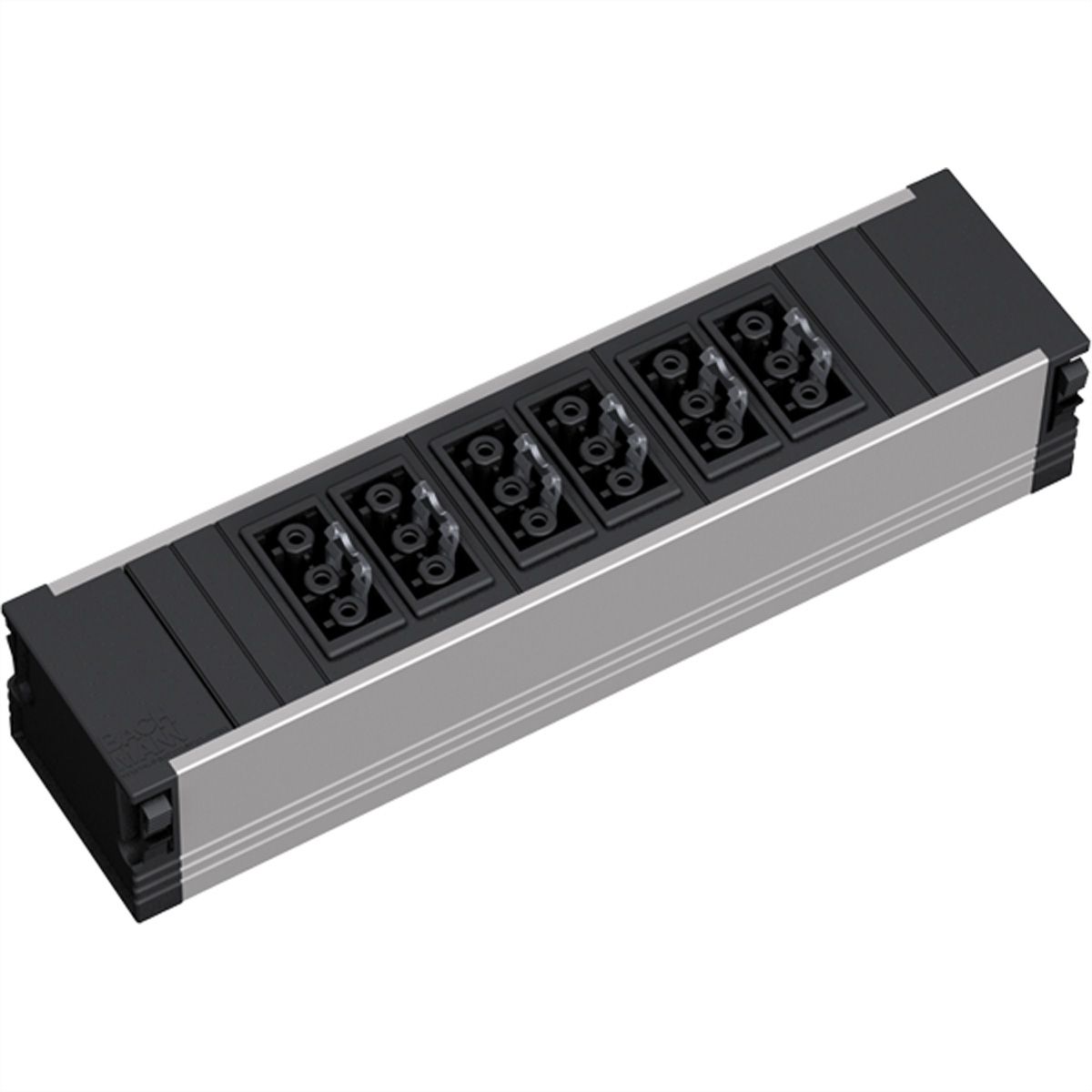

BACHMANN Consolidation Point 6xGST18, black current GST18

Item no. 19073797 Brand / Manufacturer BACHMANN Manuf. item no. 919.2000 EAN 4016514038275 Item weight 0.36 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/07/2026
Download PDF

Description

CP 6xGST18 sw current GST18 profile rear side

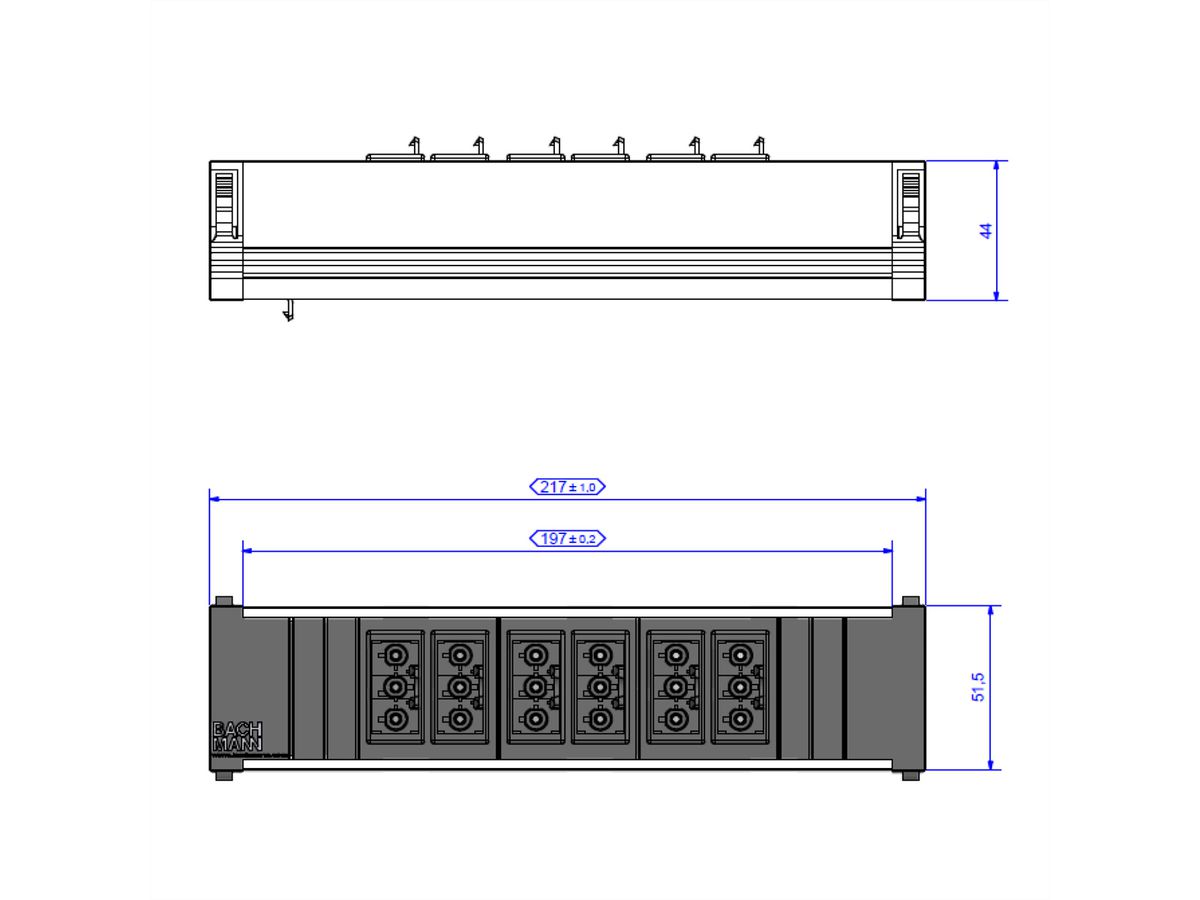

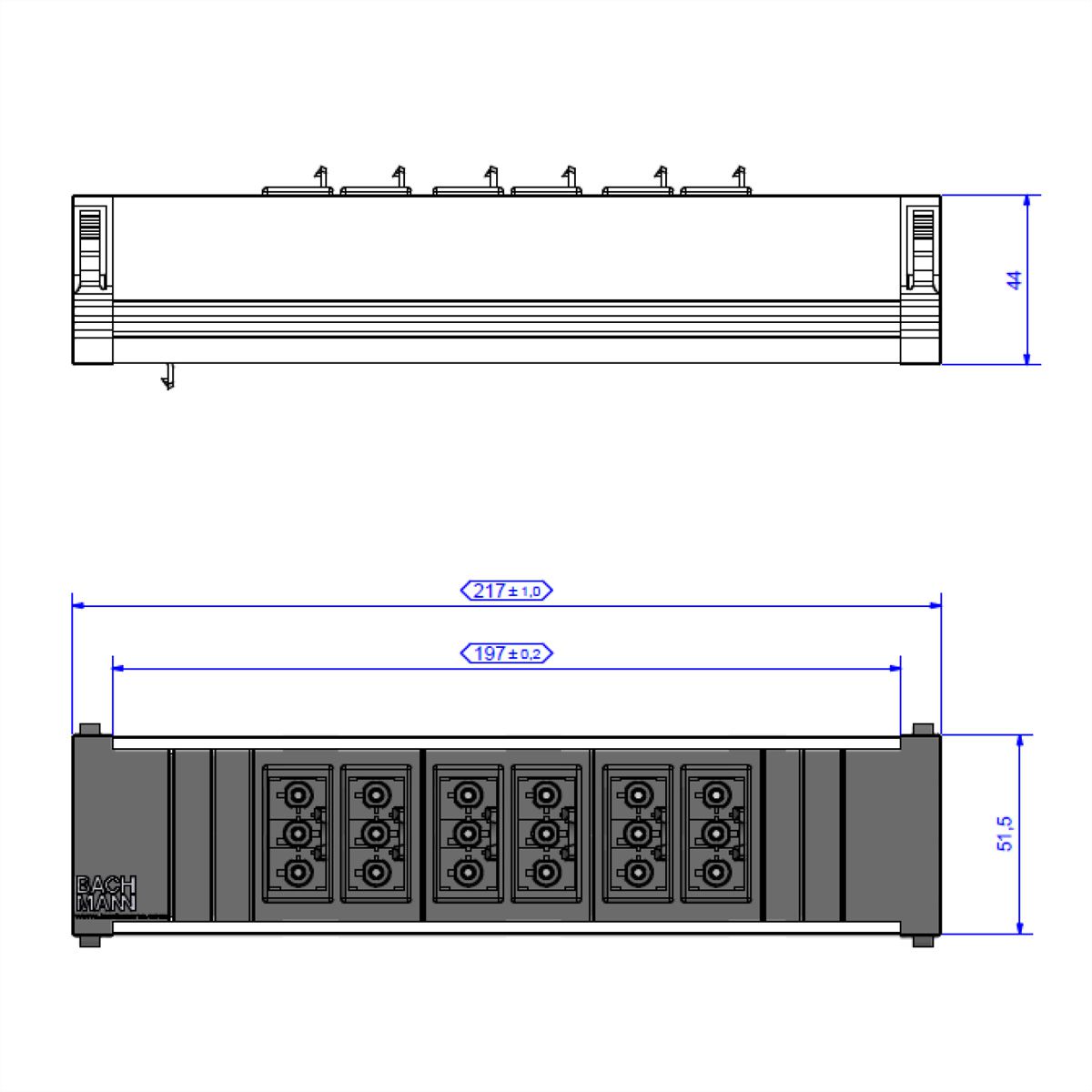

Consolidation Point Unit Current - Length: 217mm 3-way - 6xWieland GST18 connectors - Current input: GST18 in the back of the profile - Incl. self-adhesive labelling strips - Ca. 15 x 35mm - in a polybag,

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Power supply
Colour
black
Length
0 m
Side 1 Connector Type
Wieland GST18
Side 1 Connector Gender
Female
Side 2 Connector Type
Wieland GST18
Side 2 Connector Gender
Female
Number of socket pots
6
Socket type
Wieland GST18
Connector plug
Wieland GST18i3
Regional use
Without restriction
Height
75 mm
Width
75 mm
Depth
315 mm
Weight
0.37 kg
Height of packaging (single piece)
80 mm
Width of packaging (single piece)
70 mm
Depth of packaging (single piece)
320 mm
Package weight (single piece)
0.36 kg

Downloads

Manufacturer data sheet - English (65.1 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
