Description

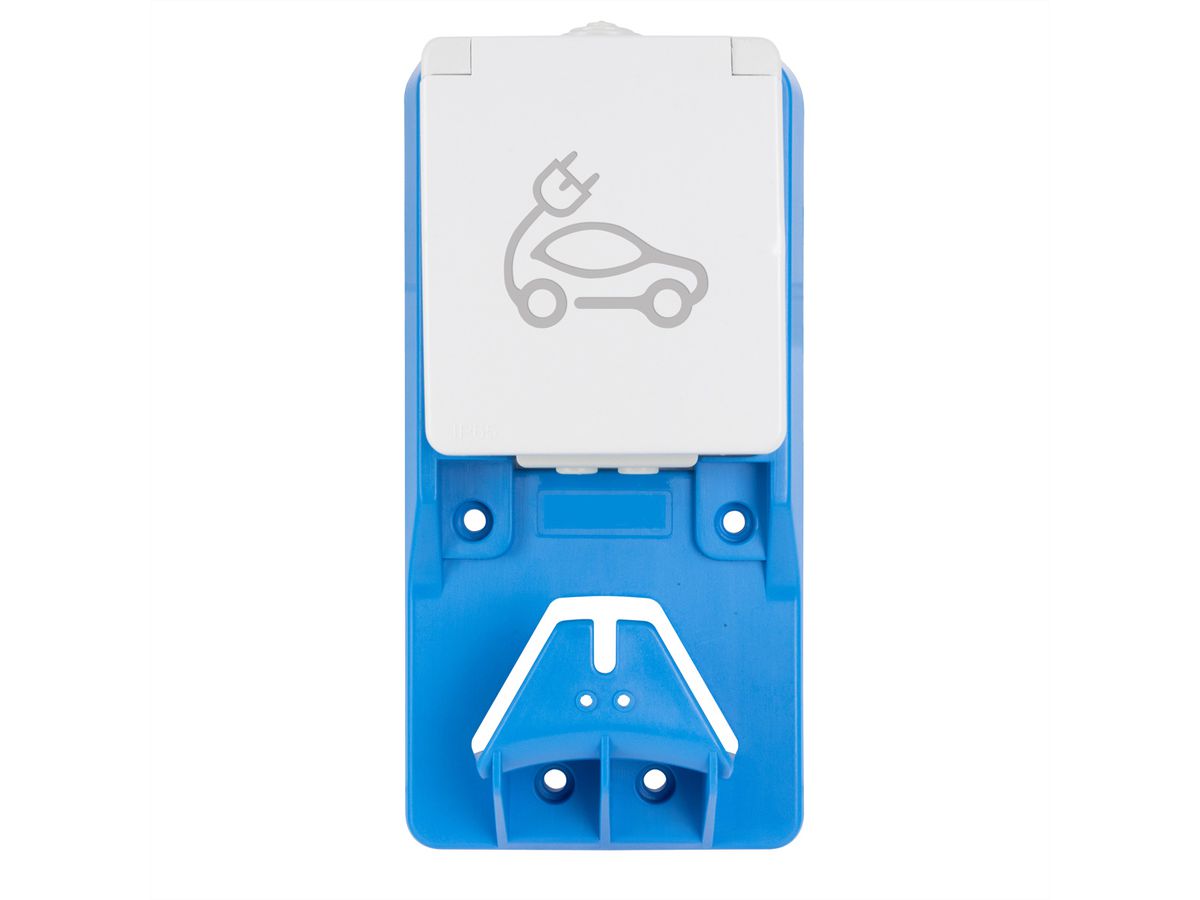

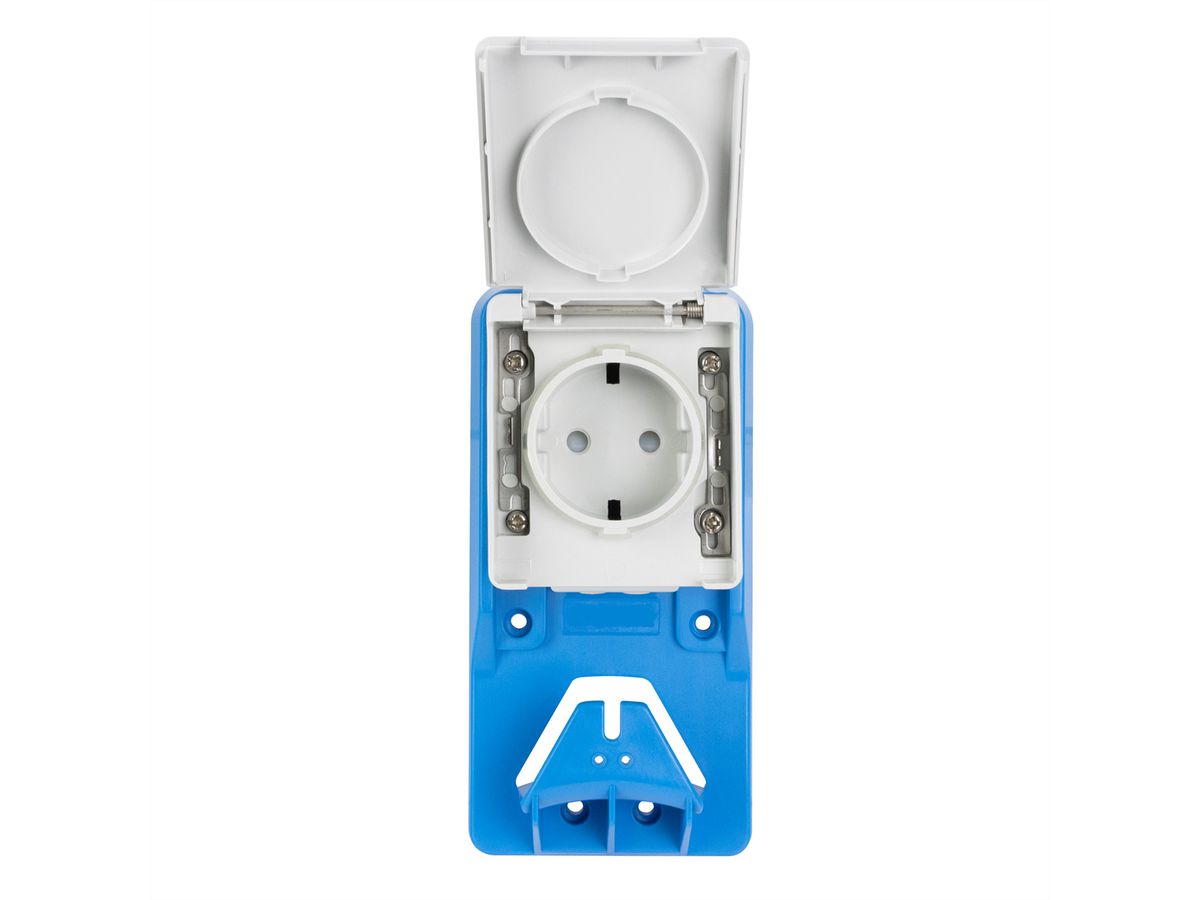

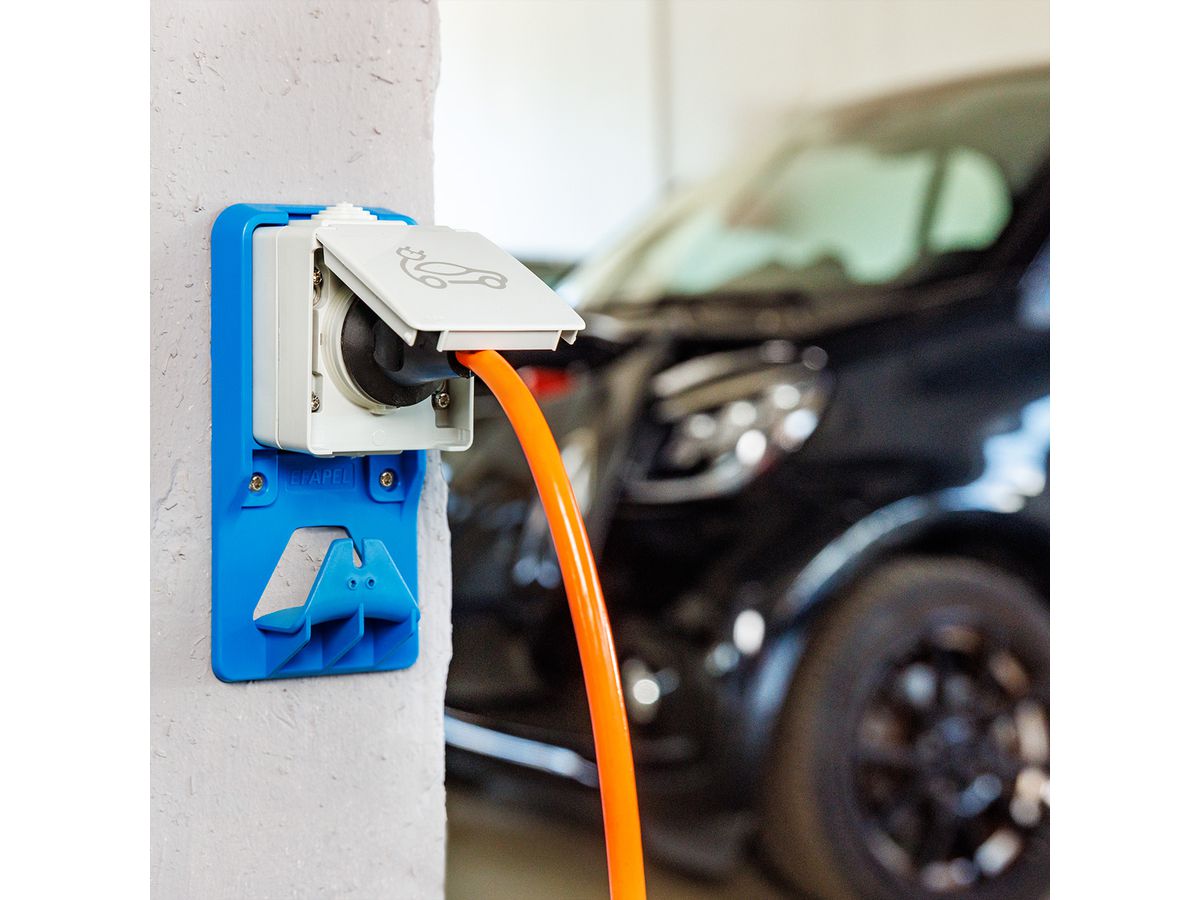

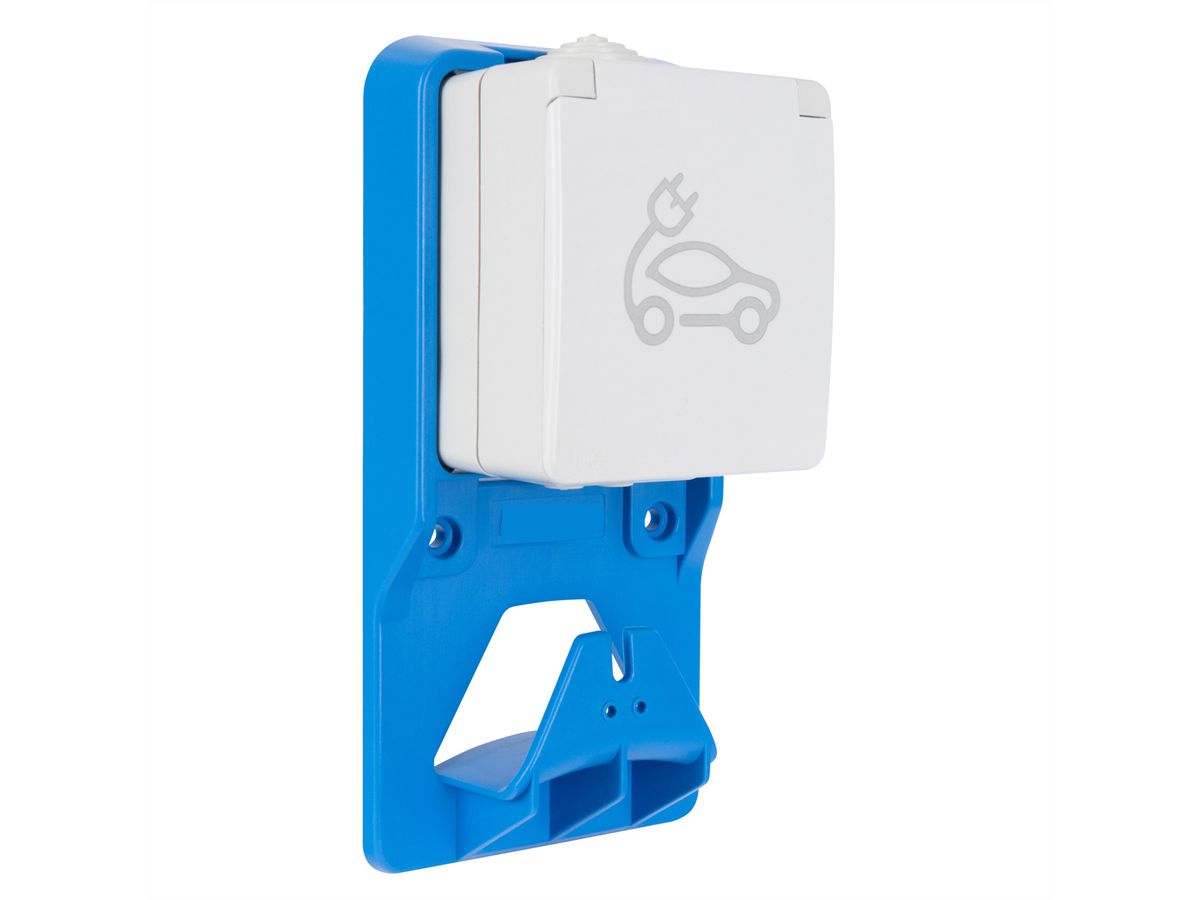

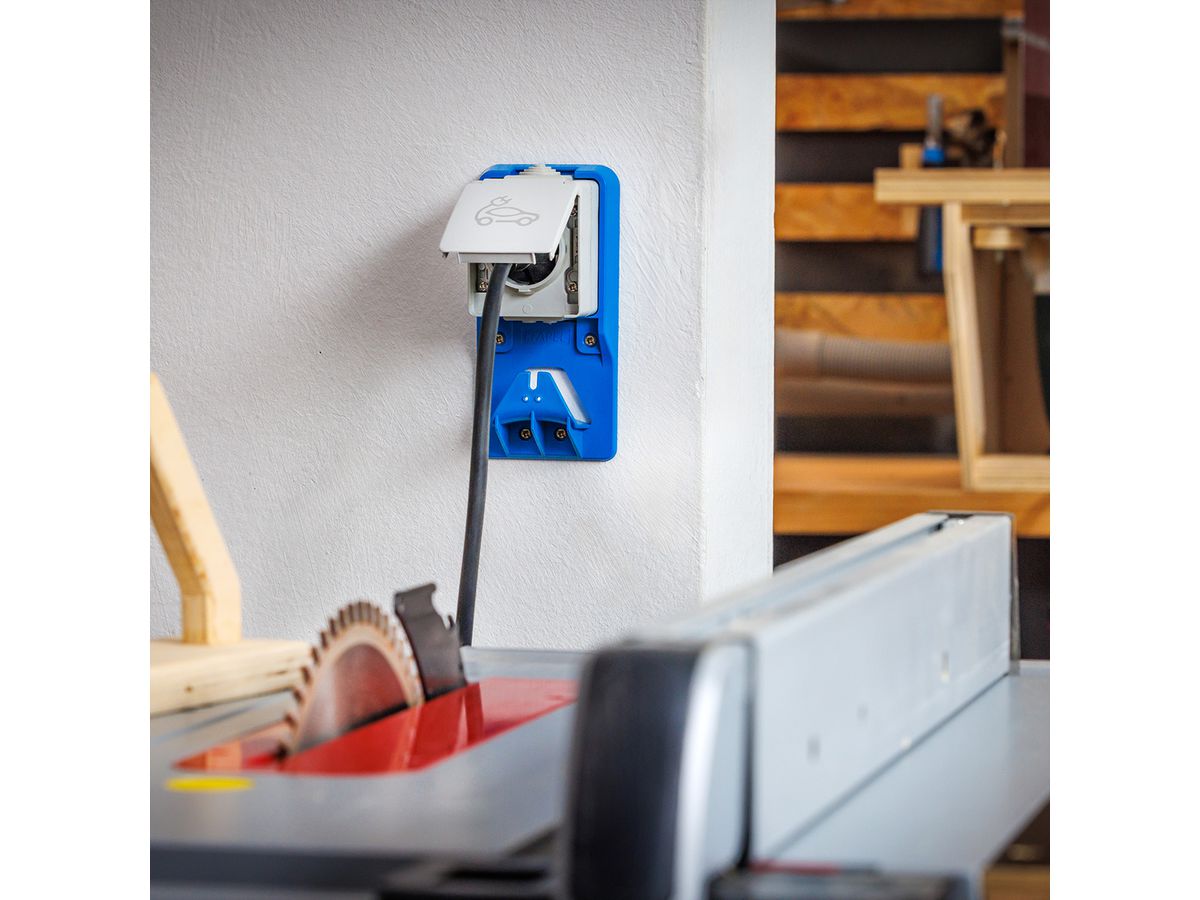

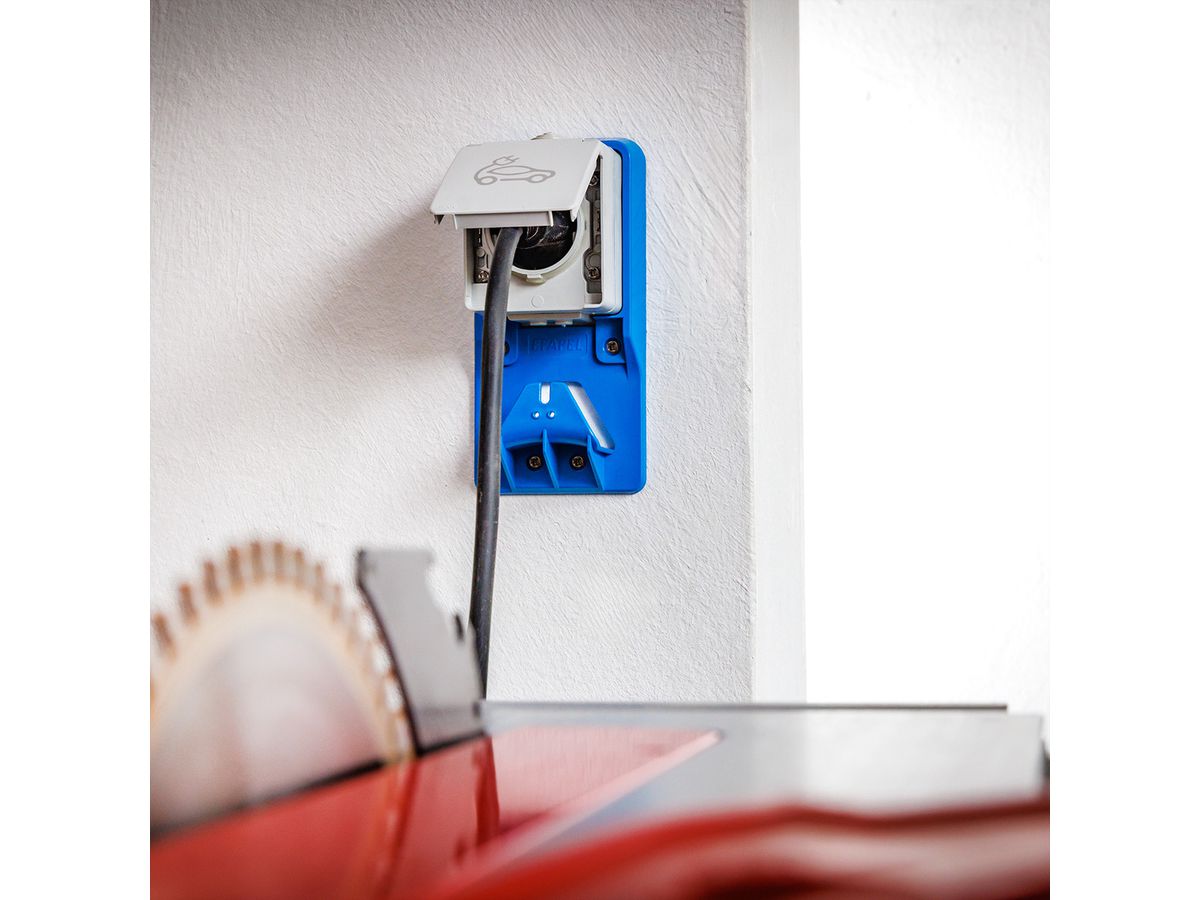

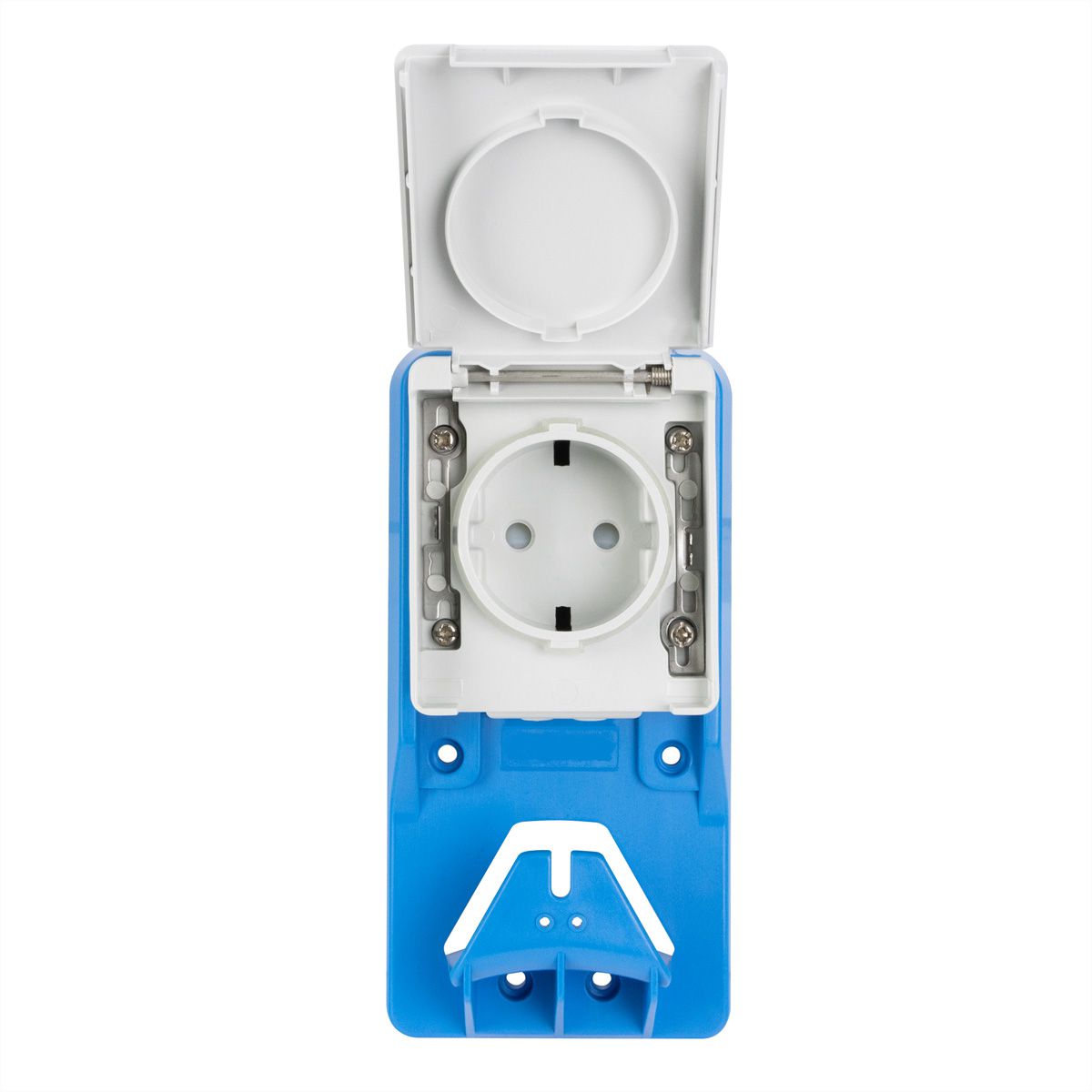

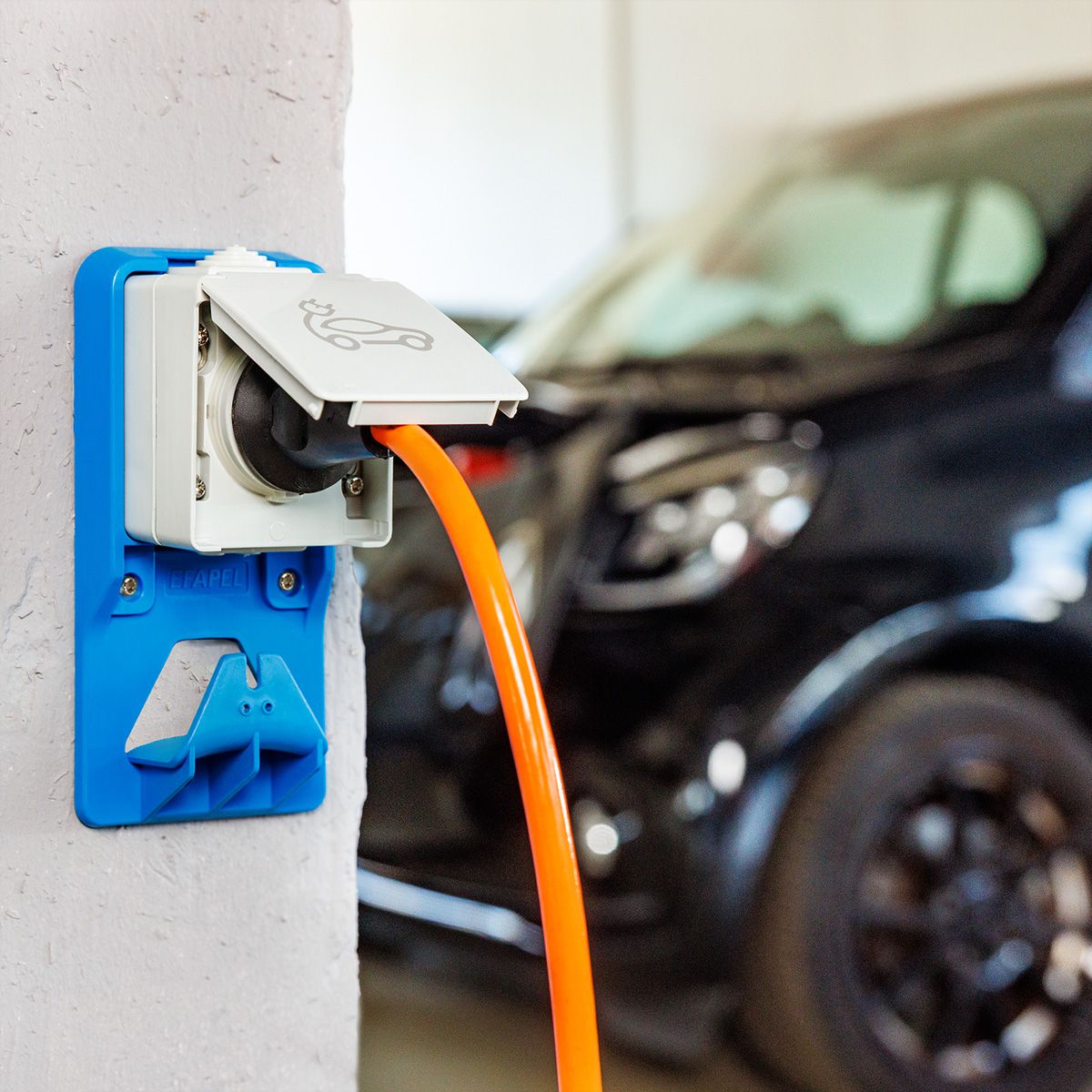

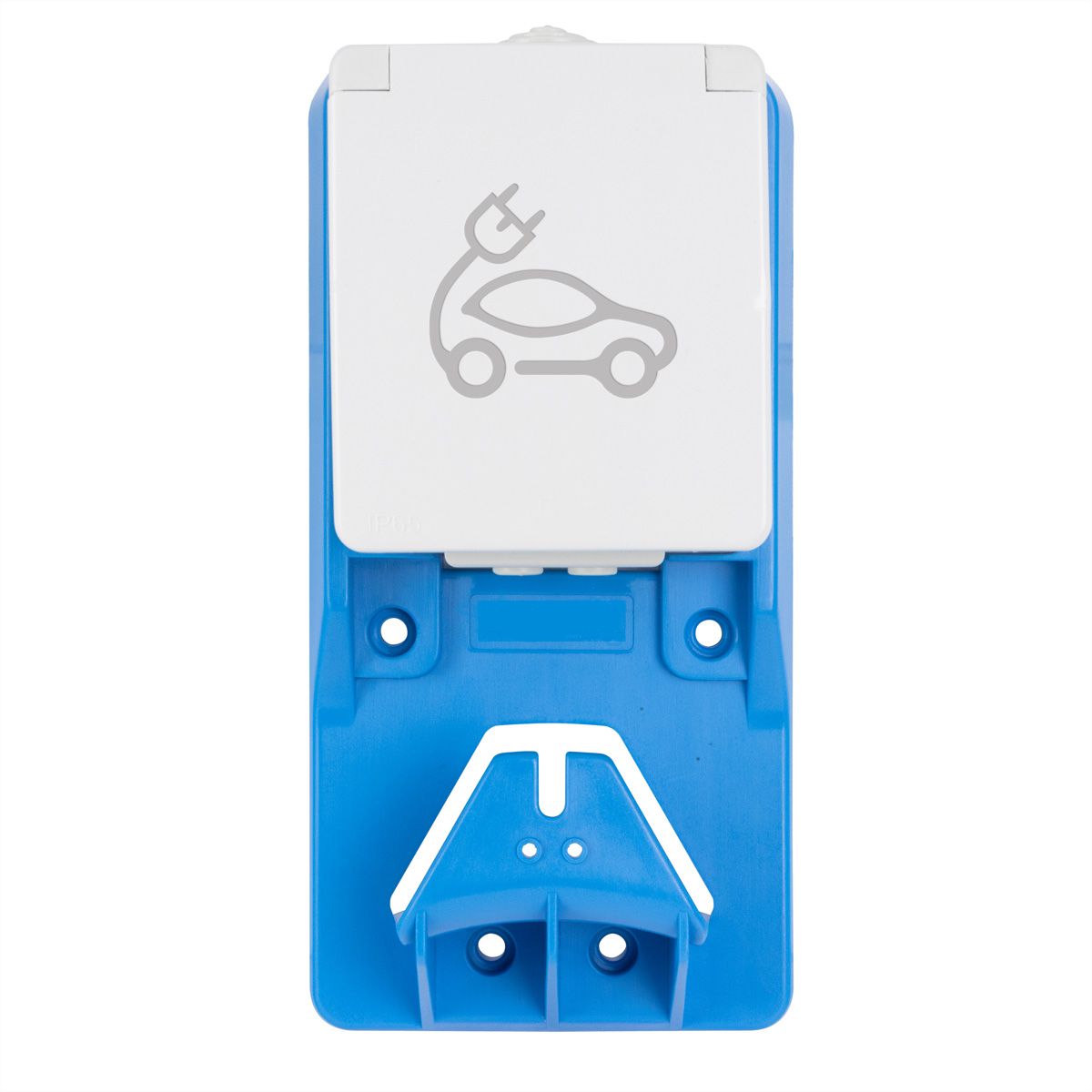

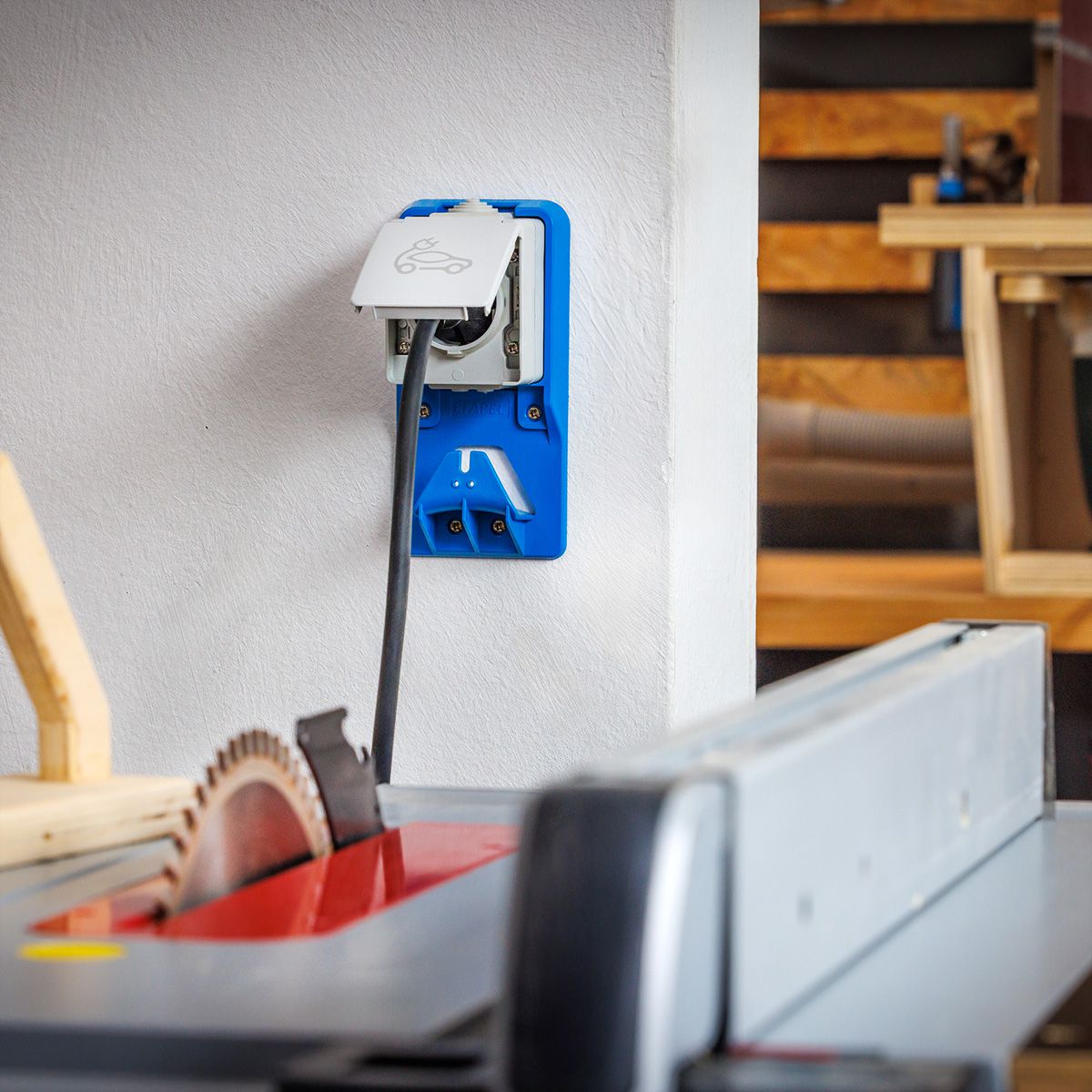

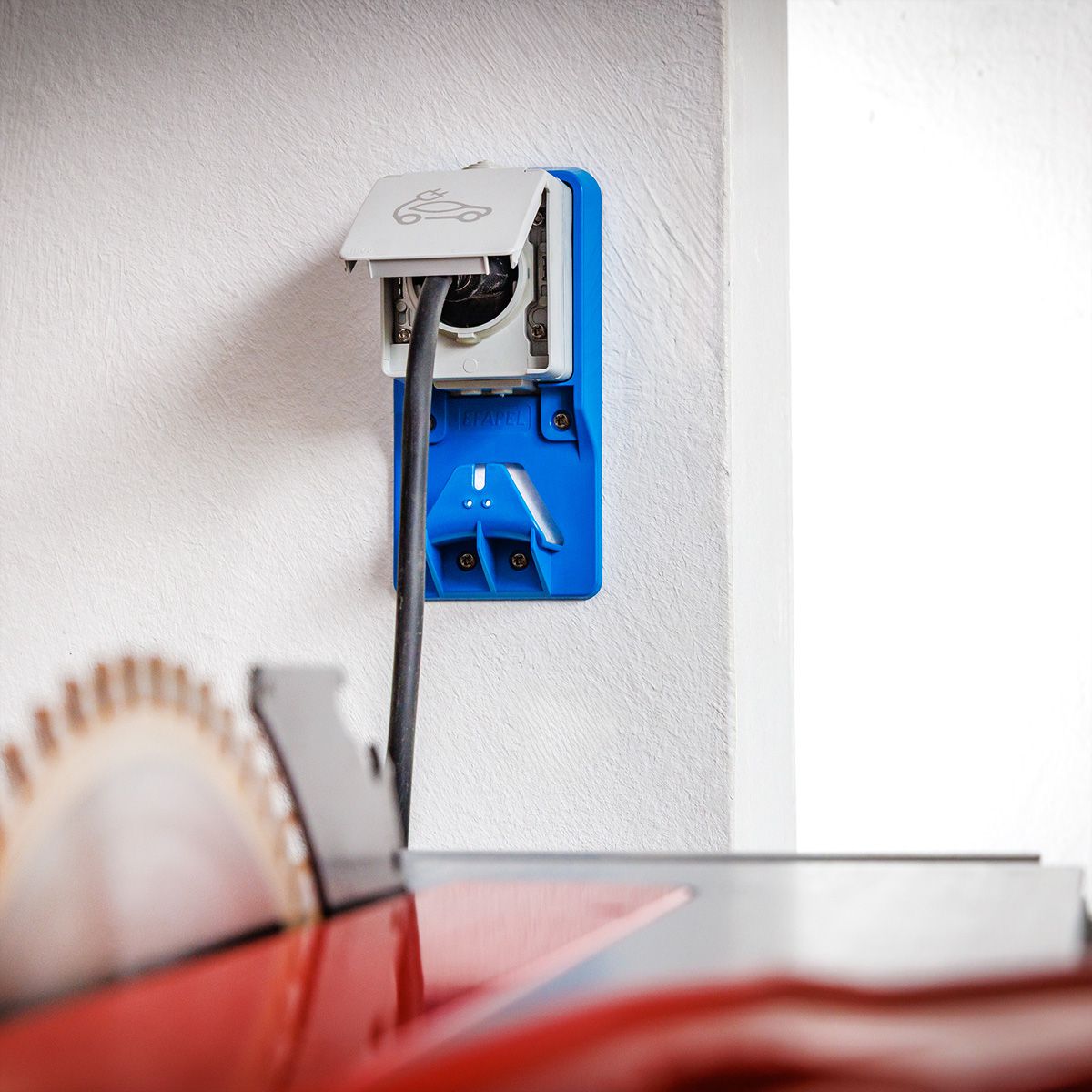

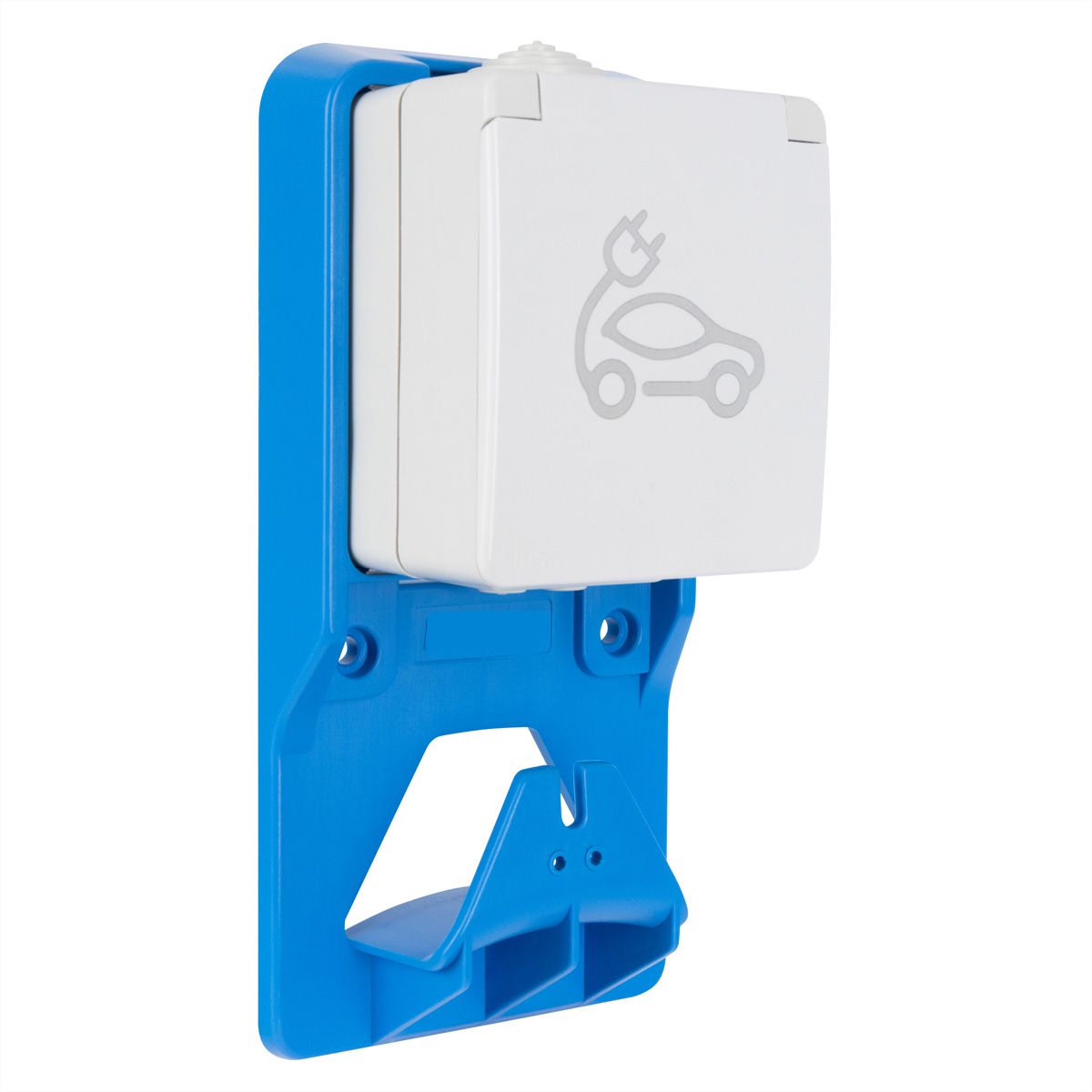

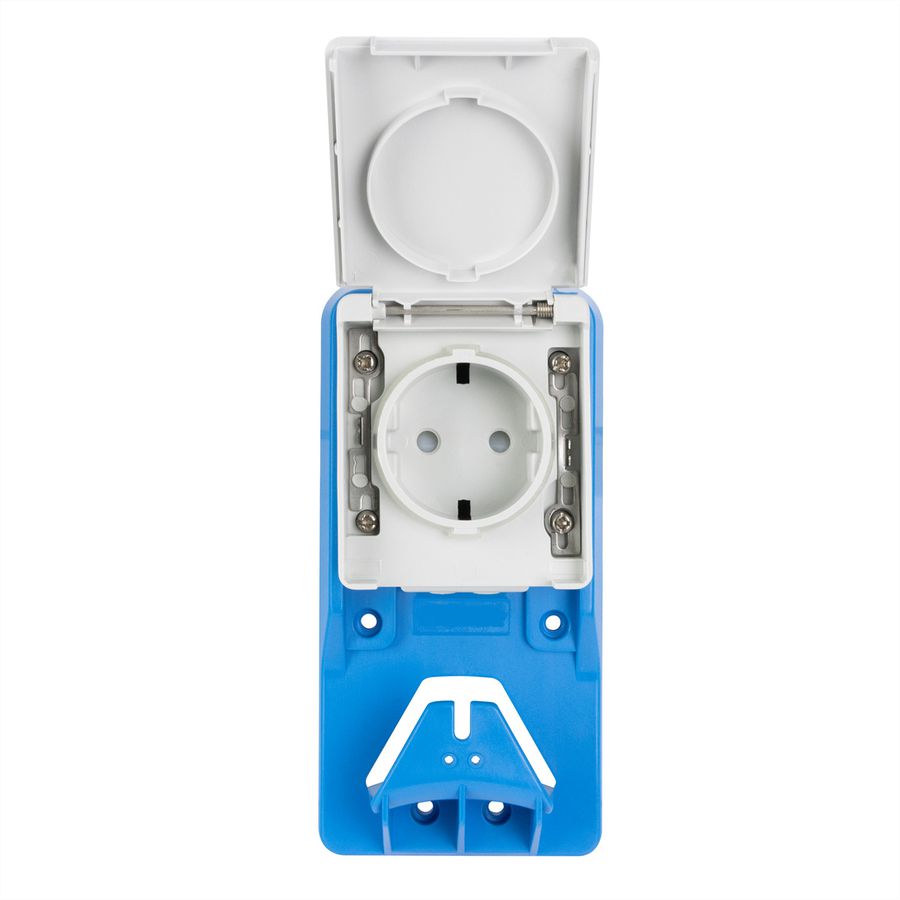

Earthing contact car charging socket surface-mounted

Car charging socket (CEE7/3), Series 9014, 16A, 250V, with improved contacts, with additional protection against accidental contact, allows safe charging in Mod1 or Mod2, screw contacts IK08, incl. cable suspension, Surface-mounted version, IP65, Socket light grey similar to RAL 7035, Cable suspension sky blue similar to RAL 5015

Specifications

Manufacturer	BACHMANN
Product group	Power supply
Product type	Socket for electric vehicle charging
Colour	multicolored
Number of socket pots	1
Socket type	3P. German, CEE 7/3, Type-F
Protection class (IP Code)	IP65
With enhanced contact protection	yes
Regional use	Germany, Austria, Netherlands
Weight	210 g
Height of packaging (single piece)	60 mm
Width of packaging (single piece)	100 mm
Depth of packaging (single piece)	200 mm
Package weight (single piece)	0.203 kg

Downloads

Manufacturer data sheet - English (160.5 KB)

Download

Technical drawing - English (160.5 KB)

Download
