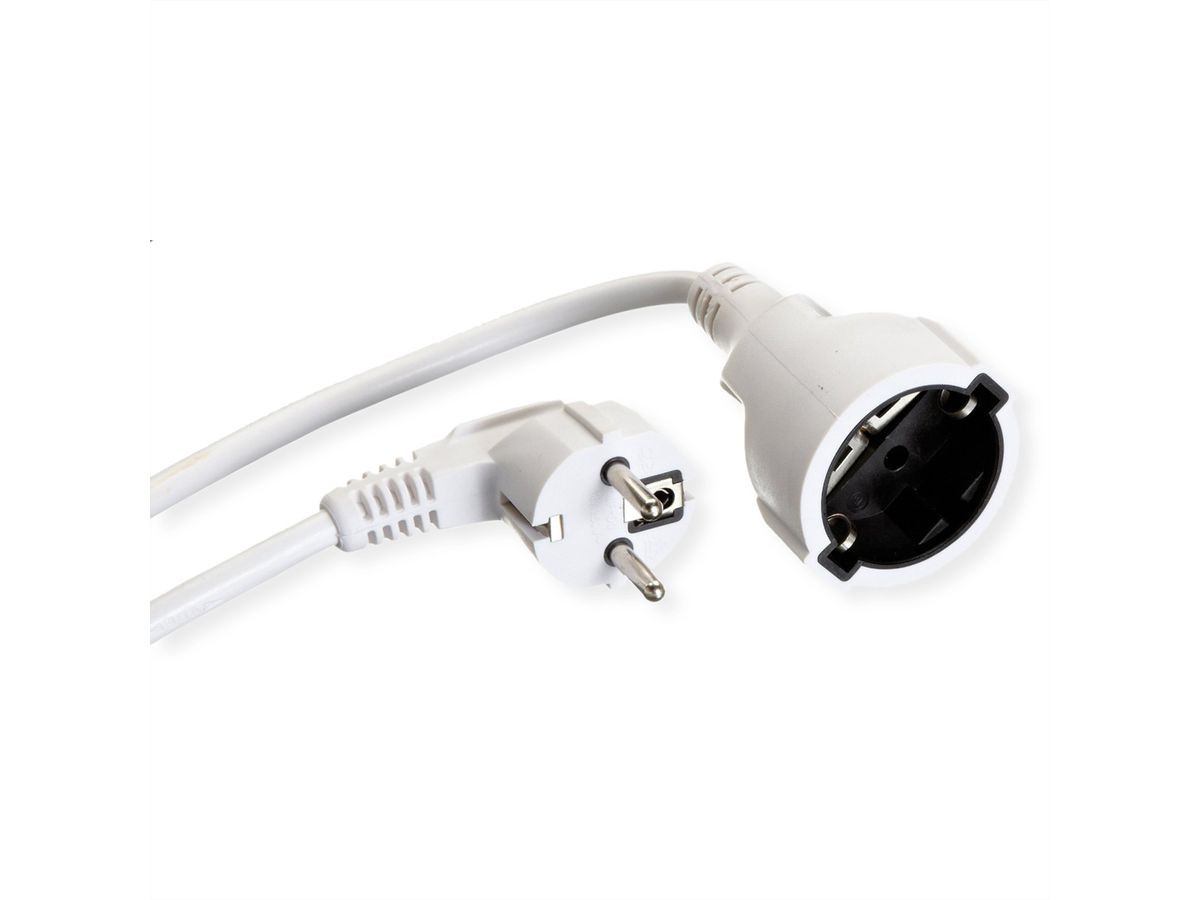

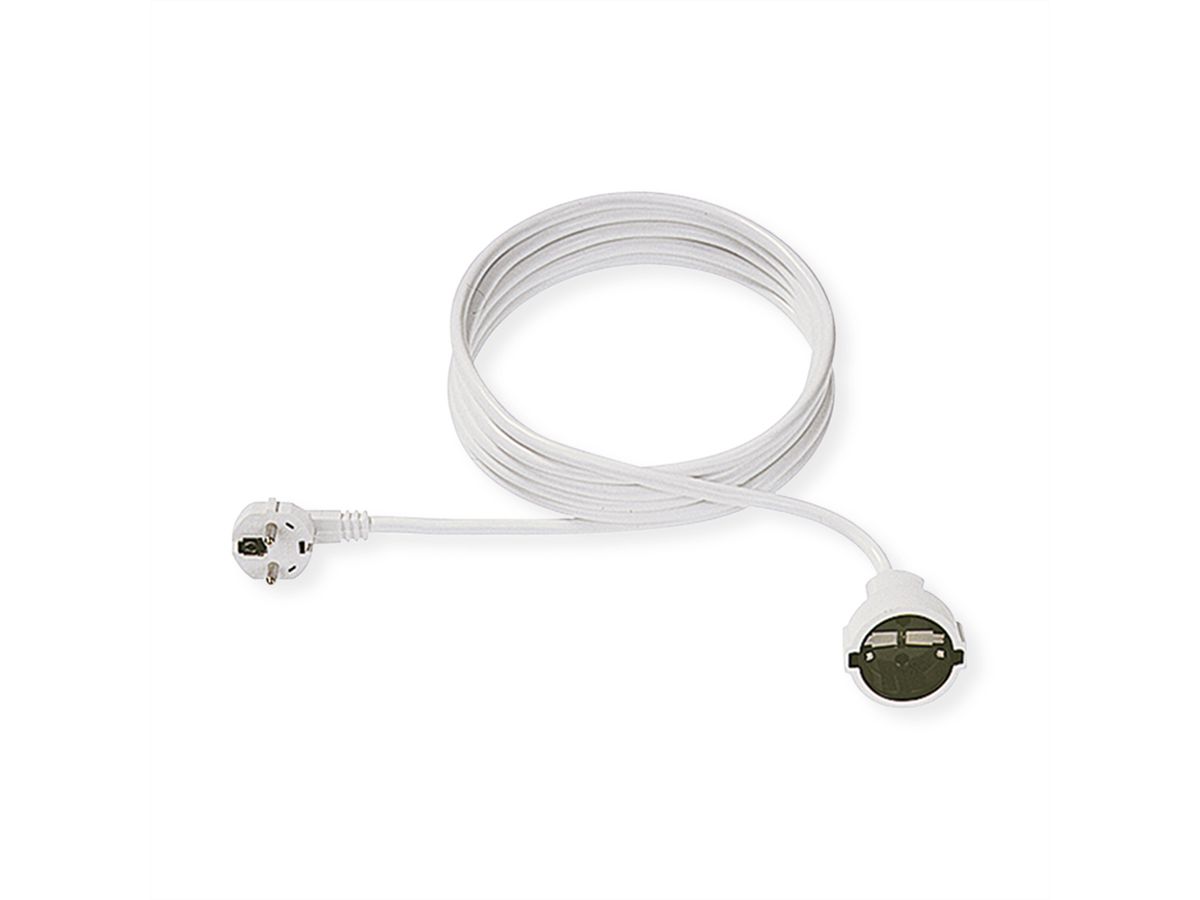

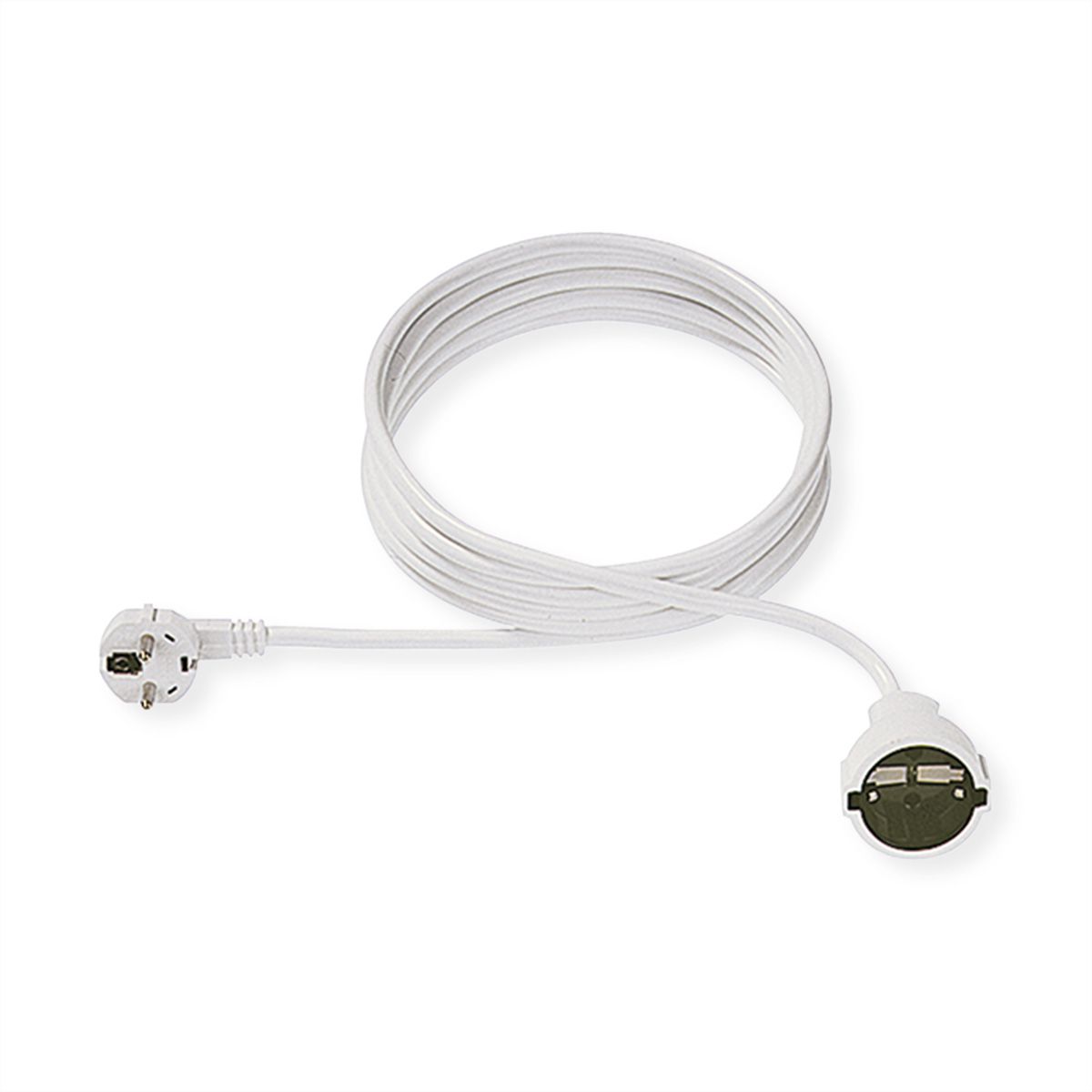

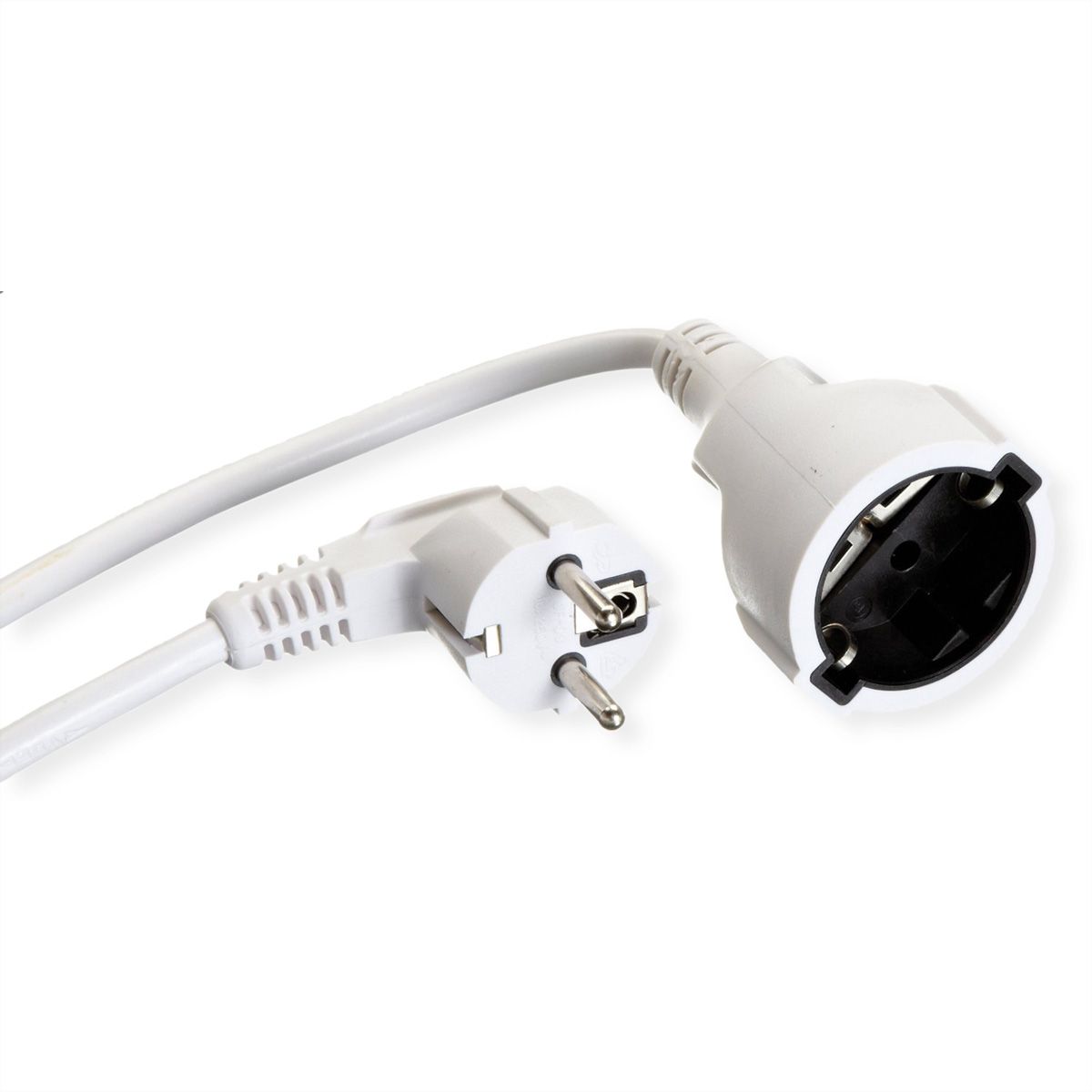

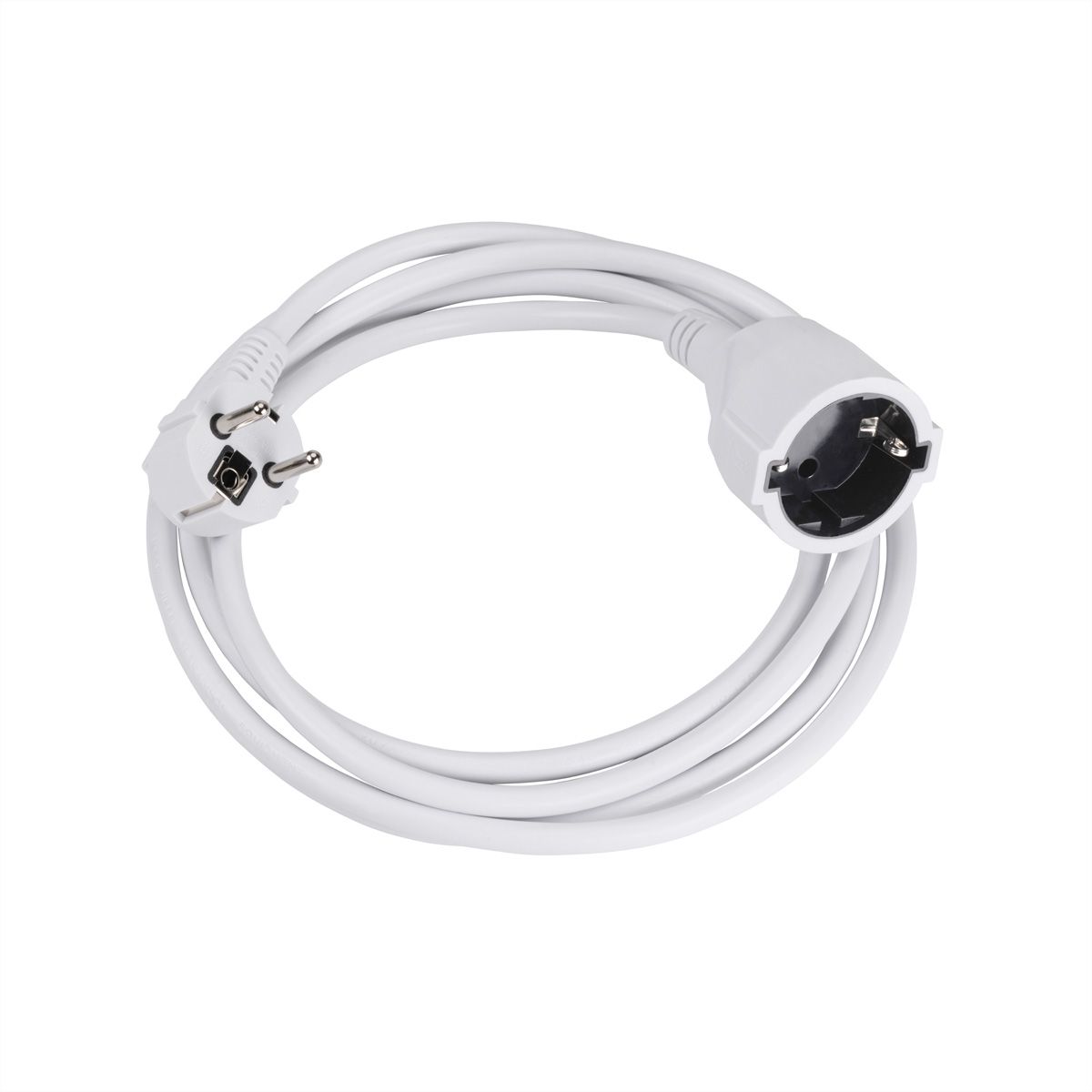

BACHMANN earthing contact extension cable, 230VAC, white, 7.5 m

Item no. 19071688 Brand / Manufacturer BACHMANN Manuf. item no. 341.288 EAN 4016514003037 Item weight 0.818 kg

Colour:

Length:

BACHMANN earthing contact extension cable, 230VAC, white, 7.5 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

AC power extension cable - Extension cable with earthing contact plug and coupling, 16A/230V~

- Connections: Earthing contact, CEE 7/7 plug / earthing contact, CEE 7/7 socket - Supply cable: H05VV-F 3G 1.50mm²

Specifications

Manufacturer: BACHMANN
Product group: Power Cables
Product type: Power Extensions
Colour: white
Length: 7.5 m
Connection ports: 3P. German, CEE 7/7, Type-E/F Male / 3P. German, CEE 7/3, Type-F Female
Max. current: 16 A
Max. voltage: 250V AC
Max. power: 3600W
Cable material: H05VV-F
Conductor cross section (mm²): 1,5
Material identification: H05VV-F
External diameter of cable: 8 mm
Quantity of wires: 3
Side 1 description: Schuko Stecker
Side 1 connector external diameter (mm): 38
Side 2 description: Schuko Buchse
Side 2 connector external diameter (mm): 52
Side 1 Connector Type: 3P. German, CEE 7/7, Type-E/F
Side 1 Connector Gender: Male
Side 2 Connector Type: 3P. German, CEE 7/3, Type-F
Side 2 Connector Gender: Female
Regional use: Germany, Austria, Netherlands
Protection class (IP Code): IP20
Operating temperature min.: 5 °C
Operating temperature max.: 35 °C
Height: 55 mm
Width: 200 mm
Depth: 200 mm
Weight: 872 g
Height of packaging (single piece): 40 mm
Width of packaging (single piece): 160 mm
Depth of packaging (single piece): 190 mm
Package weight (single piece): 0.818 kg
