BACHMANN ELEVATOR 1x CEE 7/7 2x Euro, black, 2 m

Item no. 19070399 Brand / Manufacturer BACHMANN Manuf. item no. 928.0037 EAN 4057298117138 Item weight 0.89 kg

BACHMANN ELEVATOR 1x CEE 7/7 2x Euro, black, 2 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

In stock - available for delivery within a few days

Ordered by 2 p.m. - usually shipped the same day

Download PDF

Description

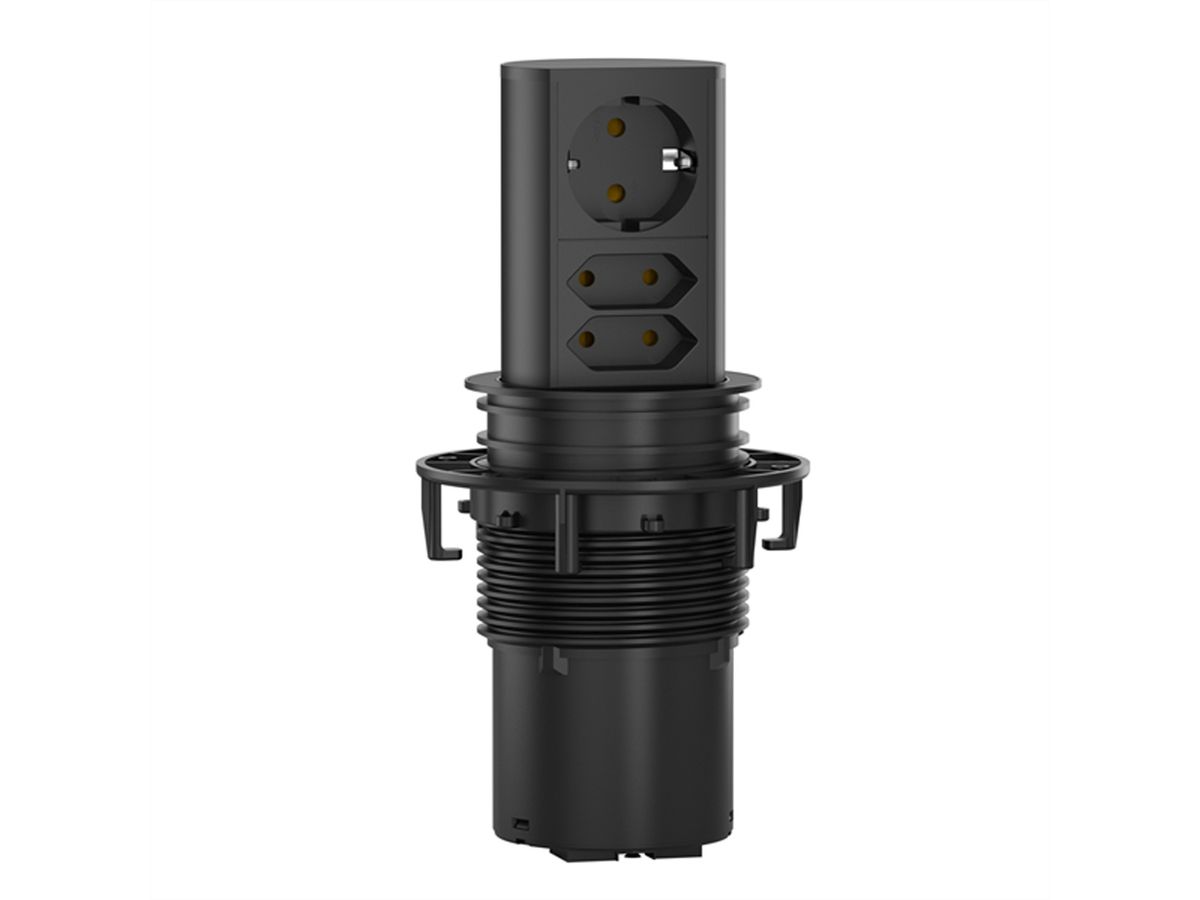

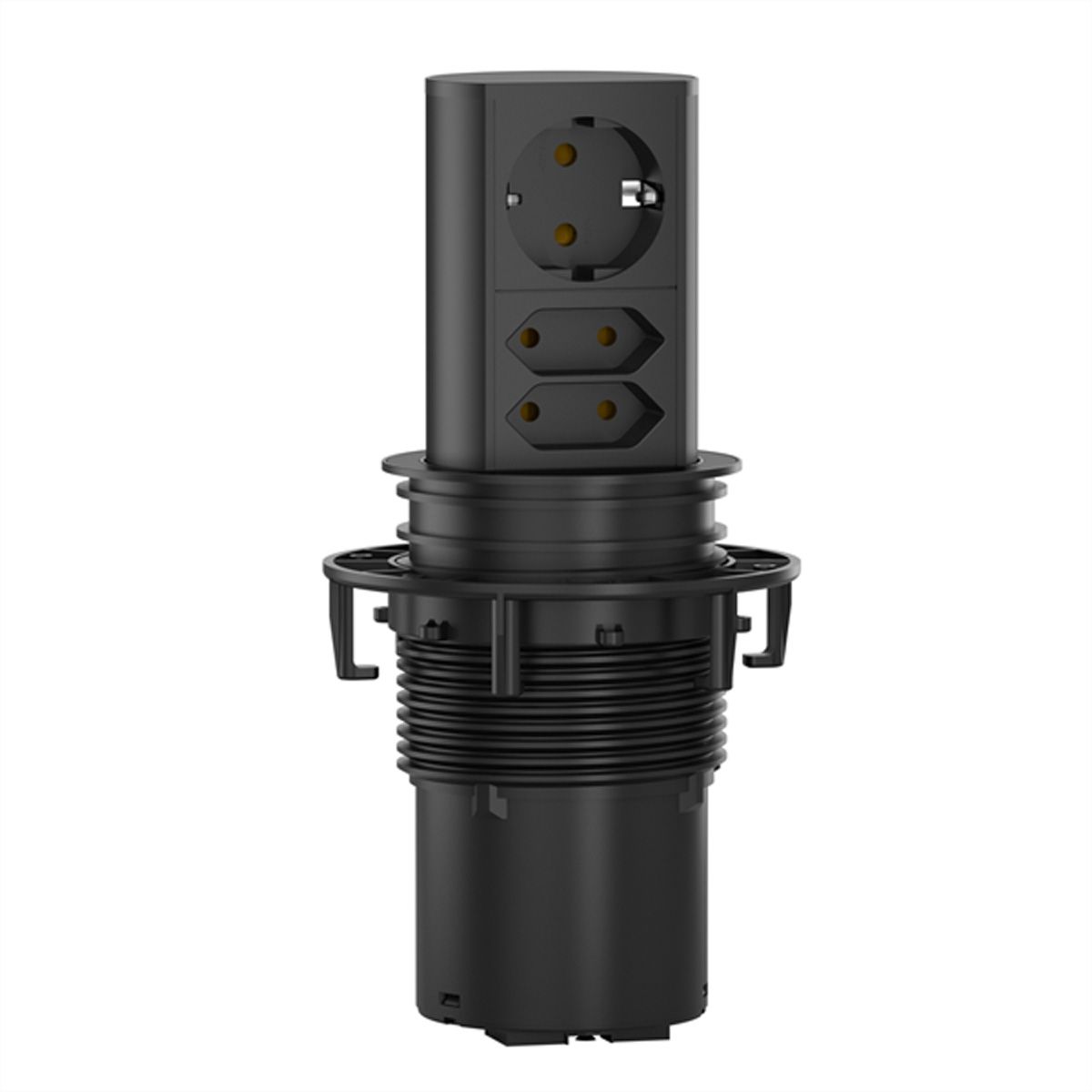

3-way socket tower made of plastic/stainless steel, retractable/extendable at the touch of a finger

- 90° arrangement of the sockets - Power input: 2.0m H05VV-F 3G 1.5mm², wire end ferrules - Earthing contact mounting plug included - Hole cut-out diameter 79mm - Lift height 96mm - 16 - 40mm panel thickness

Specifications

Manufacturer: BACHMANN
Product group: Power Bars
Product type: Integrated unit ELEVATOR
Colour: black
Length: 2 m
Scope of delivery: Socket tower, table mounting, earthing contact mounting plug
Function: Steckdosenleiste mit Schalter, Surgeprotect
Mounting form: Tower
Max. capacitance: 3600W
Max. voltage: 250V
ON/OFF Switch: yes
Number of socket pots: 3
Quantity of outputs/angles: 9 / 45°
Socket type: Euro Plug, 2.5A, CEE 7/16, Type-C

3P. German, CEE 7/3, Type-F
Material (casing): Aluminium / Kunststoff
Connection cable: 1,5m Ho5VV-f3G 1,5 mm², schwarz
Colour (Cable): black
Connector plug: Schuko
Plug type: 3P. German, CEE 7/7, Type-E/F
Regional use: Germany, Austria, Netherlands
Mains connection: Protective contact plug, Type-E/F
Height: 160 mm
Width: 215 mm
Depth: 230 mm
Weight: 909 g
Height of packaging (single piece): 210 mm
Width of packaging (single piece): 160 mm
Depth of packaging (single piece): 180 mm
Package weight (single piece): 0.89 kg
Switch type: 2 polig , beleuchtet
Output alignment: 3 Reihen

Downloads

Manufacturer data sheet - English (161.0 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
