BACHMANN ELEVATOR 2x earthing contact, silver

Item no. 19071330 Brand / Manufacturer BACHMANN Manuf. item no. 928.002 EAN 4016514066957 Item weight 0.852 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

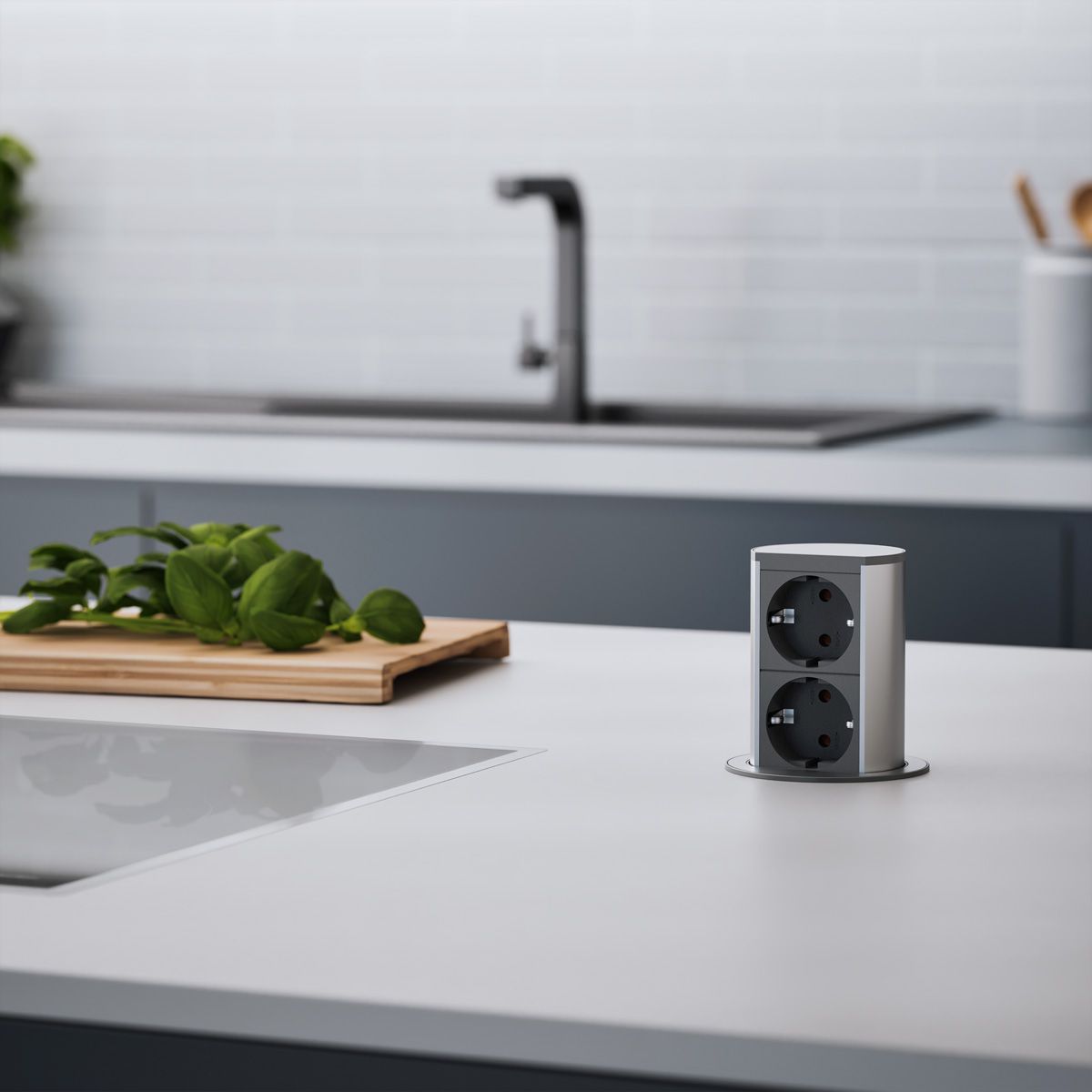

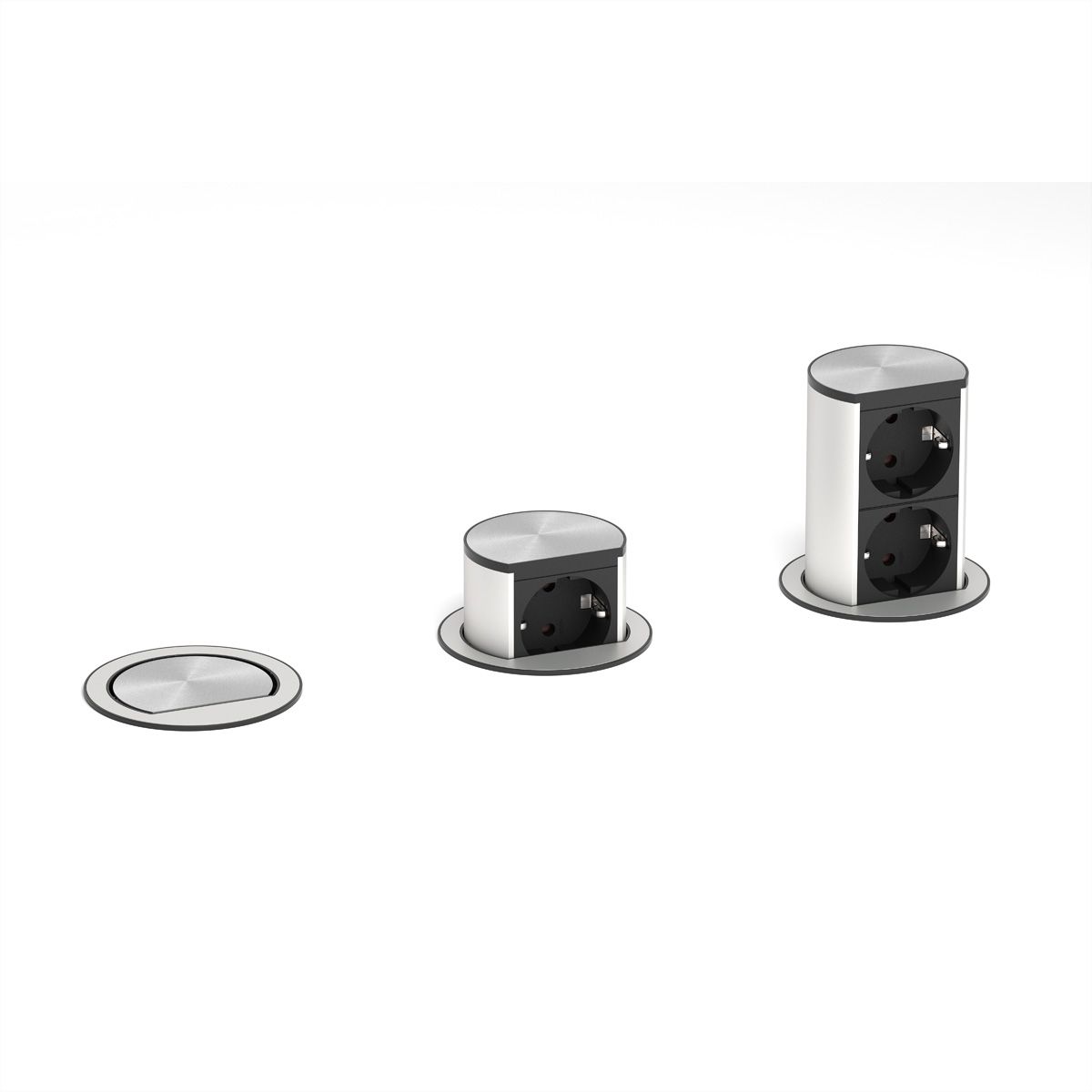

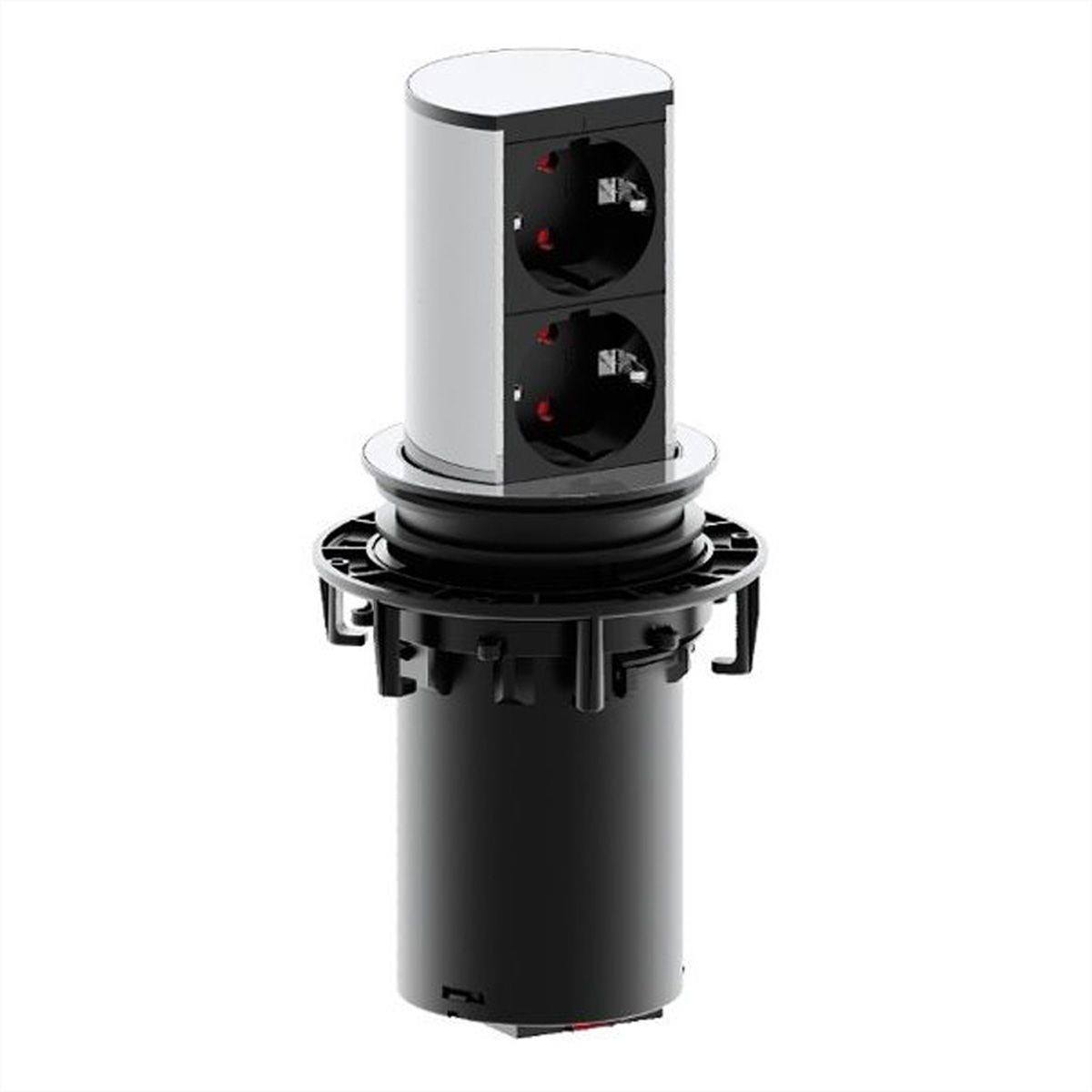

2-way socket tower made of plastic/stainless steel, can be retracted/extended at the touch of a finger

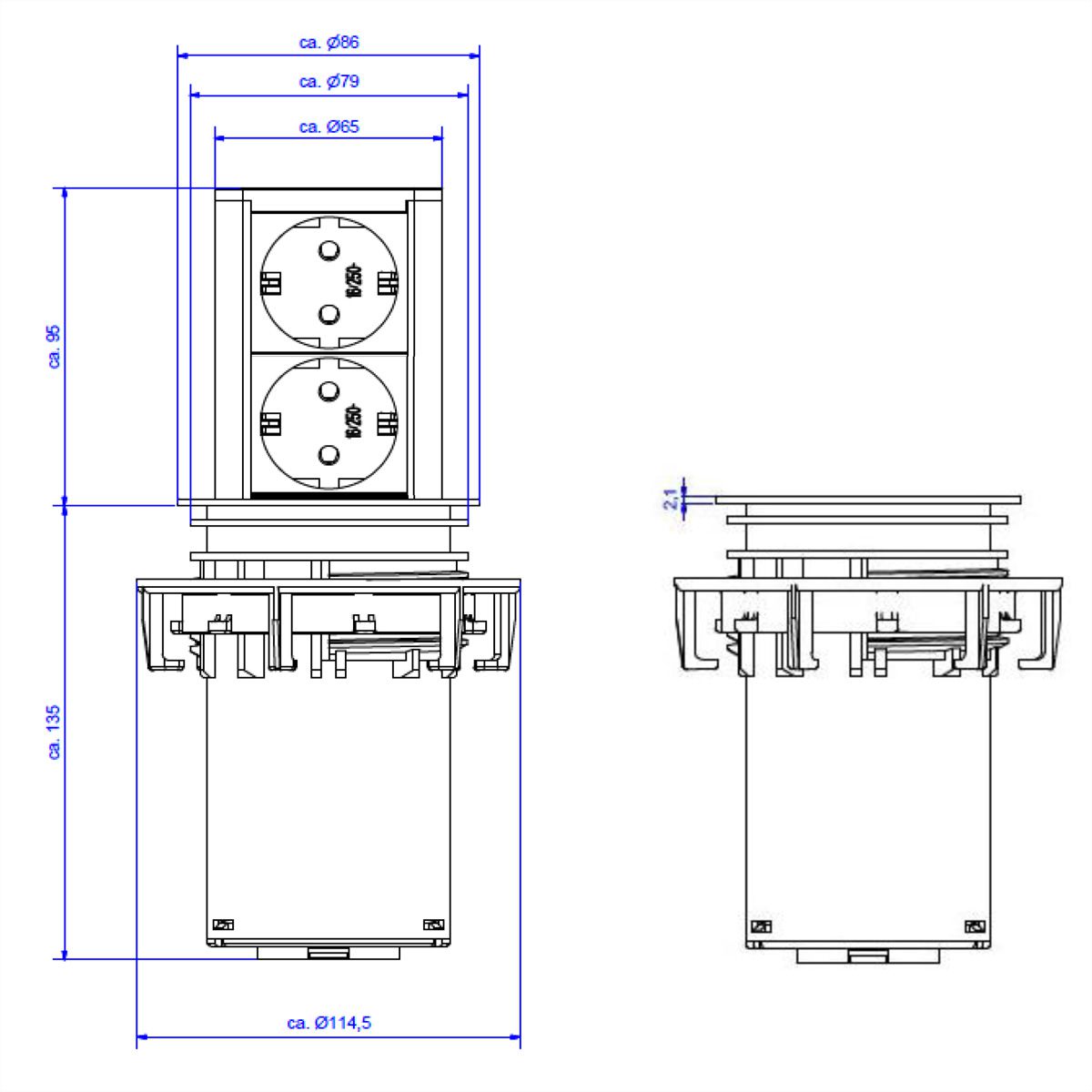

- 90° arrangement of the sockets - Power input: 2.0m H05VV-F 3G 1.5mm², wire end ferrules - Earthing contact mounting plug included - Hole cut-out diameter 79mm - Lift height 96mm - 16 - 40mm panel thickness

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Integrated unit ELEVATOR
Colour
silver
Length
2 m
Scope of delivery

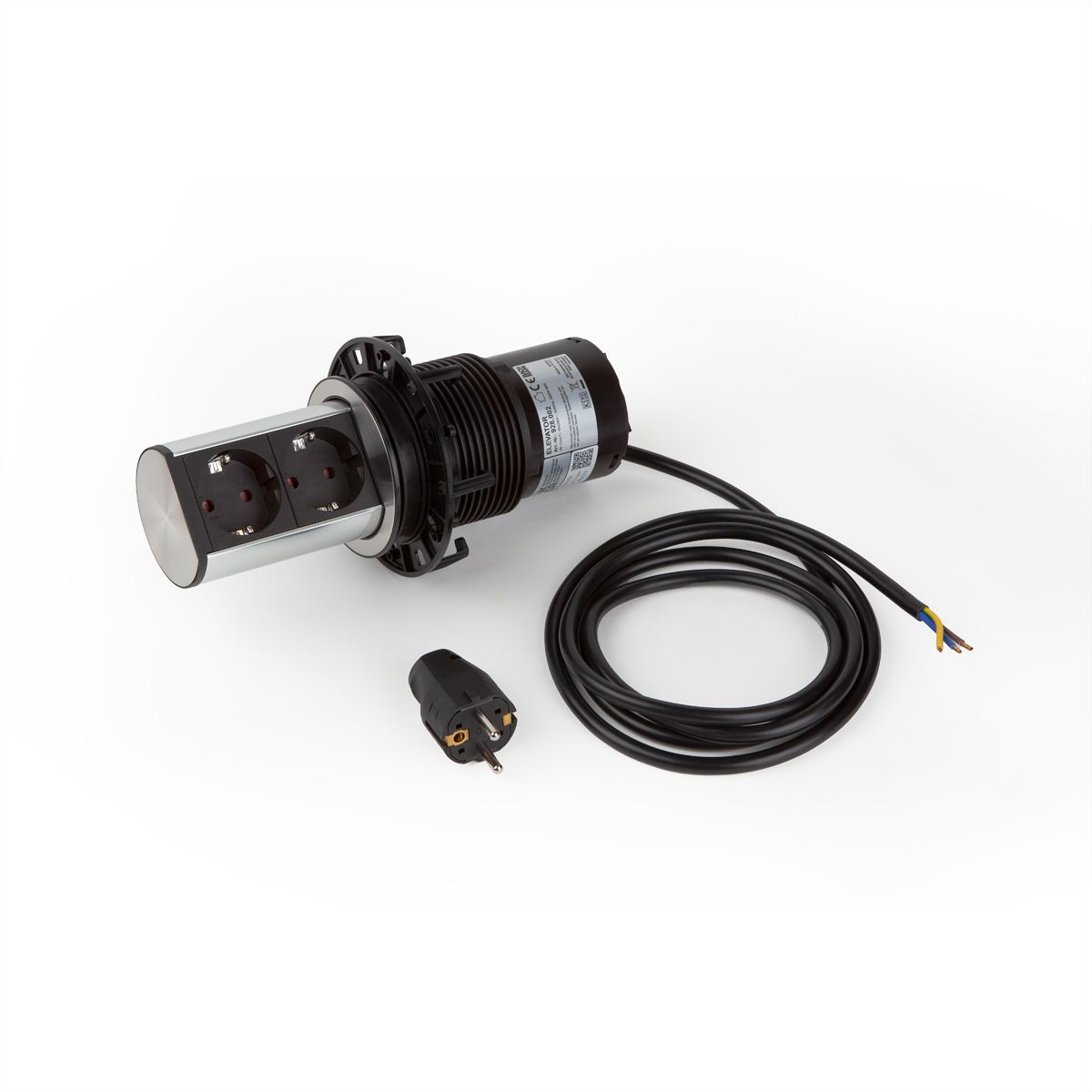

Socket tower, table mounting, earthing contact mounting plug
Function
Steckdosenleiste mit Schalter, Surgeprotect
Mounting form
Tower
Max. capacitance
3600W
Max. voltage
250V
ON/OFF Switch
yes
Number of socket pots
2
Quantity of outputs/angles
9 / 45°
Material (casing)
Aluminium / Kunststoff
Colour (Design profile)
Aluminium / schwarz
Connection cable
1,5m Ho5VV-f3G 1,5 mm², schwarz
Colour (Cable)
black
Connector plug
Schuko
Plug type
3P. German, CEE 7/7, Type-E/F
Regional use
Germany, Austria, Netherlands
Mains connection
Protective contact plug, Type-E/F
Height
160 mm
Width
215 mm
Depth
230 mm
Weight
909 g
Height of packaging (single piece)
150 mm
Width of packaging (single piece)
210 mm
Depth of packaging (single piece)
170 mm
Package weight (single piece)
0.852 kg
Switch type
2 polig , beleuchtet
Output alignment
3 Reihen

Downloads

Manufacturer data sheet - English (201.3 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
