BACHMANN ELEVATOR2 1xCEE7/3 2xEuro, RAL9005 0.5m ISV

Item no. 19077196 Brand / Manufacturer BACHMANN Manuf. item no. BM0020504 EAN 4057298226663 Item weight 0.792 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

ELEVATOR 2 1xCEE7/3 2xEuro RAL9005 0,5m ISV

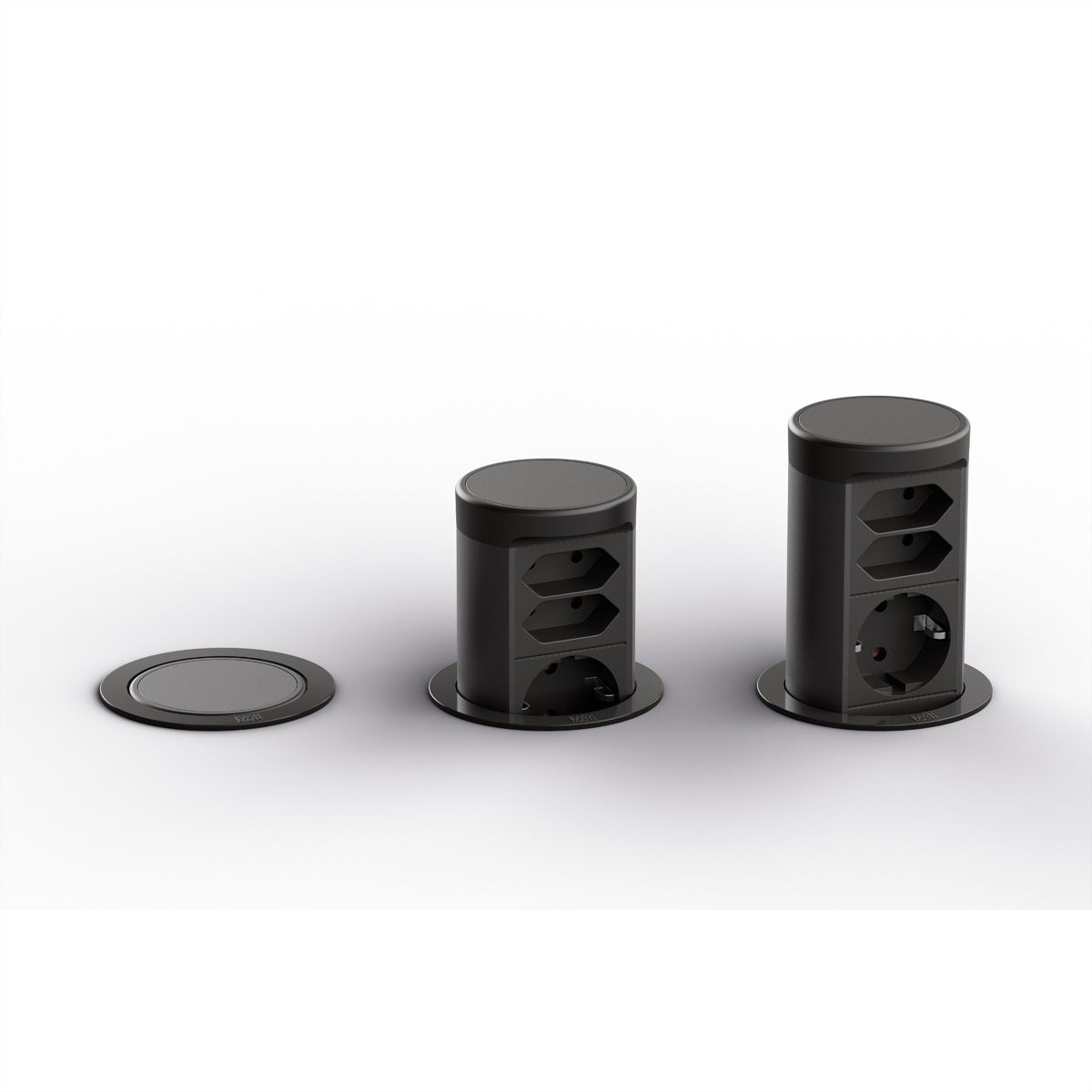

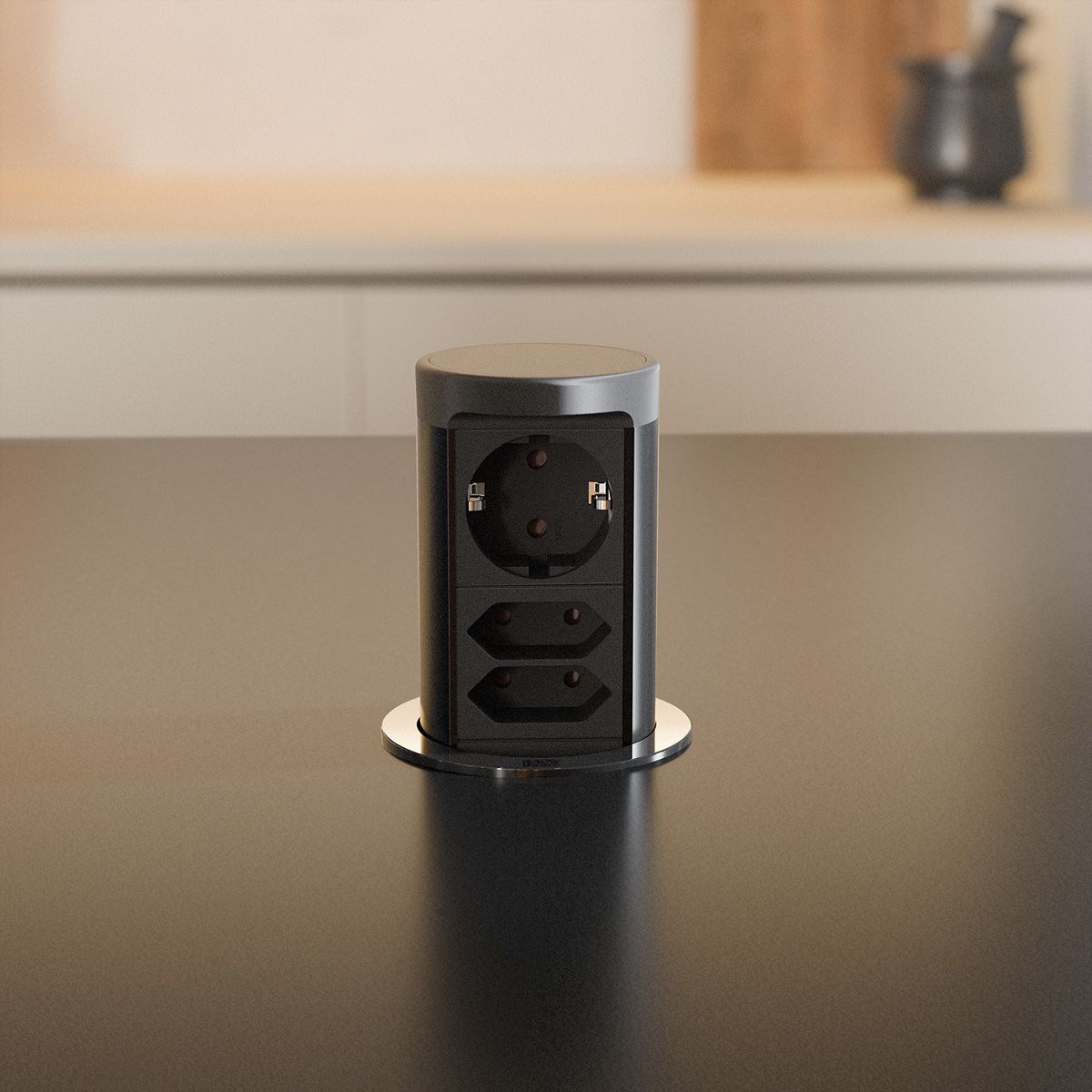

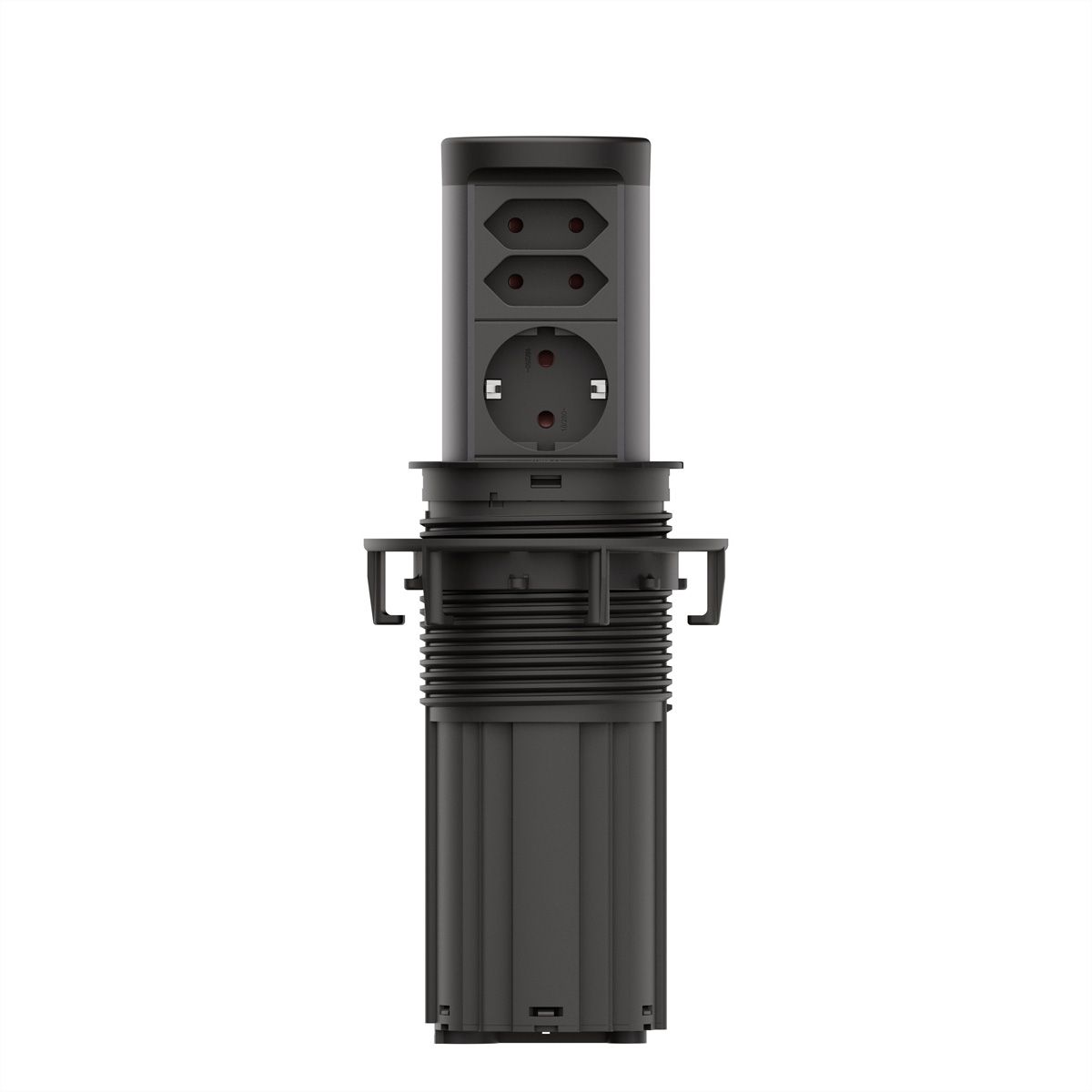

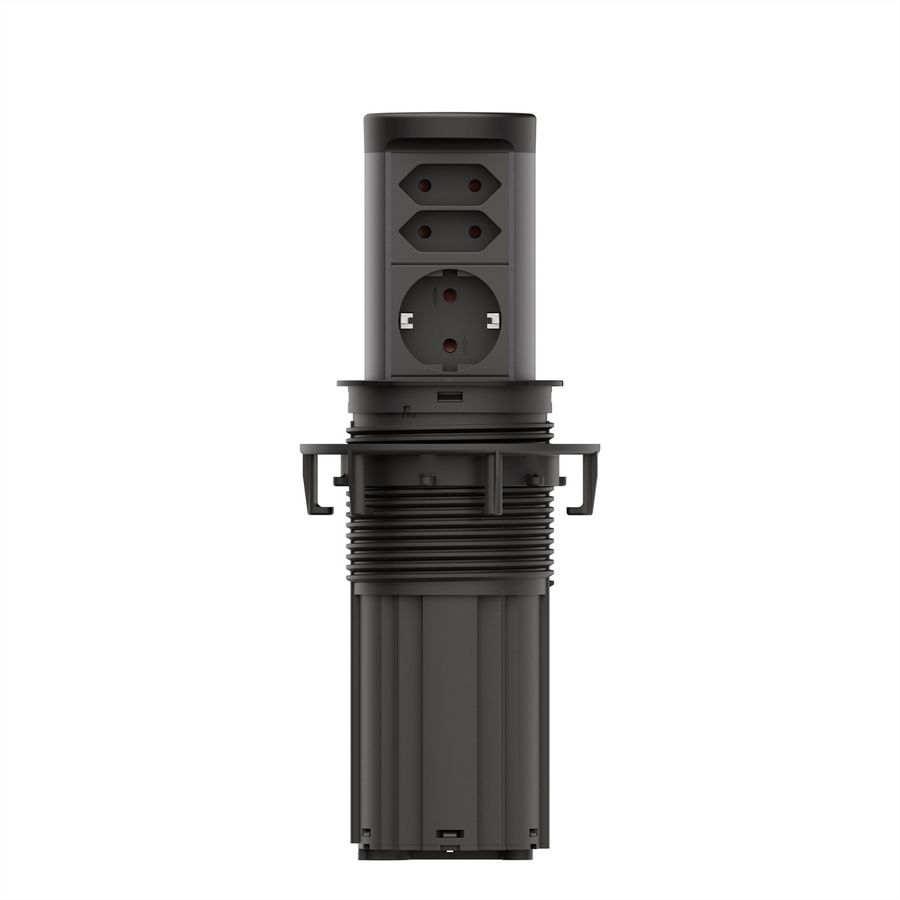

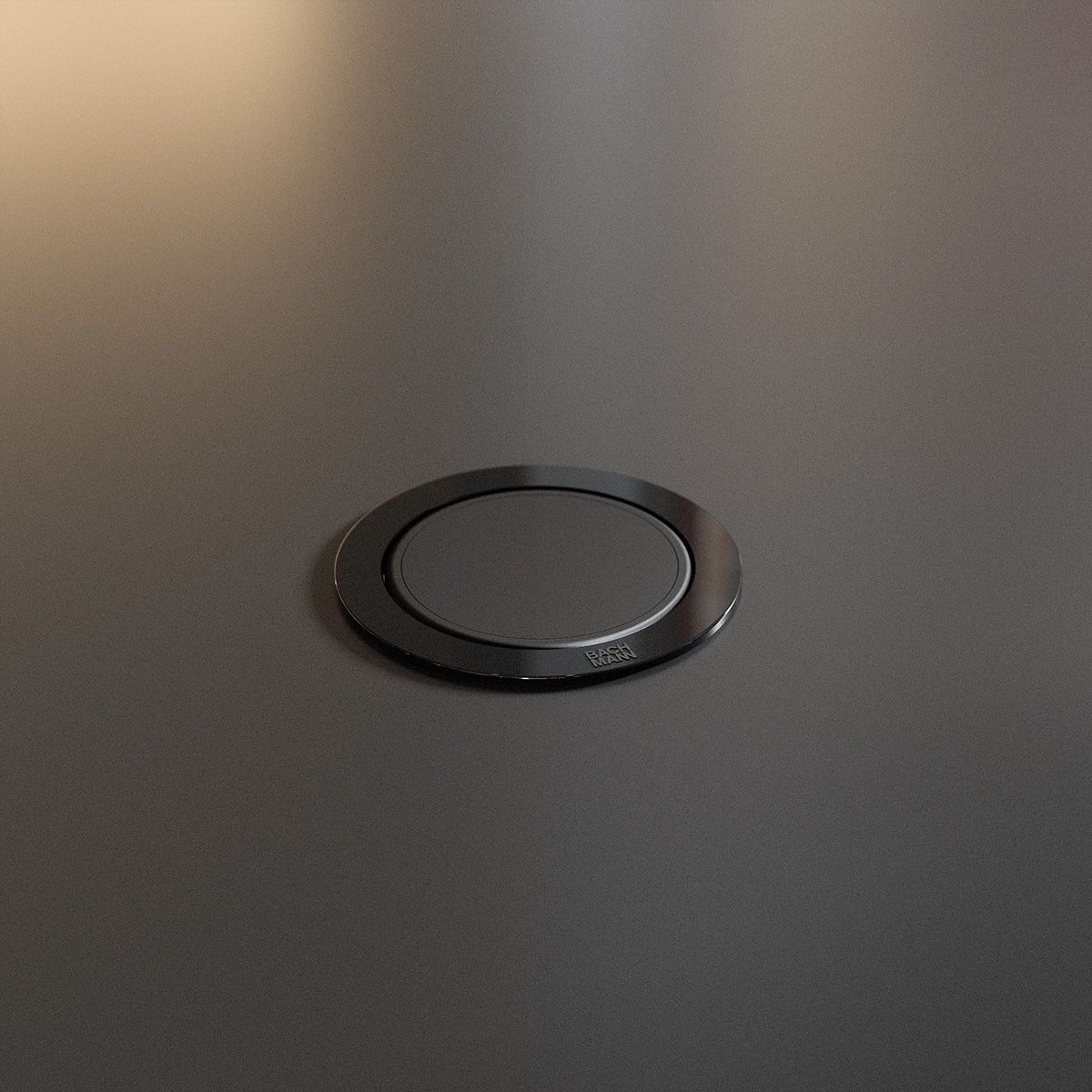

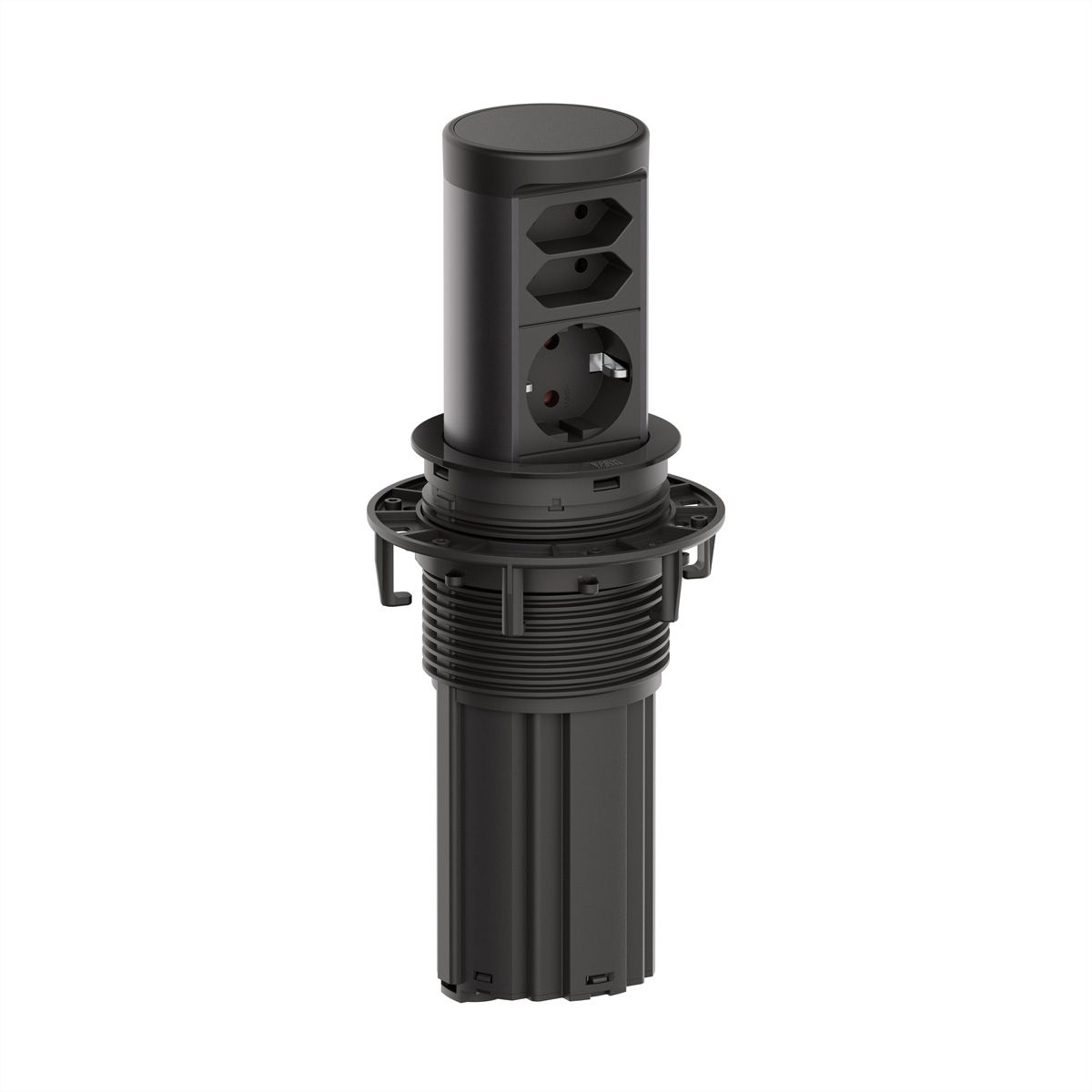

ELEVATOR 2, Ascendable power distribution unit, black matt similar to RAL9005, 1xCEE7/3 socket black, with shutter, 2x Euro sockets black, supply cable 0,5m H05VV-F3G1,5mm² black, with building installation plug black, packed in carton.

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Integrated unit ELEVATOR
Colour
black
Length
0.5 m
Number of socket pots
3
Socket type
  • 3P. German, CEE 7/3, Type-F
  • Euro Plug, 2.5A, CEE 7/16, Type-C
Plug type
Wieland GST18
Protection class (IP Code)
IP44
With enhanced contact protection
yes
Regional use
Germany, Austria, Netherlands
RAL colour
RAL 9005 Jet black
Height
283 mm
Width
114 mm
Depth
114 mm
Weight
780 g
Height of packaging (single piece)
220 mm
Width of packaging (single piece)
160 mm
Depth of packaging (single piece)
170 mm
Package weight (single piece)
0.792 kg

Downloads

Manufacturer data sheet - English (125.4 KB) User manual - Deutsch - English - Français - Italiano - Español (514.8 KB) Technical drawing - English (159.1 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
