BACHMANN ELEVATOR2 1xP40, 1xUSB C/C 45W RAL9005 0.5m ISV

Item no. 19077206 Brand / Manufacturer BACHMANN Manuf. item no. BM0020582 EAN 4057298226731
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/28/2026
Download PDF

Description

ELEVATOR 2 1xP40 1xUSB C/C 45W RAL9005 0,5m ISV

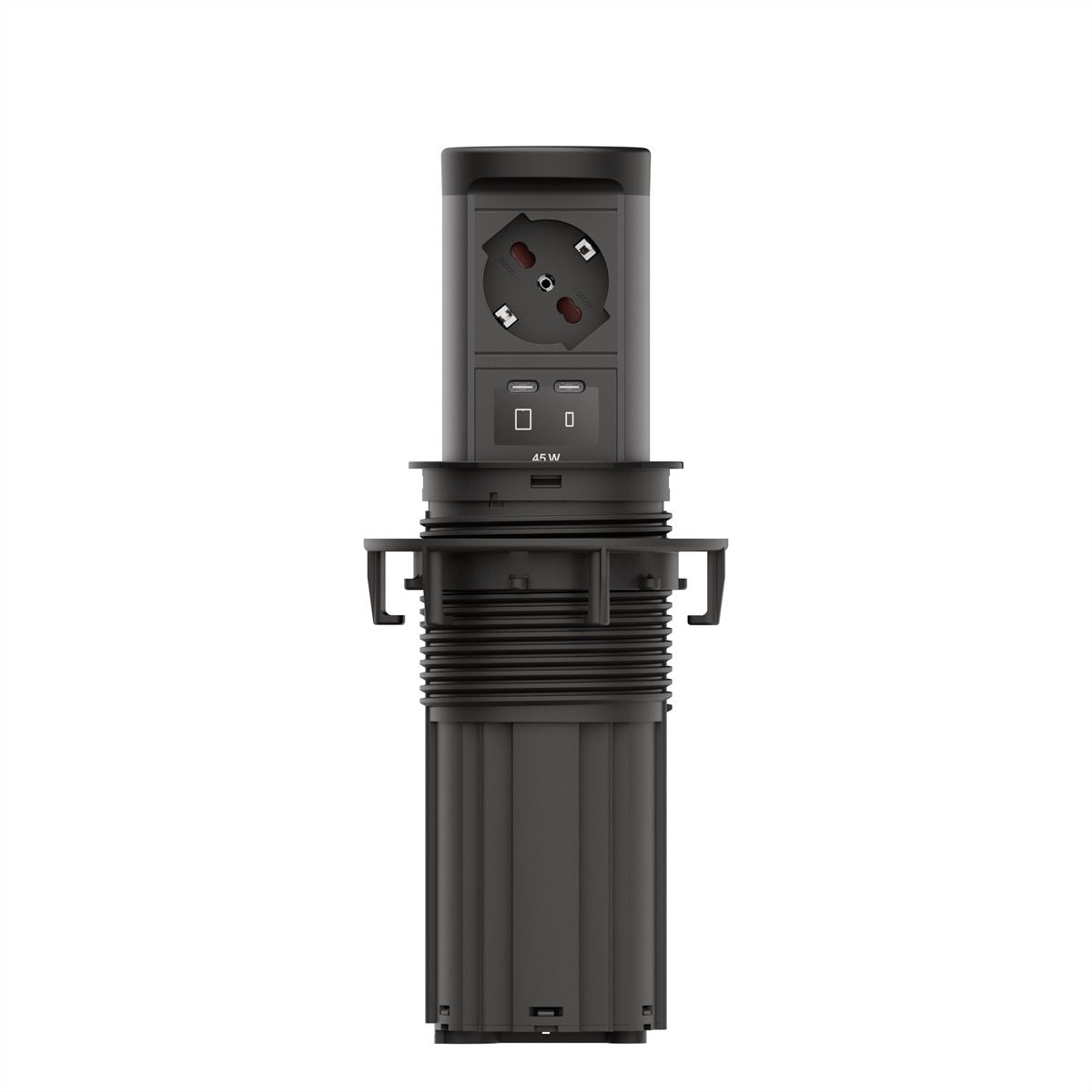

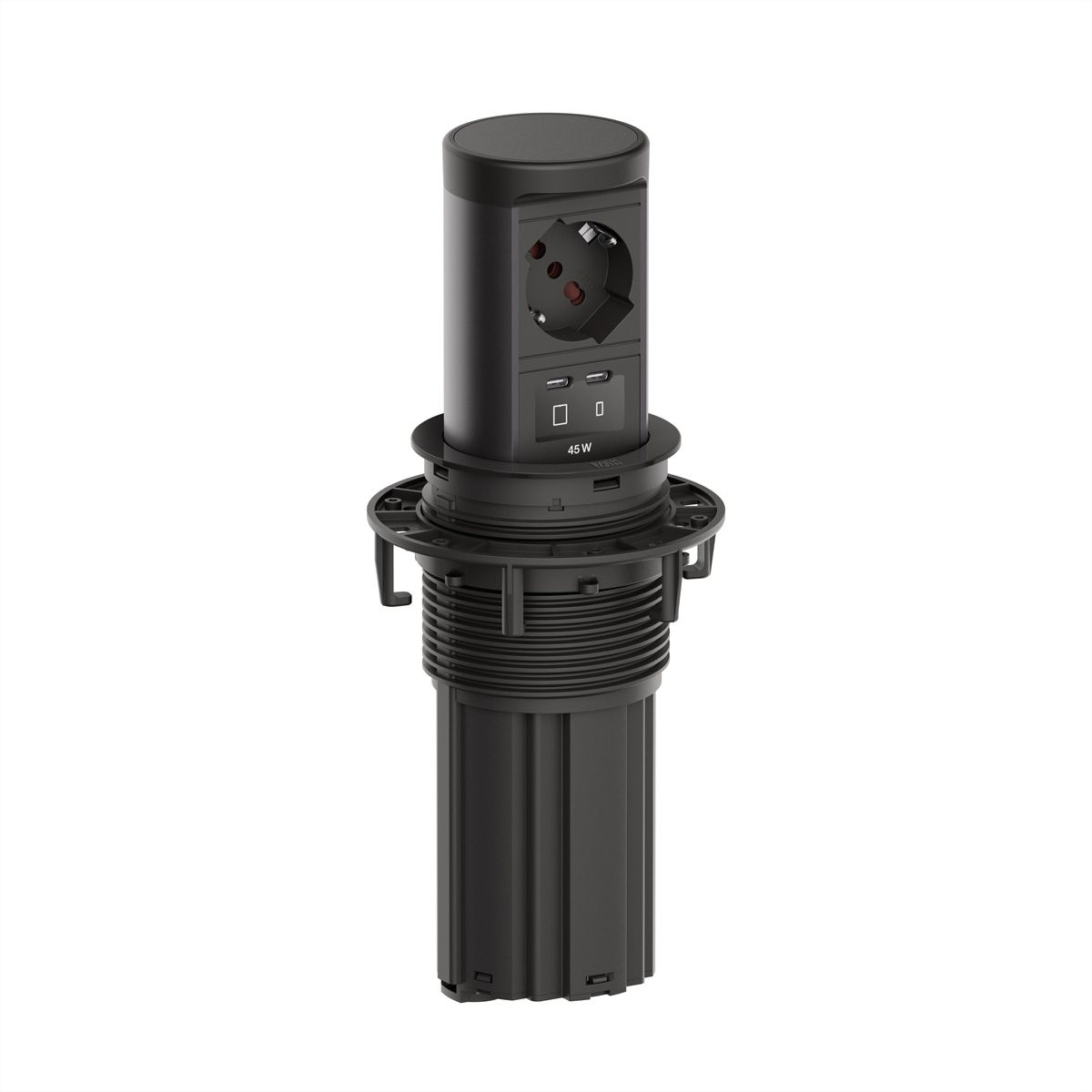

ELEVATOR 2, Ascendable power distribution unit, black matt similar to RAL9005, 1xP40 Italy socket black black, with shutter, 1xUSB C/C 45W Charger, supply cable 0,5m H05VV-F3G1,5mm² black, with building installation plug black, packed in carton.

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Integrated unit ELEVATOR
Colour
black
Length
0.5 m
Number of socket pots
1
Socket type
P40, CEI 23-50, Type-L
USB Charger
yes
Number of USB connections
2
Plug type
Wieland GST18
Protection class (IP Code)
IP44
With enhanced contact protection
yes
Regional use
Italy, San Marino, Vatican City, Albania
RAL colour
RAL 9005 Jet black
Height
283 mm
Width
114 mm
Depth
114 mm
Weight
780 g
Height of packaging (single piece)
0 mm
Width of packaging (single piece)
0 mm
Depth of packaging (single piece)
0 mm
Package weight (single piece)
0 kg

Downloads

Manufacturer data sheet - English (147.3 KB) User manual - Deutsch - English - Français - Italiano - Español (514.8 KB) Technical drawing - English (178.1 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
