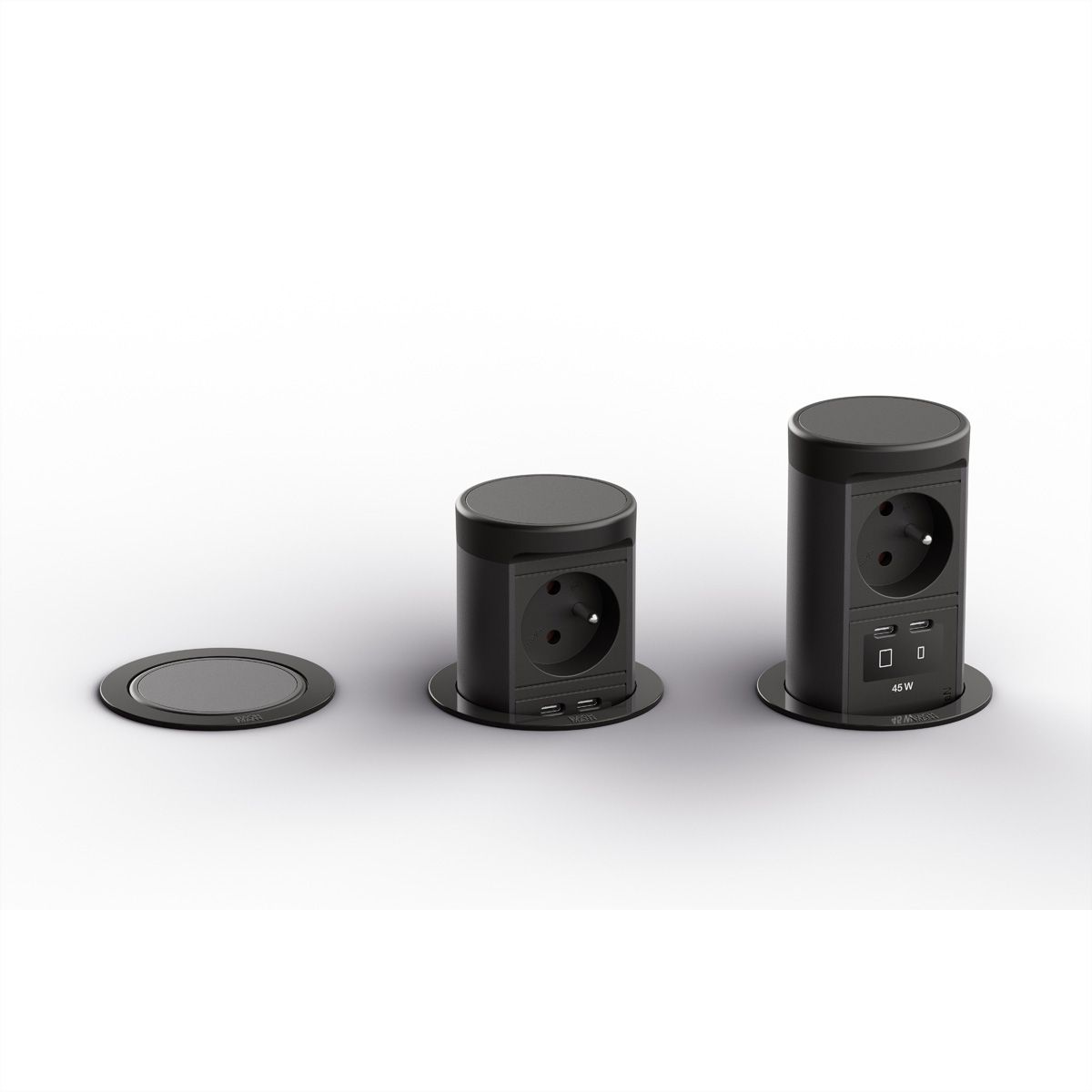

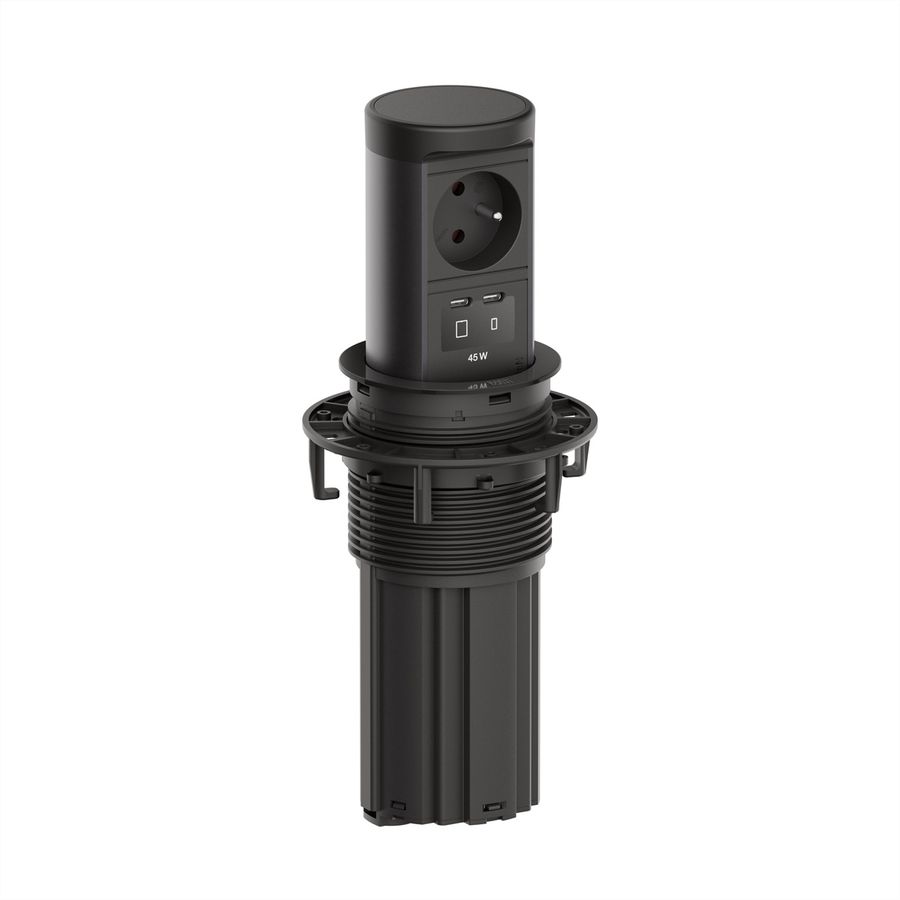

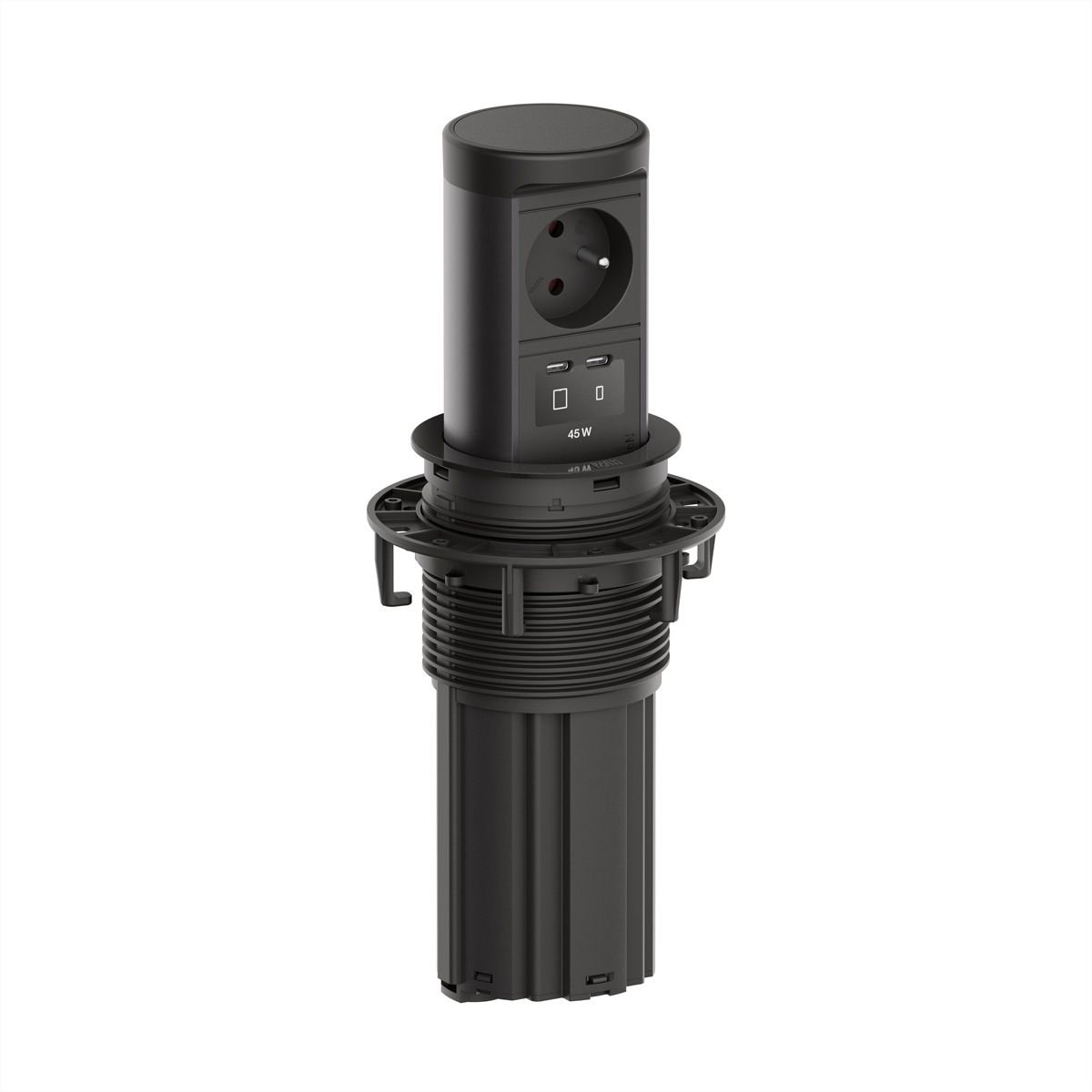

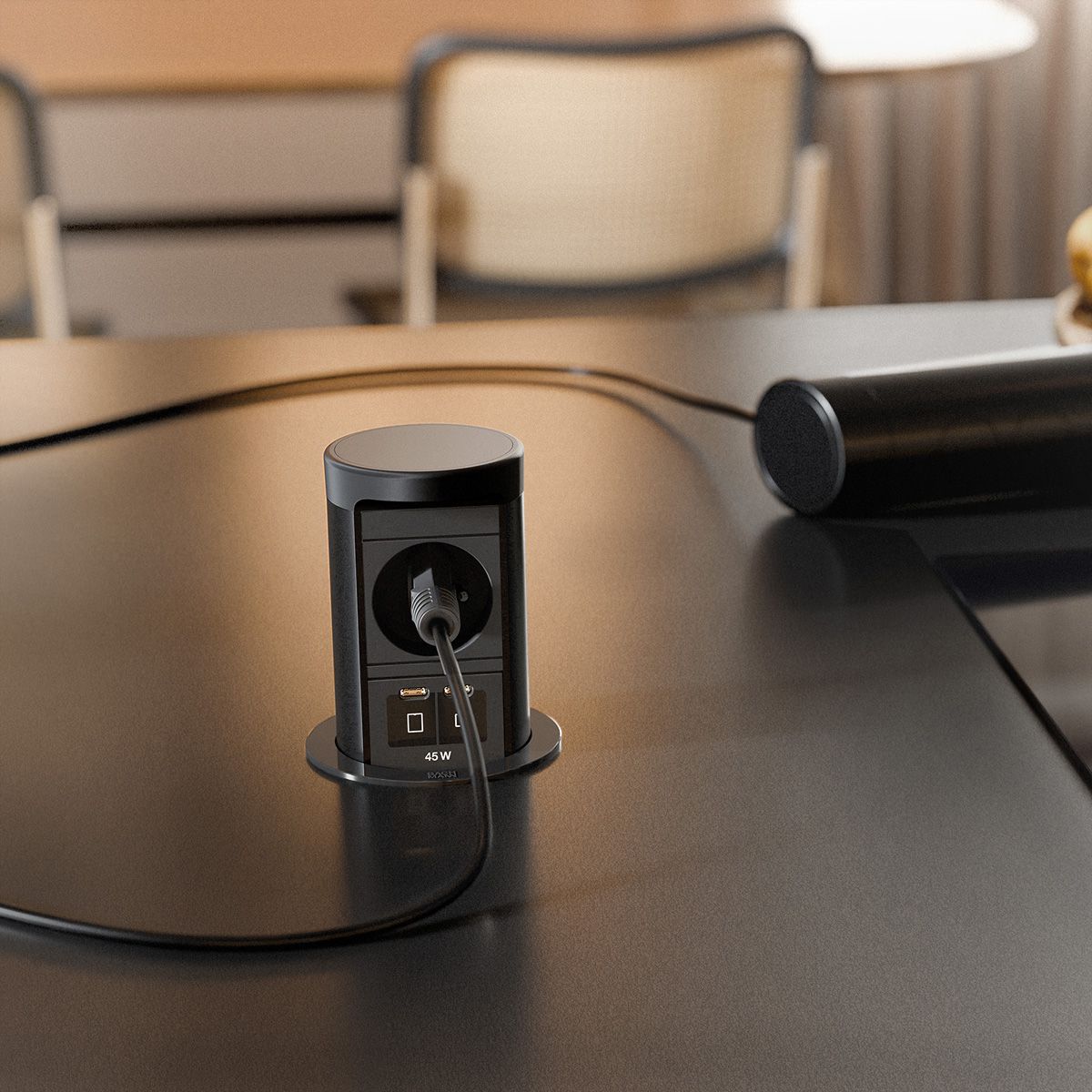

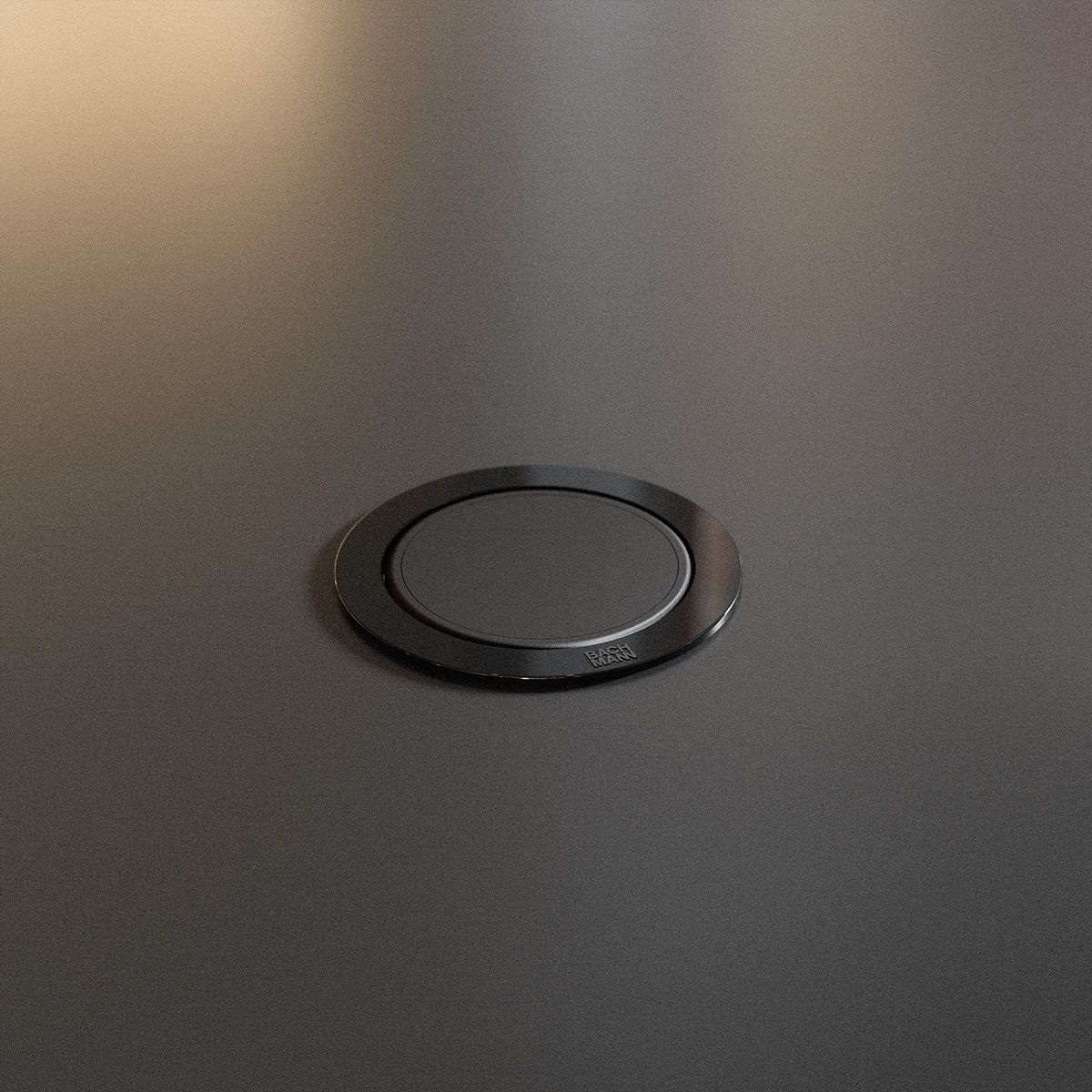

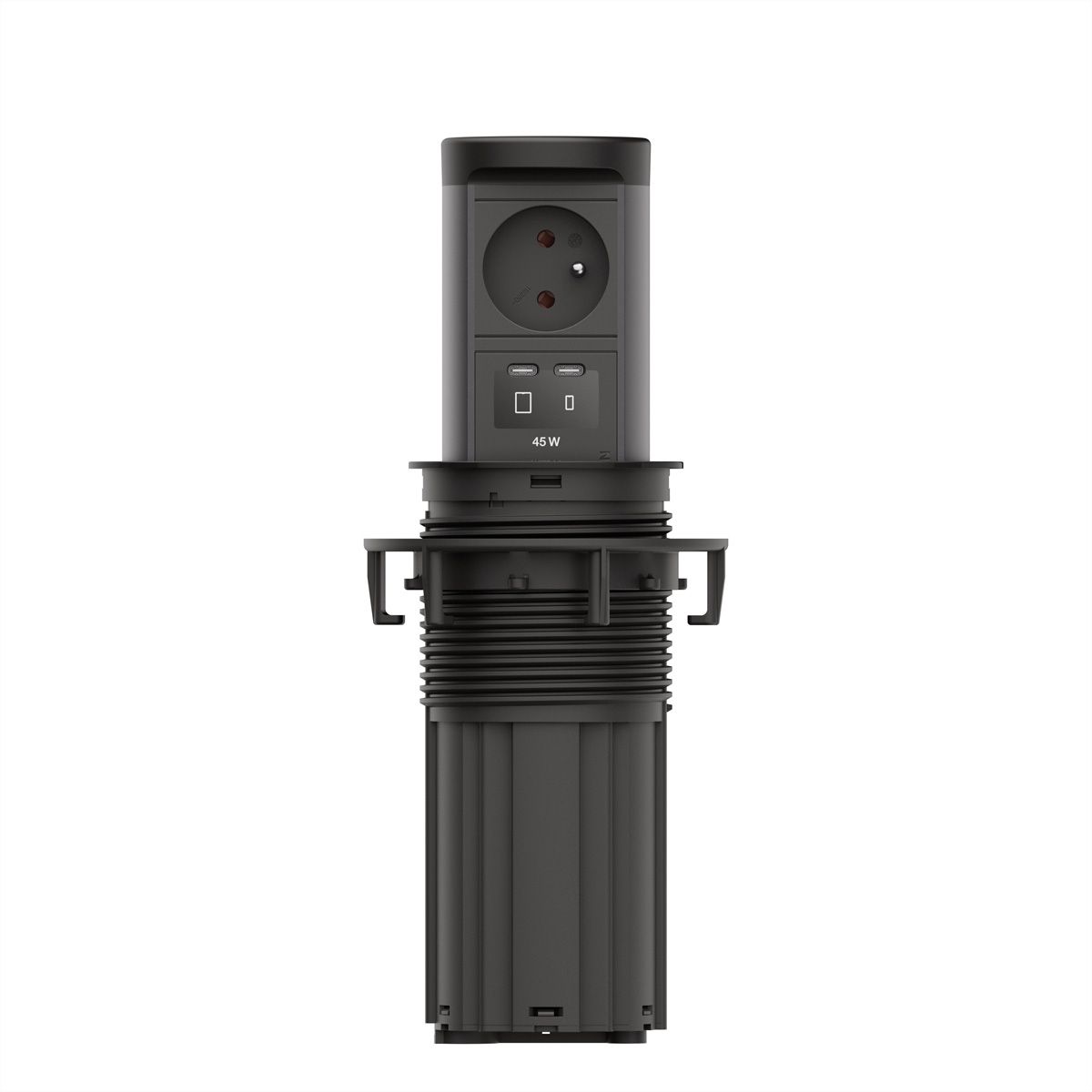

BACHMANN ELEVATOR2 1xUTE, 1xUSB C/C 45W RAL9005 2.0m AEH

Item no. 19077217 Brand / Manufacturer BACHMANN Manuf. item no. BM0020576 EAN 4057298226519

BACHMANN ELEVATOR2 1xUTE, 1xUSB C/C 45W RAL9005 2.0m AEH

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 08/27/2026

Download PDF

Description

ELEVATOR 2 1xUTE 1xUSB C/C 45W RAL9005 2,0 m ferrules

ELEVATOR 2, Ascendable power distribution unit, black matt similar to RAL9005, 1xUTE French socket black, with shutter, 1xUSB C/C 45W Charger, Supply cable 2,0m H05VV-F3G1,5mm² black, with wire end ferrules and attached, CEE7/7 mounting plug, packed in carton.

UTE Version - Suitable for France, Czech Republic, Slovakia

Specifications

Manufacturer: BACHMANN
Product group: Power Bars
Product type: Integrated unit ELEVATOR
Colour: black
Length: 2 m
Number of socket pots: 1
Socket type: 3P. UTE, CEE 7/5, Type-E
USB Charger: yes
Number of USB connections: 2
Plug type: 3P. German, CEE 7/7, Type-E/F
Protection class (IP Code): IP44
With enhanced contact protection: yes
Regional use: France, Czech Republic, Slovakia
RAL colour: RAL 9005 Jet black
Mains connection: Protective contact plug, Type-E/F
Height: 283 mm
Width: 114 mm
Depth: 114 mm
Weight: 780 g
Height of packaging (single piece): 0 mm
Width of packaging (single piece): 0 mm
Depth of packaging (single piece): 0 mm
Package weight (single piece): 0 kg

Downloads

Manufacturer data sheet - English (148.0 KB) User manual - Deutsch - English - Français - Italiano - Español (514.8 KB) Technical drawing - English (162.9 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
