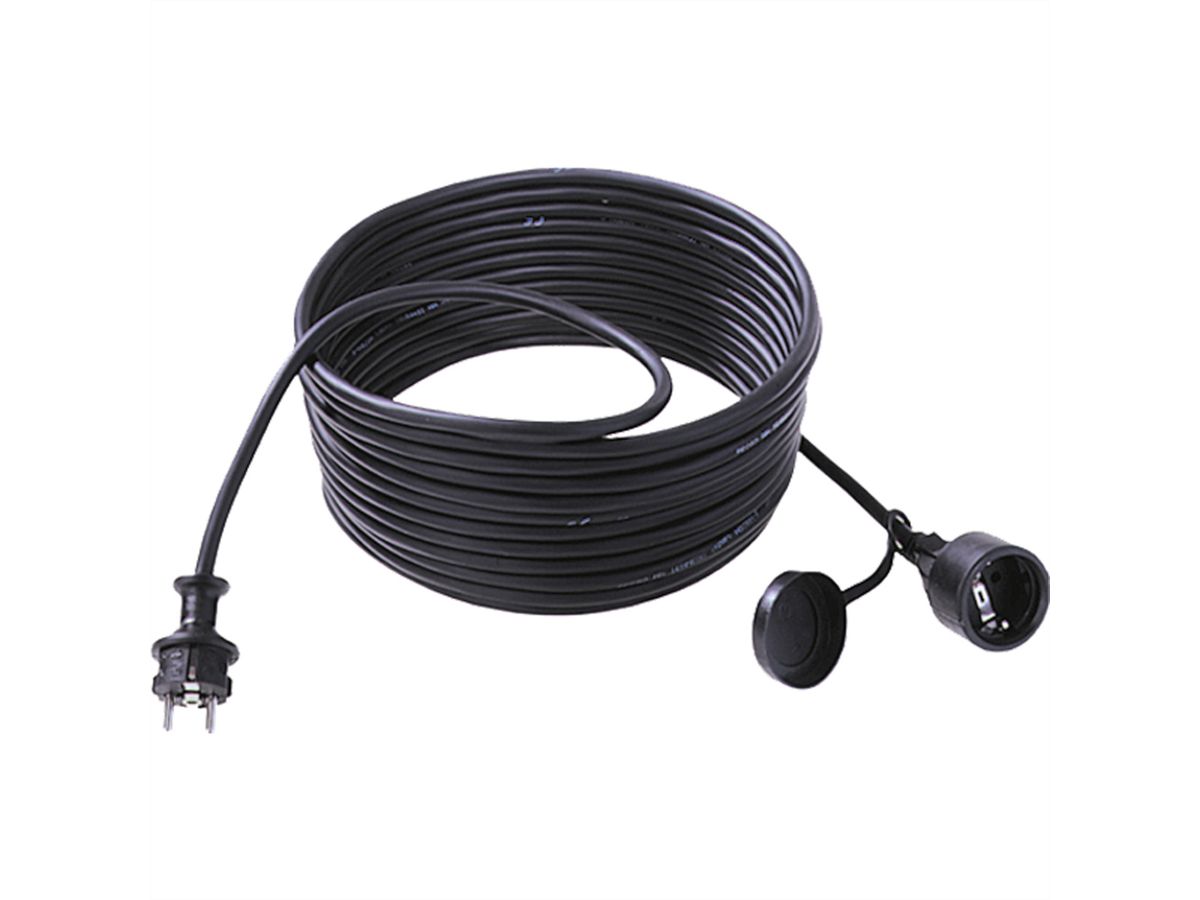

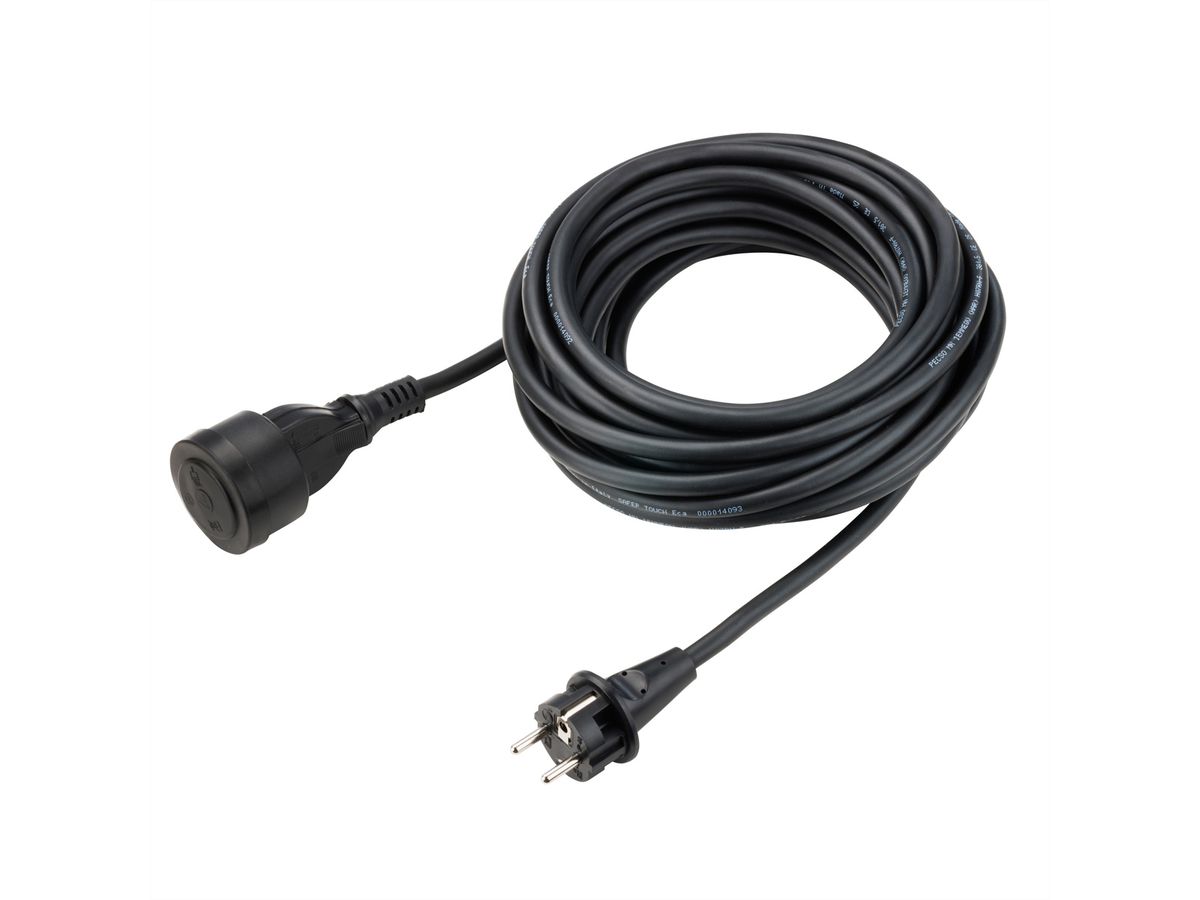

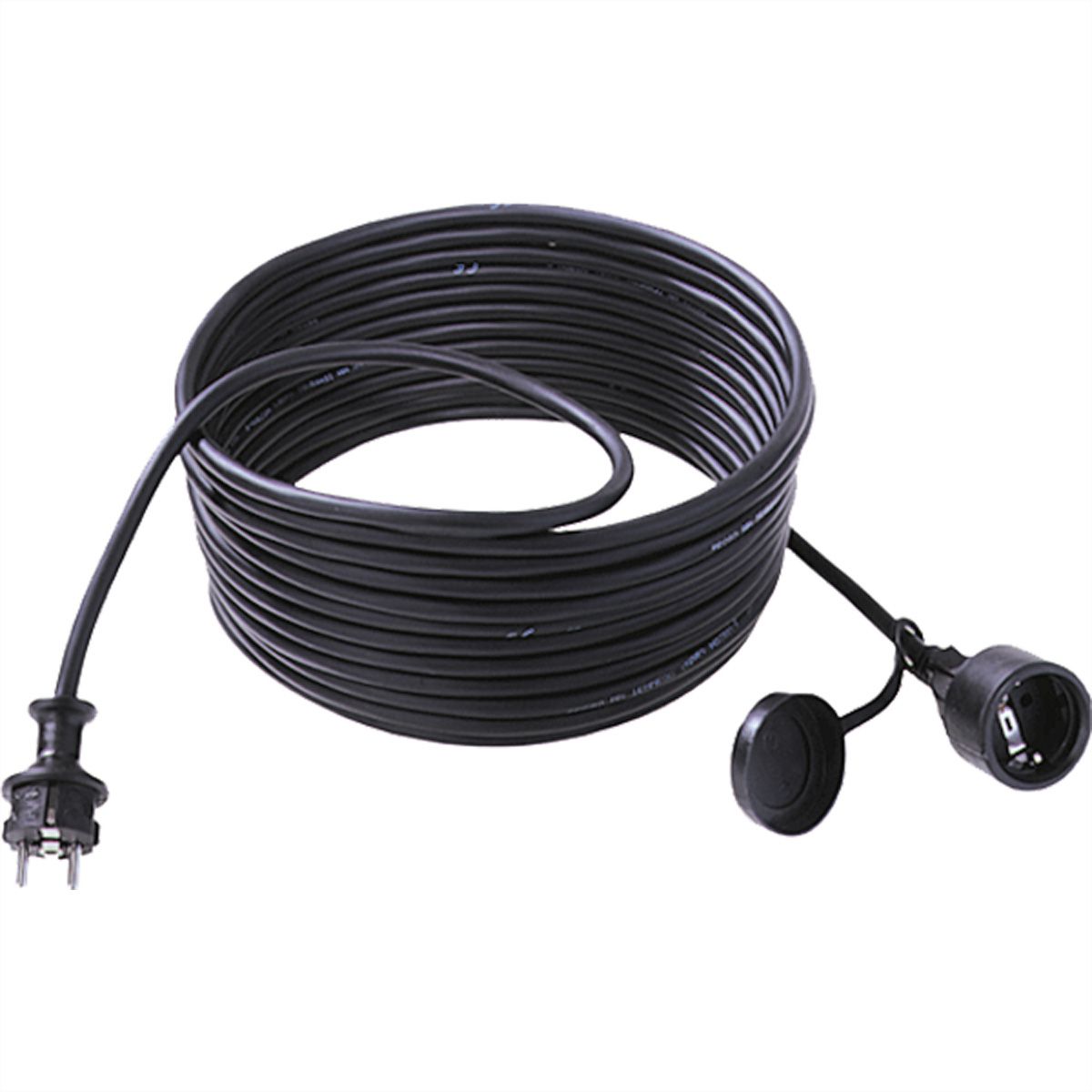

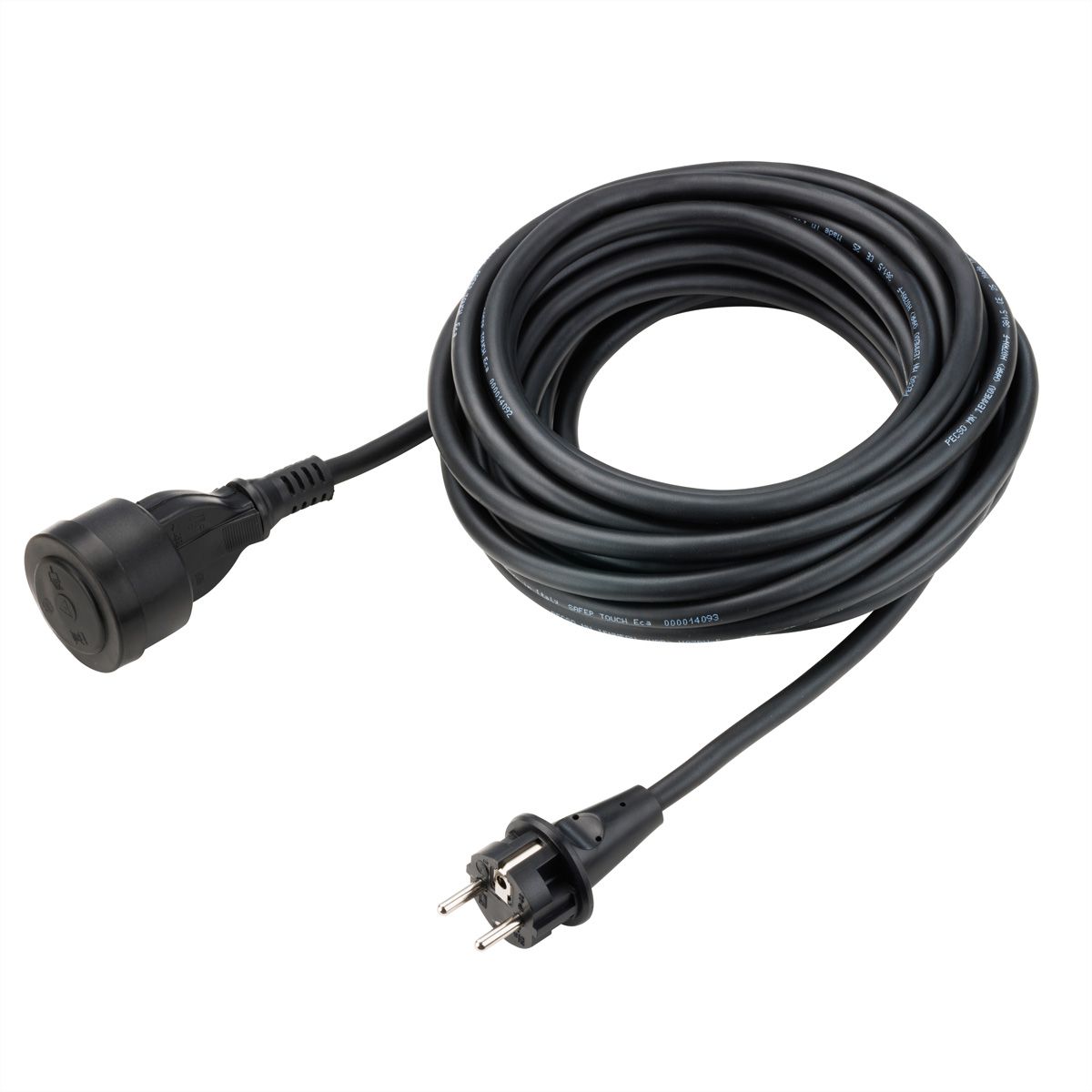

BACHMANN Extension 3G1,5mm² bw, 1m, H07RN-F rubber/neoprene earthing contact, black, 10 m

Item no. 19070559 Brand / Manufacturer BACHMANN Manuf. item no. 343.171 EAN 4016514000784 Item weight 0.878 kg

BACHMANN Extension 3G1,5mm² bw, 1m, H07RN-F rubber/neoprene earthing contact, black, 10 m

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 08/07/2026

Download PDF

Description

Extension H07RN-F 3G1.5mm² black, 1m

Cable extension power cable 16A/ 250V~ 10 m H07RN-F 3G 1.5 mm² black CEE 7/7 earthing contact plug central CEE 7/3 earthing contact socket/ cover IP44 unpacked

Specifications

Manufacturer: BACHMANN
Product group: Power supply
Product type: Power Cables
Colour: black
Length: 10 m
Connection ports: 3P. German, CEE 7/7, Type-E/F Male / 3P. German, CEE 7/3, Type-F Female
Side 1 Connector Type: 3P. German, CEE 7/7, Type-E/F
Side 1 Connector Gender: Male
Side 2 Connector Type: 3P. German, CEE 7/3, Type-F
Side 2 Connector Gender: Female
Regional use: Germany, Austria, Netherlands
Protection class (IP Code): IP44
Height: 0.07 m
Width: 0.23 m
Depth: 0.23 m
Weight: 1.52 kg
Height of packaging (single piece): 70 mm
Width of packaging (single piece): 210 mm
Depth of packaging (single piece): 210 mm
Package weight (single piece): 0.878 kg

Downloads

Manufacturer data sheet - English (119.2 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.

More about BACHMANN
