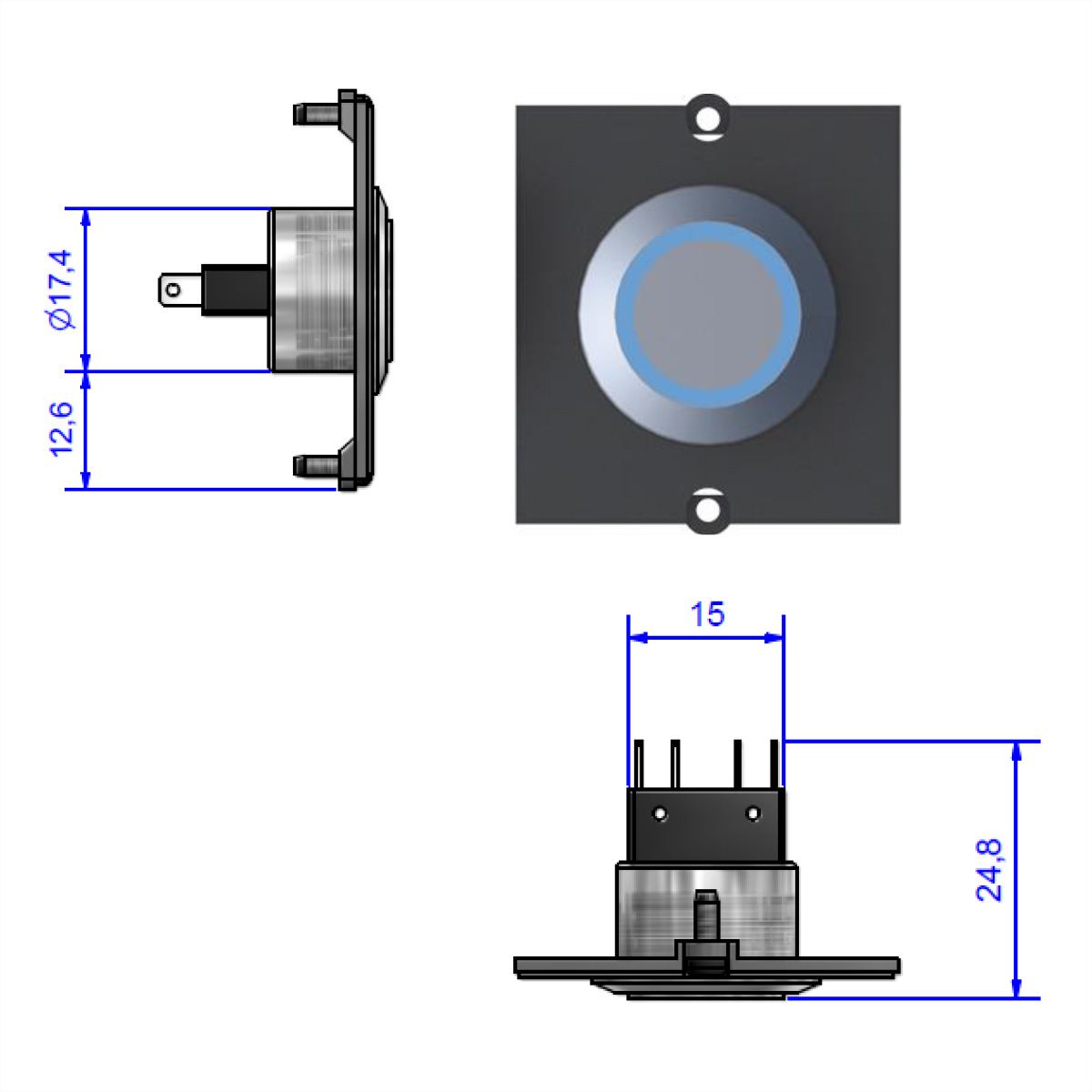

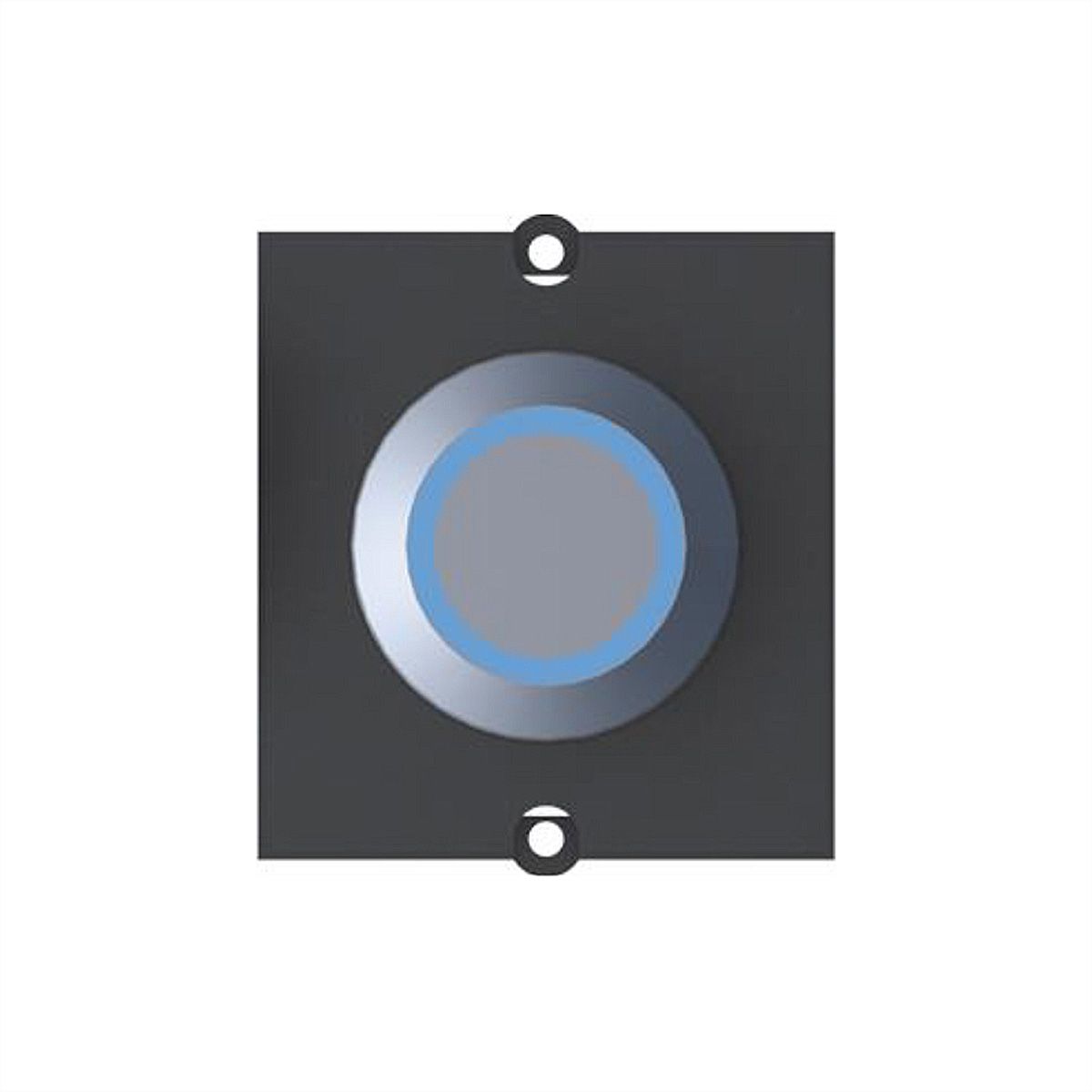

BACHMANN frame 1x button stainless steel, illuminated blue

Item no. 19070781 Brand / Manufacturer BACHMANN Manuf. item no. 917.047 EAN 4016514034086 Item weight 0.032 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/28/2026
Download PDF

Description

Frame 1x button stainless steel illuminated blue

Illumination blue (for soldering, 4-pin) without cable incl. 2 screws Data push-button: Diode ring indicator blue Switching capacity: 50 mA/24 V/DC Switching voltage: 24 V/DC Switching current: 50 mA incl. enclosed instruction leaflet

  • Maximum switch rating: 24V DC, 50mA
  • LED rating: 3,5V DC, 20mA
  • Please note: An appropriate resistor must be connected in series to the LED
  • Operating temperature range: -30°C bis +70°C
  • Operating pressure: 12N
  • Sealing (front of panel only: protection classification IP66 EN60529 1992)

Important:
LED pins are marked with + and -. The inner, non marked pins are the switch contact for the button.

Specifications

Manufacturer
BACHMANN
Product group
Power supply
Product type
Power supply
Colour
multicolored
Plug type
Solder termination
Protection class (IP Code)
IP66
Operating temperature min.
-30 °C
Operating temperature max.
70 °C
Height
0.03 m
Width
0.05 m
Depth
0.6 m
Weight
0.04 kg
Height of packaging (single piece)
30 mm
Width of packaging (single piece)
160 mm
Depth of packaging (single piece)
170 mm
Package weight (single piece)
0.032 kg
