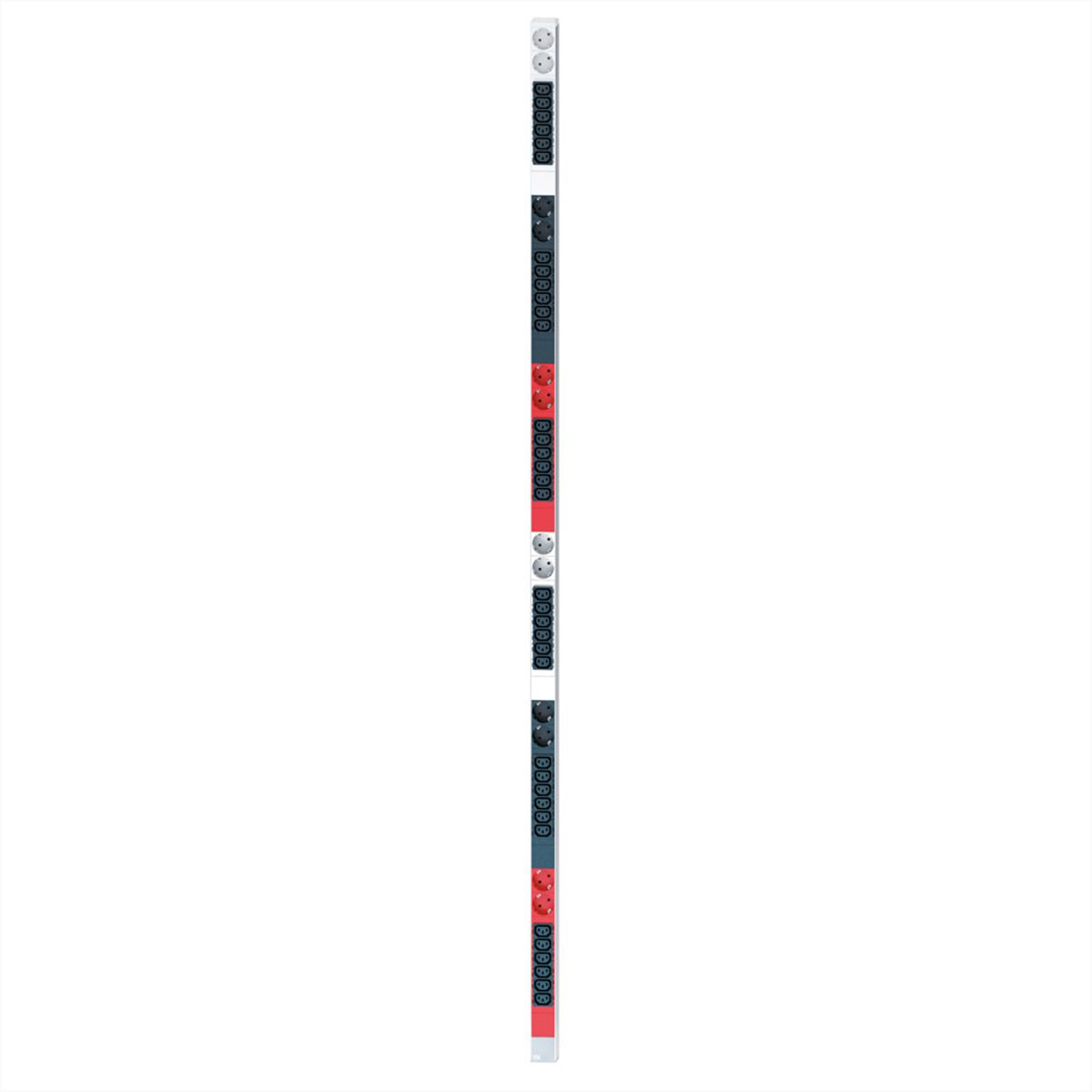

BACHMANN IT PDU ALU 0U 36x C13 12x earthing contact, fixed connection 2x 3x 32A

Item no. 19072190 Brand / Manufacturer BACHMANN Manuf. item no. 800.0113 EAN 4016514048212 Item weight 4.759 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

Space-saving and modularly expandable integration of the PDU into the server rack - High-quality and very stable aluminium profile

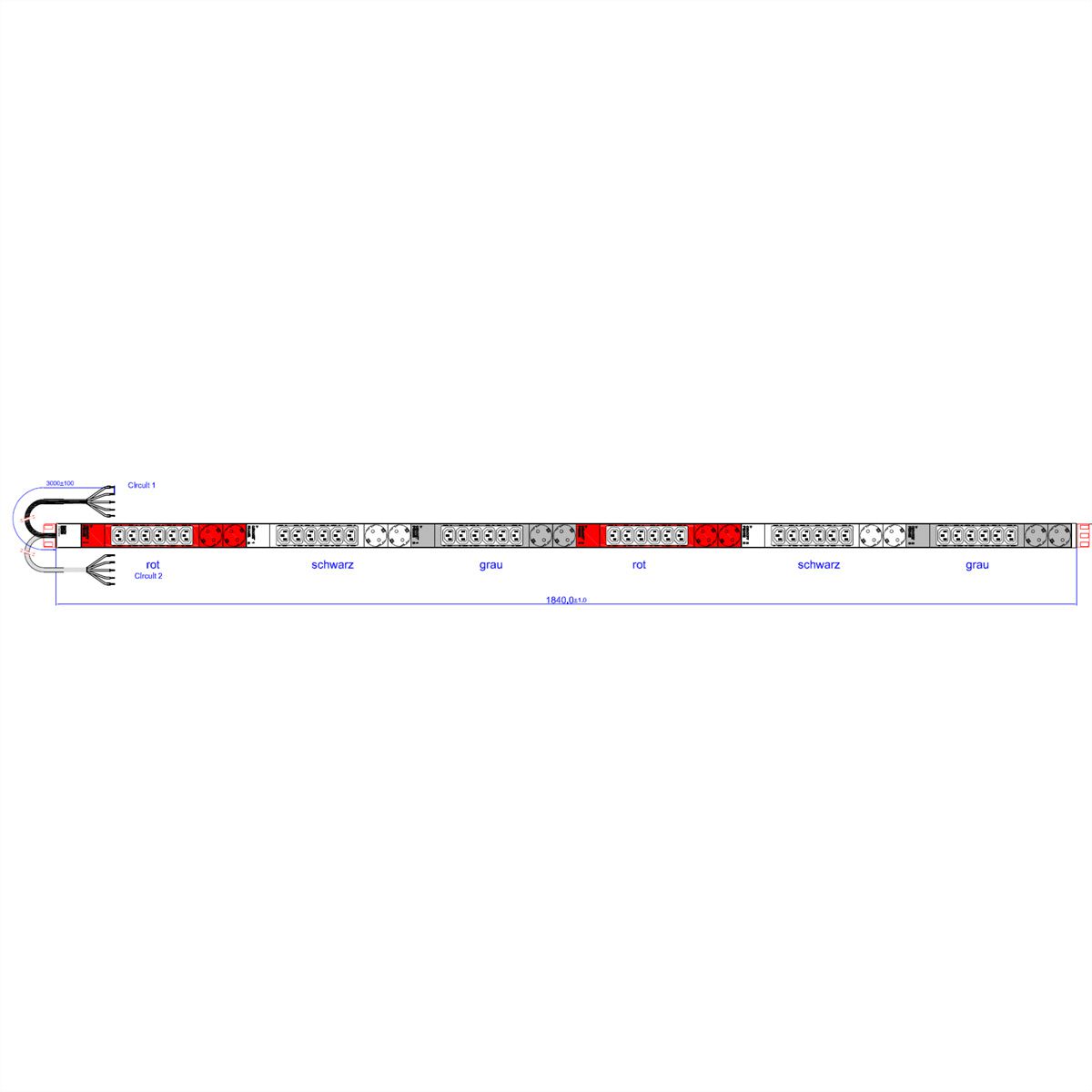

- Extremely compact dimensions with 44 x 47 mm, thus offering plenty of space for data cabling and air routing for air conditioning the server rack - Locking of the plugs by means of PVC clip or IEC lock - Colour coding of the phases - Installation height in the cabinet 1840mm - 36x C13 cold appliance sockets, lockable - 12x earthing contact - Supply cable: 2 x 3.0m H05VV-F 5G2.5mm² - for fixed connection, cable ends with wire end ferrules - incl. Mounting bracket packed in cardboard box

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Vertikal IT PDU
Colour
various
Length
3 m
Function
Steckdosenleiste
Mounting form
Vertikal
Max. capacitance
2x 3x 3600W
Max. voltage
400V AC
ON/OFF Switch
no
Number of socket pots
48
Output alignment
24 x C13 3 x C19
Socket type
  • 3P. German, CEE 7/3, Type-F
  • IEC320 C13, 10A
Material (casing)
Aluminium
Colour (Design profile)
Aluminium
Connection cable
3,0m CEE 32A
Colour (Cable)
black
Connector plug
zonder stekkers, adereindhulzen
Regional use
Germany, Austria, Netherlands
Technical particularity
voor vaste aansluiting
Height
44 mm
Width
1840 mm
Depth
47 mm
Weight
5.72 kg
Height of packaging (single piece)
110 mm
Width of packaging (single piece)
1940 mm
Depth of packaging (single piece)
130 mm
Package weight (single piece)
4.759 kg

Downloads

Manufacturer data sheet - English (105.2 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
