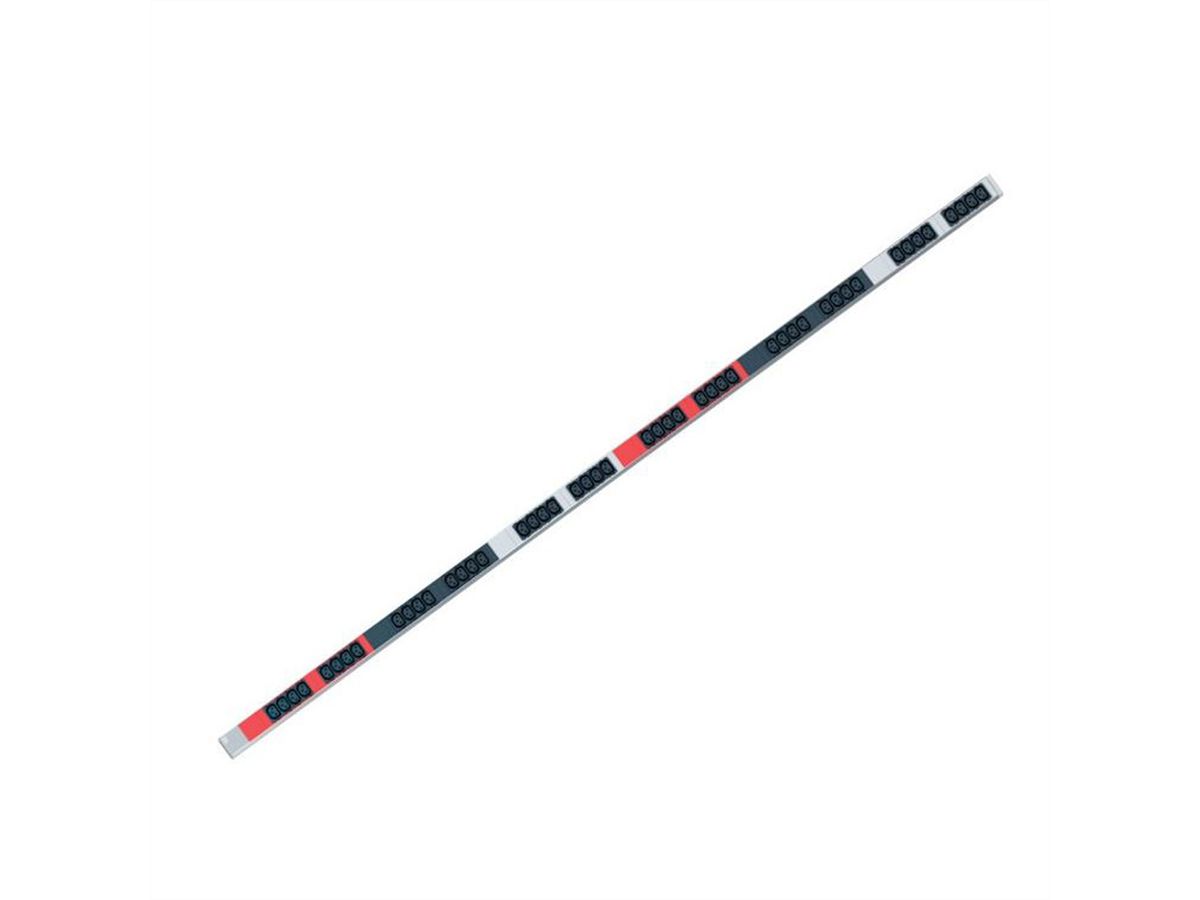

:strip_icc():strip_exif()/bilder/s19/19072178_2018_m_0_lo.jpg "BACHMANN IT PDU ALU 0U 48x C13 2x3x32A open")

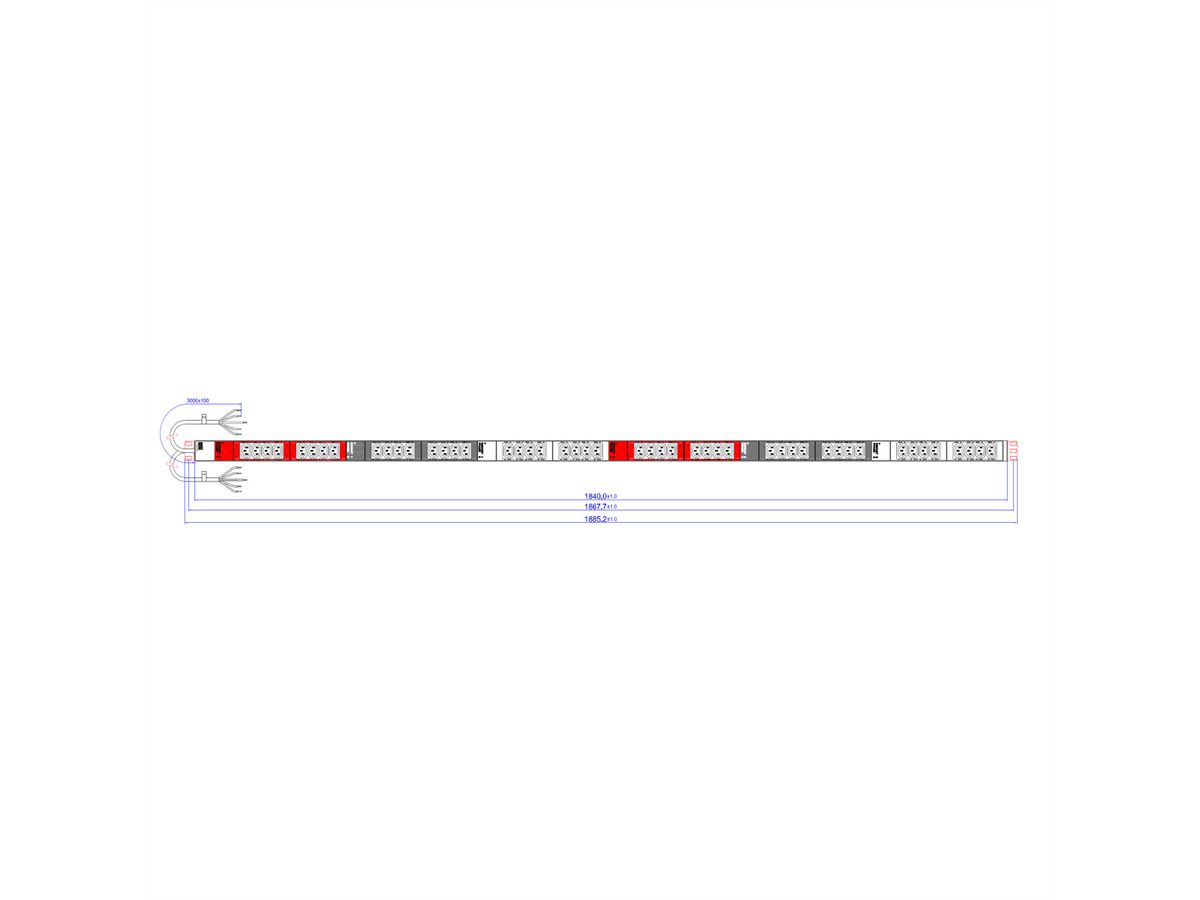

:strip_icc():strip_exif()/bilder/s19/19072178_2024_d_0_lo.jpg "BACHMANN IT PDU ALU 0U 48x C13 2x3x32A open")
Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 19072178 |
|---|---|
| Brand / Manufacturer | BACHMANN |
| Manuf. item no. | 800.0114 |
| EAN | 4016514048229 |
| Item weight | 4.46 kg |
:strip_icc():strip_exif()/logos/bachmann.png "BACHMANN")

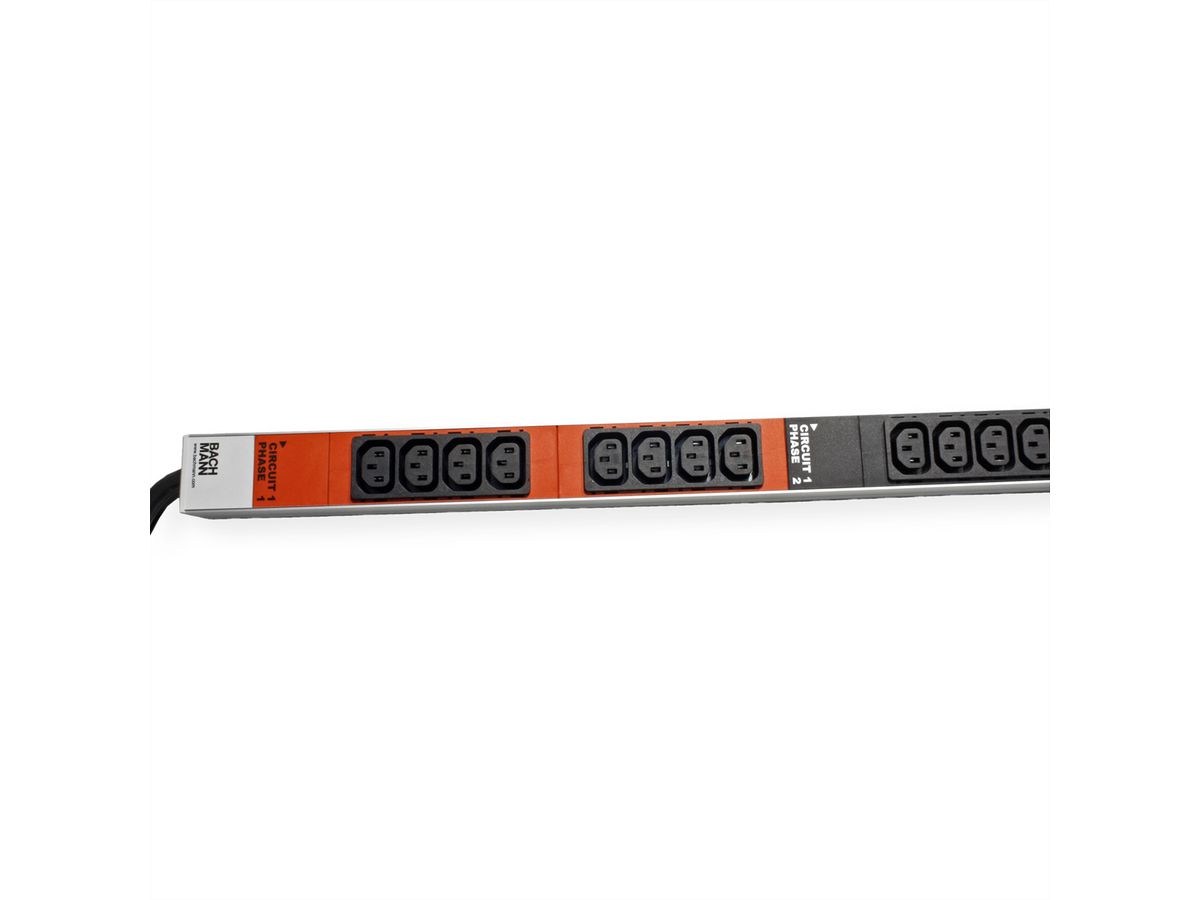

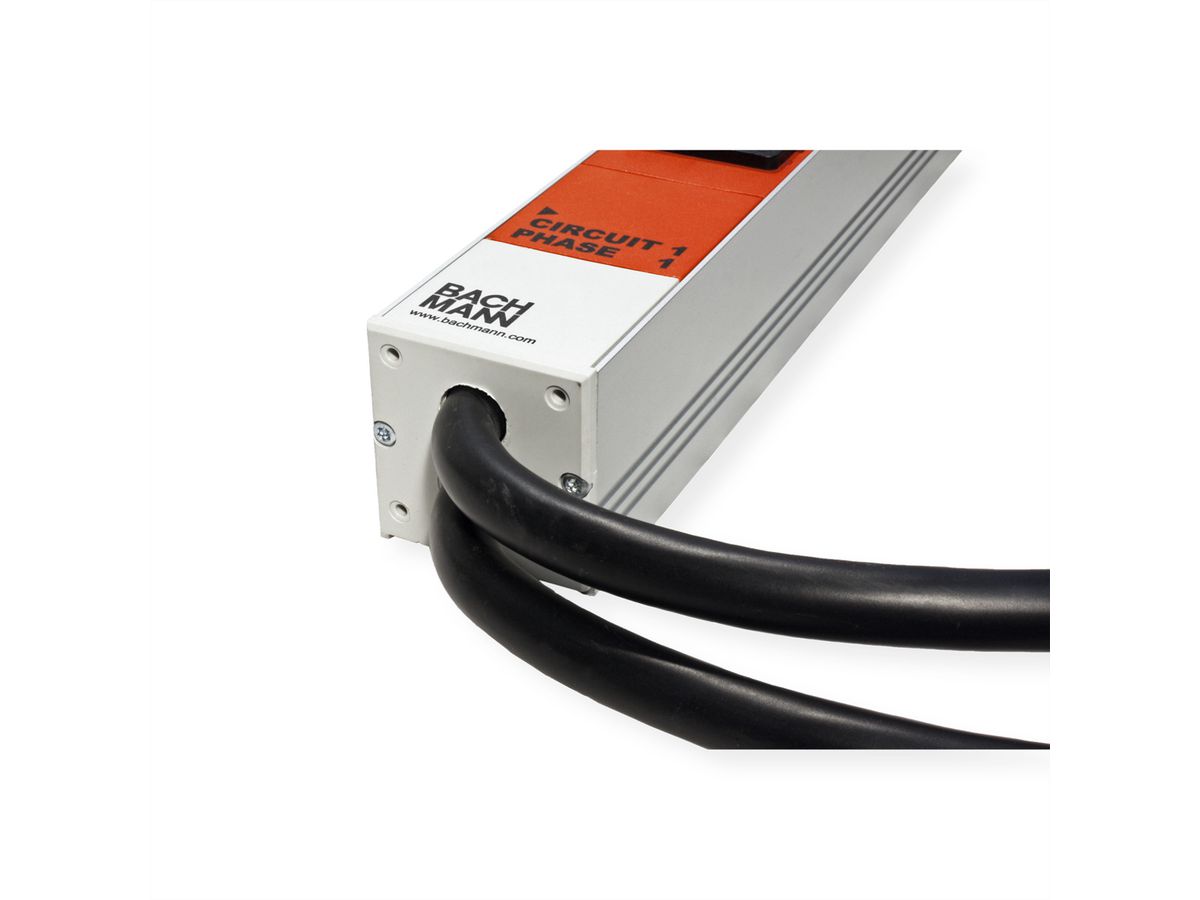

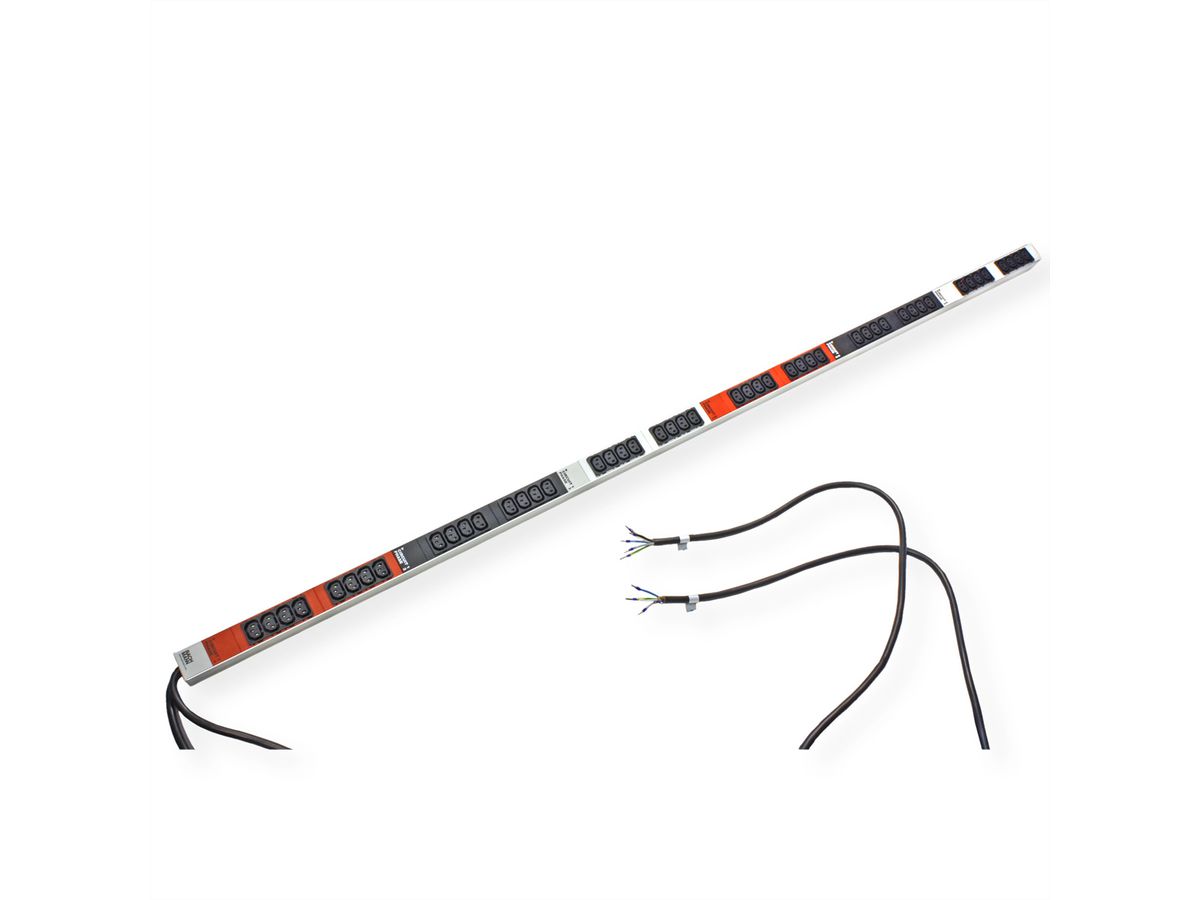

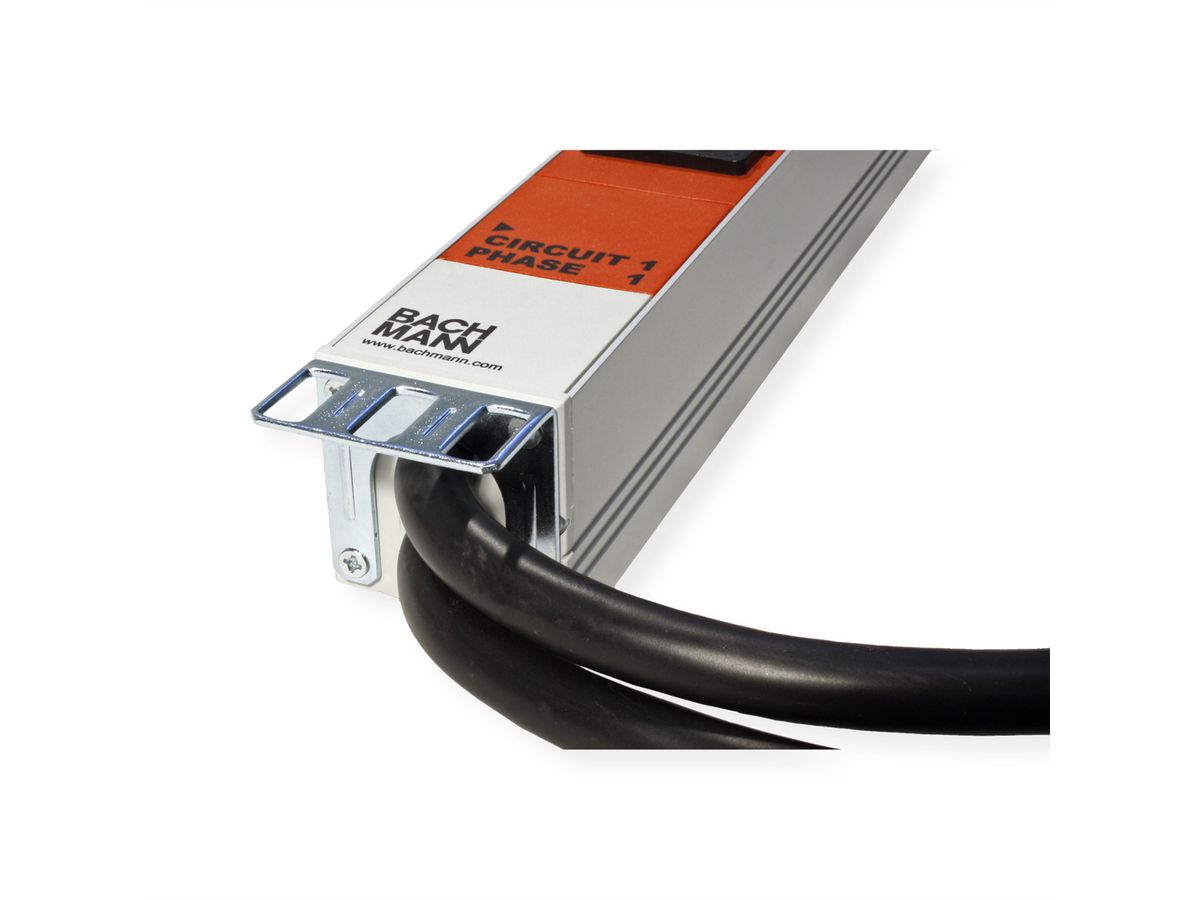

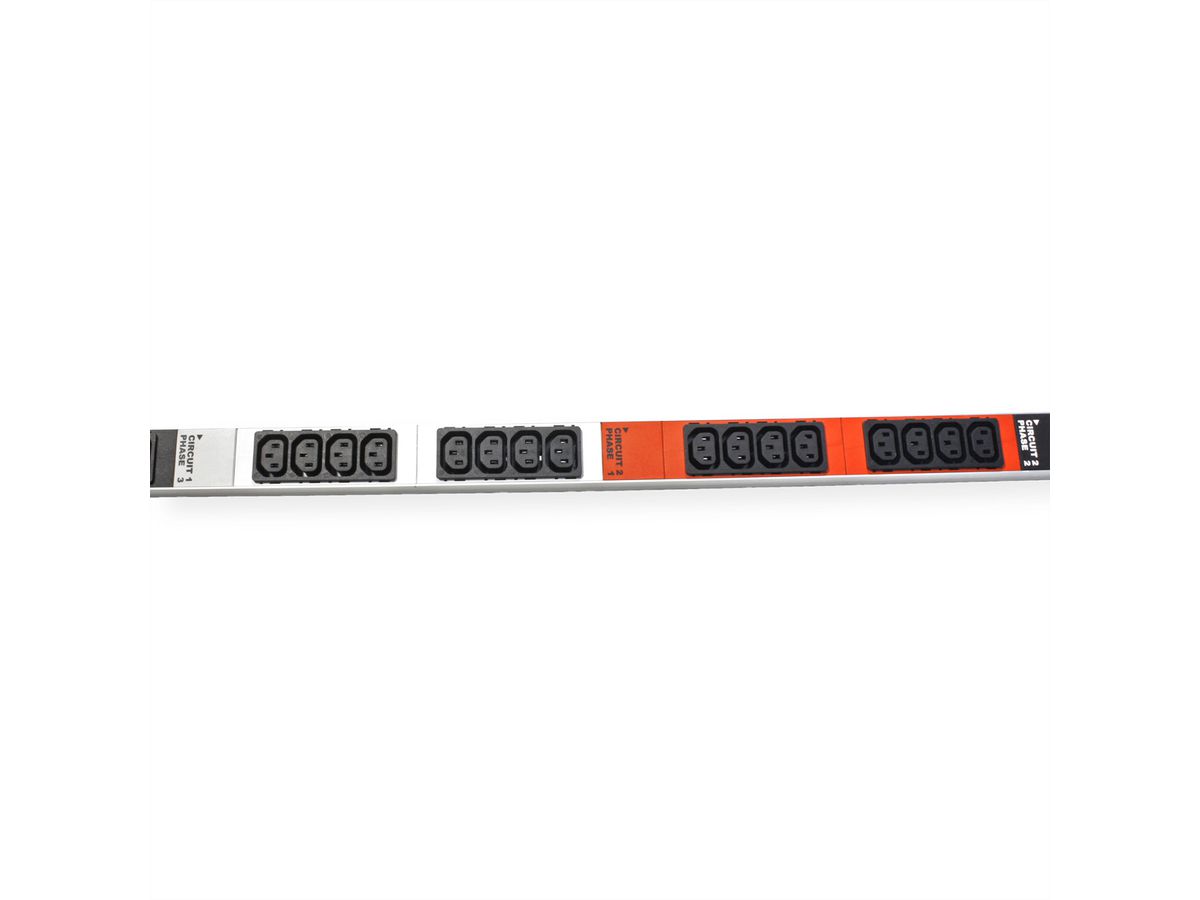

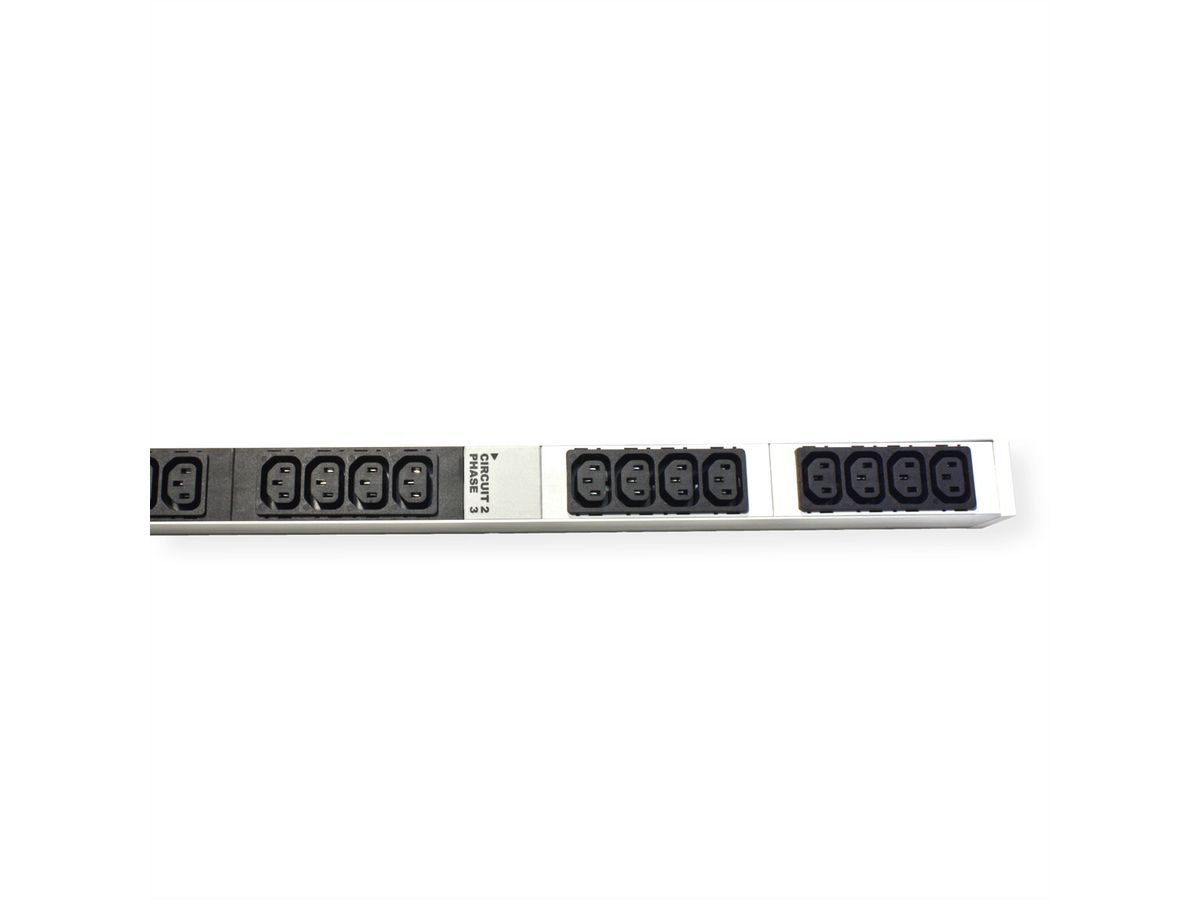

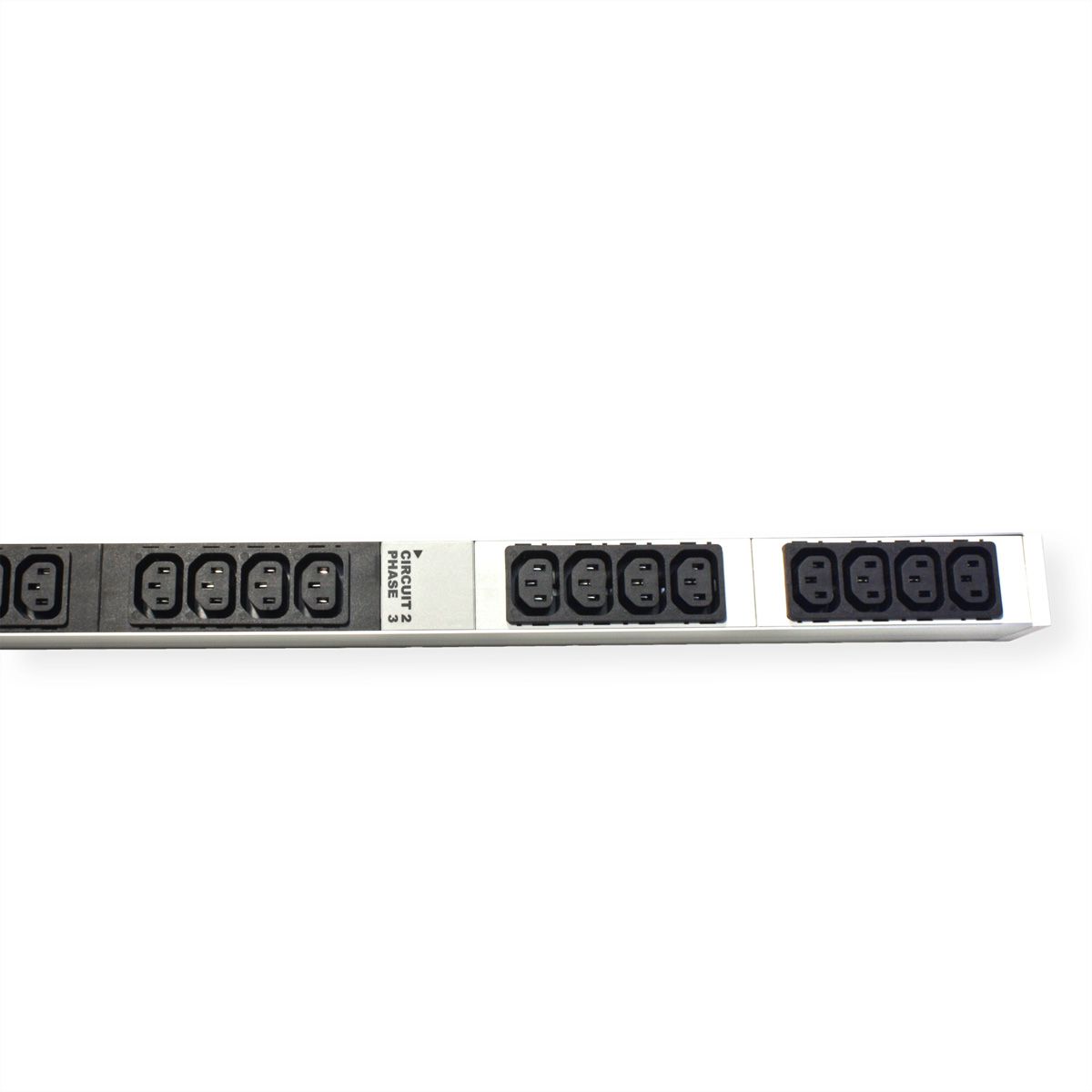

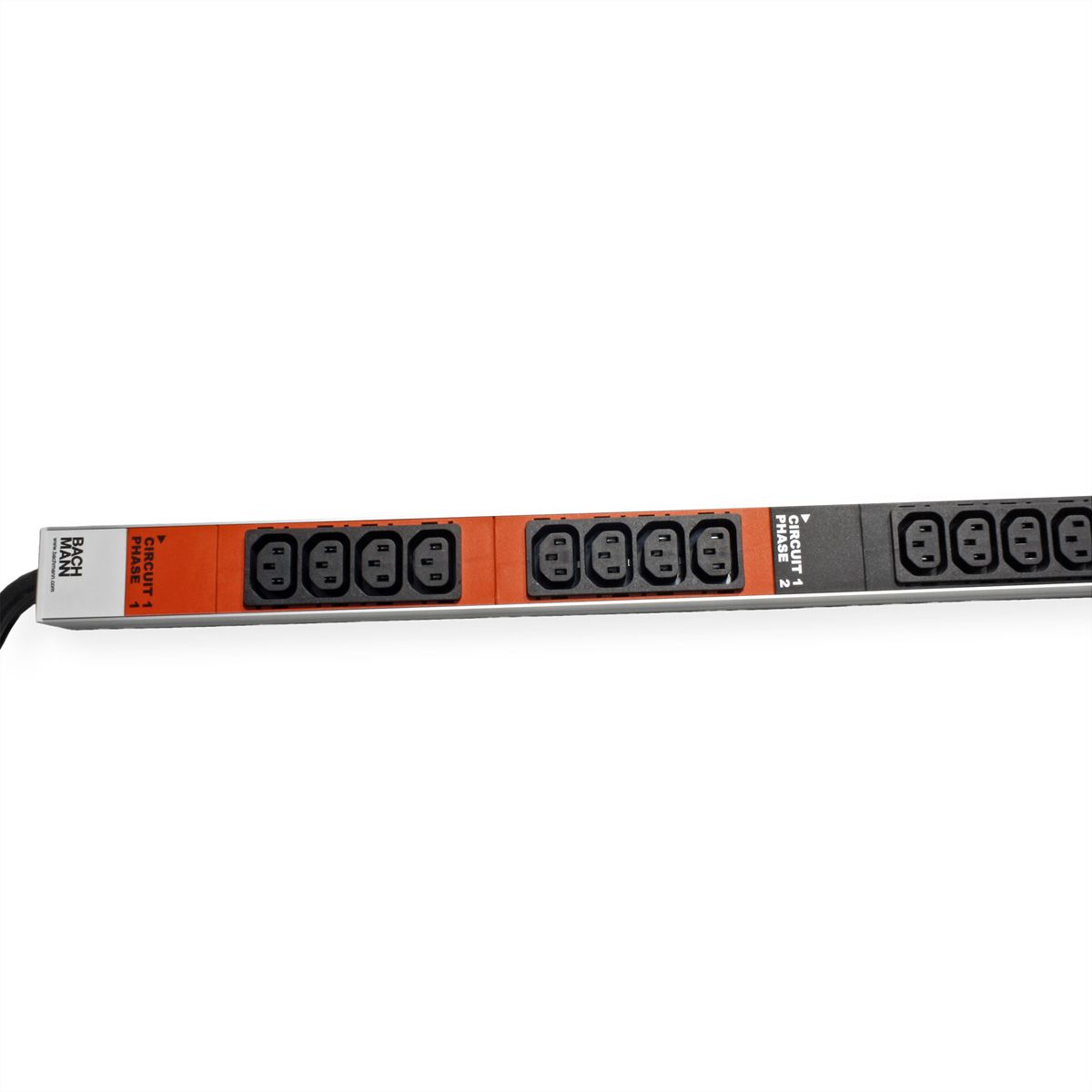

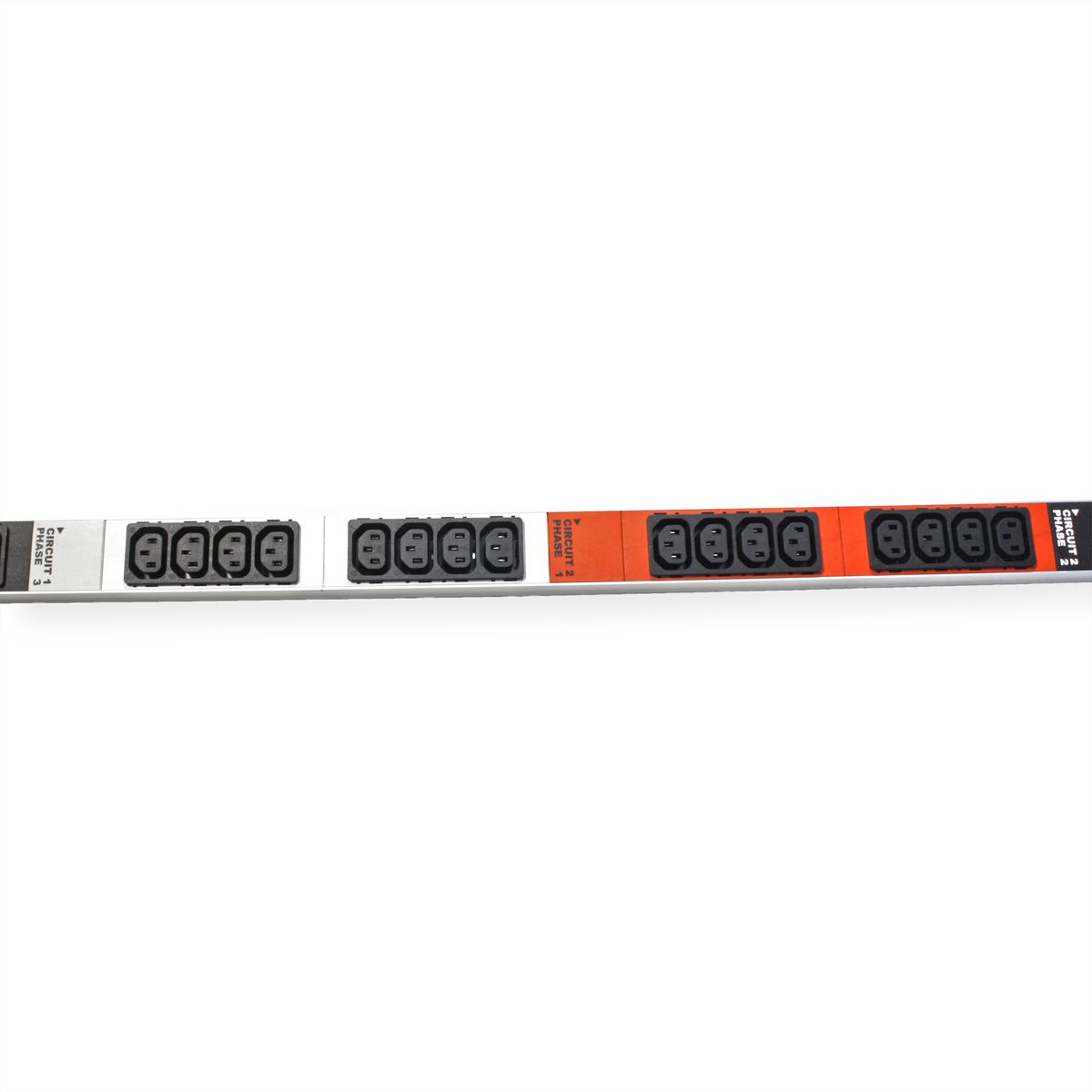

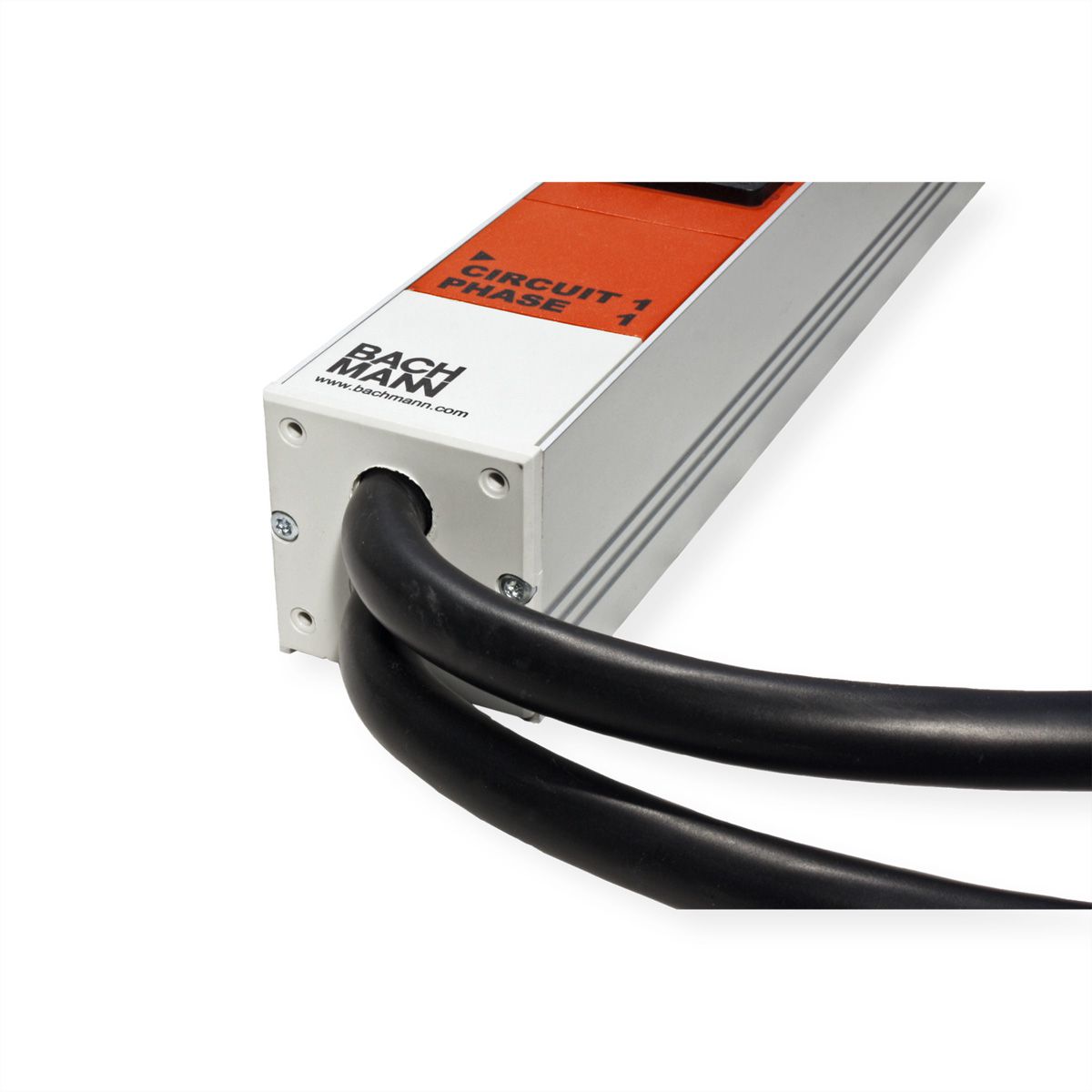

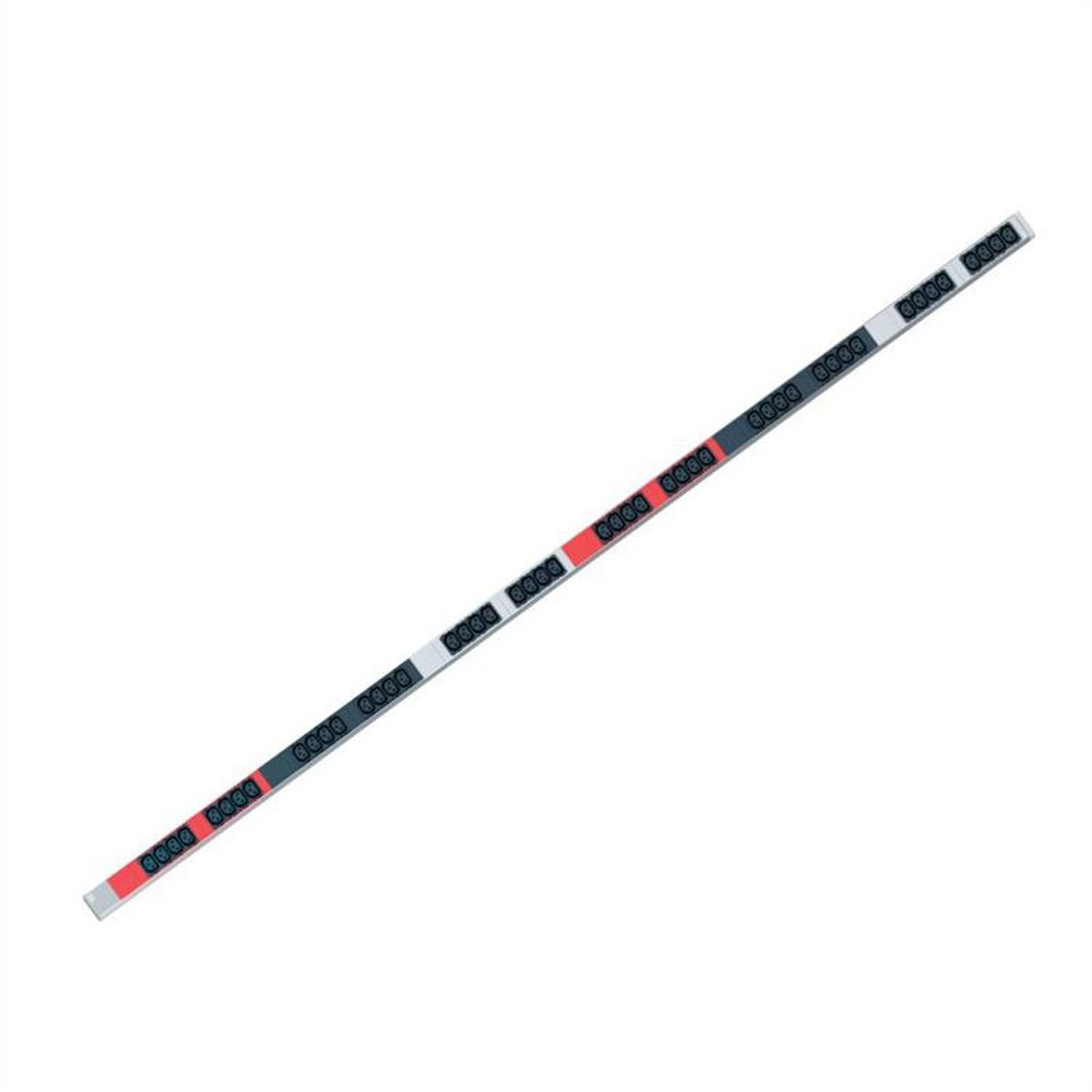

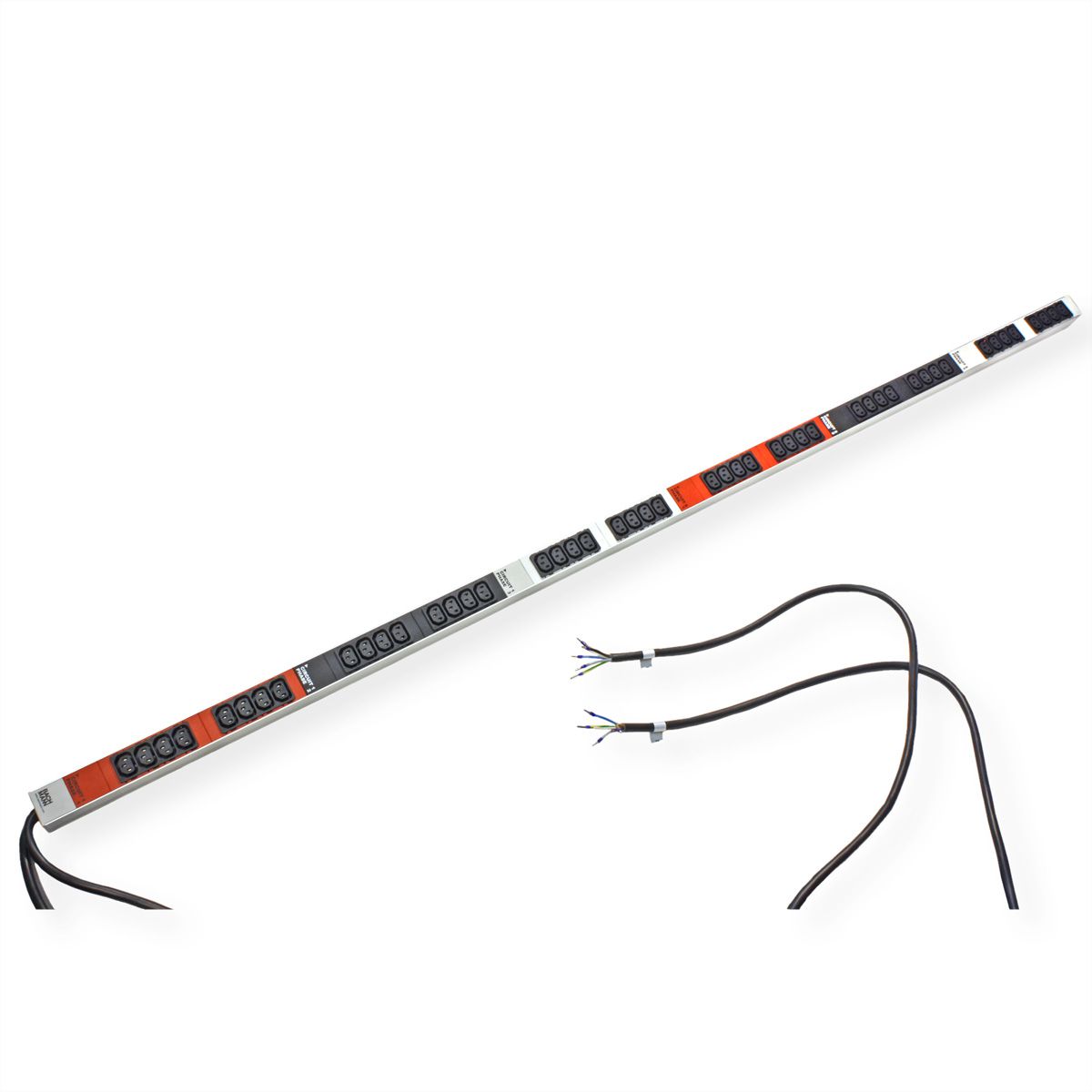

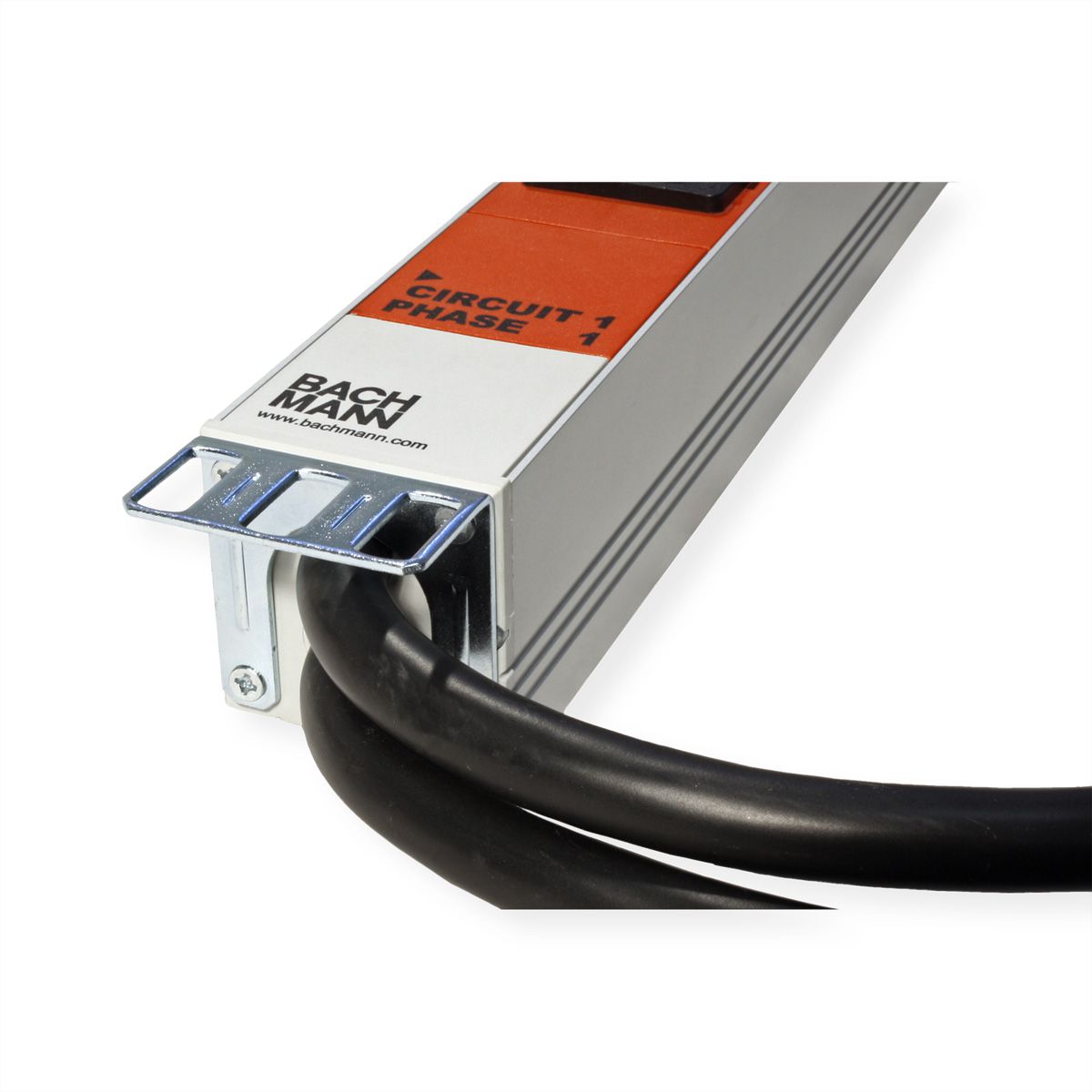

- Extremely compact dimensions of 44 x 47 mm, providing plenty of space for data cabling and air routing for air conditioning the server rack - Locking of the plugs using a PVC clip or IEC lock - Colour coding of the phases - Installation height in the enclosure 820mm - 48x C13 cold appliance sockets, lockable - Supply cable: 2 x 3.0m H05VV-F 5G2.5mm² with wire end ferrules - Incl. Mounting bracket packed in cardboard box
| Manufacturer | BACHMANN |
|---|---|
| Product group | Power Bars |
| Product type | Vertikal IT PDU |
| Colour | various |
| Length | 3 m |
| Function | Steckdosenleiste |
| Mounting form | Vertikal |
| Max. capacitance | 2x 3x 3600W |
| Max. voltage | 400V AC |
| ON/OFF Switch | no |
| Number of socket pots | 48 |
| Output alignment | 24 x C13 3 x C19 |
| Socket type | IEC320 C13, 10A |
| Material (casing) | Aluminium |
| Colour (Design profile) | Aluminium |
| Connection cable | 3,0m CEE 32A |
| Colour (Cable) | black |
| Connector plug | adereindhulzen |
| Regional use | Without restriction |

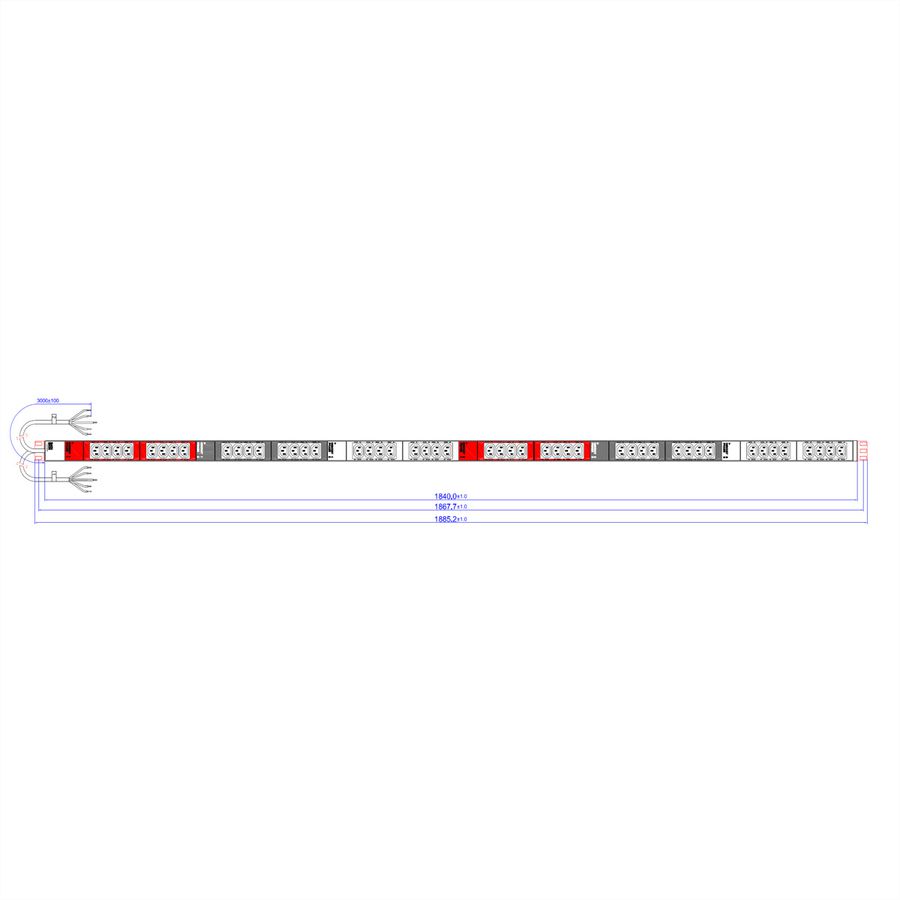

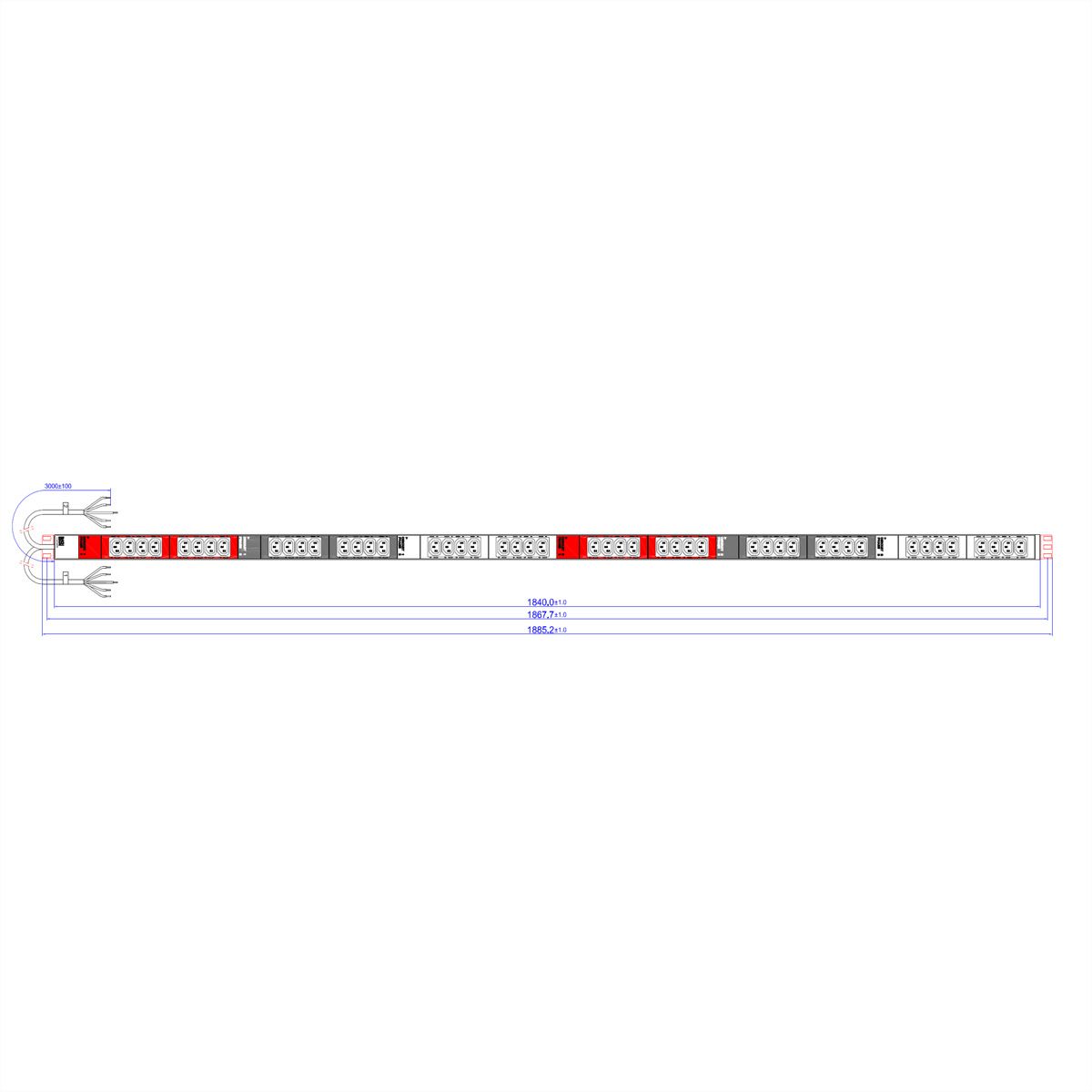

| Height | 44 mm |
| Width | 1840 mm |
| Depth | 47 mm |
| Weight | 5.72 kg |
| Package weight (single piece) | 4.46 kg |
