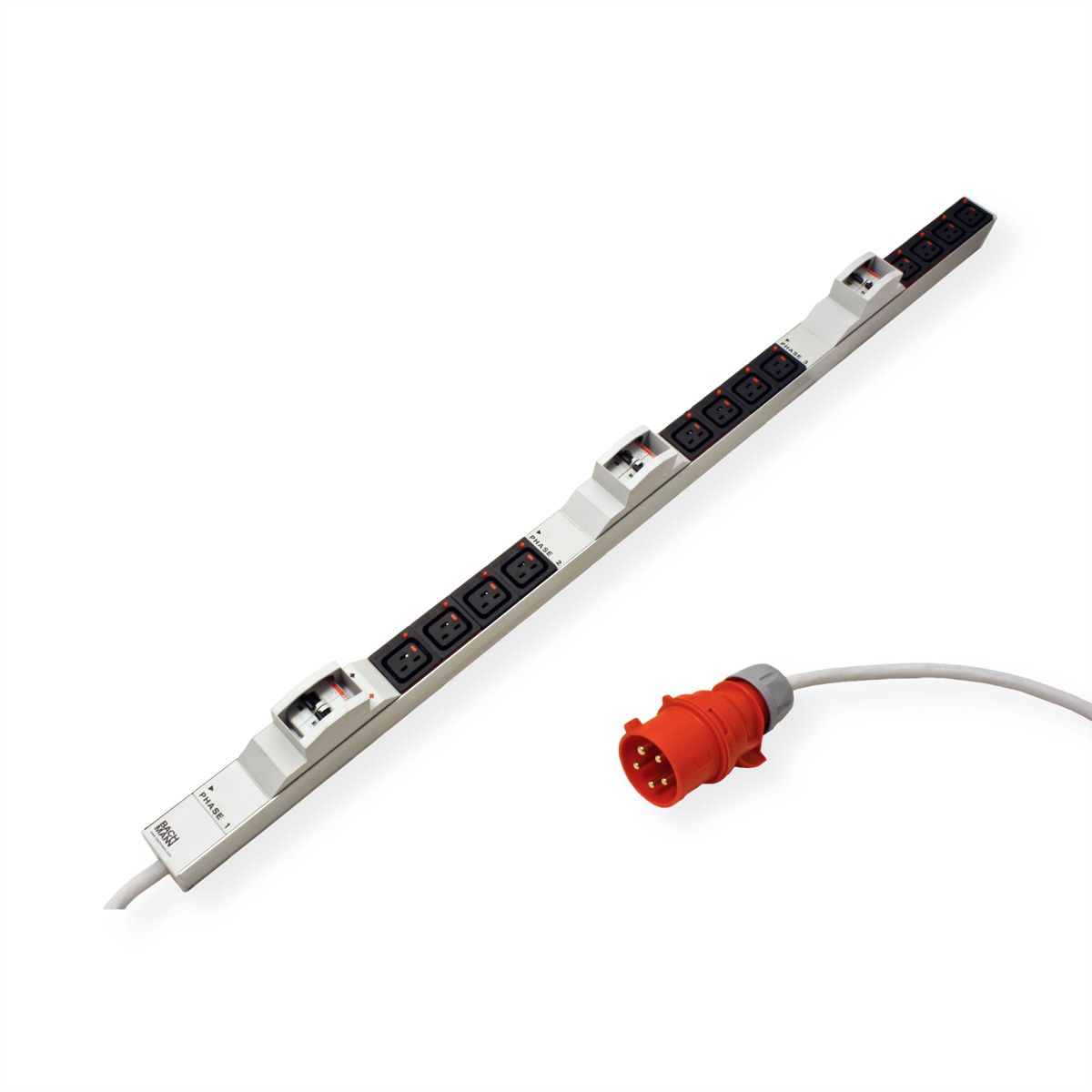

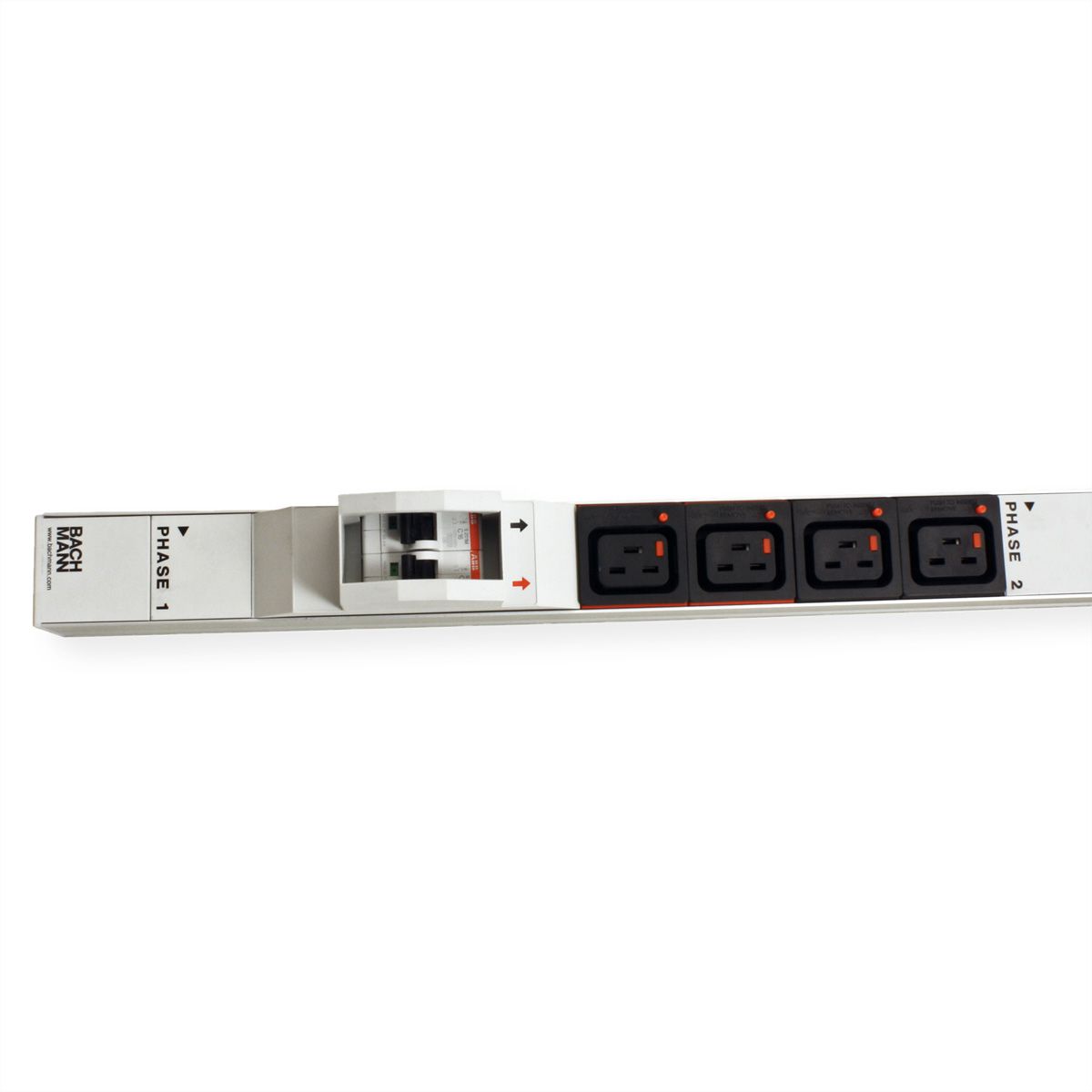

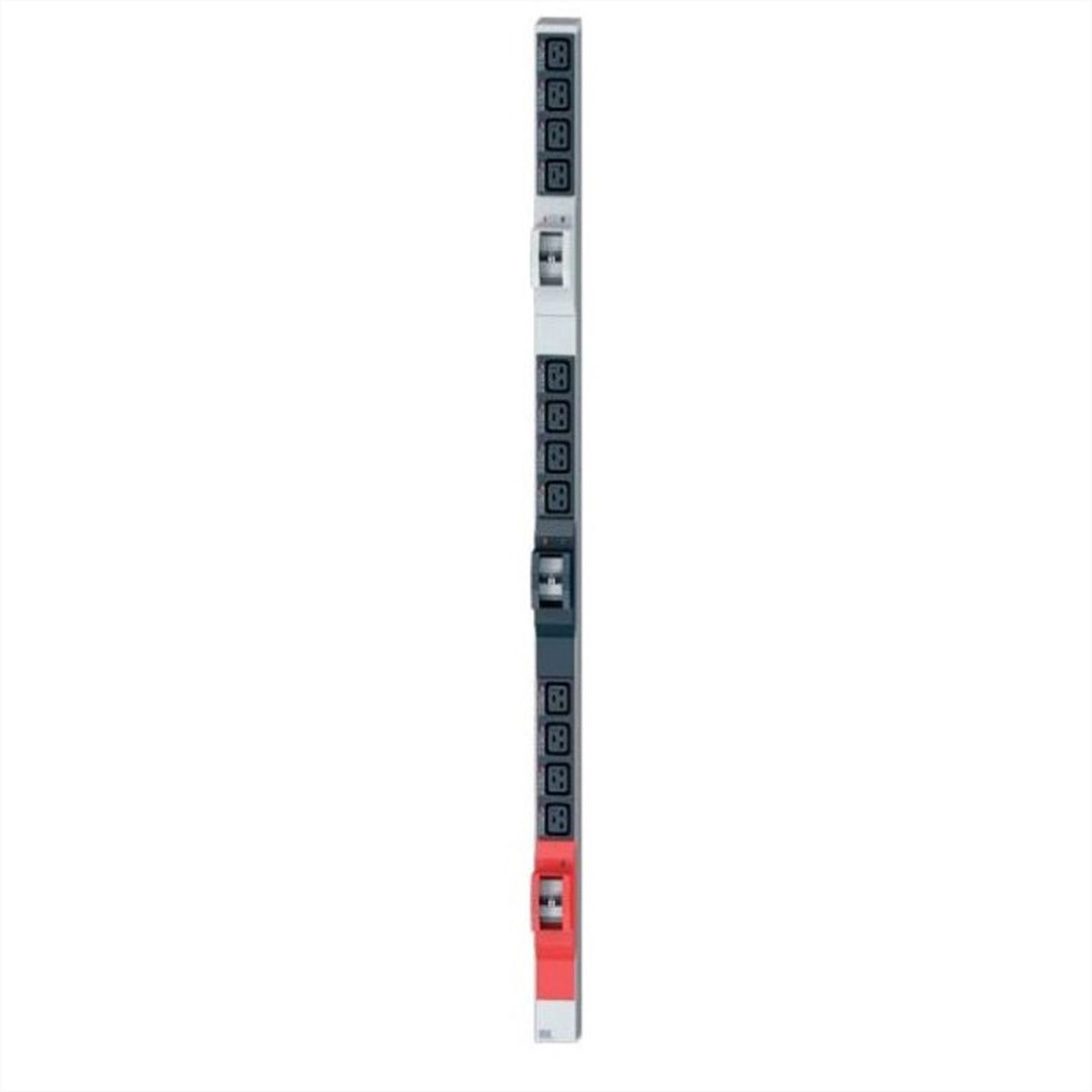

BACHMANN IT PDU ALU 1U 12xC19 6xline circuit breaker plug CEE 3L+N+PE 32A red

Item no. 19072184 Brand / Manufacturer BACHMANN Manuf. item no. 800.0100 EAN 4016514048083 Item weight 4.37 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/17/2026
Download PDF

Description

For future-oriented, highly efficient power distribution in data centres, server racks and network racks.

The dimensions of the high-quality and very stable aluminium profile are a compact 44 x 47 mm. - The space-saving design provides space for data cabling and air routing for air conditioning the server rack. - Aluminium socket strip, 1U profile 44 x 47mm for vertical mounting - Installation height in the cabinet 1075mm - 24x C13 cold appliance sockets, lockable - 2x 3 circuit breakers - 3x C19 cold appliance sockets - Supply cable: 3.0m H05VV-F 3G4mm² with CEE plug 3-phase 3L+N+PE 32A red - Incl. Mounting bracket packed in cardboard box - Dimensions: 1075 x 44 x 47mm

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Vertikal IT PDU
Colour
various
Length
3 m
Function
19" socket strip
Mounting form
Vertikal
Max. capacitance
3x3600W
Max. voltage
400V
ON/OFF Switch
no
Number of socket pots
27
Quantity of outputs/angles
27
Output alignment
24 x C13 3 x C19
Socket type
IEC320 C19, 16A
Material (casing)
Aluminium
Colour (Design profile)
Aluminium
Connection cable
H05VV-F 3G 2,5mm²
Colour (Cable)
black

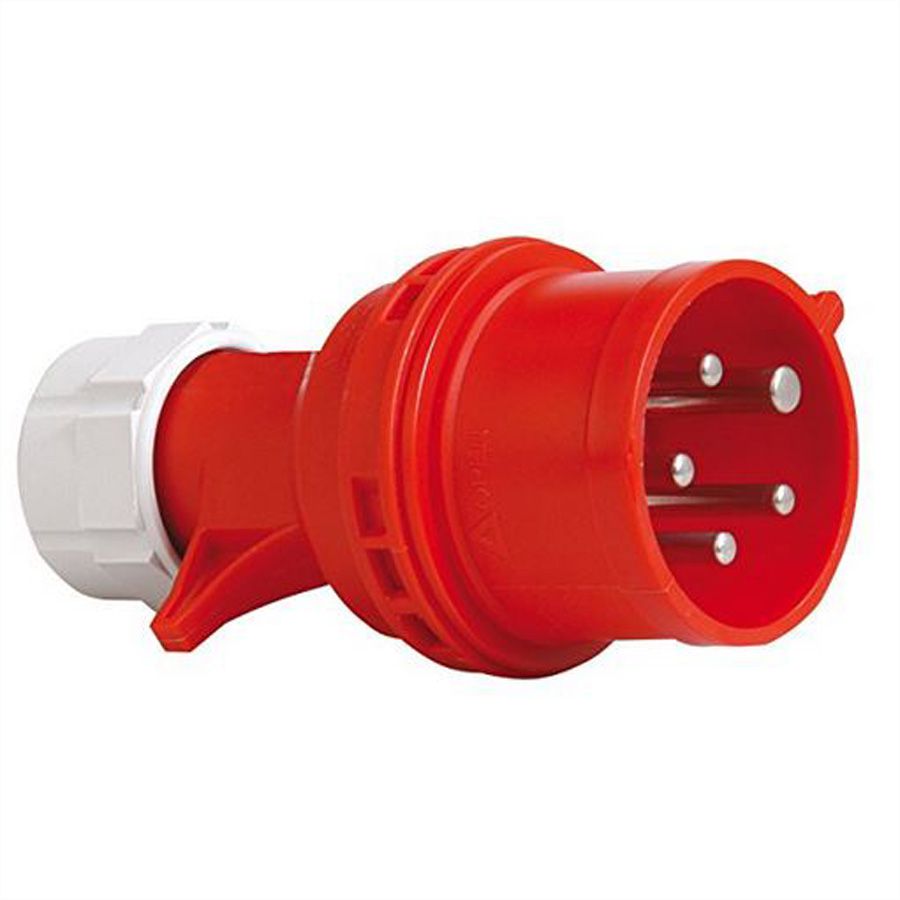

Connector plug
CEE 3L+N+PE 32A rood
Plug type
CEE red 32A 3P+N+PE 400V
Regional use
Without restriction
Height
1075 mm
Width
44 mm
Depth
47 mm
Weight
1.4 kg
Height of packaging (single piece)
160 mm
Width of packaging (single piece)
140 mm
Depth of packaging (single piece)
1200 mm
Package weight (single piece)
4.37 kg

Downloads

Manufacturer data sheet - English (46.0 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
