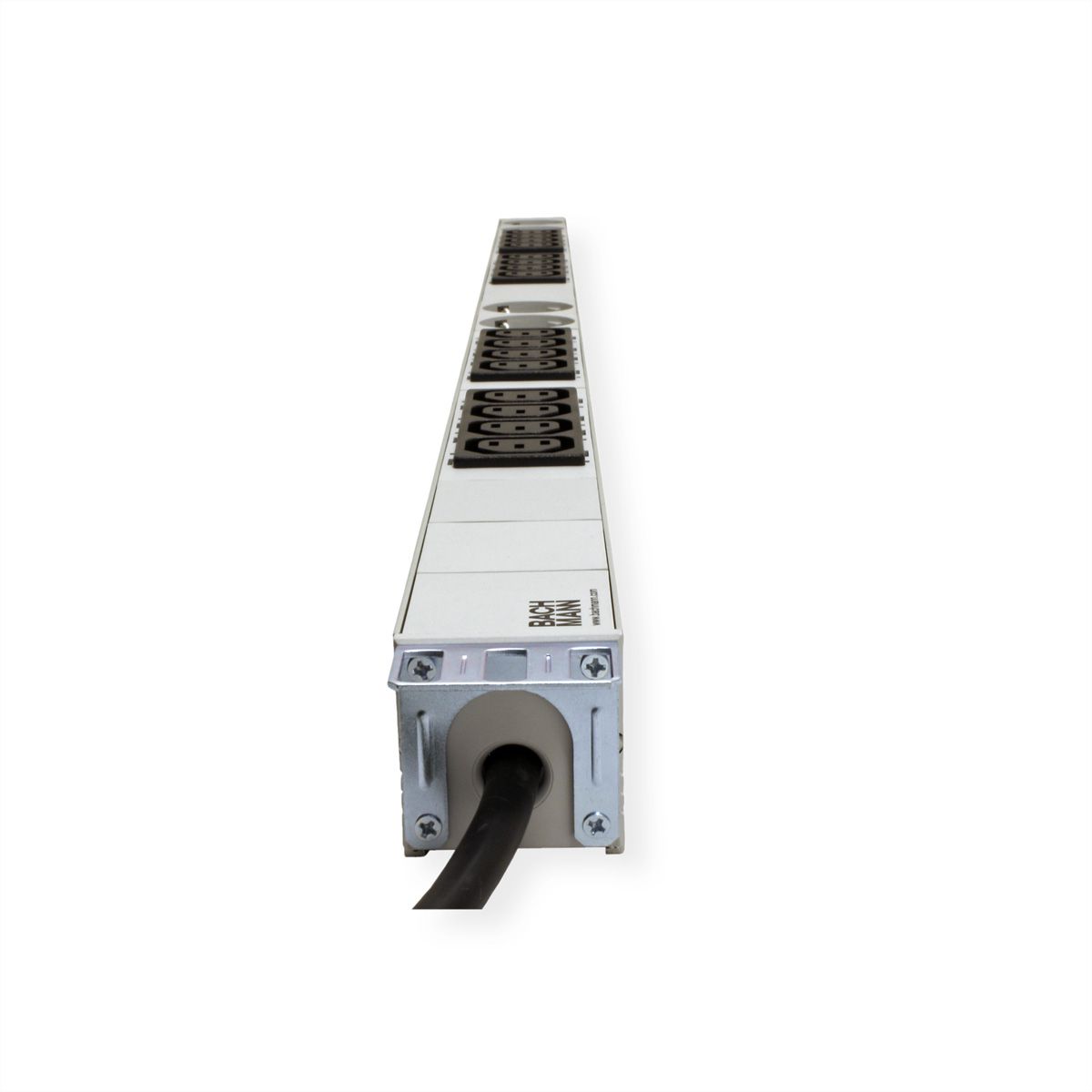

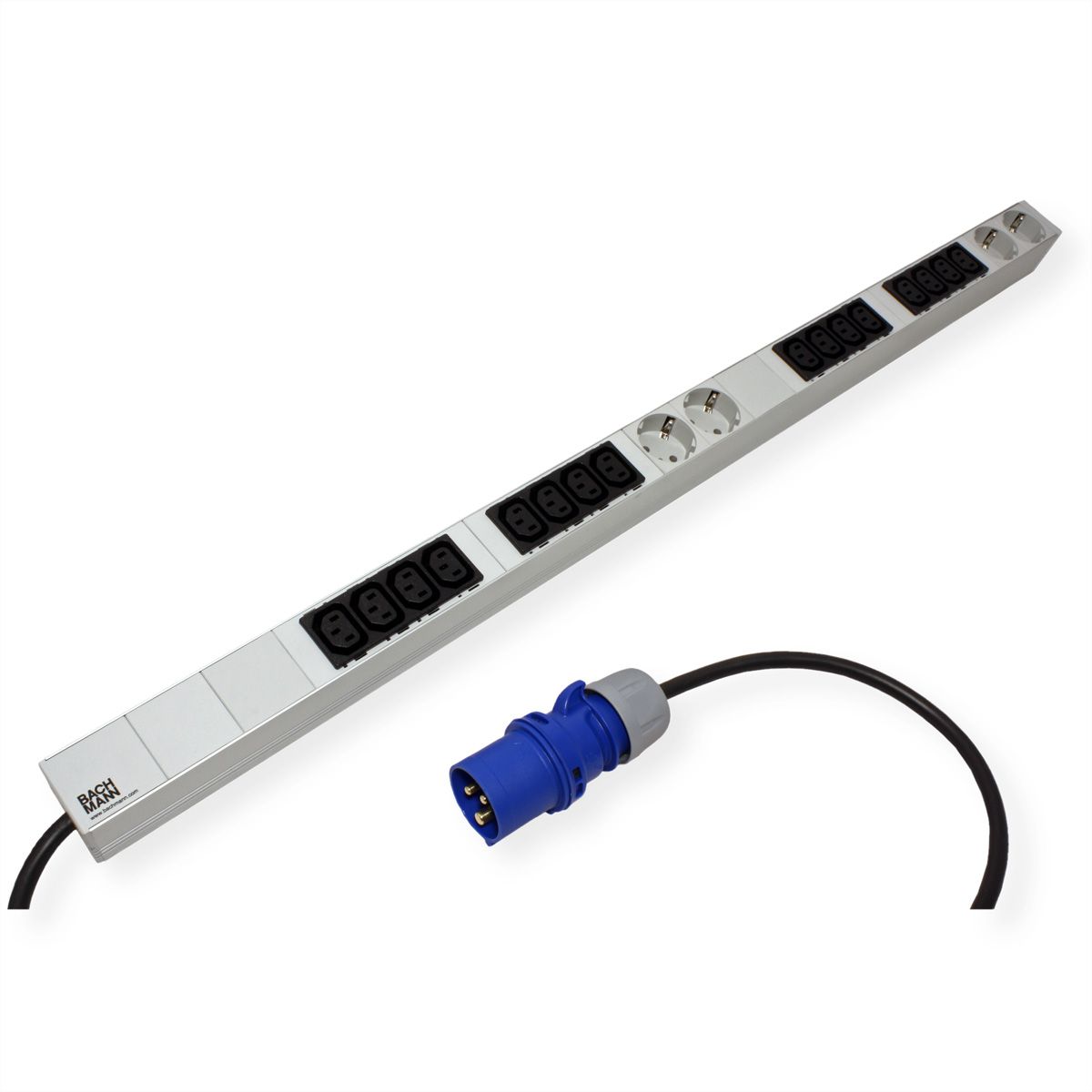

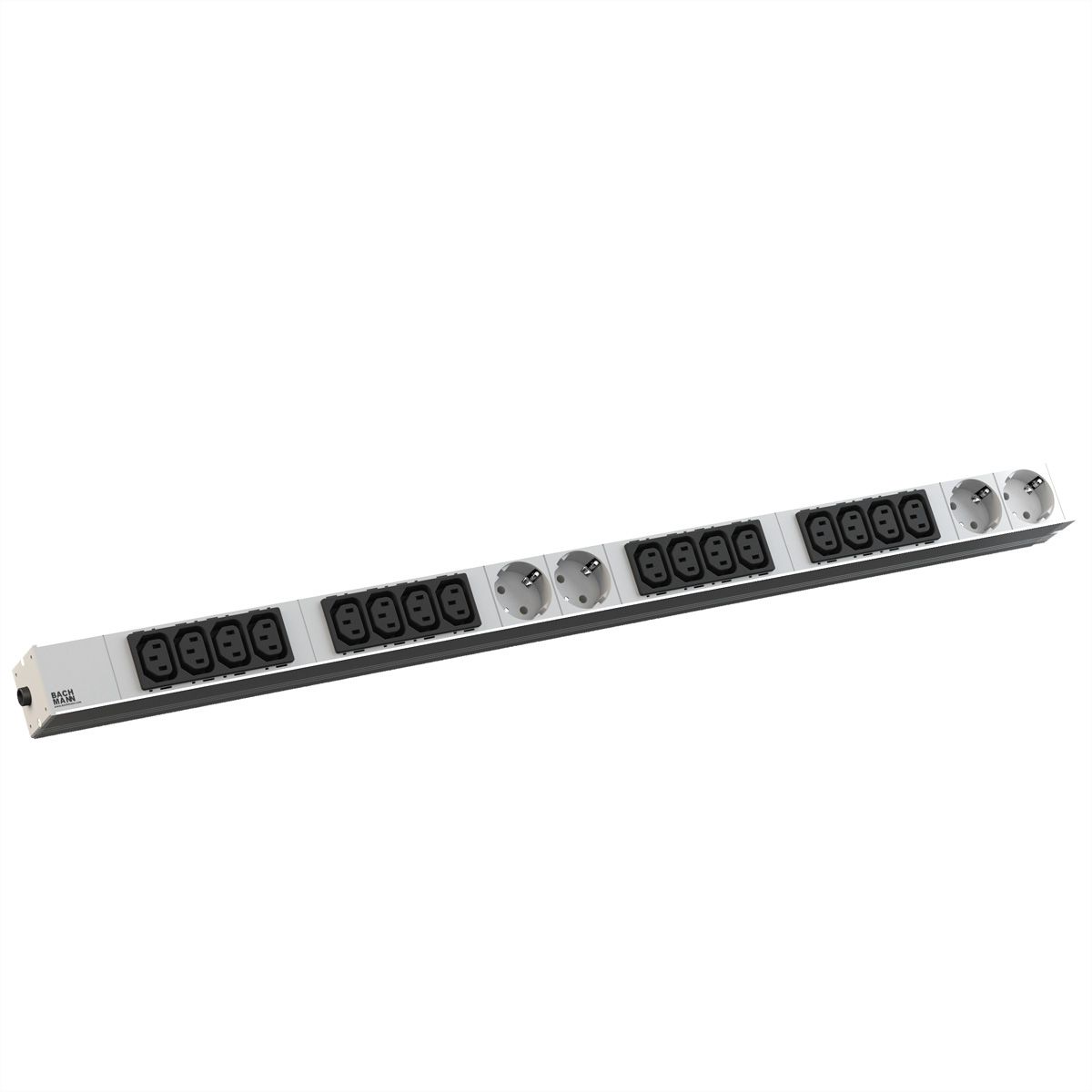

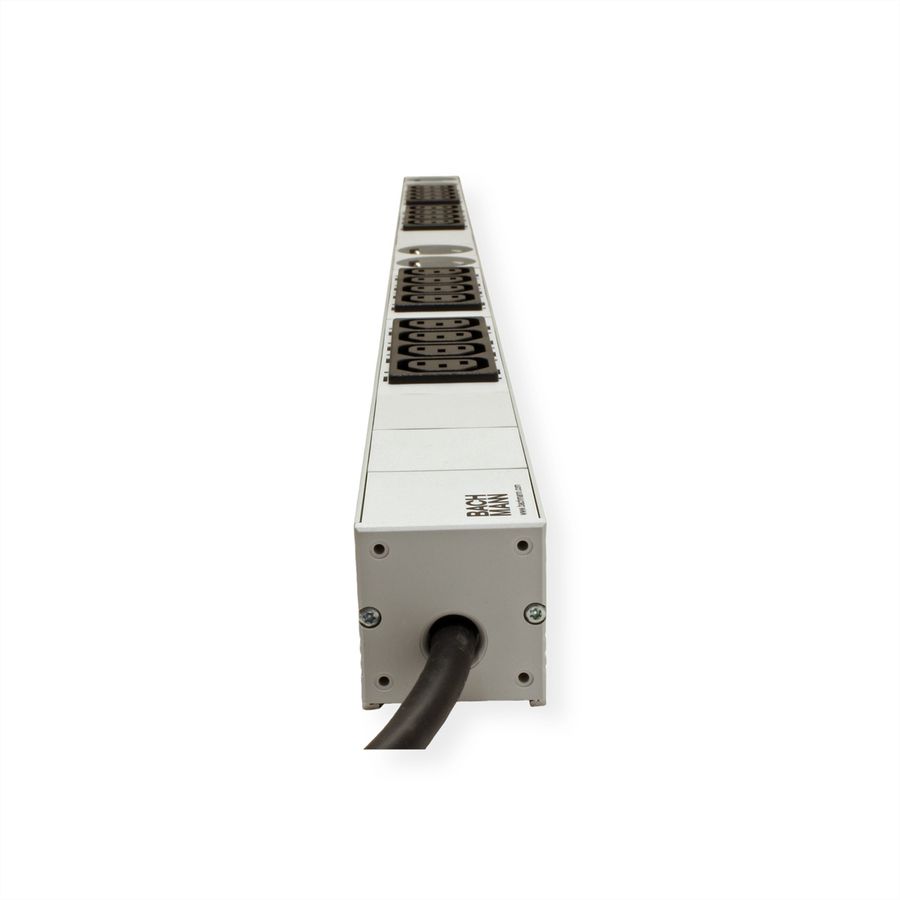

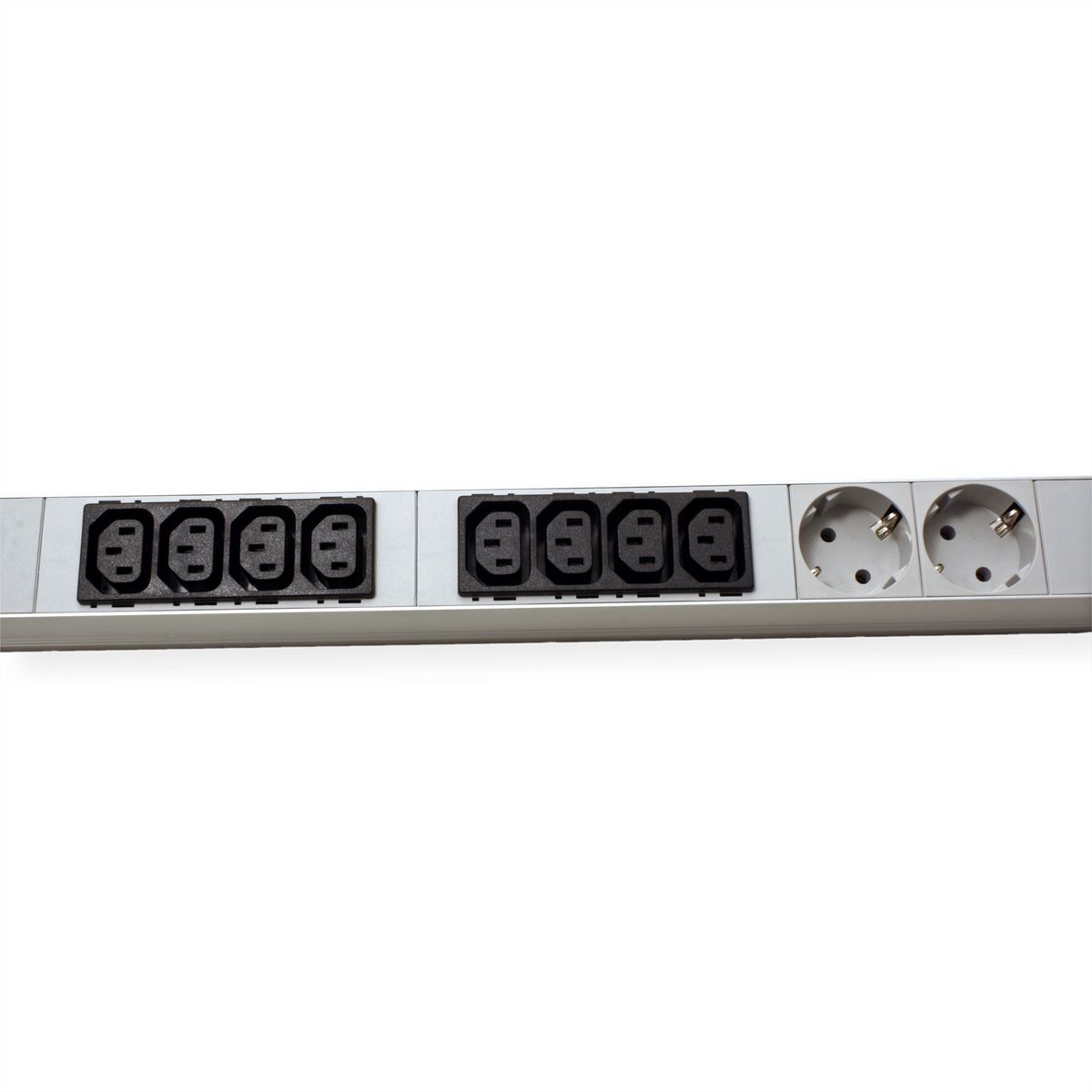

BACHMANN IT PDU ALU 1U 16x C13 4x earthing contact CEE 16A blue

Item no. 19072175 Brand / Manufacturer BACHMANN Manuf. item no. 800.2335 EAN 4057298006906 Item weight 2.19 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

Space-saving and modularly expandable integration of the PDU into the server rack - High-quality and very stable aluminium profile

- Extremely compact dimensions with 44 x 47 mm, thus providing plenty of space for data cabling and air routing for air conditioning the server rack - Locking of the plugs by means of PVC clip or IEC lock - Colour coding of the phases - Installation height in the cabinet 735 mm - 16x C13 cold appliance sockets, lockable - 4x earthing contact - Supply cable: 3.0m H05VV-F 3G2.5mm² with CEE plug 1-phase 16A blue - incl. Mounting bracket packed in cardboard box - Dimensions: 735 x 44 x 47mm

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Vertikal IT PDU
Colour
silver
Length
3 m
Function
19" socket strip
Mounting form
Vertikal
Max. voltage
230V AC
ON/OFF Switch
no
Number of socket pots
20
Quantity of outputs/angles
20
Socket type
  • 3P. German, CEE 7/3, Type-F
  • IEC320 C13, 10A
Material (casing)
Aluminium
Colour (Design profile)
Aluminium
Connection cable
3ph Zuleitung 3,0m CEE 16A
Colour (Cable)
black
Connector plug
CEE 16A blauw
Plug type
CEE blue 16A 1P+N+PE 230V "Caravan Mains Socket"
Regional use
Germany, Austria, Netherlands
Height
735 mm
Width
44 mm
Depth
47 mm
Weight
5 kg
Height of packaging (single piece)
110 mm
Width of packaging (single piece)
120 mm
Depth of packaging (single piece)
1100 mm
Package weight (single piece)
2.19 kg

Downloads

Manufacturer data sheet - English (140.7 KB) Technical drawing - English (192.4 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
