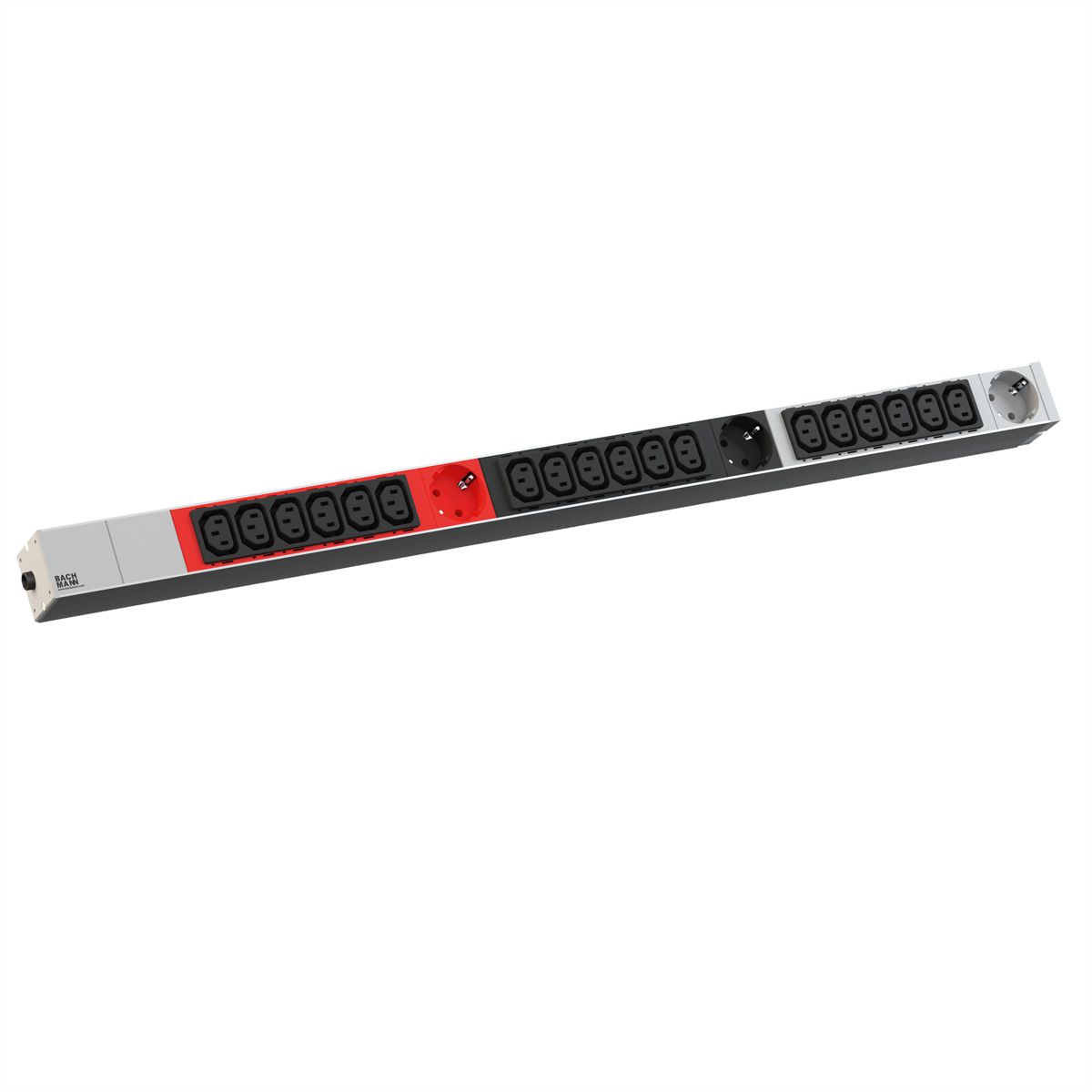

BACHMANN IT PDU ALU 1U 18x C13 3x earthing contact CEE 3x 16A red

Item no. 19072179 Brand / Manufacturer BACHMANN Manuf. item no. 800.2337 EAN 4057298006951 Item weight 2.814 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 08/13/2026
Download PDF

Description

For future-oriented, highly efficient power distribution in data centres, server racks and network racks.

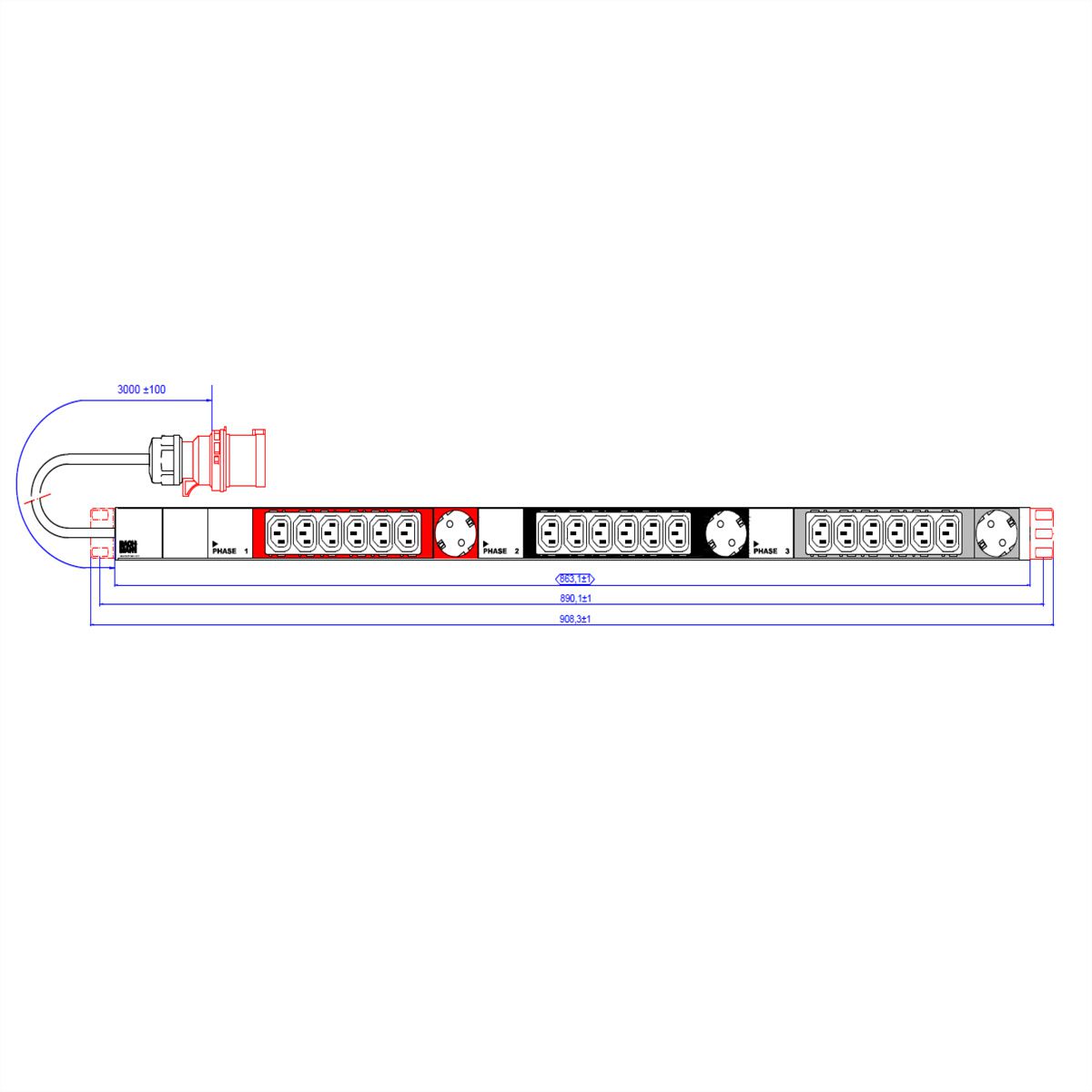

The dimensions of the high-quality and very sturdy aluminium profile are a compact 44 x 47 mm. - The space-saving design provides space for data cabling and air routing for air conditioning the server rack. - Aluminium socket strip, 1U profile 44 x 47mm for vertical mounting - Installation height in the enclosure 743mm - 18x C13 cold appliance sockets, lockable - 3x earthing contact - Supply cable: 3.0m H05VV-F 5G1.5mm² with CEE plug 3-phase 16A red - incl. mounting bracket packed in cardboard box - Dimensions: 734 x 44 x 47mm

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Vertikal IT PDU
Colour
silver
Length
3 m
Function
19" socket strip
Mounting form
Vertikal
Max. voltage
400V
ON/OFF Switch
no
Number of socket pots
21
Quantity of outputs/angles
21
Socket type
IEC320 C13, 10A
Material (casing)
Aluminium
Colour (Design profile)
Aluminium
Connection cable
3ph Zuleitung 3,0m CEE 16A
Colour (Cable)
black
Connector plug
CEE
Plug type
CEE red 16A 3P+N+PE 400V
Regional use
Without restriction
Height
734 mm
Width
44 mm
Depth
47 mm
Weight
2.4 kg
Height of packaging (single piece)
110 mm
Width of packaging (single piece)
130 mm
Depth of packaging (single piece)
1100 mm
Package weight (single piece)
2.814 kg

Downloads

Manufacturer data sheet - English (277.1 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
