Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!
Login| Item no. | 19072177 |
|---|---|
| Brand / Manufacturer | BACHMANN |
| Manuf. item no. | 800.0104 |
| EAN | 4016514048120 |
| Item weight | 2.836 kg |
:strip_icc():strip_exif()/logos/bachmann.png "BACHMANN")

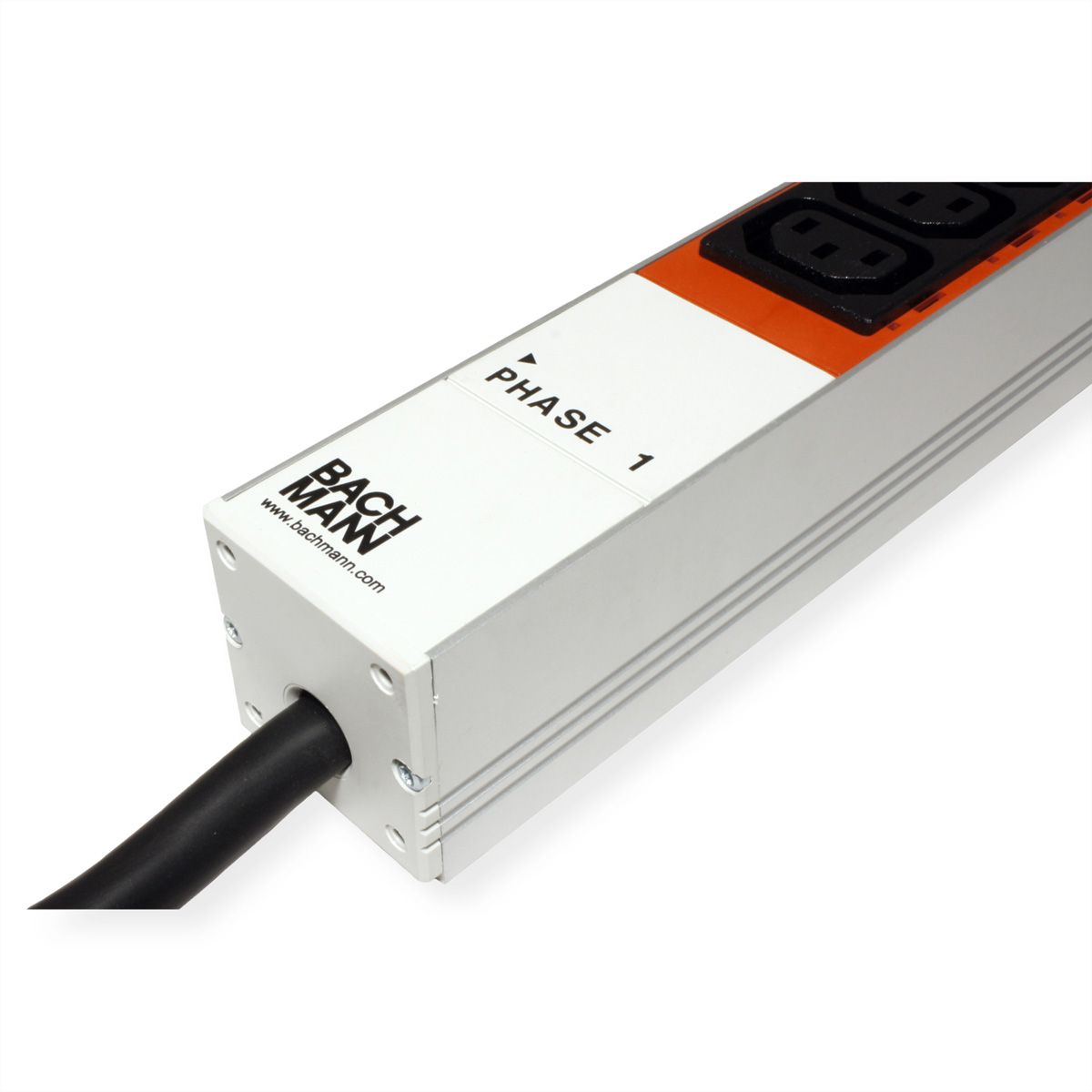

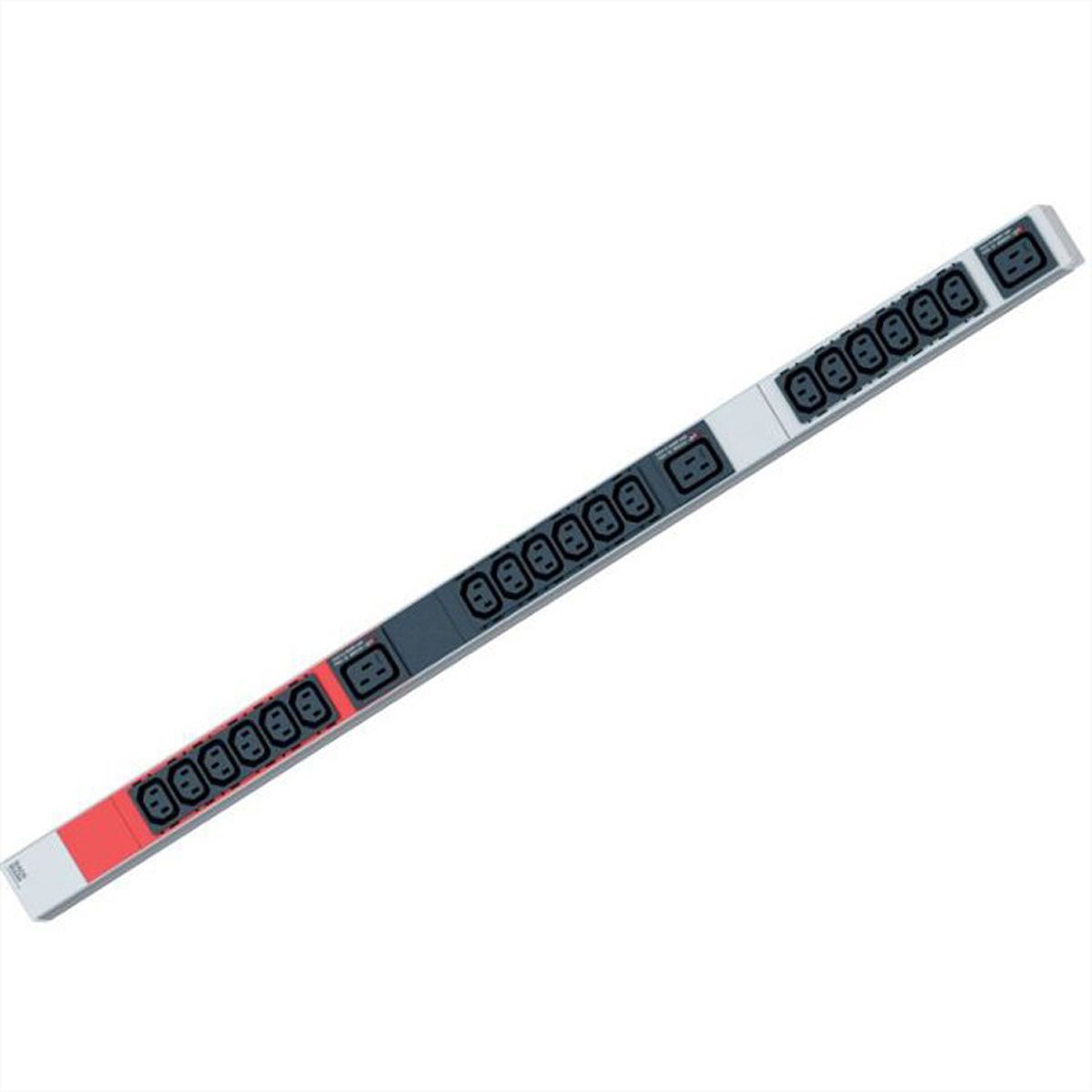

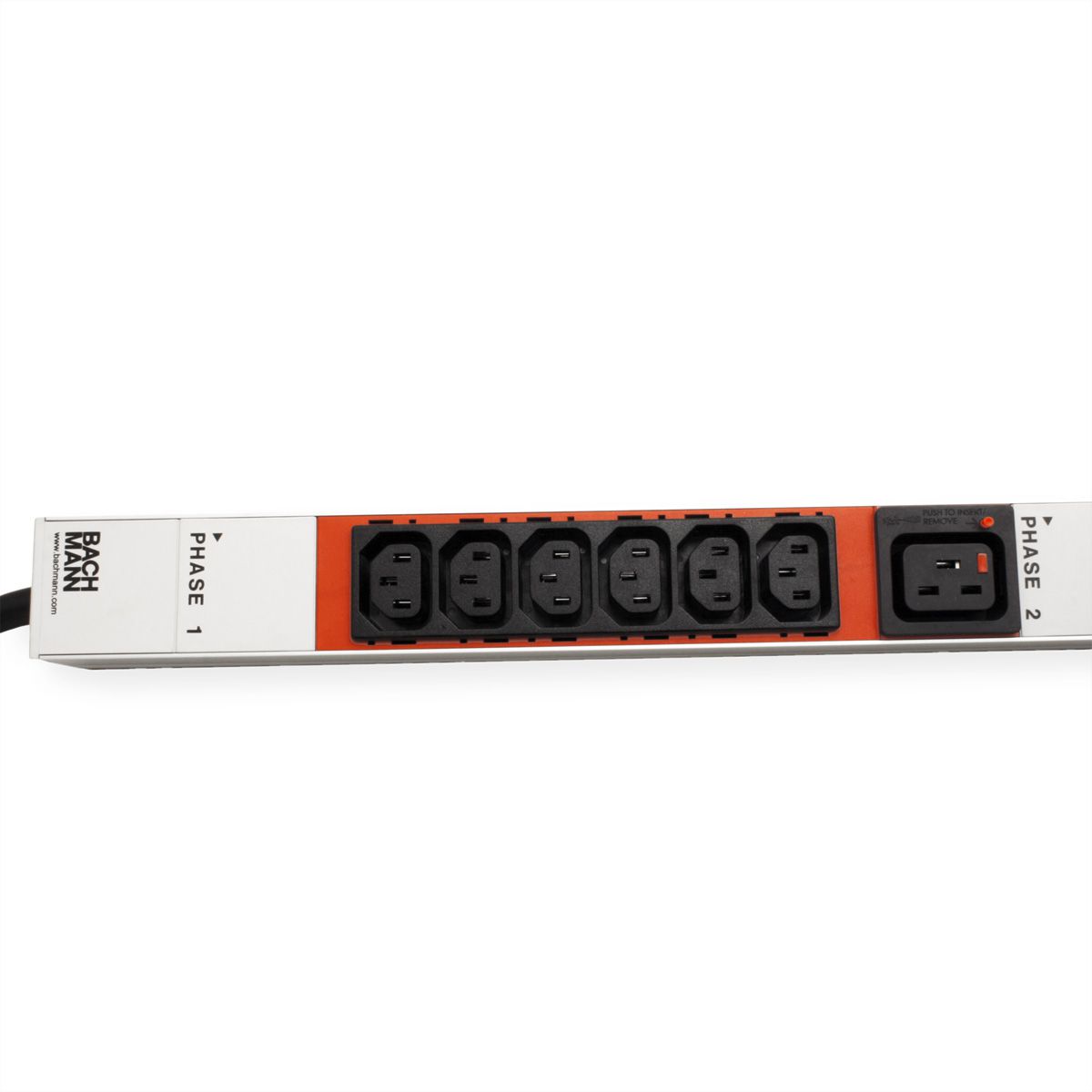

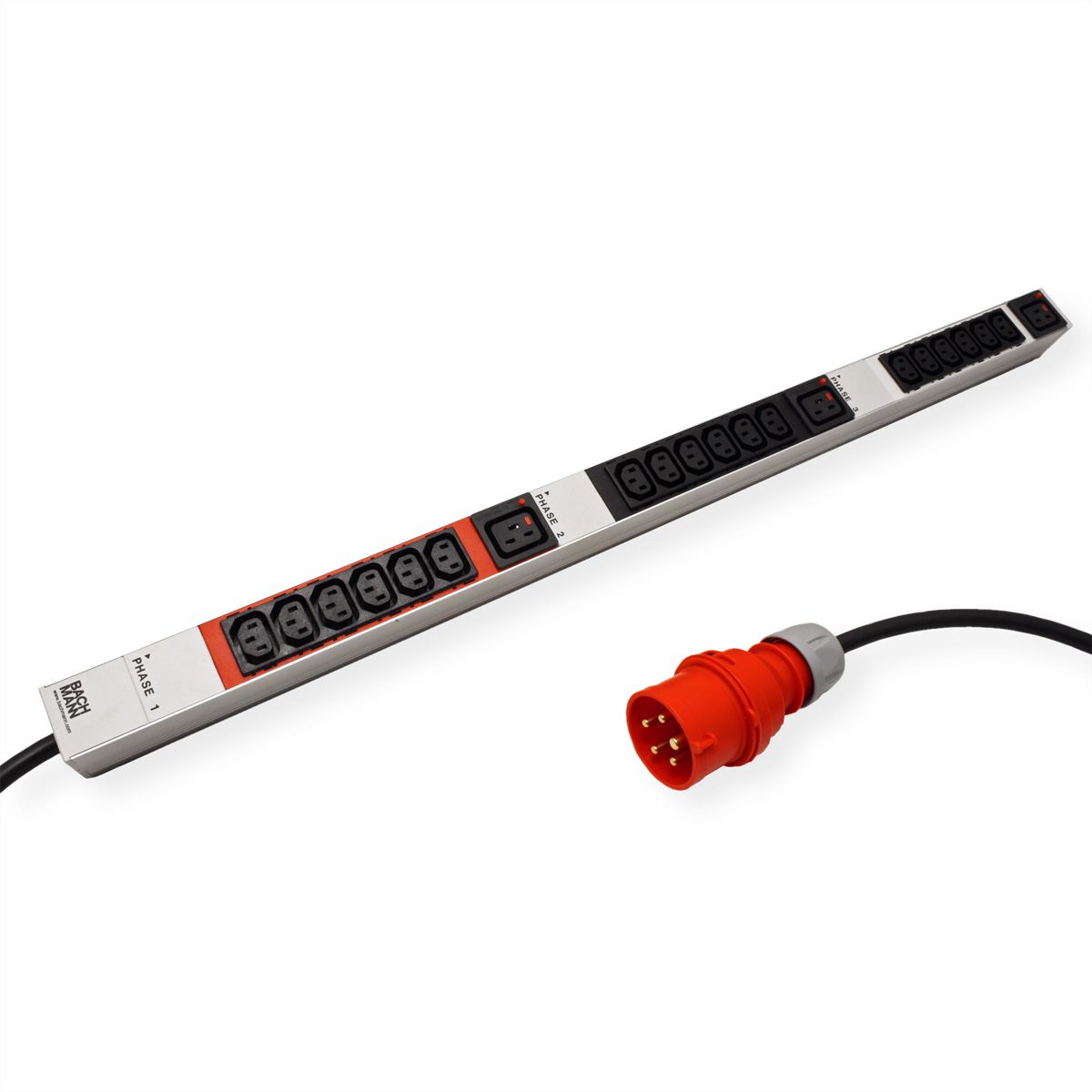

The dimensions of the high-quality and very stable aluminium profile are a compact 44 x 47 mm. - The space-saving design provides space for data cabling and air routing for air conditioning the server rack. - Aluminium socket strip, 1U profile 44 x 47mm for vertical mounting - Installation height in the enclosure 821mm - 18x C13 cold appliance sockets, lockable - 3x C19 cold appliance sockets, lockable - 1x C19 per phase, 6x C13 sockets - Supply cable: 3.0m H05VV-F 5G2.5mm² - Plug CEE 3L+N+PE 16A , 3-phase, red - Incl. Mounting bracket packed in cardboard box -
| Manufacturer | BACHMANN |
|---|---|
| Product group | Power Bars |
| Product type | Vertikal IT PDU |
| Colour | Aluminium |
| Length | 3 m |
| Function | 19" socket strip |
| Mounting form | Vertikal |
| Max. voltage | 230V AC |
| ON/OFF Switch | no |
| Number of socket pots | 21 |
| Quantity of outputs/angles | 21 |
| Socket type |
|
| Material (casing) | Aluminium |
| Colour (Design profile) | Aluminium |
| Connection cable | 3ph Zuleitung 3,0m CEE 16A |
| Colour (Cable) | black |
| Connector plug | CEE |
| Regional use | Without restriction |
| Height | 821 mm |
| Width | 44 mm |
| Depth | 47 mm |
| Weight | 2.4 kg |
| Height of packaging (single piece) | 130 mm |
| Width of packaging (single piece) | 1100 mm |
| Depth of packaging (single piece) | 120 mm |
| Package weight (single piece) | 2.836 kg |
:strip_icc():strip_exif()/cms_secde/cms/ueber_uns/markenwelt/hersteller_logos/bachmann.png)
The BACHMANN brand stands for customer-oriented electrotechnical components and systems.
In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
