BACHMANN IT PDU ALU 1U 20x C13 2x circuit breaker CEE 32A blue

Item no. 19072169 Brand / Manufacturer BACHMANN Manuf. item no. 800.0119 EAN 4016514048274 Item weight 2.84 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day

Description

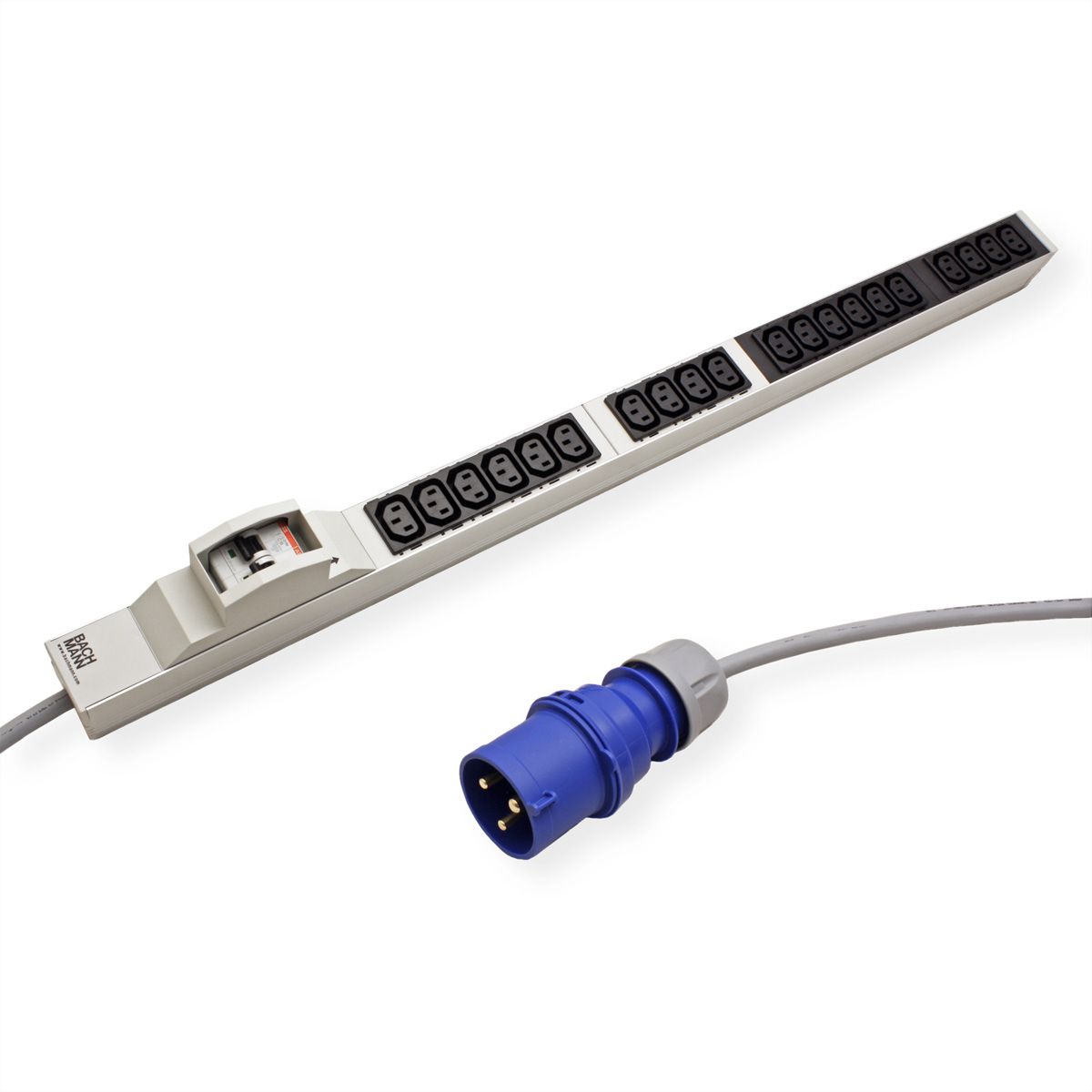

Vertical IT PDU for space-saving and modularly expandable integration into the server rack

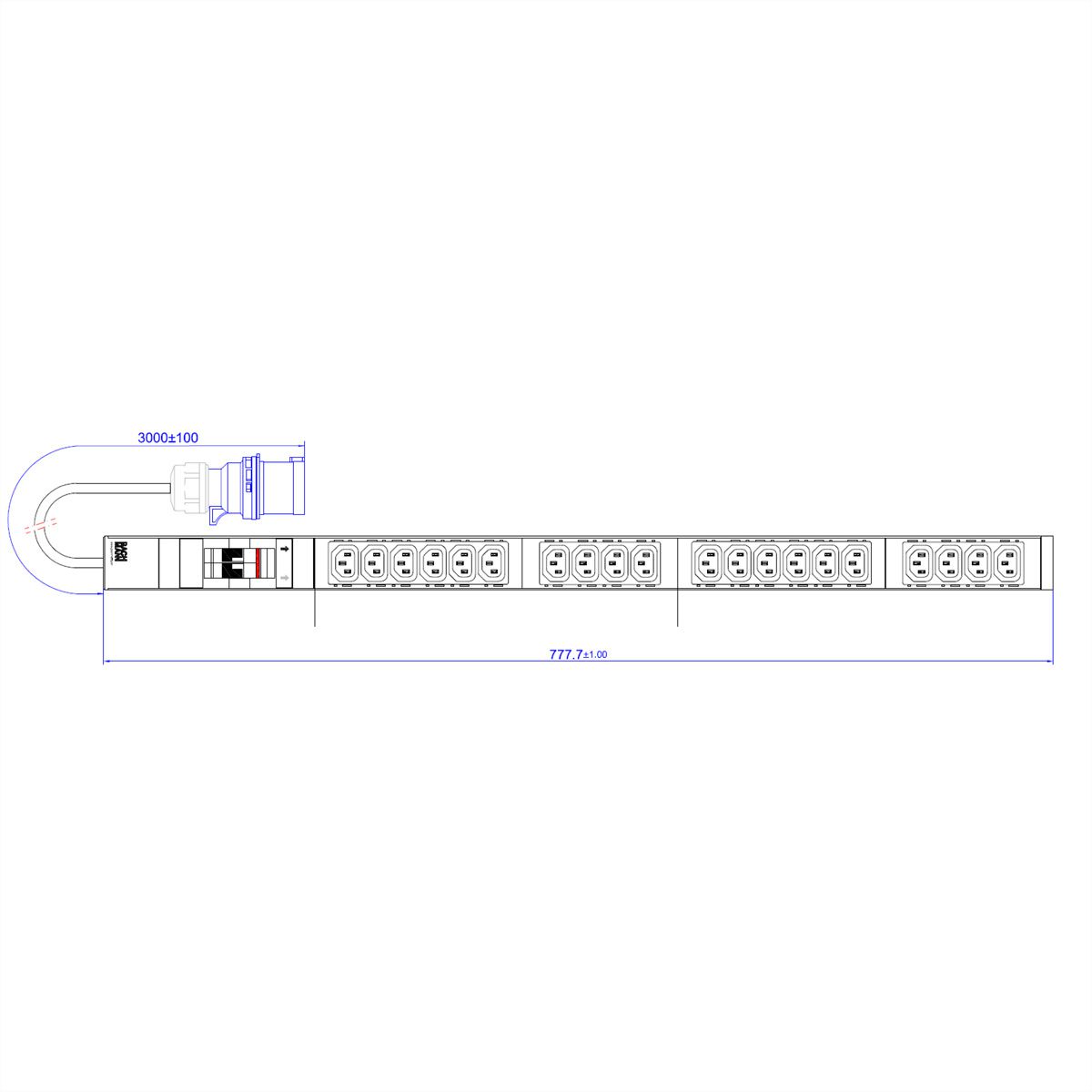

Space-saving and modularly expandable integration of the PDU into the server rack - High-quality and very stable aluminium profile - Extremely compact dimensions with 44 x 47 mm, This provides plenty of space for - data cabling and air routing for air conditioning the server rack - Locking the plugs using a PVC clip or IEC lock - Colour coding of the phases - Installation height in the cabinet 778mm - 20x C13 cold appliance sockets, lockable - 2x circuit breakers - Supply cable: 3.0m H05VV-F 5G4mm² with CEE plug 1-phase 32A blue - incl. Mounting bracket packed in cardboard box - Dimensions: 778 x 44 x 47mm

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Vertikal IT PDU
Colour
silver
Length
3 m
Function
19" socket strip
Mounting form
Vertikal
Cabinet system
19"-Technique
Height units
1 U
Max. capacitance
3x 3600W
Max. voltage
400V AC
ON/OFF Switch
no
Number of socket pots
20
Output alignment
24 x C13 3 x C19
Socket type
IEC320 C13, 10A
Material (casing)
Aluminium
Colour (Design profile)
Aluminium
Connection cable
CEE Stecker 32A 3-pol
Colour (Cable)
black
Connector plug
CEE 32A rood
Plug type
CEE blue 32A 1P+N+PE 230V
Regional use
Without restriction
Technical particularity
2 x stroomschakelaar
Mains connection
CEE plug 1Ph. IEC 309
Height
44 mm
Width
778 mm
Depth
47 mm
Weight
2.54 kg
Height of packaging (single piece)
120 mm
Width of packaging (single piece)
130 mm
Depth of packaging (single piece)
1100 mm
Package weight (single piece)
2.84 kg

Downloads

Manufacturer data sheet - English (94.2 KB) Safety instructions - Multilingual (186.0 KB)
