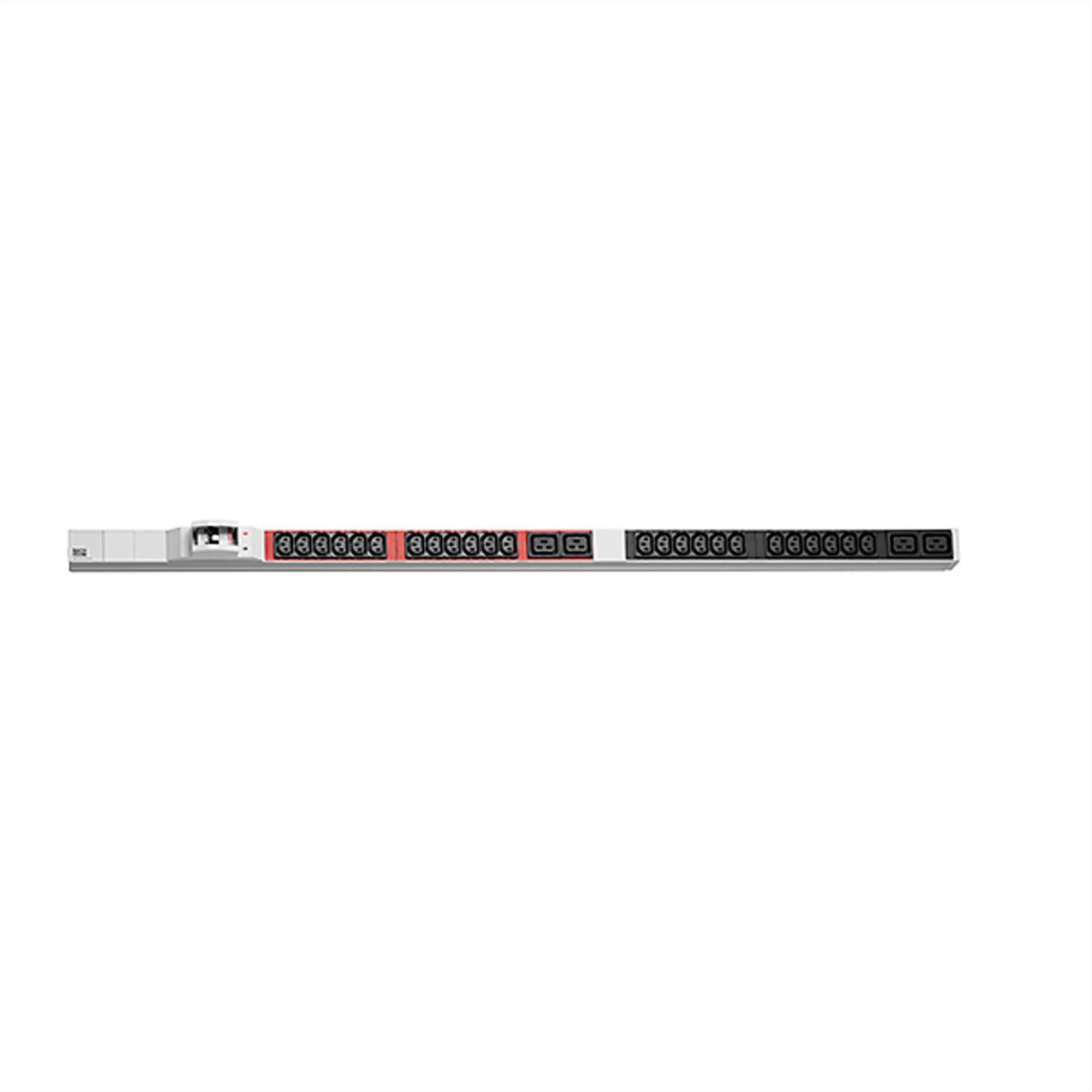

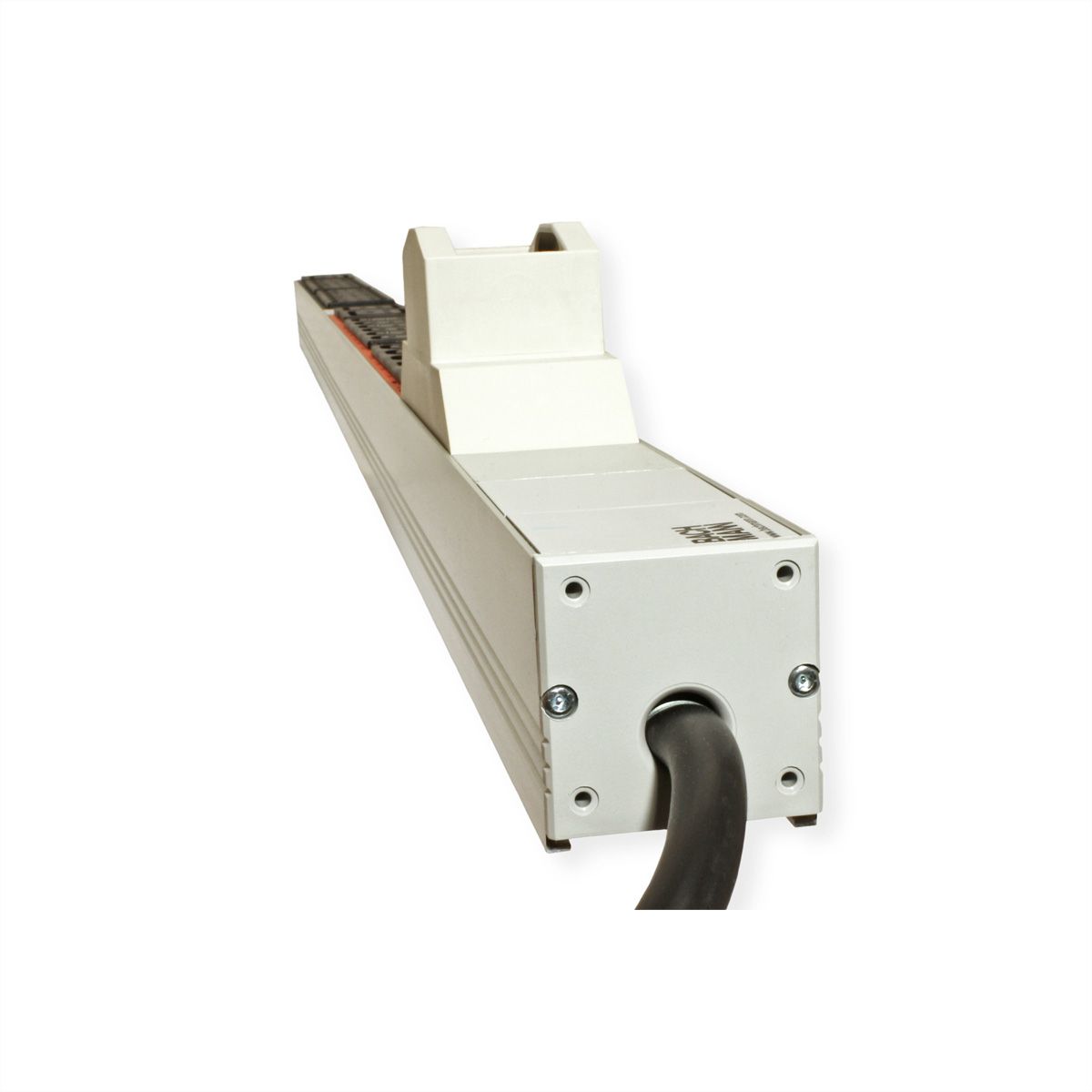

BACHMANN IT PDU ALU 1U 20xC13 4xC19 2xLS CEE 32A blue

Item no. 19072176 Brand / Manufacturer BACHMANN Manuf. item no. 800.2336 EAN 4057298006937 Item weight 3.298 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
Deliverable approx. 07/30/2026
Download PDF

Description

For future-oriented, highly efficient power distribution in data centres, server racks and network racks.

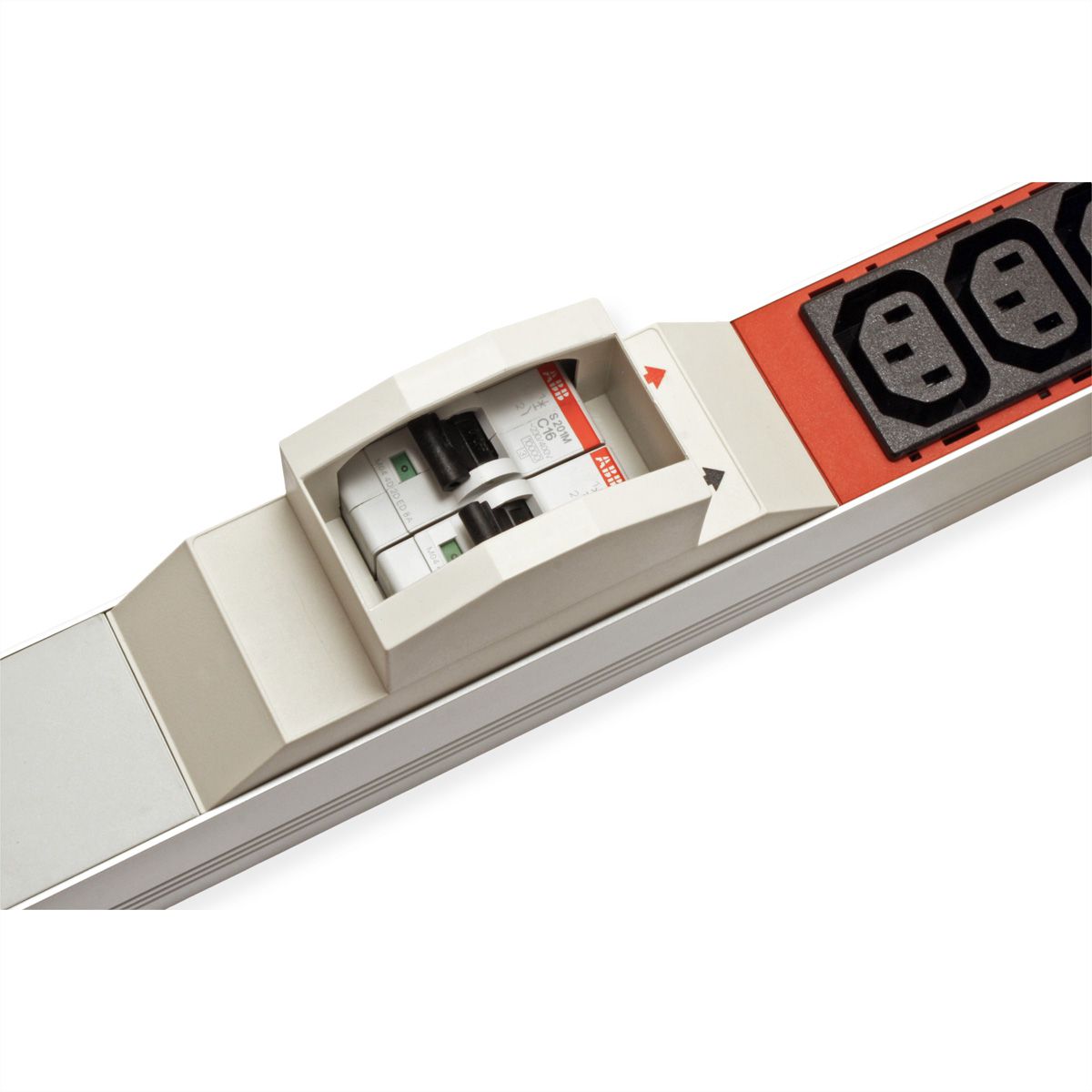

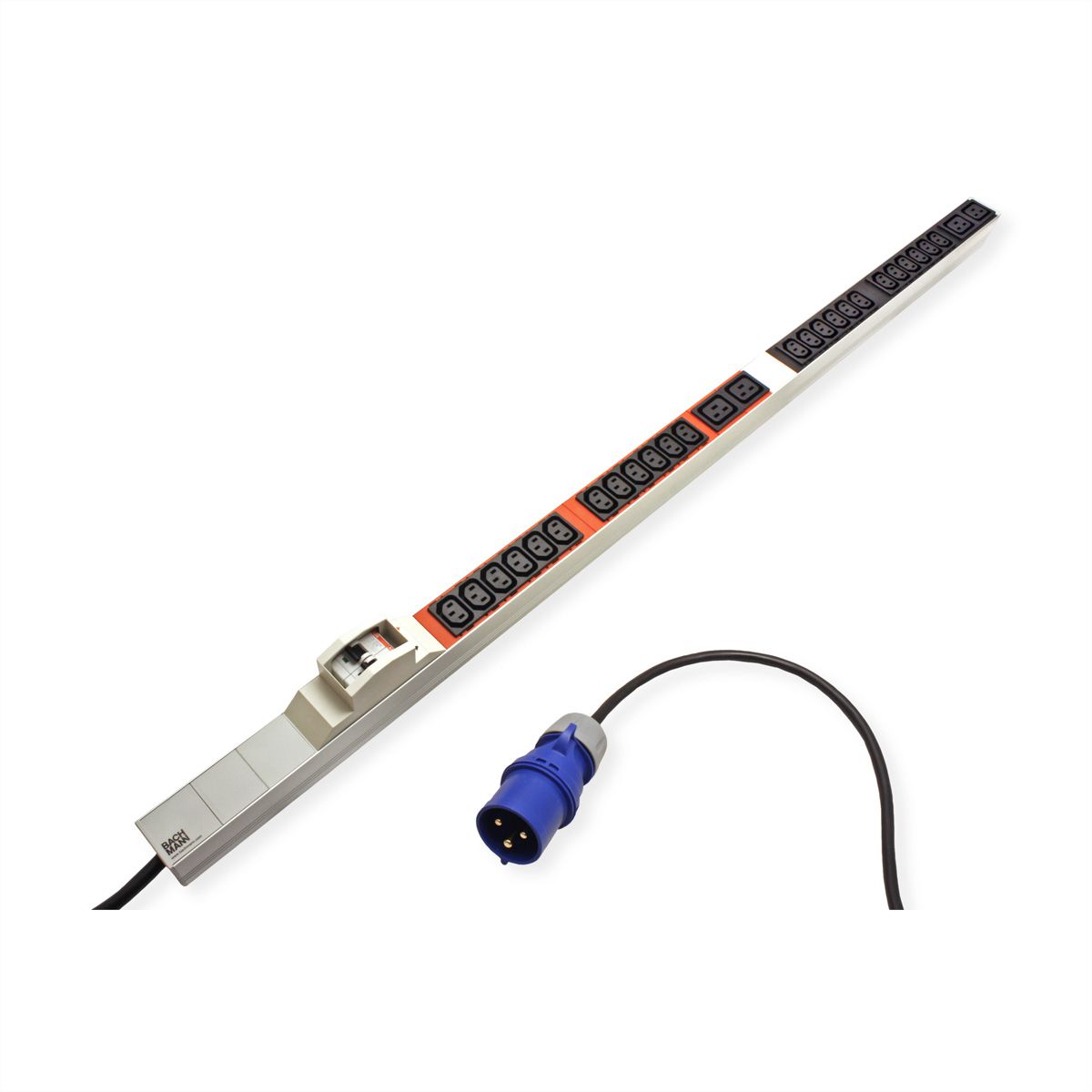

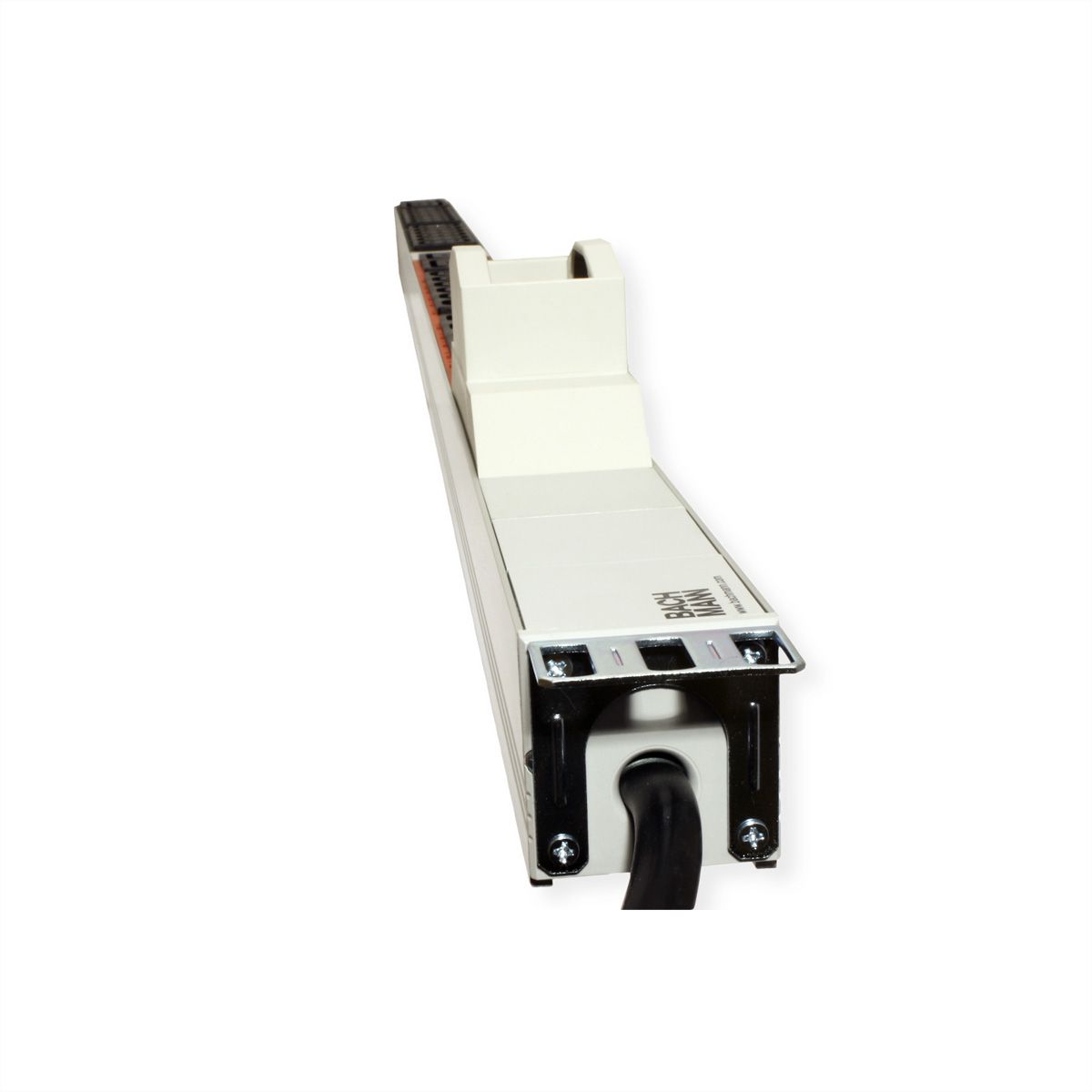

The dimensions of the high-quality and very stable aluminium profile are a compact 44 x 47 mm. - The space-saving design offers space for data cabling and air routing for air conditioning the server rack. - Aluminium socket strip, 1U profile 44 x 47mm for vertical mounting - Installation height in the cabinet 1119mm - 20x C13 cold appliance sockets, lockable - 4x C19 cold appliance sockets, lockable - 2x miniature circuit breakers - Supply cable: 3.0m H05VV-F 3G4mm² with CEE plug 1-phase 32A - incl. mounting bracket packed in cardboard box -

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Vertikal IT PDU
Colour
silver
Length
3 m
Function
19" socket strip
Mounting form
Vertikal
Max. voltage
230V AC
ON/OFF Switch
no
Number of socket pots
20
Quantity of outputs/angles
20
Socket type
  • IEC320 C13, 10A
  • IEC320 C19, 16A
Material (casing)
Aluminium
Colour (Design profile)
Aluminium
Connection cable
3ph Zuleitung 3,0m CEE 16A
Colour (Cable)
black
Connector plug
CEE
Plug type
CEE red 32A 3P+N+PE 400V
Regional use
Without restriction
Height
1119 mm
Width
44 mm
Depth
47 mm
Weight
5 kg
Height of packaging (single piece)
120 mm
Width of packaging (single piece)
120 mm
Depth of packaging (single piece)
1450 mm
Package weight (single piece)
3.298 kg

Downloads

Manufacturer data sheet - English (160.1 KB) Technical drawing - English (564.1 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
