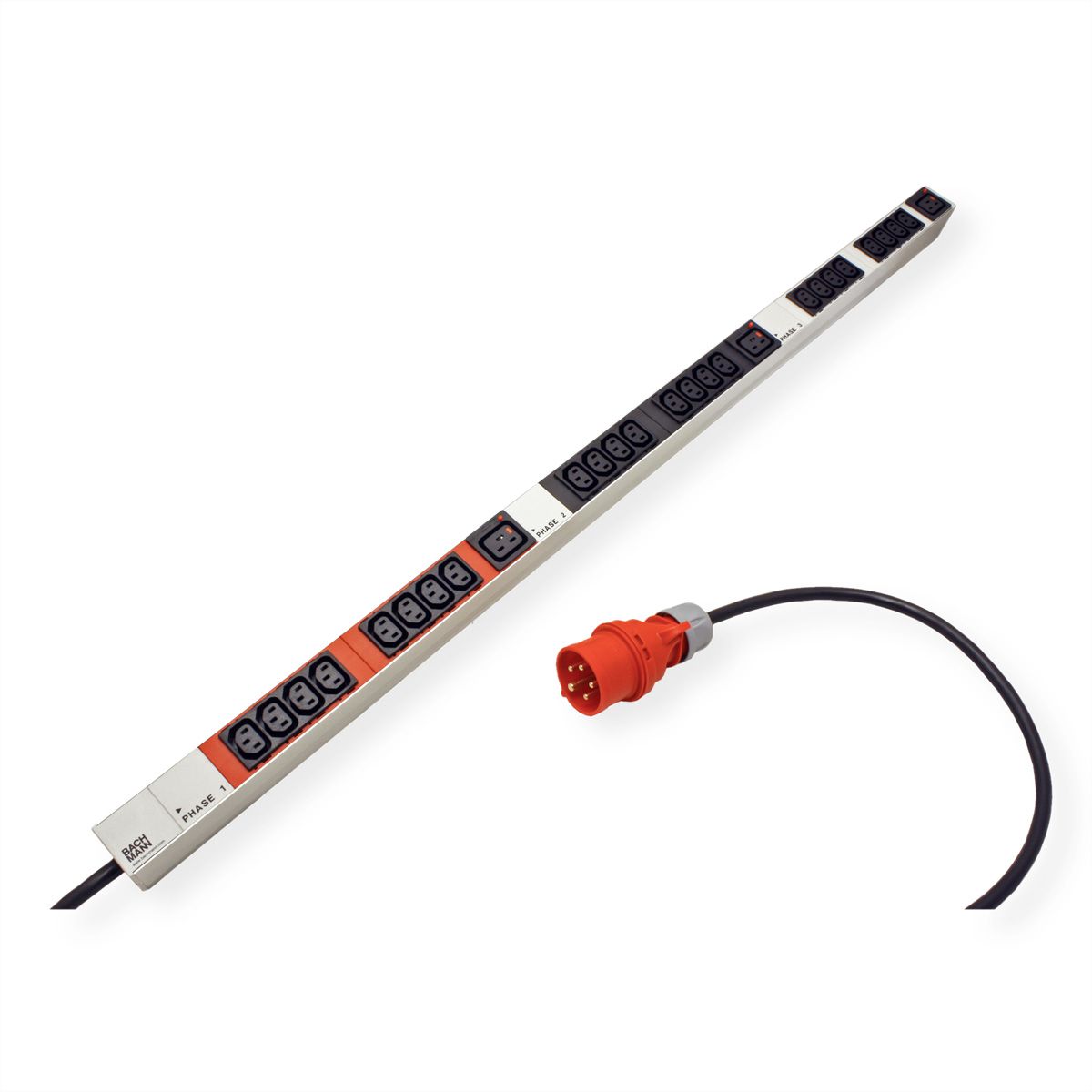

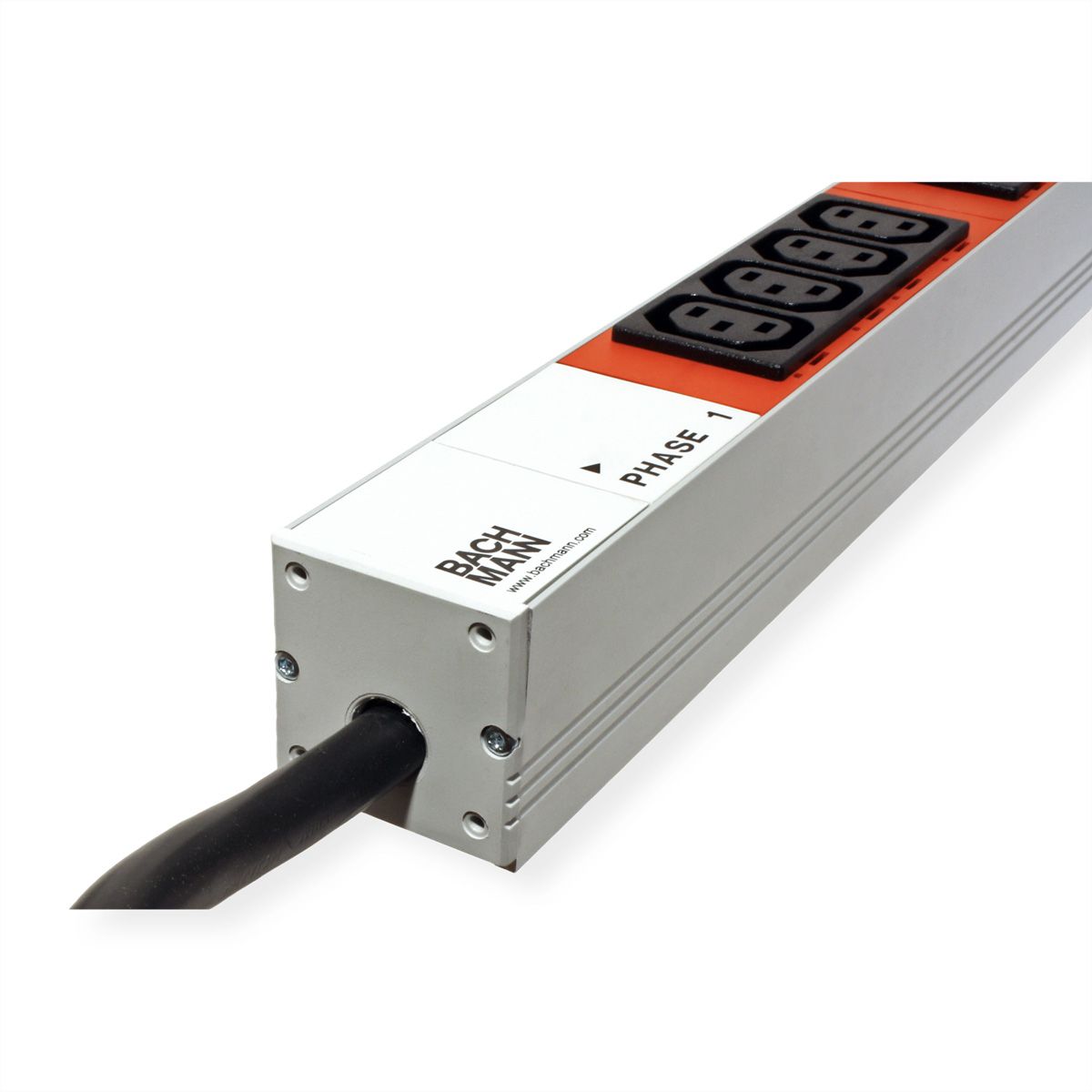

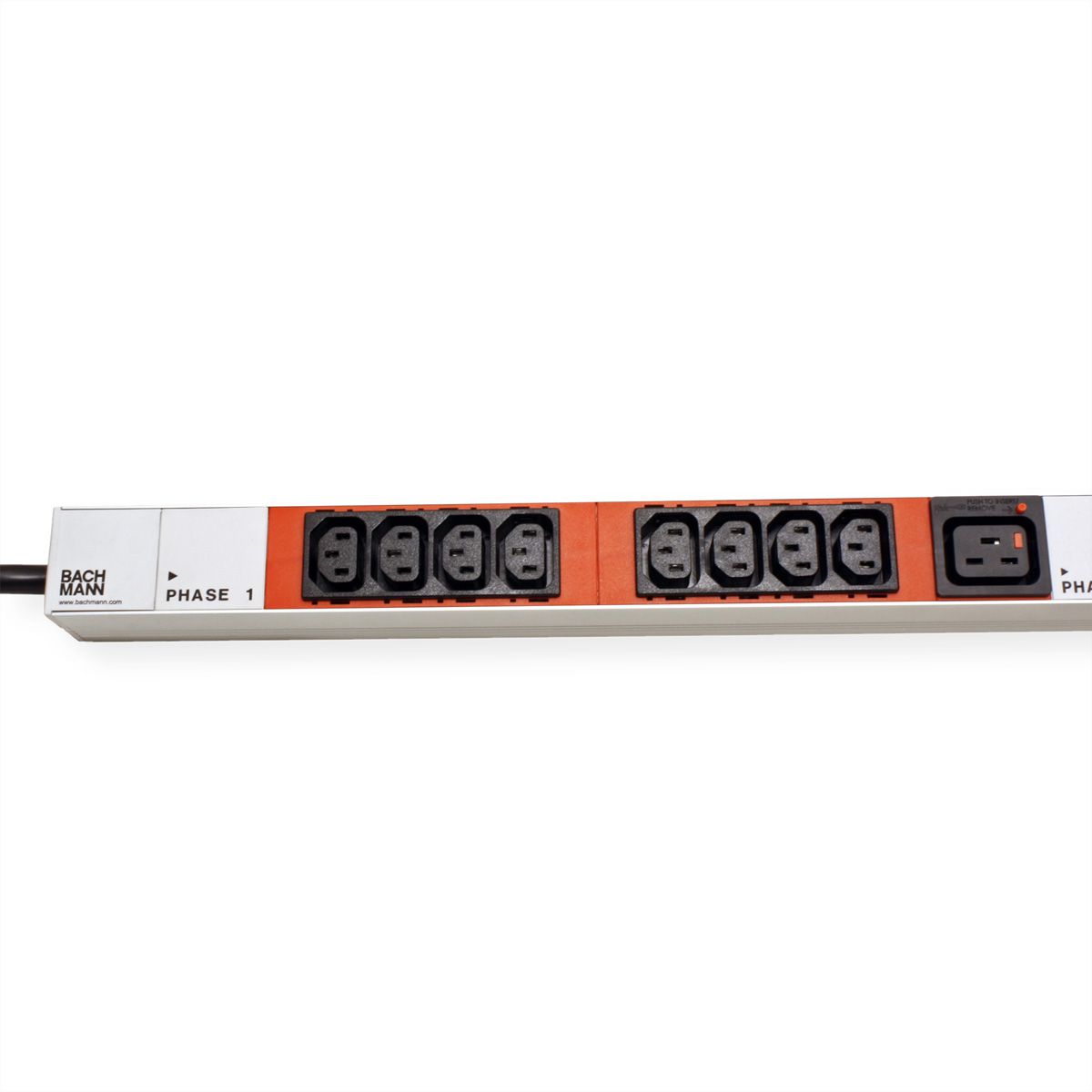

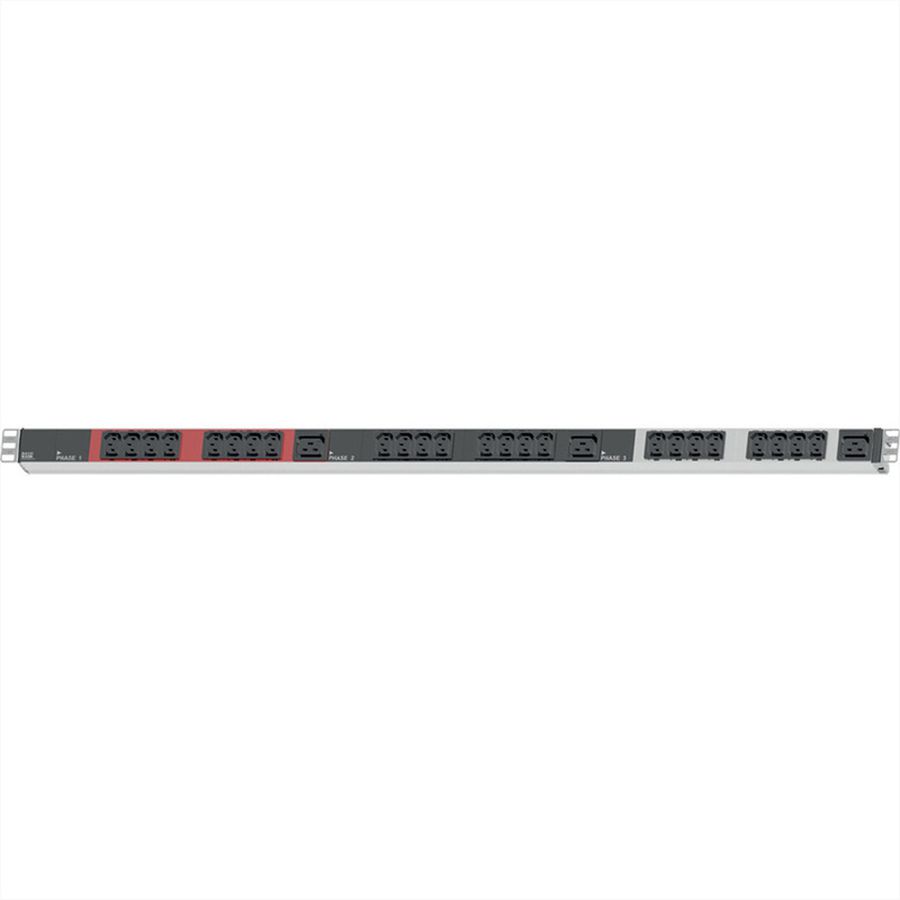

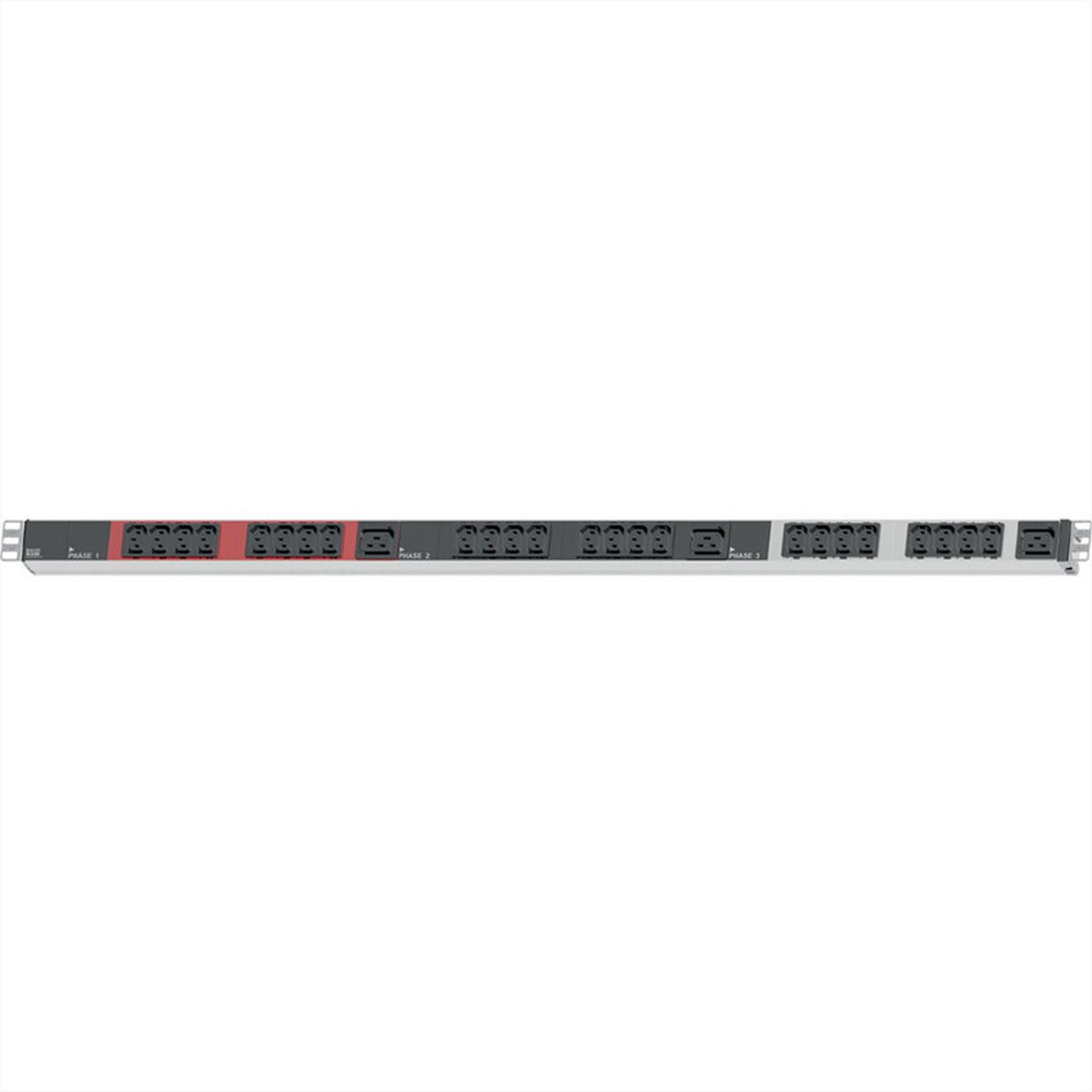

BACHMANN IT PDU ALU 1U 24x C13 3x C19 CEE 3x16A red

Item no. 19072170 Brand / Manufacturer BACHMANN Manuf. item no. 800.1656 EAN 4016514075065 Item weight 3.144 kg

BACHMANN IT PDU ALU 1U 24x C13 3x C19 CEE 3x16A red

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Deliverable approx. 08/27/2026

Download PDF

Description

For future-oriented, highly efficient power distribution in data centres, server racks and network racks.

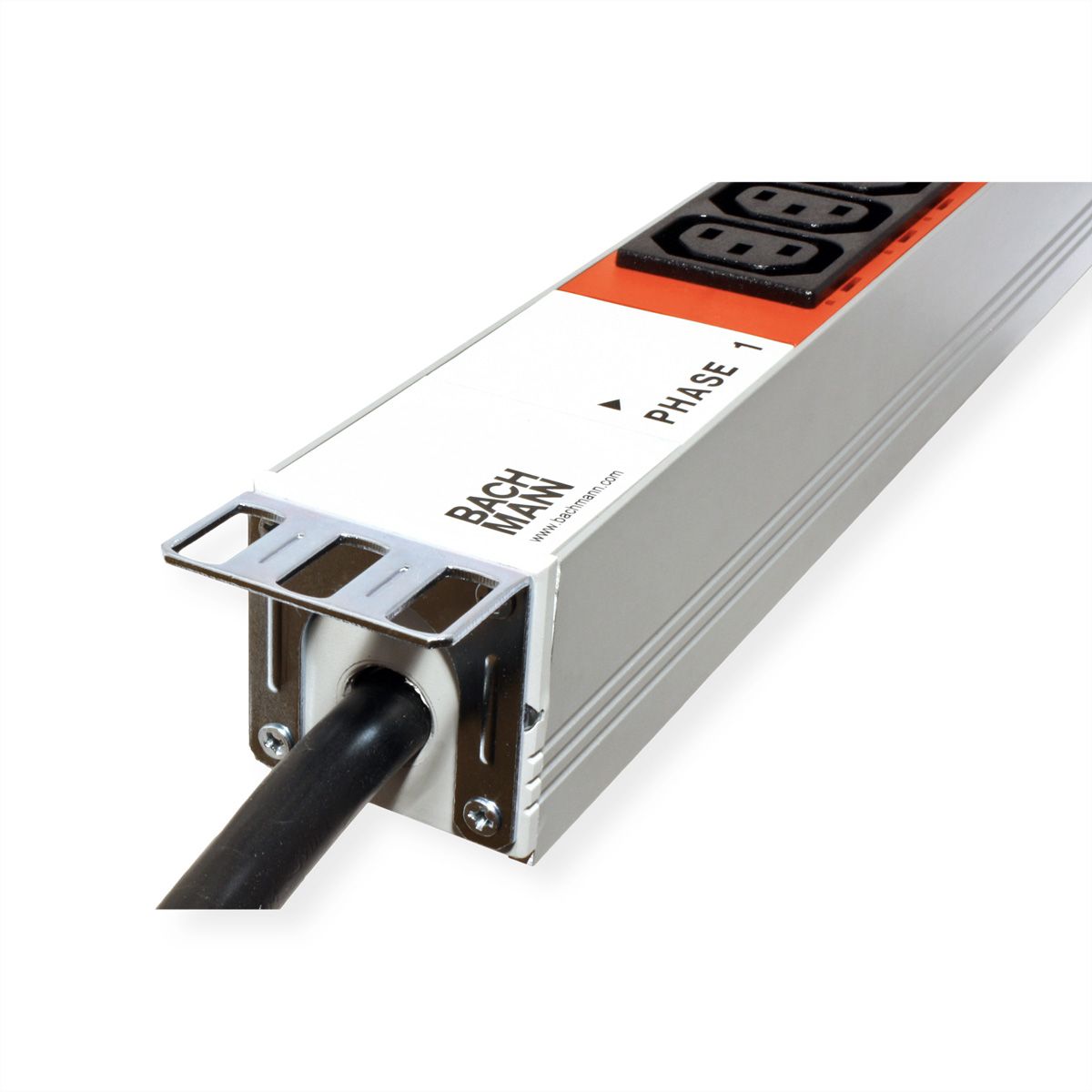

The dimensions of the high-quality and very stable aluminium profile are a compact 44 x 47 mm. - The space-saving design offers space for data cabling and air routing for air conditioning the server rack. - Aluminium socket strip, 1U profile 44 x 47mm for vertical mounting - Installation height in the enclosure 1075mm - 24x C13 cold appliance sockets, lockable - 3x C19 cold appliance sockets - Supply cable: 3.0m H05VV-F 5G2.5mm² with CEE plug 3-phase 16A red - incl. mounting bracket packed in cardboard box - Dimensions: 1075 x 44 x 47 mm

Specifications

Manufacturer: BACHMANN
Product group: Power Bars
Product type: Vertikal IT PDU
Colour: various
Length: 3 m
Function: 19" socket strip
Mounting form: Vertikal
Max. capacitance: 3x3600W
Max. voltage: 400V AC
ON/OFF Switch: no
Switch type: 2,7 kg
Number of socket pots: 27
Quantity of outputs/angles: 27
Output alignment: 24 x C13 3 x C19
Socket type: IEC320 C13, 10A

IEC320 C19, 16A
Material (casing): Aluminium
Colour (Design profile): Aluminium
Connection cable: H05VV-F 3G 2,5mm²
Colour (Cable): black
Connector plug: CEE 3x16A rood
Plug type: CEE red 16A 3P+N+PE 400V
Regional use: Without restriction
Height: 1075 mm
Width: 44 mm
Depth: 47 mm
Weight: 2778 g
Height of packaging (single piece): 110 mm
Width of packaging (single piece): 1240 mm
Depth of packaging (single piece): 110 mm
Package weight (single piece): 3.144 kg
