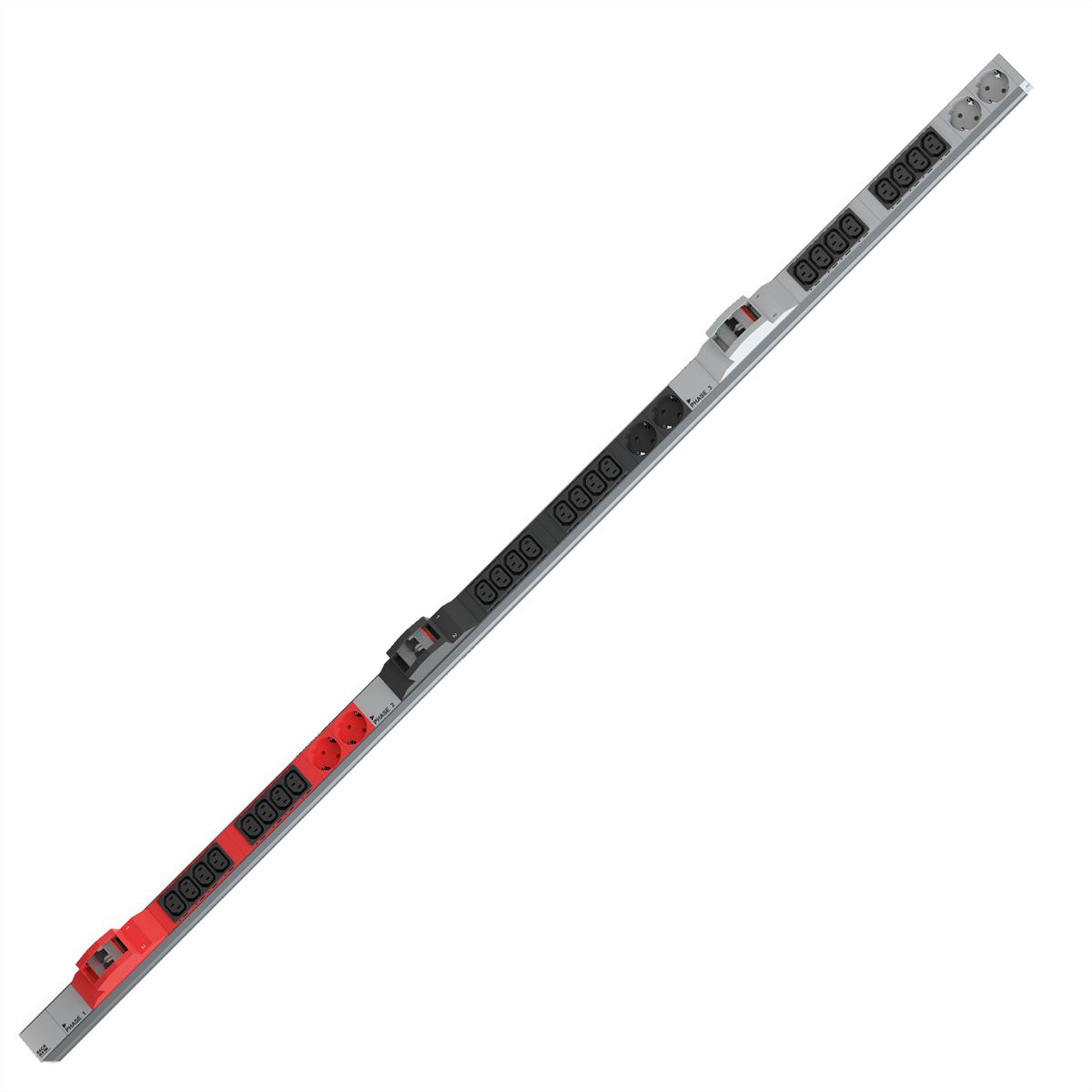

BACHMANN IT PDU ALU 1U 24x C13 6x earthing contact 6LS CEE 3x 32A red

Item no. 19072187 Brand / Manufacturer BACHMANN Manuf. item no. 800.2340 EAN 4057298007002 Item weight 3.571 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

Space-saving and modularly expandable integration of the PDU into the server rack - High-quality and very stable aluminium profile

- Extremely compact dimensions with 44 x 47 mm, thus offering plenty of space for data cabling and air routing for air conditioning the server rack - Locking of the plugs by means of PVC clip or IEC lock - Colour coding of the phases - Installation height in the cabinet 1586mm - 24x C13 cold appliance sockets, lockable - 6x C19 - 6x circuit breakers 16A - Supply cable: 3.0m H05VV-F 5G4mm² with CEE plug 3-phase 16A red - incl. Mounting bracket packed in cardboard box - Connection plug CEE32A 3L+N+PE red

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Vertikal IT PDU
Colour
various
Length
3 m
Function
Steckdosenleiste
Mounting form
Vertikal
Max. capacitance
3x3600W
Max. voltage
400V AC
ON/OFF Switch
no
Number of socket pots
30
Output alignment
24 x C13 3 x C19
Socket type
  • 3P. German, CEE 7/3, Type-F
  • IEC320 C13, 10A
Material (casing)
Aluminium
Colour (Design profile)
Aluminium
Connection cable
3,0m CEE 32A
Colour (Cable)
black
Connector plug
CEE32A 3L+N+PE rood
Plug type
CEE red 32A 3P+N+PE 400V
Regional use
Without restriction
Technical particularity
2x stroomonderbrekers 16A
Height
44 mm
Width
1586 mm
Depth
47 mm
Weight
5.72 kg
Height of packaging (single piece)
110 mm
Width of packaging (single piece)
120 mm
Depth of packaging (single piece)
1710 mm
Package weight (single piece)
3.571 kg
