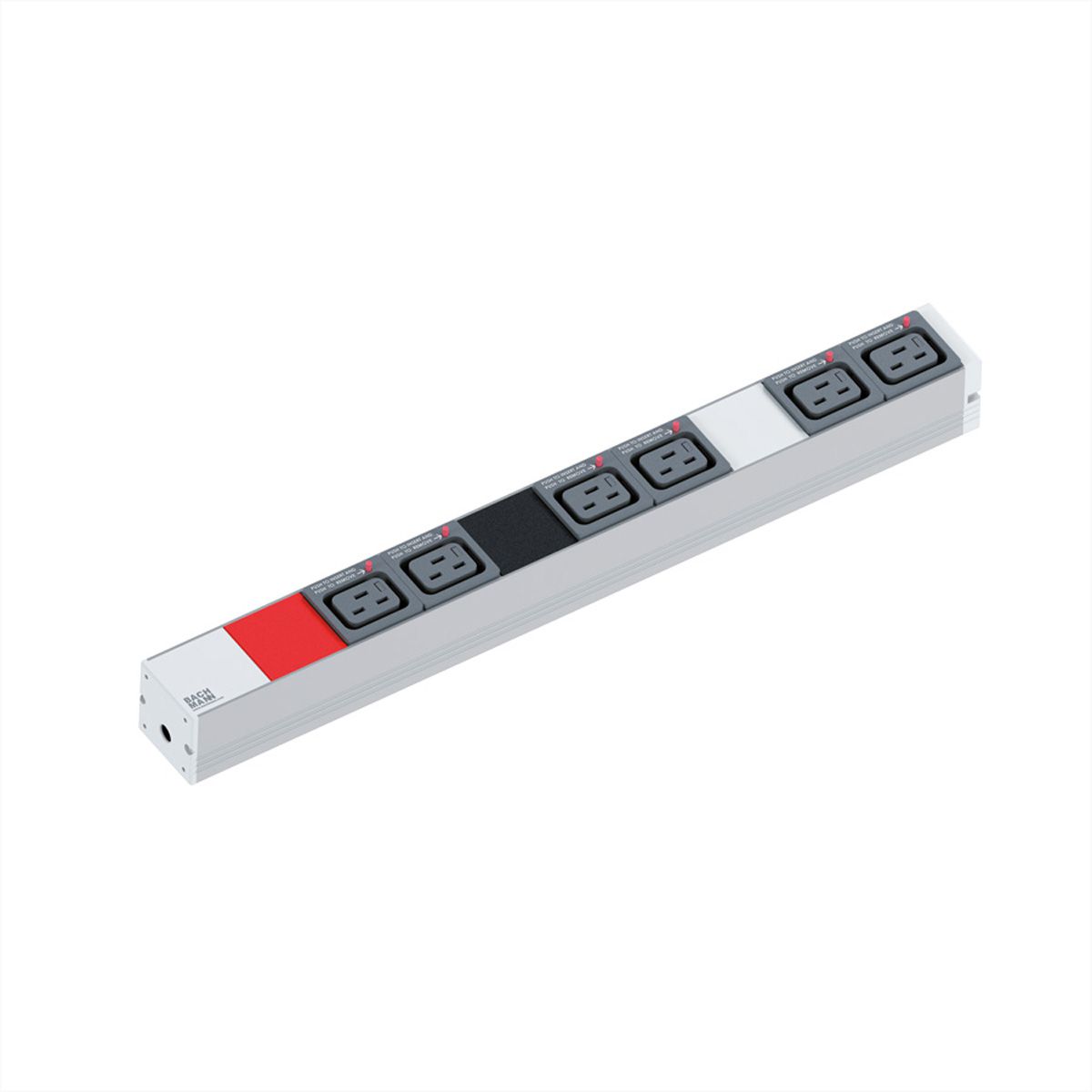

BACHMANN IT PDU ALU 1U 6x C19 plug 3x16A CEE red

Item no. 19072188 Brand / Manufacturer BACHMANN Manuf. item no. 800.0111 EAN 4016514048199 Item weight 1.752 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day
Download PDF

Description

For future-oriented, highly efficient power distribution in data centres, server racks and network racks.

The dimensions of the high-quality and very stable aluminium profile are a compact 44 x 47 mm. - The space-saving design provides space for data cabling and air routing for air conditioning the server rack. - Aluminium socket strip, 1U profile 44 x 47mm for vertical mounting - Installation height in the enclosure 483mm - 6x C19 cold appliance sockets, lockable - Phases marked phase1/phase2/phase3 - Supply cable: 3.0m H05VV-F 5G2.5mm² with CEE plug 3-phase 16A red - Incl. Mounting bracket packed in cardboard box - Dimensions: 1075 x 44 x 47mm

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Vertikal IT PDU
Colour
silver
Length
3 m
Function
19" socket strip
Mounting form
Vertikal
Max. capacitance
3x3600W
Max. voltage
400V AC
ON/OFF Switch
no
Number of socket pots
6
Quantity of outputs/angles
6
Output alignment
6x C19
Socket type
IEC320 C19, 16A
Material (casing)
Aluminium
Colour (Design profile)
Aluminium
Connection cable
3ph Zuleitung 3,0m CEE 16A
Plug type
CEE red 16A 3P+N+PE 400V
Regional use
Without restriction
Height
482.6 mm
Width
44 mm
Depth
47 mm
Weight
1.7 kg
Height of packaging (single piece)
130 mm
Width of packaging (single piece)
90 mm
Depth of packaging (single piece)
800 mm
Package weight (single piece)
1.752 kg

Downloads

Manufacturer data sheet - English (40.4 KB) Safety instructions - Deutsch - English - Français - Italiano - Español (467.0 KB)
