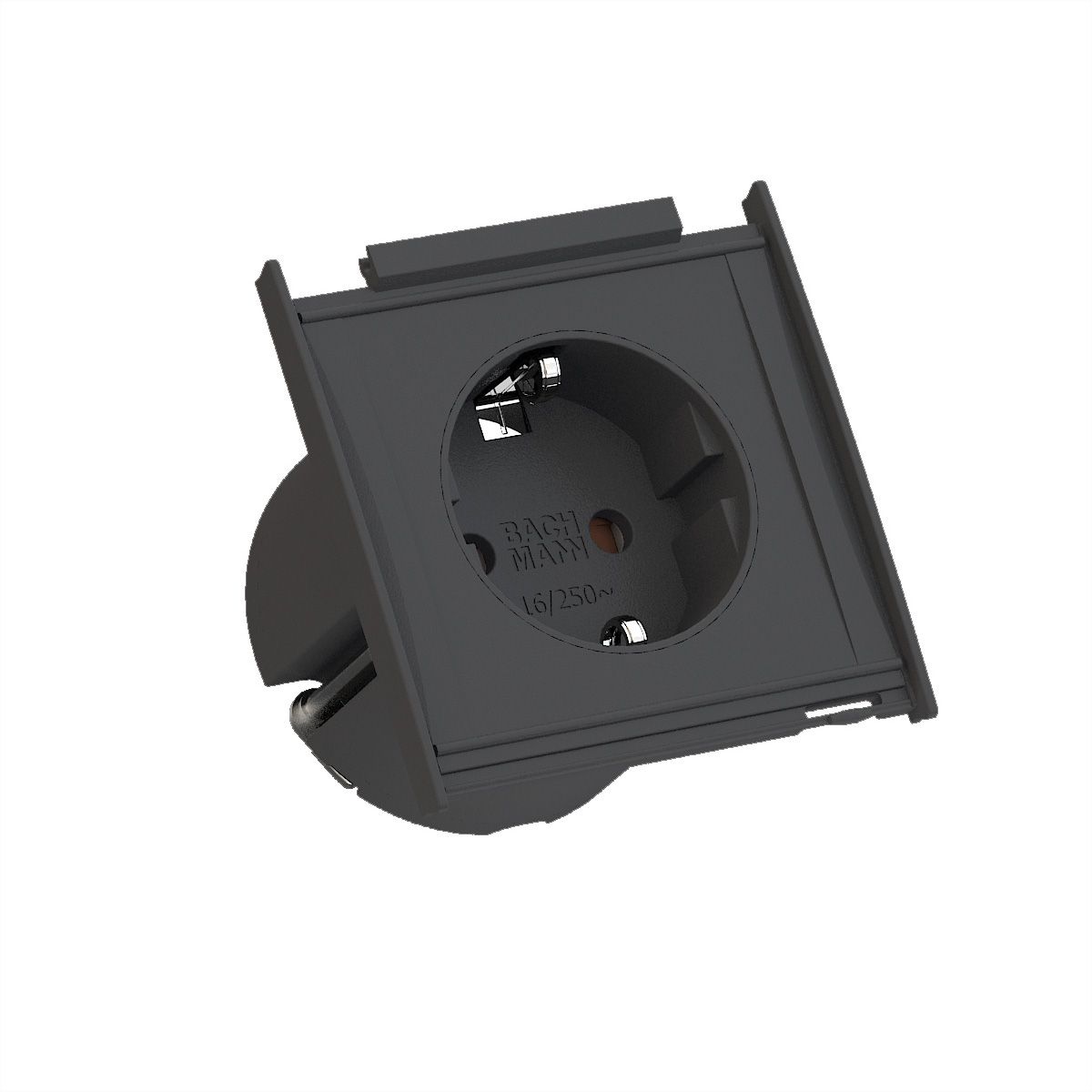

BACHMANN KAPSA XX-Small 1x earthing contact, Mounting plug

Item no. 19073930 Brand / Manufacturer BACHMANN Manuf. item no. 927.400 EAN 4057298033117 Item weight 0.395 kg
BACHMANN

Please log in to see our prices and to be able to order. Delivery only to industry, trade, crafts, public institutions, authorities and comparable institutions. No sale to private individuals!

Login
In stock - available for delivery within a few days
Ordered by 2 p.m. - usually shipped the same day

Description

KAPSA is a design-orientated and space-saving power strip with classic, minimalist shapes

Designed for kitchens, offices and other areas of application in living and working environments. - The hinged and replaceable cover provides protection against external influences and is available in several versions. Modular assembly enables flexible configuration in several length variants. - Installation from above guarantees simple and optional retrofitting. A low installation depth of approx. 45 mm and solid design characterise KAPSA and prove it: Less is more.

- Easily replaceable cover available in several versions - Modular assembly options - Aluminium cover with high-quality feel - Low installation depth (approx. 45 mm) - Easy, even retrofitting from above -

Specifications

Manufacturer
BACHMANN
Product group
Power Bars
Product type
Integrated unit KAPSA
Colour
black
Length
2 m
Number of socket pots
1
Output alignment
1x geaard stopcontact
Socket type
3P. German, CEE 7/3, Type-F
Colour (Cable)
black
Plug type
3P. German, CEE 7/7, Type-E/F
With enhanced contact protection
yes
Regional use
Germany, Austria, Netherlands
RAL colour
RAL 9005 Jet black
Mains connection
Protective contact plug, Type-E/F
Operating temperature min.
-5 °C
Operating temperature max.
40 °C
Storage temperature min.
-25 °C
Storage temperature max.
60 °C

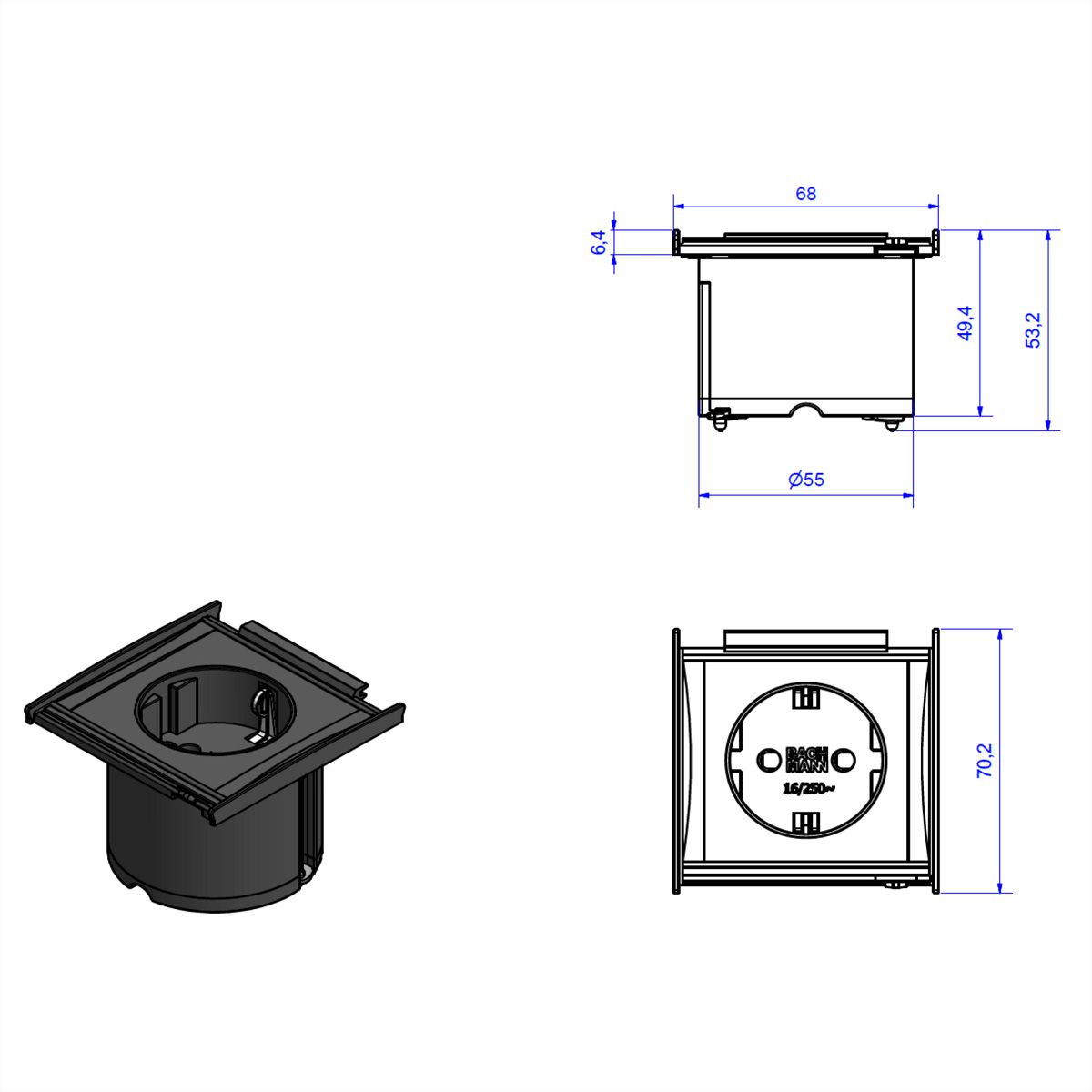

Height
0.12 m
Width
0.05 m
Depth
0.68 m
Weight
0.4 kg
Height of packaging (single piece)
110 mm
Width of packaging (single piece)
130 mm
Depth of packaging (single piece)
130 mm
Package weight (single piece)
0.395 kg

The BACHMANN brand stands for customer-oriented electrotechnical components and systems.

In the development and manufacture of the products, emphasis is also placed on future topics such as energy management and energy efficiency for data centers and industry as well as building installation systems. The company benefits from almost 70 years of experience in the electronics industry.
