Description

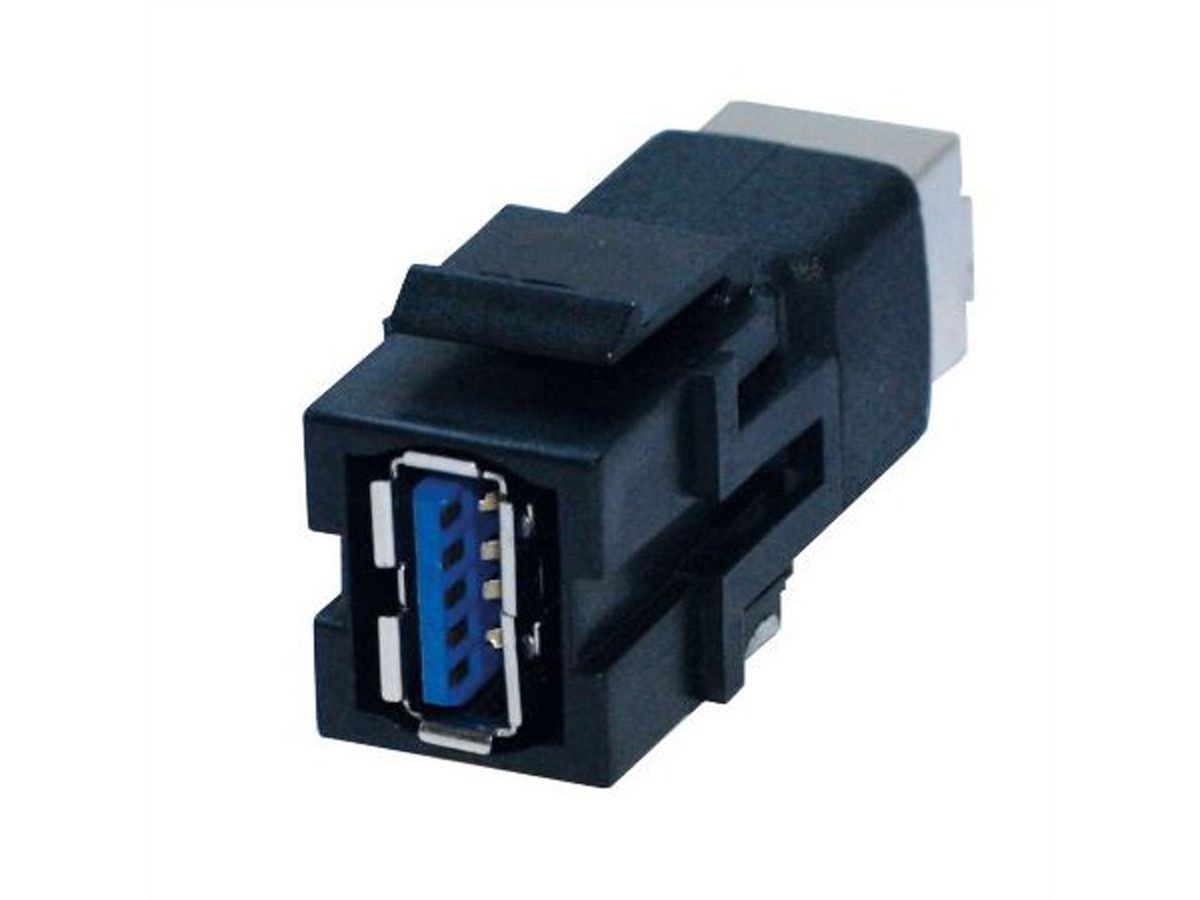

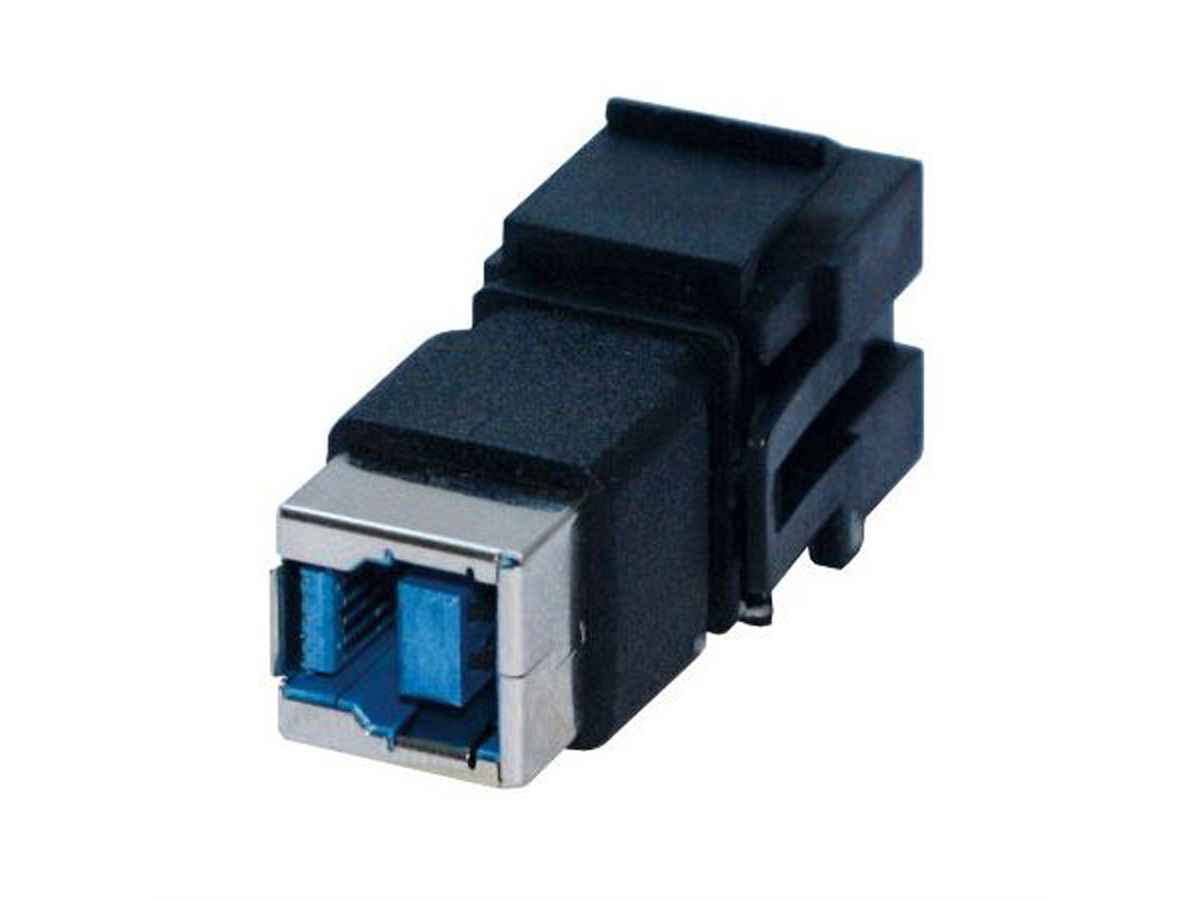

Front: USB A socket Rear: USB B socket

Data, audio and video connections can be fitted easily and individually. - BACHMANN custom modules are the central components for video, audio and network connections. Thanks to their design, they enable simple and flexible installation in the areas of facility systems, rack and electrical installations. The standardised custom modules enable optimum configuration for every media technology and network connection requirement. Socket / socket or connections with screw terminals also ensure the simplest possible installation. BACHMANN custom modules are also an excellent addition to your electrical installation. Just a few components make the custom modules compatible with the standard switch programmes of well-known manufacturers. Simple assembly and disassembly means that all installations can be quickly adapted to changing requirements or the latest state of the art. - Advantages at a glance - Flexibly interchangeable modules - For data, video and audio connections - Use in facility systems, rack installations and

Integration into all switch ranges from well-known manufacturers - Simple connection via socket / socket or screw terminal connection - Modules for data connections: - 2x Keystone: (19.07.1802) receptacle for 2 data sockets with Keystone fastening or (19.07.1811) receptacle for 1 data socket with Keystone fastening - 1x USB 3.0 A/A Keystone (19.07.1784): required installation depth: 85 mm, socket A / socket A, installation in Keystone frame 917.000 or 917.001 - 1x HDMI Keystone (19.07.1785): Front: socket HDMI, rear: socket HDMI, without cable, required installation depth: 85 mm, installation in Keystone frame 917.000 or 917.001 - CAT5e coupling socket / socket (19.07.1803): Keystone mounting front and rear: RJ45: RJ45, shielded - CAT6 coupling socket / socket (19.07.1793): Front: RJ45 (keystone attachment), rear: RJ45 (E-DAT Aufh.), type: BTR E-DAT, shielded - 1x USB 2.0 A/B (19.07.1782): required installation depth: 85 mm, socket A / socket B - Modules for audio and video connections black -

+ Miniklinke (19.07.1783): Buchse DVI-I und Miniklinke / Buchse DVI-I und Miniklinke mit je ca. 0,1m Leitung; Einbautiefe: ca. 75 mm

• RS232 Buchse (19.07.1781): RS232 SubD 9-polig Buchse / Buchse; Einbautiefe: ca. 70 mm
• VGA + Miniklinke (19.07.1827): Buchse VGA und Miniklinke; Einbautiefe: ca. 70 mm
• Display Port (19.07.1670): Buchse Display Port / Buchse Display Port, ohne Leitung; Einbautiefe: ca. 70 mm

• LWL-LC Duplex Keystone (19.07.1786): LWL-LC Duplex Kupplung
• LWL-SC Keystone (19.07.1787): LWL-SC Kupplung
